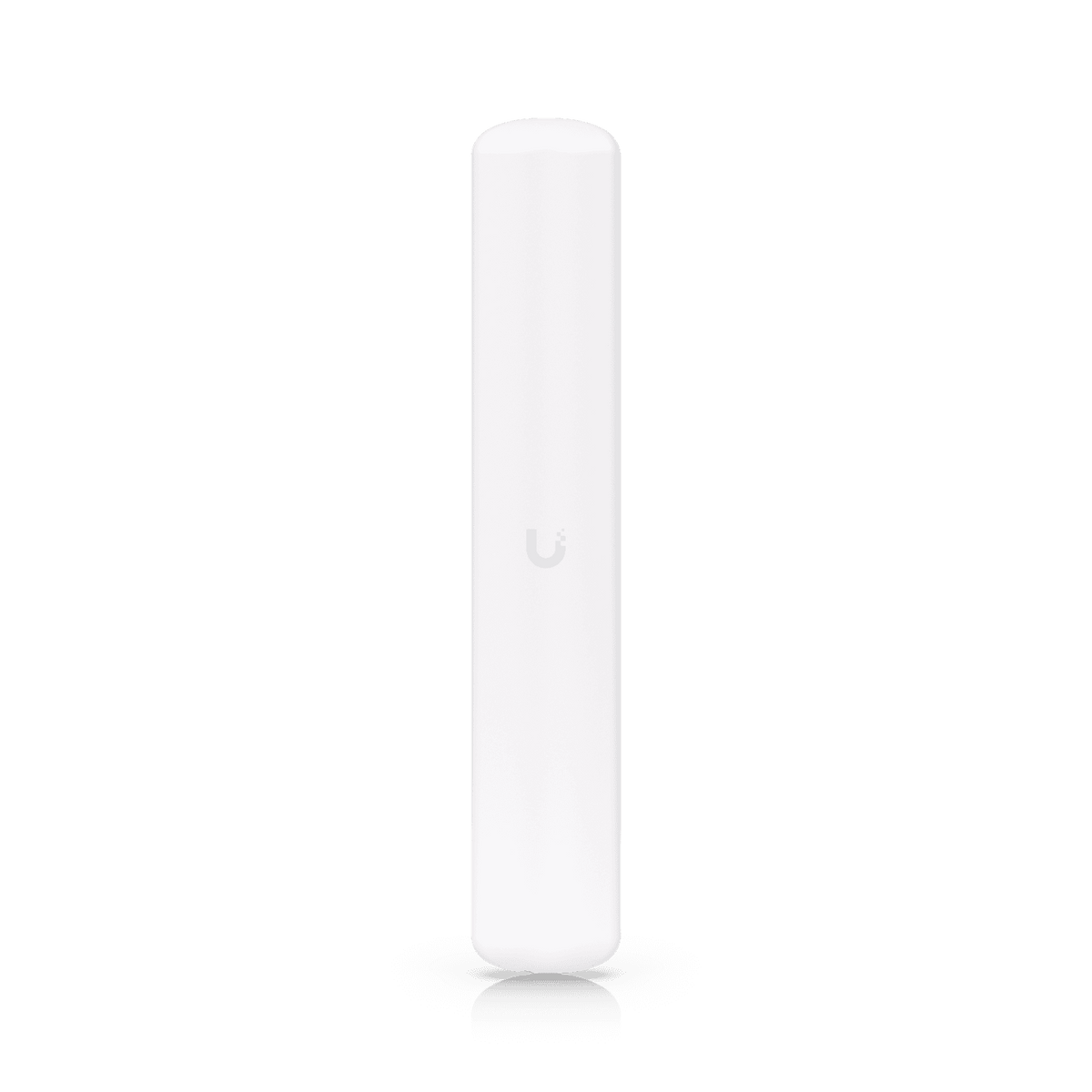

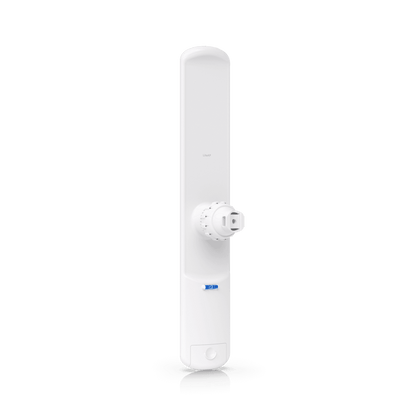

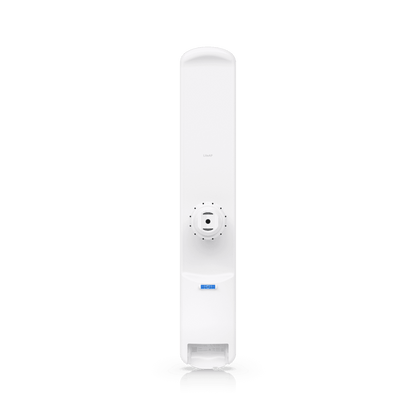

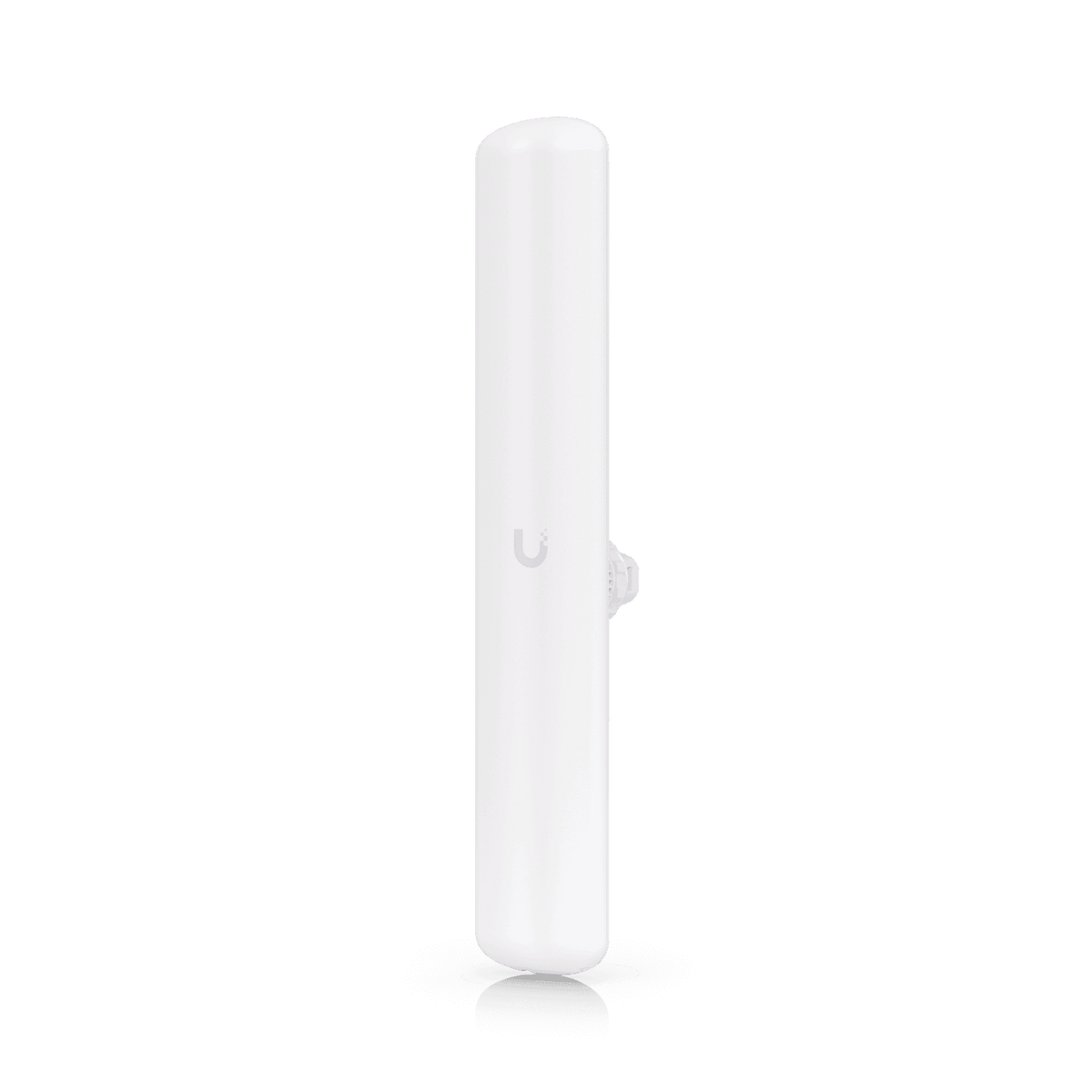

Ubiquiti UISP airMAX LiteAP AC 5GHz 16dBi 120° Radio

Ubiquiti's LAP-120 is an airMAX ac 5GHz radio with 16dBi, 120° sector antenna (Radio + Antenna Included). It is designed as a lightweight, cost-effective PtMP (point to multipoint) access point solution. The bracket requires minimal tools for adjustment to simplify installation.

FEATURES:

• Wide Wireless Net: Acts like a wireless spotlight, casting a wide 120-degree arc to beam internet to multiple buildings simultaneously.
• All-in-One Blade: Consists of a single, ultra-lightweight vertical blade (only 420 grams) that combines both the radio and the antenna into one piece.
• High-Speed Link: Pumps out 450+ Mbps of data over several kilometres across an empty landscape.

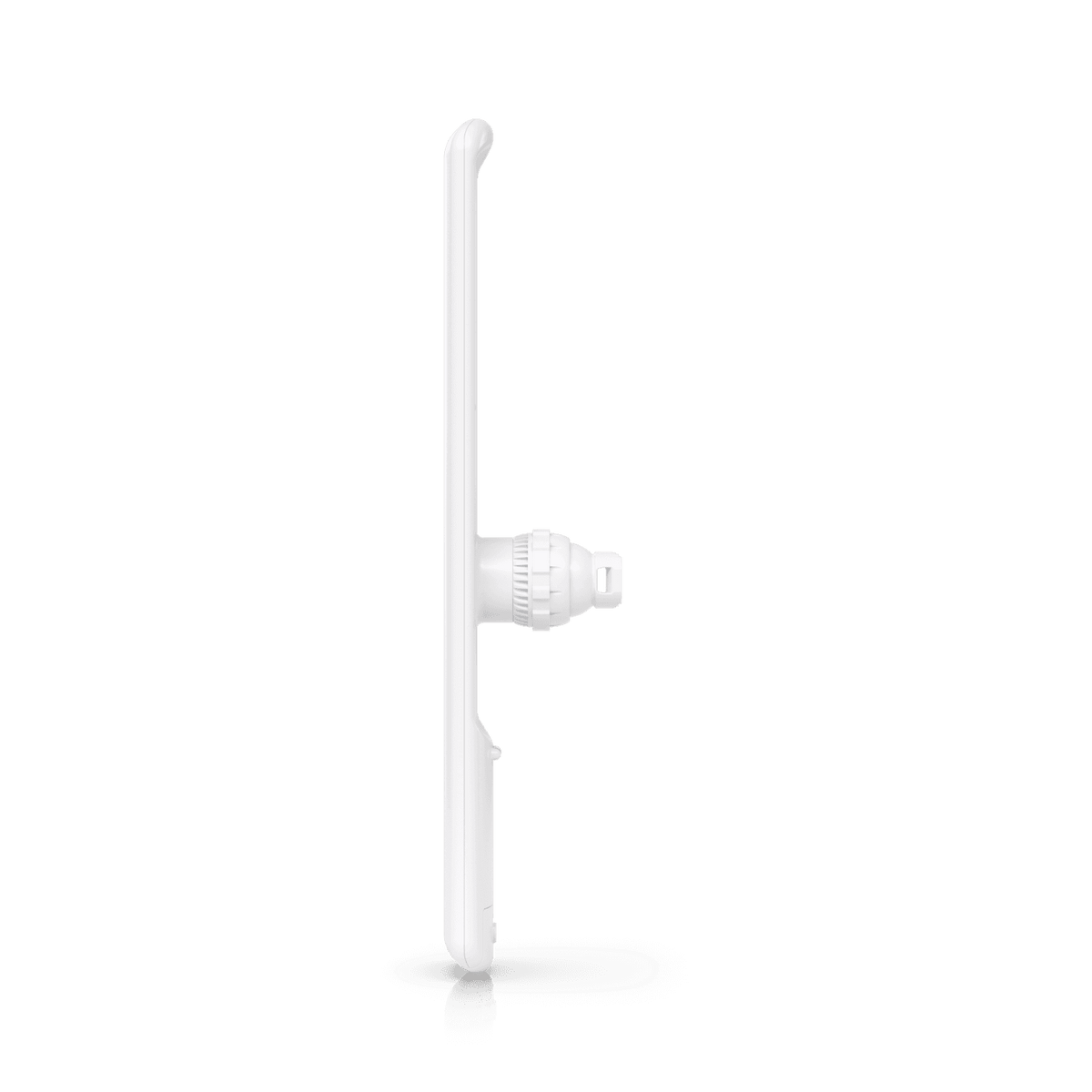

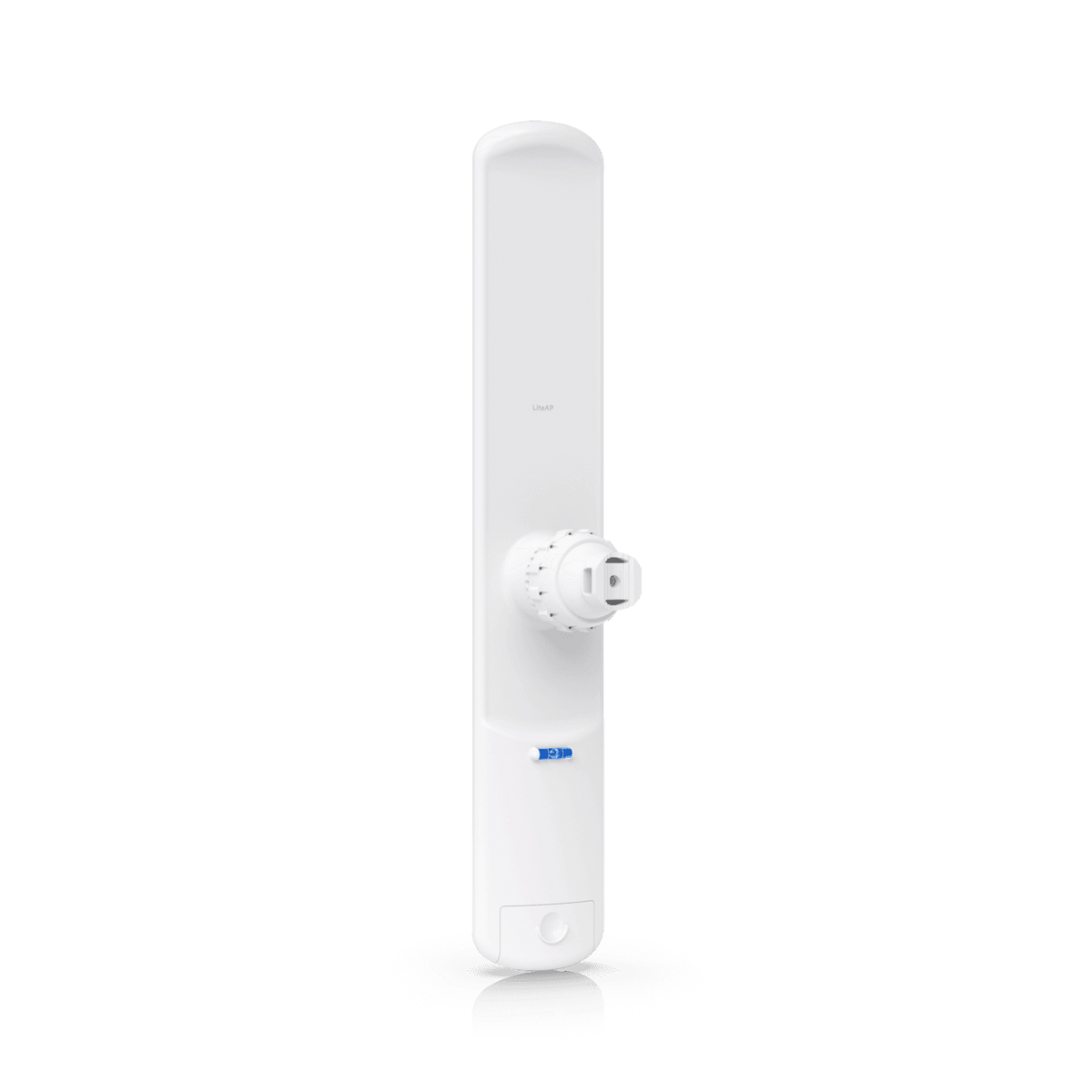

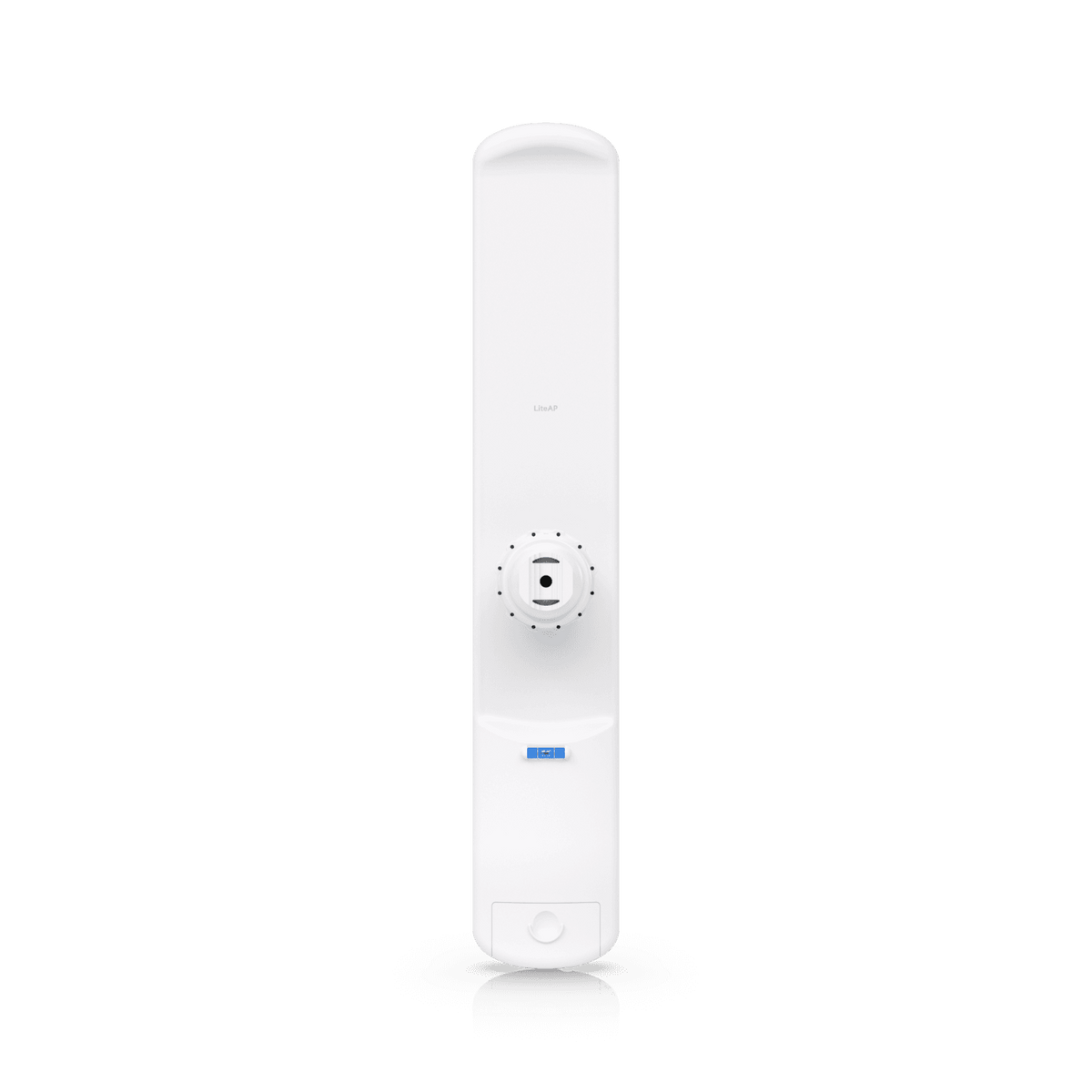

• Swivel Alignment: Comes with a built-in ball-joint mount, allowing you to easily tilt it up, down, or sideways for perfect aiming.
• Smartphone Setup: Includes a secondary management radio so technicians can easily configure the settings using an app from the ground.
• Bridge Only: Does not connect to standard devices like smartphones or laptops; it only communicates with other Ubiquiti outdoor bridge stations.

SPECIFICATIONS:

• Dimensions: 452.3 × 78.7 × 54.4 mm (17.8 × 3.1 × 2.14")
• Weight: 420 g (14.82 oz)
• Wind Loading: 77 N at 200 km/h (17.3 lbf at 125 mph)
• Wind Survivability: 200 km/h (125 mph)

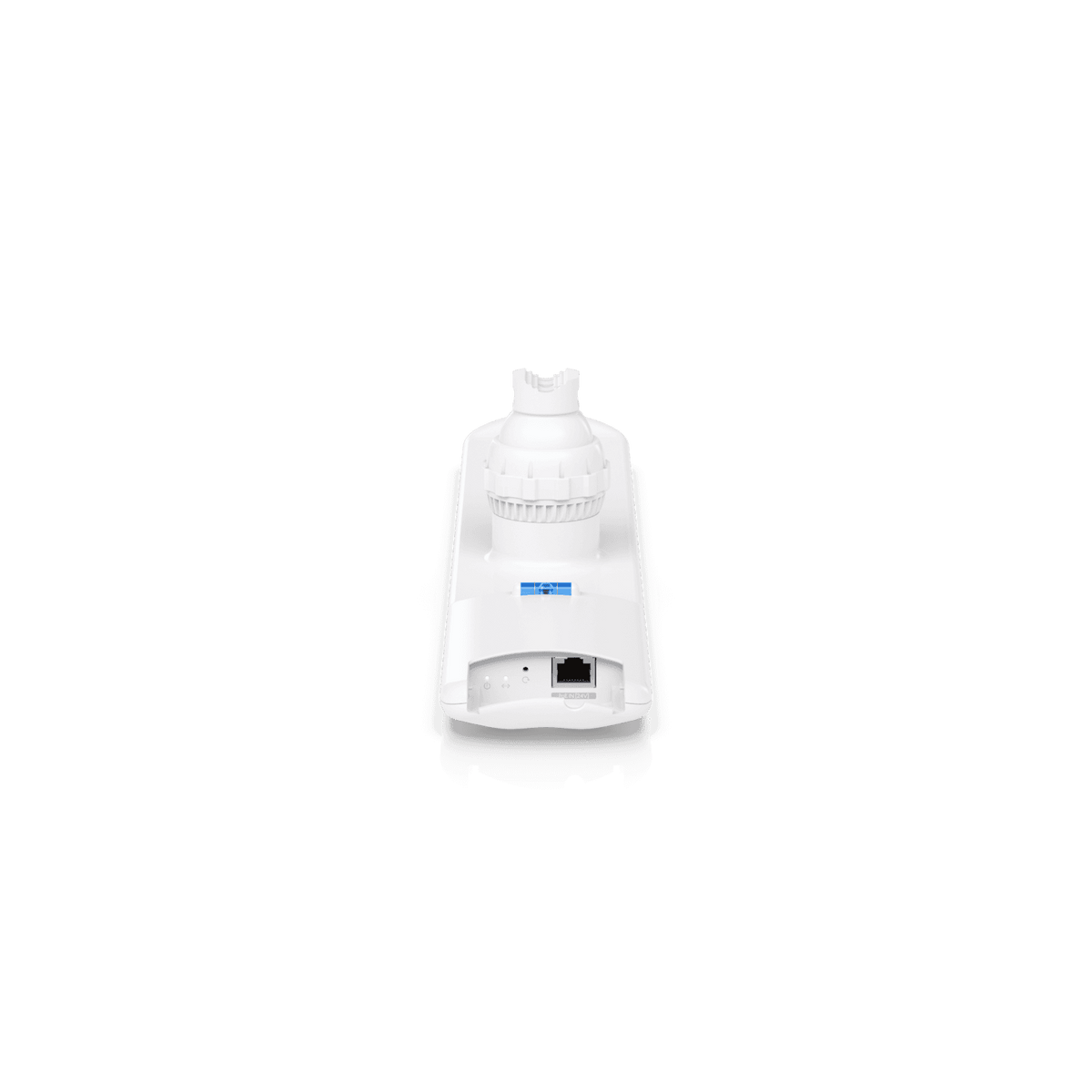

• Networking Interface: 1 × GbE RJ45 port
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power Supply: 24V, 0.5A gigabit PoE adapter (Included)
• Supported Voltage Range: 20–27V DC
• Max. Power Consumption: 8W
• Ambient Operating Temperature: -40 to 70°C (-40 to 158°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Shock and Vibration Certification: ETSI300-019-1.4
• Certifications: CE, FCC, IC
• Operating Modes:
• Access Point
• Station
• Ubiquiti Specific Features:
• airMAX AC Mode: ✓
• Discovery Protocol: ✓
• Frequency Band Offset: ✓
• Traffic Shaping with Burst Support: ✓
• 30/50/60 MHz Channels: ✓
• Services:
• Bridging: ✓
• DHCP: ✓
• Ping Watchdog: ✓
• Routing: ✓
• SNMP: ✓
• SSH: ✓
• Webserver: ✓
• Distance Adjustment:
• Ackless Mode: ✓
• Dynamic Ack: ✓
• QoS: WMM packet classification with user-level priority: High, Medium, Low
• Statistical Reporting:
• Data Rates: ✓
• Ethernet Link Rate: ✓
• Packet Errors: ✓
• Up Time: ✓
• Wireless Distance: ✓
• Antenna Gain: 16 dBi
• Radio Frequency — Supported Frequency Range:
• Worldwide: 5150–5875 MHz
• US/CA:
• U-NII-1: 5150–5250 MHz
• U-NII-2A: 5250–5350 MHz
• U-NII-2C: 5470–5725 MHz
• U-NII-3: 5725–5850 MHz

WHAT’S IN THE BOX:

• LiteAP AC (LAP-120) Unit (The sleek, integrated radio and antenna blade) x1
• Ball-Joint Mount Assembly (Rear bracket that gives 3-axis alignment flexibility) x1
• Metal Strap / Hose Clamp (For securing the mount directly onto a tower pole) x1
• 24V, 0.5A Gigabit PoE Injector with a mounting bracket x1
• Power Cord x1

WARRANTY:

• 12 Months
