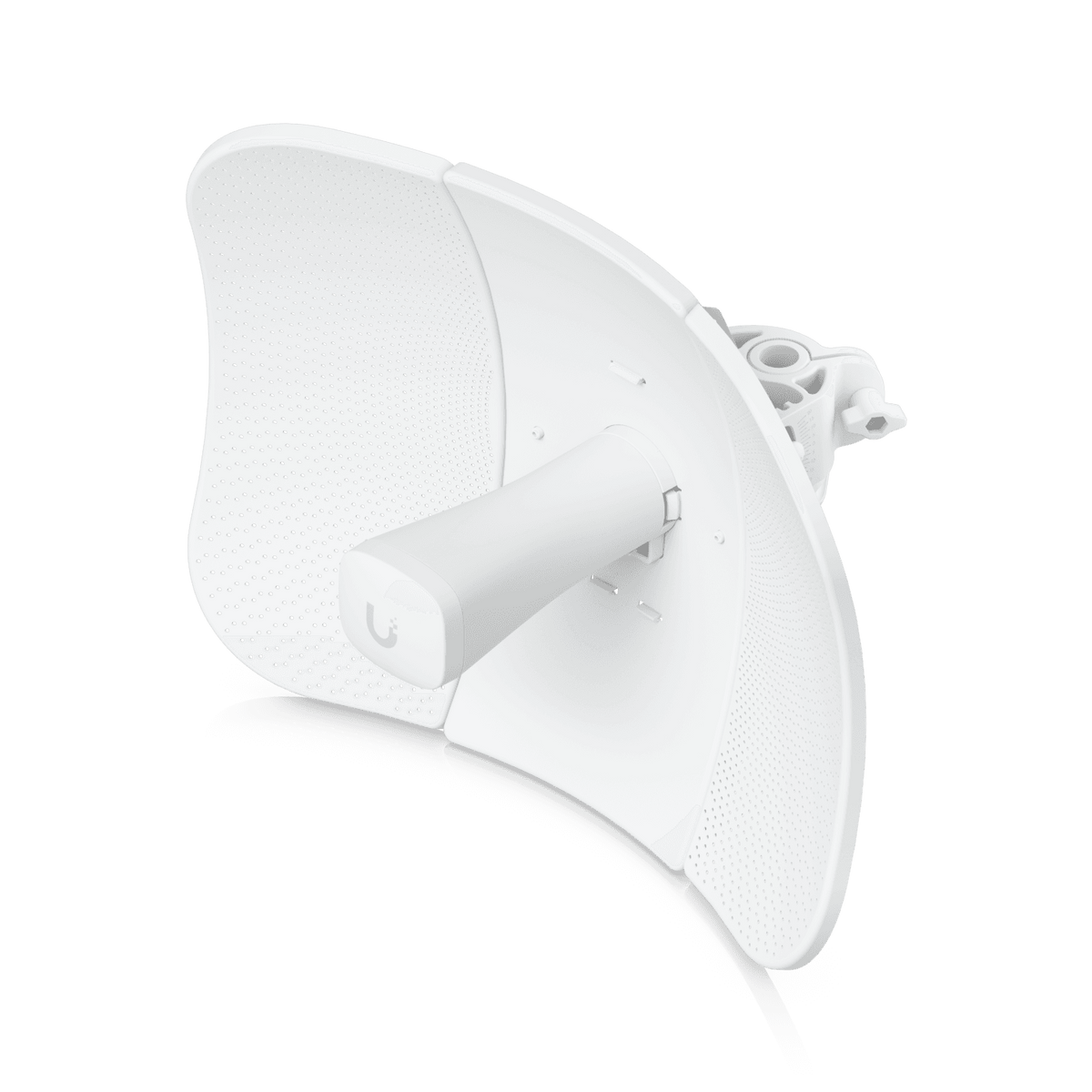

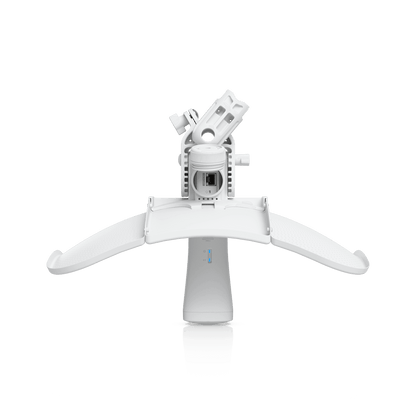

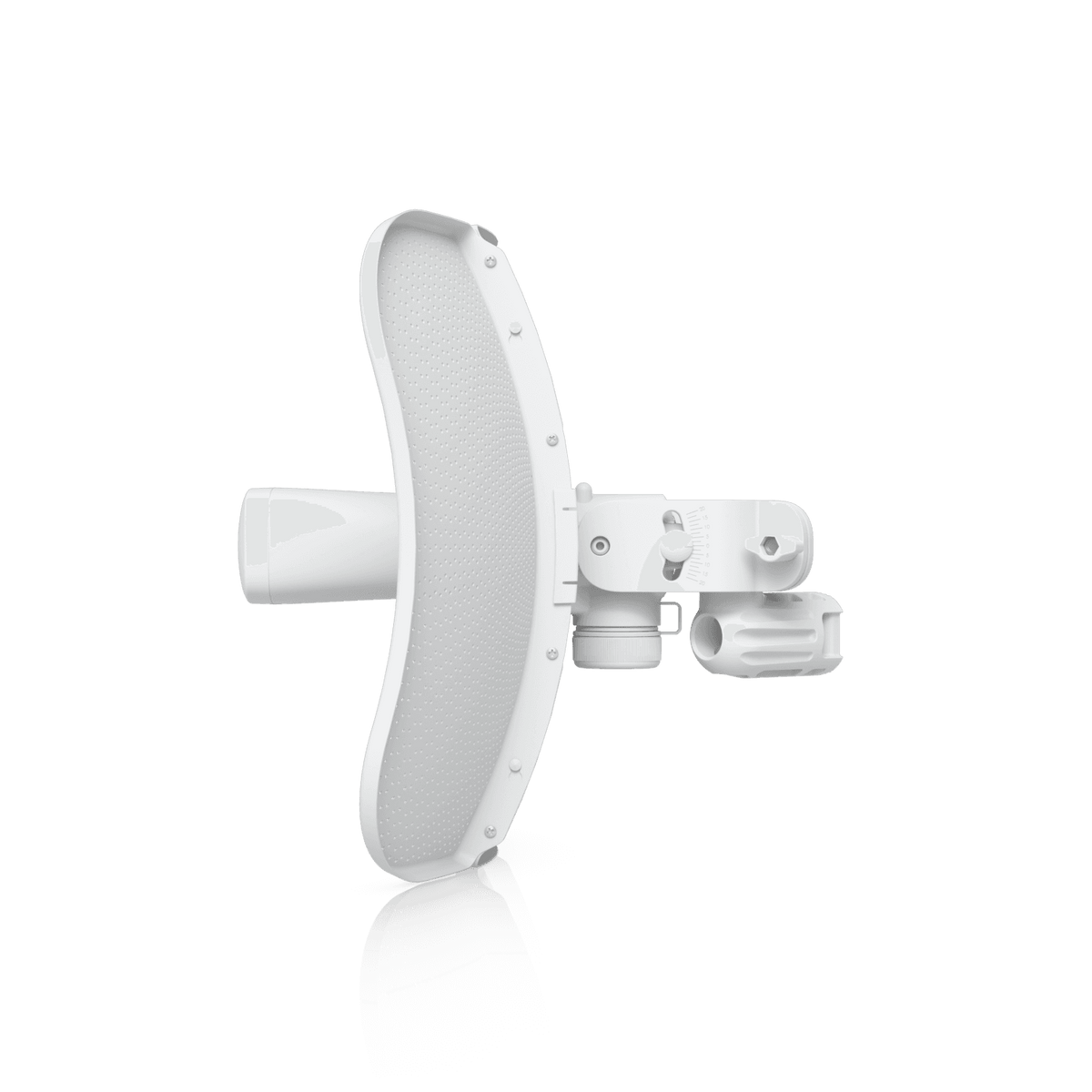

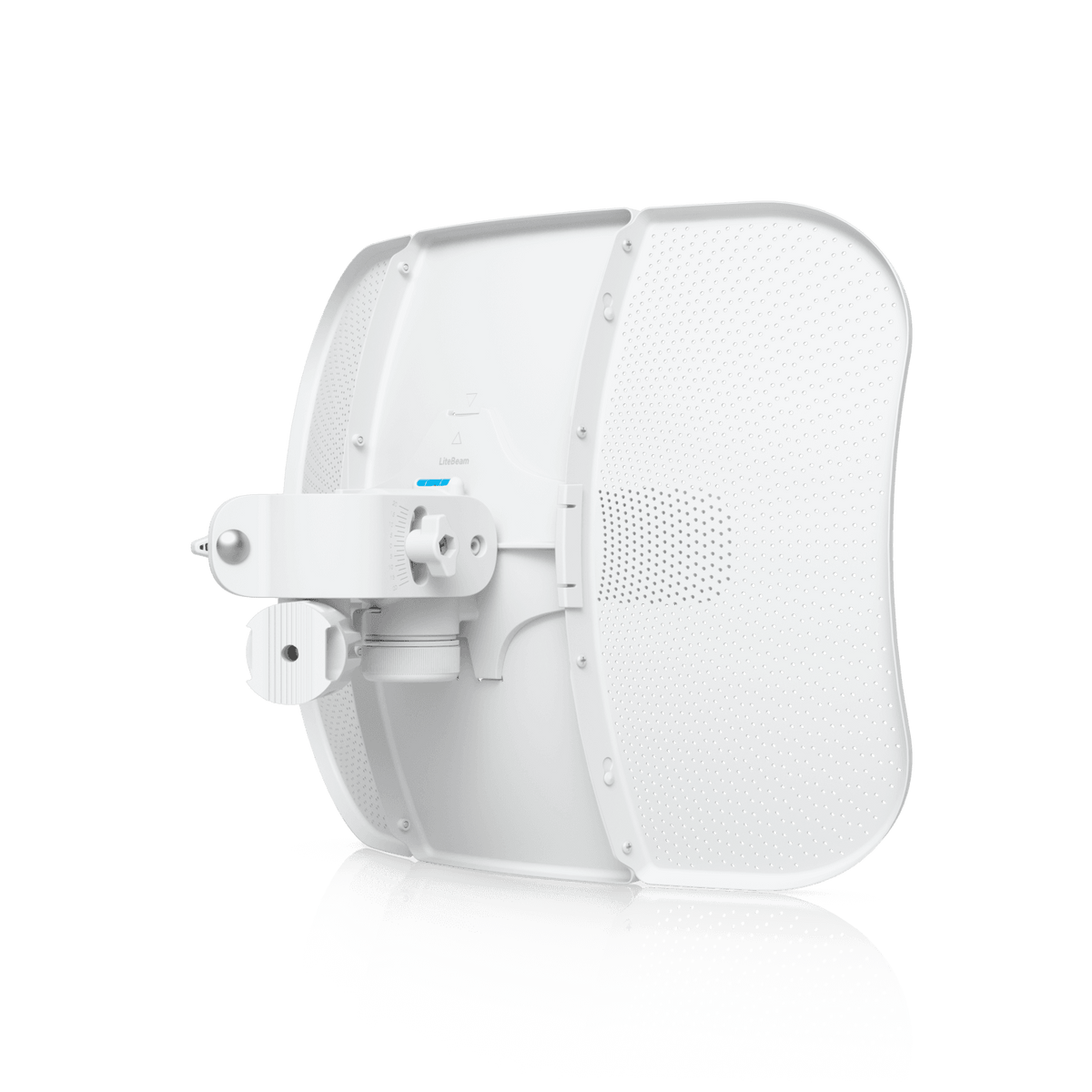

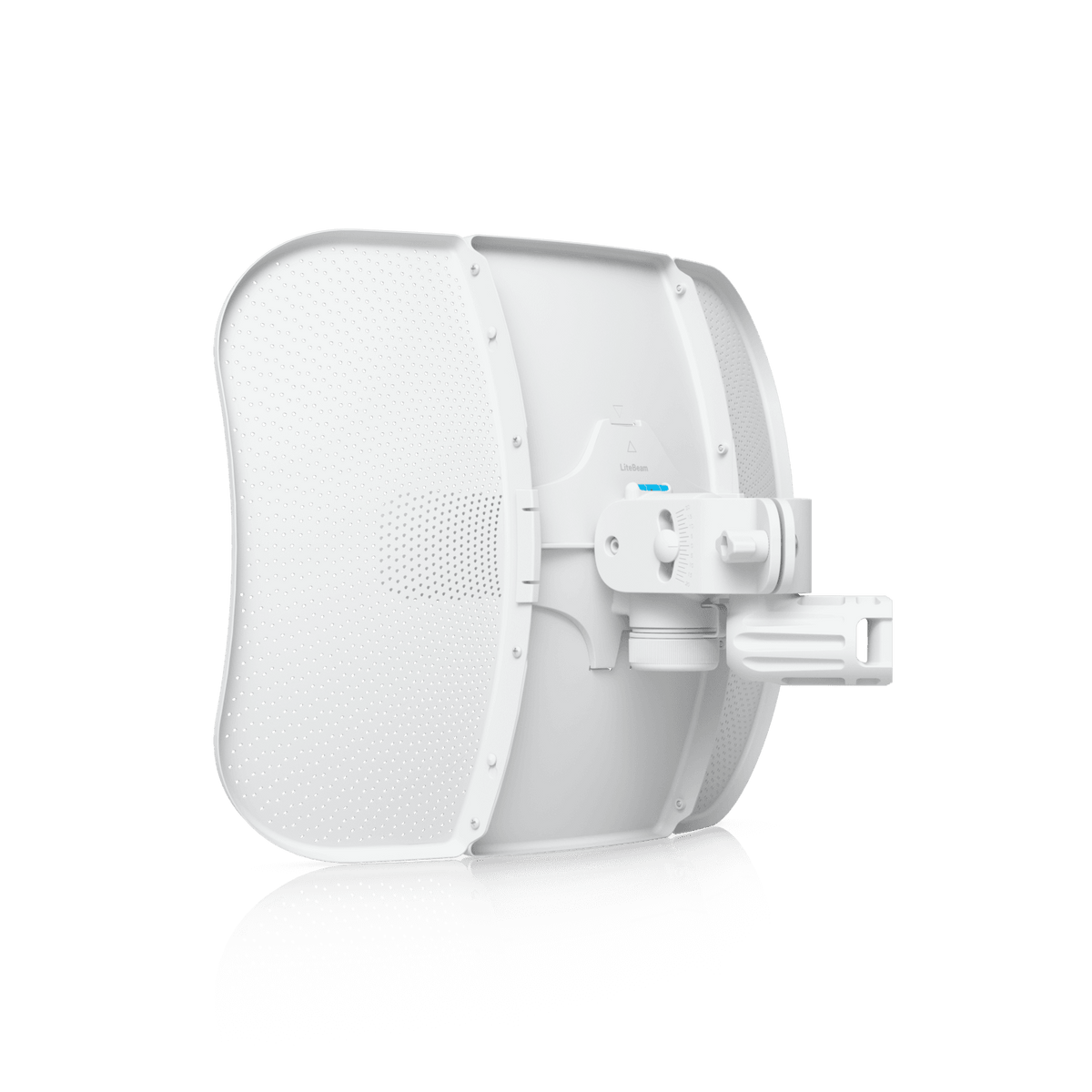

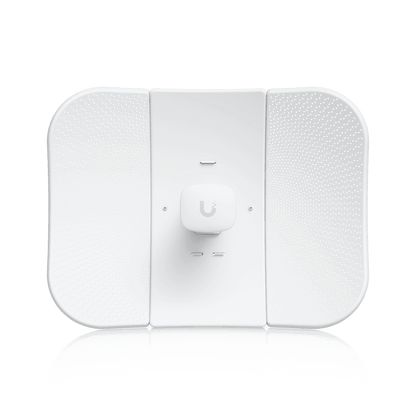

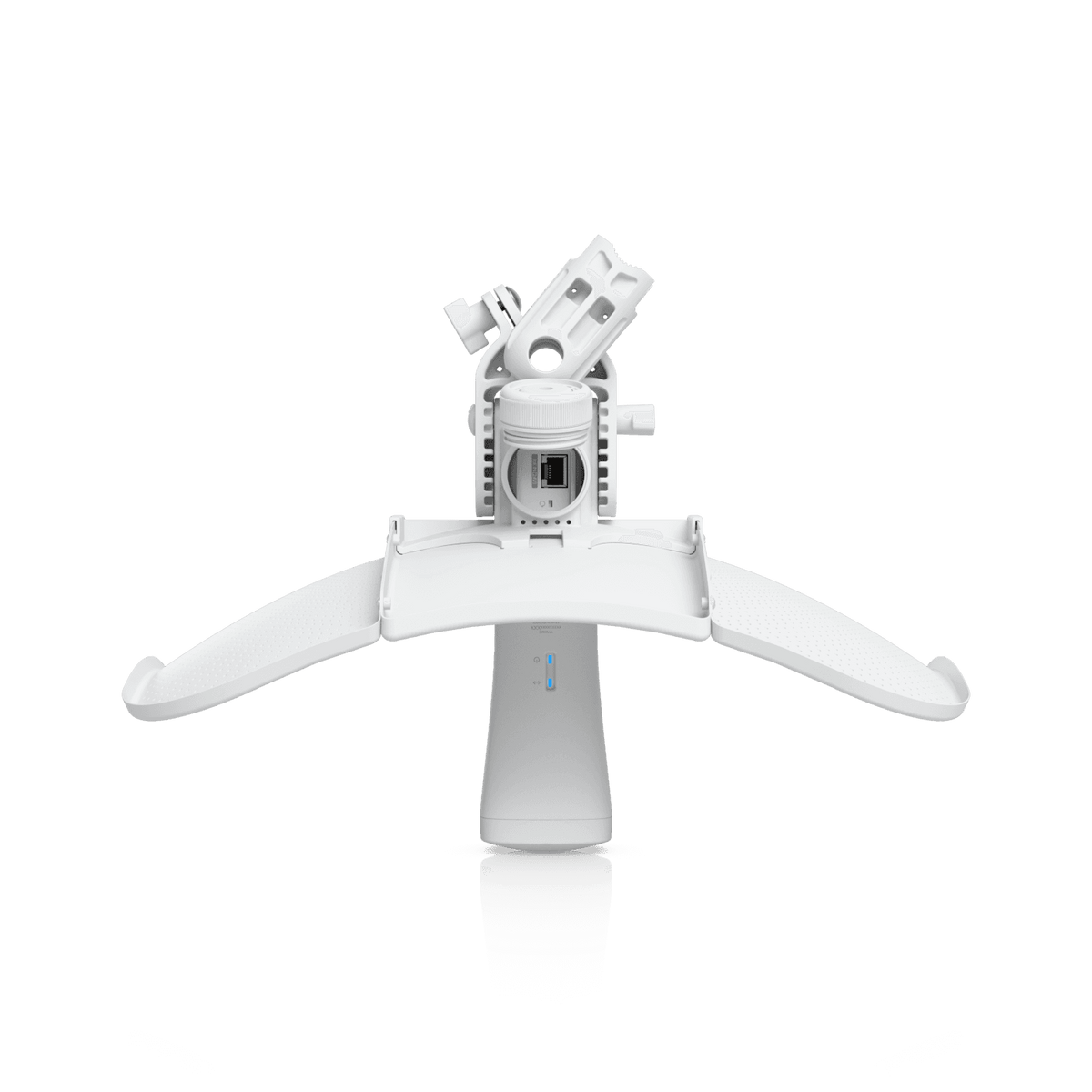

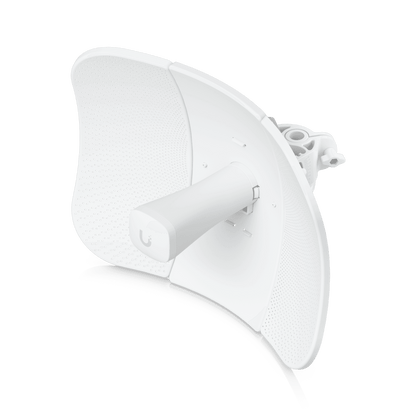

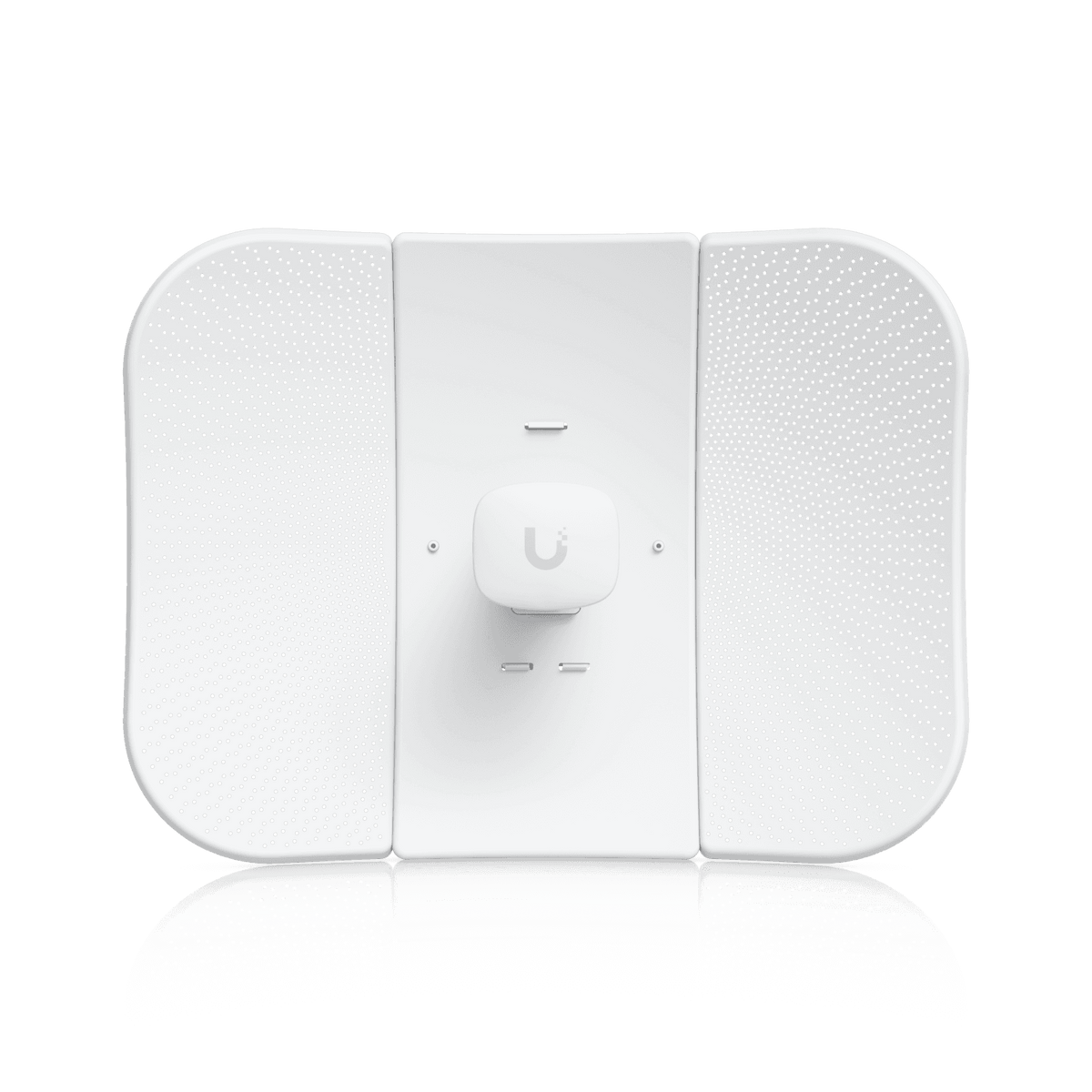

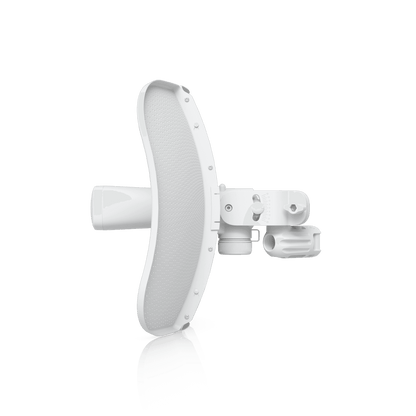

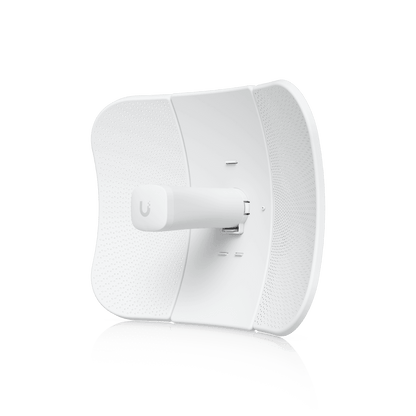

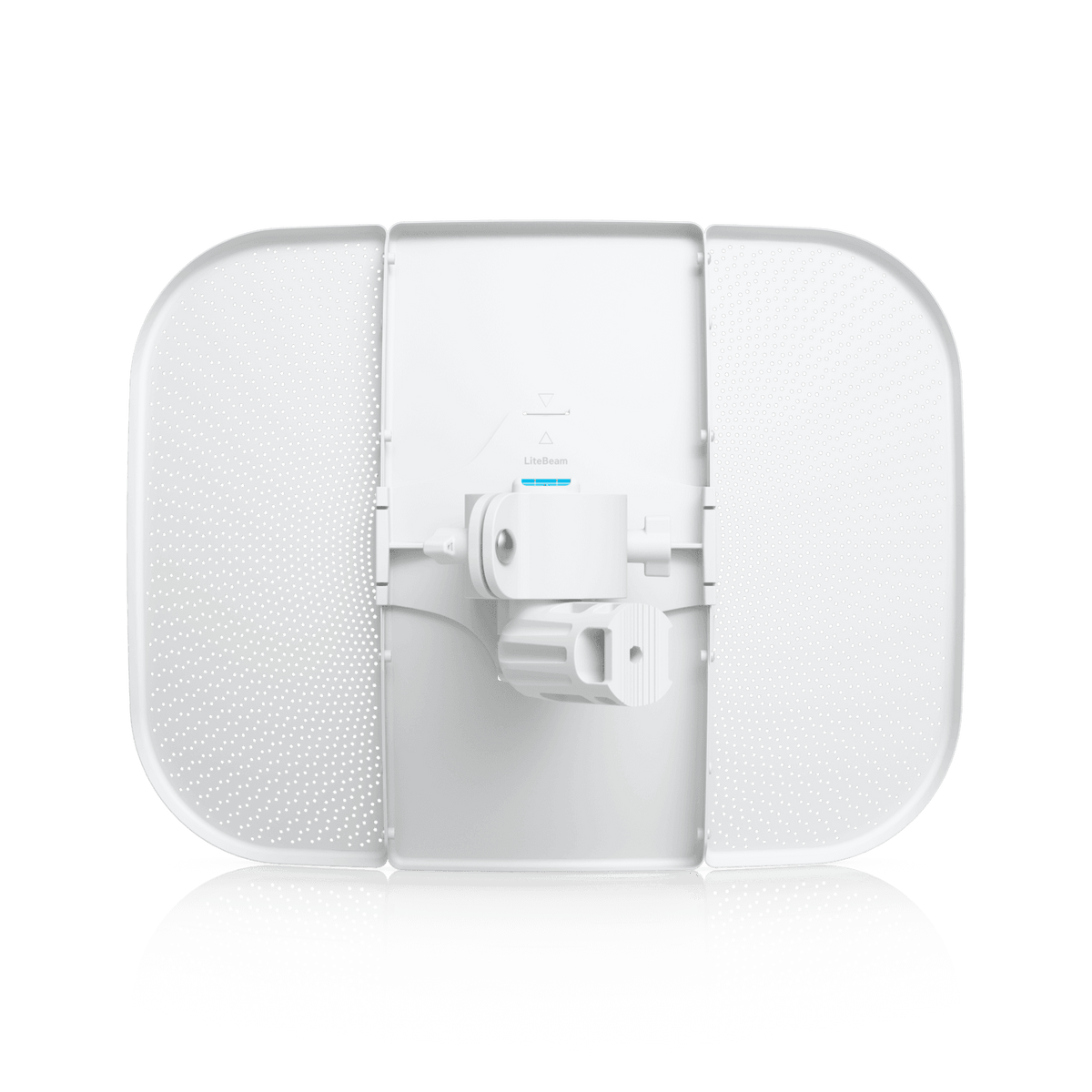

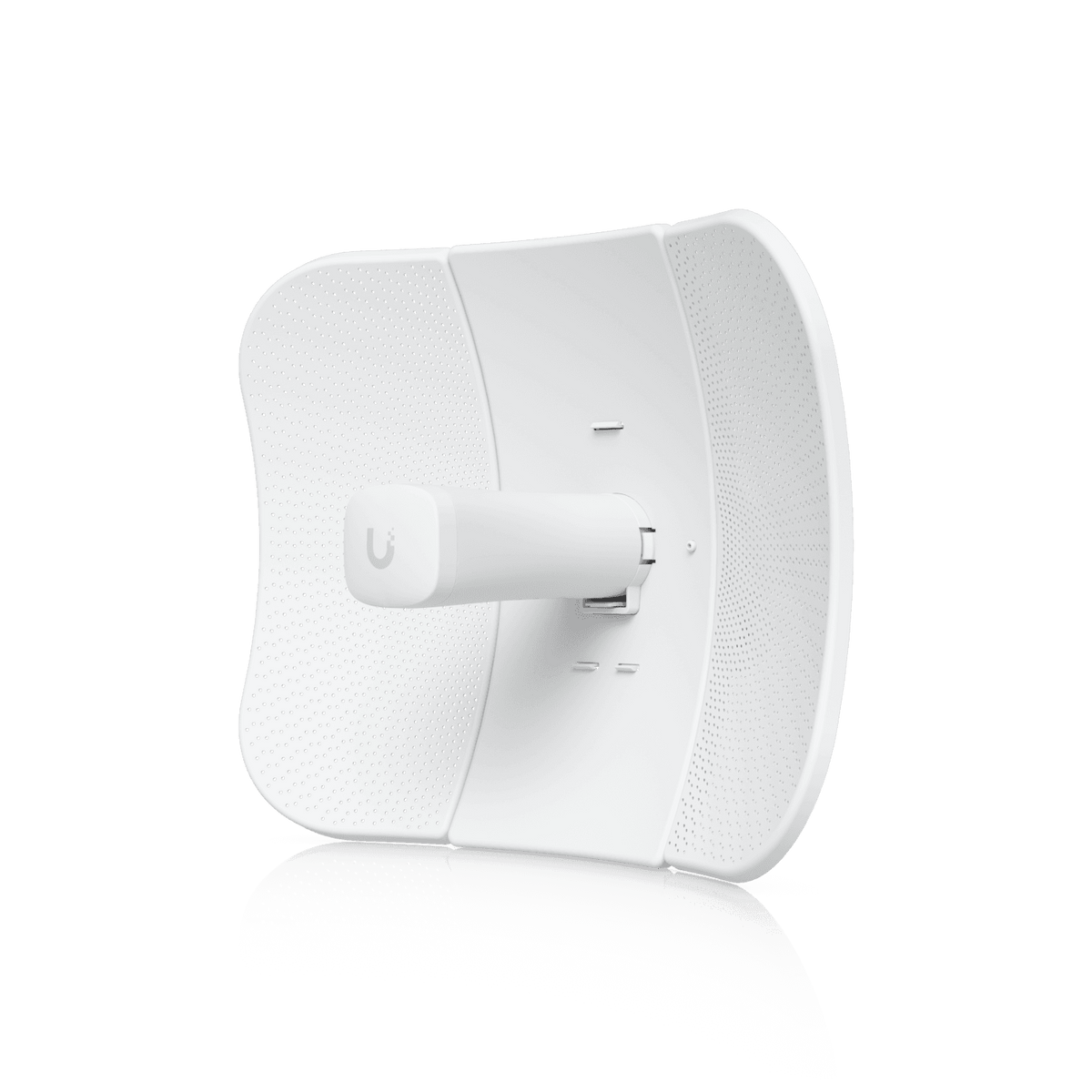

Ubiquiti UISP airMAX LiteBeam AC 5GHz 23dBi Radio

Ubiquiti's LBE-5AC-GEN2 is an airMAX AC 5GHz radio with a 23dBi antenna. It is designed as a lightweight, cost-effective, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

FEATURES:

• Long-Distance Sniper: Focuses its signal into a tight, high-gain beam to shoot internet across extreme distances of 15+ kilometres.
• Featherlight Snap-Together Design: Completely toolless assembly that snaps together in minutes and weighs under 1 kg, making it effortless to carry up a ladder.
• Wind-Friendly Grid: The open, grid-style dish layout lets heavy winds pass straight through it, preventing the antenna from twisting out of alignment.
• 450+ Mbps Speeds: Pumps out high-speed, fiber-like data rates over vast, open landscapes.
• Phone Alignment: Features a separate internal configuration channel so you can perfectly aim and monitor the dish using a smartphone app.
• Bridge Only: Does not talk to standard phones or laptops directly; it is strictly used to connect to other Ubiquiti outdoor stations.

SPECIFICATIONS:

• Dimensions: 358 × 271.95 × 272.5 mm (14.1 × 10.7 × 10.7")
• Weight:
• Without mount: 800 g (1.8 lb)
• With mount: 980 g (2.2 lb)
• Wind Loading: 275 N at 200 km/h (61.8 lbf at 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• Networking Interface: 1 × GbE RJ45 port
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power Supply: 24V, 0.3A gigabit PoE adapter (Included)
• Supported Voltage Range: 22–27V DC
• Max. Power Consumption: 7W
• Max. Power Output: 25 dBm
• Ambient Operating Temperature: -40 to 70°C (-40 to 158°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, Anatel: 06359-19-08356
• Operating Modes:
• Access Point
• Station
• Ubiquiti Specific Features:
• airMAX AC Mode: ✓
• Discovery Protocol: ✓
• Frequency Band Offset: ✓
• Traffic Shaping with Burst Support: ✓
• 30/50/60 MHz Channels: ✓
• Services:
• Bridging: ✓
• DHCP: ✓
• Ping Watchdog: ✓
• Routing: ✓
• SNMP: ✓
• SSH: ✓
• Webserver: ✓
• Distance Adjustment:
• Ackless Mode: ✓
• Dynamic Ack: ✓
• QoS: WMM packet classification with user-level priority: High, Medium, Low
• Statistical Reporting:
• Data Rates: ✓
• Ethernet Link Rate: ✓
• Packet Errors: ✓
• Up Time: ✓
• Wireless Distance: ✓
• Total Throughput: 450+ Mbps
• Antenna Gain: 23 dBi
• Radio Frequency — Supported Frequency Range:
• Worldwide: 5150–5875 MHz
• US/CA:
• U-NII-1: 5150–5250 MHz
• U-NII-2A: 5250–5350 MHz
• U-NII-2C: 5470–5725 MHz
• U-NII-3: 5725–5850 MHz
• Management Radio — Supported Frequency Range:
• Worldwide: 2412–2472 MHz

WHAT’S IN THE BOX:

• Center Feedhorn / Radio Unit (The brain of the unit where the ethernet cable plugs in) x1
• Dish Reflector Panels (3 Pieces) (A clever 3-part design that snaps together to form the dish) x3
• Feed Receiver & Rear Mount Housing (Holds the feedhorn and attaches to the dish) x1
• Azimuth Mount / Pole Bracket (Heavy-duty clamp providing elevation adjustment) x1
• Metal Strap / Hose Clamp (For locking the bracket to a mast or pole) x1
• 24V, 0.3A Gigabit PoE Injector and power cord x1

WARRANTY:

• 12 Months
