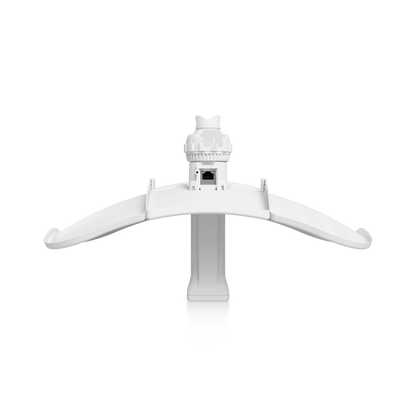

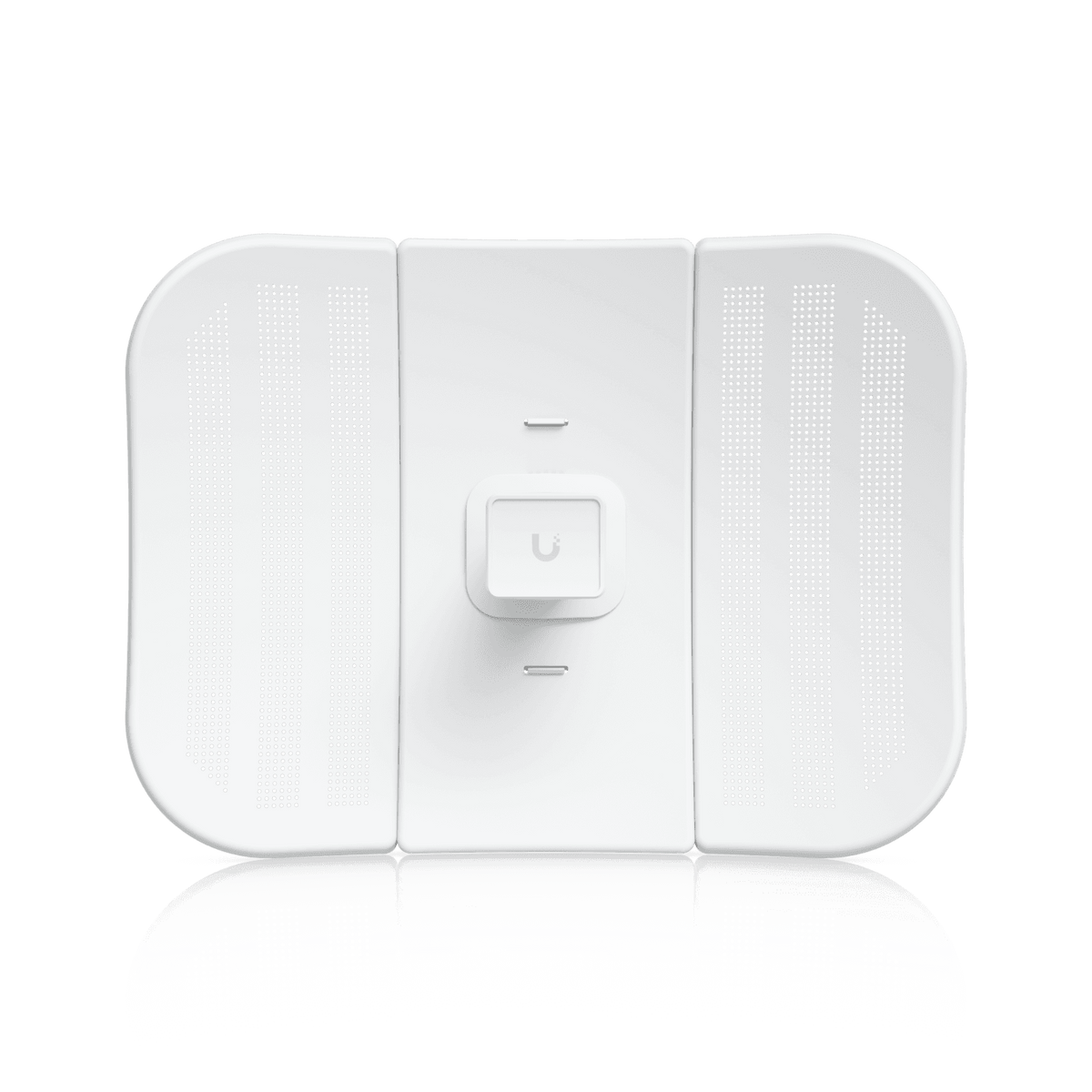

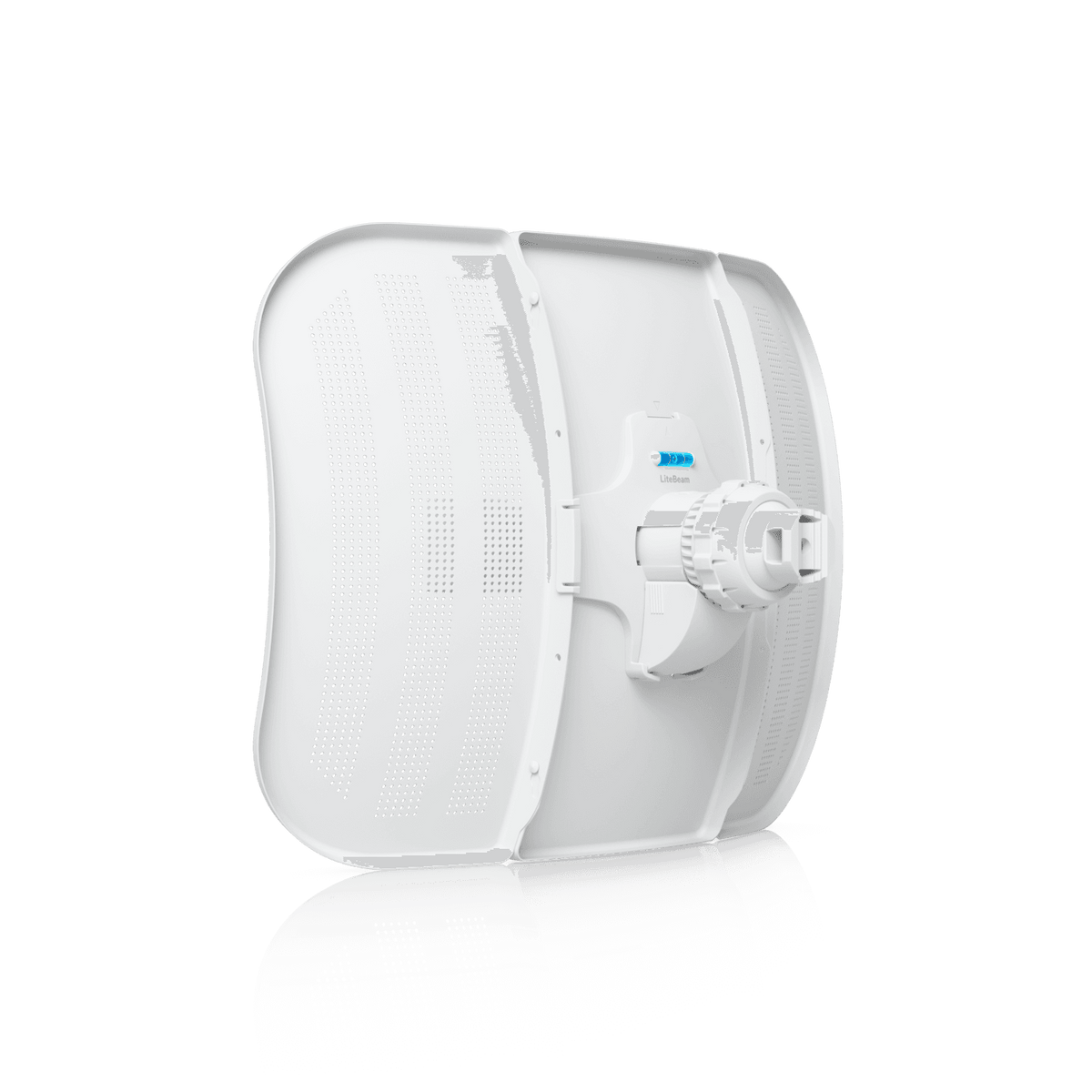

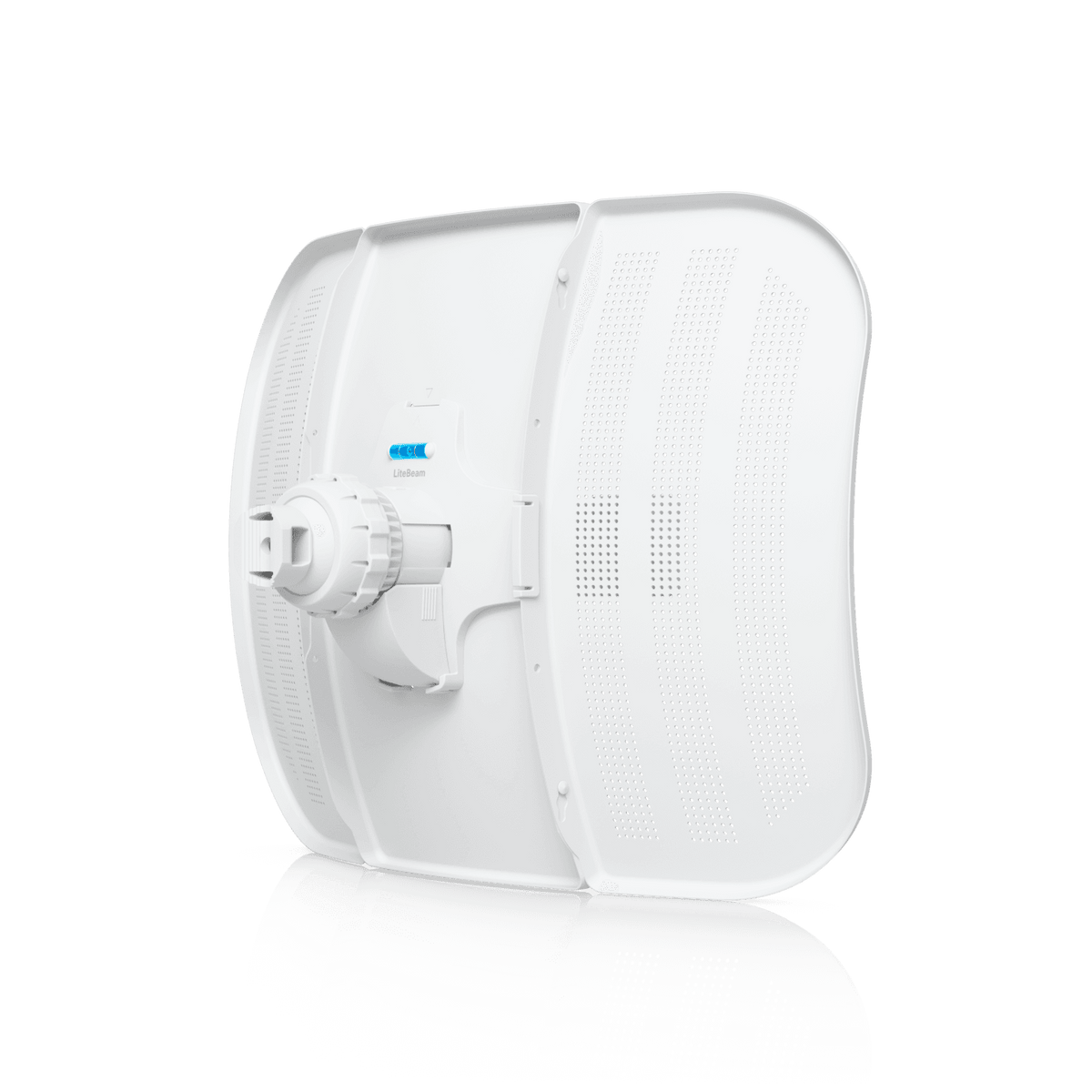

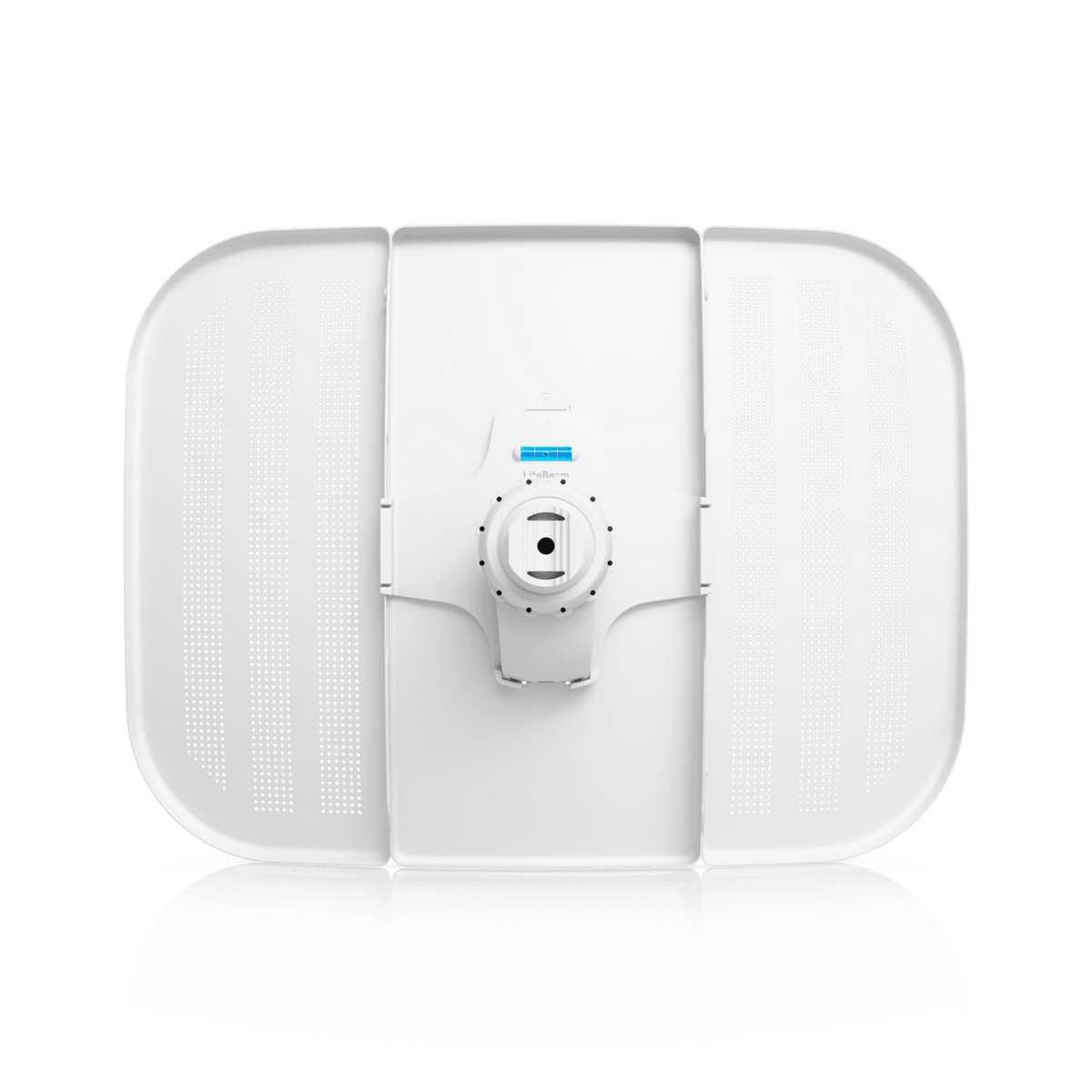

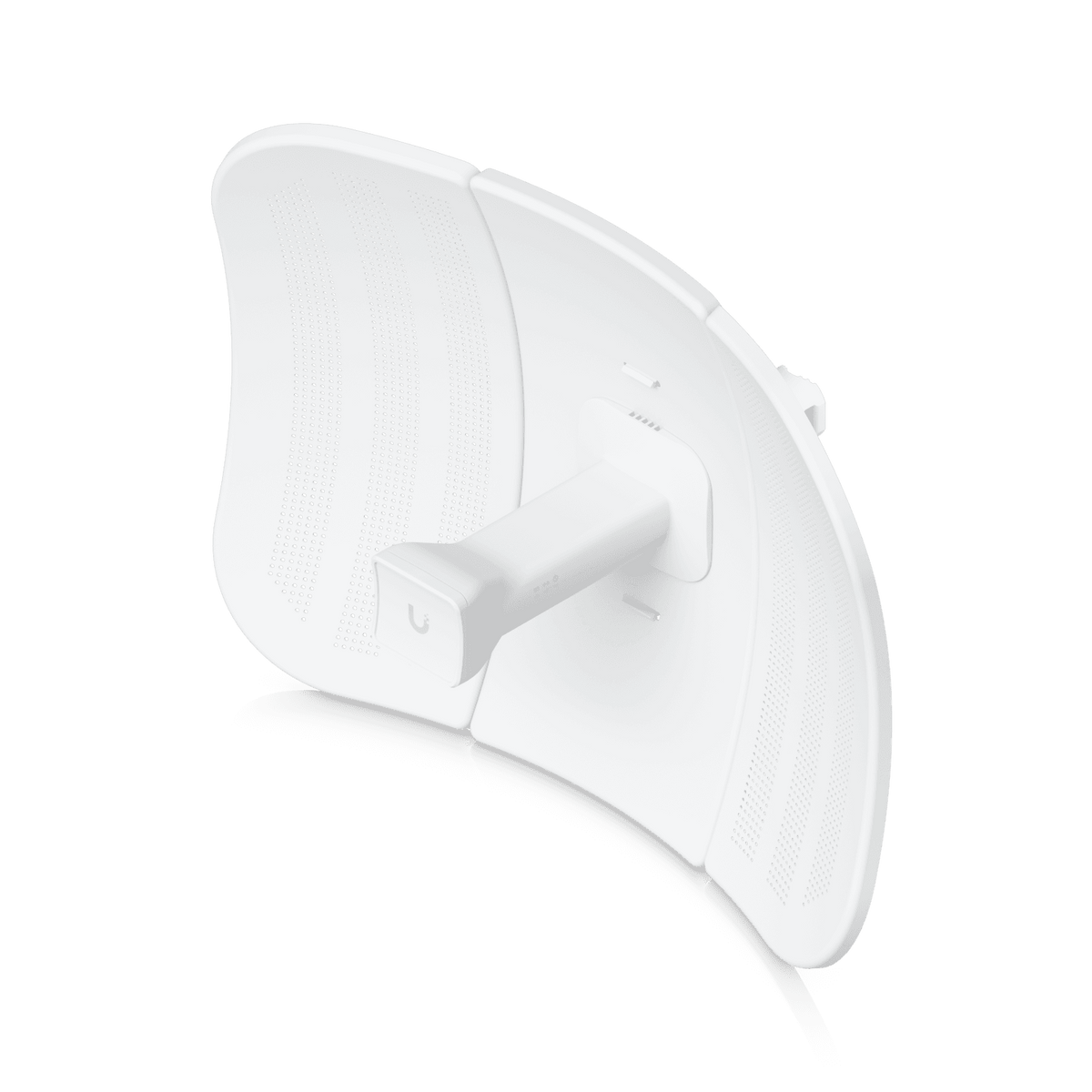

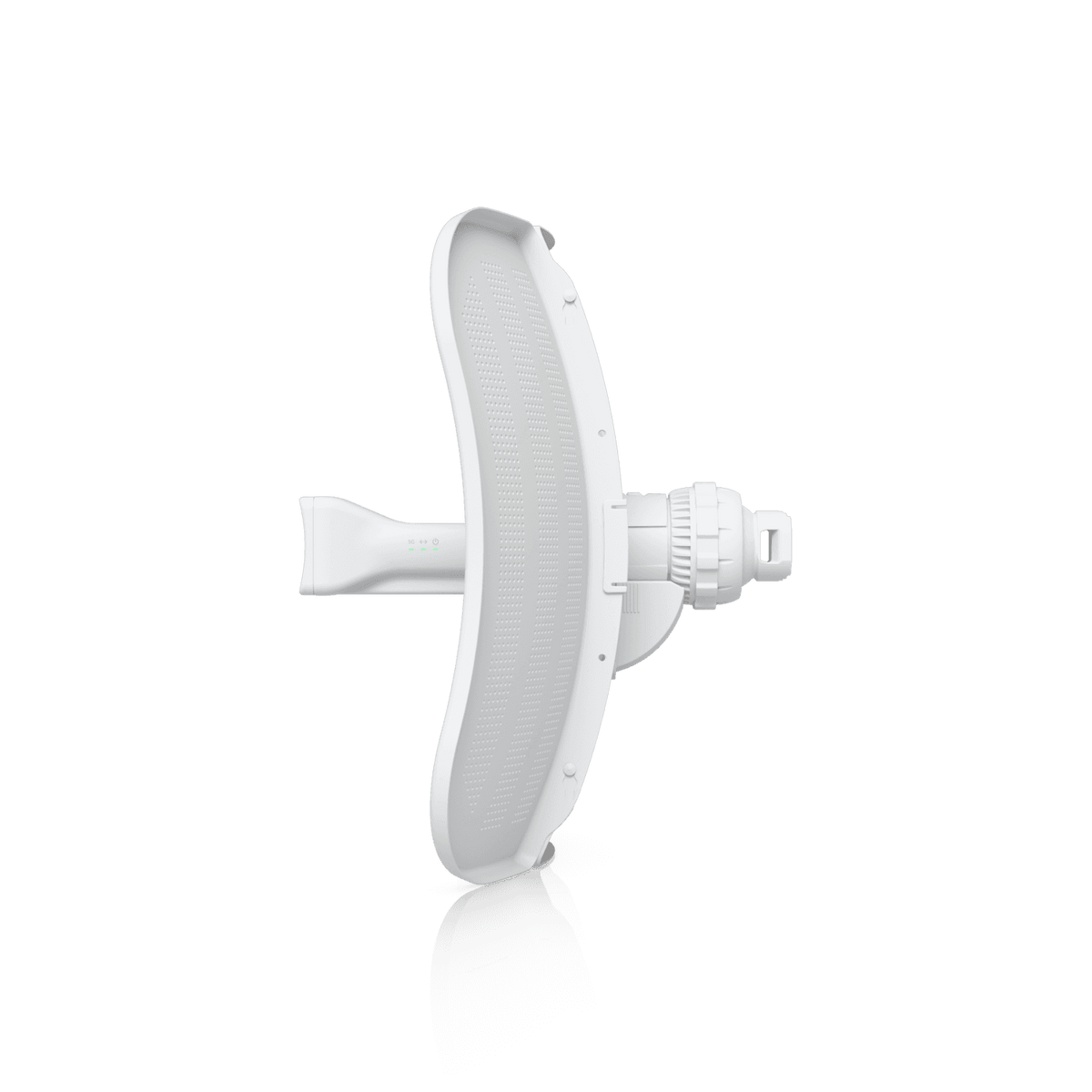

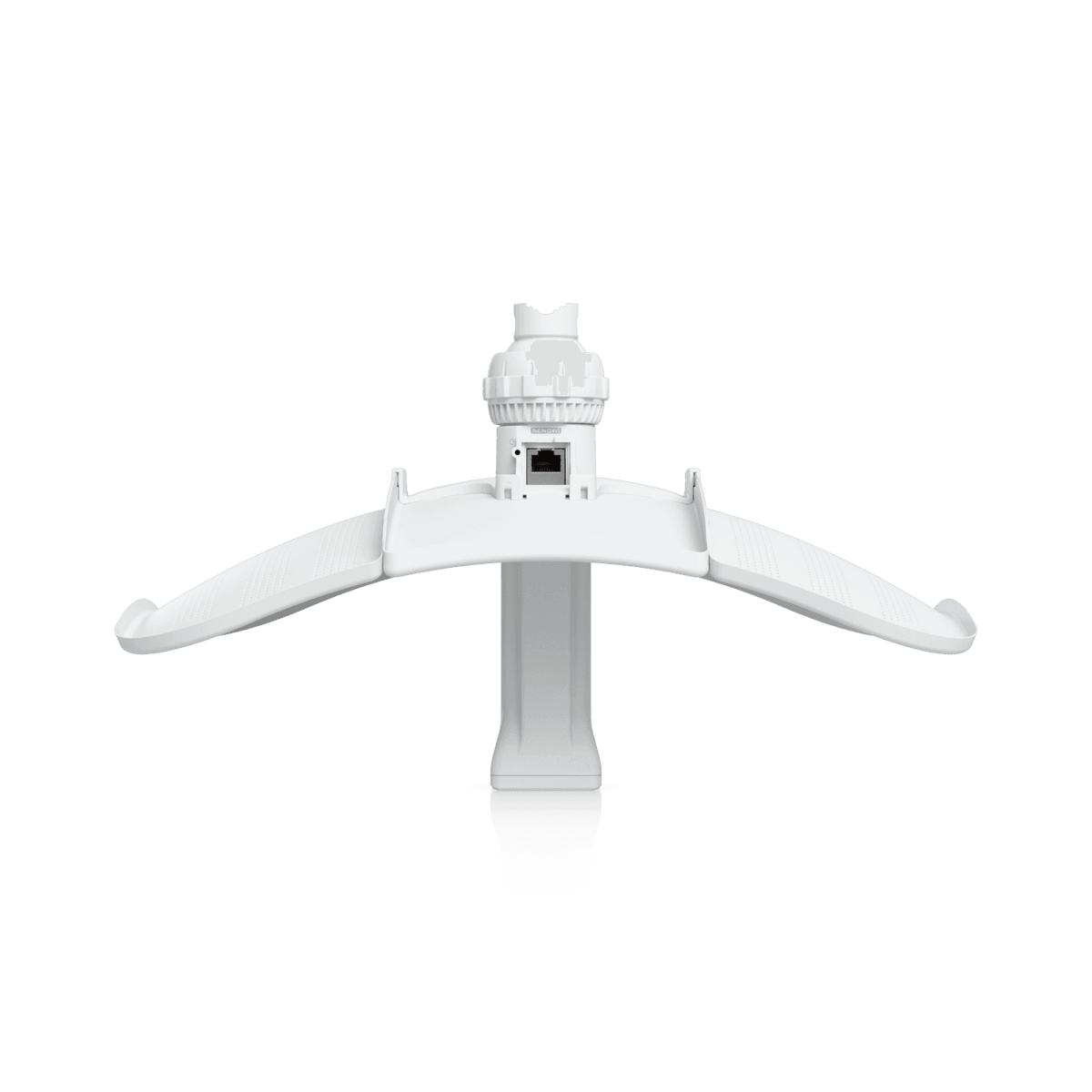

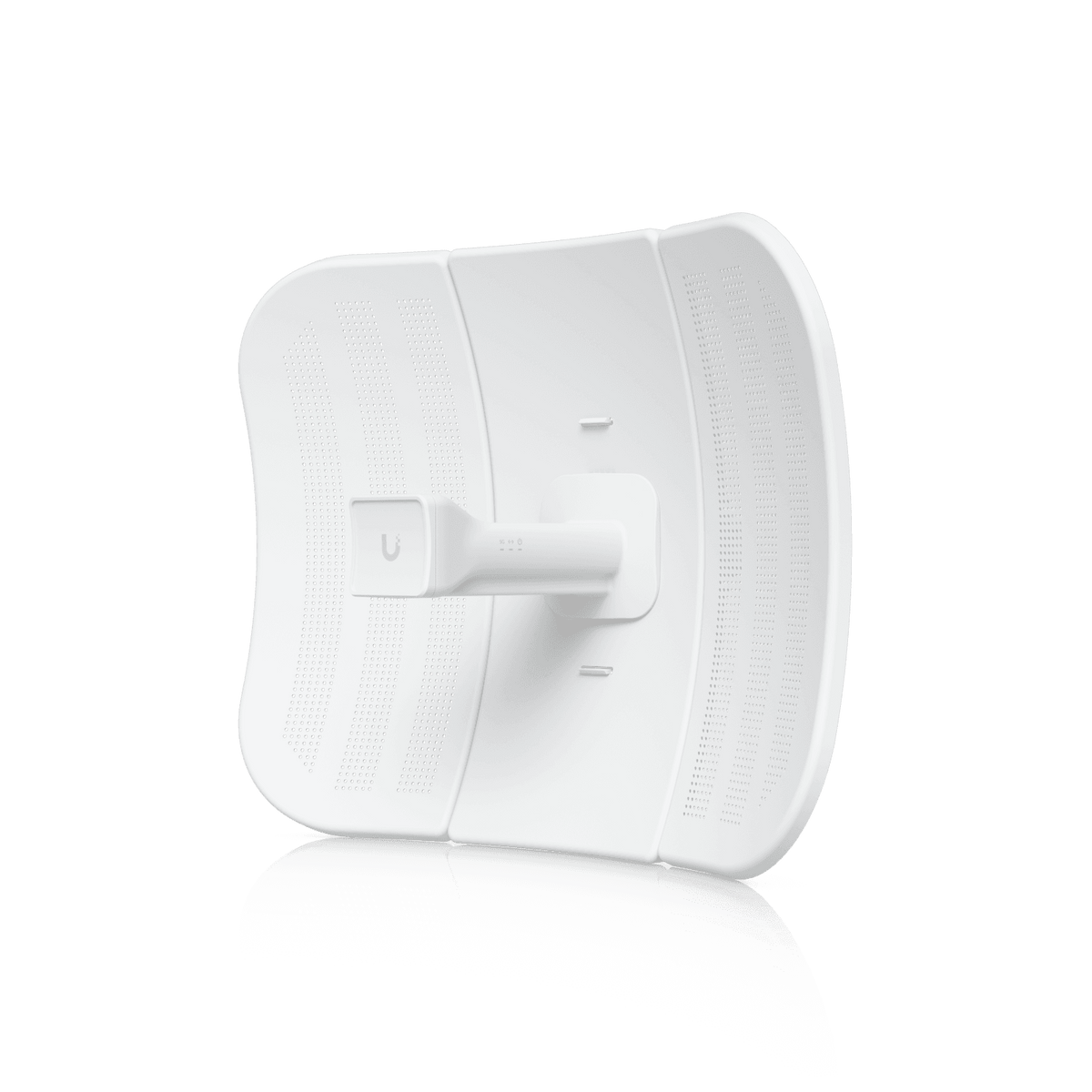

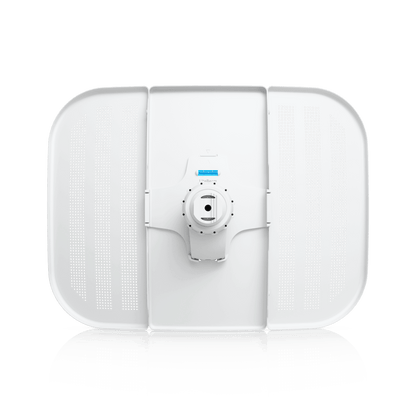

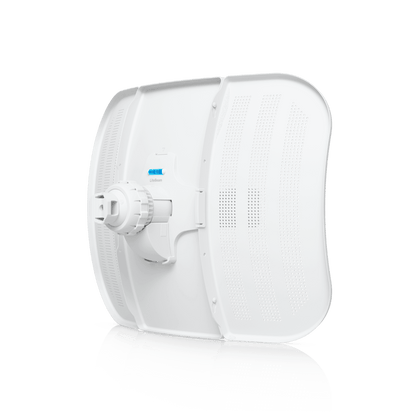

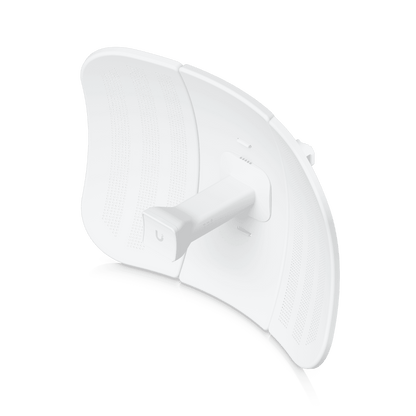

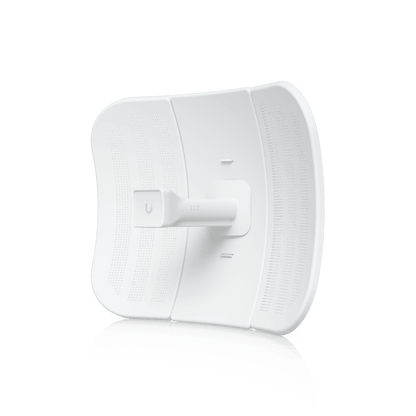

Ubiquiti UISP airMAX LiteBeam M5 5GHz 23dBi Radio

Ubiquiti's LBE-M5-23 is an airMAX M series 5GHz radio with a 23dBi antenna. It is designed as a lightweight, cost-effective, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. It can be managed via the UISP network management platform.

FEATURES:

• Operates in the 5 GHz band (5150–5875 MHz)
• Throughput exceeding 100 Mbps with up to 80 MHz channel bandwidth
• 23 dBi gain antenna with InnerFeed® technology
• Dedicated 2.4 GHz Wi-Fi management radio (2412–2472 MHz)
• Passive PoE power
• UV-stabilised plastic enclosure
• Operating temperature: -40°C to 70°C
• Humidity tolerance: 5% to 95% non-condensing
• Included pole mounting kit

SPECIFICATIONS:

• Dimensions: 362 × 267 × 184 mm (14.25 × 10.5 × 7.2")
• Weight: 750 g (1.7 lb)
• Mounting: Pole mount (included)

• Networking Interface: (1) 10/100 MbE RJ45 port
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power Supply: 24V, 0.2A PoE adapter (included)
• Supported Voltage Range: 22–27V DC
• Max. Power Consumption: 7W
• Ambient Operating Temperature: -40 to 70°C (-40 to 158°F)
• Ambient Operating Humidity: 5–95% noncondensing
• NDAA Compliant: ✓
• ETSI Specification: EN 302 326 DN2
• Shock and Vibration Certification: ETSI300-019-1.4
• Certifications: FCC, IC, CE, RoHS, Anatel: 00723-16-08356
• RoHS Compliance: ✓

• Antenna Gain: 23 dBi
• Max. VSWR: 1.5:1
• Total Output Power: 25 dBm

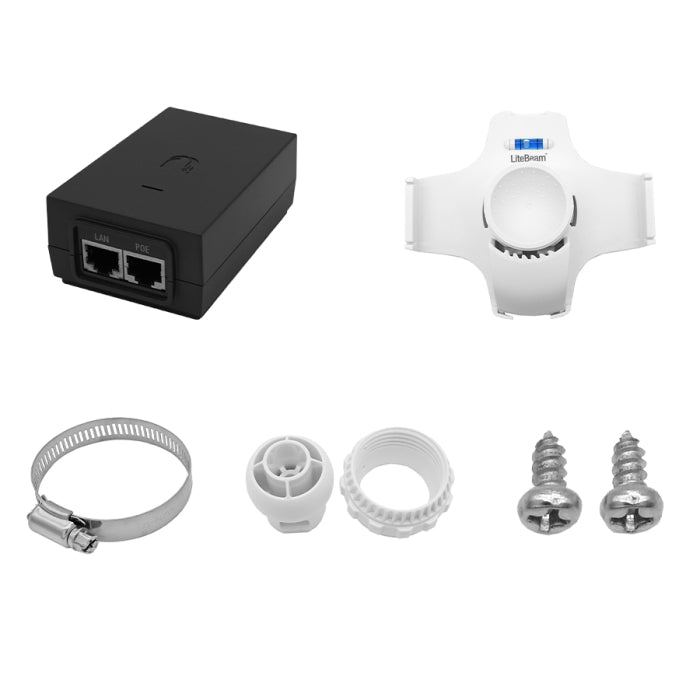

WHAT’S IN THE BOX:

• Antenna Feed (integrated radio system) x1
• Center Reflector Pane x1
• Side Reflector Panels x2
• Ball Joint Mount x1
• Feed Receiver x1
• Mounting Strap (metal clamp/strap for pole mounting) x1

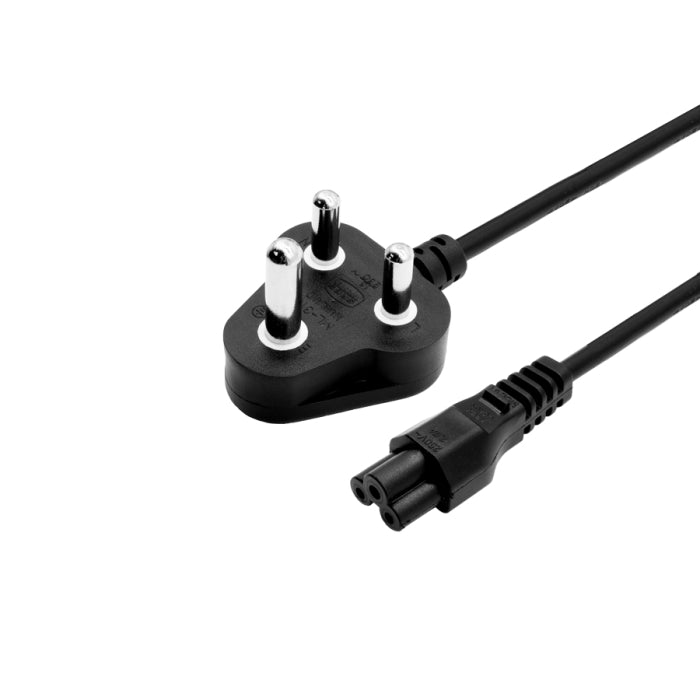

• PoE Adapter (25V, 0.2A) with power cord x1
• Fasteners/Screws x1

WARRANTY:

• 12 Months
