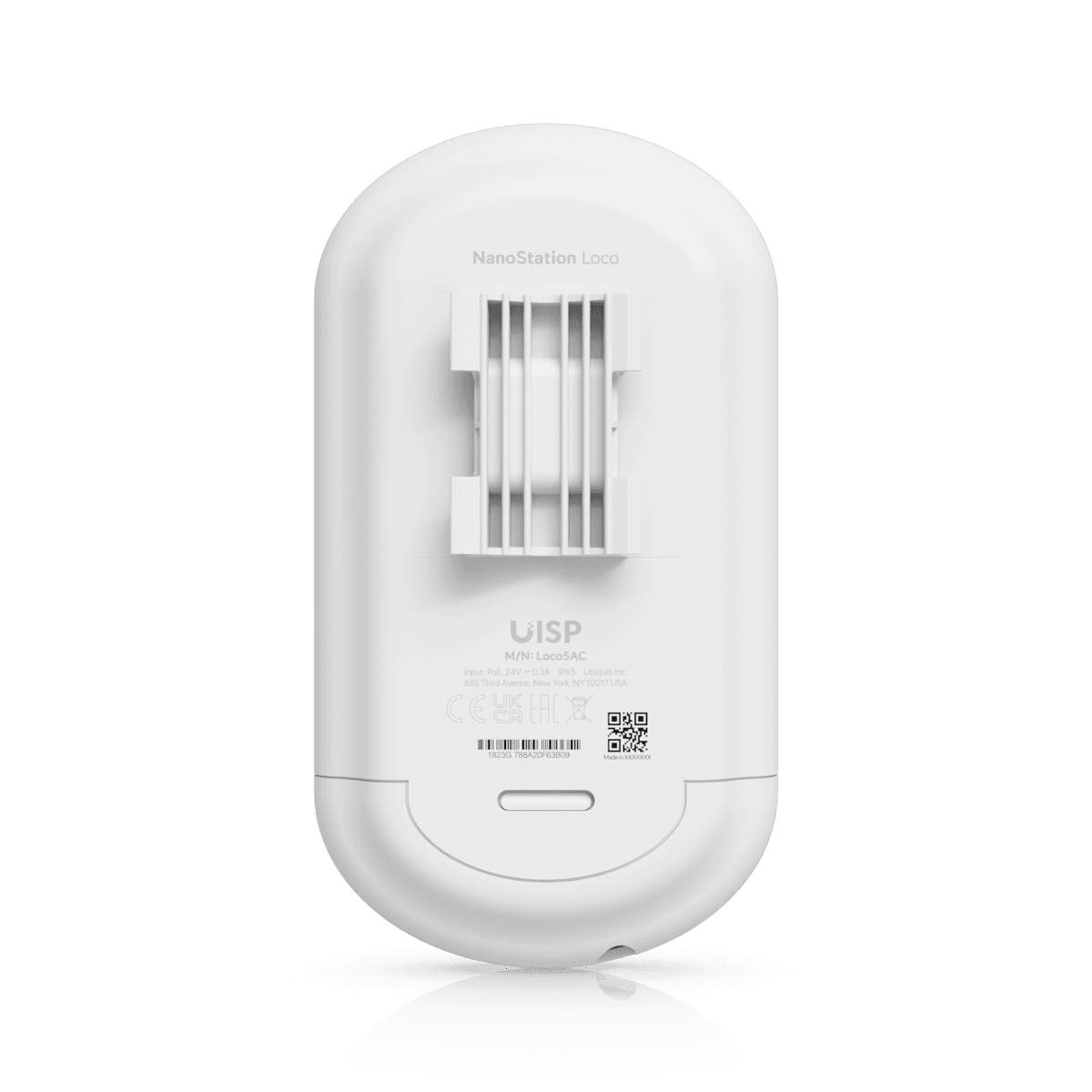

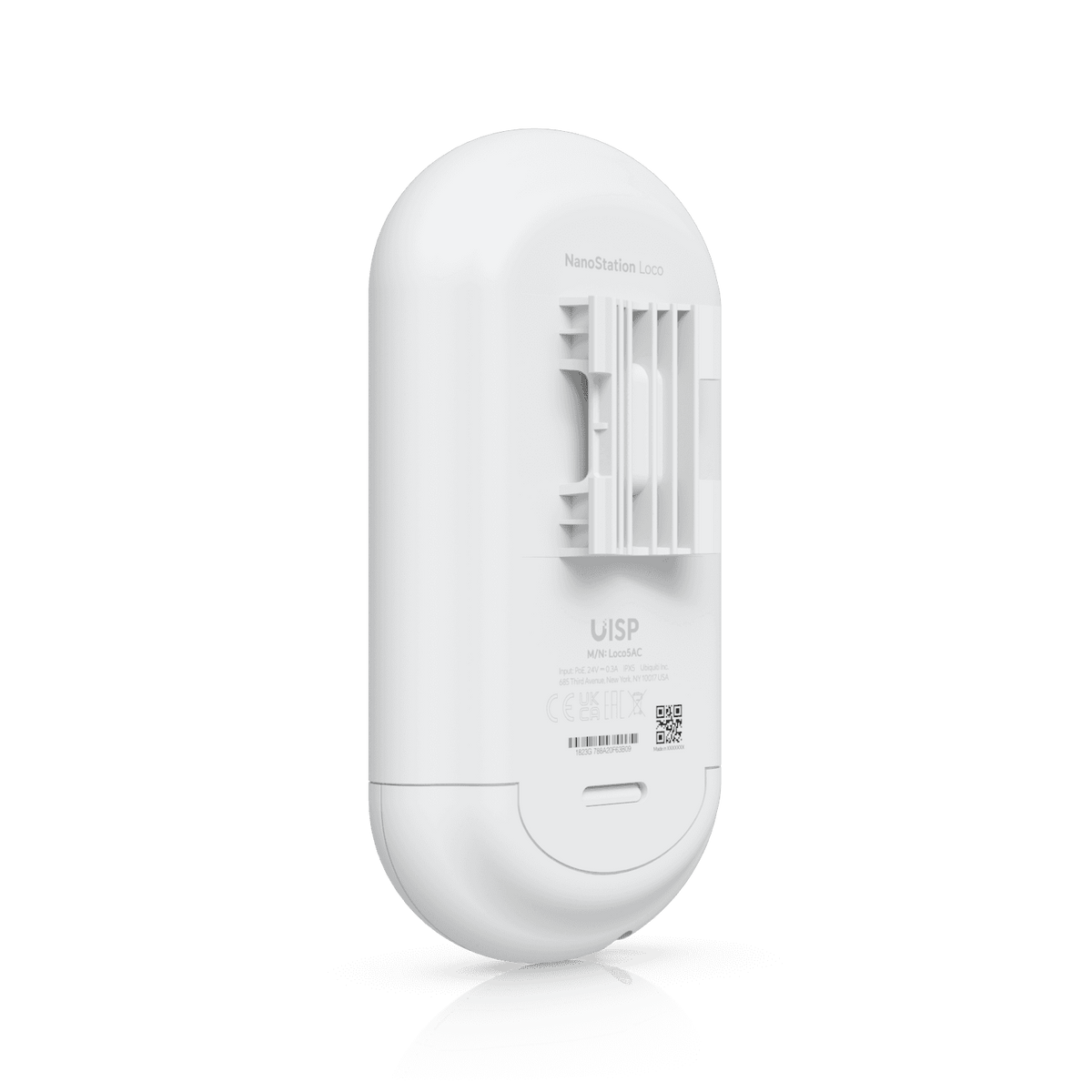

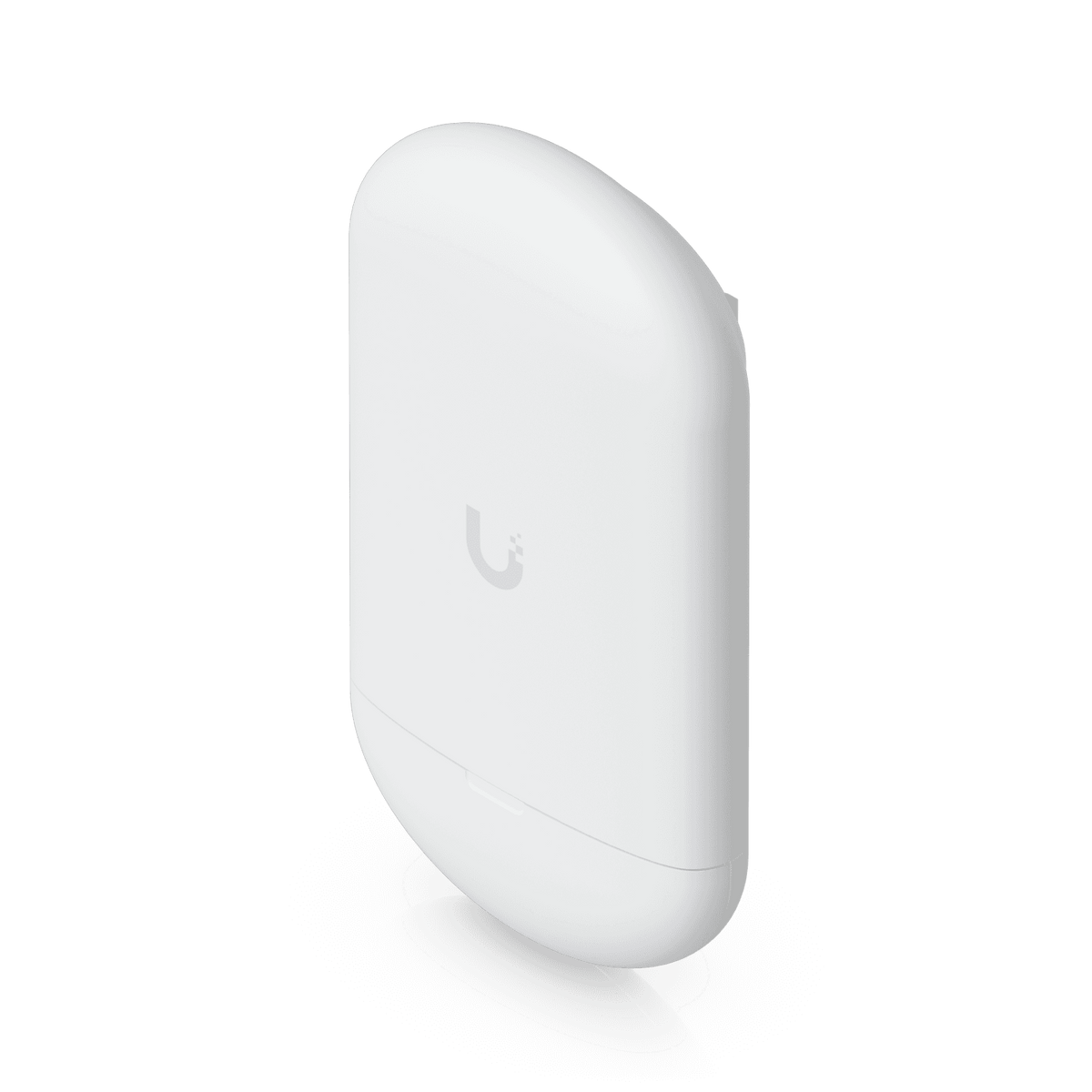

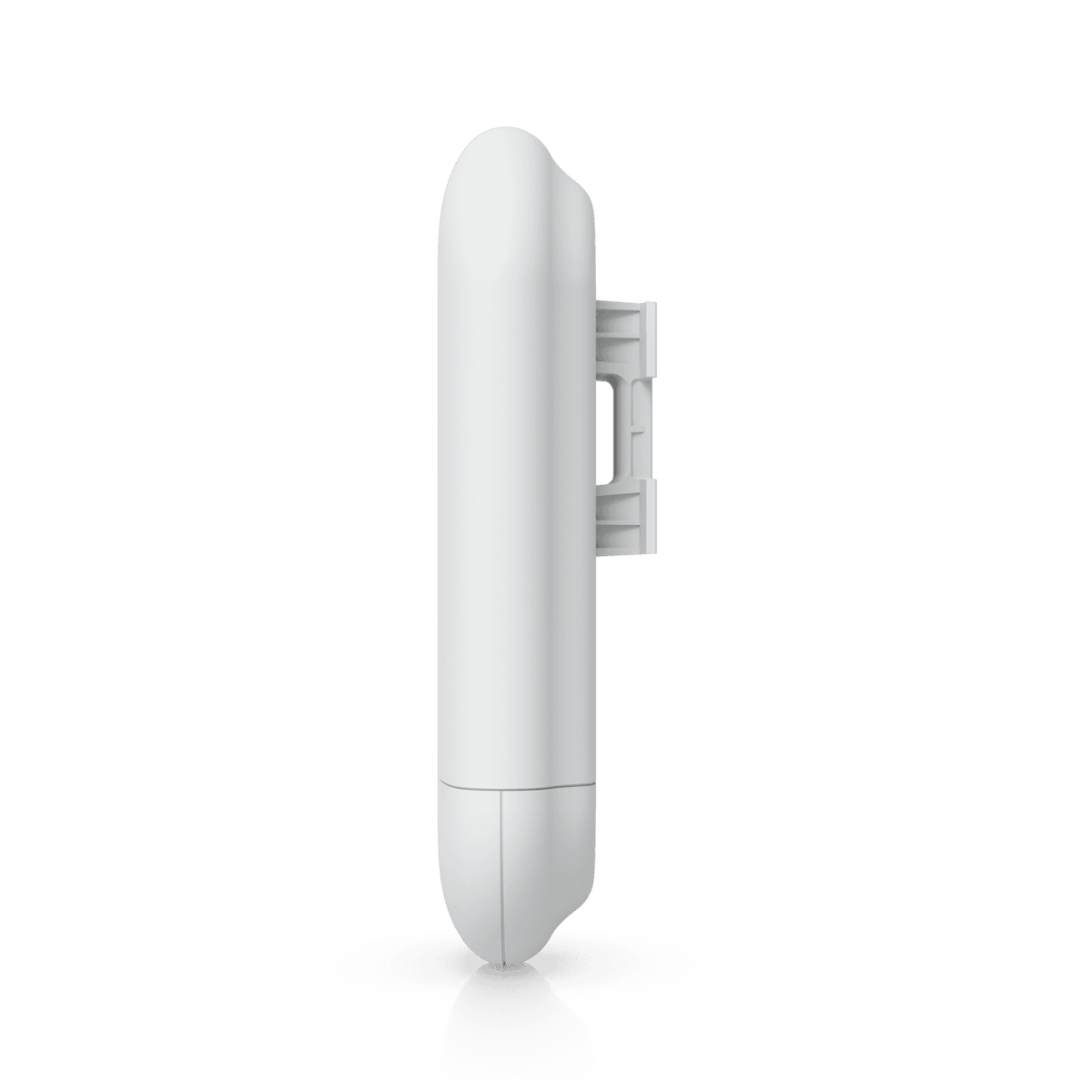

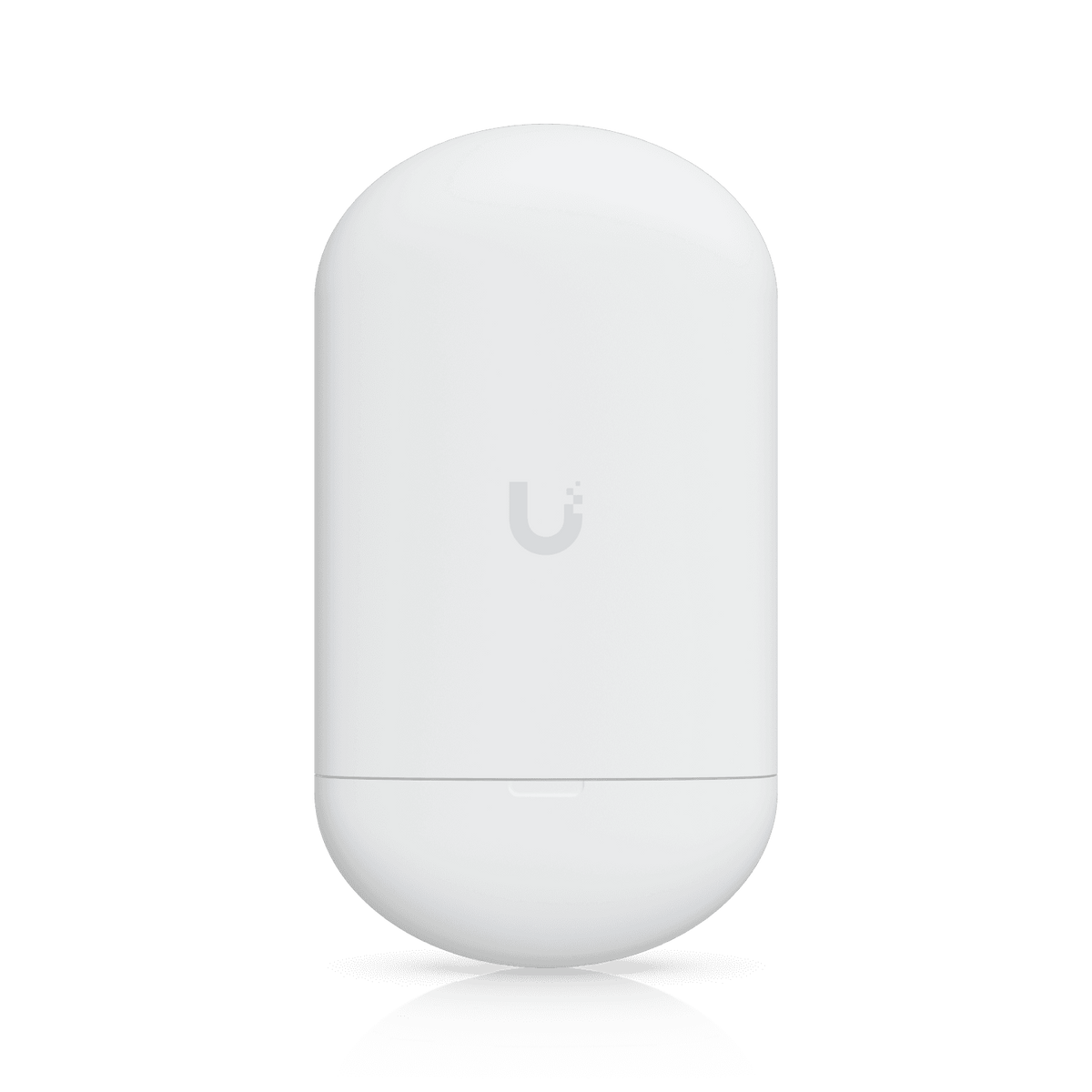

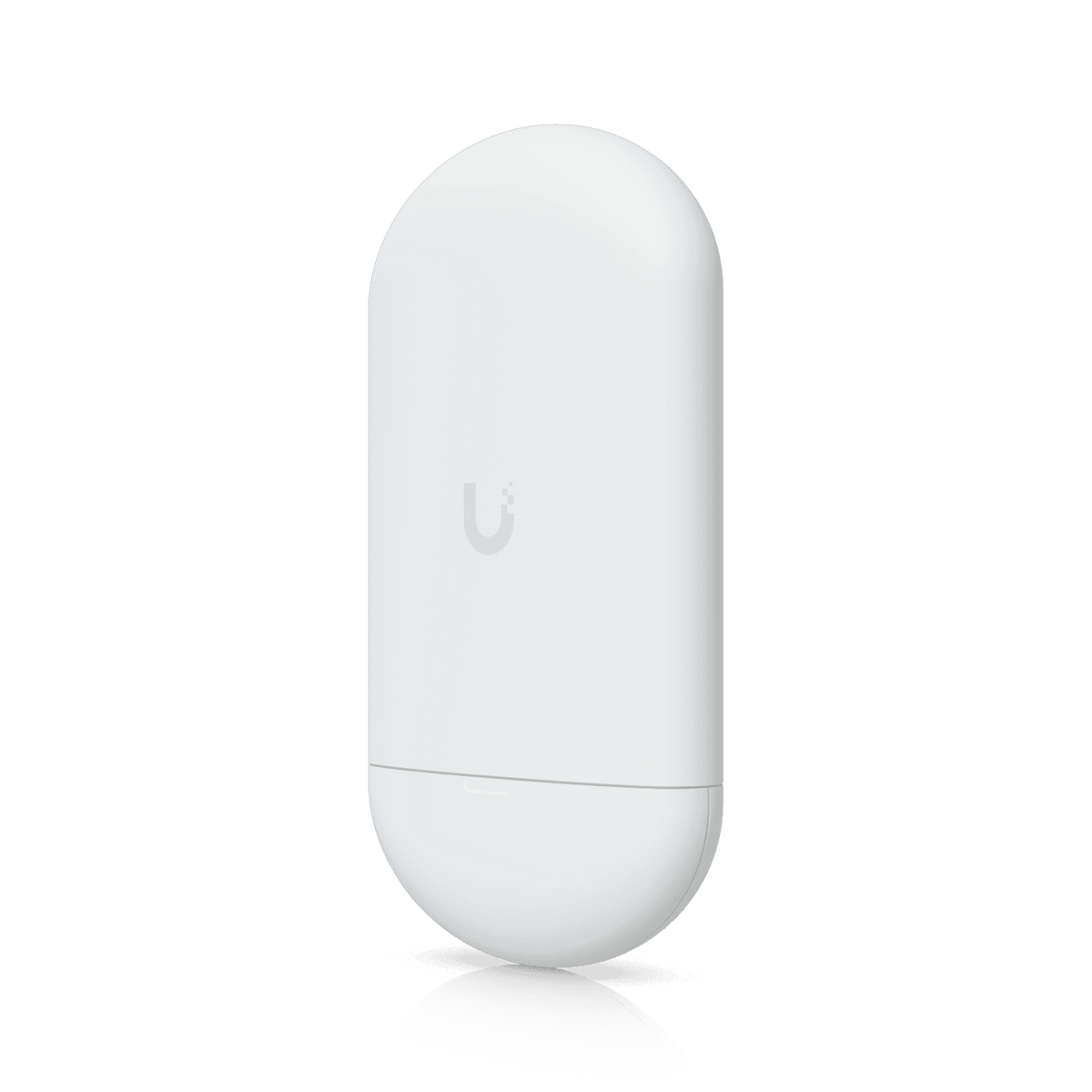

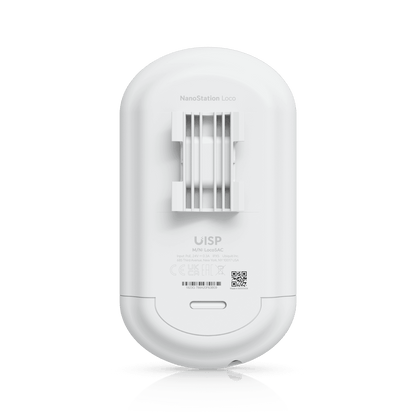

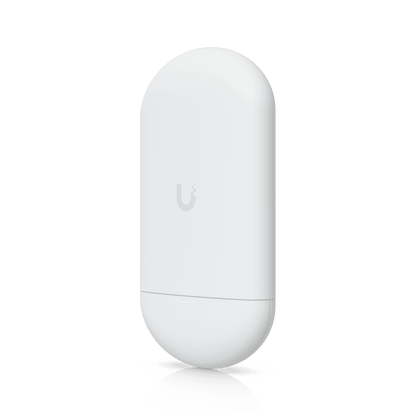

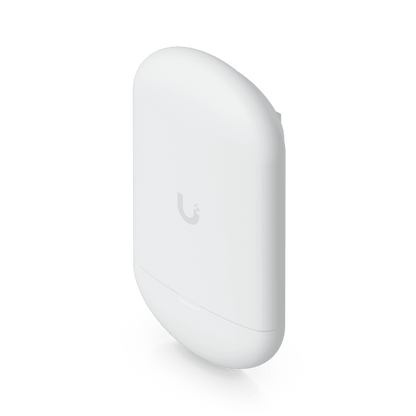

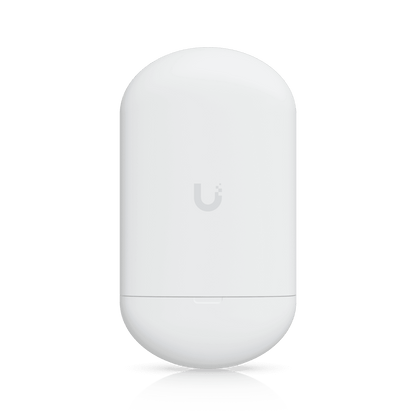

Ubiquiti UISP airMAX Loco AC 5GHz 13dBi Radio 5pk

Ubiquiti's LOCO-5ACL5 is a 5-pack airMAX AC 5GHz radio with a 13dBi antenna. It is designed as a lightweight, cost-effective, short-distance CPE (client premises equipment), PtP (point to point) solution or PtMP (point to multipoint) solution. The dedicated 2.4GHz management radio allows for easy setup via the UISP network management platform.

*Note: The LOCO-5ACL5 does not ship with a PoE adapter.

FEATURES:

• Pocket-Sized Powerhouse: Extremely tiny and lightweight—weighing only 180 grams—making it the most compact and discreet outdoor bridge available.
• Short-Range Connector: Optimized to beam high-speed internet across short-to-medium distances of 3 to 5 kilometres.
• 450+ Mbps Performance: Delivers fast, fiber-like data throughput using advanced airMAX AC wireless technology.
• Phone Setup: Features a separate internal configuration channel so you can easily change settings and align it from your smartphone.
• Weatherproof Armor: Enclosed in a UV-protected, heavy-duty shell designed to survive extreme freezing temperatures and blazing heat.
• Bridge Only: Does not connect to phones or laptops directly; it only talks to other Ubiquiti outdoor bridge stations.
• Power Not Included: Requires a separate 24V passive PoE adapter or switch to turn on, as a power supply is not included in the box.

SPECIFICATIONS:

• Enclosure Materials: UV-stabilized polycarbonate
• Mounting: Pole Mount (Included)
• Hardware

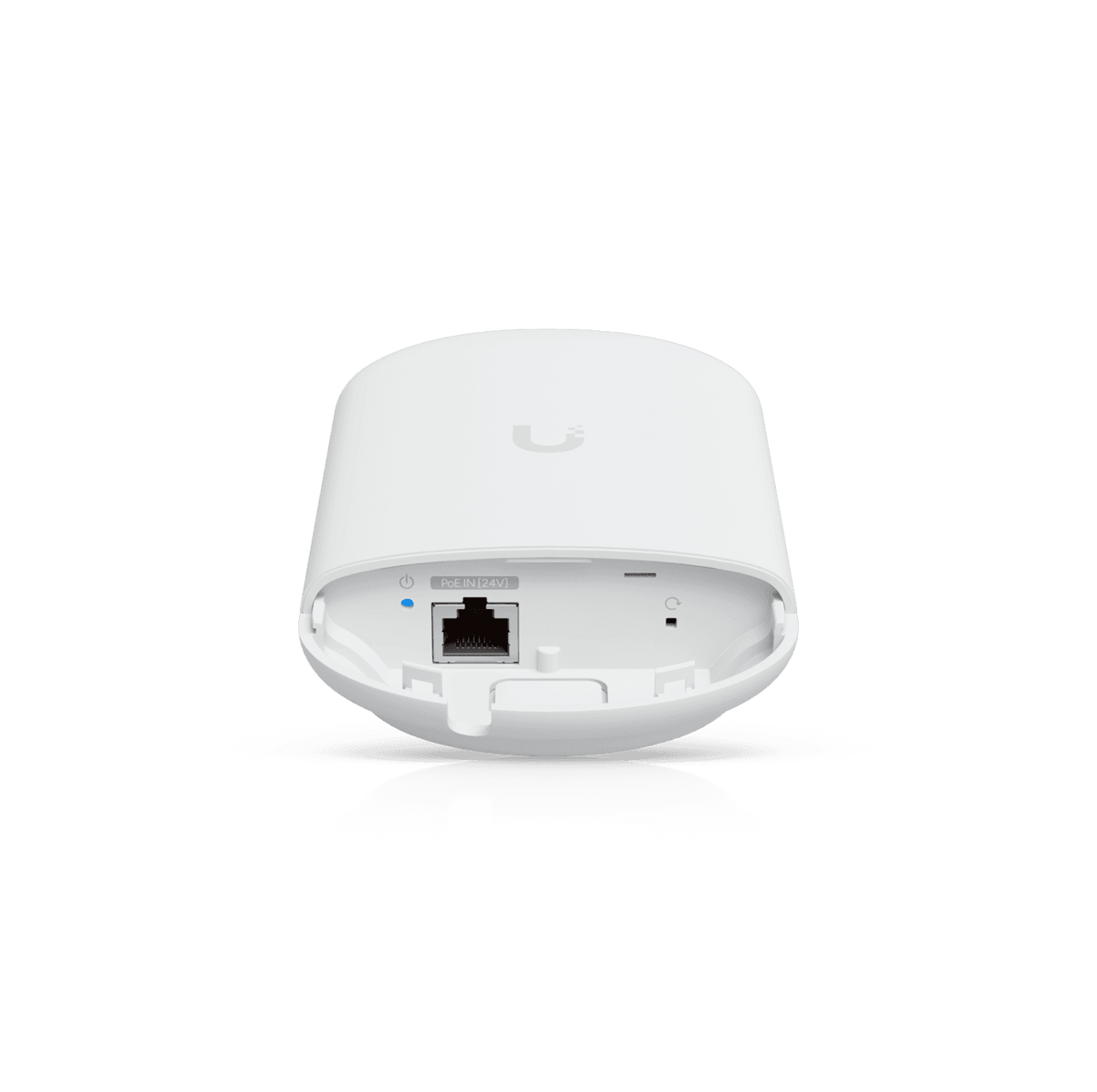

• Networking Interface: 1 × GbE RJ45 port
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power Supply: 24V, 0.3A gigabit PoE supply (Not Included)
• Supported Voltage Range: 22–27V DC
• Max. Power Consumption: 7W
• LEDs:
• Signal Strength: ✓
• Power: ✓
• Ethernet: ✓
• Ambient Operating Temperature: -40 to 70°C (-40 to 158°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, Anatel: 01405-19-08356
• Software
• Operating Modes:
• Access Point
• Station
• Ubiquiti Specific Features:
• airMAX AC Mode: ✓
• Discovery Protocol: ✓
• Frequency Band Offset: ✓
• Traffic Shaping with Burst Support: ✓
• 30/50/60 MHz Channels: ✓
• Services:
• Bridging: ✓
• DHCP: ✓
• Ping Watchdog: ✓
• Routing: ✓
• SNMP: ✓
• SSH: ✓
• Webserver: ✓
• Distance Adjustment:
• Ackless Mode: ✓
• Dynamic Ack: ✓
• QoS: WMM packet classification with user-level priority: High, Medium, Low
• Statistical Reporting:
• Data Rates: ✓
• Ethernet Link Rate: ✓
• Packet Errors: ✓
• Up Time: ✓
• Wireless Distance: ✓
• System
• Channel Bandwidth: 10/20/30/40/50/60/80 MHz
• Antenna Gain: 13 dBi
• Max. VSWR: 1.8:1
• Polarization: Dual-Linear
• Antenna Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
• Cross-Pol Isolation: Min. 20 dB
• Radio Frequency — Supported Frequency Range:
• Worldwide: 5150–5875 MHz
• US/CA:
• U-NII-1: 5150–5250 MHz
• U-NII-2A: 5250–5350 MHz
• U-NII-2C: 5240–5725 MHz
• U-NII-3: 5725–5850 MHz
• Management Radio — Supported Frequency Range:
• Worldwide: 2412–2472 MHz
• US/CA: 2412–2462 MHz

WHAT’S IN THE BOX:

• NanoStation 5AC Loco Units x5
• Plastic Zip Ties / Straps (For pole-mounting each unit) x5

WARRANTY:

• 12 Months
