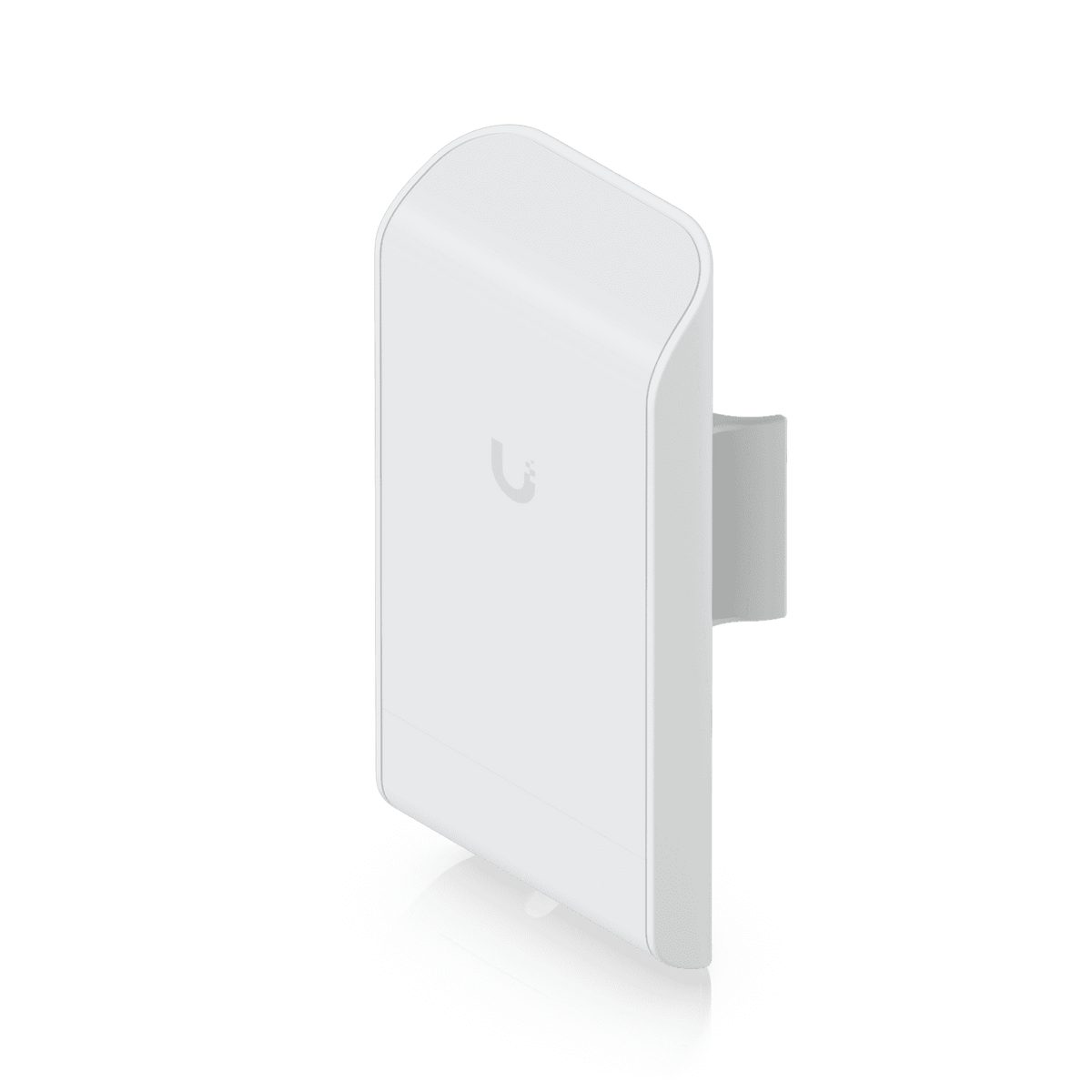

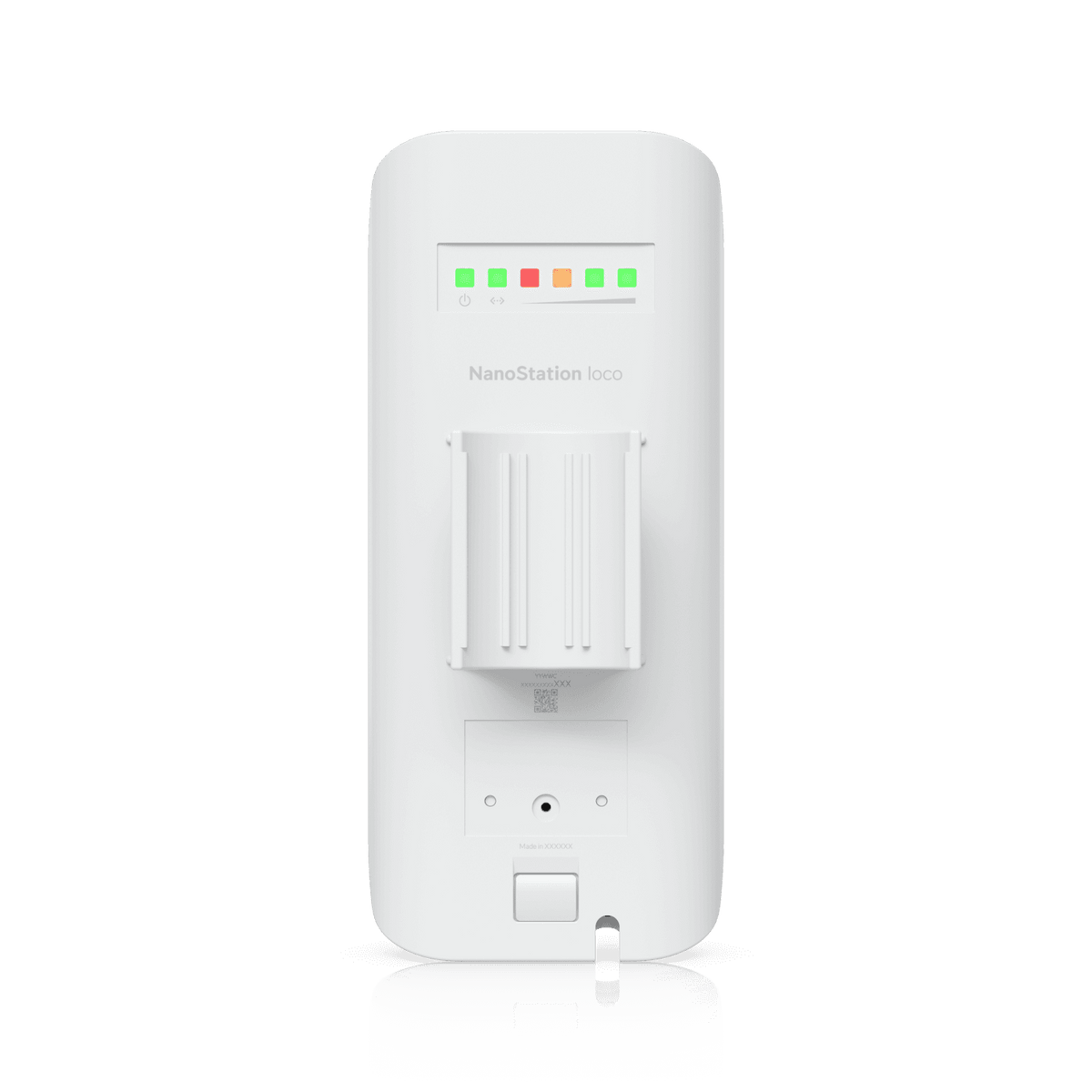

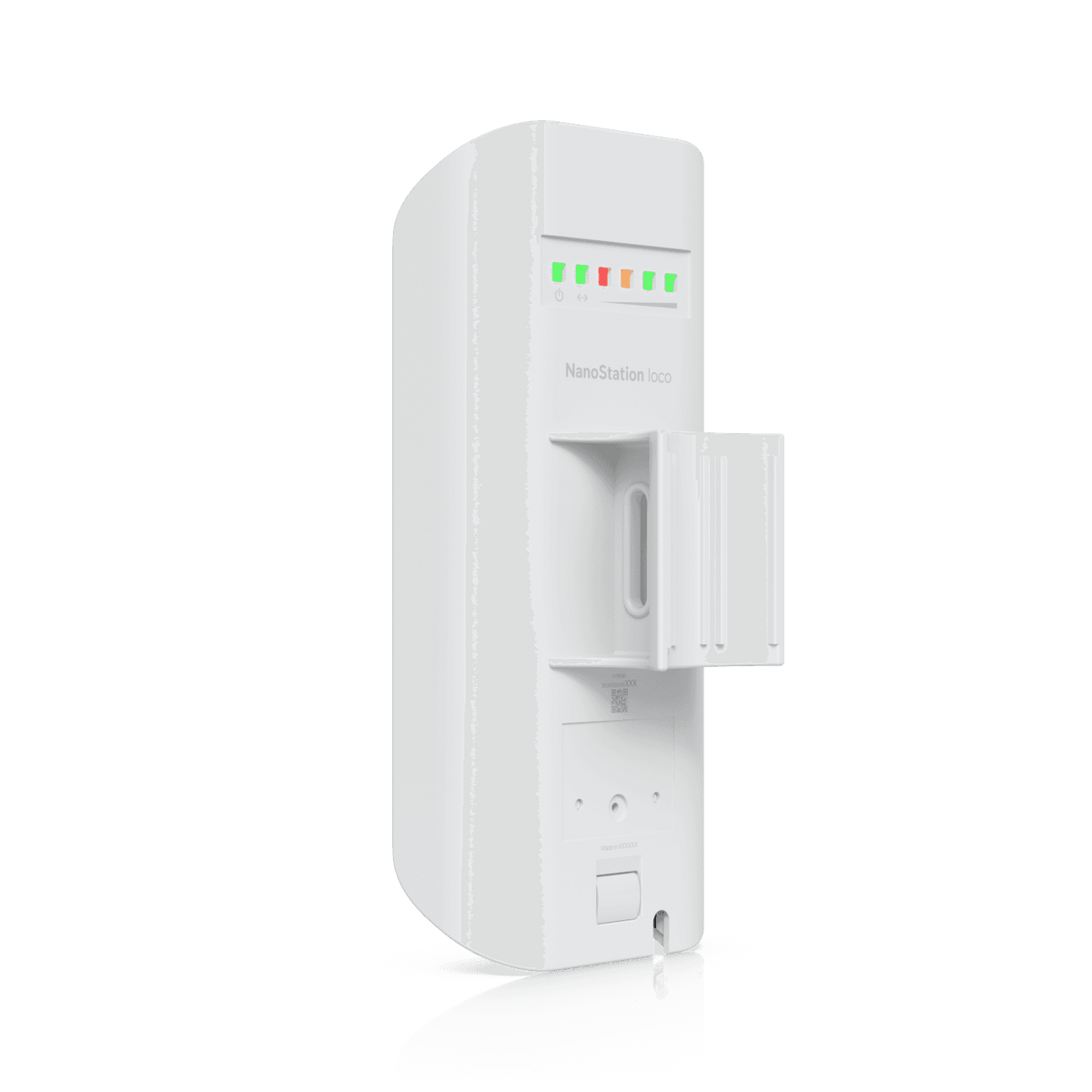

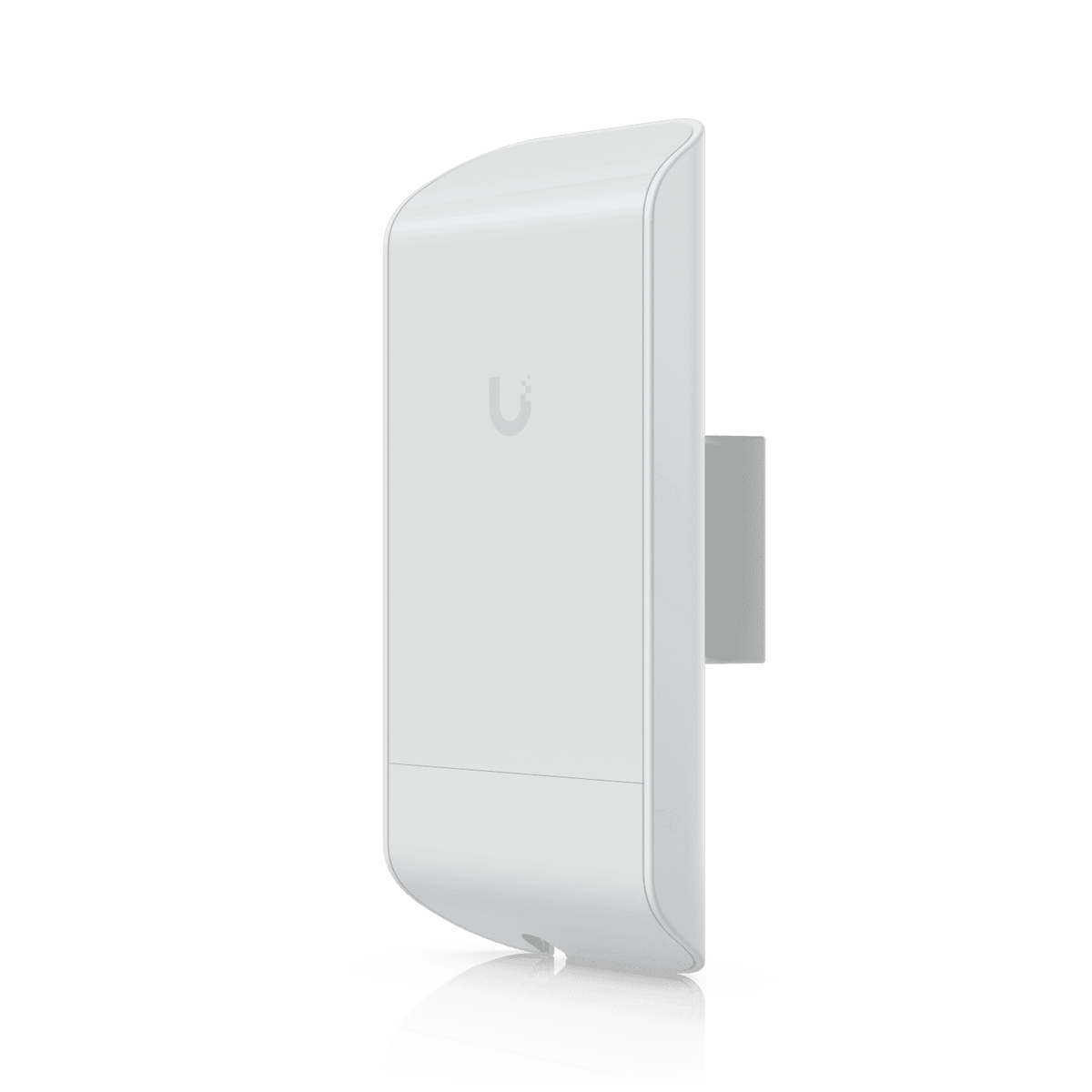

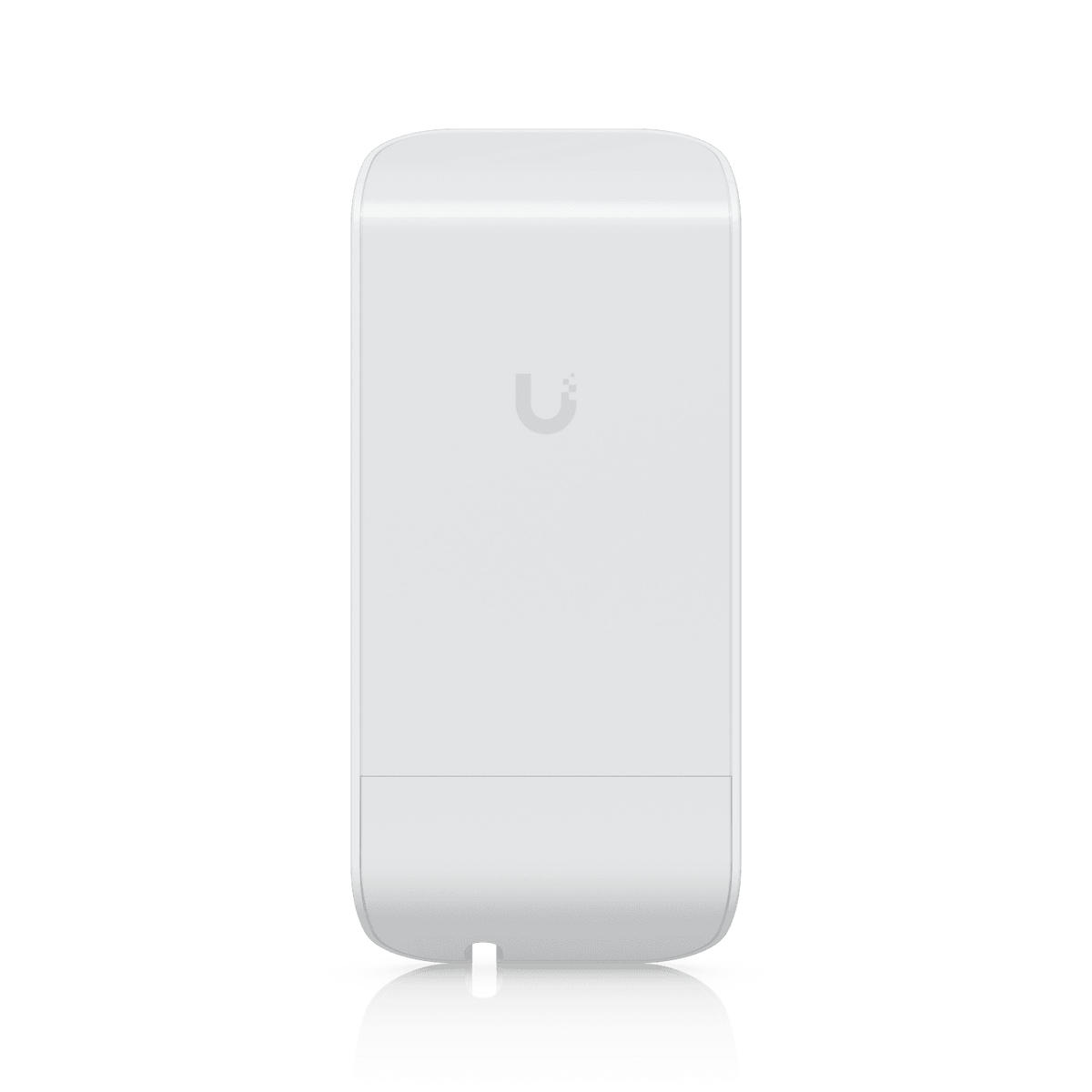

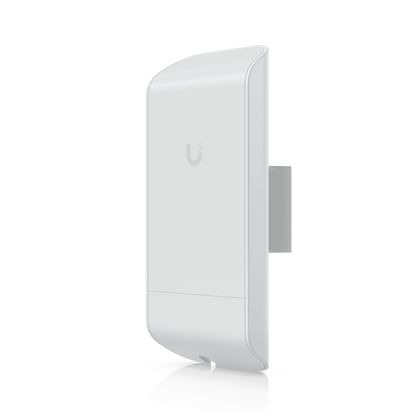

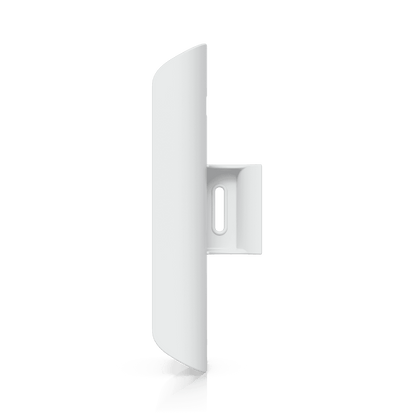

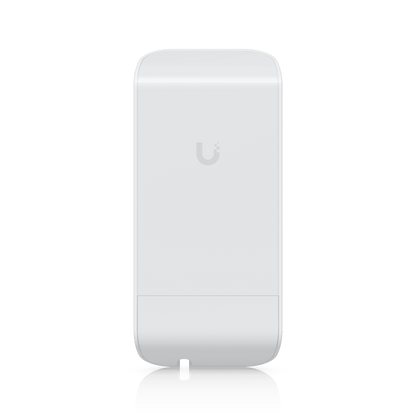

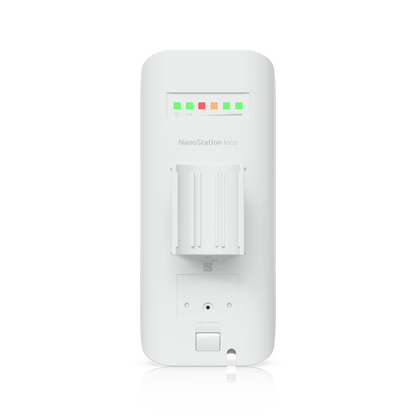

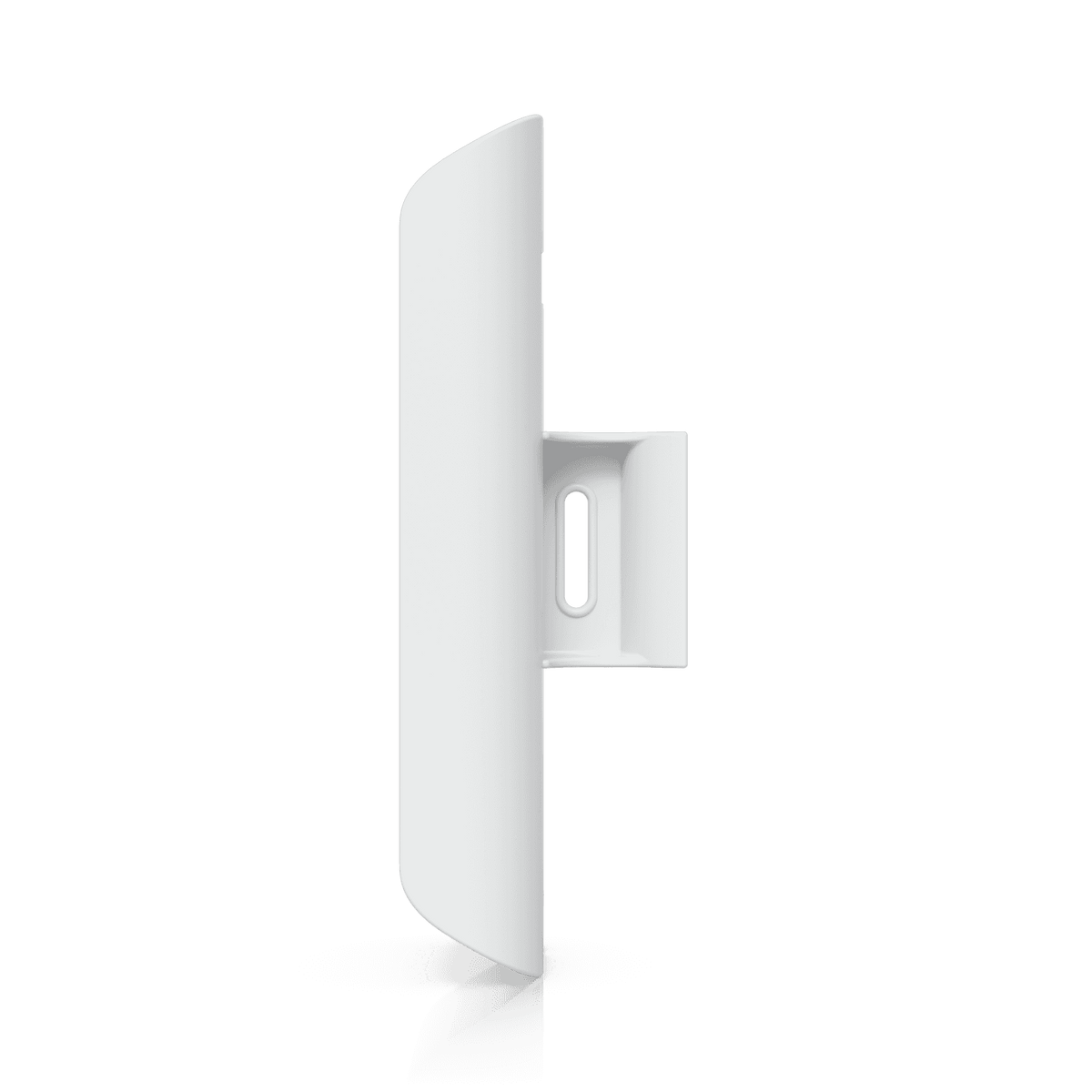

Ubiquiti UISP airMAX Loco M2 2GHz 8dBi Radio

Ubiquiti's LocoM2 is an airMAX M series 2GHz radio with a 10dBi antenna. It is designed as a lightweight, cost-effective, short-distance CPE (client premises equipment), PtP (point to point) or PtMP (point to multipoint) access point solution. It can be managed via the UISP network management platform.

FEATURES:

• Tree-Penetrating Signal: Operates on the 2.4 GHz frequency, which allows it to push signals through light trees, foliage, and obstacles where 5 GHz would fail.
• Forgiving Alignment: Features a wide 60-degree beamwidth, making it incredibly easy and fast to align without needing surgical precision.
• 150+ Mbps Legacy Speeds: Pumps out stable speeds of 150+ Mbps over short-to-medium distances of 2 to 5 kilometres.
• Pocket-Sized Footprint: Extremely small and lightweight, weighing only 180 grams for a completely discreet outdoor setup.
• Power Included: Unlike the 5AC version, this model comes with a 24V passive PoE power supply right in the box.
• Old-School Laptop Setup: Lacks smartphone app support; you must plug in a laptop via an ethernet cable to configure the settings.
• Bridge Only: Does not work as standard outdoor Wi-Fi for your phone; it only talks to other Ubiquiti airMAX M series radios.

SPECIFICATIONS:

• Mechanical
• Dimensions: 161 × 31 × 80 mm (6.3 × 1.2 × 3.2")
• Weight: 180 g (6.4 oz)
• Enclosure Material: Outdoor UV-stabilized plastic
• Mounting: Pole-mount (Kit included)
• Hardware

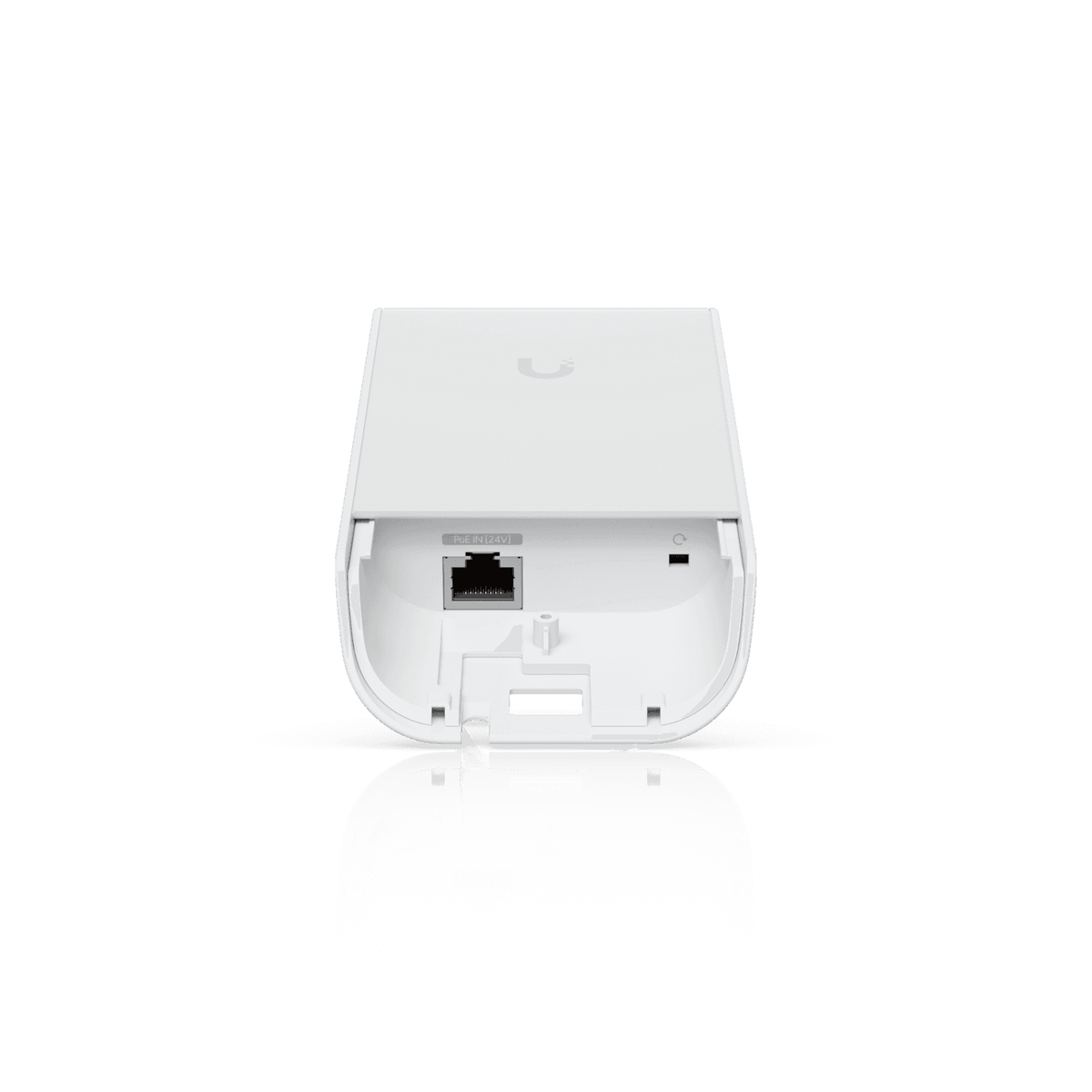

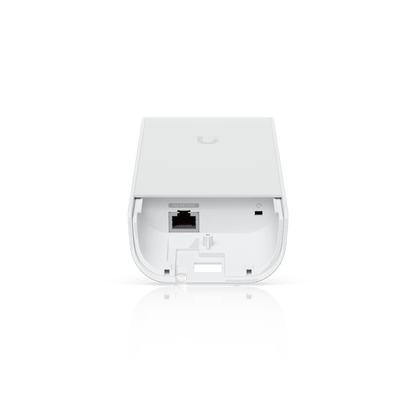

• Networking Interface: 1 × 10/100 MbE RJ45 port
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power Supply: 24V, 0.5A PoE adapter (Included)
• Supported Voltage Range: 22–27V DC
• Max. Power Consumption: 5.5W
• Ambient Operating Temperature: -30 to 75°C (-22 to 167°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• Shock & Vibration: ETSI300-019-1.4
• Certifications: FCC, IC, CE, RoHS
• NDAA Compliant: Yes
• System
• Frequency: 2.4 GHz
• Operating Frequency: 2412–2462 MHz
• Gain: 8.5 dBi
• Cross-Pol Isolation: 20 dB Min.
• Max. VSWR: 1.4:1
• Beamwidth: 60° (H-pol) / 60° (V-pol) / 60° (Elevation)
• Polarization: Dual linear

WHAT’S IN THE BOX:

• NanoStation Loco M2 Unit x1
• 24V, 0.5A Passive PoE Injector x1
• Power Cord x1
• Plastic Zip Ties / Straps (For basic pole-mounting) x1

WARRANTY:

• 12 Months
