Ubiquiti UISP airMAX NanoBeam AC 2GHz 13dBi Radio

Ubiquiti's NBE-2AC-13 is an airMAX AC 2GHz radio with a 13dBi antenna. It is designed as a lightweight, short-distance CPE (client premises equipment), PtP (point to point) or PtMP (point to multipoint) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

FEATURES:

• Pushes Through Trees: Operates on the 2.4 GHz frequency, giving it the unique ability to push signals through light tree leaves and obstacles that block 5 GHz links.
• Focused 15+ KM Range: Uses a circular dish design with a 13 dBi gain to focus the signal into a tight beam, stretching your link over 15+ kilometres.
• 330+ Mbps High Speeds: Upgrades legacy 2.4 GHz tech to the advanced airMAX AC engine, delivering much faster data rates than older models.
• Smart Noise Radar: Includes a built-in secondary chip that constantly scans for local wireless interference and helps the radio bypass crowded channels automatically.
• Phone Setup: Features a separate internal configuration channel, allowing you to perfectly aim, monitor, and tweak the dish via a smartphone app.
• Smooth 3-Axis Aiming: Comes with a built-in ball-joint mount that lets you easily swivel the dish in any direction for easy alignment.
• Bridge Only: Does not talk to standard laptops or mobile devices directly; it is strictly an outdoor link to connect towers and buildings.

SPECIFICATIONS:

• Dimensions: ⌀189 × 125 mm (⌀7.4 × 4.9")
• Weight: 530 g (1.2 lb)
• Enclosure Materials: UV-stabilized plastic
• Mounting:
• Pole mount kit (Included)
• Wall mount (Not included)
• Window mount (Not included)
• Wind Loading: 45.4 N at 200 km/h (10.2 lbf at 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• Networking Interface: 1 × GbE RJ45 port
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power Supply: 24V, 0.5A gigabit PoE adapter (Included)
• Supported Voltage Range: 20–27V DC
• Max. Power Consumption: 7.5W
• ESD Protection: Air/contact: ±24kV
• Buttons: 1 × Factory reset
• LEDs:
• Signal Strength: ✓
• Power: ✓
• Ethernet: ✓
• Ambient Operating Temperature: -40 to 80°C (-40 to 176°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC
• Qualifications:
• Salt Fog Test: IEC 68-2-11 (ASTM B117)
• Equivalent: MIL-STD-810 G Method 509.5
• Temperature Shock Test: IEC 68-2-14
• UV Test: IEC 68-2-5 at 40°C (104°F)
• Equivalent: ETS 300 019-1-4
• Vibration Test: IEC 68-2-6
• Wind-Driven Rain Test: ETS 300 019-1-4
• Equivalent: MIL-STD-810 G Method 506.5
• Total Throughput: 150+ Mbps
• Channel Bandwidth: 10/20/40 MHz
• Antenna Gain: 13 dBi
• Max. VSWR: 1.5:1
• Polarization: Dual linear
• Operating Frequency:
• Worldwide: 2412–2472 MHz
• US/CA: 2412–2462 MHz
• Management Radio — Supported Frequency Range:
• Worldwide: 5150–5250 MHz
• US/CA: U-NII-3: 5725–5850 MHz

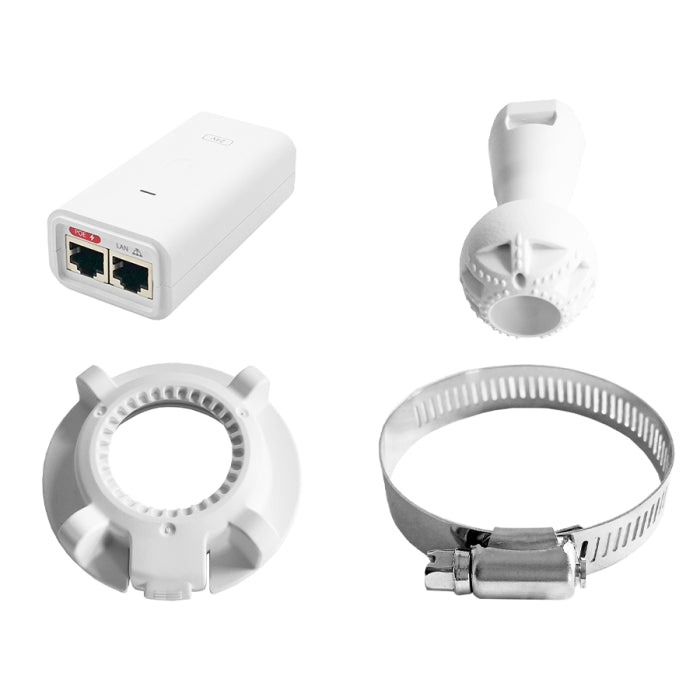

WHAT’S IN THE BOX:

• NanoBeam NBE-2AC-13 Unit (The integrated radio and circular dish assembly) x1
• Ball-Joint Mount & Lock Ring (Enables smooth 3-axis positioning for precision aiming) x1
• Metal Strap (For secure, toolless pole mounting) x1
• 24V, 0.5A Gigabit PoE Injector with a wall-mounting bracket x1
• Power Cord x1

WARRANTY:

• 12 Months
