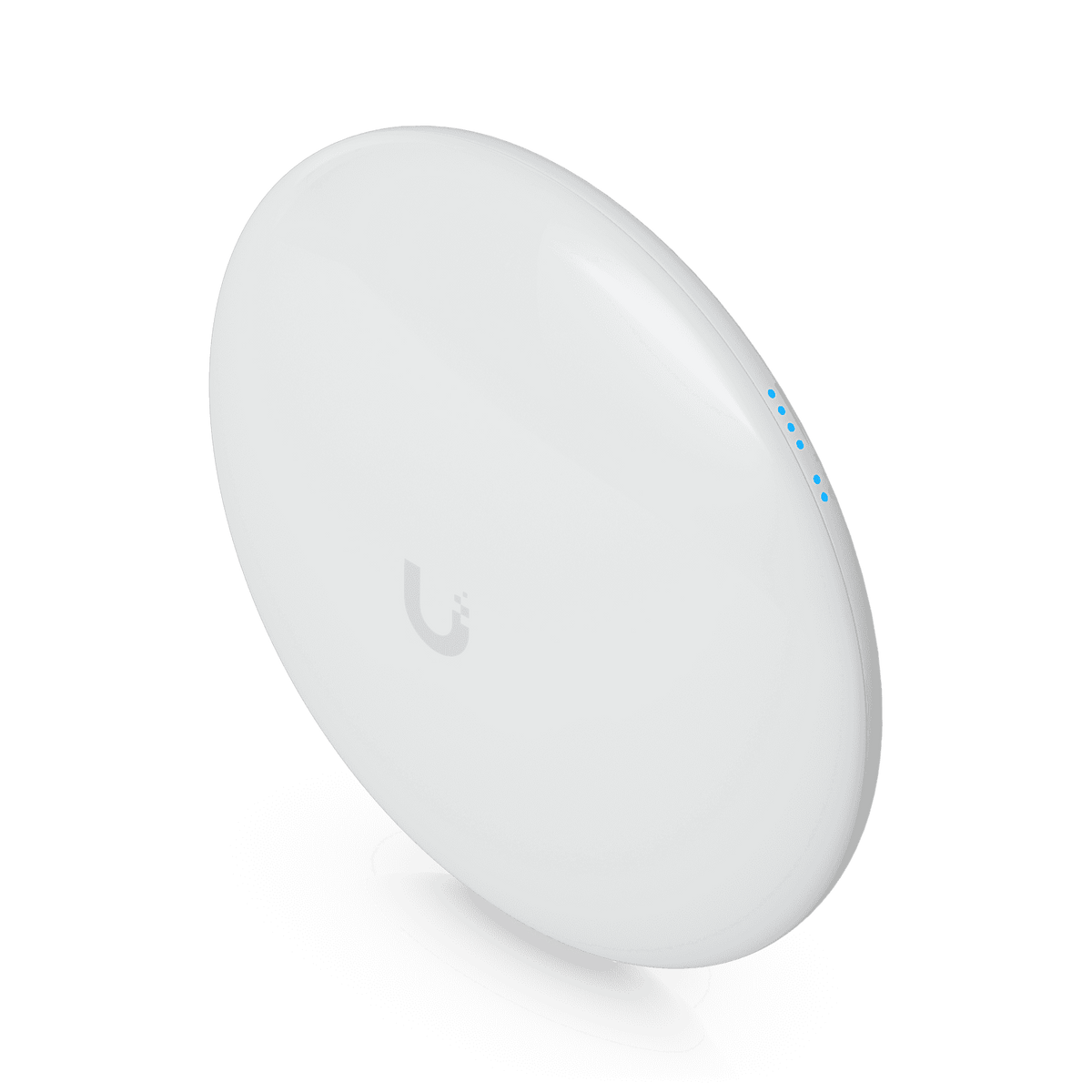

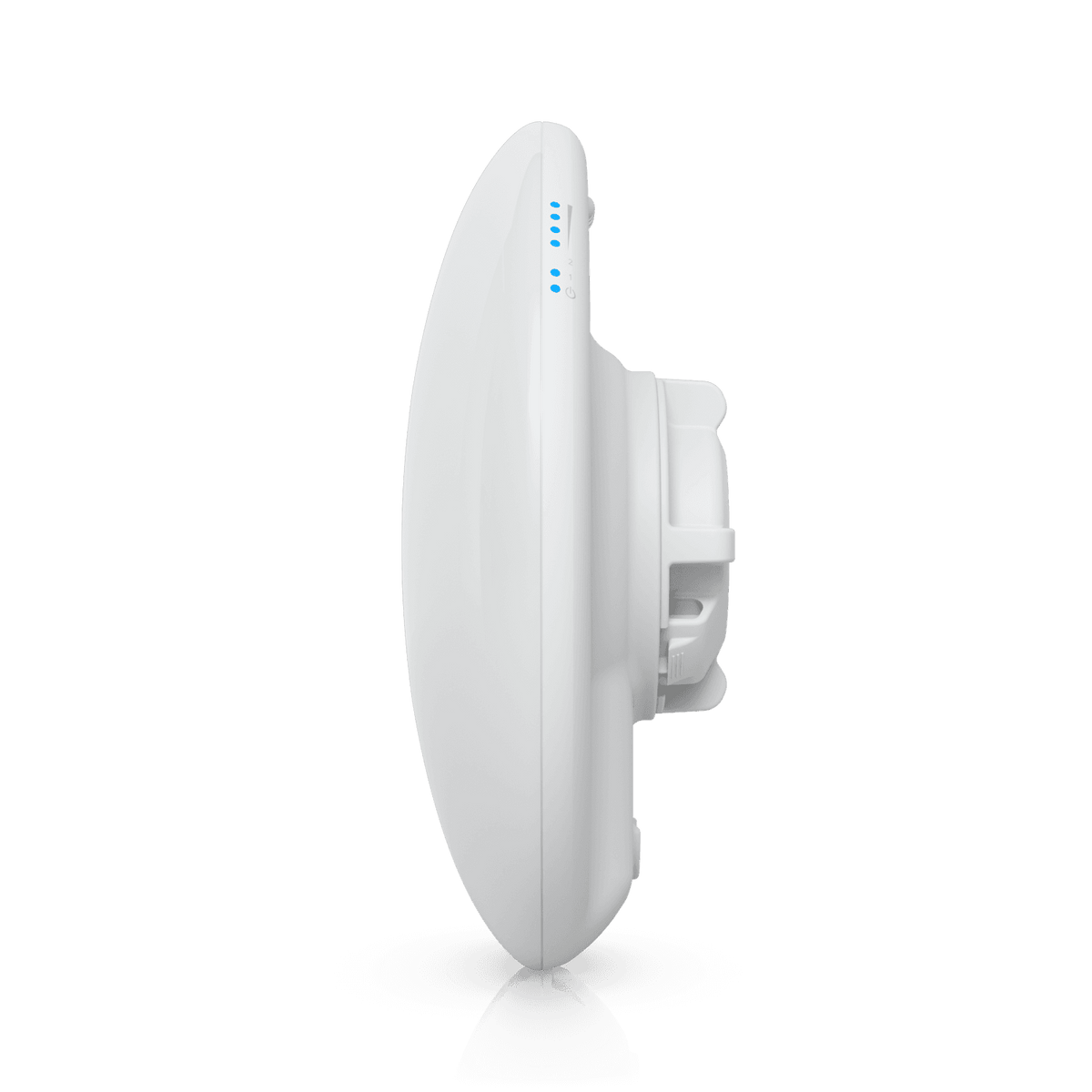

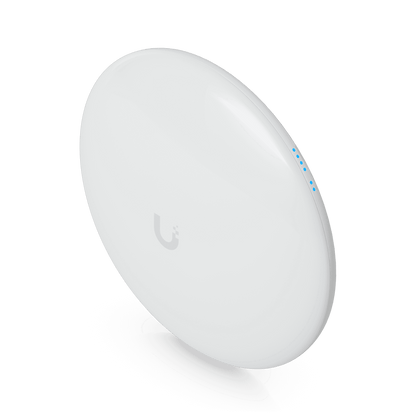

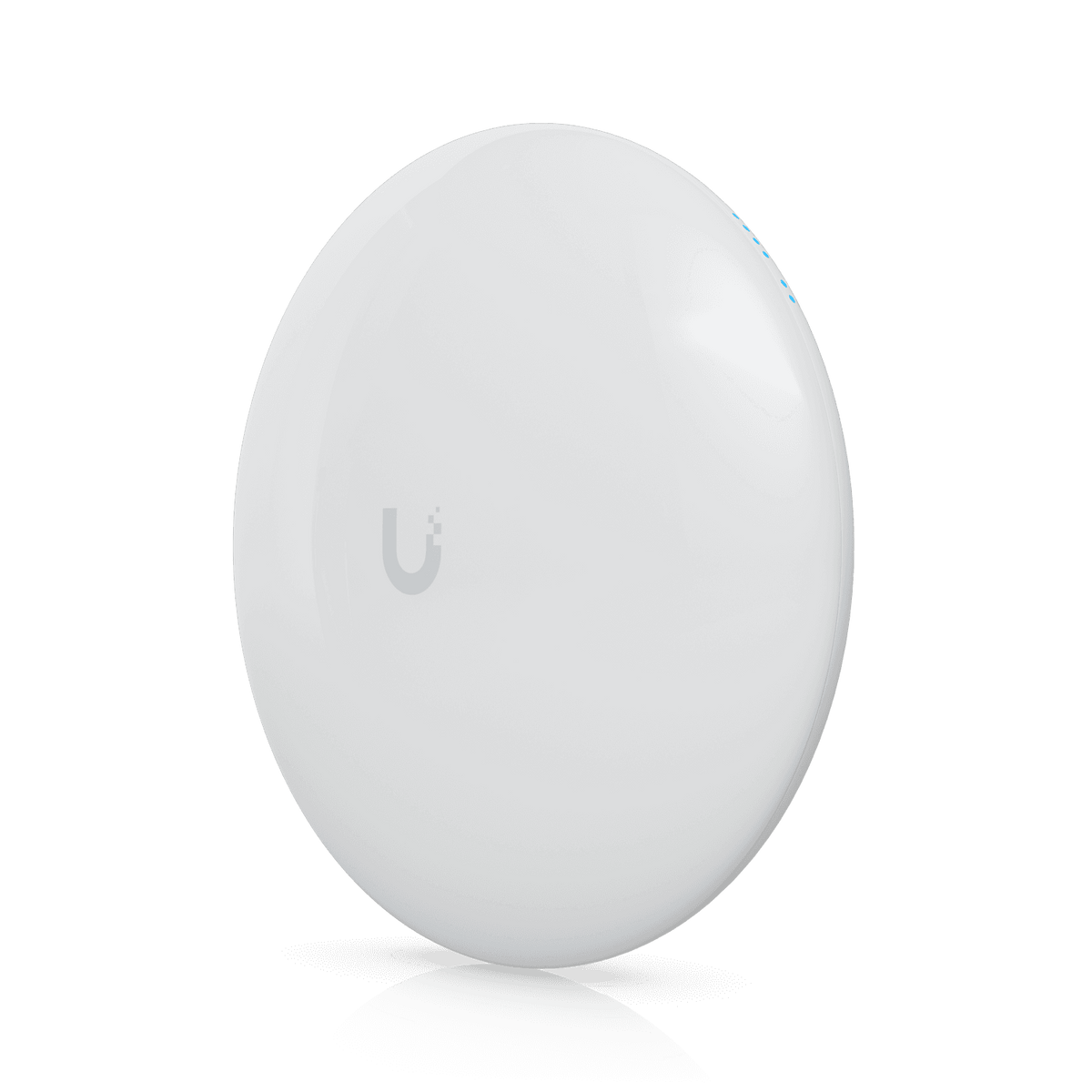

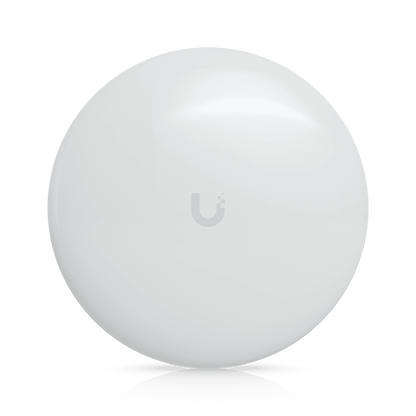

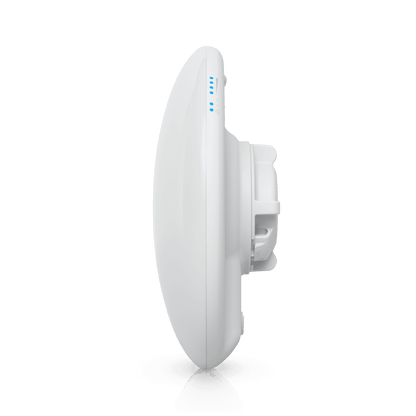

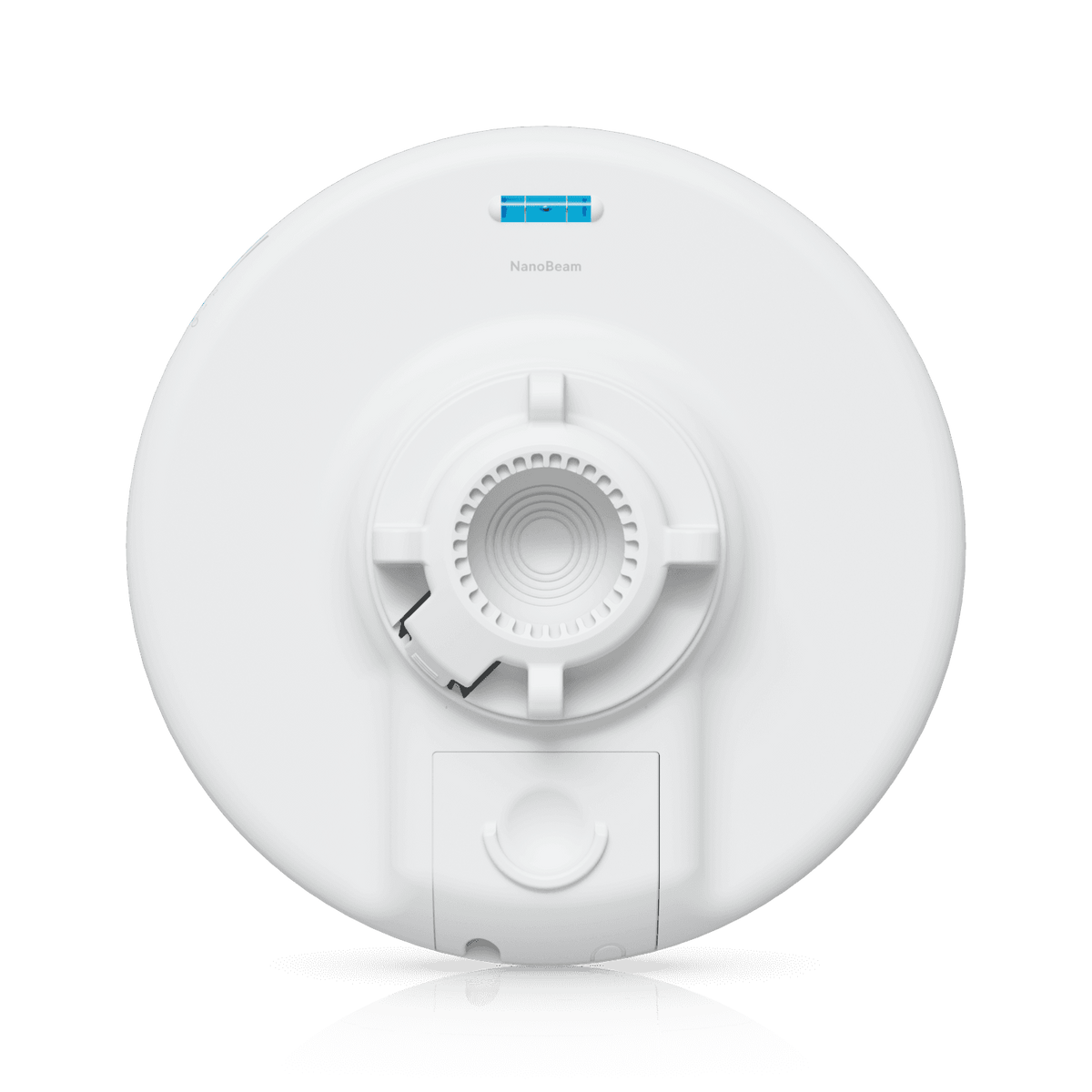

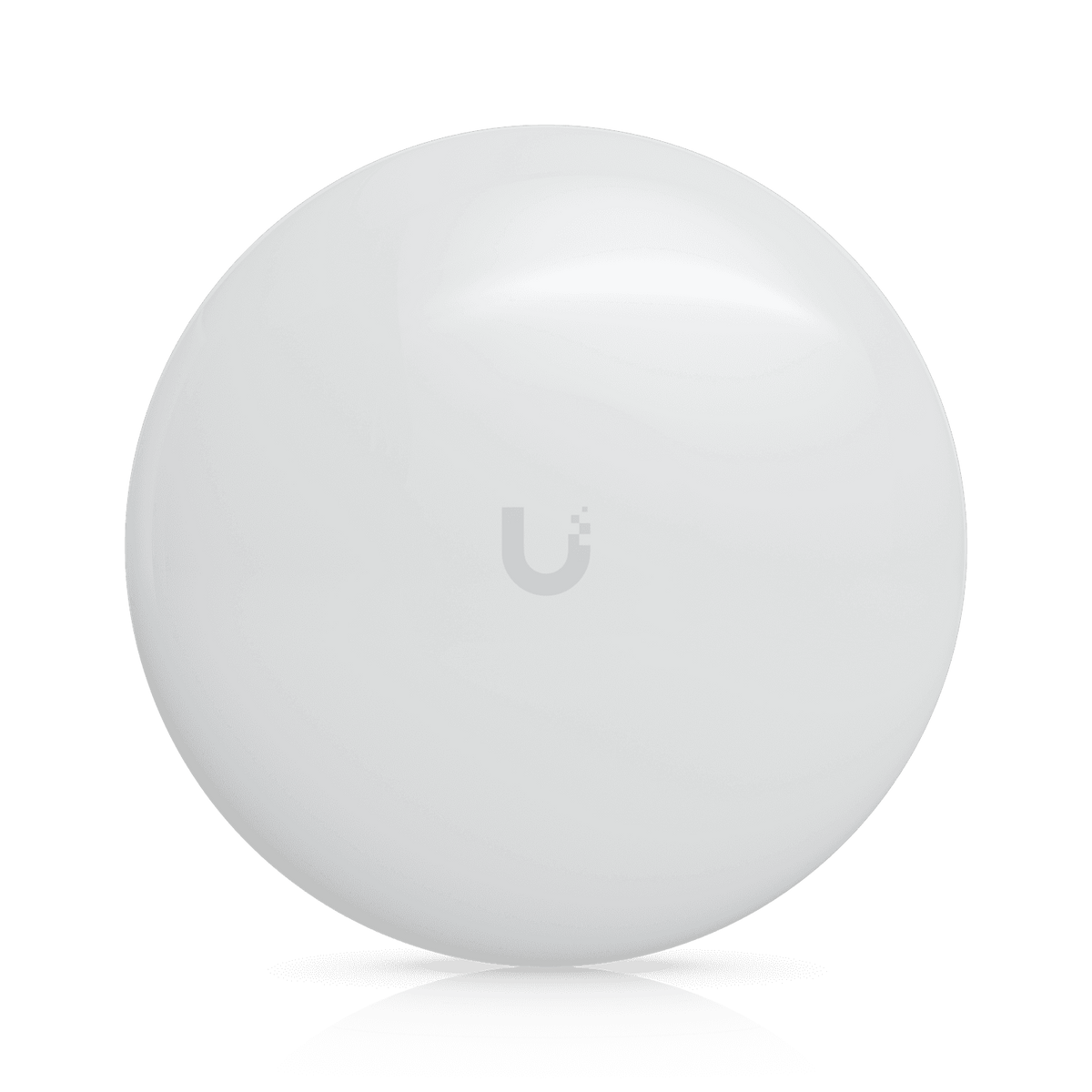

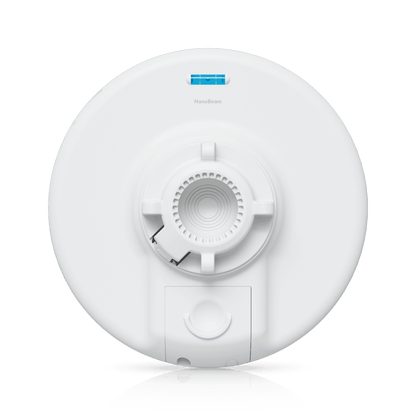

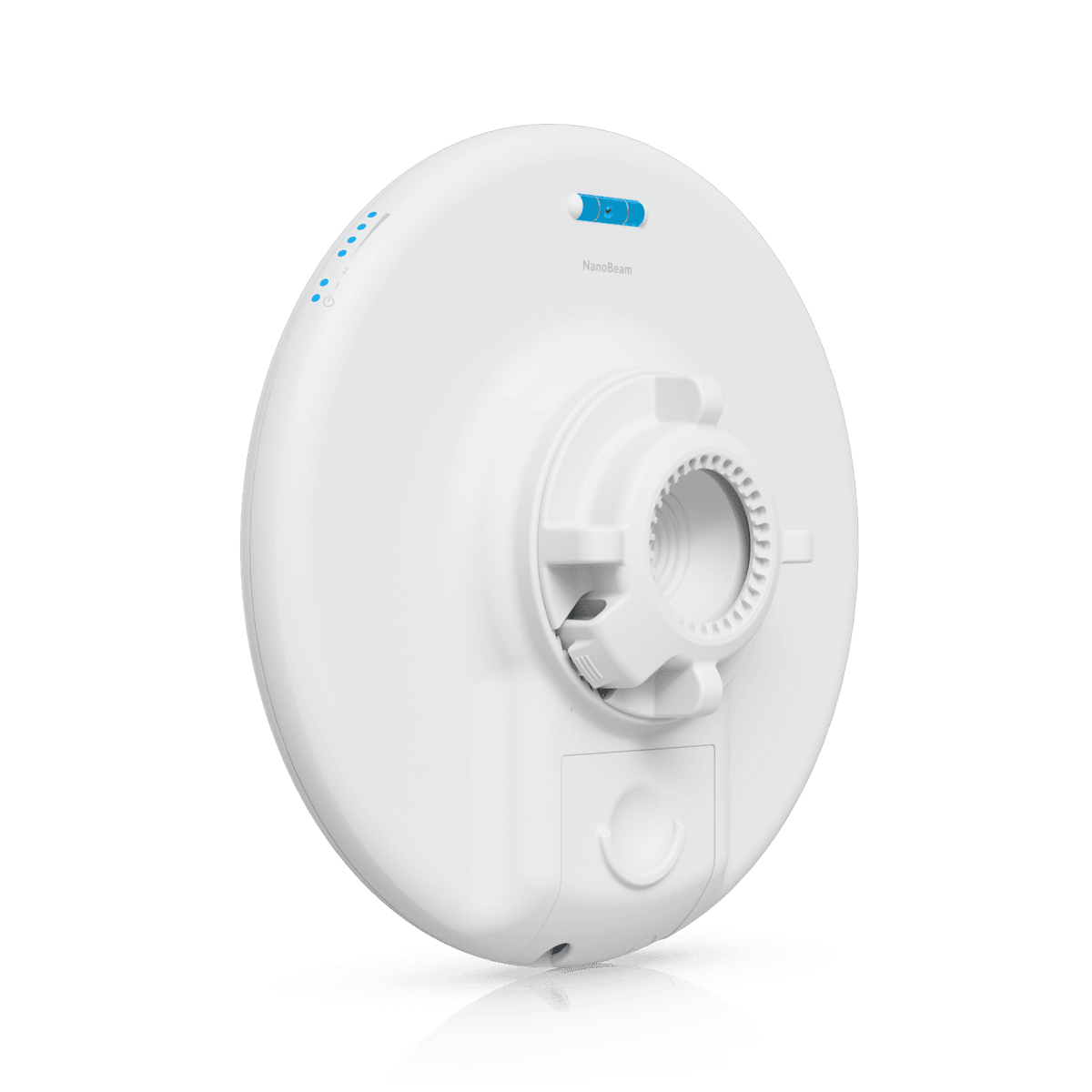

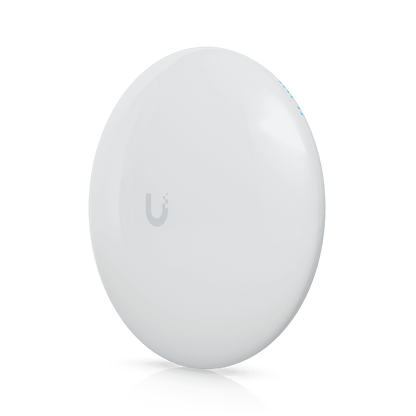

Ubiquiti UISP airMAX NanoBeam AC 5GHz 19dBi Radio

Ubiquiti's NBE-519ACG2 is an airMAX AC 5GHz radio with a 19dBi antenna. It is designed as a lightweight, short-distance CPE (client premises equipment), PtP (point to point) or PtMP (point to multipoint) solution. It features 24v passive PoE pass-through. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

FEATURES:

• High-Gain Clean Beam: Features a larger 19 dBi circular dish that pinpoints its 5 GHz signal into a very narrow beam, effectively ignoring crowded local Wi-Fi noise.
• 450+ Mbps High-Speed Streaming: Upgrades legacy speeds to the advanced airMAX AC engine, pulling down 450+ Mbps over distances up to 15+ kilometres.
• Smart Noise Radar: Includes a dedicated co-processor that continuously scans local radio frequencies to map out interference and keep your connection clean.
• Phone Setup & Real-time Alignment: Includes a separate internal configuration Wi-Fi channel so you can perfectly aim and monitor the dish using a smartphone app while on a ladder.
• Dual Mounting Flexibility: Comes with both a metal strap for poles and an absolute wall-mount bracket plate in the box, giving you more installation options out-of-the-box.
• Bridge Only: Does not talk to standard laptops or mobile devices directly; it is strictly an outdoor link to connect towers and buildings.

SPECIFICATIONS:

• Mechanical
• Dimensions: 189 × 189 × 125 mm (7.44 × 7.44 × 4.92")
• Weight: 530 g (1.17 lb)
• Enclosure Materials: UV-stabilized polycarbonate
• Mounting:
• Pole Mount (Included)
• Wall Mount (Optional)
• Wind Loading: 45.4 N at 200 km/h (10.2 lbf at 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• Hardware

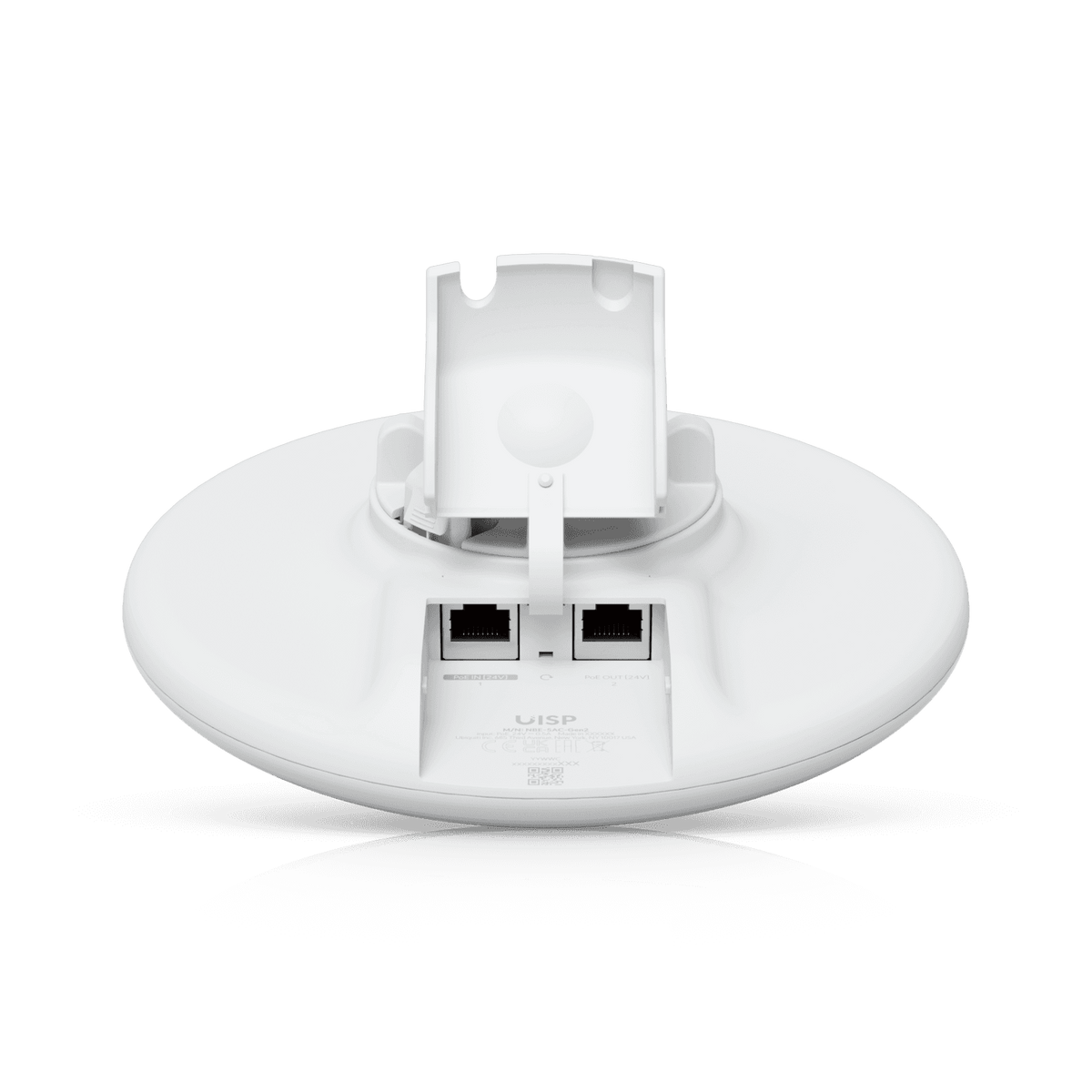

• Networking Interface: 2 × GbE RJ45 ports
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power Supply: 24V, 0.5A gigabit PoE adapter (Included)
• Supported Voltage Range: 20–27V DC
• Max. Power Consumption: 8.5W
• LEDs:
• Signal Strength: ✓
• Power: ✓
• Ethernet: ✓
• Ambient Operating Temperature: -40 to 80°C (-40 to 176°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC
• Qualifications
• Salt Fog Test: IEC 68-2-11 (ASTM B117)
• Equivalent: MIL-STD-810 G Method 509.5
• Temperature Shock Test: IEC 68-2-14
• UV Test: IEC 68-2-5 at 40°C (104°F)
• Equivalent: ETS 300 019-1-4
• Vibration Test: IEC 68-2-6
• Wind-Driven Rain Test: ETS 300 019-1-4
• Equivalent: MIL-STD-810 G Method 506.5
• Software
• Operating Modes:
• Access Point
• Station
• Ubiquiti Specific Features:
• airMAX AC Mode: ✓
• Discovery Protocol: ✓
• Frequency Band Offset: ✓
• Traffic Shaping with Burst Support: ✓
• 30/50/60 MHz Channels: ✓
• Services:
• Bridging: ✓
• DHCP: ✓
• Ping Watchdog: ✓
• Routing: ✓
• SNMP: ✓
• SSH: ✓
• Webserver: ✓
• Distance Adjustment:
• Ackless Mode: ✓
• Dynamic Ack: ✓
• QoS: WMM packet classification with user-level priority: High, Medium, Low
• Statistical Reporting:
• Data Rates: ✓
• Ethernet Link Rate: ✓
• Packet Errors: ✓
• Up Time: ✓
• Wireless Distance: ✓
• System
• Channel Bandwidth:
• PtP Mode: 10/20/30/40/50/60/80 MHz
• PtPM Mode: 10/20/30/40 MHz
• Antenna Gain: 19 dBi
• Max. VSWR: 1.5:1
• Polarization: Dual-Linear
• Radio Frequency — Supported Frequency Range:
• Worldwide: 5150–5875 MHz
• US/CA:
• U-NII-1: 5150–5250 MHz
• U-NII-2A: 5250–5350 MHz
• U-NII-2C: 5470–5725 MHz
• U-NII-3: 5725–5850 MHz
• Management Radio — Supported Frequency Range:
• Worldwide: 2412–2472 MHz

WHAT’S IN THE BOX:

• NanoBeam NBE-5AC-Gen2 Unit (With an integrated 19 dBi antenna) x1

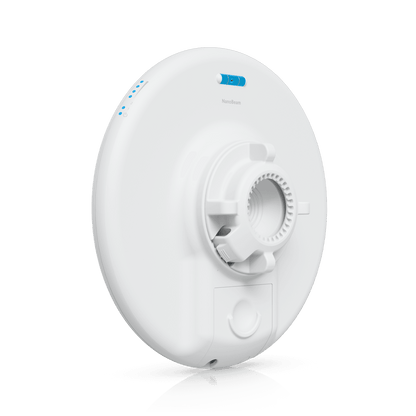

• Ball-Joint Mount & Lock Ring (For 3-axis alignment) x1
• Wall-Mount Bracket (An extra plastic base plate for flat-surface installations) x1
• Metal Strap (For standard pole mounting) x1
• 24V, 0.5A Gigabit PoE Injector and power cord x1

WARRANTY:

• 12 Months
