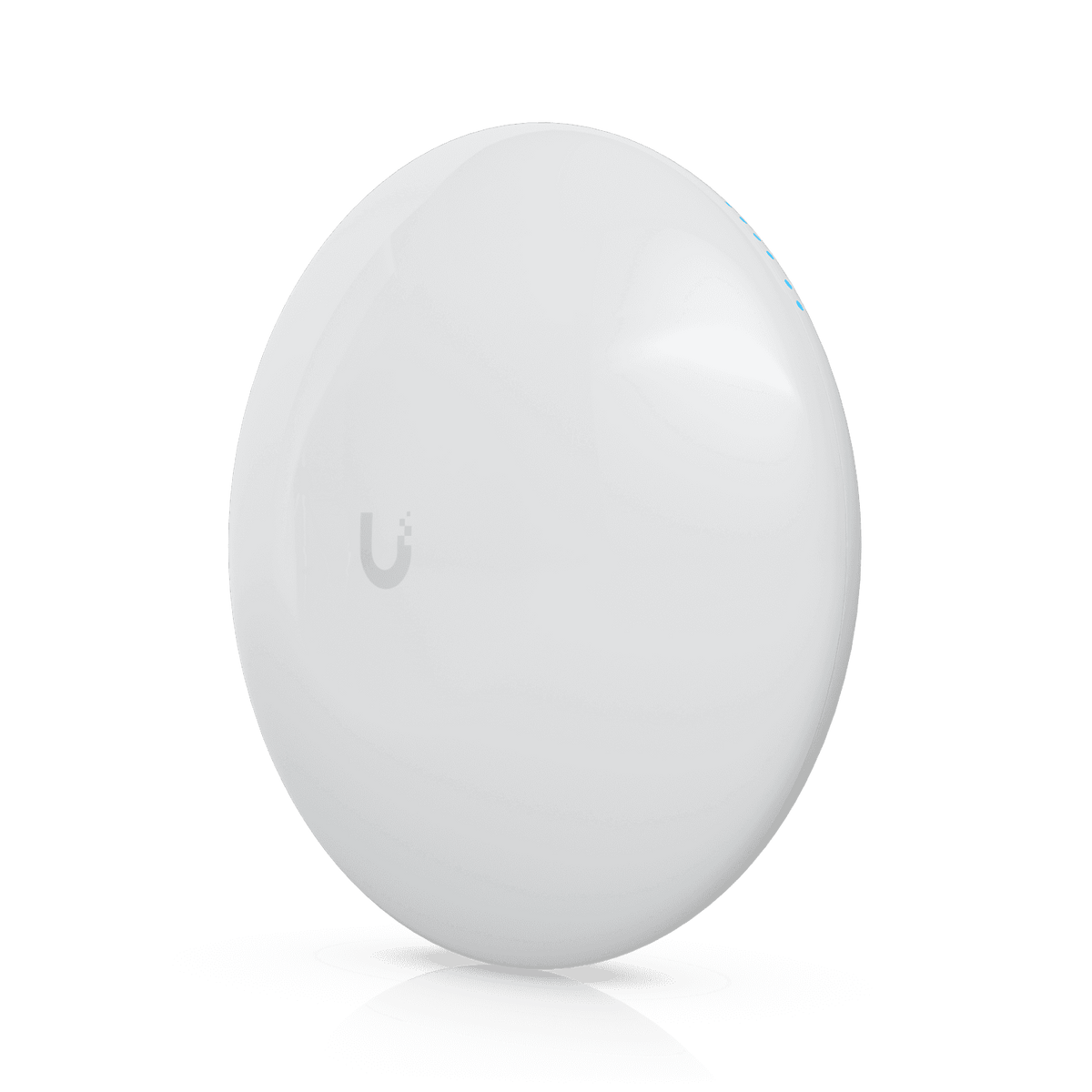

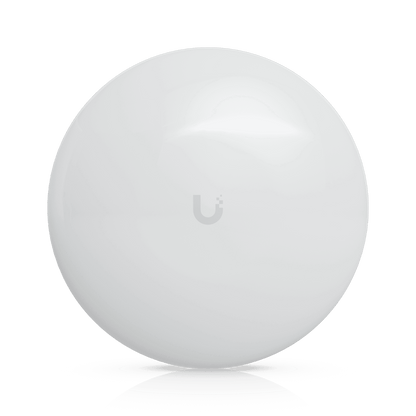

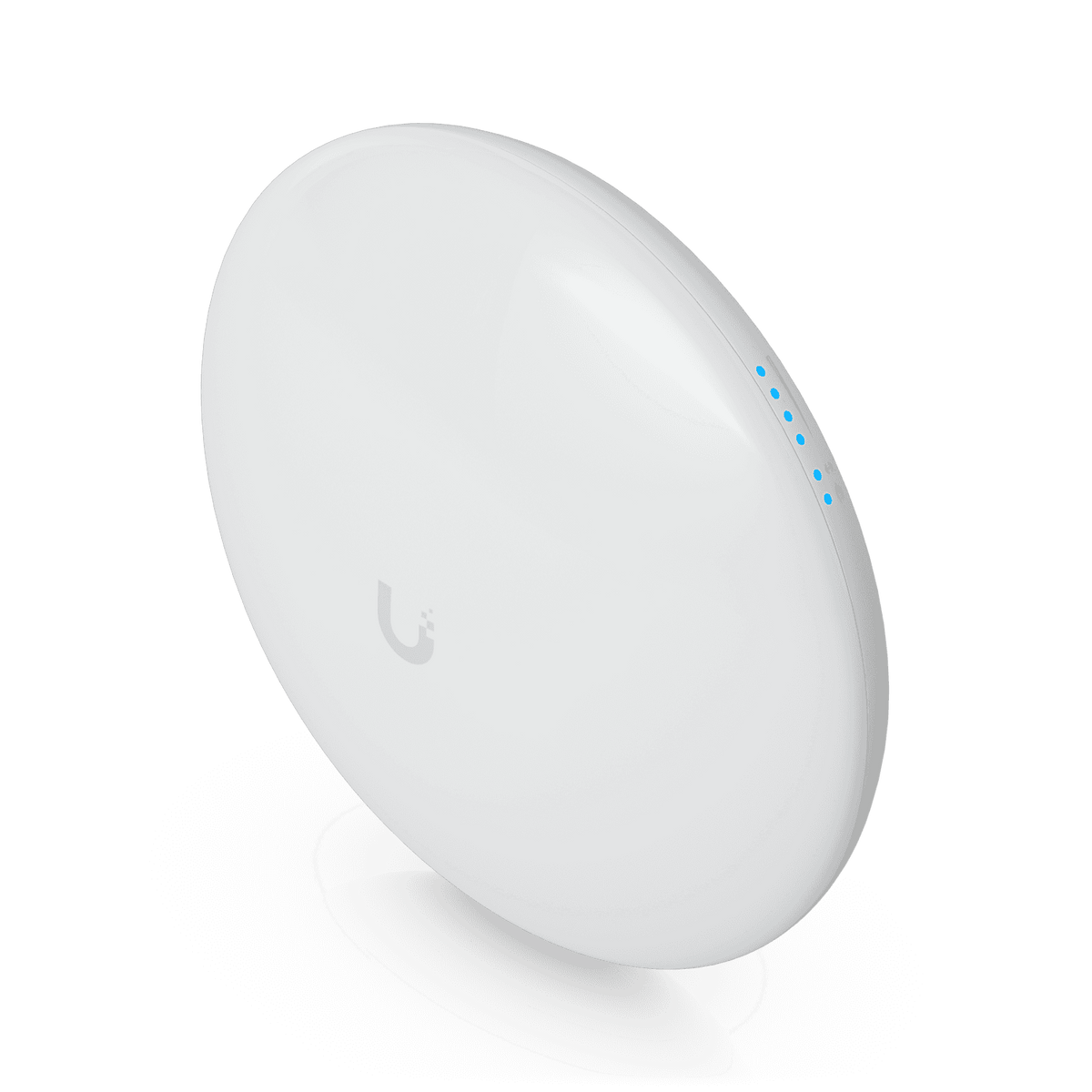

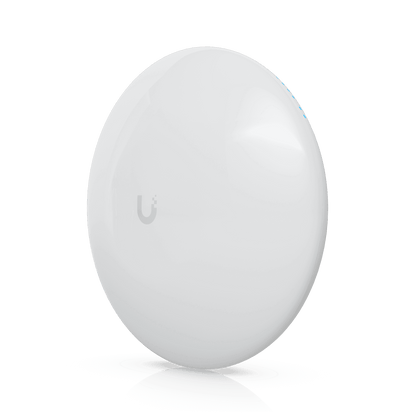

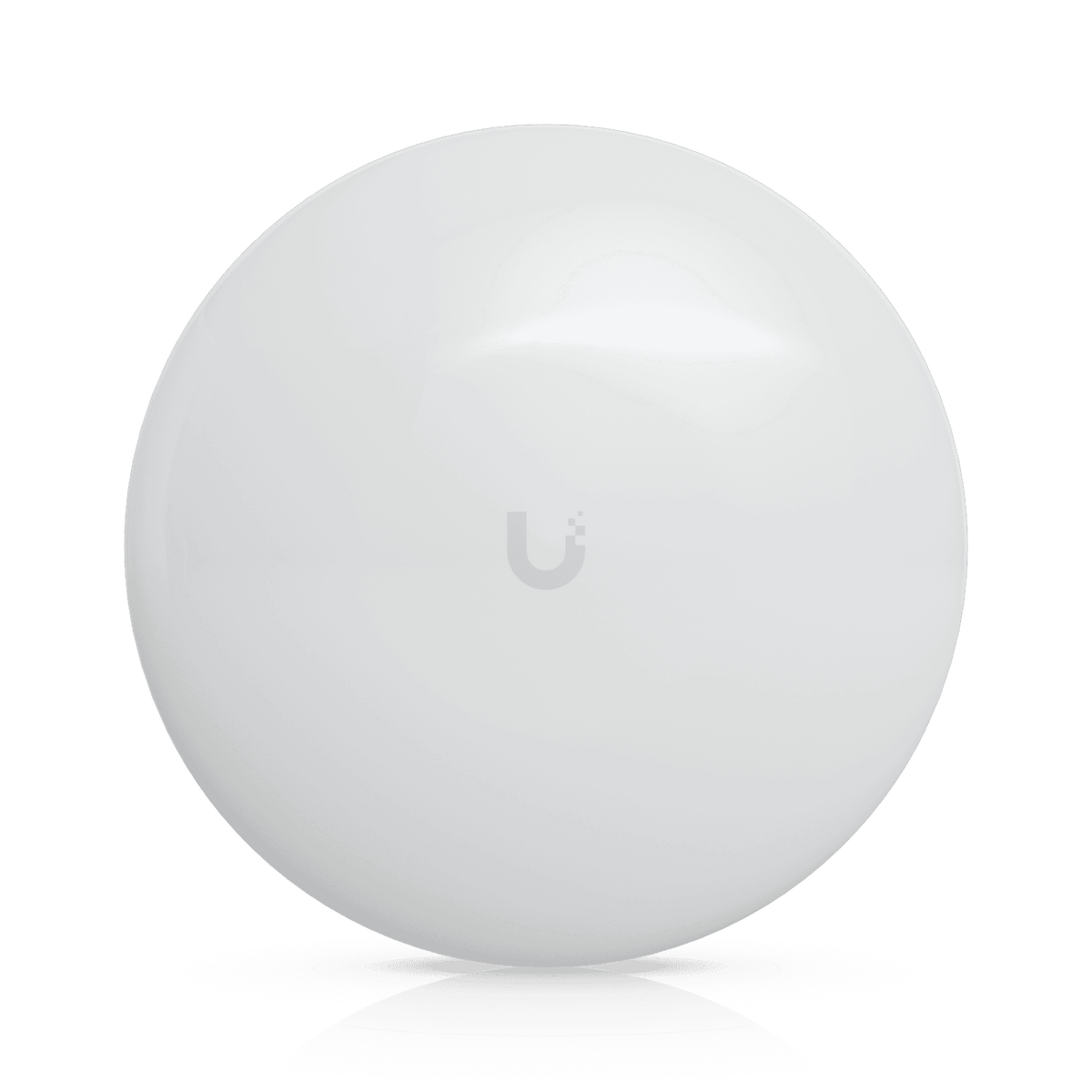

Ubiquiti UISP airMAX NanoBeam M5 5GHz 16dBi Radio

Ubiquiti's NBE-M5-16 is an airMAX M series 5GHz radio with a 16dBi antenna. It is designed as a lightweight, cost-effective, short-distance CPE (client premises equipment), PtP (point to point) or PtMP (point to multipoint) access point solution. It can be managed via the UISP network management platform.

FEATURES:

• All-in-One Compact Footprint: Blends seamlessly into backgrounds, weighing a featherlight 320 grams and measuring just 140 x 140 x 54 mm.
• Focused 16 dBi Gain: Concentrates the 5 GHz signal into a clean, tight beam pattern to bypass urban background noise and establish stable short-range links.
• 150+ Mbps Real Throughput: Utilizes legacy airMAX M (802.11n) 2x2 MIMO architecture to transport stable 150+ Mbps aggregate data connections.

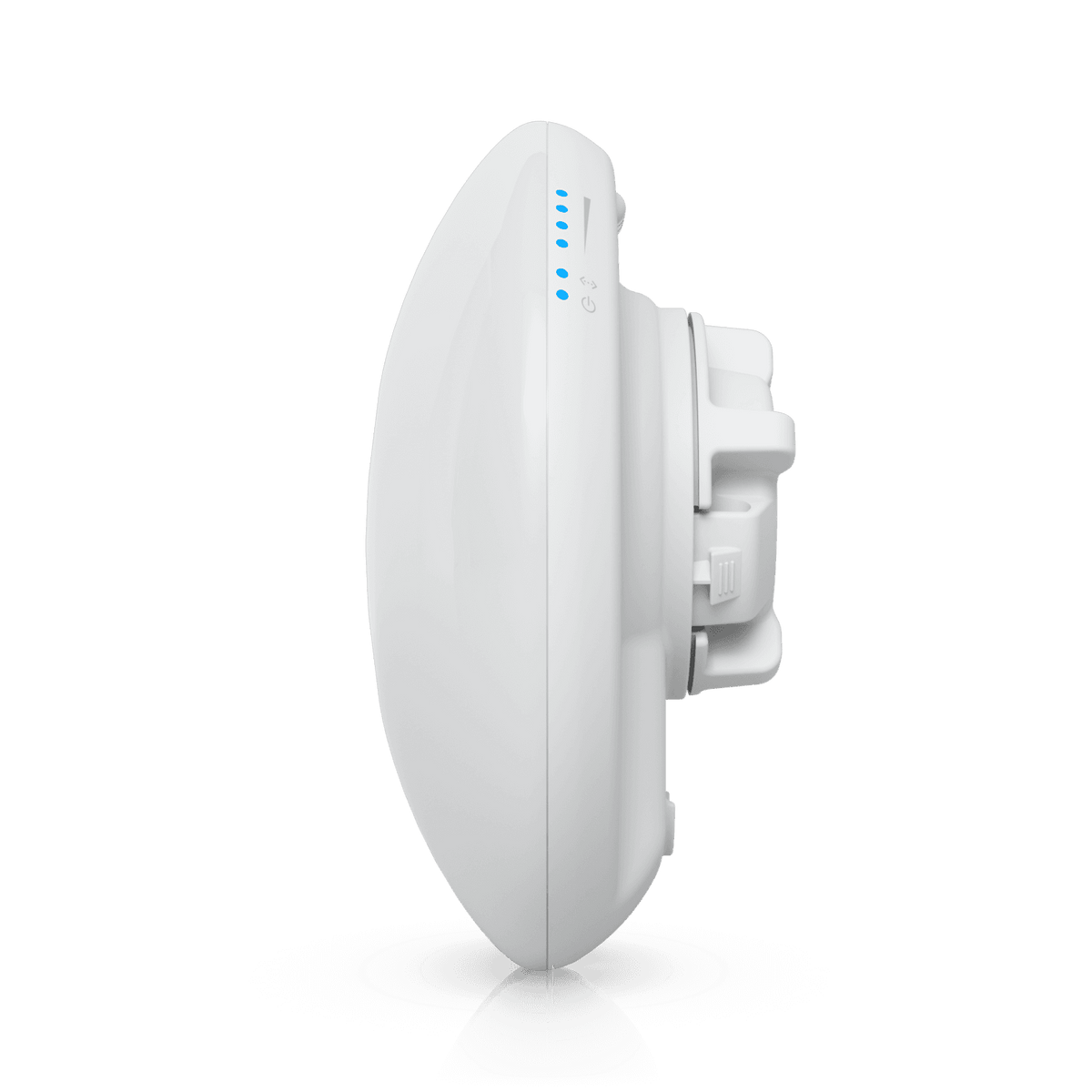

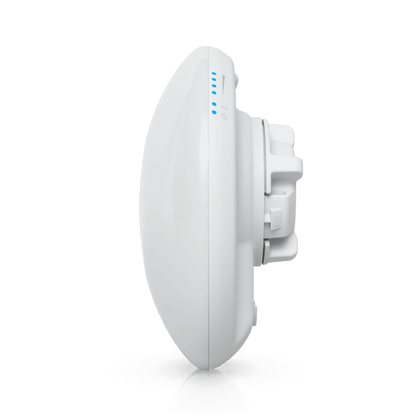

• LED Alignment Metrics: Features bright physical signal-strength lights on the rear panel, letting you rough-align the link physically without needing to check software.
• Laptop Web Setup: Lacks a built-in Bluetooth or management Wi-Fi chip. Configuration requires plugging a laptop directly into the PoE block and loading the classic browser interface.
• Bridge Only: Does not push out standard hotspot signals for consumer laptops or mobile smartphones; it connects strictly with other legacy airMAX M series radios.

SPECIFICATIONS:

• Dimensions: 140 × 140 × 54 mm (5.5 × 5.5 × 2.1")
• Weight: 320 g (0.7 lb)
• Enclosure Materials: Outdoor UV-stabilized polycarbonate
• Mounting:
• Pole Mount (Included)
• Wall Mount
• Wind Loading: 21.4 N @ 200 km/h (4.8 lbf @ 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• Hardware

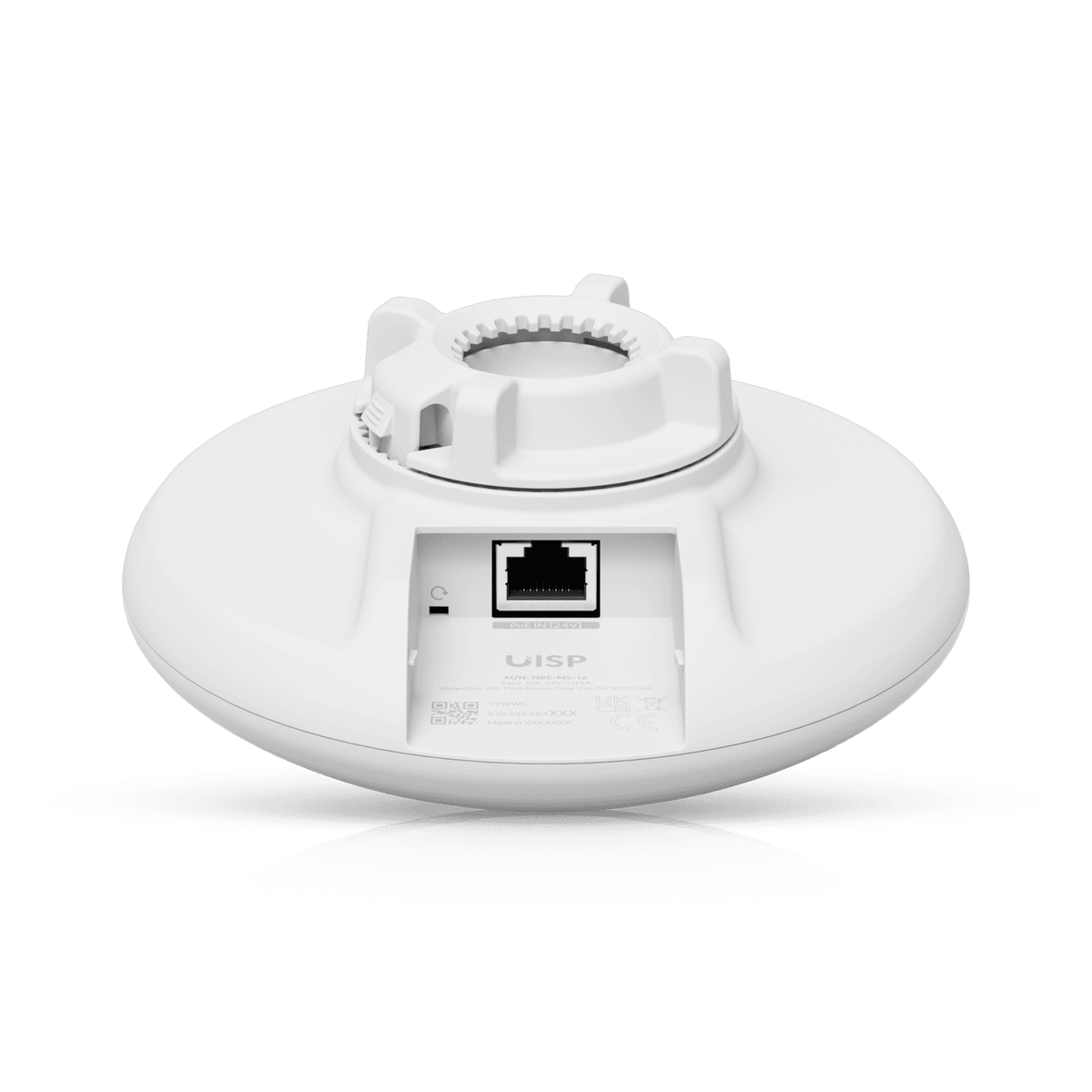

• Networking Interface: 1 × 10/100 MbE RJ45 port
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power Supply: 24V, 0.5A PoE adapter (Included)
• Supported Voltage Range: 20–27V DC
• Max. Power Consumption: 6W
• LEDs:
• Signal Strength: ✓
• Power: ✓
• LAN: ✓
• WAN: ✓
• Ambient Operating Temperature: -40 to 70°C (-40 to 158°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: FCC, IC, CE, RoHS, Anatel: 02895-15-08356
• Qualifications
• Salt Fog Test: IEC 68-2-11 (ASTM B117)
• Equivalent: MIL-STD-810 G Method 509.5
• Temperature Shock Test: IEC 68-2-14
• UV Test: IEC 68-2-5 at 40°C (104°F)
• Equivalent: ETS 300 019-1-4
• Vibration Test: IEC 68-2-6
• Wind-Driven Rain Test: ETS 300 019-1-4
• Equivalent: MIL-STD-810 G Method 506.5
• System
• Channel Bandwidth: 5/8/10/20/30/40 MHz
• Antenna Gain: 16 dBi
• Max. VSWR: 1.5:1
• Polarization: Dual-Linear
• Radio Frequency — Supported Frequency Range:
• Worldwide: 5150–5875 MHz
• US/CA:
• U-NII-1: 5150–5250 MHz
• U-NII-2A: 5250–5350 MHz
• U-NII-2C: 5470–5725 MHz
• U-NII-3: 5725–5850 MHz

WHAT’S IN THE BOX:

• NanoBeam NBE-M5-16 Unit x1

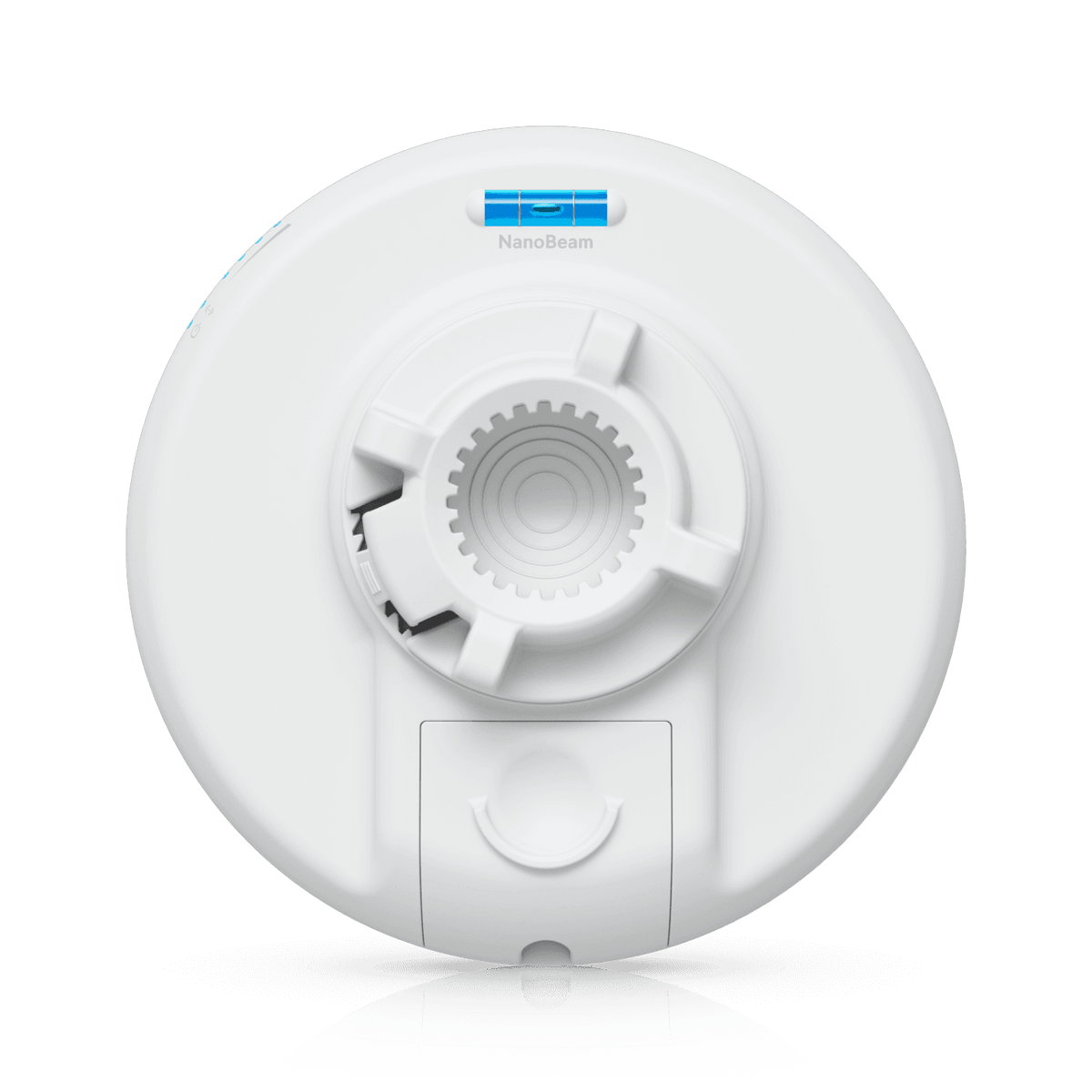

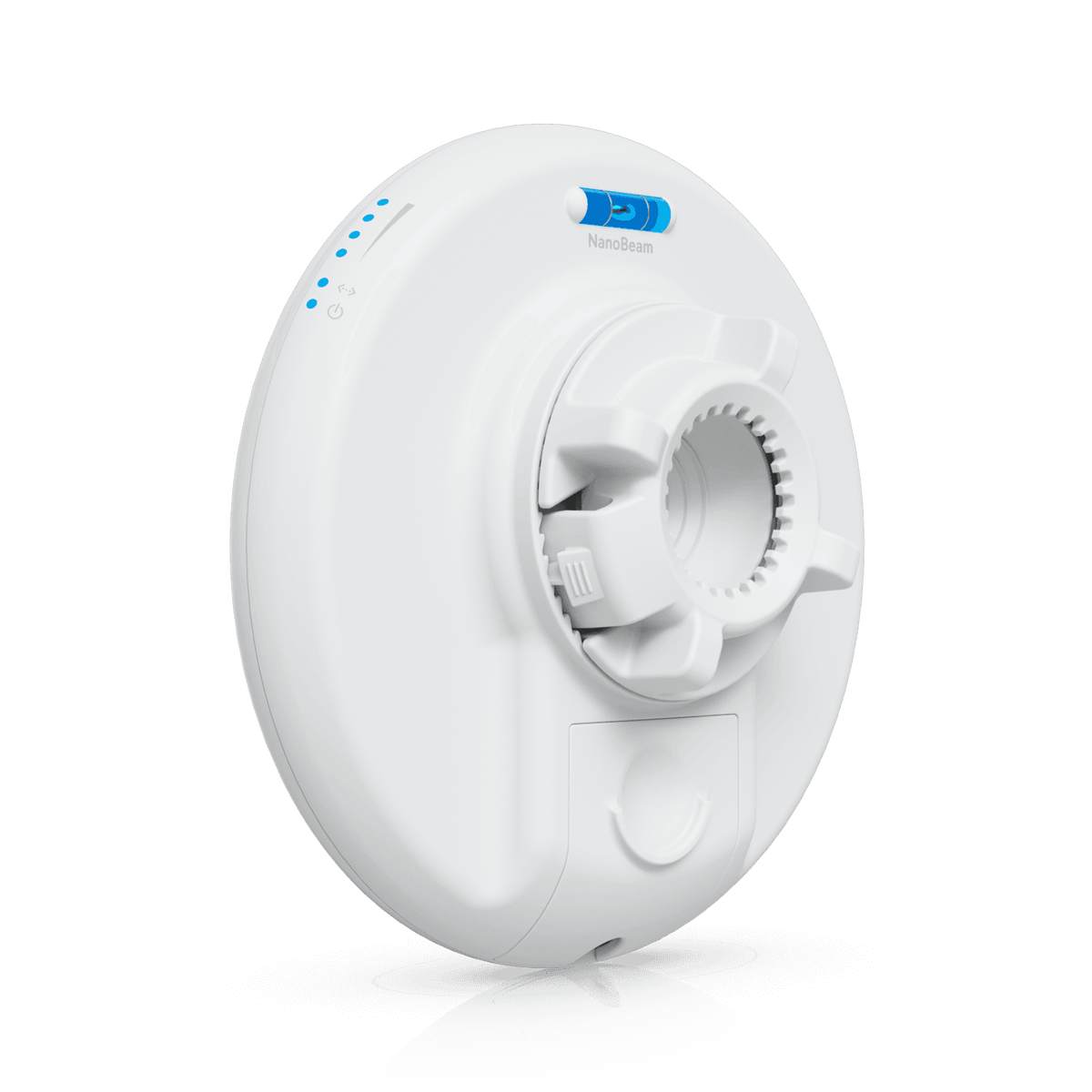

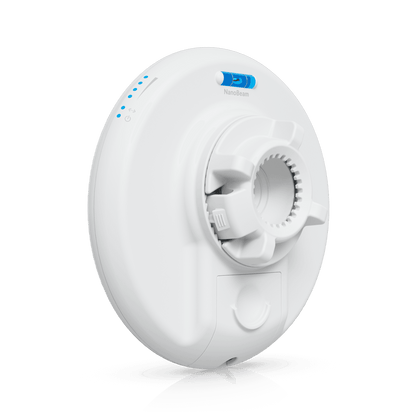

• Ball-Joint Mount Adapter & Lock Ring (For 3-axis alignment tracking) x1
• Metal Strap / Hose Clamp (For toolless pole installation) x1
• 24V, 0.5A Passive PoE Injector and power cord  x1

WARRANTY:

• 12 Months
