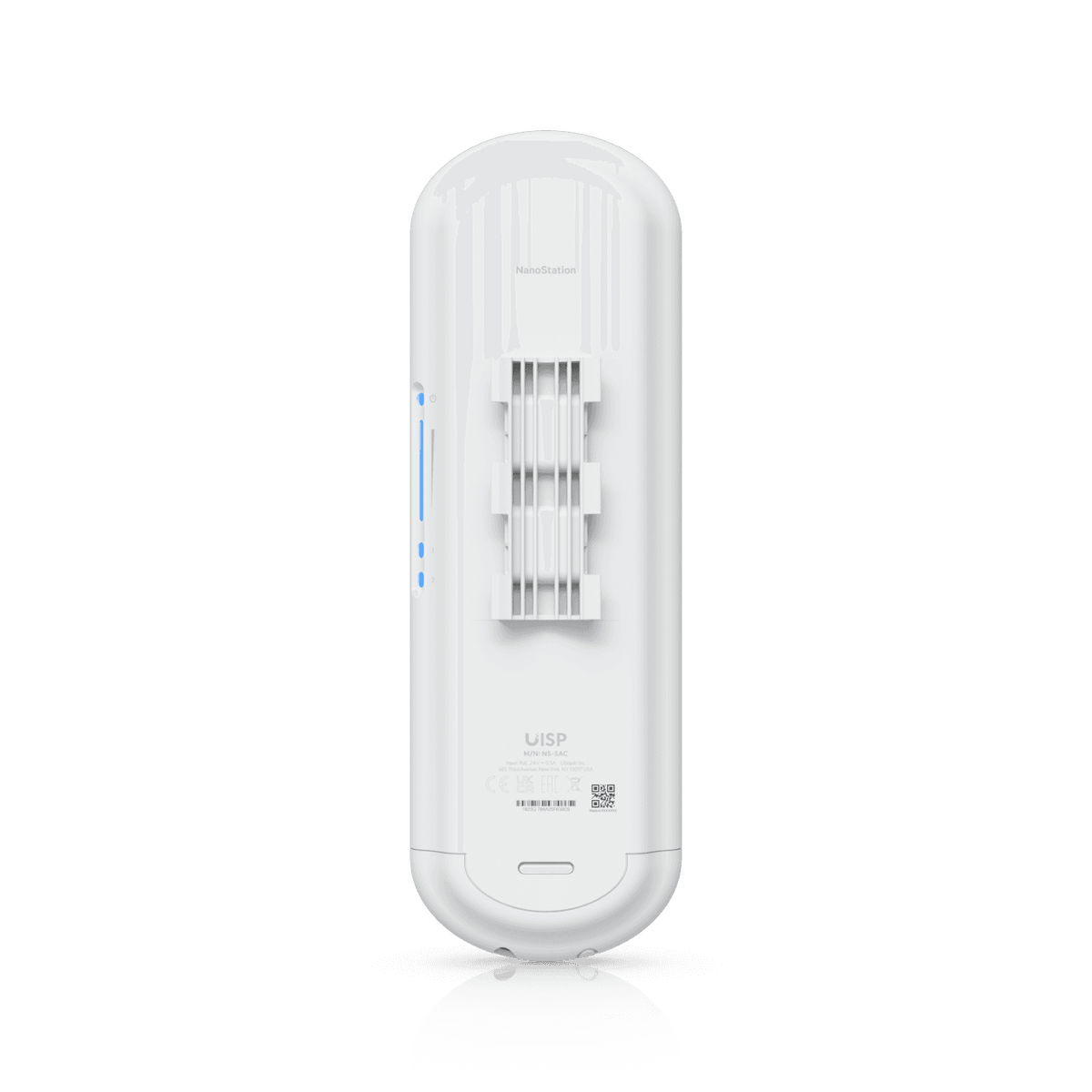

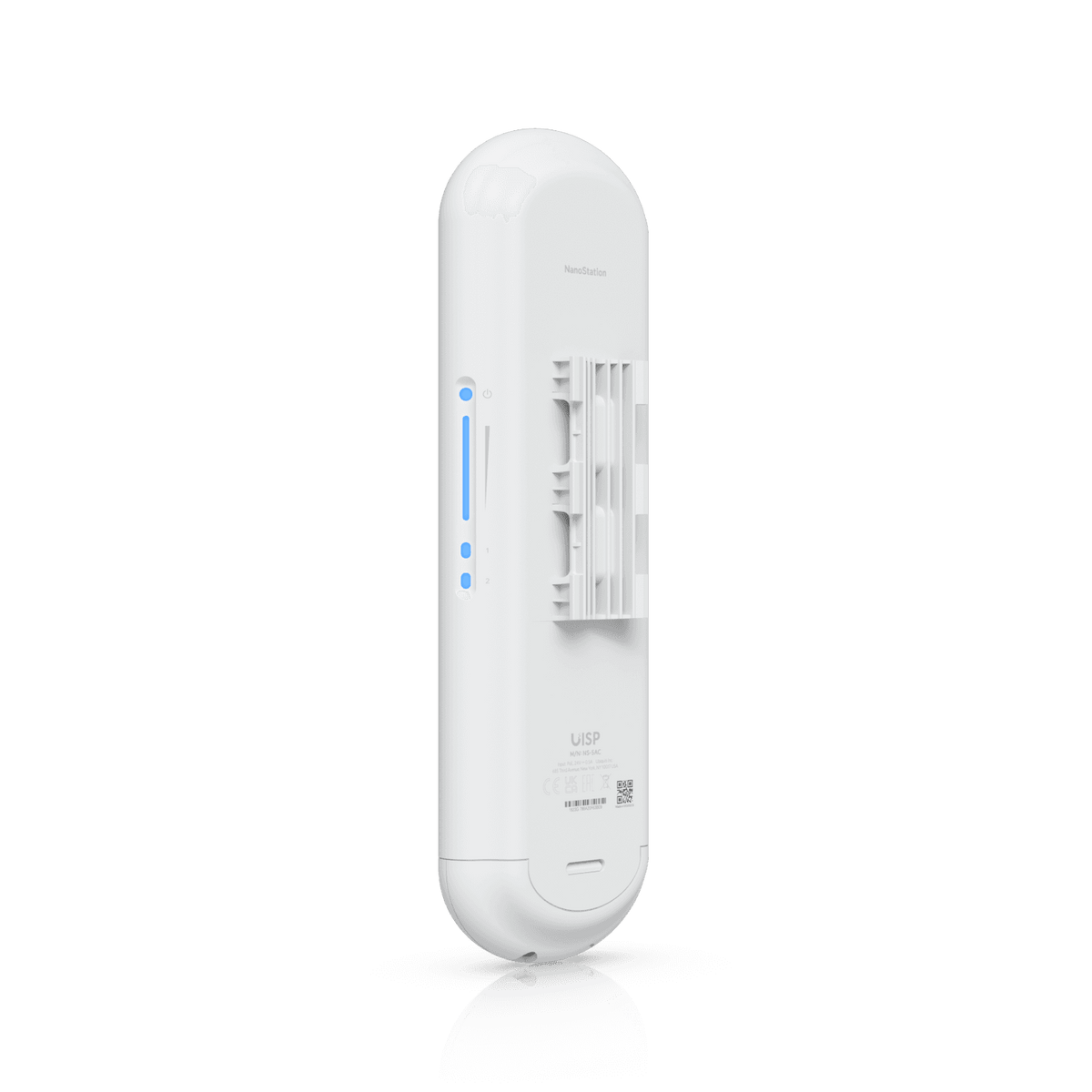

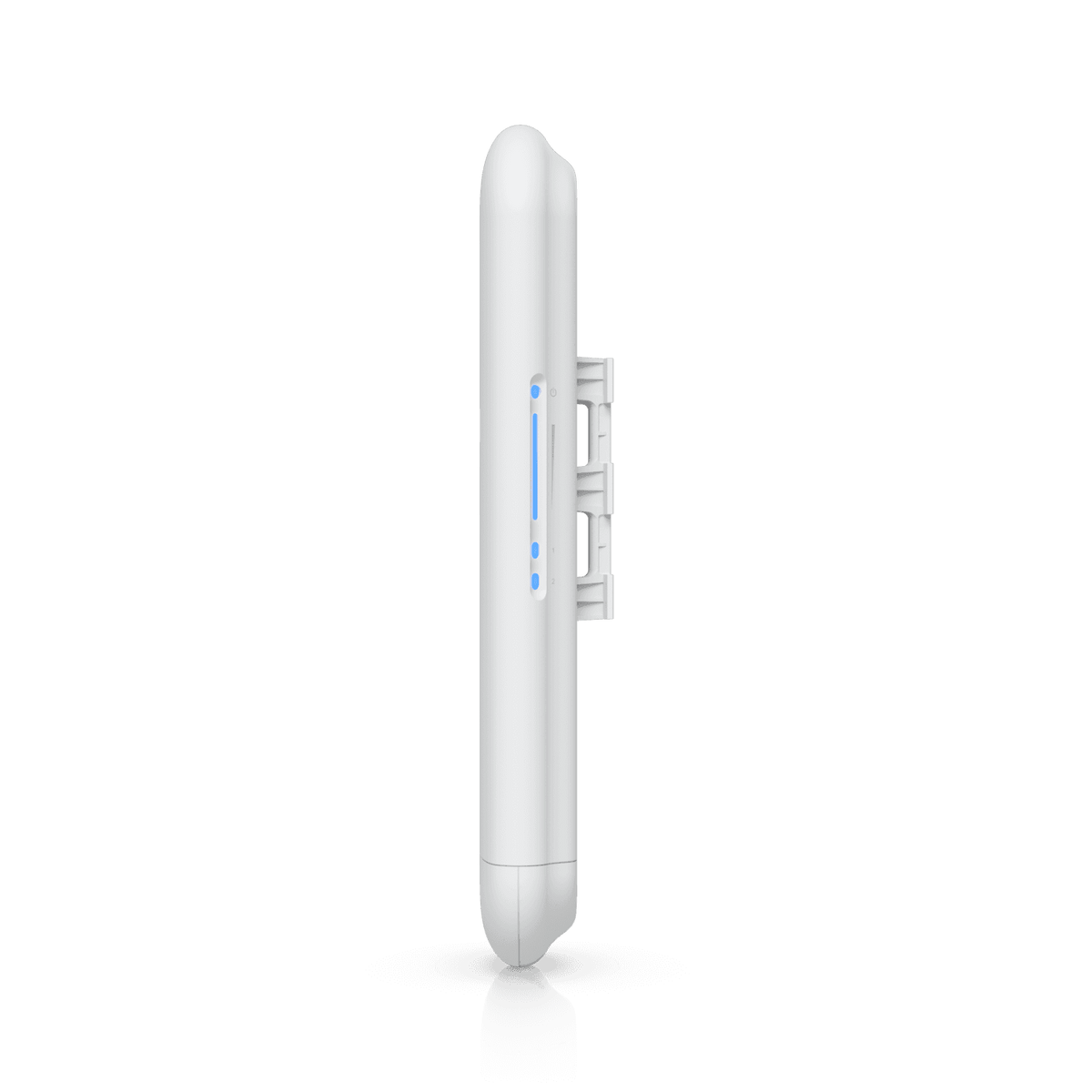

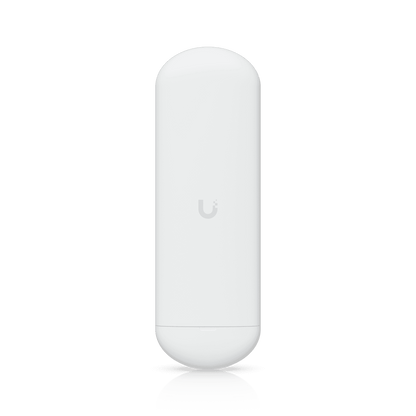

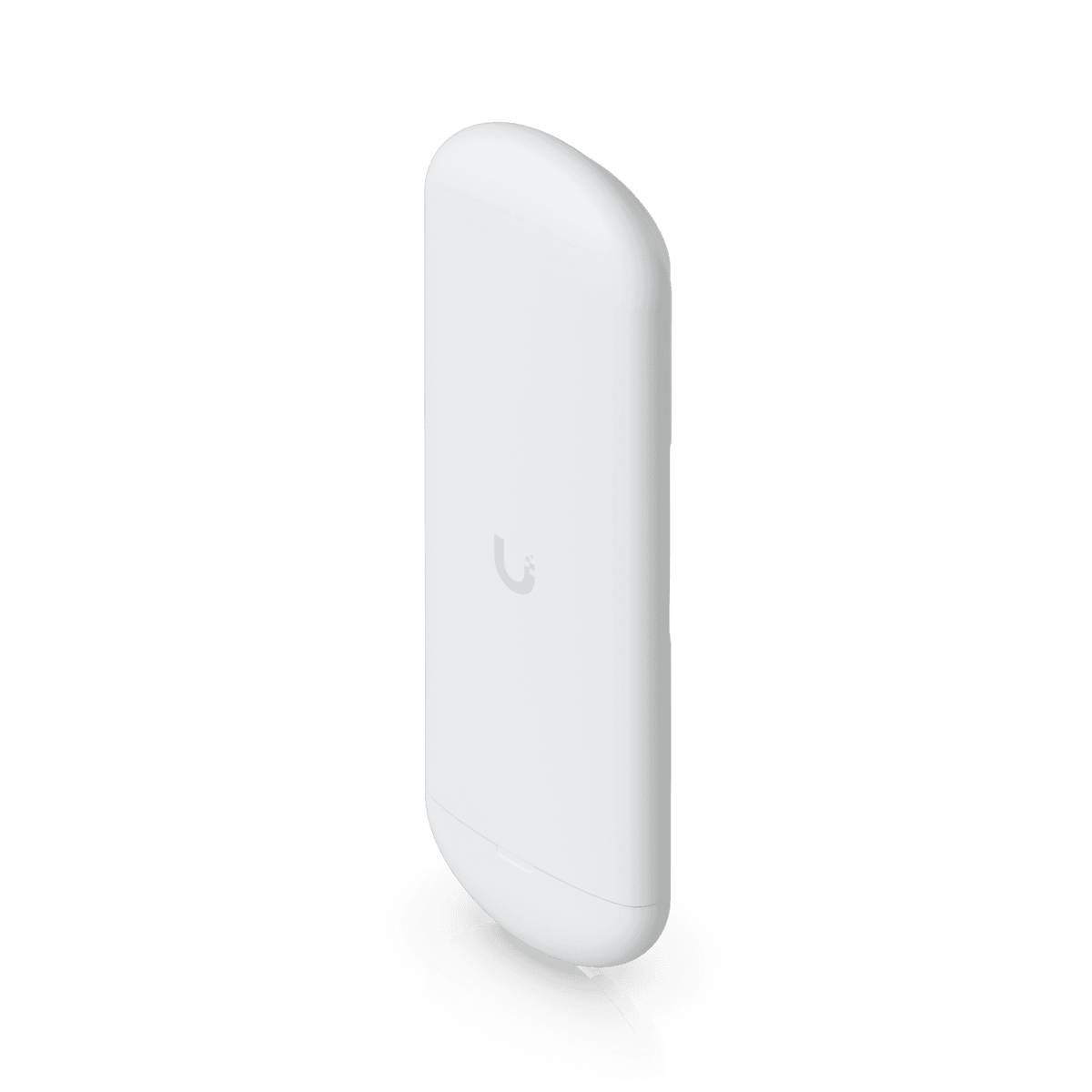

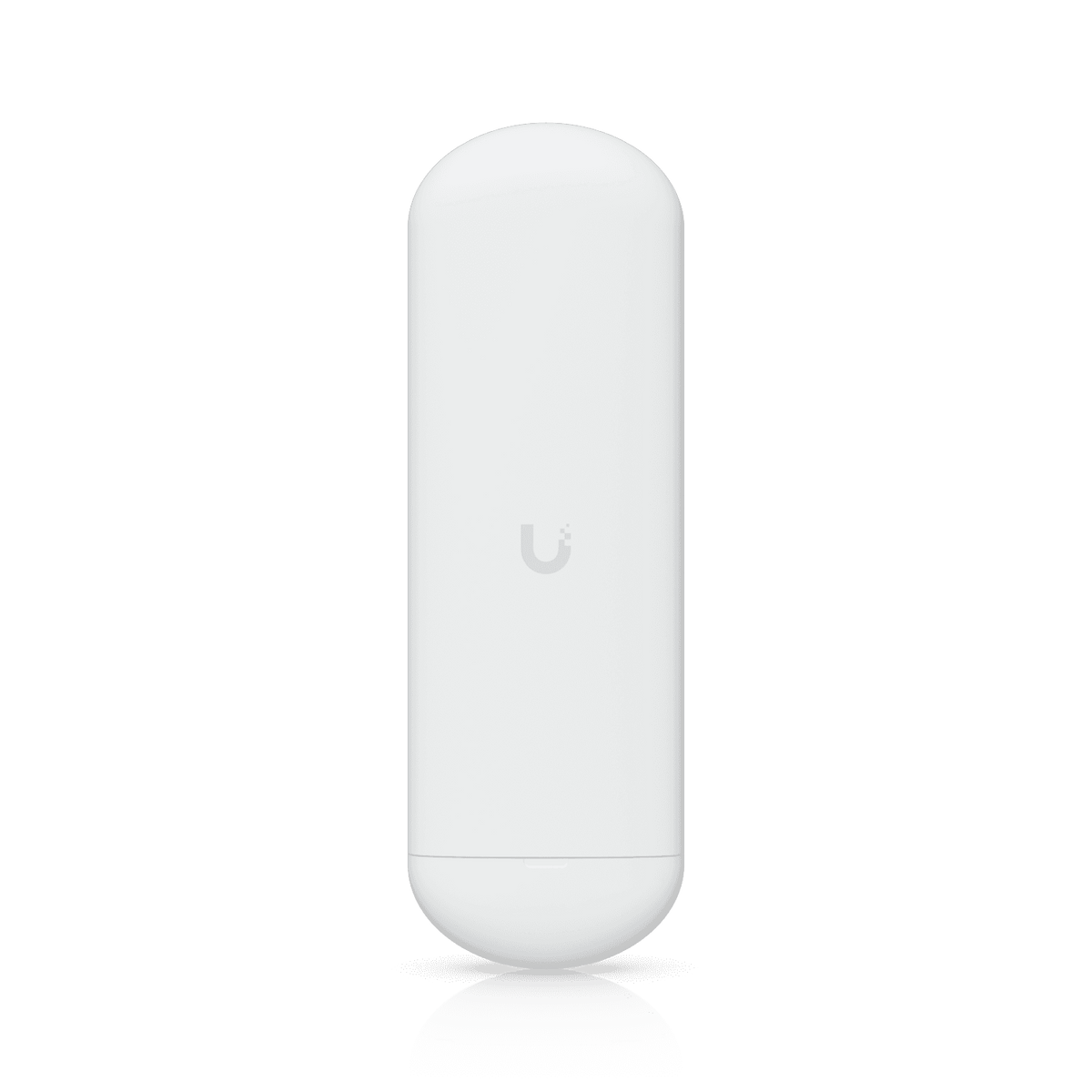

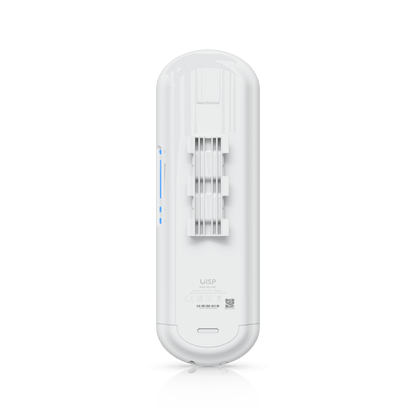

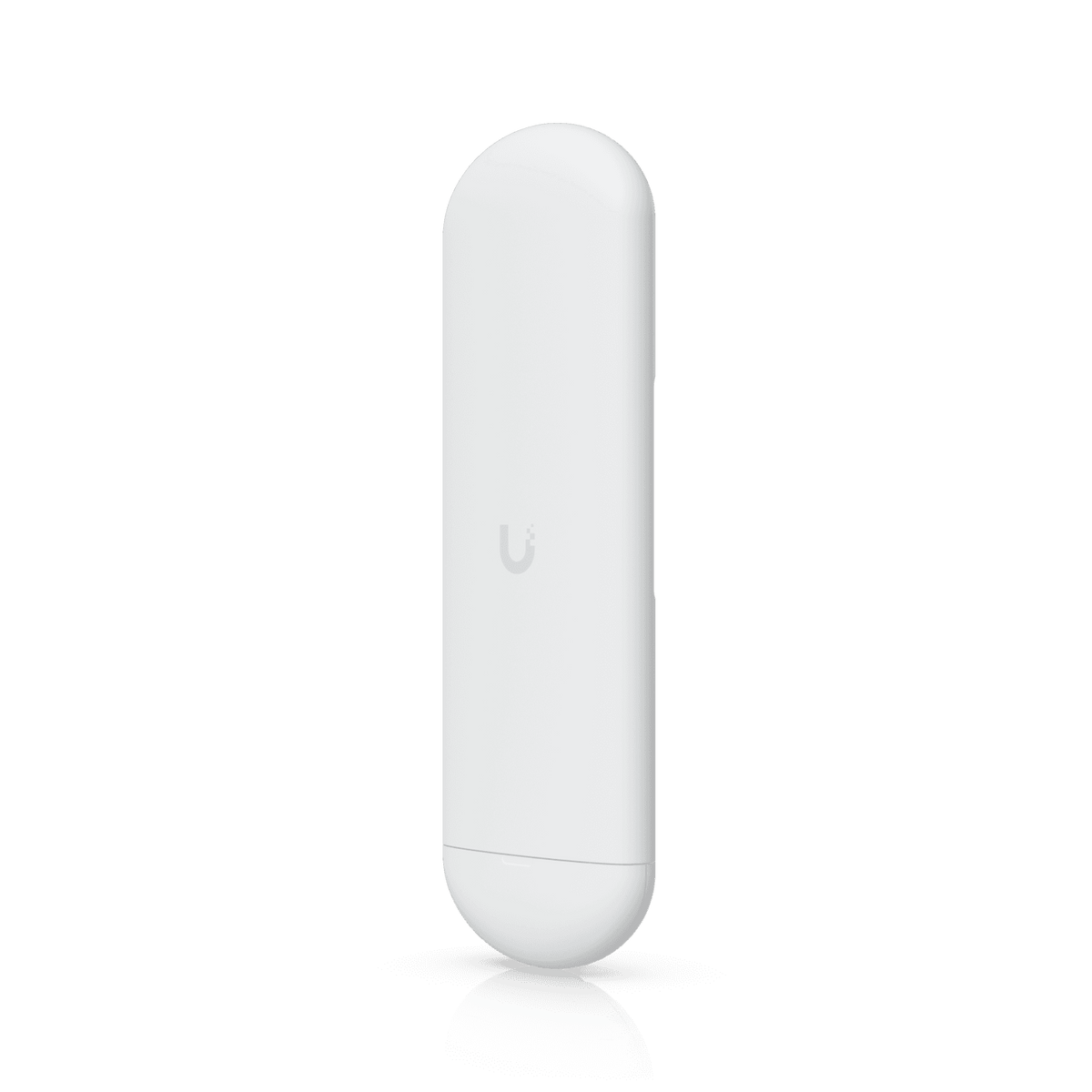

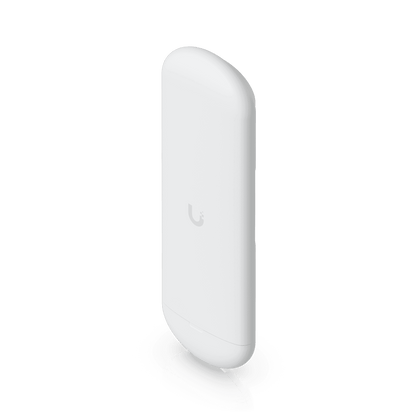

Ubiquiti UISP airMAX NanoStation 5AC 5GHz 16dBi Radio

Ubiquiti's NS-5AC is an airMAX AC 5GHz radio with a 16dBi antenna. It is designed as a lightweight, short-distance CPE (client premises equipment), PtP (point to point) or PtMP (point to multipoint) solution. It features 24v or 48v passive PoE pass-through. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

FEATURES:

• Dual Ports & Camera Power: Features two Ethernet ports with built-in PoE output, allowing you to plug in and power an outdoor security camera directly from the dish without extra wires.
• 15+ KM Extended Range: Uses a larger internal 16 dBi panel antenna to stretch stable wireless connections over long distances up to 15+ kilometres.
• 450+ Mbps Performance: Delivers fast, fiber-like data throughput using advanced airMAX AC wireless technology.
• Dual Power Modes: Flexibly runs on either older 24V passive PoE or modern, standard 48V switch power (802.3af).
• Phone Setup: Features a separate internal configuration channel so you can easily change settings and align it from your smartphone.
• Power Included: Unlike the cheaper "Loco" version, this premium model comes with a 24V passive PoE power supply right in the box.
• Bridge Only: Does not connect to phones or laptops directly; it only talks to other Ubiquiti outdoor bridge stations.

SPECIFICATIONS:

• Dimensions:
• With Mount: 257 × 84 × 41 mm (10.1 × 3.3 × 1.6")
• Without Mount: 257 × 84 × 30 mm (10.1 × 3.3 × 1.2")
• Weight: 233 g (8.2 oz)
• Enclosure Materials: UV-resistant polycarbonate
• Mounting: Pole and Wall Mount (Mounts Included)

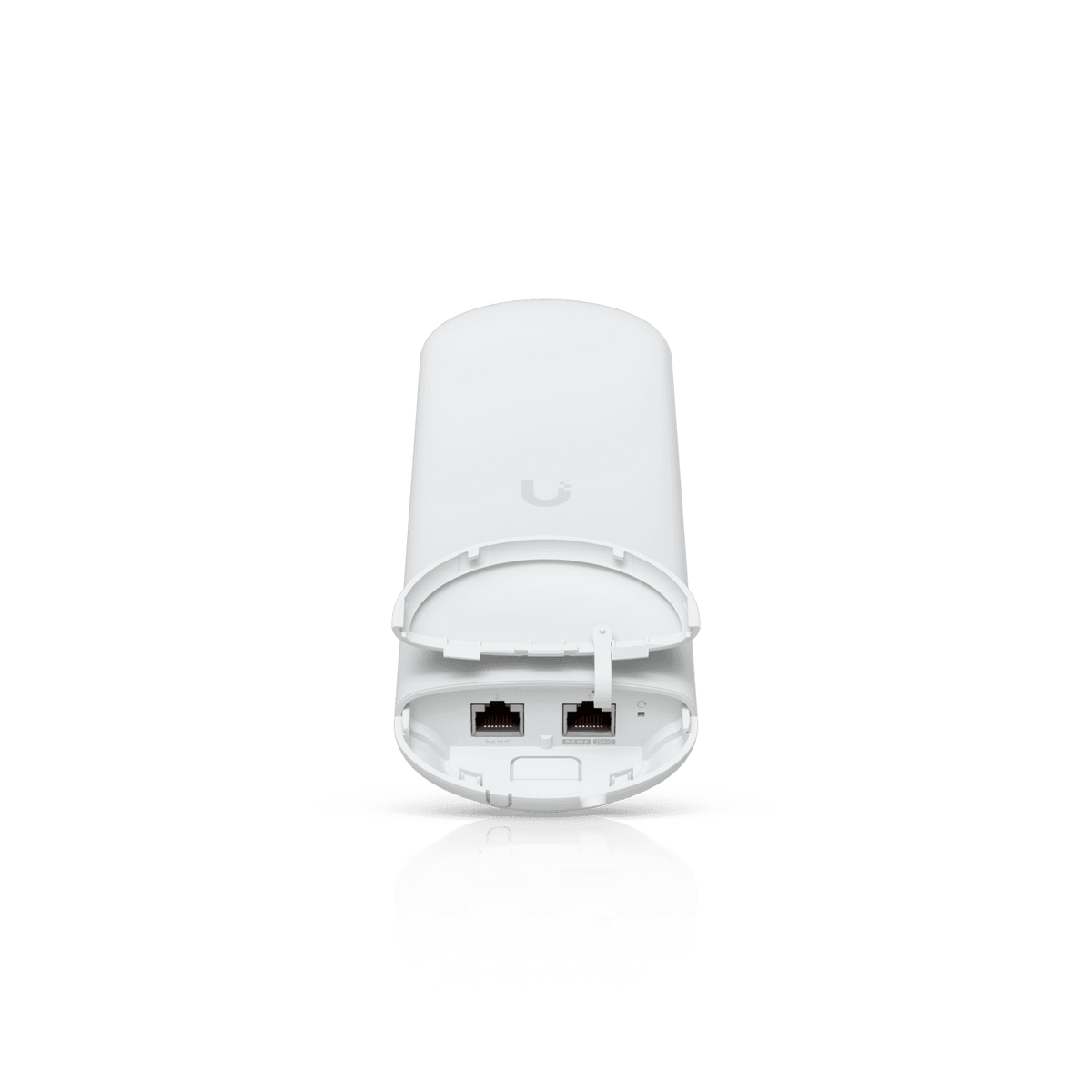

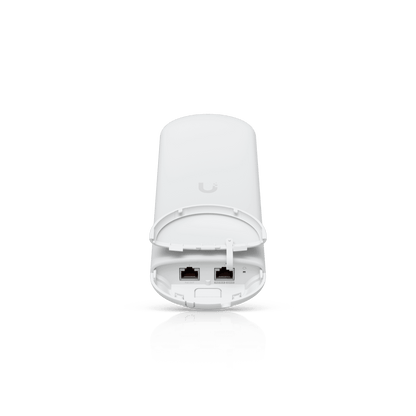

• Networking Interface: 2 × GbE RJ45 ports
• Power Method:
• Passive PoE 2-pair (4, 5+; 7, 8 return)
• PoE alternative A (pairs 1, 2+; 3, 6 return)
• Power Supply: 24V, 0.5A gigabit PoE adapter (Included)
• Supported Voltage Range: 44–54V DC; 22–27V DC
• Max. Power Consumption: 9W
• LEDs:
• Signal Strength: ✓
• Power: ✓
• Ethernet: ✓
• Ambient Operating Temperature: -40 to 70°C (-40 to 158°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, Anatel: 09603-19-08356

• Operating Modes:
• Access Point
• Station
• Ubiquiti Specific Features:
• airMAX AC Mode: ✓
• Discovery Protocol: ✓
• Frequency Band Offset: ✓
• Traffic Shaping with Burst Support: ✓
• 30/50/60 MHz Channels: ✓
• Services:
• Bridging: ✓
• DHCP: ✓
• Ping Watchdog: ✓
• Routing: ✓
• SNMP: ✓
• SSH: ✓
• Webserver: ✓
• Distance Adjustment — Dynamic Ack: ✓
• QoS: WMM packet classification with user-level priority: High, Medium, Low
• Statistical Reporting:
• Data Rates: ✓
• Ethernet Link Rate: ✓
• Packet Errors: ✓
• Up Time: ✓
• Wireless Distance: ✓
• System
• Channel Bandwidth: 10/20/30/40/50/60/80 MHz
• Antenna Gain: 16 dBi
• Max. VSWR: 1.6:1
• Polarization: Dual-Linear
• Antenna Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
• Cross-Pol Isolation: Min. 20 dB
• Radio Frequency — Supported Frequency Range:
• Worldwide: 5150–5875 MHz
• US/CA:
• U-NII-1: 5150–5250 MHz
• U-NII-2A: 5250–5350 MHz
• U-NII-2C: 5470–5725 MHz
• U-NII-3: 5725–5850 MHz
• Management Radio — Supported Frequency Range:
• Worldwide: 2412–2472 MHz
• US/CA: 2412–2462 MHz

WHAT’S IN THE BOX:

• NanoStation 5AC Unit (Integrated radio and 16 dBi panel antenna) x1
• Wall-Mount Bracket (A sliding plastic baseplate for clean, flat-surface mounting) x1
• Screws and Screw Anchors (For the wall-mount bracket) x2
• Zip Ties (For rapid, toolless pole mounting) x2
• 24V, 0.5A Gigabit PoE Adapter and power cord x1

WARRANTY:

• 12 Months
