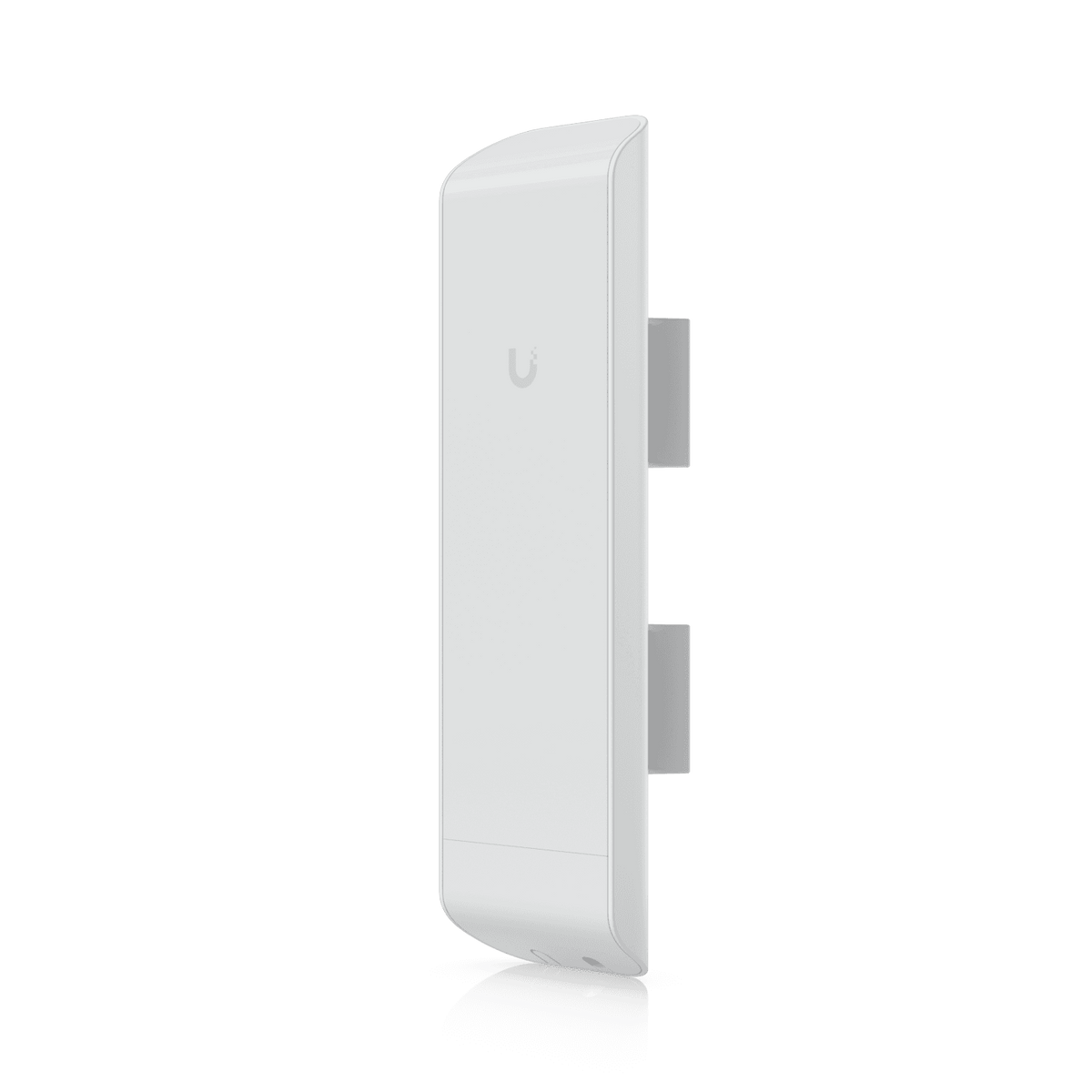

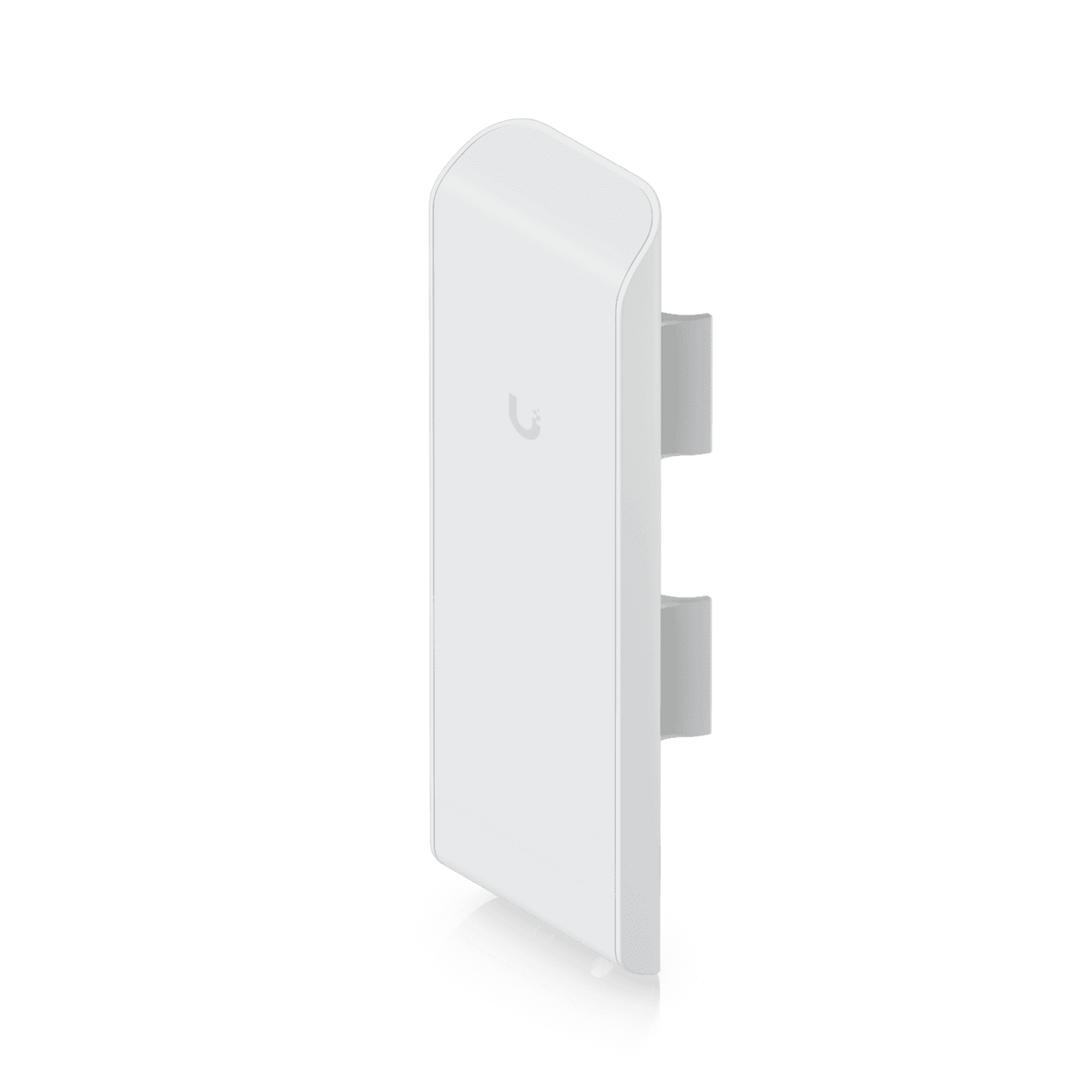

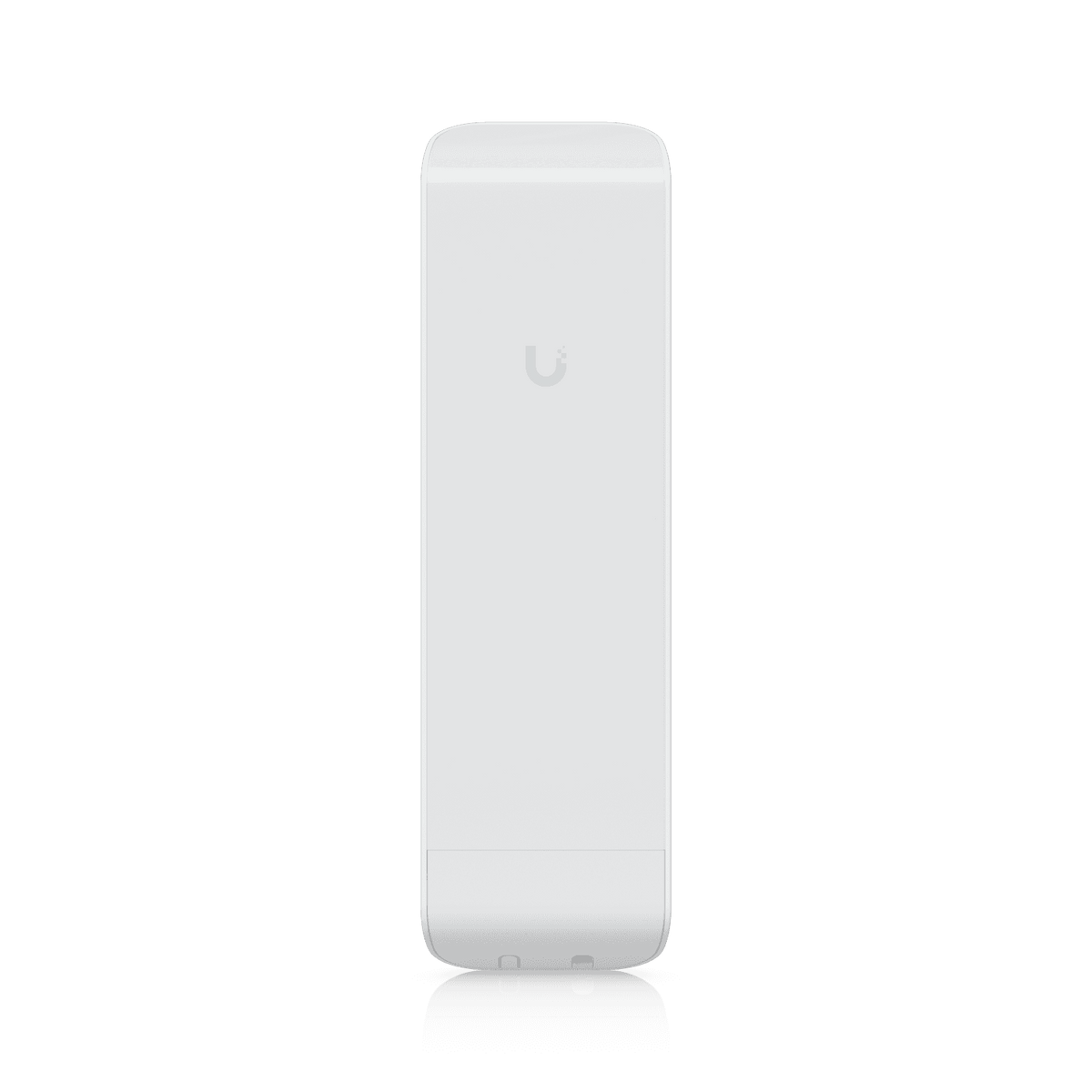

Ubiquiti UISP airMAX NanoStation M5 5GHz 16dBi Radio

Ubiquiti's NSM5 is an airMAX M series 5GHz radio with a 16dBi antenna. It is designed as a lightweight, cost-effective, short-distance CPE (client premises equipment), PtP (point to point) or PtMP (point to multipoint) access point solution. It can be managed via the UISP network management platform.

FEATURES:

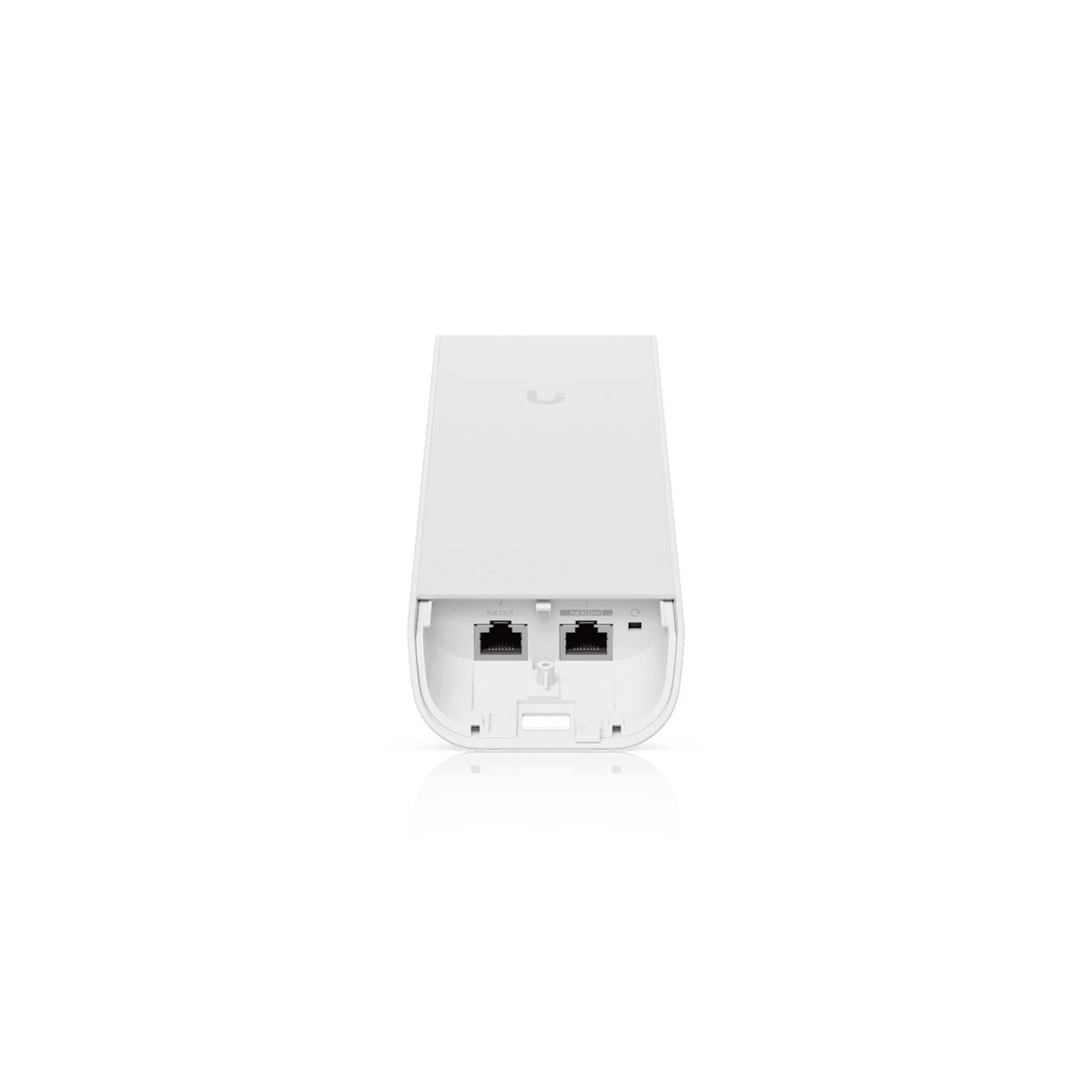

• Dual Ports & Camera Power: Features two Ethernet ports with built-in PoE output, allowing you to connect and power an outdoor security camera directly from the unit without running extra cables.
• 15+ KM Extended Range: Employs an internal 16 dBi panel antenna to broadcast stable wireless data over distances up to 15+ kilometres.
• 150+ Mbps Legacy Speeds: Delivers steady, reliable data throughput using classic airMAX M (802.11n) 2x2 MIMO technology.

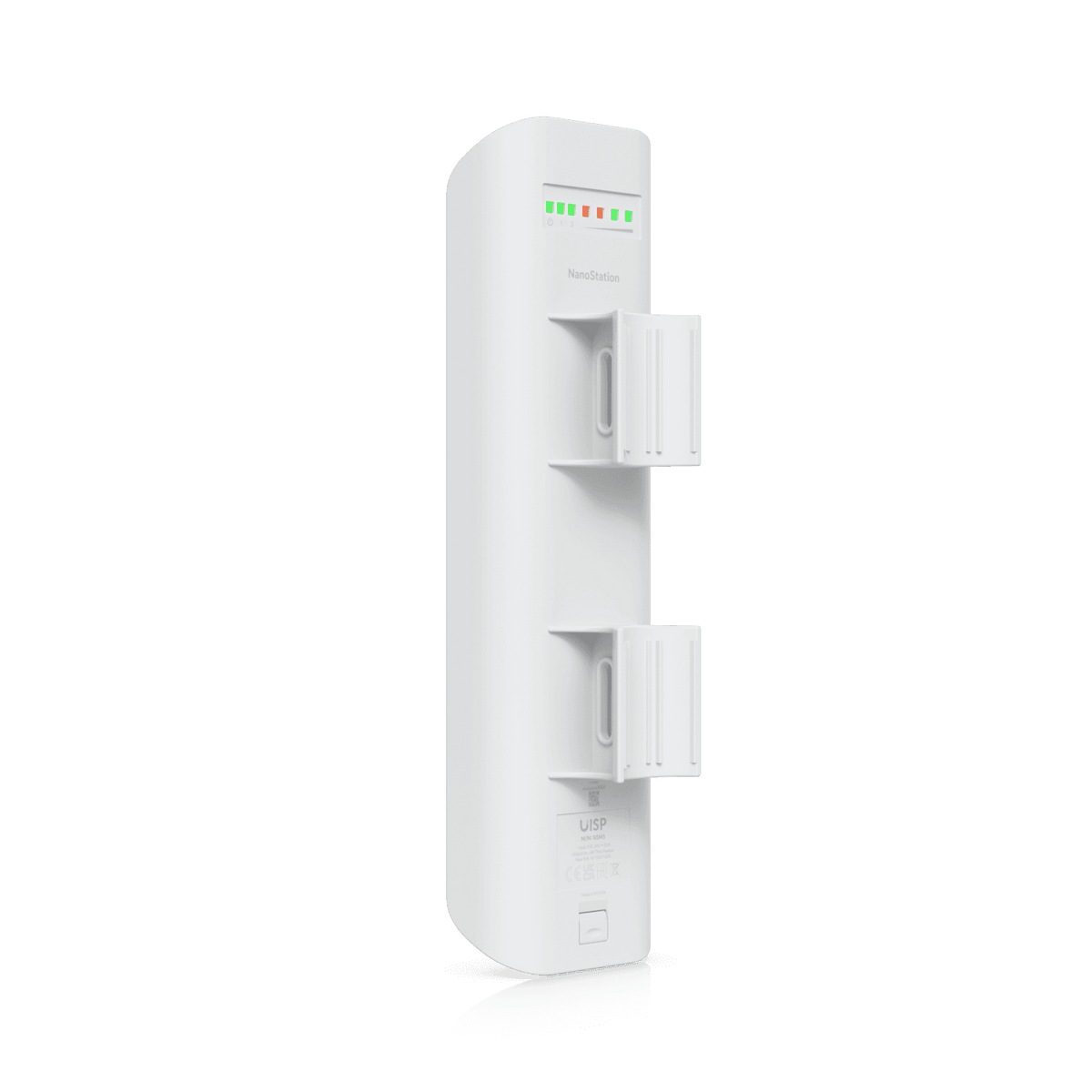

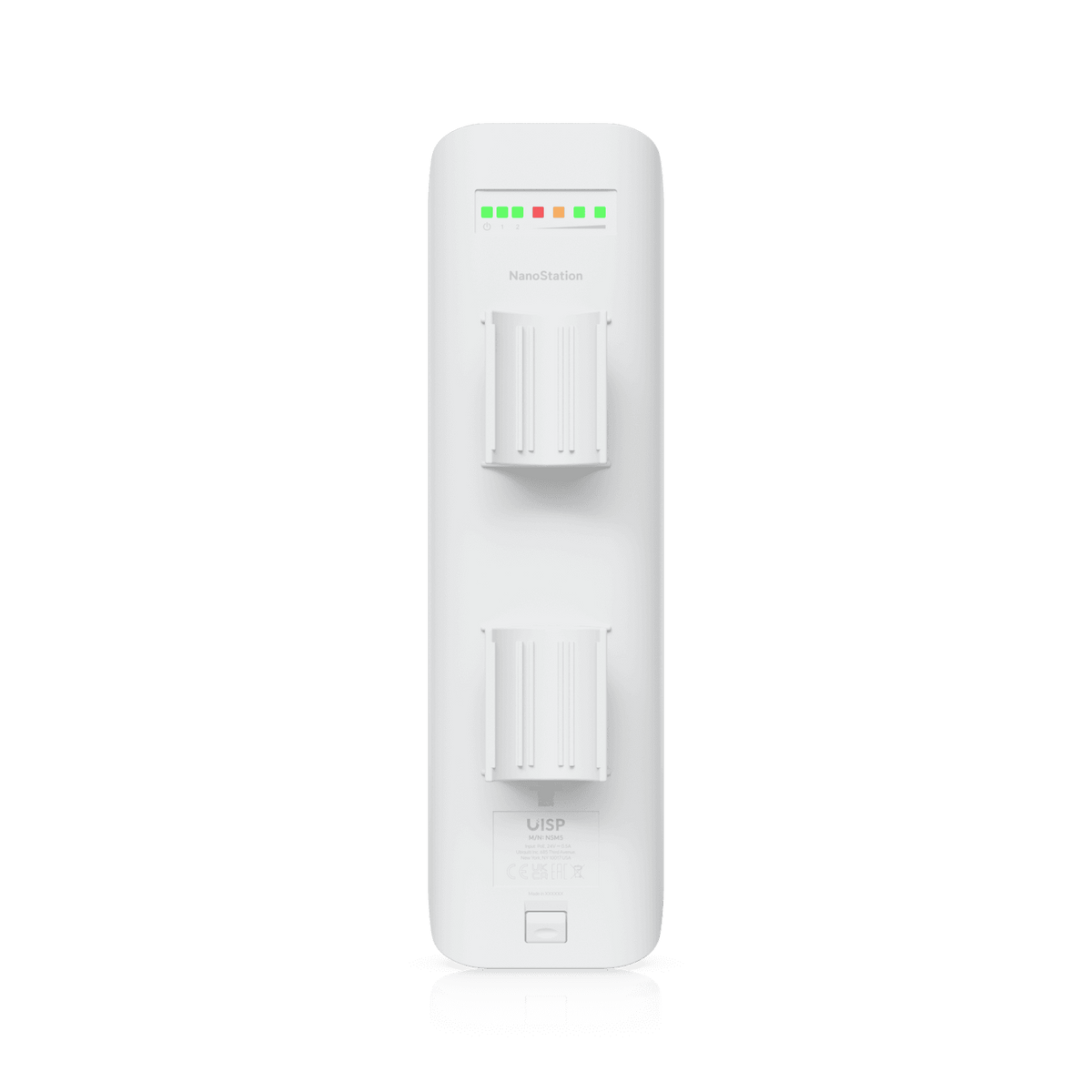

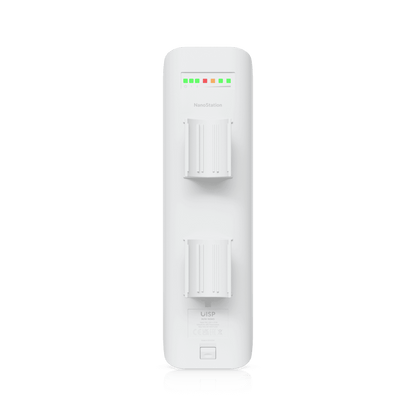

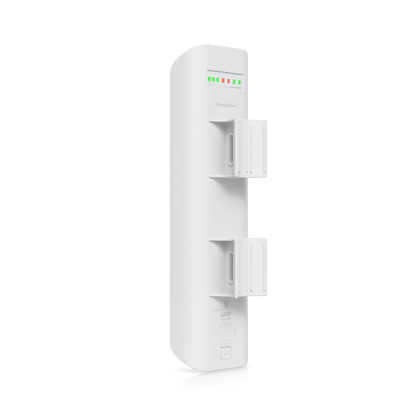

• LED Signal Meters: Built-in physical light bars on the back let you visually see signal strength for quick alignment while standing on a roof or ladder.
• Power Included: Comes fully equipped with a 24V passive PoE power supply right inside the retail box.
• Old-School Laptop Setup: Lacks modern smartphone app connectivity; configuration requires plugging a laptop directly into the network cable.
• Bridge Only: Does not work as standard outdoor Wi-Fi for your phone; it only talks to other Ubiquiti airMAX M series radios.

SPECIFICATIONS:

• Dimensions: 294 × 31 × 80 mm (11.6 × 1.3 × 3.2")
• Weight: 400 g (14.1 oz)
• Enclosure Materials: Outdoor UV-stabilized polycarbonate

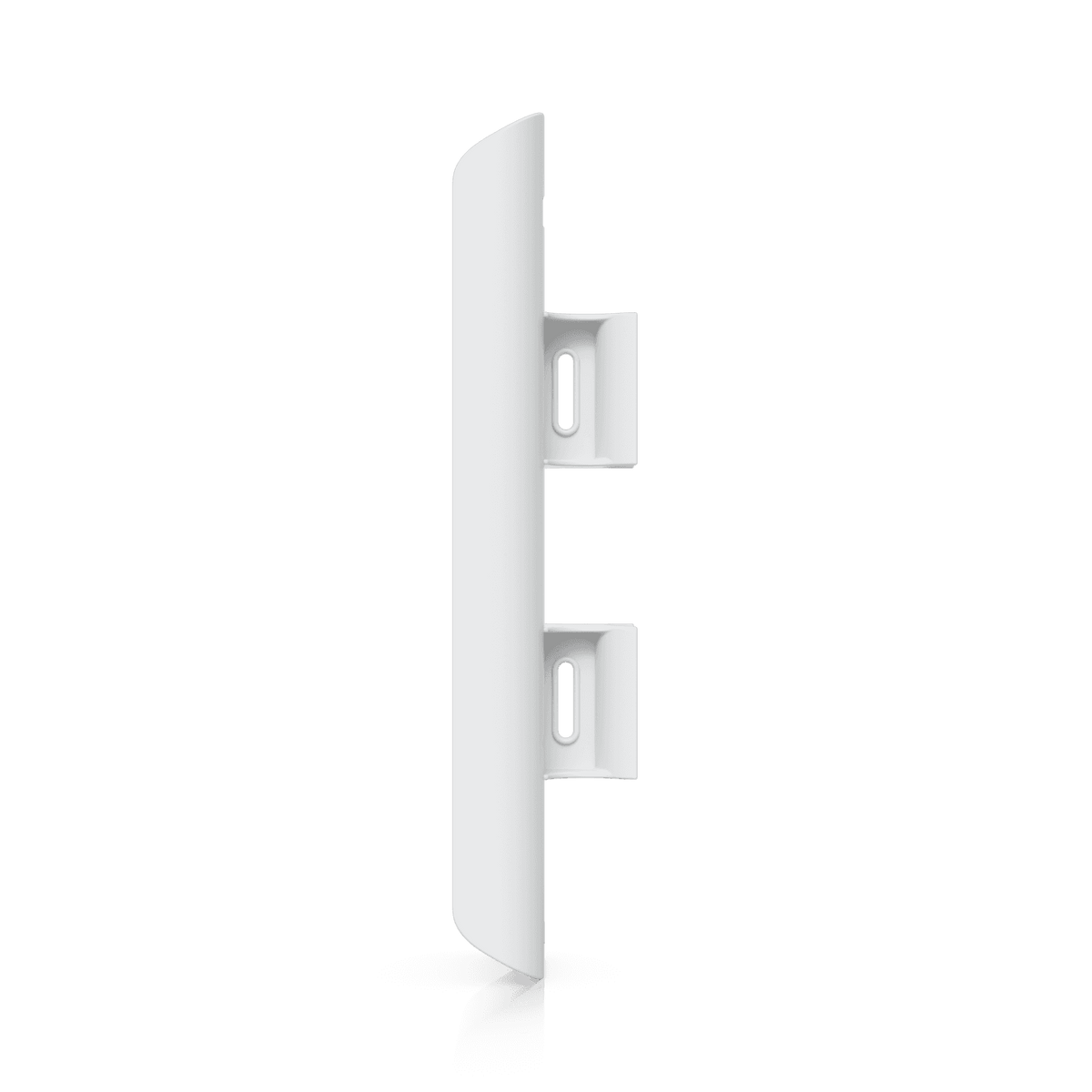

• Mounting: Pole Mount (Included)
• Networking Interface: 2 × 10/100 MbE RJ45 ports
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power Supply: 24V, 0.5A PoE adapter (Included)
• Supported Voltage Range: 22–27V DC
• Max. Power Consumption: 8W
• Ambient Operating Temperature: -30 to 75°C (-22 to 167°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Shock and Vibration Certification: ETSI300-019-1.4
• Certifications: FCC, ICC, CE, RoHS
• Antenna Gain: 14.6–16.1 dBi
• Max. VSWR: 1.6:1
• Polarization: Dual-Linear
• Antenna Beamwidth: 43° (H-pol) / 41° (V-pol) / 15° (Elevation)

WHAT’S IN THE BOX:

• NanoStation M5 (NSM5) Unit x1
• 24V, 0.5A Passive PoE Injector x1
• Power Cord x1
• Plastic Zip Ties / Straps (For simple pole mounting) x1

WARRANTY:

• 12 Months
