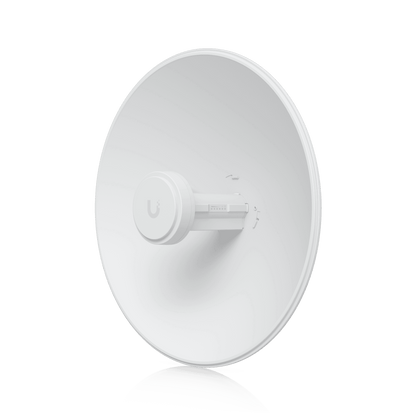

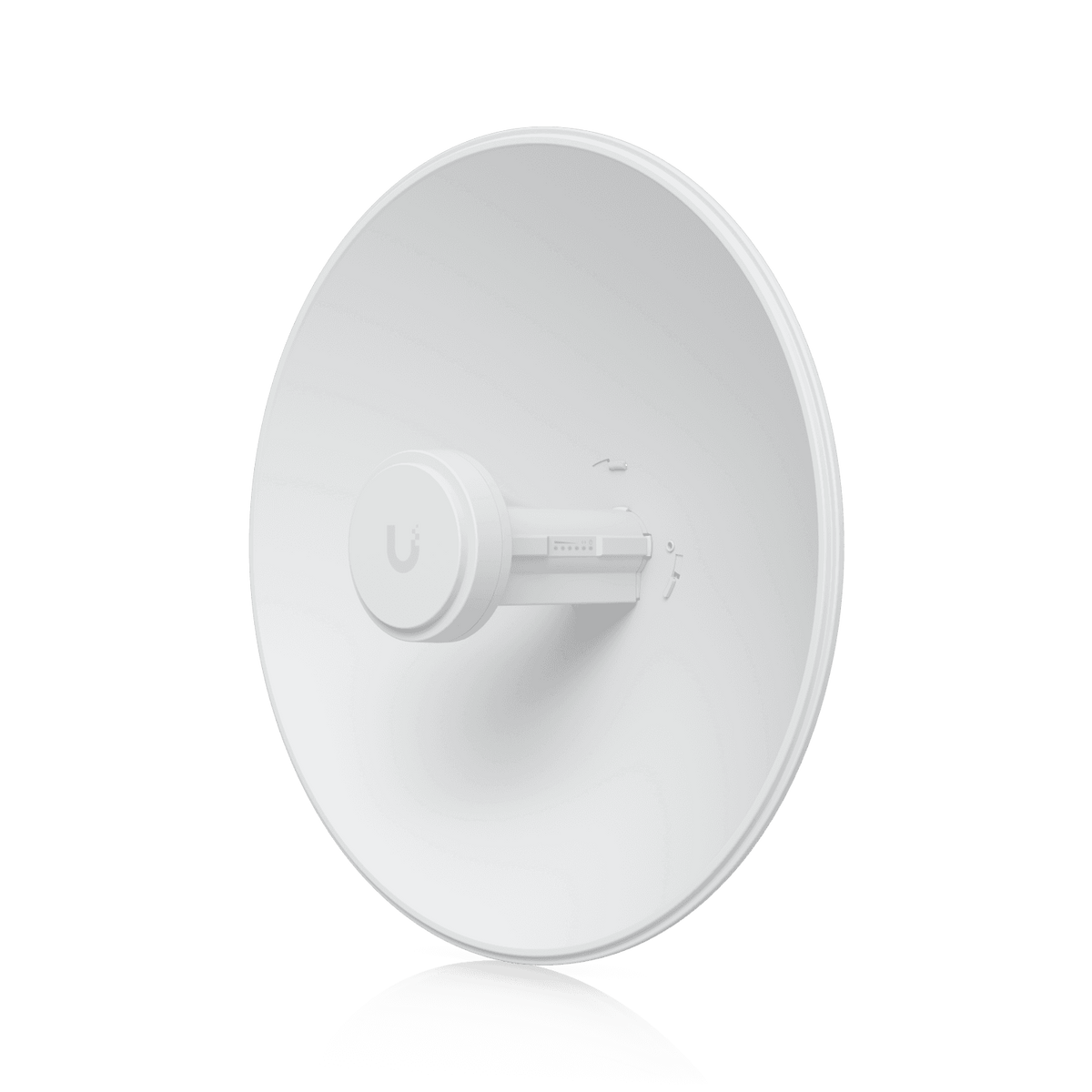

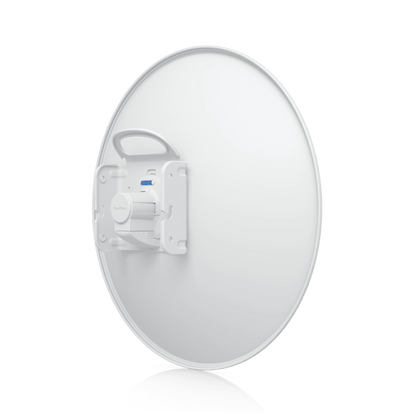

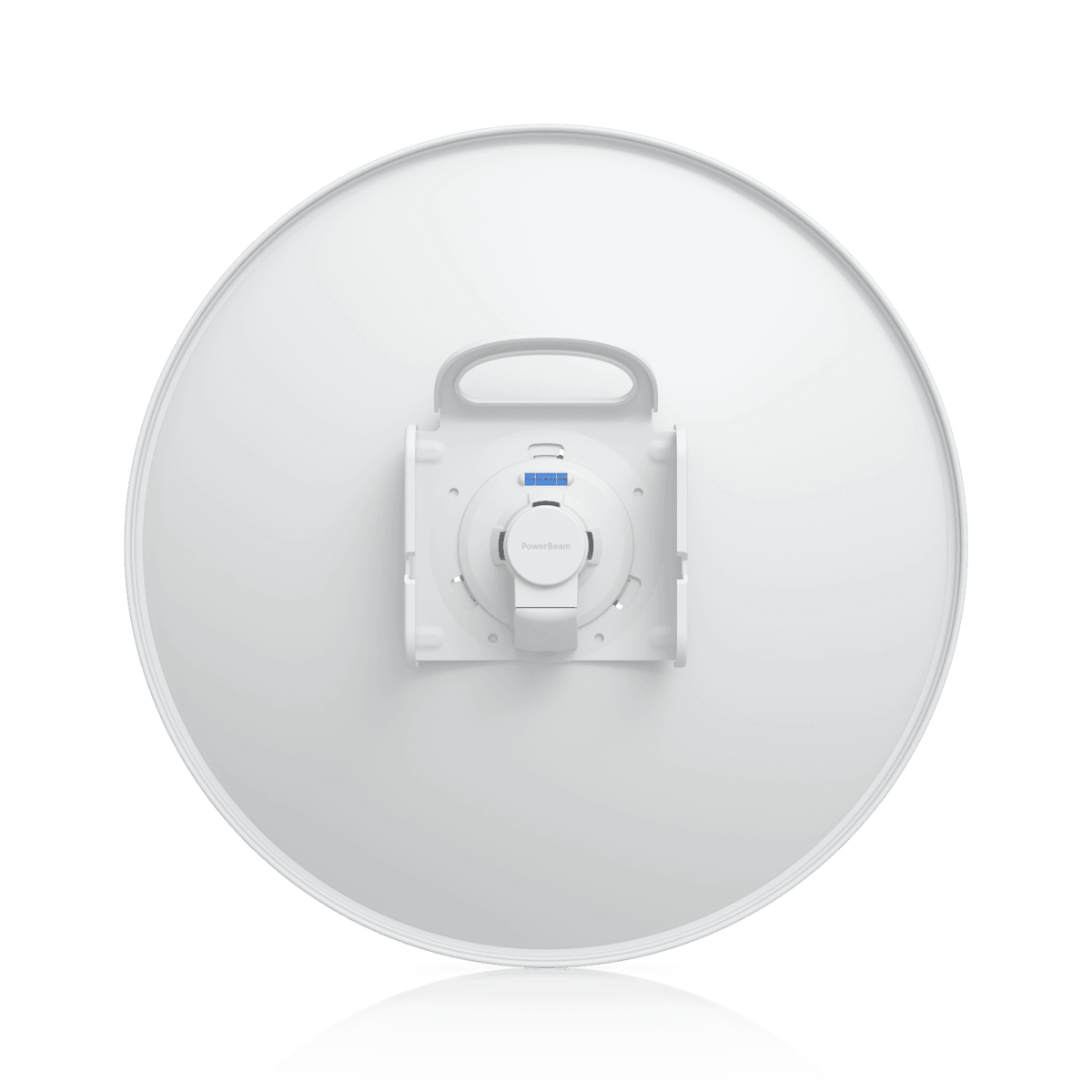

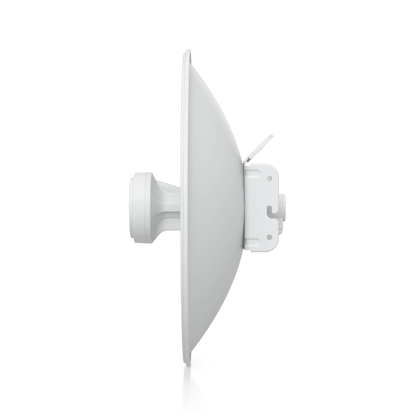

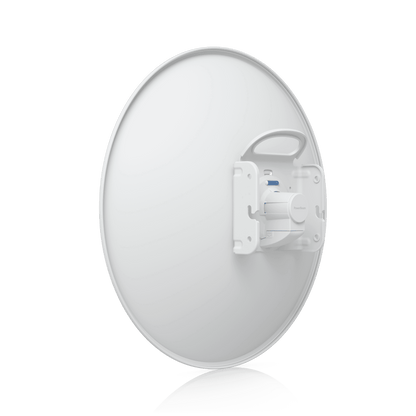

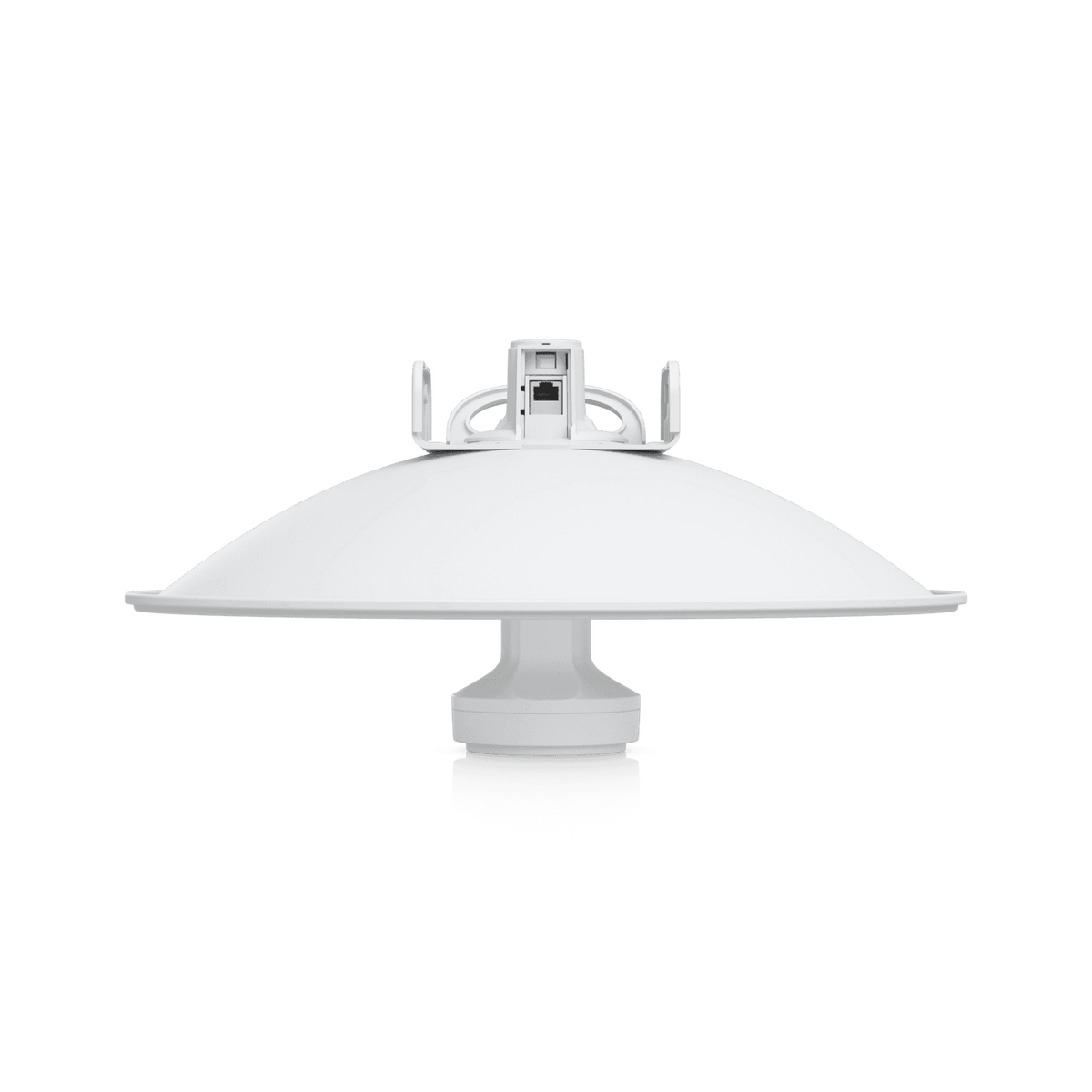

Ubiquiti UISP airMAX PowerBeam AC 2GHz 18dBi Radio

Ubiquiti's PBE-2AC-400 is an airMAX AC 2GHz radio with an 18dBi antenna. The dish reflector provides the best antenna performance due to its high directivity and interference rejection characteristics. It is designed as a high-performance, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

FEATURES:

• Pushes Through Trees: Operates on the 2.4 GHz frequency, allowing its signal waves to bend around and penetrate light foliage or obstacles that completely block 5 GHz links.
• Long-Range Focus (20 KM): Uses a large 400 mm solid metal dish with 18 dBi gain to focus the signal into a tight, long-distance data beam.
• 450+ Mbps High Speeds: Runs on the advanced airMAX AC engine to deliver fast, fiber-like data speeds over long distances.
• Zero Signal Loss: Features InnerFeed design where the radio is built directly inside the feedhorn, completely removing the need for signal-wasting coaxial cables.
• Phone Setup: Features a separate internal configuration channel so technicians can perfectly aim and monitor the dish using a smartphone app.
• Power Included: Comes fully equipped with a high-speed 24V Gigabit PoE power supply right inside the retail box.
• Bridge Only: Does not connect to standard personal laptops or mobile phones directly; it only links with other Ubiquiti airMAX AC outdoor radios.

SPECIFICATIONS:

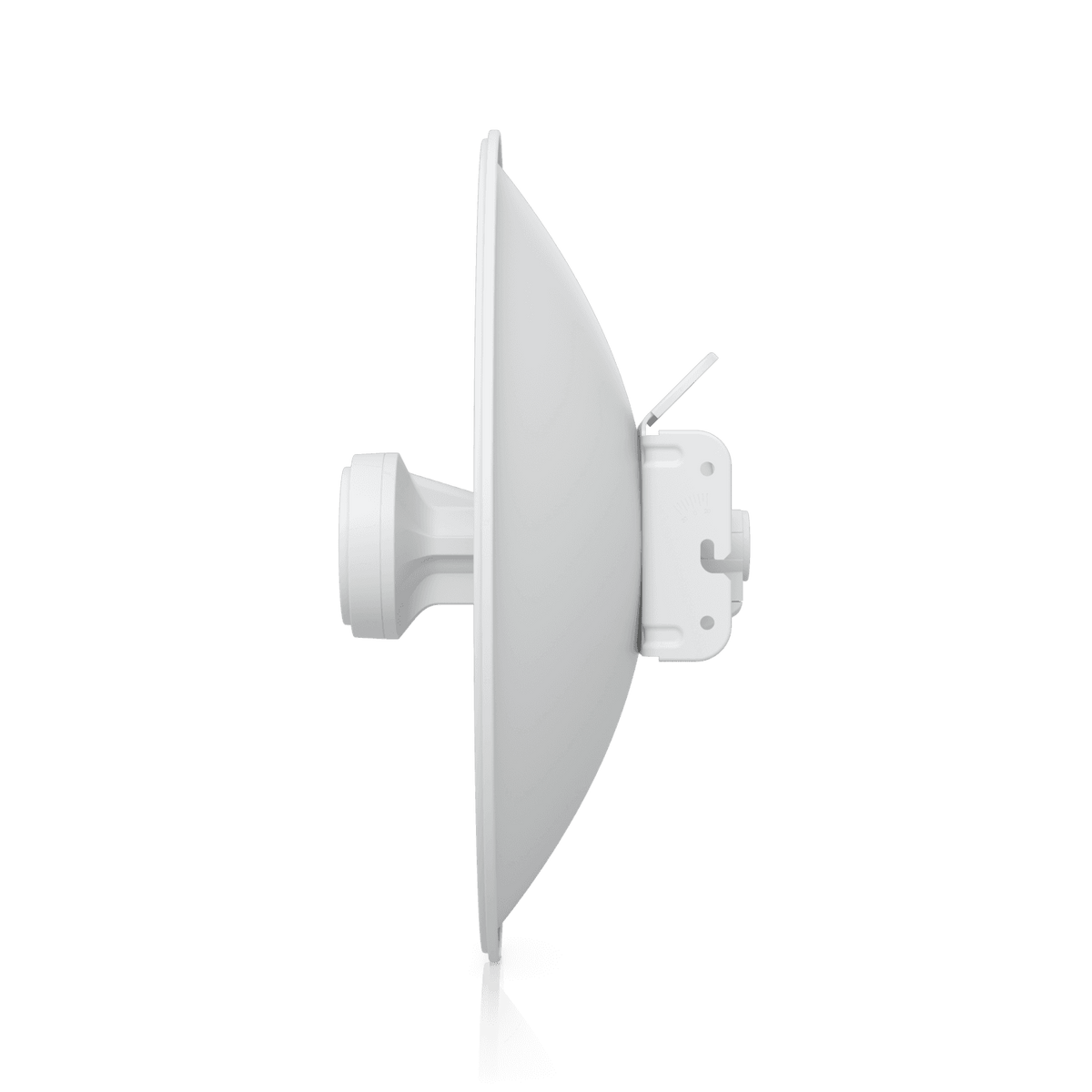

• Dimensions: ⌀420 × 289 mm (⌀16.5 × 11.4")
• Weight: 1.8 kg (4 lb)
• Enclosure Materials: UV-stabilized plastic, powder-coated SPCC
• Mounting: Pole mount kit (Included)
• Wind Loading: 342.5 N at 200 km/h (77 lbf at 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• Networking Interface: 1 × GbE RJ45 port
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power Supply: 24V, 0.5A gigabit PoE adapter (Included)
• Supported Voltage Range: 20–27V DC
• Max. Power Consumption: 7.5W
• ESD Protection: Air/contact: ±24 kV
• Buttons: 1 × Factory reset
• LEDs:
• Signal Strength: ✓
• Power: ✓
• Ethernet: ✓
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, RoHS
• Qualifications:
• Salt Fog Test: IEC 68-2-11 (ASTM B117)
• Equivalent: MIL-STD-810 G Method 509.5
• Temperature Shock Test: IEC 68-2-14
• UV Test: IEC 68-2-5 at 40°C (104°F)
• Equivalent: ETS 300 019-1-4
• Vibration Test: IEC 68-2-6
• Wind-Driven Rain Test: ETS 300 019-1-4
• Equivalent: MIL-STD-810 G Method 506.5
• Total Throughput: 450+ Mbps
• Channel Bandwidth: 10/20/40 MHz
• Antenna Gain: 18 dBi
• Operating Frequency:
• Worldwide: 2412–2472 MHz
• US/CA: 2412–2462 MHz
• Management Radio — Supported Frequency Range:
• Worldwide: 5150–5250 MHz
• US/CA: U-NII-3: 5725–5850 MHz

WHAT’S IN THE BOX:

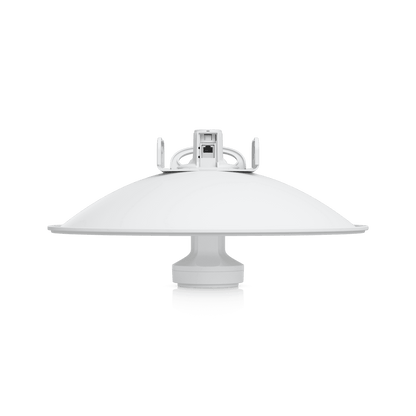

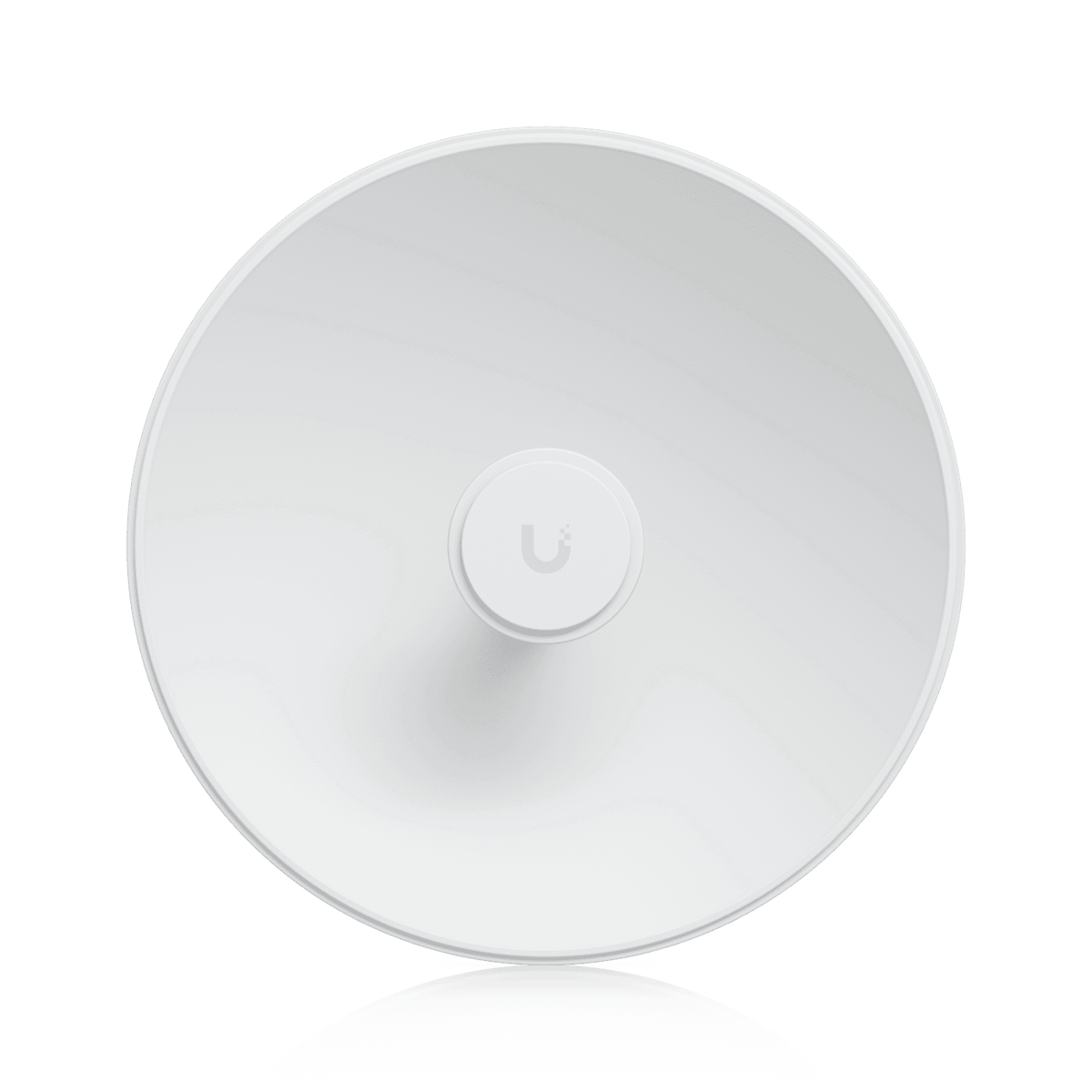

• Dish Reflector: The 400 mm solid metal dish. x1
• Antenna Feedhorn: The central radio core utilizing InnerFeed technology to eliminate cable loss. x1

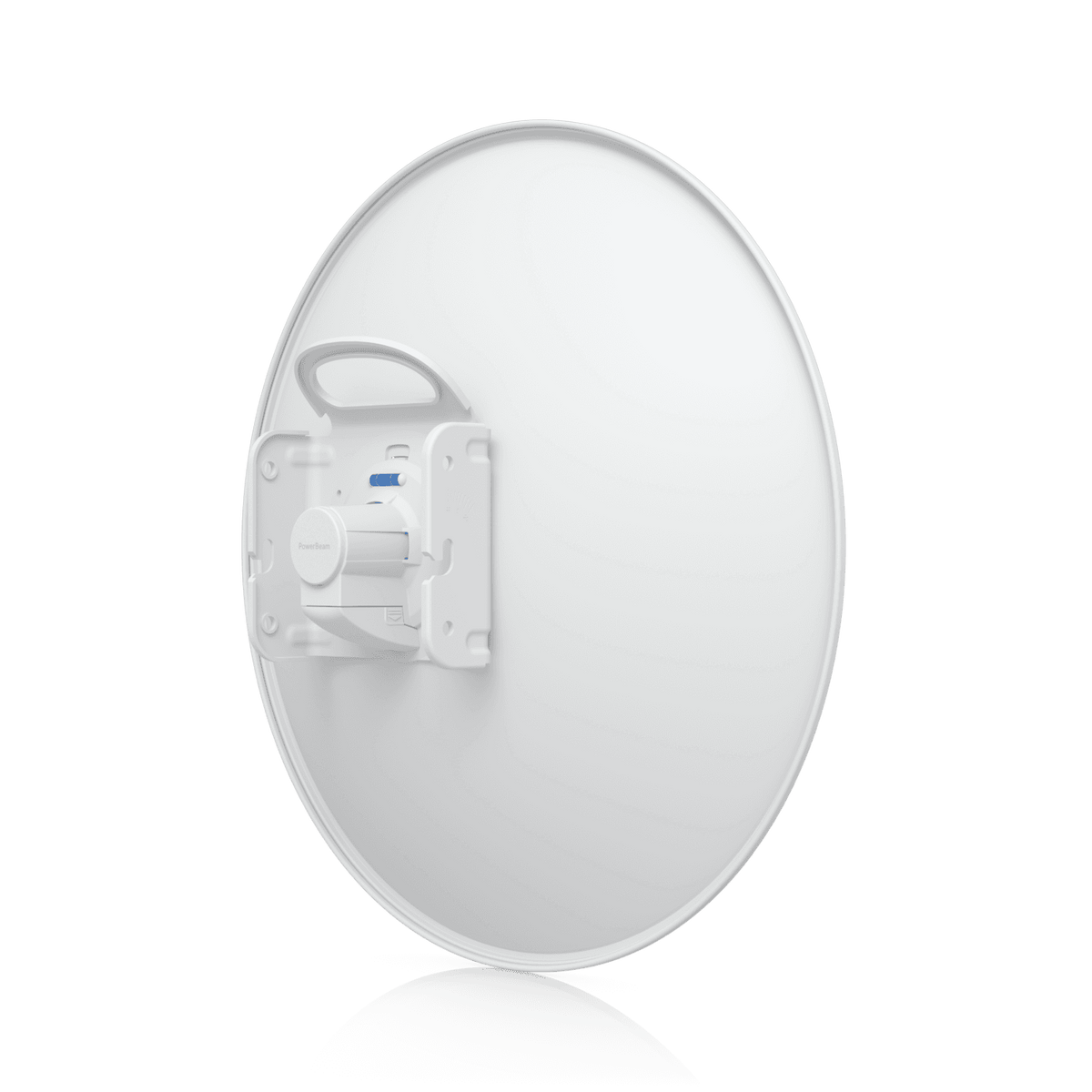

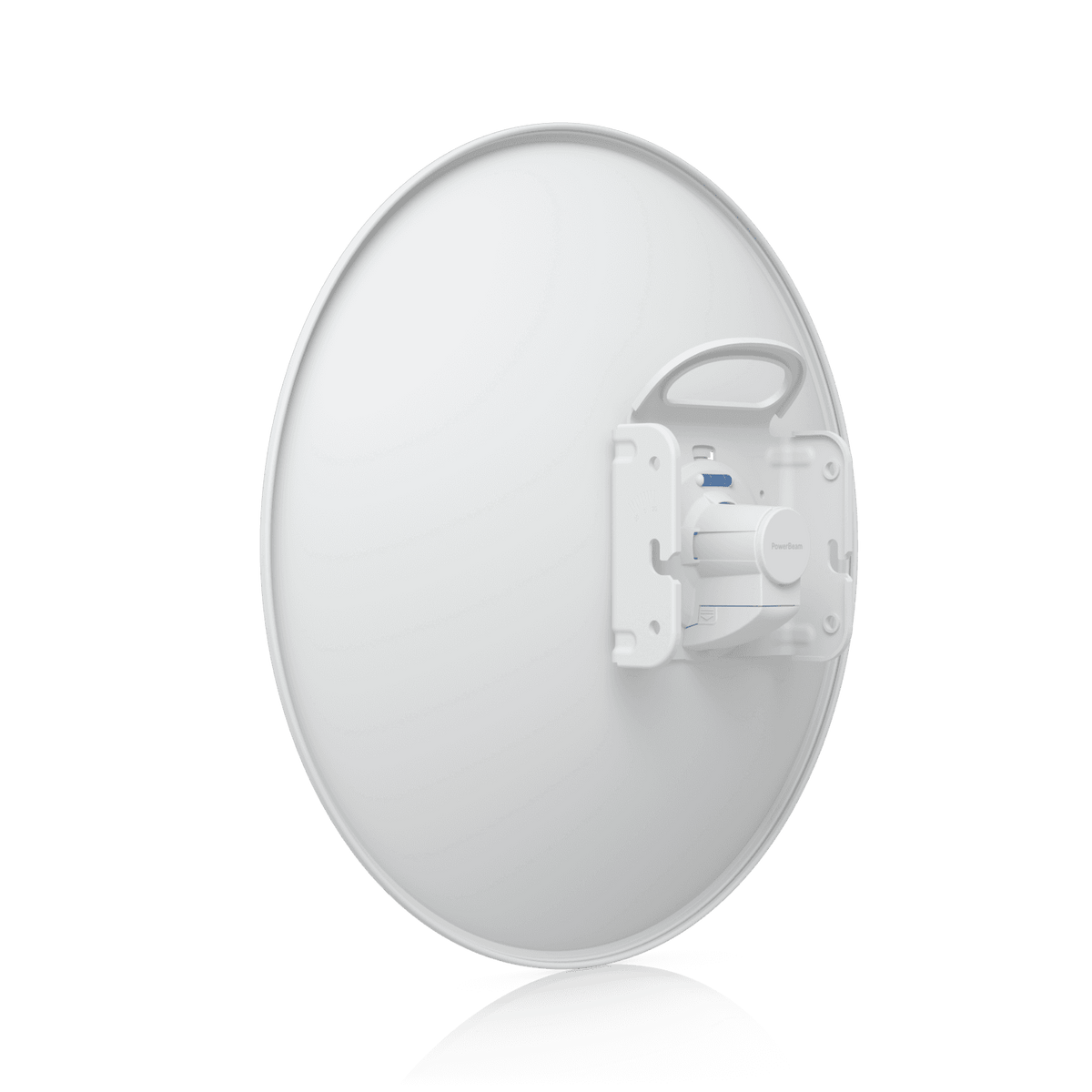

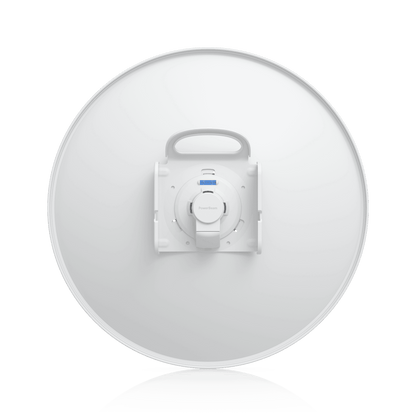

• Rear Housing & Dish Bracket: Heavy-duty mount backing that houses the feed horn. x1
• Pole Clamp & Assembly Hardware: Includes the long carriage bolts, flange nuts, and alignment brackets required for mast installation. x1
• 24V, 0.5A Gigabit PoE Injector and an AC power cord. x1

WARRANTY:

• 12 Months
