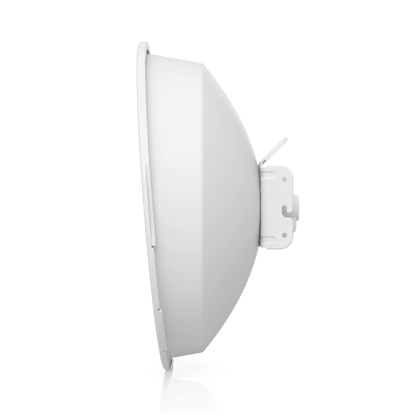

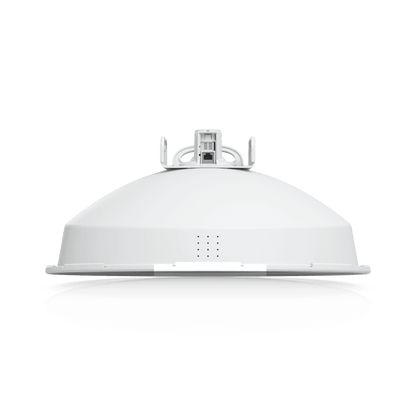

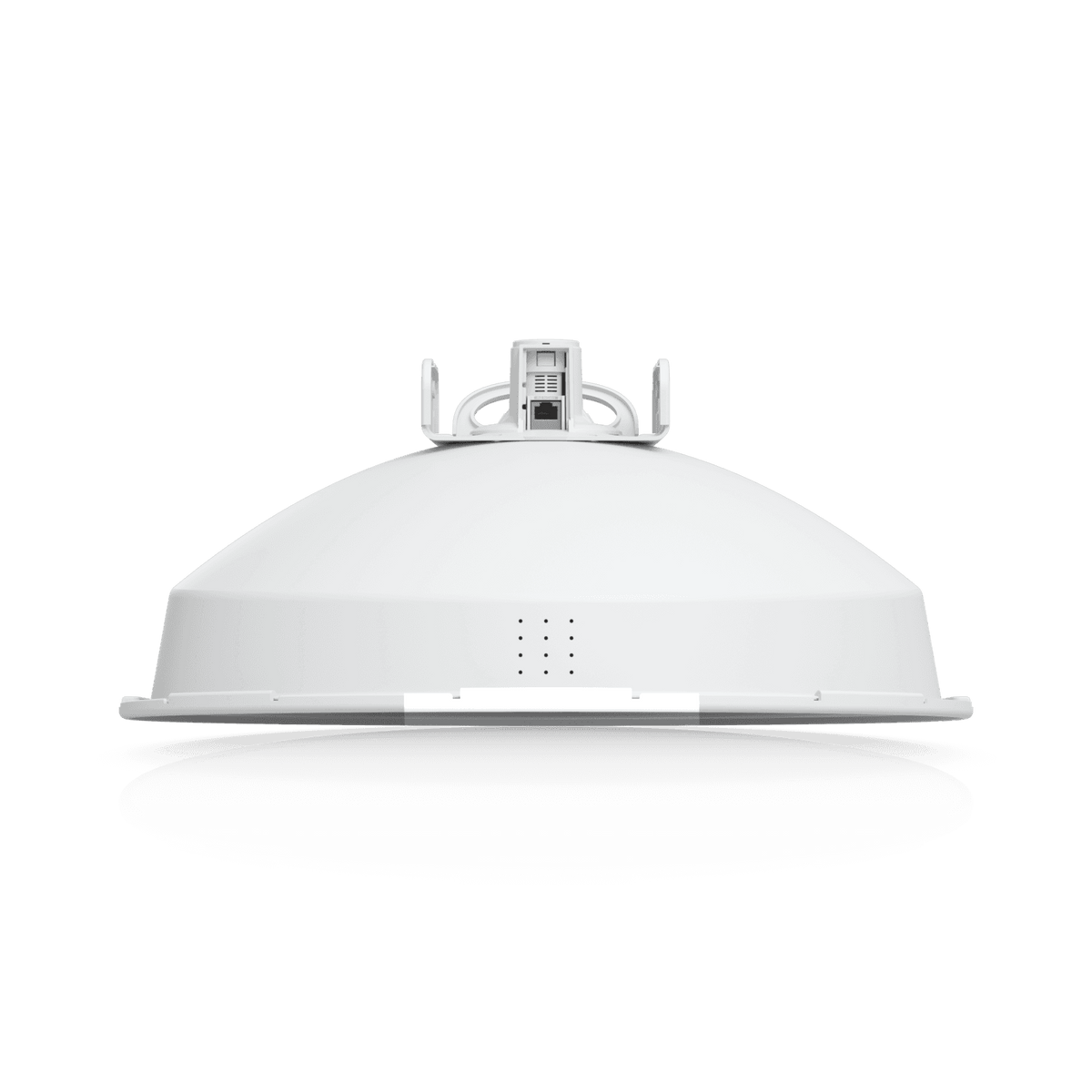

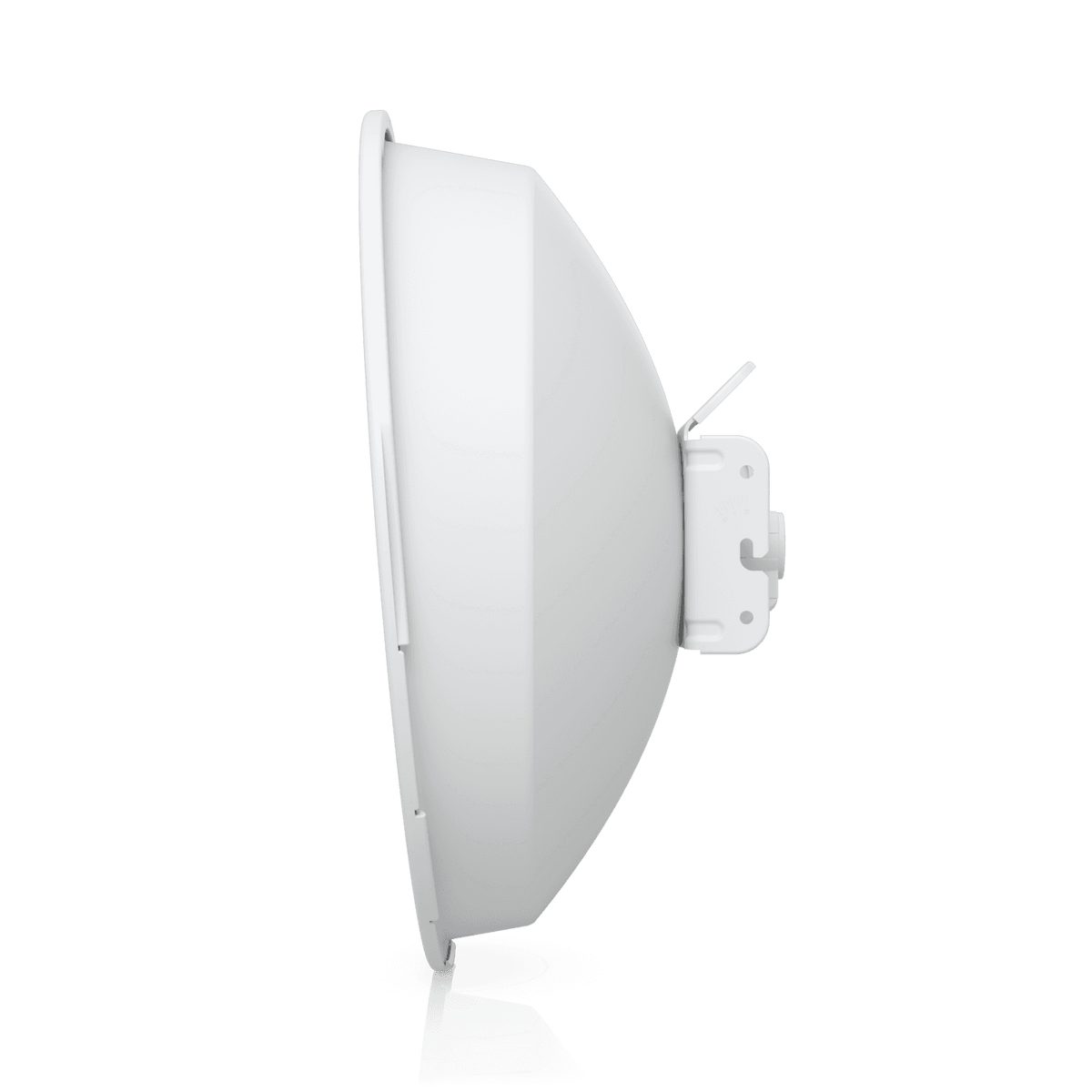

Ubiquiti UISP airMAX PowerBeam AC 5GHz 25dBi Isolator Radio

Ubiquiti's PBE-5AC-ISO-Gen2 is an airMAX AC 5GHz radio with a 25dBi antenna. The dish reflector provides the best antenna performance due to its high directivity and interference rejection characteristics. The isolator/radome cover provides better antenna shielding and protects it in harsh environments. It is designed as a high-performance, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

FEATURES:

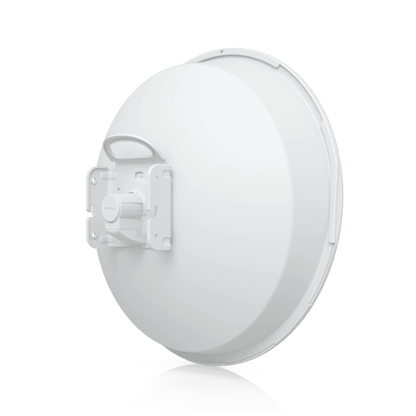

• Advanced Tower Noise Shield: Features a unique metal-plated rear housing and deep-dish rim that blocks out stray background interference from nearby radios on crowded towers.

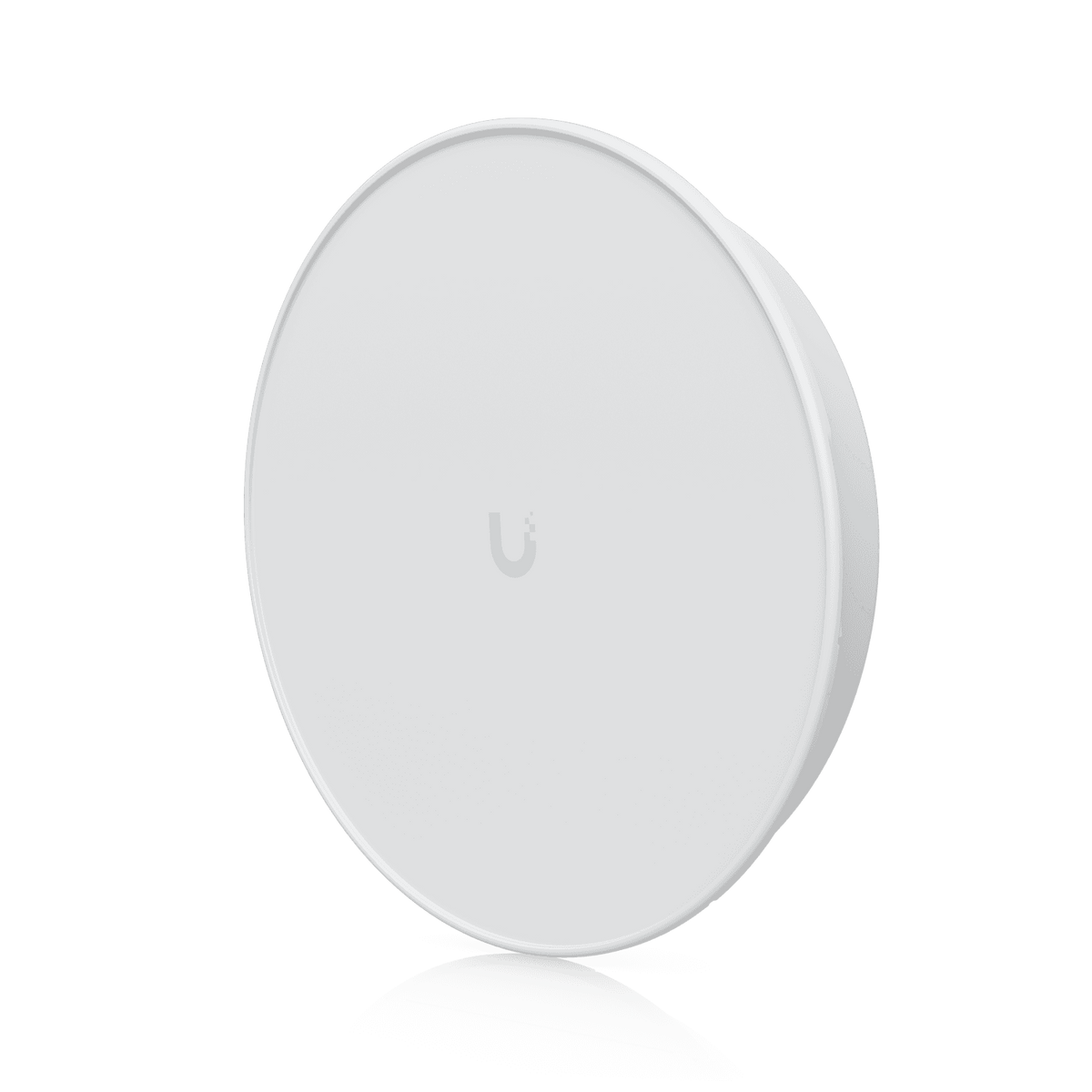

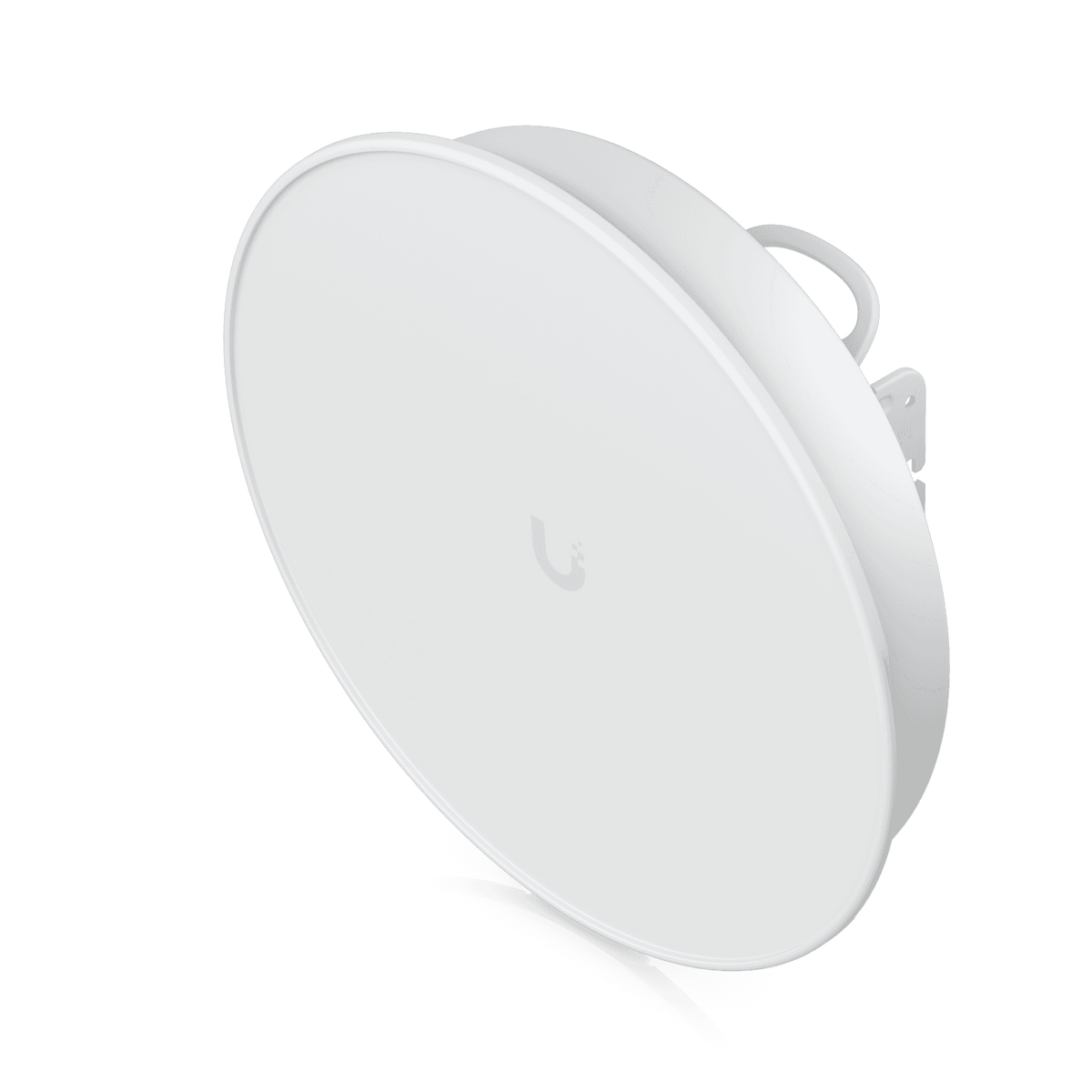

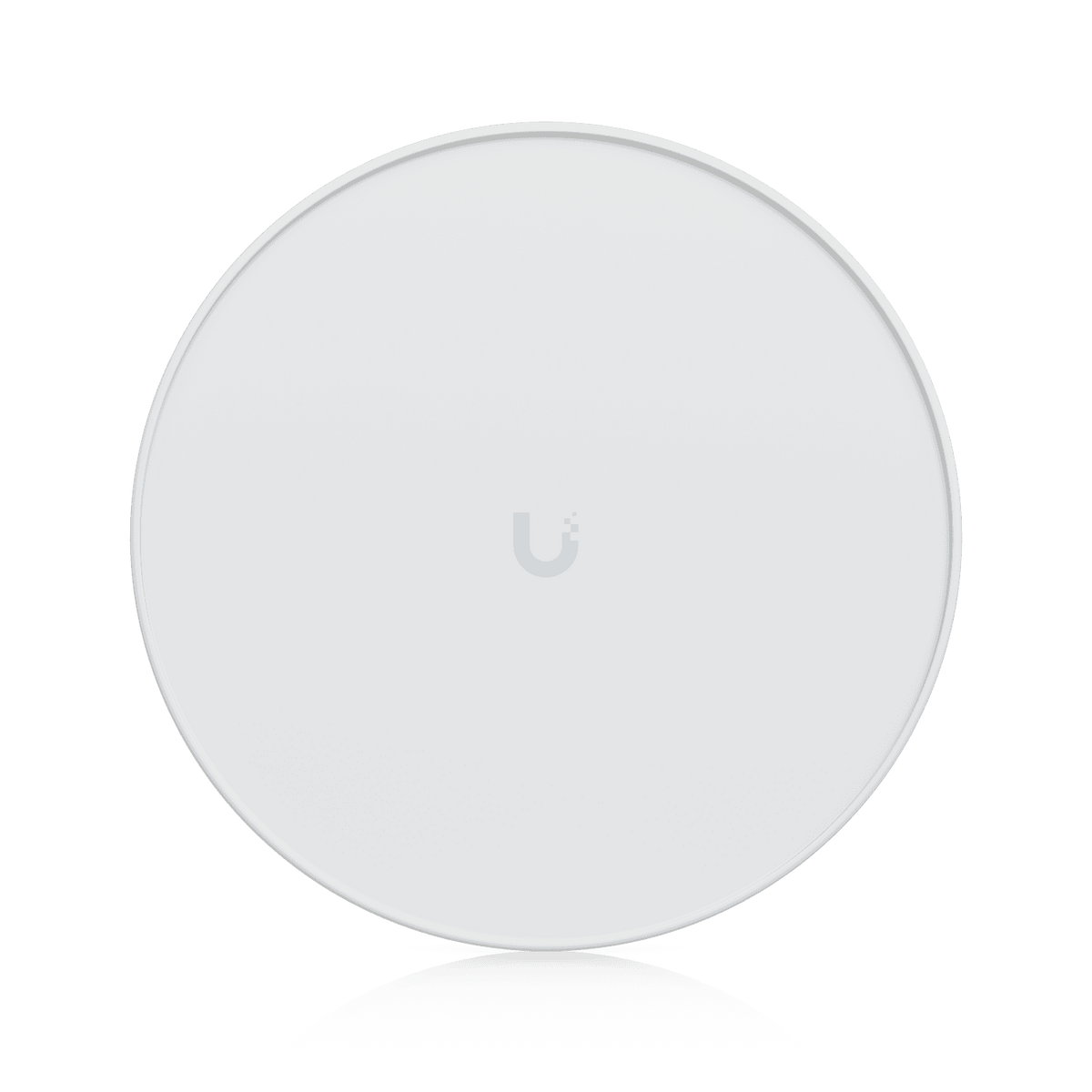

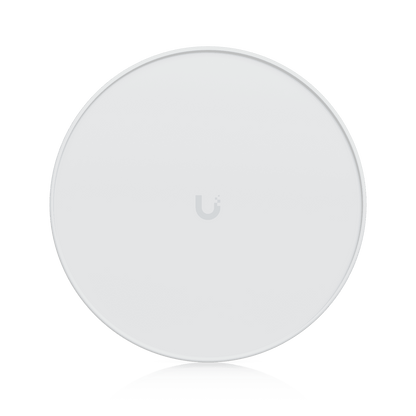

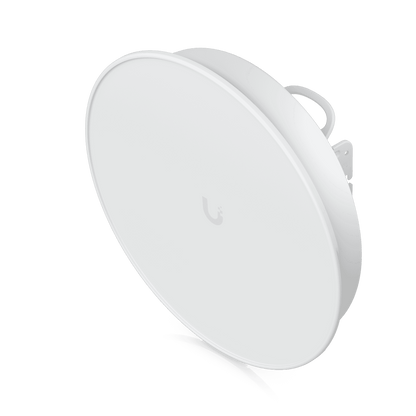

• Radome Weather Armor: Includes a snap-on plastic front cover (radome) that shields the dish from ice, rain, and snow while drastically reducing structural wind load.
• Massive 25+ KM Range: Delivers a powerful 25 dBi gain that sharpens the 5 GHz signal into a tight, long-distance data beam.
• 450+ Mbps High Speeds: Driven by the advanced airMAX AC engine to maintain fast, fiber-like broadband performance.

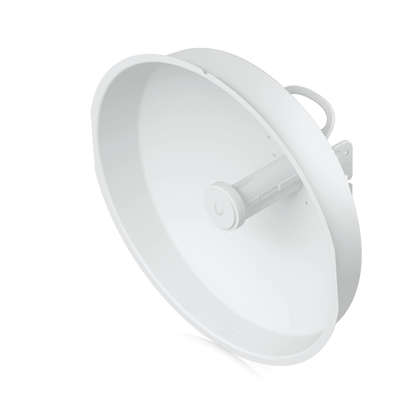

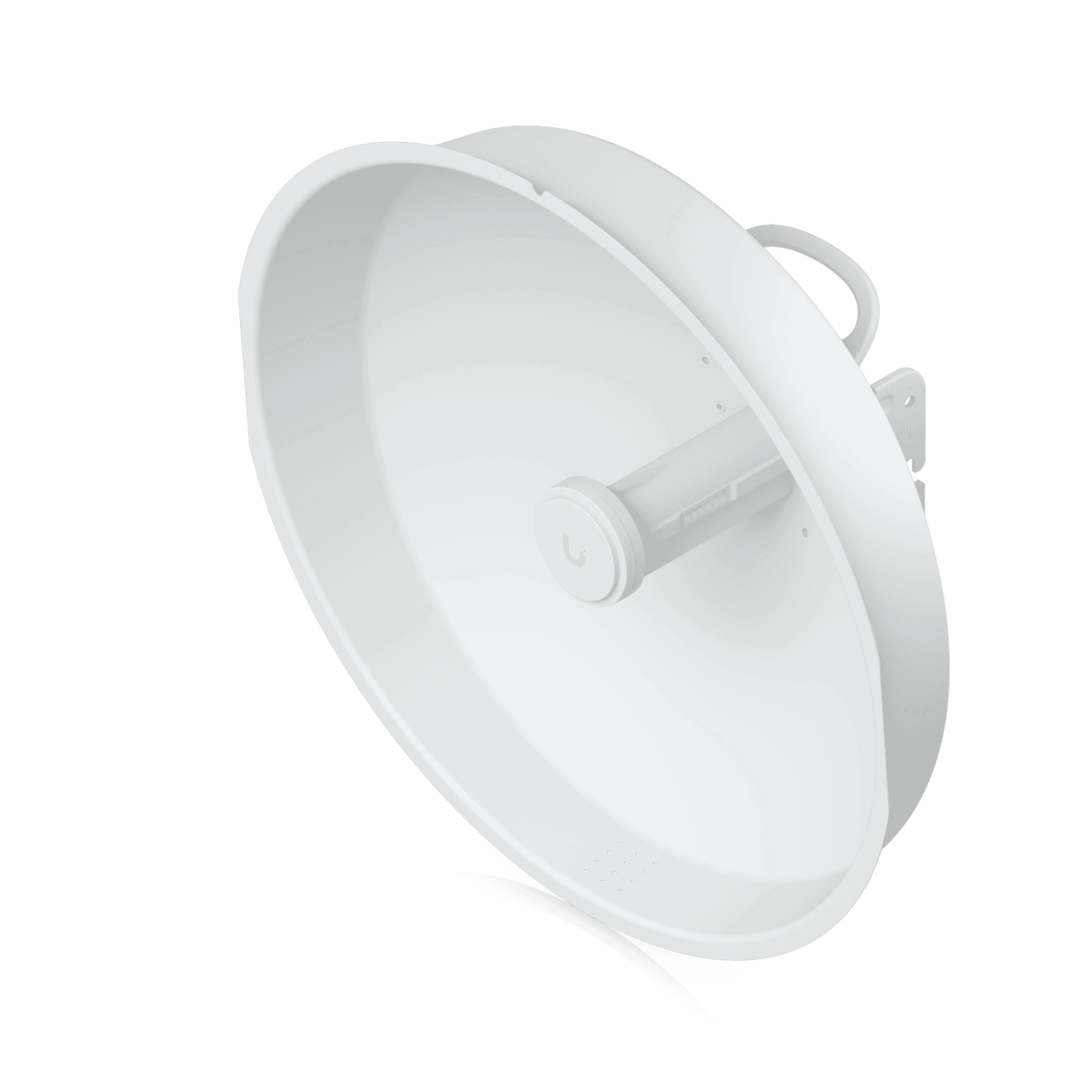

• Zero Signal Loss: Built with an InnerFeed design where the wireless radio is locked directly inside the feedhorn, completely wiping out external cable signal drops.
• Smartphone Management: Features a separate internal configuration channel so technicians can perfectly aim and monitor the dish using an app from the ground.
• Power Included: Comes fully equipped with a 24V Gigabit PoE power supply right inside the retail box.
• Bridge Only: Does not talk to standard personal laptops or mobile phones directly; it only links with other outdoor airMAX AC radios.

SPECIFICATIONS:

• Dimensions: 420 × 420 × 230 mm (16.5 × 16.5 × 9.1")
• Weight: 2.2 kg (4.9 lbs)
• Enclosure Materials: UV-stabilized polycarbonate, powder-coated SPCC
• Mounting: Pole Mount (Included)
• Wind Loading: 380 N at 200 km/h (85.4 lbf at 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• Networking Interface: 1 × GbE RJ45 port
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power Supply: 24V, 0.5A gigabit PoE adapter (Included)
• Supported Voltage Range: 20–27V DC
• Max. Power Consumption: 8.5W
• LEDs:
• Signal Strength: ✓
• Power: ✓
• Ethernet: ✓
• Ambient Operating Temperature: -40 to 70°C (-40 to 158°F)
• Ambient Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC, RoHS
• Qualifications:
• Salt Fog Test: IEC 68-2-11 (ASTM B117)
• Equivalent: MIL-STD-810 G Method 509.5
• Temperature Shock Test: IEC 68-2-14
• UV Test: IEC 68-2-5 at 40°C (104°F)
• Equivalent: ETS 300 019-1-4
• Vibration Test: IEC 68-2-6
• Wind-Driven Rain Test: ETS 300 019-1-4
• Equivalent: MIL-STD-810 G Method 506.5
• Operating Modes:
• Access Point
• Station
• Ubiquiti Specific Features:
• airMAX AC Mode: ✓
• Discovery Protocol: ✓
• Traffic Shaping with Burst Support: ✓
• 30/50/60 MHz Channels: ✓
• Services:
• Bridging: ✓
• DHCP: ✓
• Ping Watchdog: ✓
• Routing: ✓
• SNMP: ✓
• SSH: ✓
• Webserver: ✓
• Distance Adjustment:
• Ackless Mode: ✓
• Dynamic Ack: ✓
• QoS: WMM packet classification with user-level priority: High, Medium, Low
• Statistical Reporting:
• Data Rates: ✓
• Ethernet Link Rate: ✓
• Packet Errors: ✓
• Up Time: ✓
• Wireless Distance: ✓
• Channel Bandwidth:
• PtP Mode: 10/20/30/40/50/60/80 MHz
• PtMP Mode: 10/20/30/40 MHz
• Antenna Gain: 25 dBi
• Radio Frequency — Supported Frequency Range:
• Worldwide: 5150–5875 MHz
• US/CA:
• U-NII-1: 5150–5250 MHz
• U-NII-2A: 5250–5350 MHz
• U-NII-2C: 5470–5725 MHz
• U-NII-3: 5725–5850 MHz
• Management Radio — Supported Frequency Range:
• Worldwide: 2412–2472 MHz
• US/CA: 2412–2462 MHz

WHAT’S IN THE BOX:

• PowerBeam 5AC ISO Dish Reflector (400 mm) x1
• Antenna Feedhorn (The integrated radio transmitter core) x1
• Protective Radome (A plastic front shield to protect against wind, snow, and rain) x1

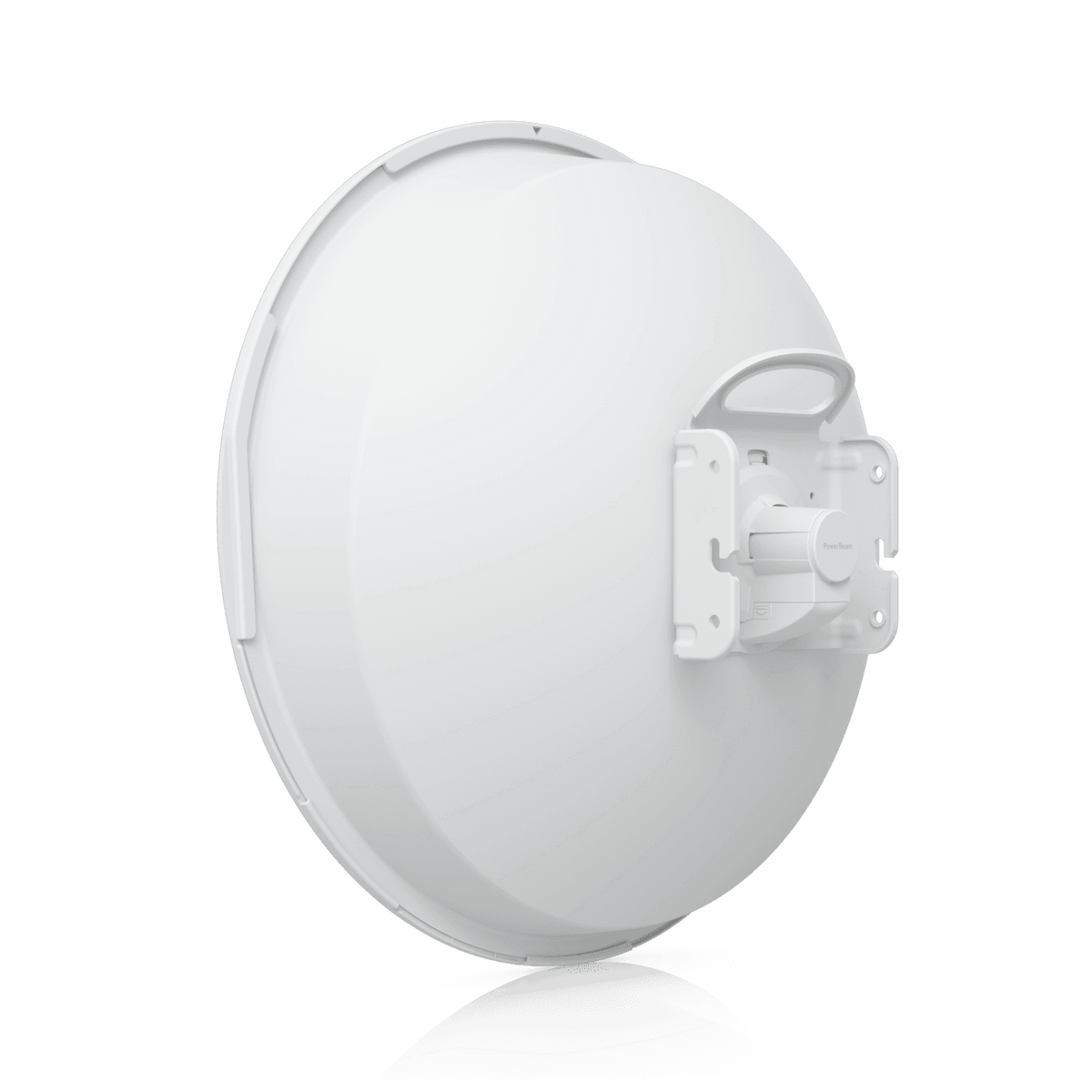

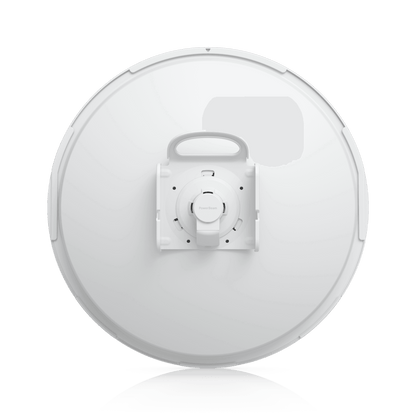

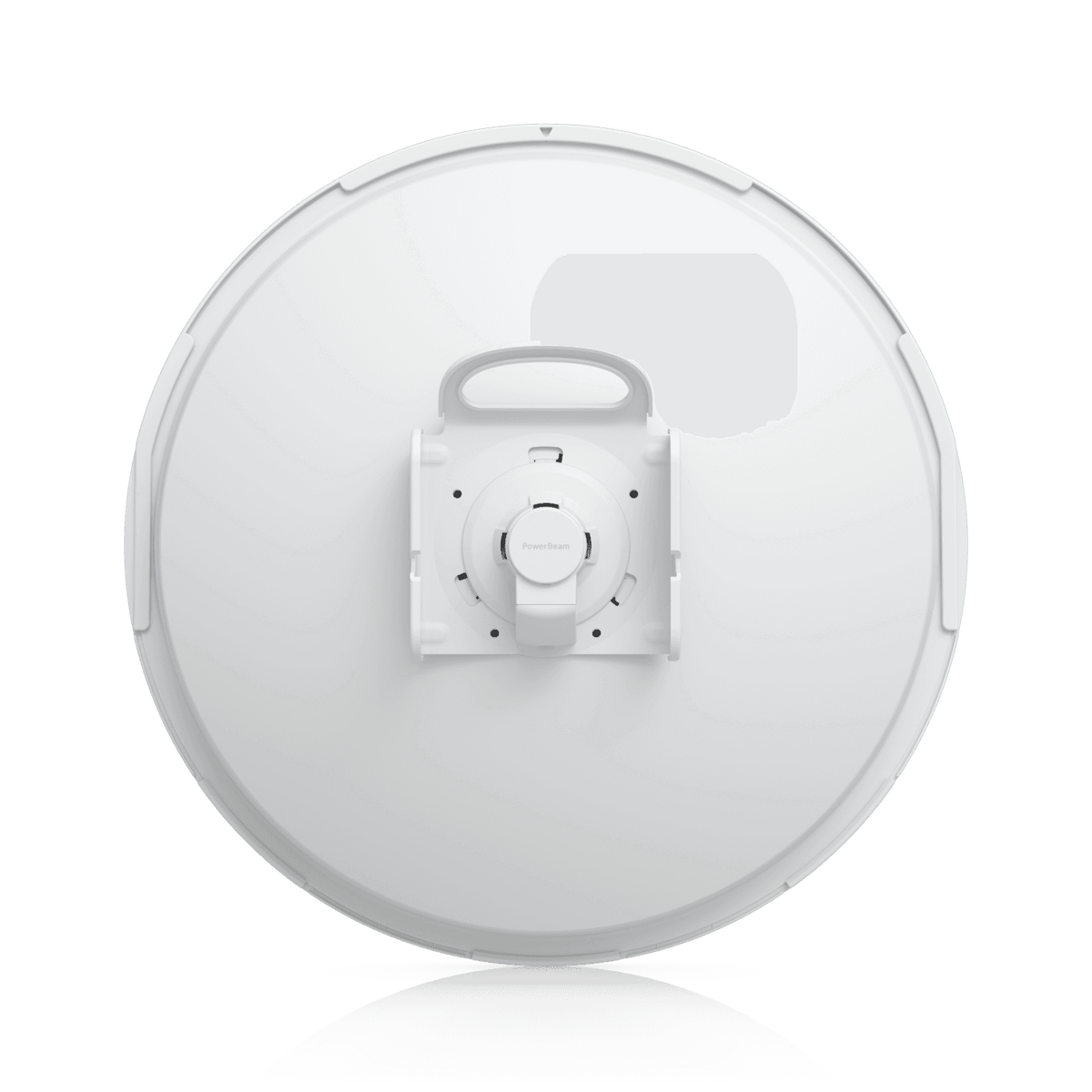

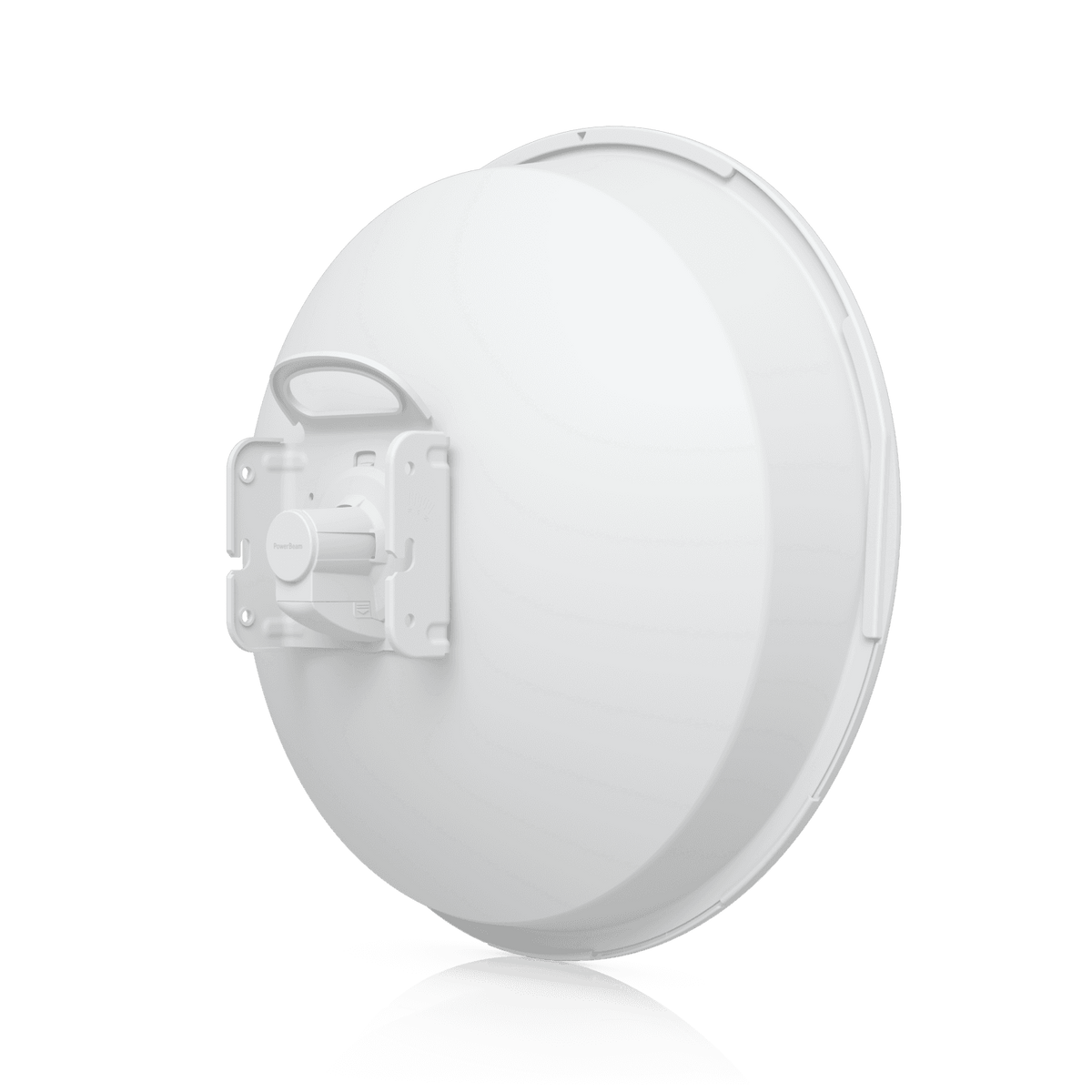

• Metal-Plated Rear Housing (Provides heavy-duty RF shielding for the back of the radio) x1
• Pole-Mounting Kit with a built-in ±20° mechanical tilt adjustment x1
• 24V, 0.5A Gigabit PoE Injector and an AC power cord x1

WARRANTY:

• 12 Months
