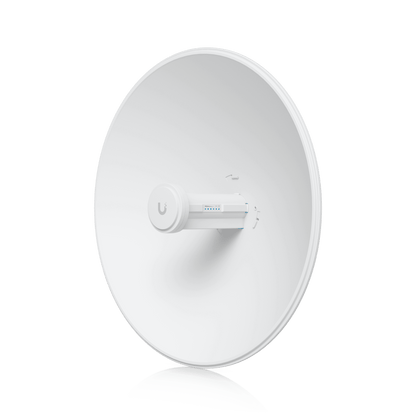

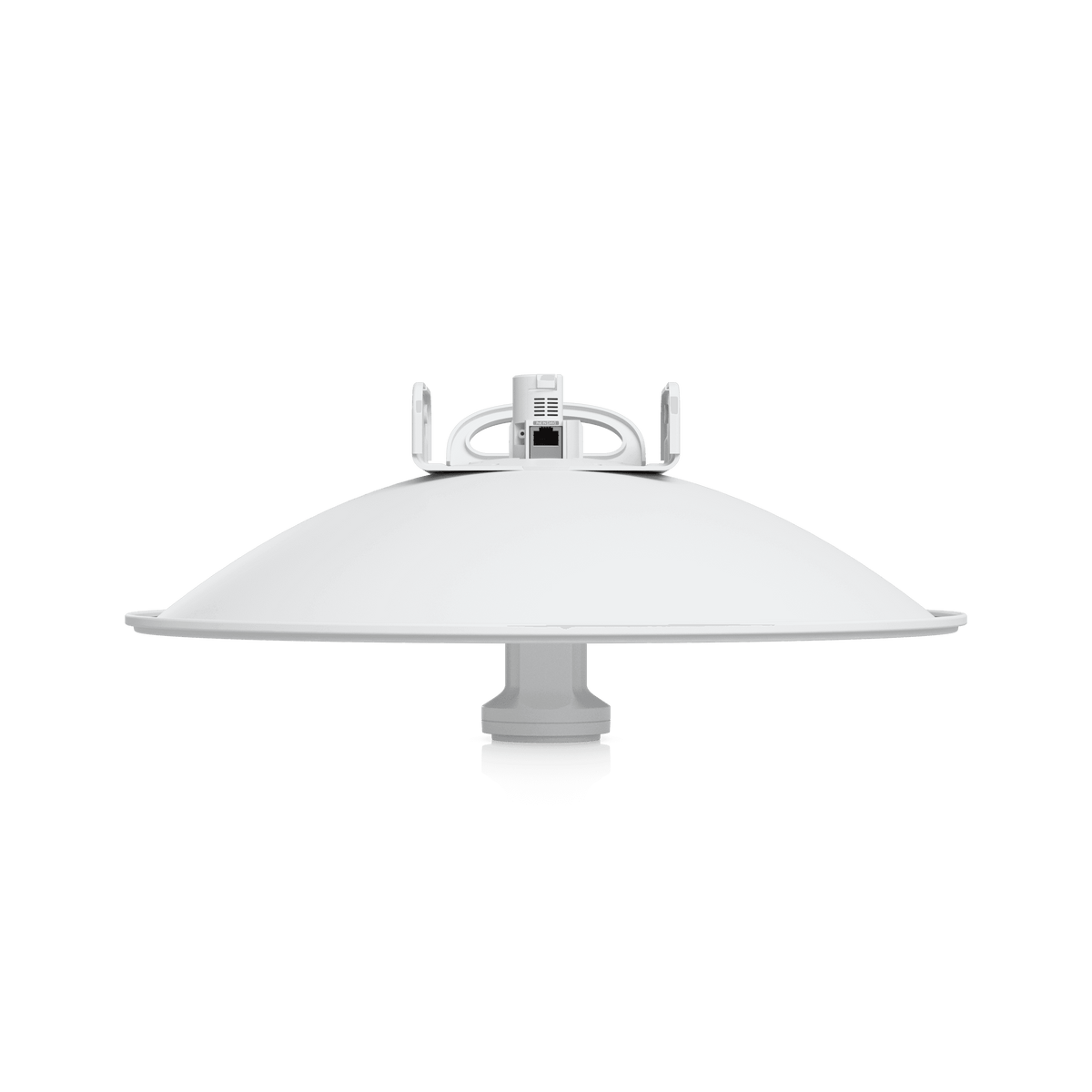

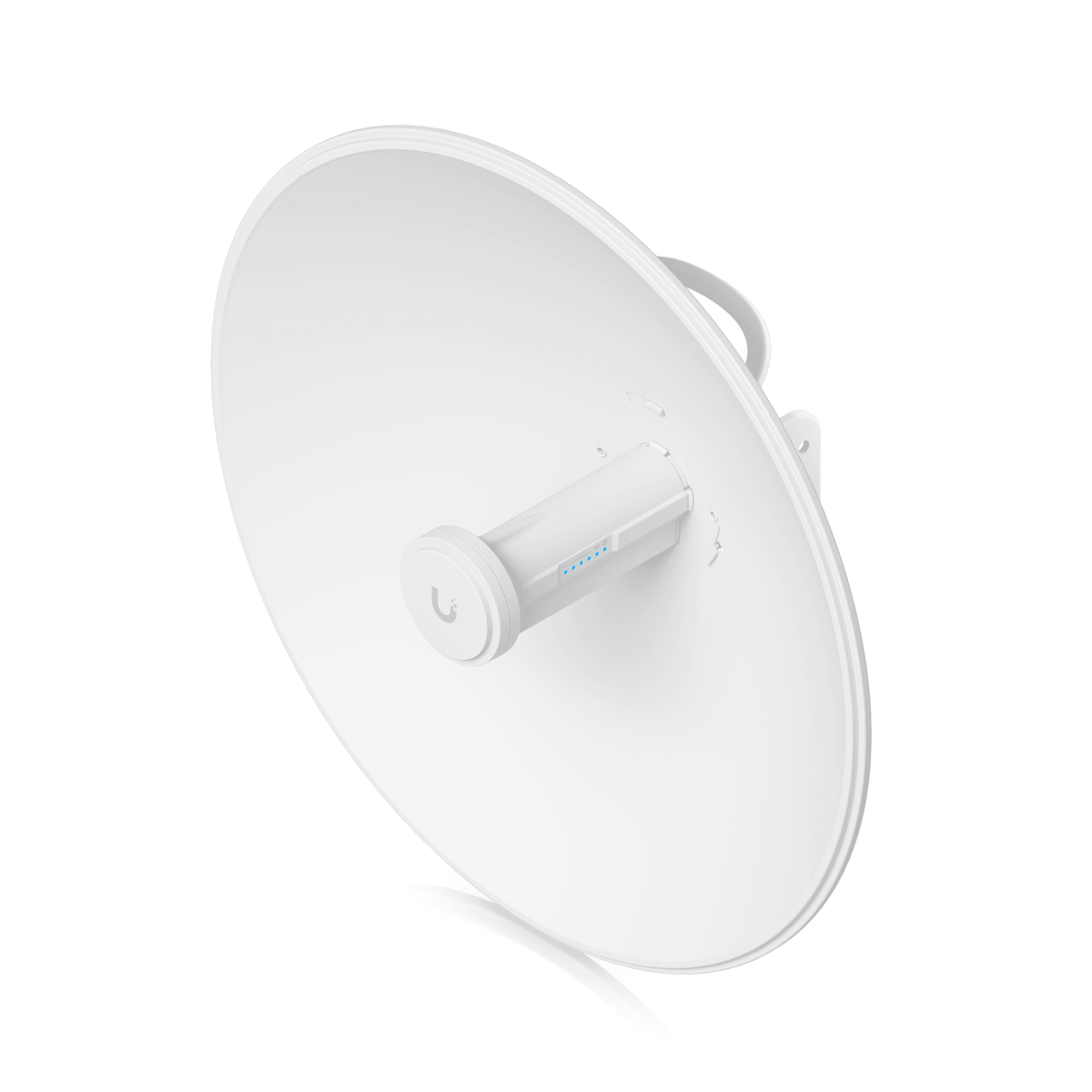

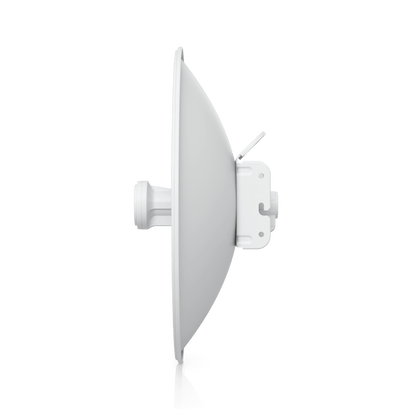

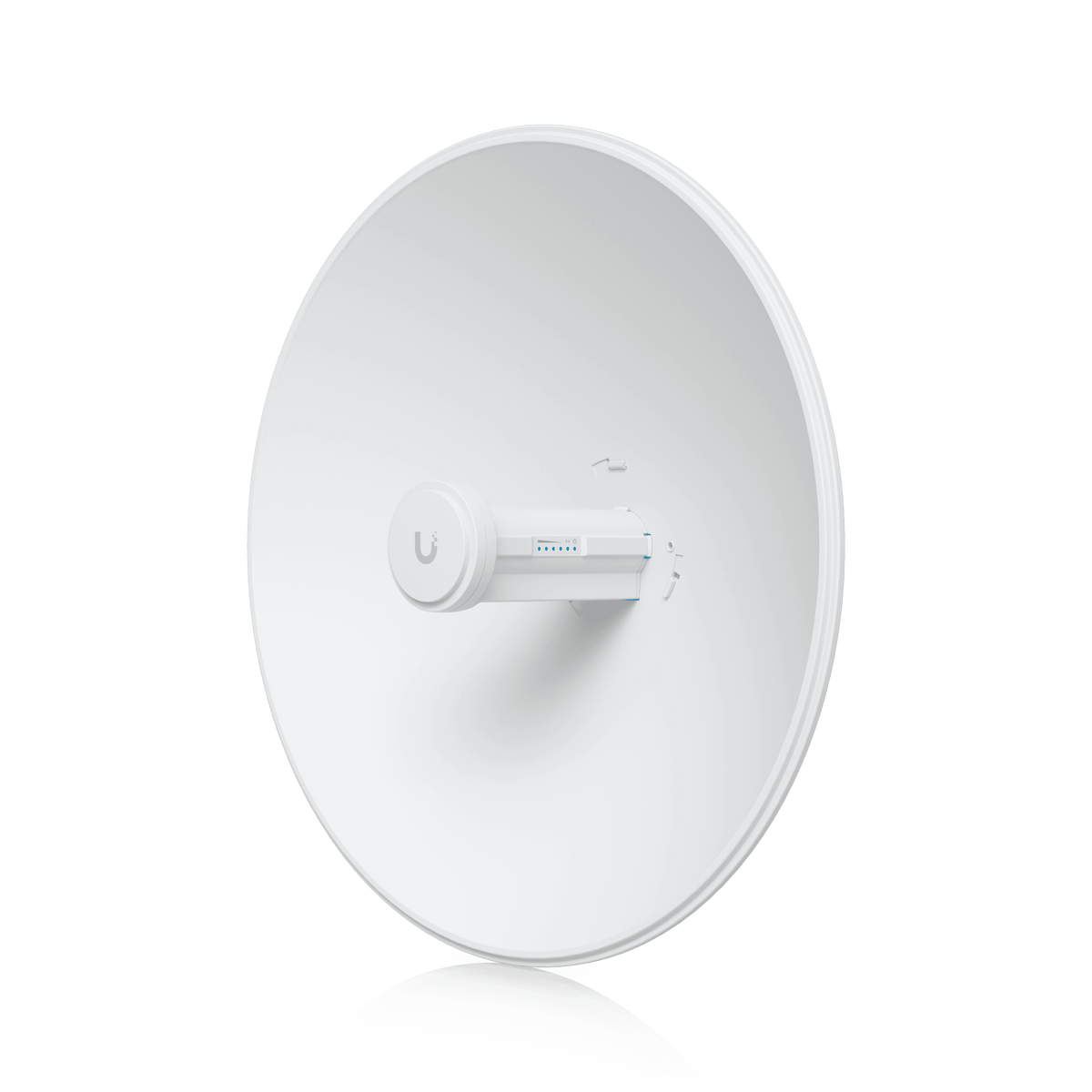

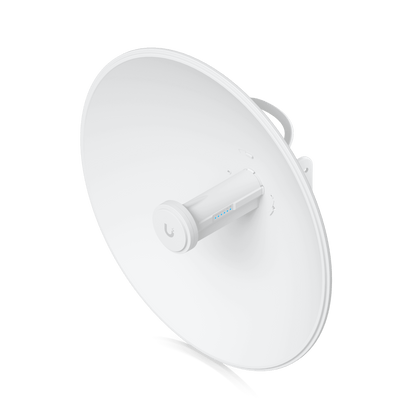

Ubiquiti UISP airMAX PowerBeam AC 5GHz 25dBi Radio

Ubiquiti's PBE-5AC-GEN2 is an airMAX AC 5GHz radio with 25dBi antenna. The dish reflector provides the best antenna performance due to its high directivity and interference rejection characteristics. It is designed as a high-performance, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

FEATURES:

• Ultra-Tight 25 dBi Beam: Uses a large 400 mm solid steel dish to sharpen the 5 GHz signal, letting your data bypass crowded neighborhood wireless noise.
• Massive 25+ KM Range: Packed with extra-high gain to establish highly stable, fiber-like network links across long distances.
• 450+ Mbps High Speeds: Runs on the advanced airMAX AC engine to deliver fast, ultra-low latency data transfers.
• Zero Signal Loss: Built with InnerFeed design where the wireless radio is locked directly inside the feedhorn, completely wiping out cable signal degradation.
• Phone Setup: Features a separate internal configuration channel so you can perfectly aim and monitor the dish using a smartphone app.
• Anti-Rust & Surge Armor: Equipped with GEOMET anti-corrosion hardware and enhanced lightning surge protection to survive severe outdoor environments.
• Power Included: Comes fully equipped with a 24V Gigabit PoE power supply right inside the retail box.
• Bridge Only: Does not talk to standard personal laptops or mobile phones directly; it only links with other outdoor airMAX AC radios.

SPECIFICATIONS:

• Dimensions: 420 × 420 × 230 mm (16.5 × 16.5 × 9.1")
• Weight: 2.2 kg (4.9 lb)
• Enclosure Materials: UV-stabilized polycarbonate, powder-coated SPCC
• Mounting: Pole Mount (Included)
• Wind Loading: 380 N at 200 km/h (85.4 lbf at 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• Networking Interface: 1 × GbE RJ45 port
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power Supply: 24V, 0.5A gigabit PoE adapter (Included)
• Supported Voltage Range: 20–27V DC
• Max. Power Consumption: 8.5W
• LEDs:
• Power: ✓
• LAN: ✓
• WAN: ✓
• Ambient Operating Temperature: -40 to 70°C (-40 to 158°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, RoHS, Anatel: 12697-20-08356
• Qualifications:
• Salt Fog Test: IEC 68-2-11 (ASTM B117)
• Equivalent: MIL-STD-810 G Method 509.5
• Temperature Shock Test: IEC 68-2-14
• UV Test: IEC 68-2-5 at 40°C (104°F)
• Equivalent: ETS 300 019-1-4
• Vibration Test: IEC 68-2-6
• Wind-Driven Rain Test: ETS 300 019-1-4
• Equivalent: MIL-STD-810 G Method 506.5
• Operating Modes:
• Access Point
• Station
• Ubiquiti Specific Features:
• airMAX AC Mode: ✓
• Discovery Protocol: ✓
• Frequency Band Offset: ✓
• Traffic Shaping with Burst Support: ✓
• 30/50/60 MHz Channels: ✓
• Services:
• Bridging: ✓
• DHCP: ✓
• Ping Watchdog: ✓
• Routing: ✓
• SNMP: ✓
• SSH: ✓
• Webserver: ✓
• Distance Adjustment — Ackless Mode: ✓
• Statistical Reporting:
• Data Rates: ✓
• Ethernet Link Rate: ✓
• Packet Errors: ✓
• Up Time: ✓
• Wireless Distance: ✓
• System
• Channel Bandwidth:
• PtP Mode: 10/20/30/40/50/60/80 MHz
• PtMP Mode: 10/20/30/40 MHz
• Antenna Gain: 25 dBi
• Radio Frequency — Supported Frequency Range:
• Worldwide: 5150–5875 MHz
• US/CA:
• U-NII-1: 5150–5250 MHz
• U-NII-2A: 5250–5350 MHz
• U-NII-2C: 5470–5725 MHz
• U-NII-3: 5725–5850 MHz
• Management Radio — Supported Frequency Range:
• Worldwide: 2412–2472 MHz
• US/CA: 2412–2462 MHz

WHAT’S IN THE BOX:

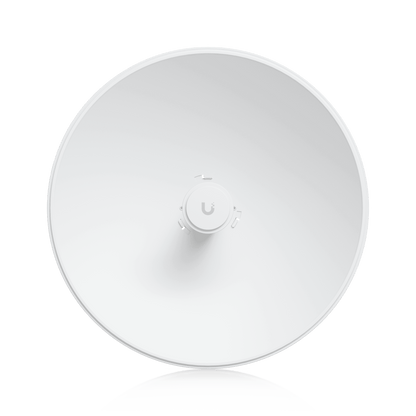

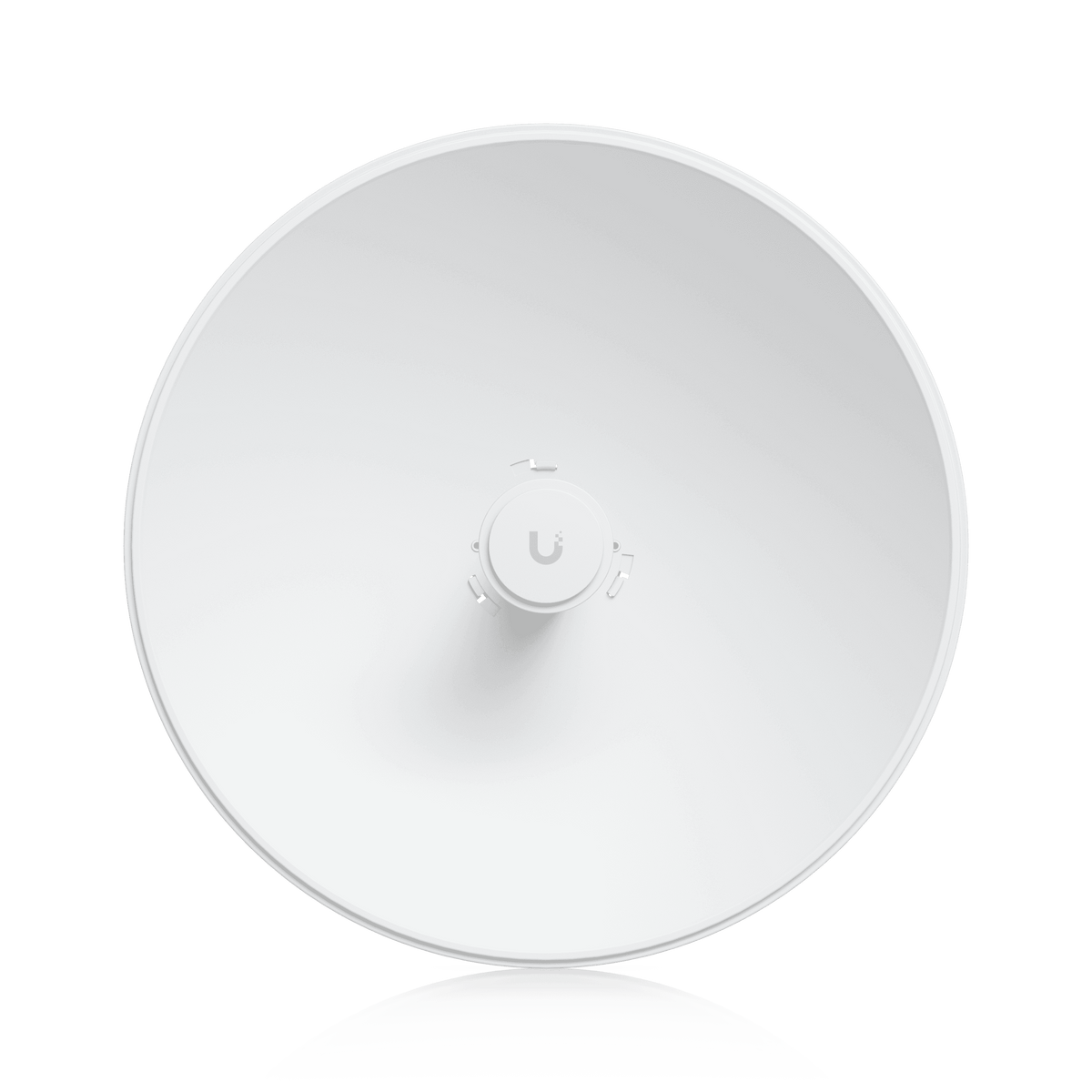

• Dish Reflector: The 400 mm solid, powder-coated steel dish. x1
• Antenna Feedhorn: The main 5 GHz radio transmitter core. x1

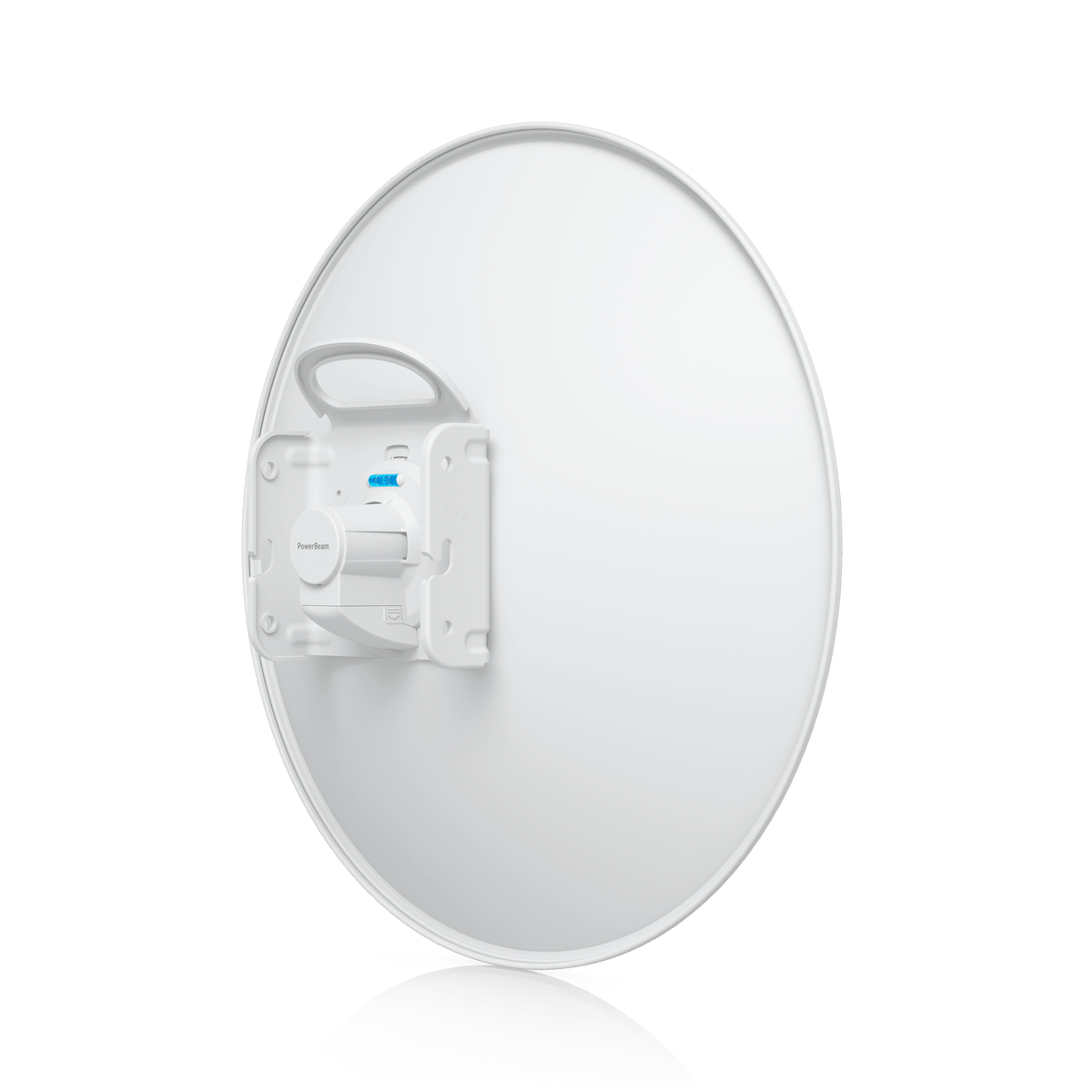

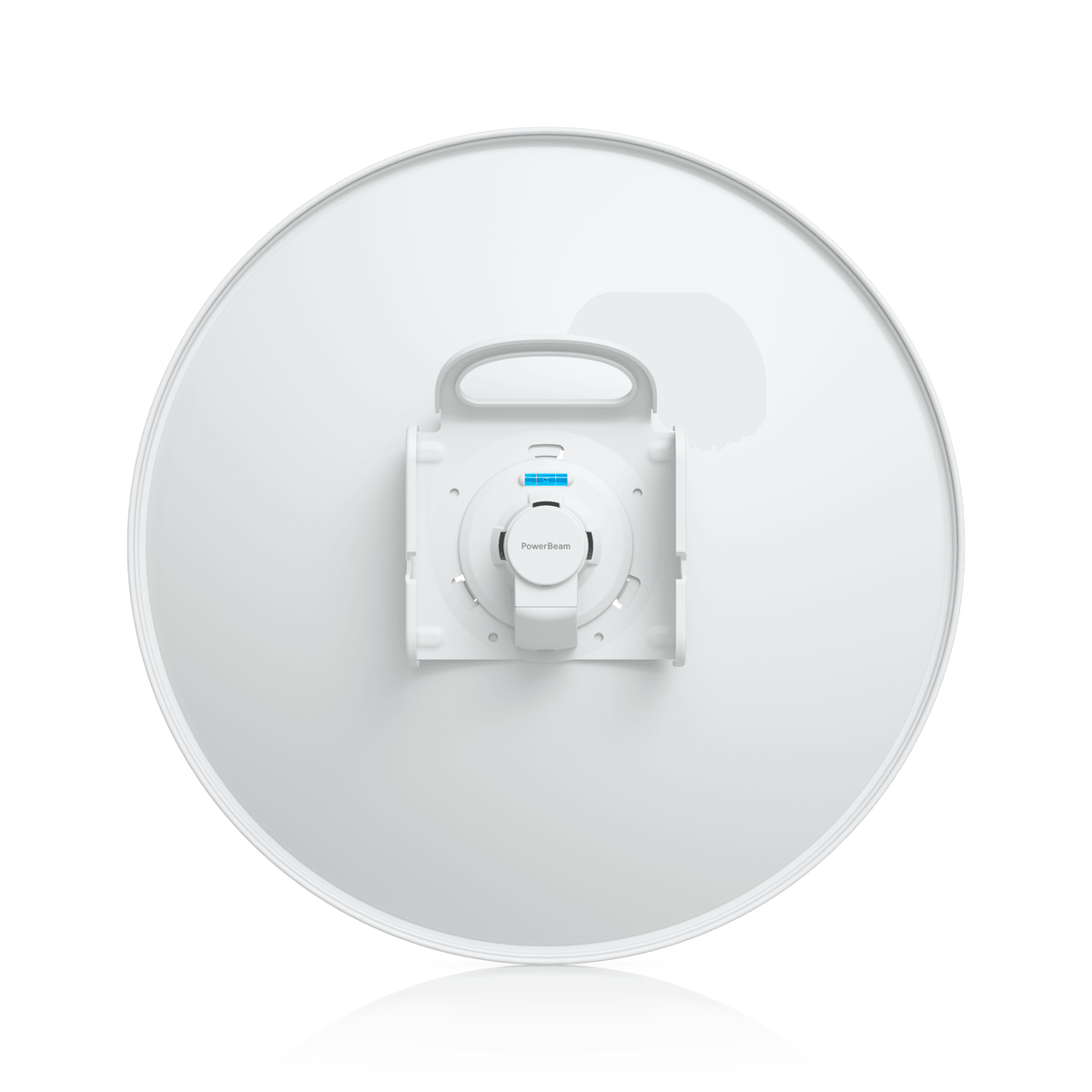

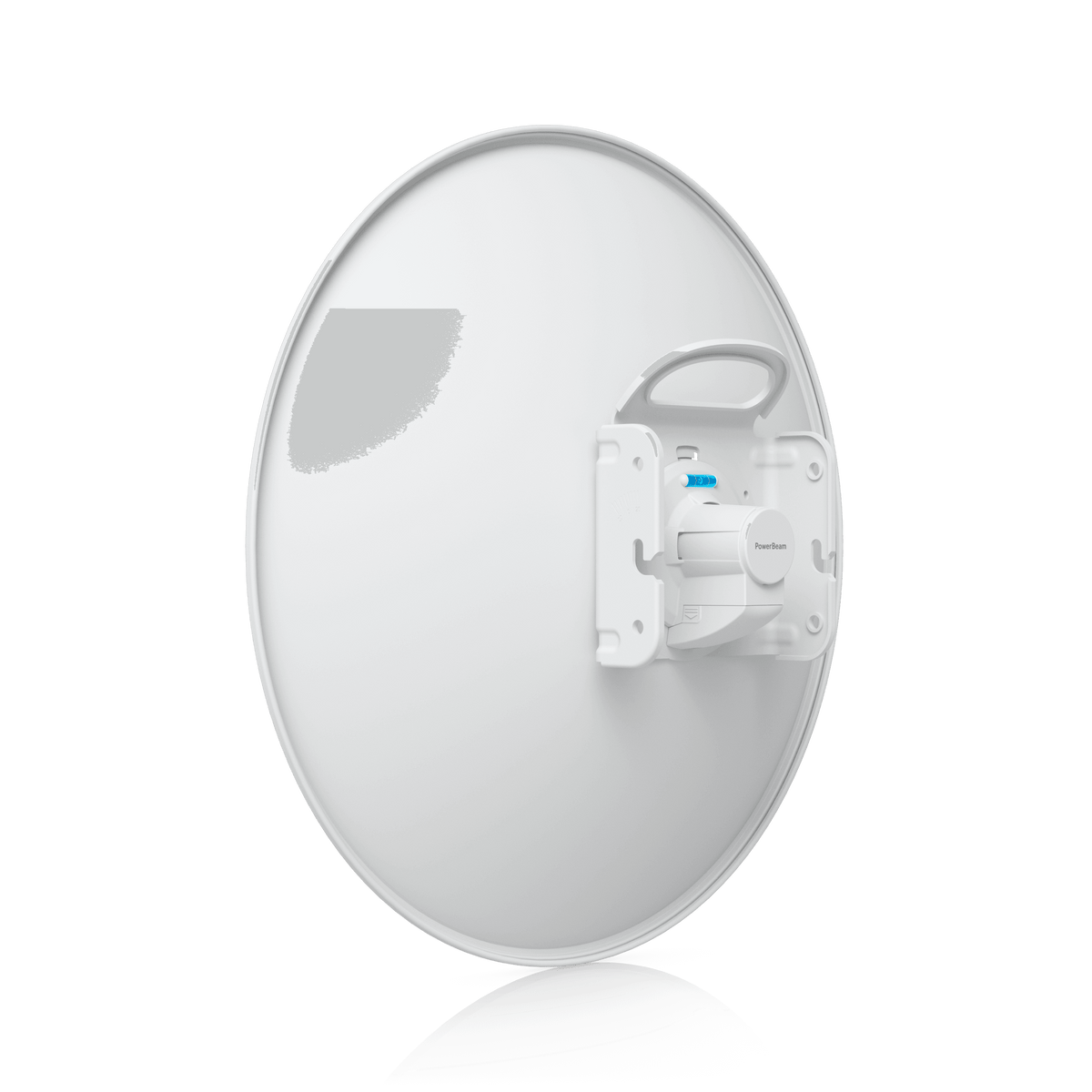

• Rear Housing & Adjusting Mount Bracket: Upgraded heavy-duty rear plate allowing ±20° mechanical tilt adjustment. x1
• Pole Clamp & Long Carriage Bolts: Heavy-duty, GEOMET anti-corrosion coated fasteners for mast attachment. x1
• 24V, 0.5A Gigabit PoE Injector and an AC power cord. x1

WARRANTY:

• 12 Months
