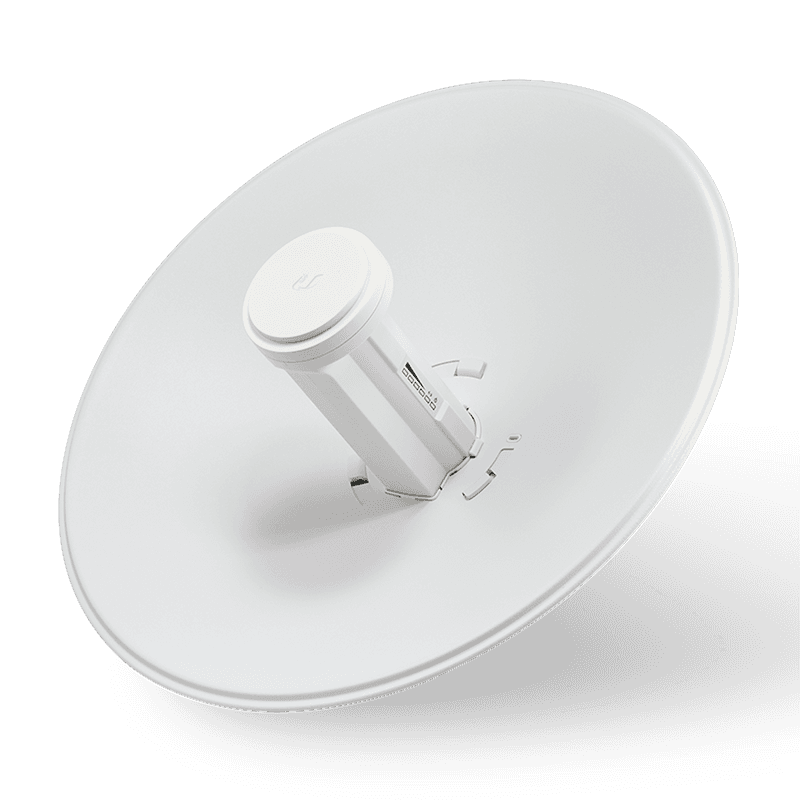

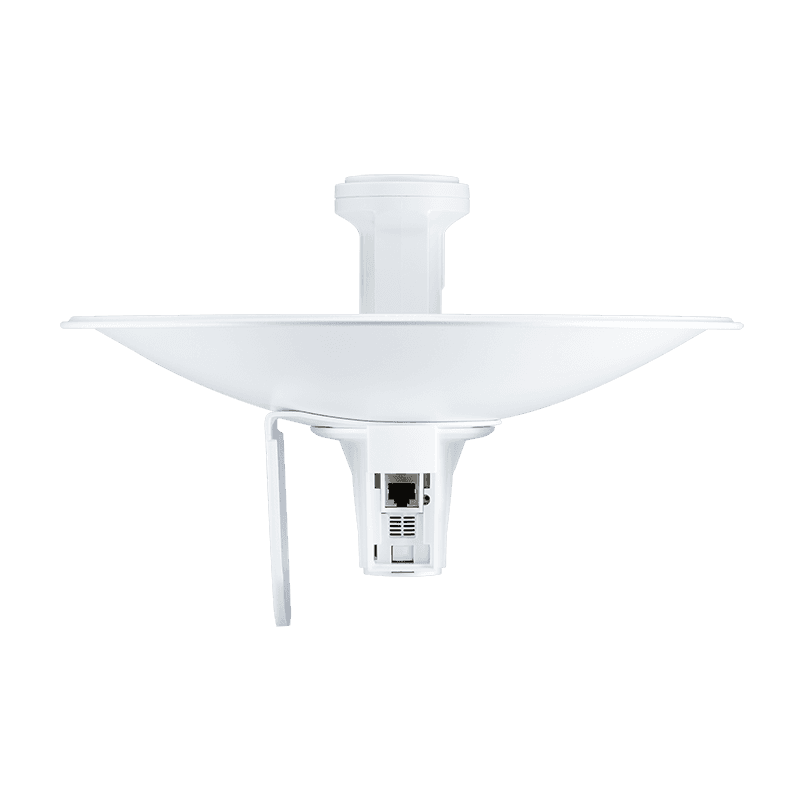

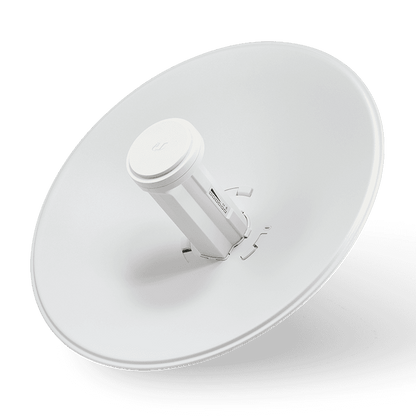

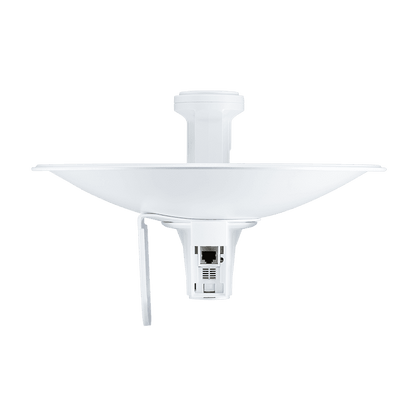

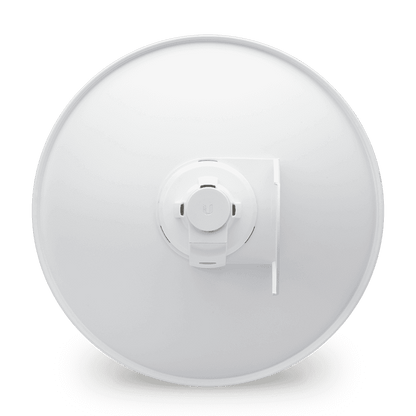

Ubiquiti UISP airMAX PowerBeam M5 5GHz 22dBi Radio

Ubiquiti's PBE-M5-300 is an airMAX M series 5GHz radio with 22dBi antenna. The dish reflector provides the best antenna performance due to its high directivity and interference rejection characteristics. It is designed as a high-performance, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. It can be managed via the UISP network management platform.

FEATURES:

• Focused 22 dBi Dish: Uses a compact 300 mm solid metal dish to pinpoint its 5 GHz signal, letting your data slide right past crowded neighborhood wireless noise.
• 20 KM Range Sniper: Delivers enough concentrated power to stretch stable wireless data links across vast distances up to 20 kilometres.
• 150+ Mbps Legacy Speeds: Transmits steady, reliable data throughput using classic airMAX M (802.11n) 2x2 MIMO technology.
• Zero Signal Loss: Built with InnerFeed design where the radio core is locked directly inside the feedhorn, completely wiping out signal loss from external cables.
• Toolless Snap Assembly: The entire dish clicks together by hand, requiring only a single wrench to clamp the rear bracket onto a tower mast.
• Power Included: Comes fully equipped with a 24V passive PoE power supply right inside the retail box.
• Bridge Only: Does not talk to standard personal laptops or mobile phones directly; it only links with other legacy Ubiquiti airMAX M series outdoor radios.

SPECIFICATIONS:

• Dimensions: 325 × 325 × 256 mm (12.8 × 12.8 × 10.1")
• Weight: 1.2 kg (2.65 lb)
• Enclosure Materials: UV-stabilized polycarbonate
• Mounting: Pole Mount (Included)
• Wind Loading: 200.2 N @ 200 km/h (45 lbf @ 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• Networking Interface: 1 × 10/100 MbE port
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power Supply: 24V, 0.5A PoE adapter (Included)
• Supported Voltage Range: 20–27V DC
• Max. Power Consumption: 6W
• LEDs:
• Signal Strength: ✓
• Power: ✓
• LAN: ✓
• WAN: ✓
• Ambient Operating Temperature: -40 to 70°C (-40 to 158°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, RoHS, Anatel: 01107-15-08356
• Qualifications:
• Salt Fog Test: IEC 68-2-11 (ASTM B117)
• Equivalent: MIL-STD-810 G Method 509.5
• Temperature Shock Test: IEC 68-2-14
• UV Test: IEC 68-2-5 at 40°C (104°F)
• Equivalent: ETS 300 019-1-4
• Vibration Test: IEC 68-2-6
• Wind-Driven Rain Test: ETS 300 019-1-4
• Equivalent: MIL-STD-810 G Method 506.5
• Max. VSWR: 1.5:1
• Polarization: Dual-linear
• Radio Frequency — Supported Frequency Range:
• Worldwide: 5150–5875 MHz
• US/CA:
• U-NII-1: 5150–5250 MHz
• U-NII-2A: 5250–5350 MHz
• U-NII-2C: 5470–5725 MHz
• U-NII-3: 5725–5850 MHz

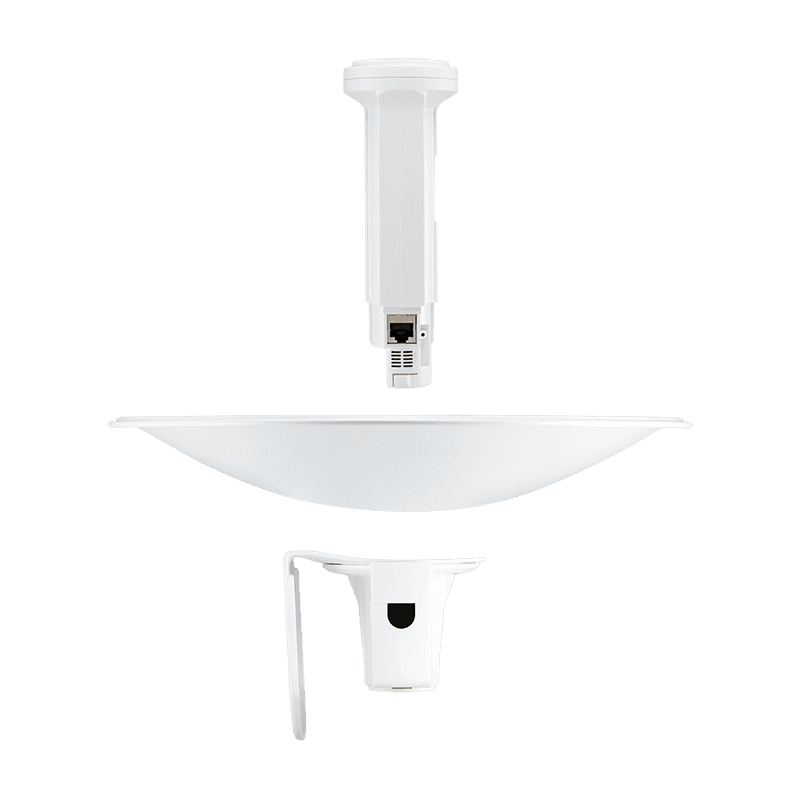

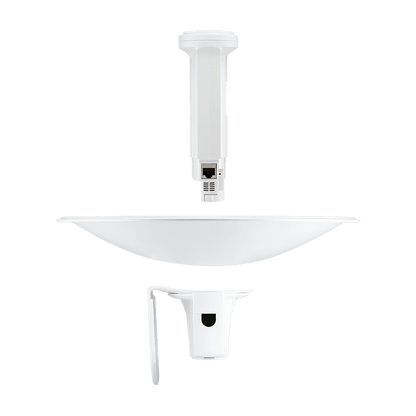

WHAT’S IN THE BOX:

• Dish Reflector: A 300 mm (12-inch) solid metal dish. x1
• Antenna Feedhorn: The main 5 GHz radio processor block. x1
• Rear Housing & Dish Bracket: Slips onto the dish securely and locks the feedhorn into place. x1
• Pole Clamp & U-Bolt Kit: Heavy-duty mount components for mast installation. x1
• 24V, 0.5A Passive PoE Injector x1

WARRANTY:

• 12 Months
