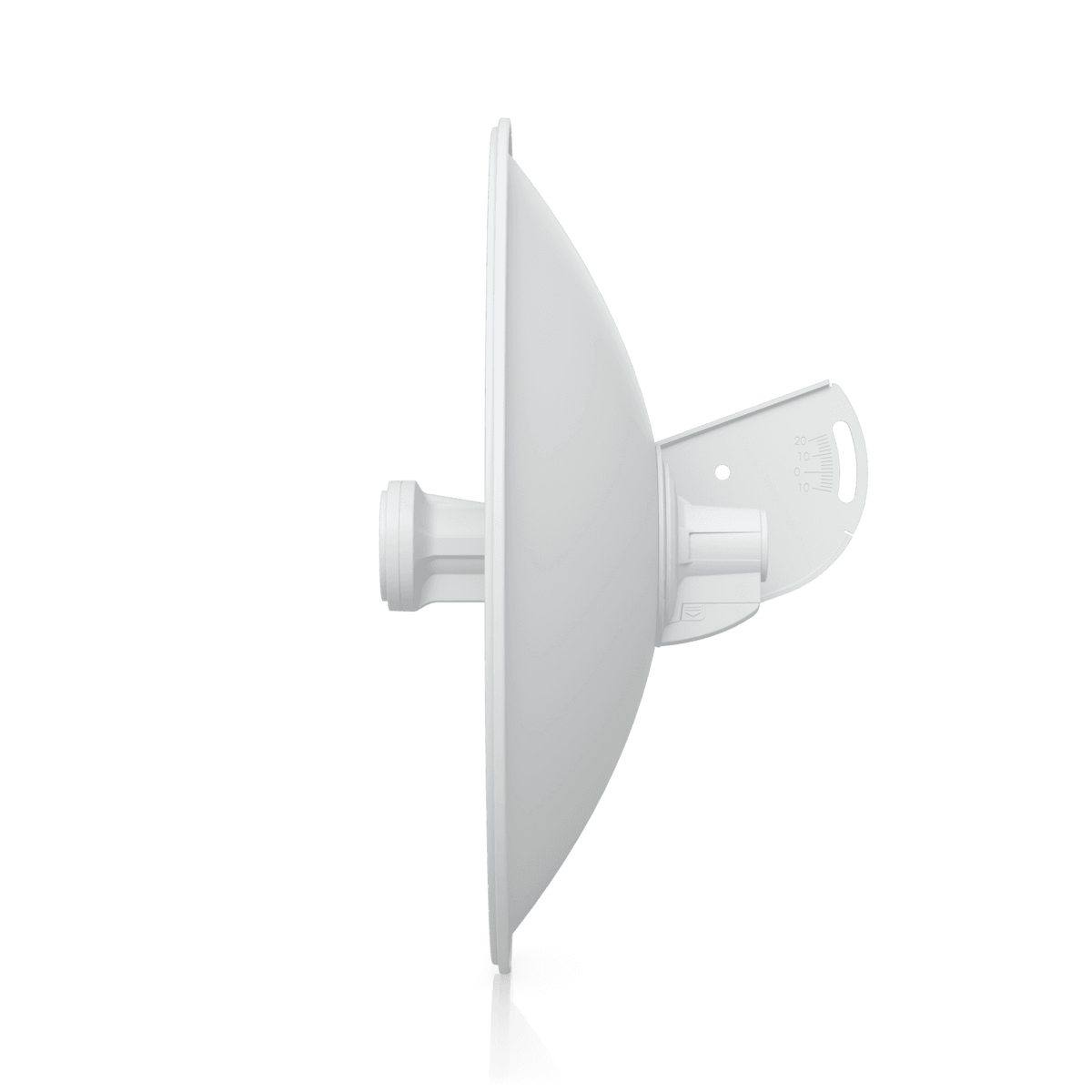

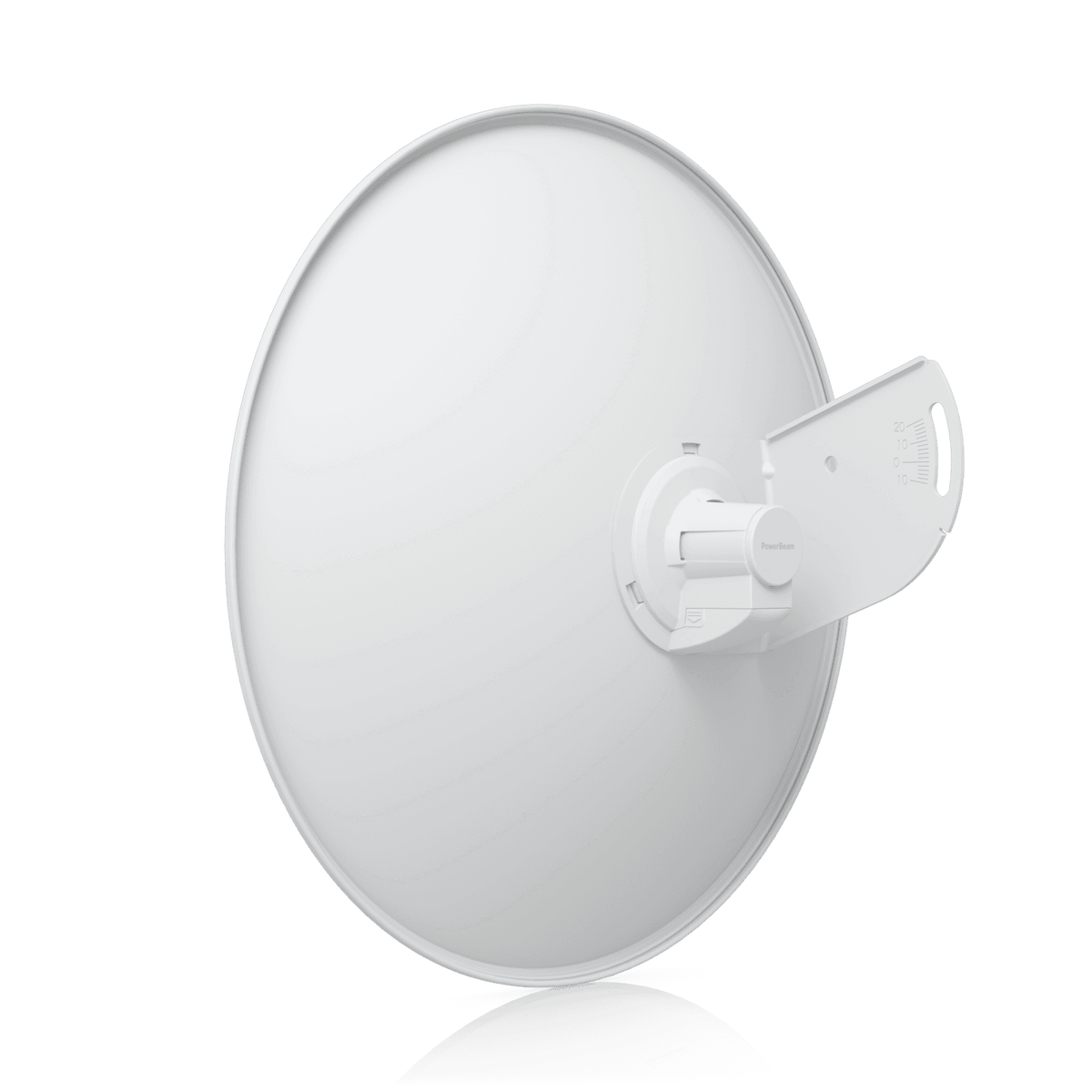

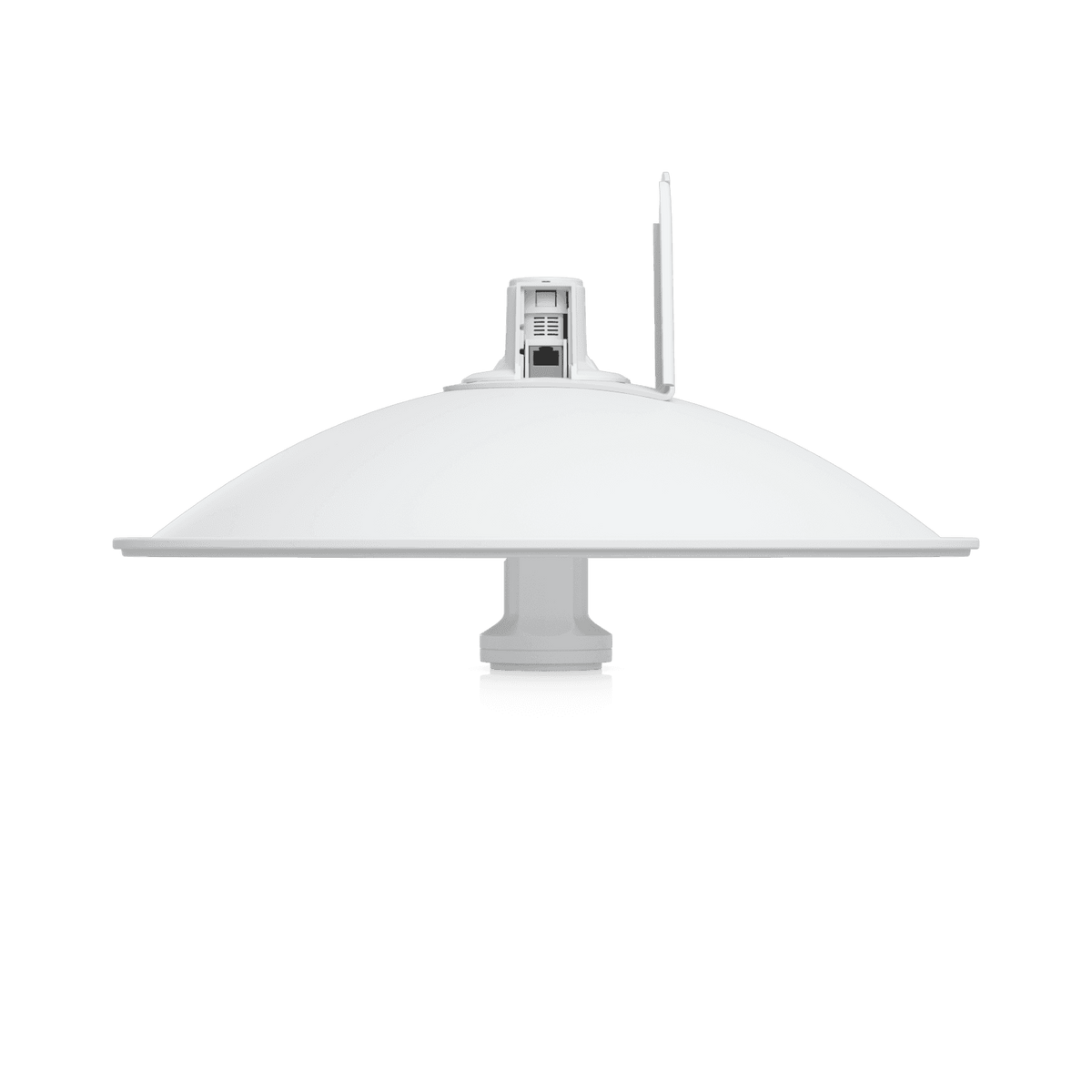

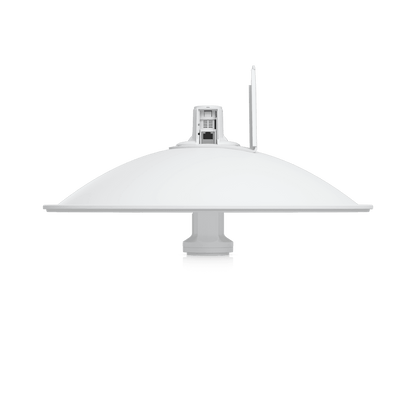

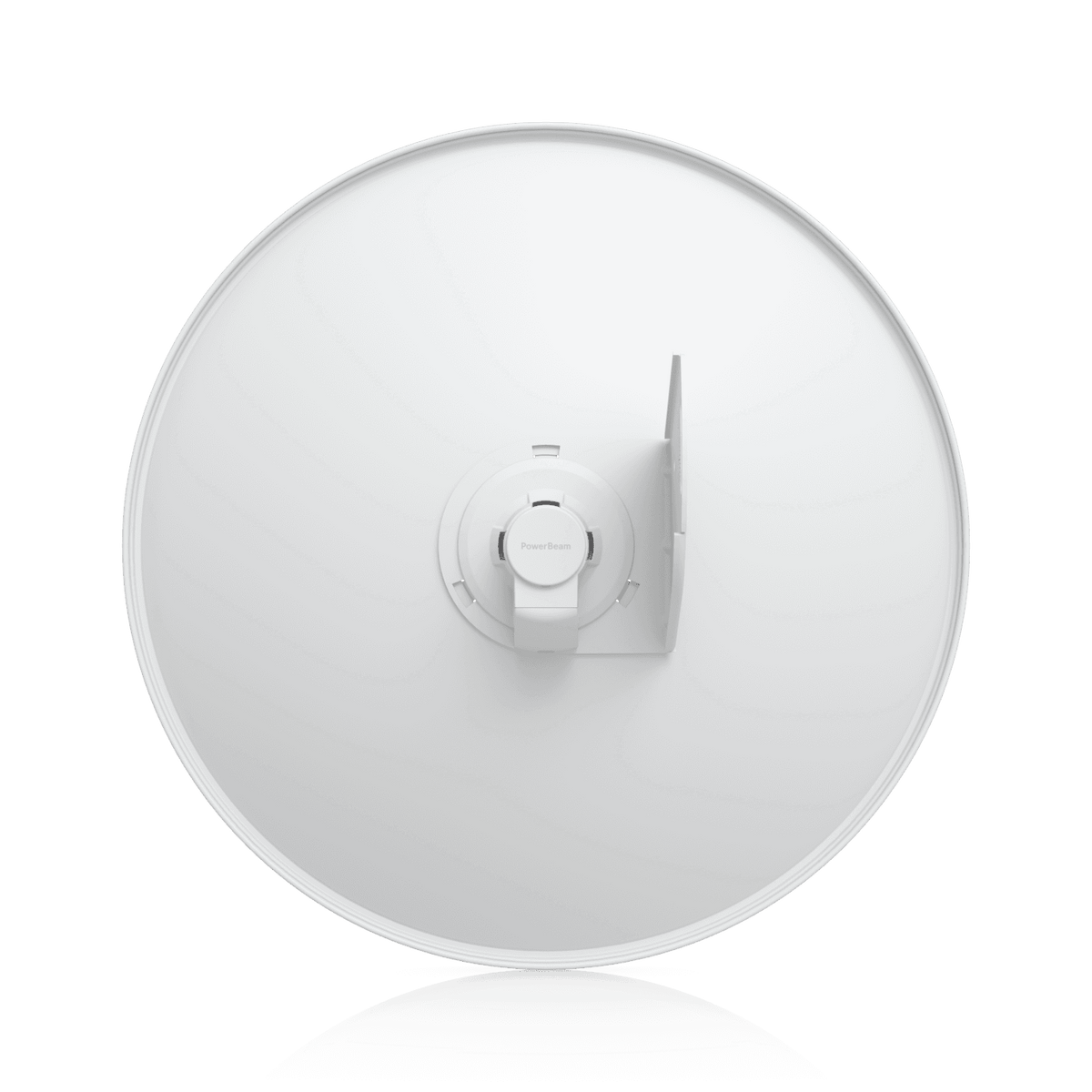

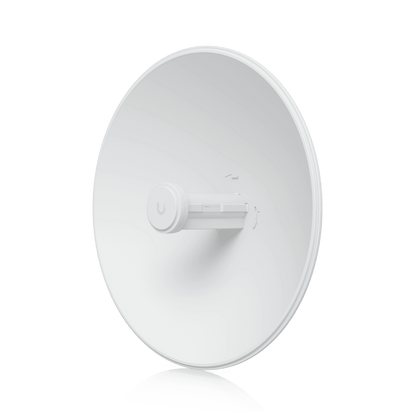

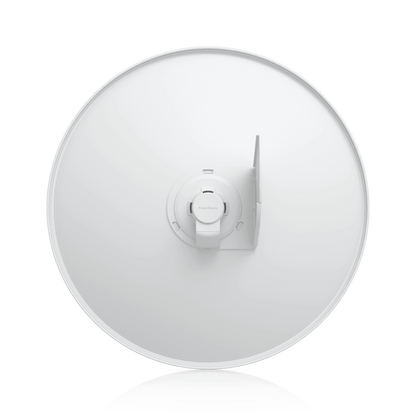

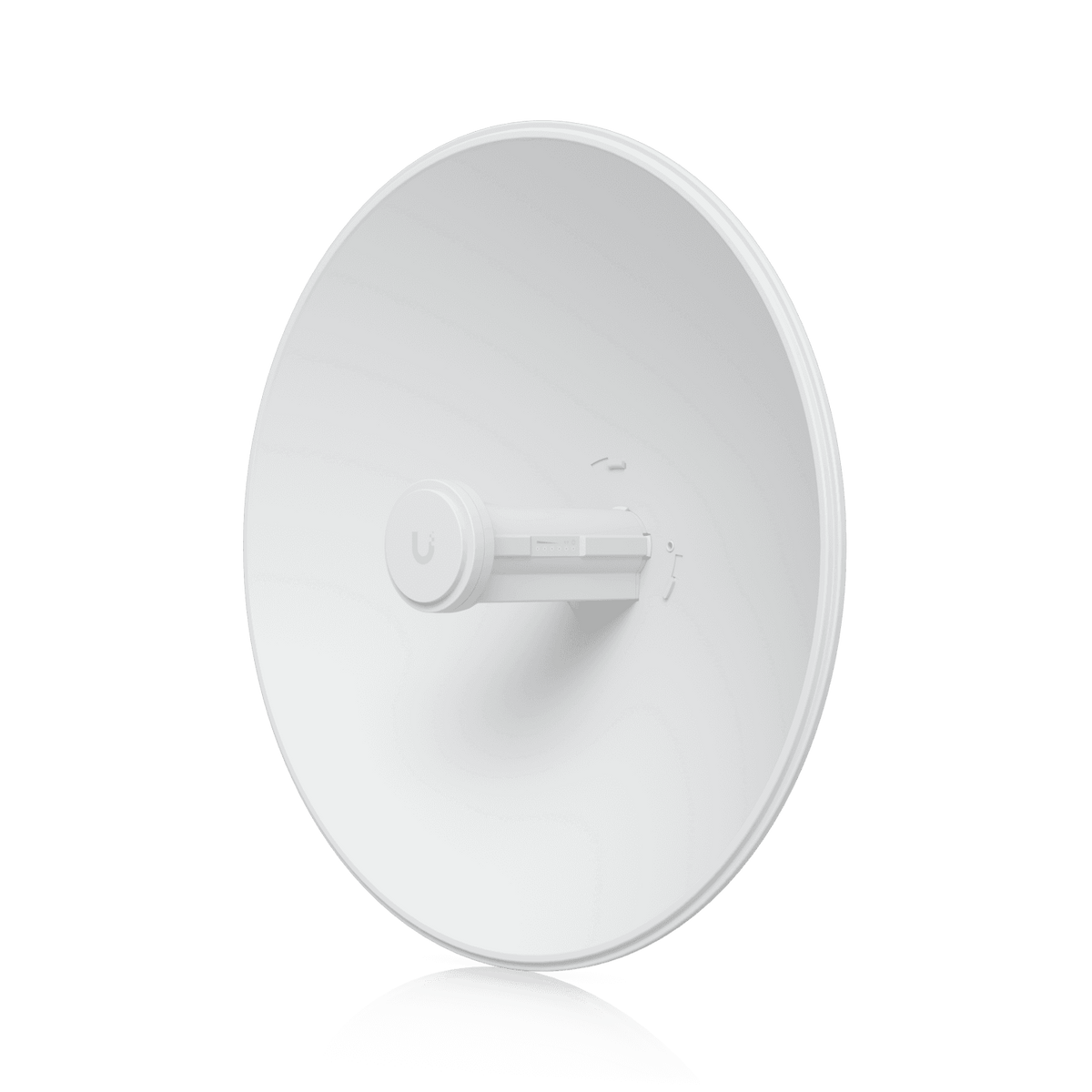

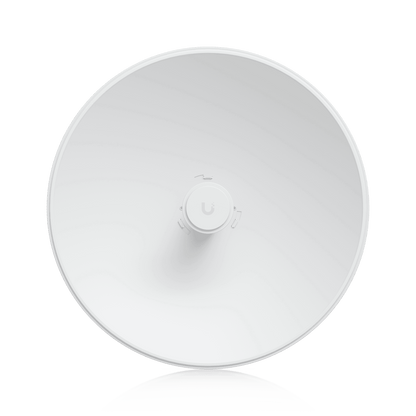

Ubiquiti UISP airMAX PowerBeam M5 5GHz 25dBi Radio

Ubiquiti's PBE-M5-400 is an airMAX M series 5GHz radio with 25dBi antenna. The dish reflector provides the best antenna performance due to its high directivity and interference rejection characteristics. It is designed as a high-performance, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. It can be managed via the UISP network management platform.

FEATURES:

• Massive 25 dBi Dish: Uses a large 400 mm solid metal dish to sharpen the 5 GHz signal into a razor-thin 12° beamwidth, completely cutting through severe neighborhood wireless noise.
• 25+ KM Long-Range Backhaul: Engineered with extra-high gain to establish highly stable, long-distance data connections over massive distances exceeding 25 kilometres.
• 150+ Mbps Legacy Speeds: Transmits steady, reliable data throughput using classic airMAX M (802.11n) 2x2 MIMO technology.
• Zero Signal Loss: Features an InnerFeed design where the wireless radio is locked directly inside the center feedhorn, eliminating the need for signal-wasting external cables.
• Rigid Tower Stability: Built with a thicker, heavy-duty industrial frame that increases structural stability against high-altitude tower winds.
• Power Included: Comes fully equipped with a 24V passive PoE power supply right inside the retail box.
• Bridge Only: Does not talk to standard personal laptops or mobile phones directly; it only links with other legacy Ubiquiti airMAX M series outdoor radios.

SPECIFICATIONS:

• Dimensions: 420 × 420 × 275 mm (16.5 × 16.5 × 10.8")
• Weight: 1.8 kg (4 lb)
• Enclosure Materials: UV-stabilized polycarbonate
• Mounting: Pole Mount (Included)
• Wind Loading: 342.5 N @ 200 km/h (77 lbf @ 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• Networking Interface: 1 × GbE RJ45 port
• Power Method: Passive PoE 2-pair (Pairs 4, 5+; 7, 8 return)
• Power Supply: 24V, 0.5A gigabit PoE adapter (Included)
• Supported Voltage Range: 20–27V DC
• Max. Power Consumption: 8W
• Max. TX Power: 26 dBm
• LEDs:
• Signal Strength: ✓
• Power: ✓
• LAN: ✓
• WAN: ✓
• Ambient Operating Temperature: -40 to 70°C (-40 to 158°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, RoHS, Anatel: 01692-15-08356
• Qualifications:
• Salt Fog Test: IEC 68-2-11 (ASTM B117)
• Equivalent: MIL-STD-810 G Method 509.5
• Temperature Shock Test: IEC 68-2-14
• UV Test: IEC 68-2-5 at 40°C (104°F)
• Equivalent: ETS 300 019-1-4
• Vibration Test: IEC 68-2-6
• Wind-Driven Rain Test: ETS 300 019-1-4
• Equivalent: MIL-STD-810 G Method 506.5
• Antenna Gain: 25 dBi
• Radio Frequency — Supported Frequency Range:
• Worldwide: 5170–5875 MHz
• US/CA: 5725–5850 MHz

WHAT’S IN THE BOX:

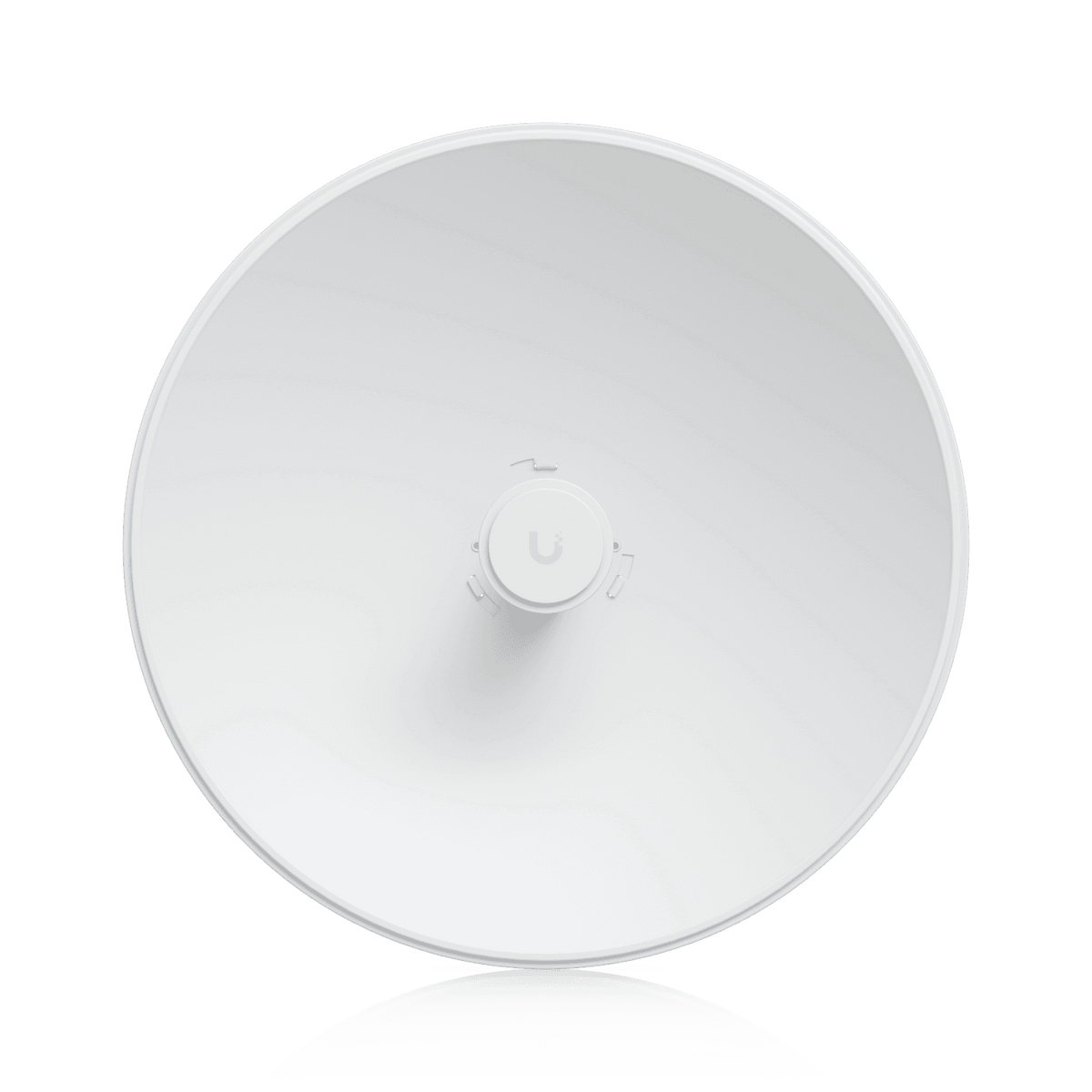

• Dish Reflector: A large 400 mm (15.7-inch) solid metal dish. x1
• Antenna Feedhorn: The main 5 GHz radio processor block. x1

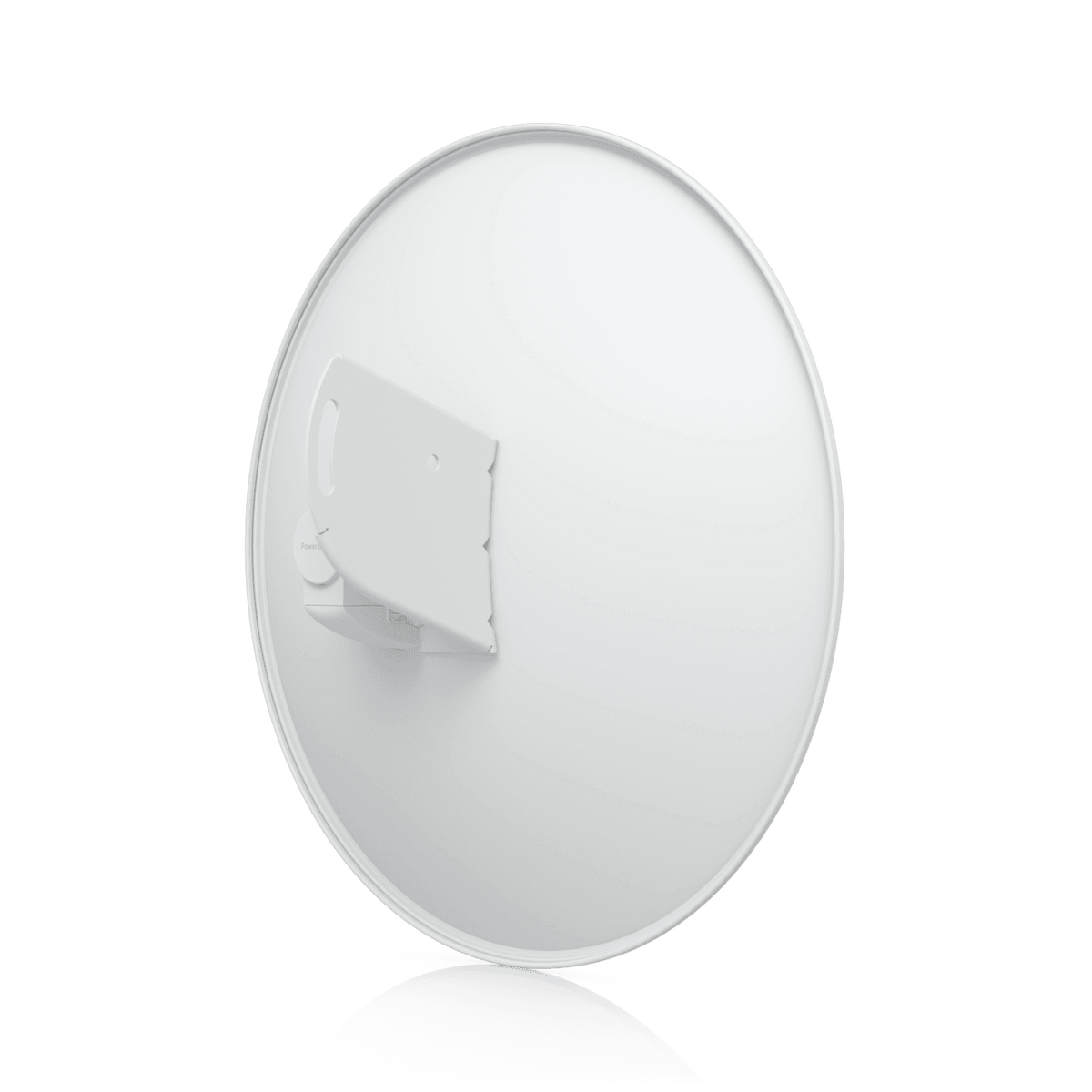

• Rear Housing & Dish Bracket: Locks the feedhorn securely into place behind the dish. x1
• Pole Clamp & U-Bolt Kit: Heavy-duty mounting hardware for mast installation. x1
• Radome (Optional/Included depending on specific retail batch SKU): A protective plastic cover to shield the dish face from snow, rain, and heavy winds. x1
• 24V, 0.5A Passive PoE Injector and an AC power cord. x1

WARRANTY:

• 12 Months
