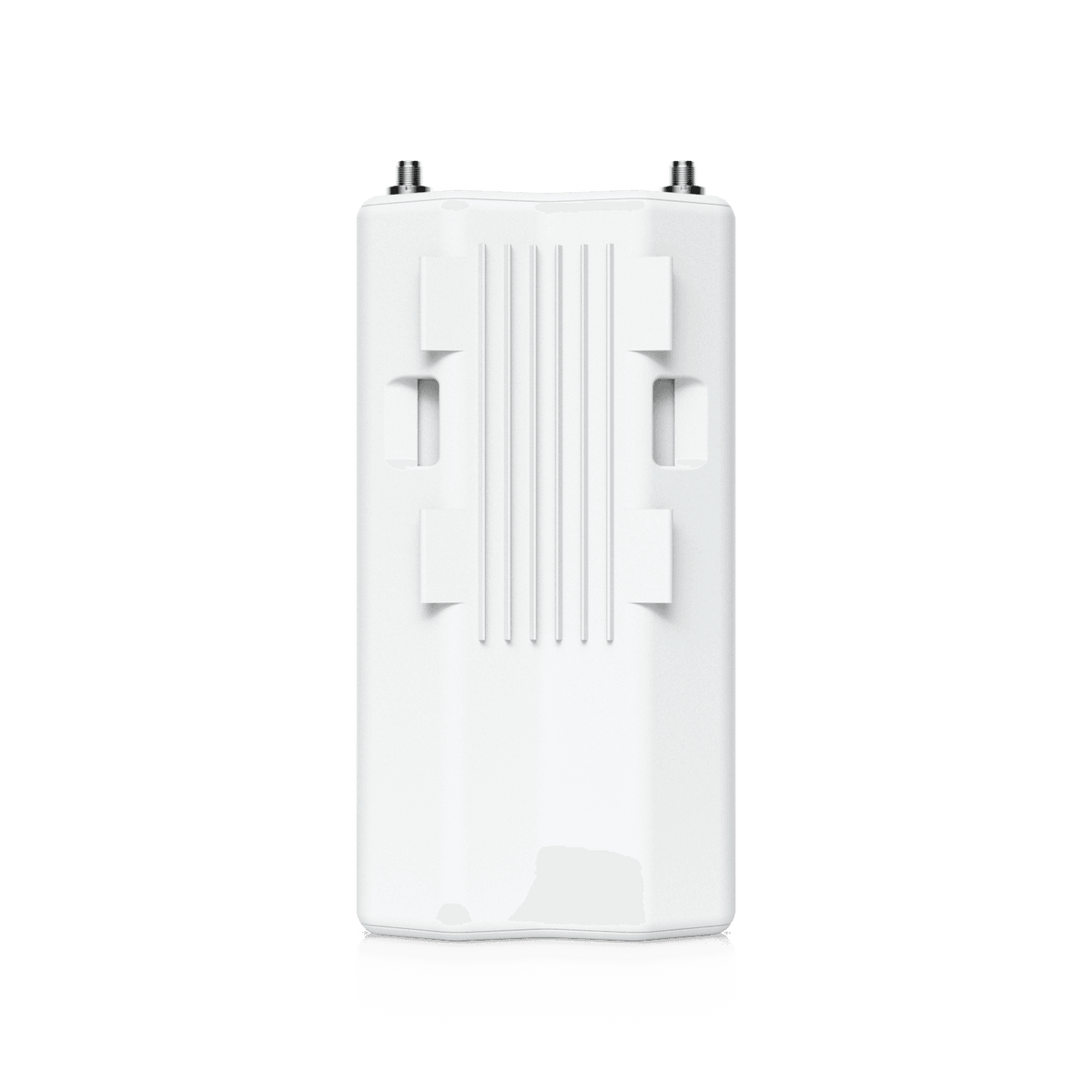

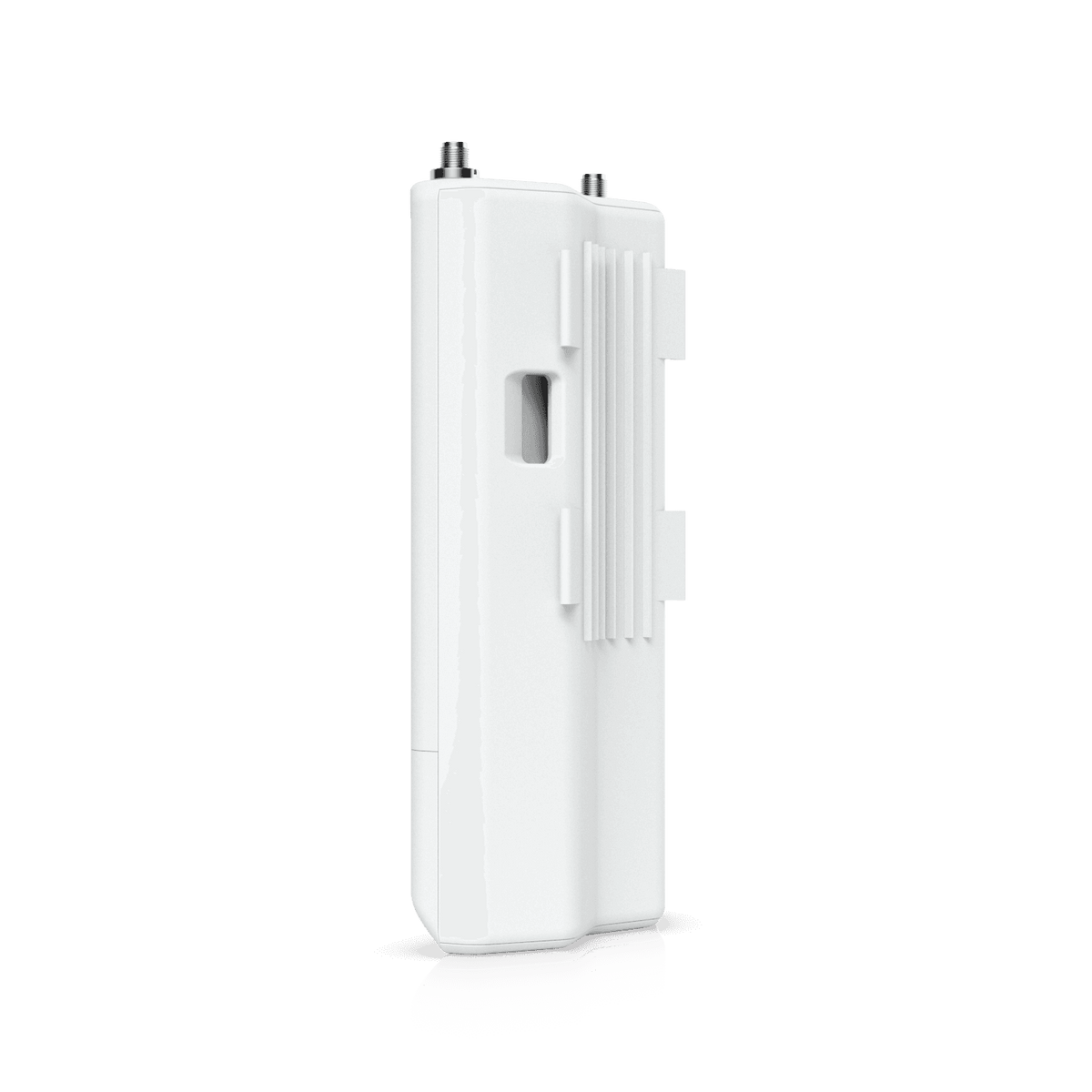

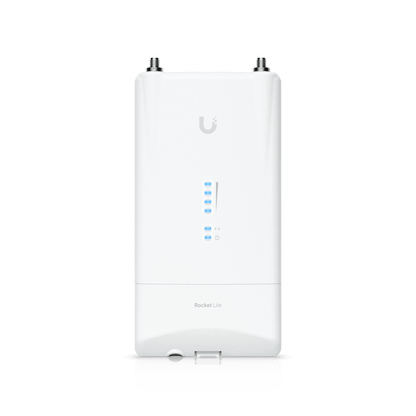

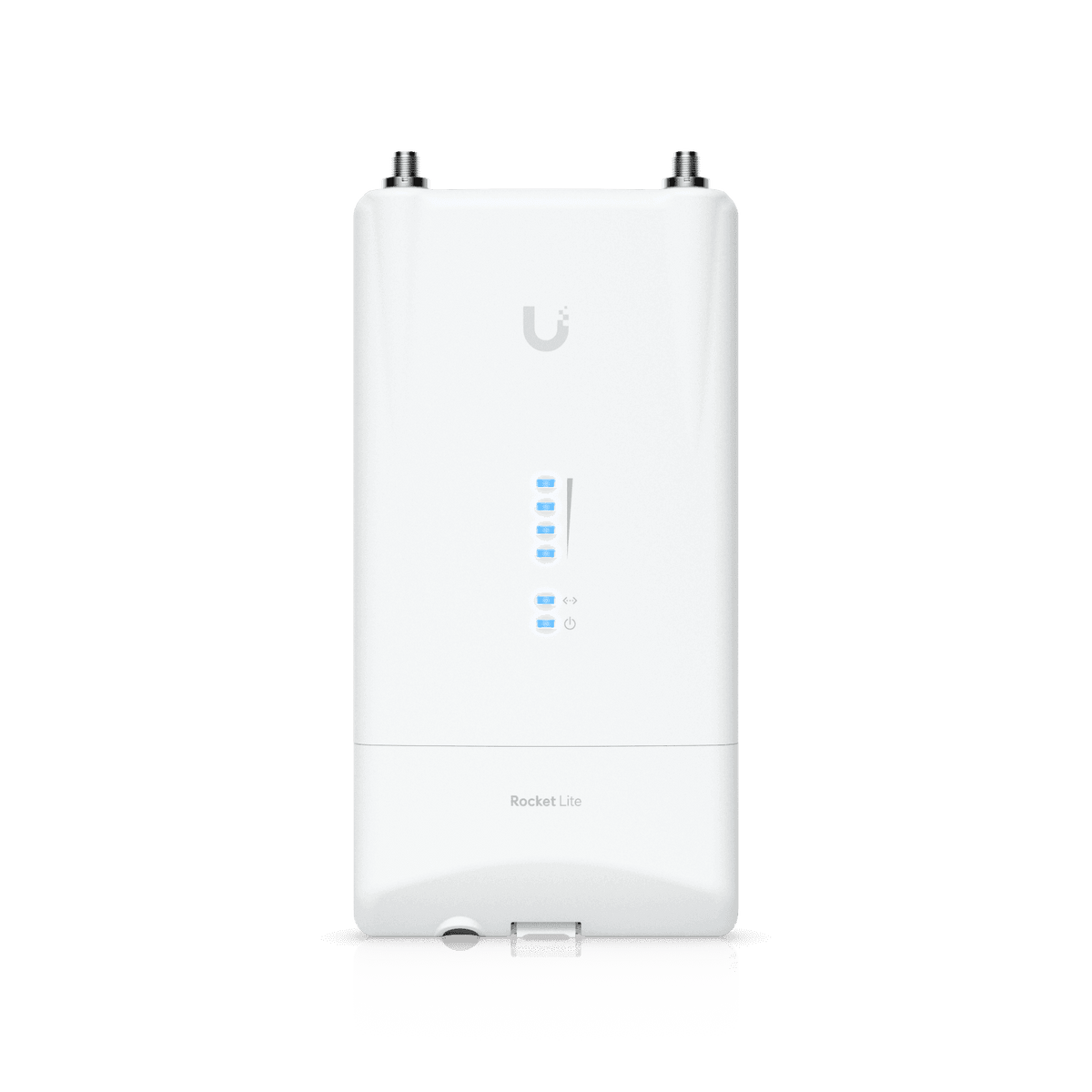

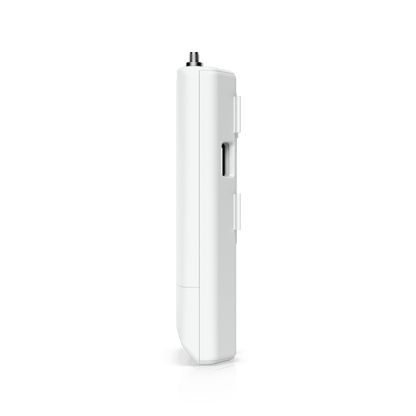

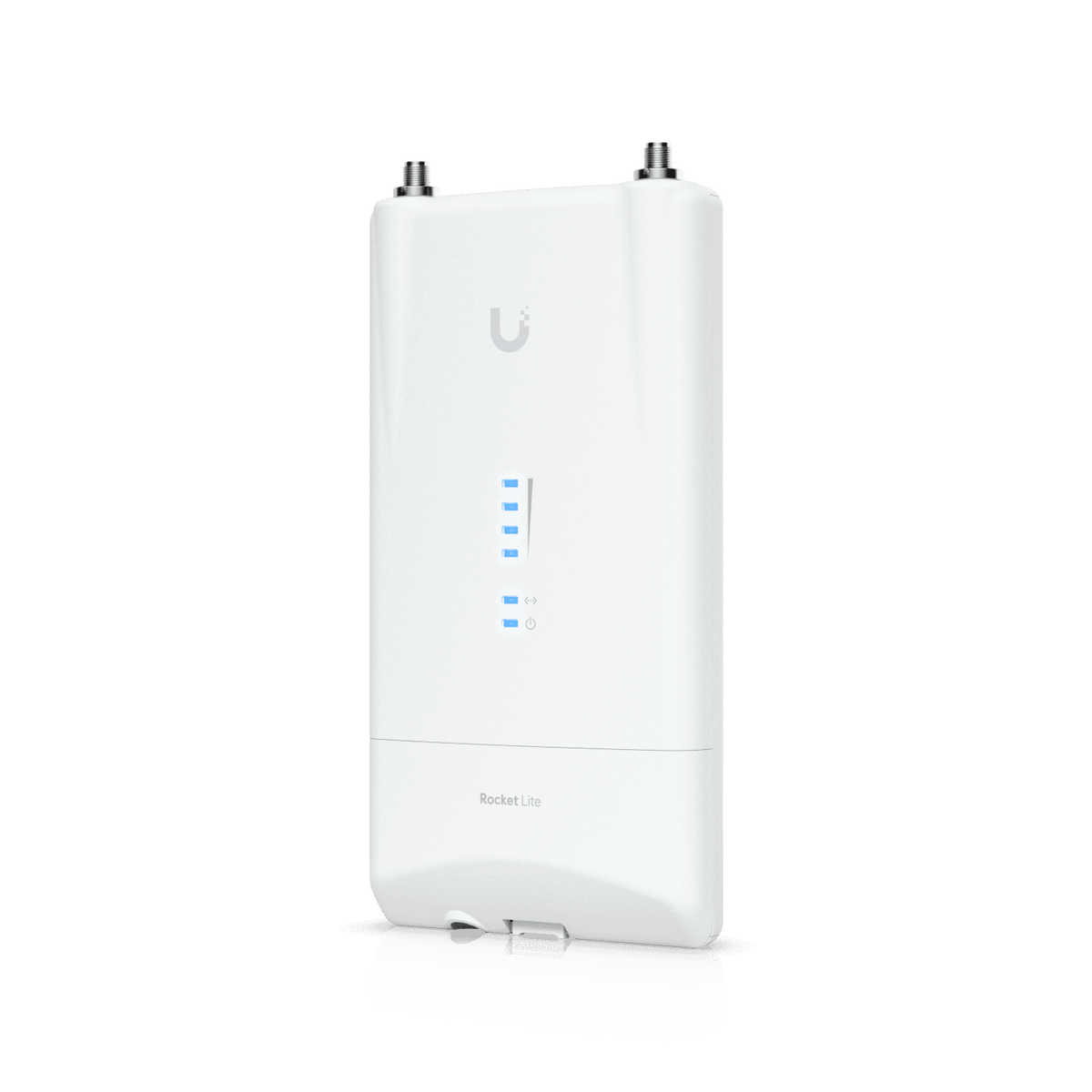

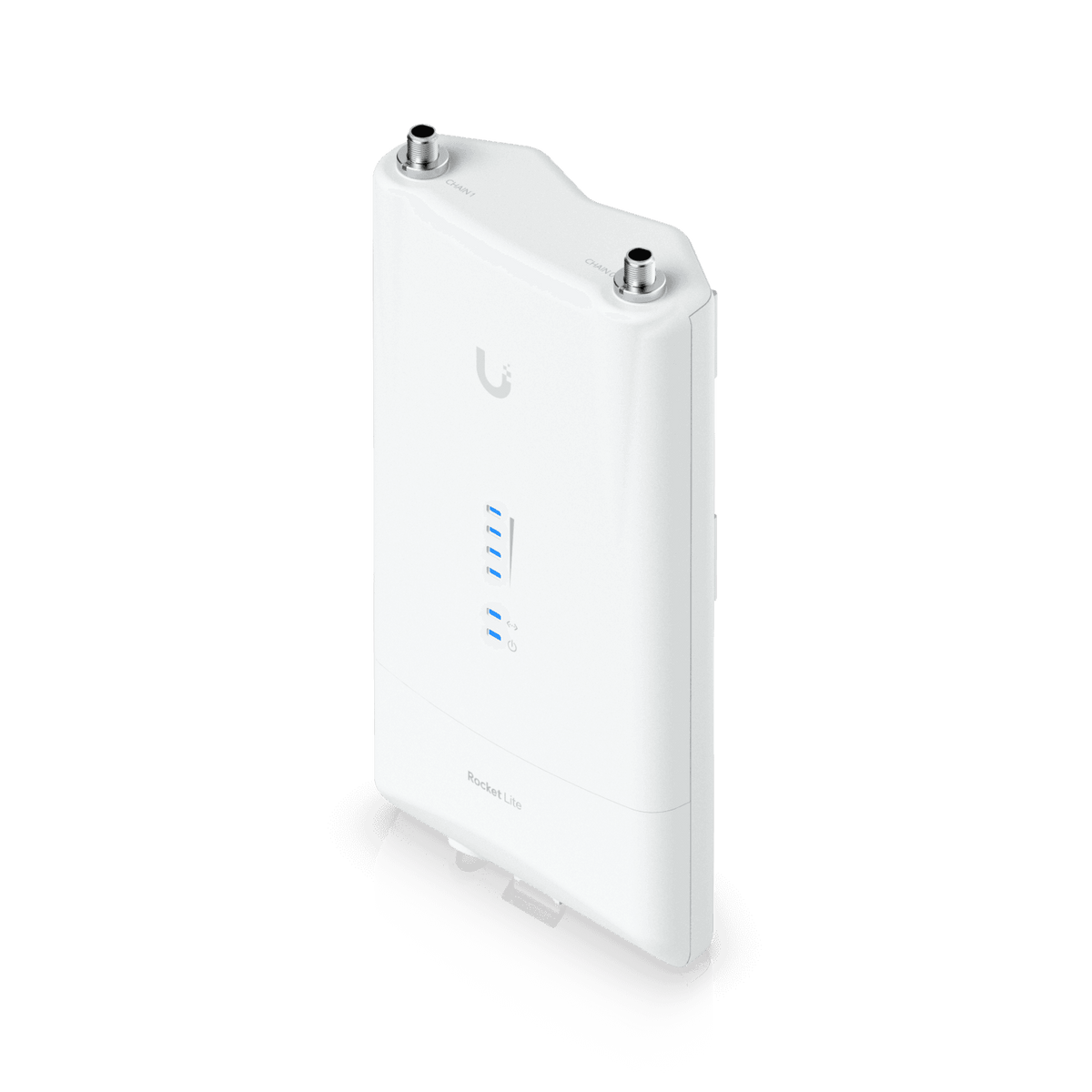

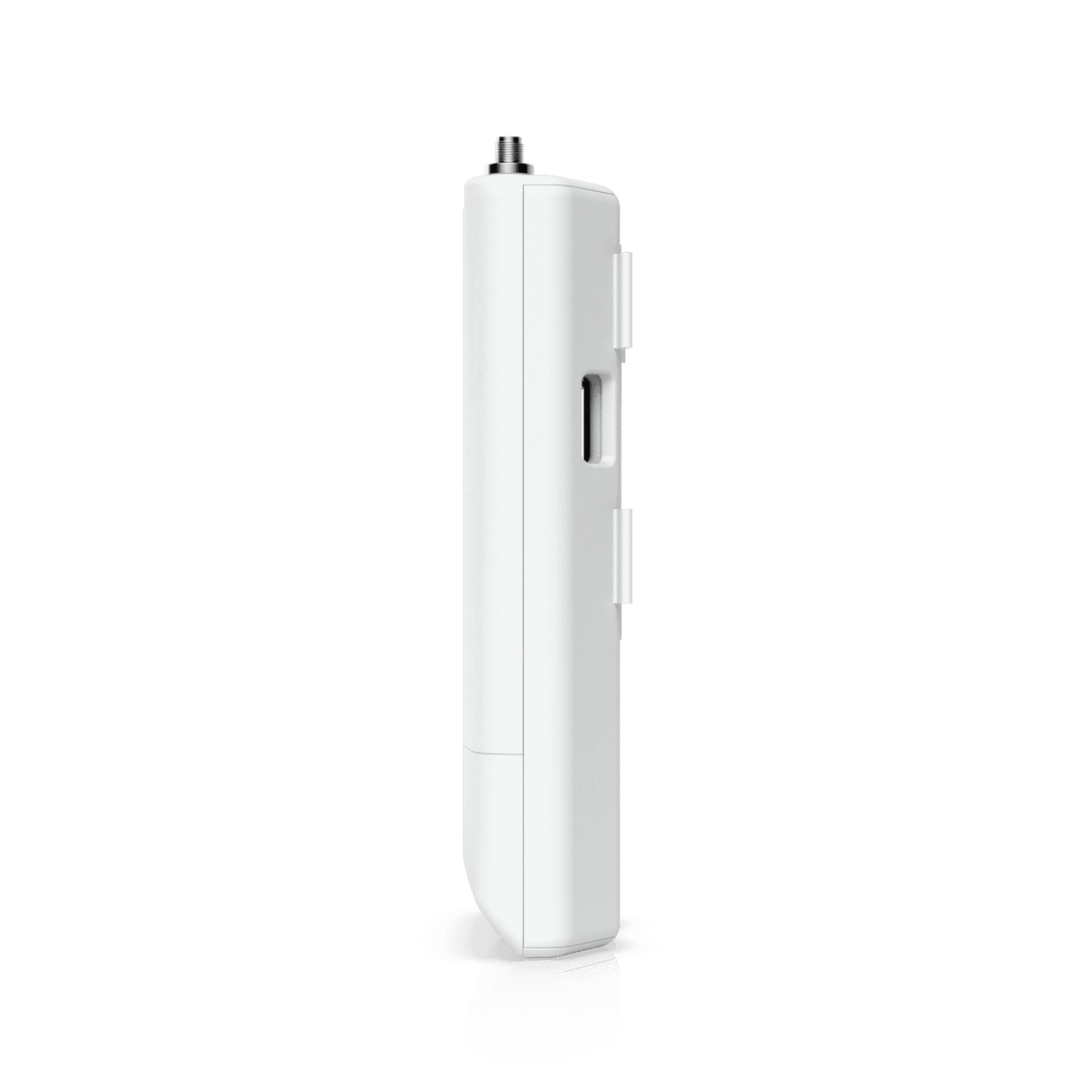

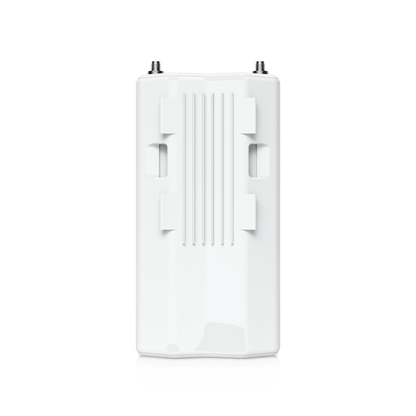

Ubiquiti UISP airMAX Rocket Lite AC 5GHz Radio

Ubiquiti's R5AC-Lite airMAX ac 5GHz radio is designed to work with Ubiquiti's wide range of antennas (sold separately). It can be used as PtMP (point to multipoint) access point in low-moderate interference environments and for high-performance, long-range PtP (point to point) links. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

*Note: Antenna not included.

FEATURES:

• 5 GHz Spectral Access: Operates on the wider, less-congested 5 GHz band (5150–5875 MHz) for long-distance connectivity.
• High-Speed Throughput: Delivers real-world TCP/IP data rates up to 500+ Mbps using airMAX ac custom silicon and standard 802.11ac protocols.
• Flexible Channel Widths: Supports 20/30/40/50/60/80 MHz configurations to help operators optimize link performance.
• Plastic Weatherproof Housing: Built with a lightweight, UV-stabilized plastic casing rather than heavy metal.
• Software-Based airView: Uses airOS to run real-time spectrum diagnostics, helping you find and pick the cleanest frequency.

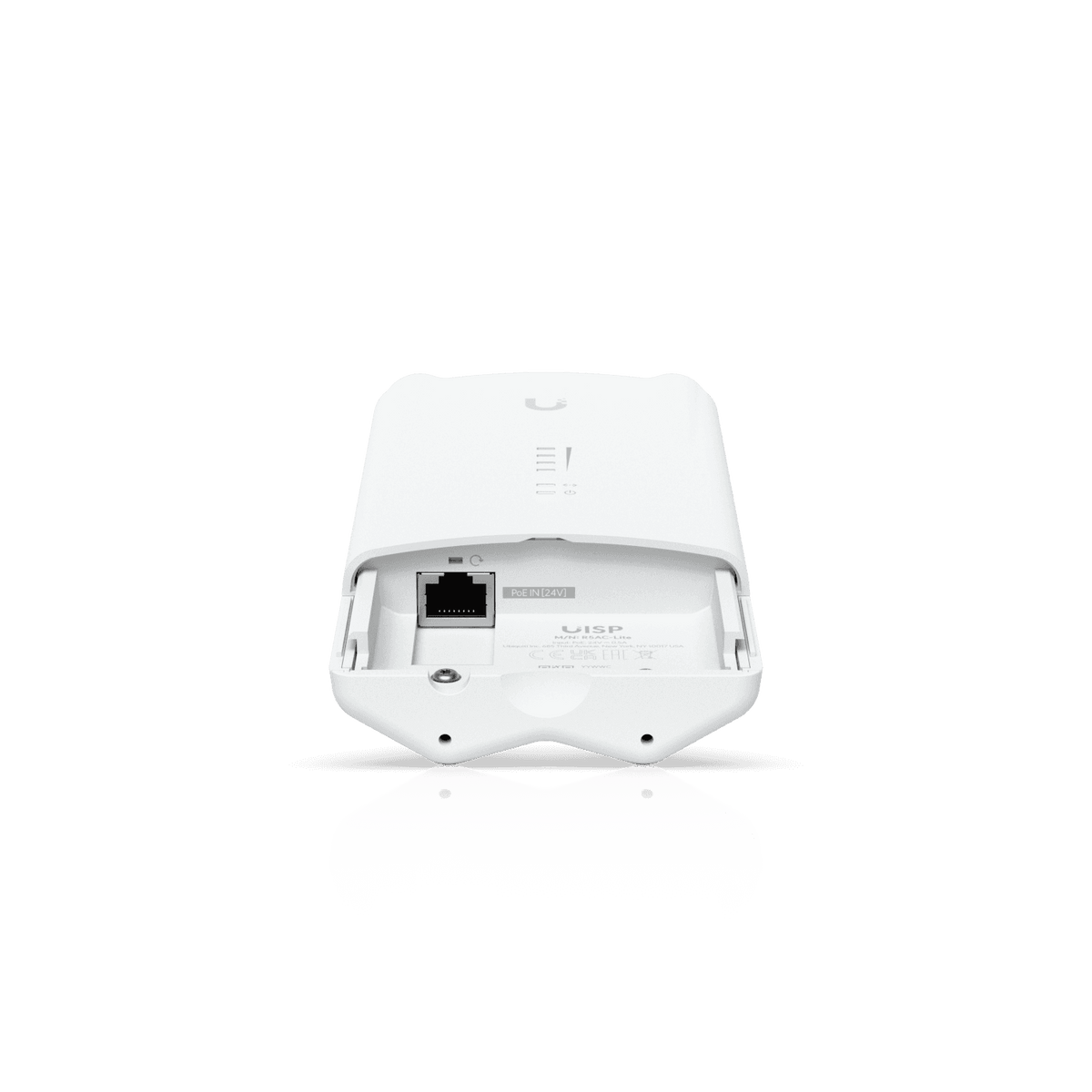

• Physical Connections: One 10/100/1000 Gigabit Ethernet port and two waterproof RP-SMA connectors for external antenna attachments.

SPECIFICATIONS:

• Dimensions: 162 × 84 × 37 mm (6.4 × 3.3 × 1.5")
• Weight: 250 g (8.8 oz)
• Enclosure Materials: UV-stabilized polycarbonate
• Networking Interface: (1) GbE RJ45 port
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power Supply: 24V, 0.5A gigabit PoE adapter (included)
• Supported Voltage Range: 20–27V DC
• Max. Power Consumption: 8.5W

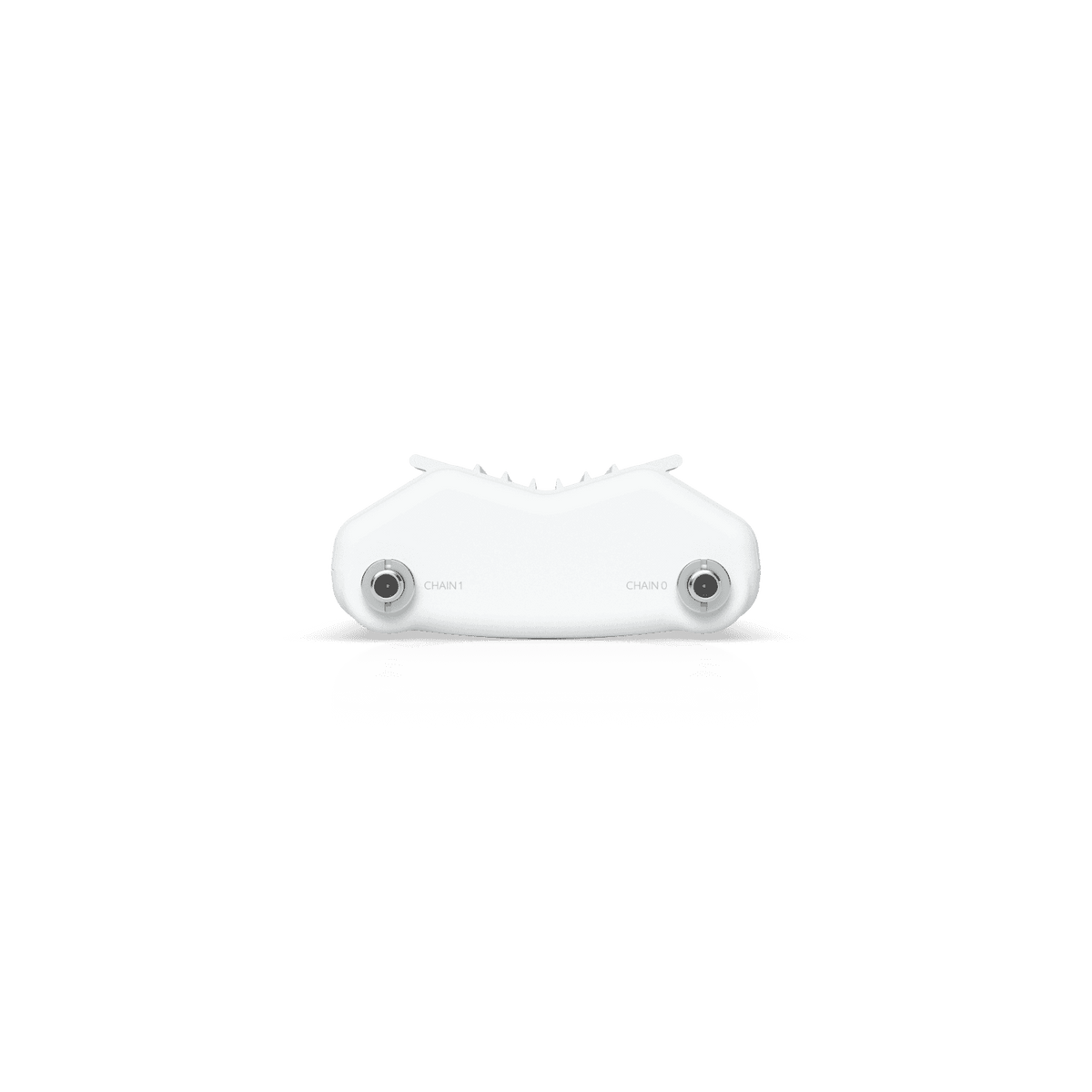

• RF Connections: (2) RP-SMA (waterproof)
• LEDs:
  • Signal Strength ✓
  • Power ✓
  • LAN ✓
• Ambient Operating Temperature: -40 to 80°C (-40 to 176°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Shock and Vibration Certification: ETSI300-019-1.4
• Certifications: CE, FCC, IC, Anatel: 02861-15-08356
• Operating Modes: Access Point, Station
• airMAX AC Mode: ✓
• Discovery Protocol: ✓
• Frequency Band Offset: ✓
• Traffic Shaping with Burst Support: ✓
• 30/50/60 MHz Channels: ✓
• Services:
  • Bridging ✓
  • DHCP ✓
  • Ping Watchdog ✓
  • Routing ✓
  • SNMP ✓
  • SSH ✓
  • Webserver ✓
• Distance Adjustment:
  • Ackless Mode ✓
  • Dynamic Ack ✓
• QoS: WMM packet classification with user-level priority: High, Medium, Low
• Statistical Reporting:
  • Data Rates ✓
  • Ethernet Link Rate ✓
  • Packet Errors ✓
  • Up Time ✓
  • Wireless Distance ✓
• Radio Frequency — Supported Frequency Range:
• Worldwide: 5150–5875 MHz
• US/CA:
  • U-NII-1: 5150–5250 MHz
  • U-NII-2A: 5250–5350 MHz
  • U-NII-2C: 5470–5725 MHz
  • U-NII-3: 5725–5850 MHz

WHAT’S IN THE BOX:

• Rocket 5AC Lite radio unit x1

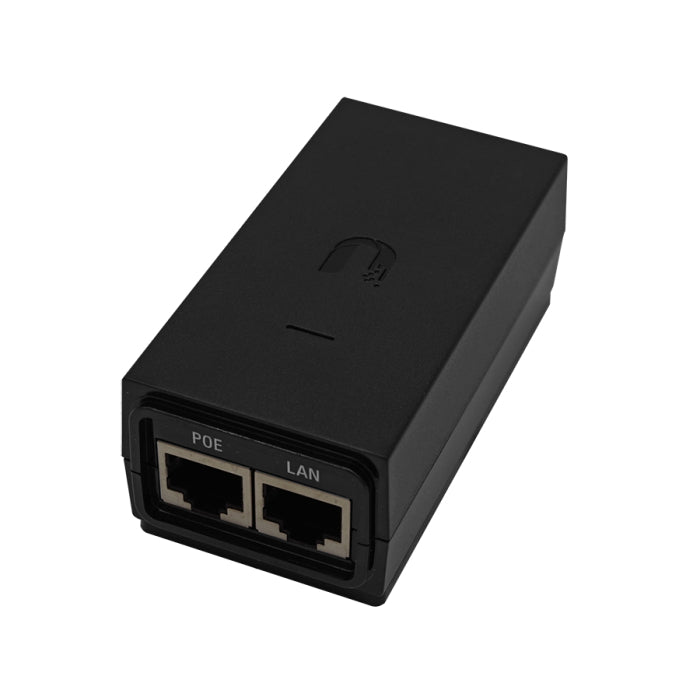

• Gigabit PoE Adapter (24V, 0.5A) x1

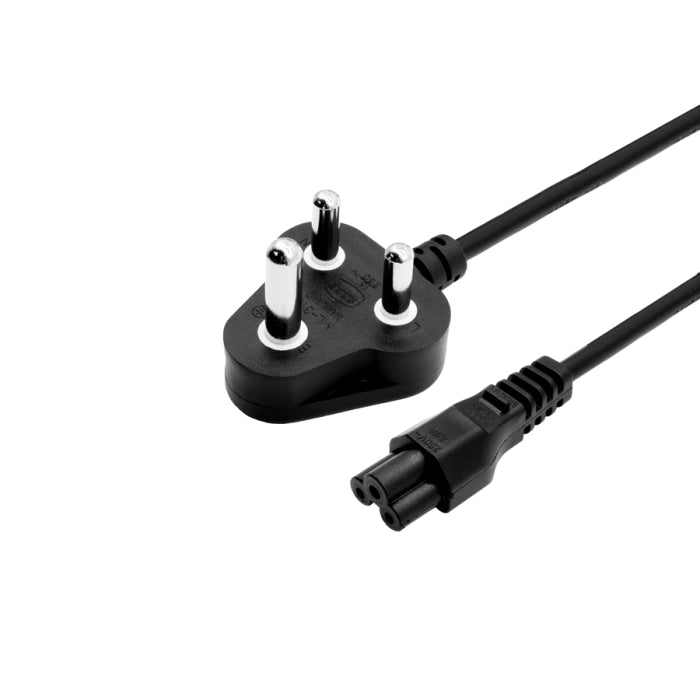

• Power Cord x1
• Quick Start Guide x1

WARRANTY:

• 12 Months
