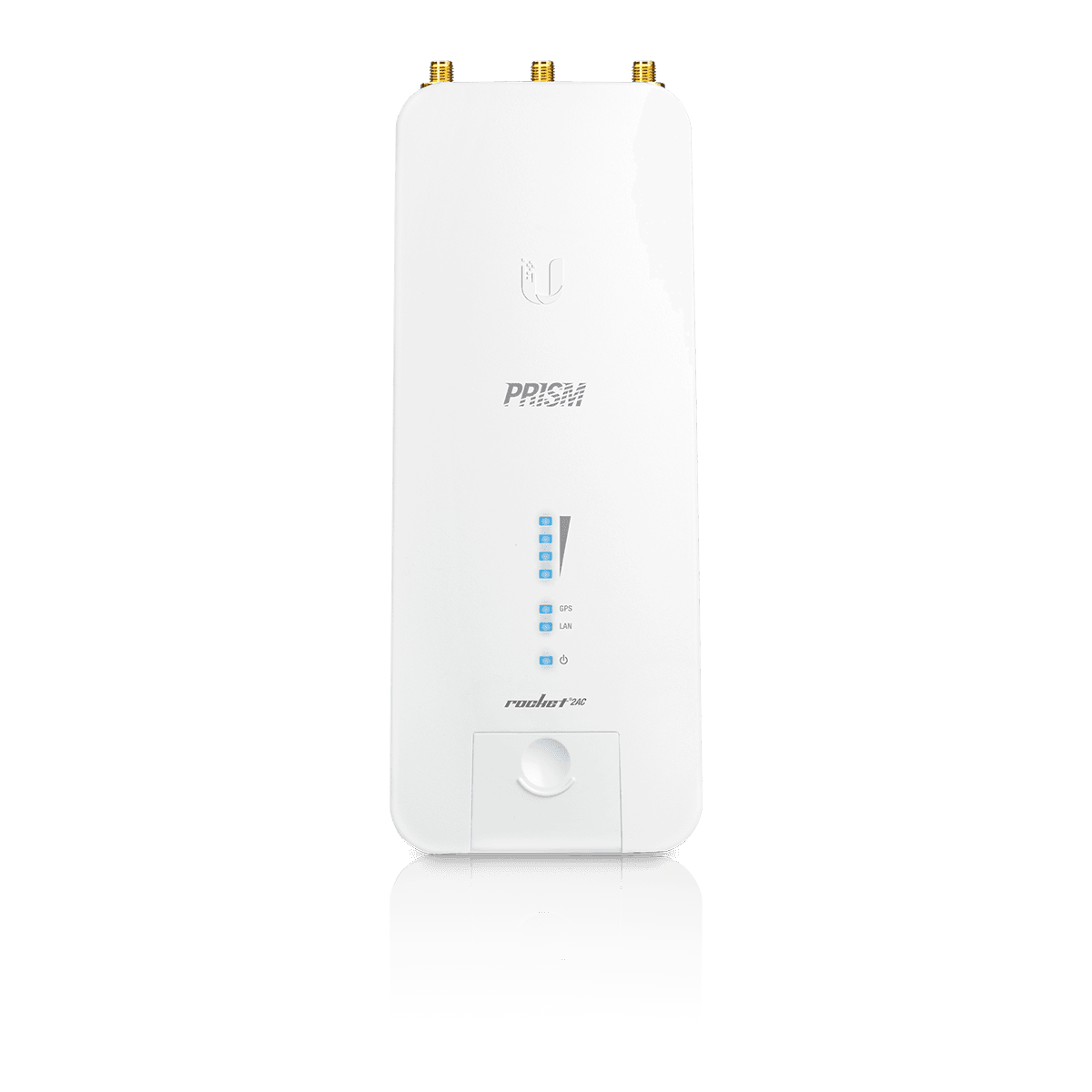

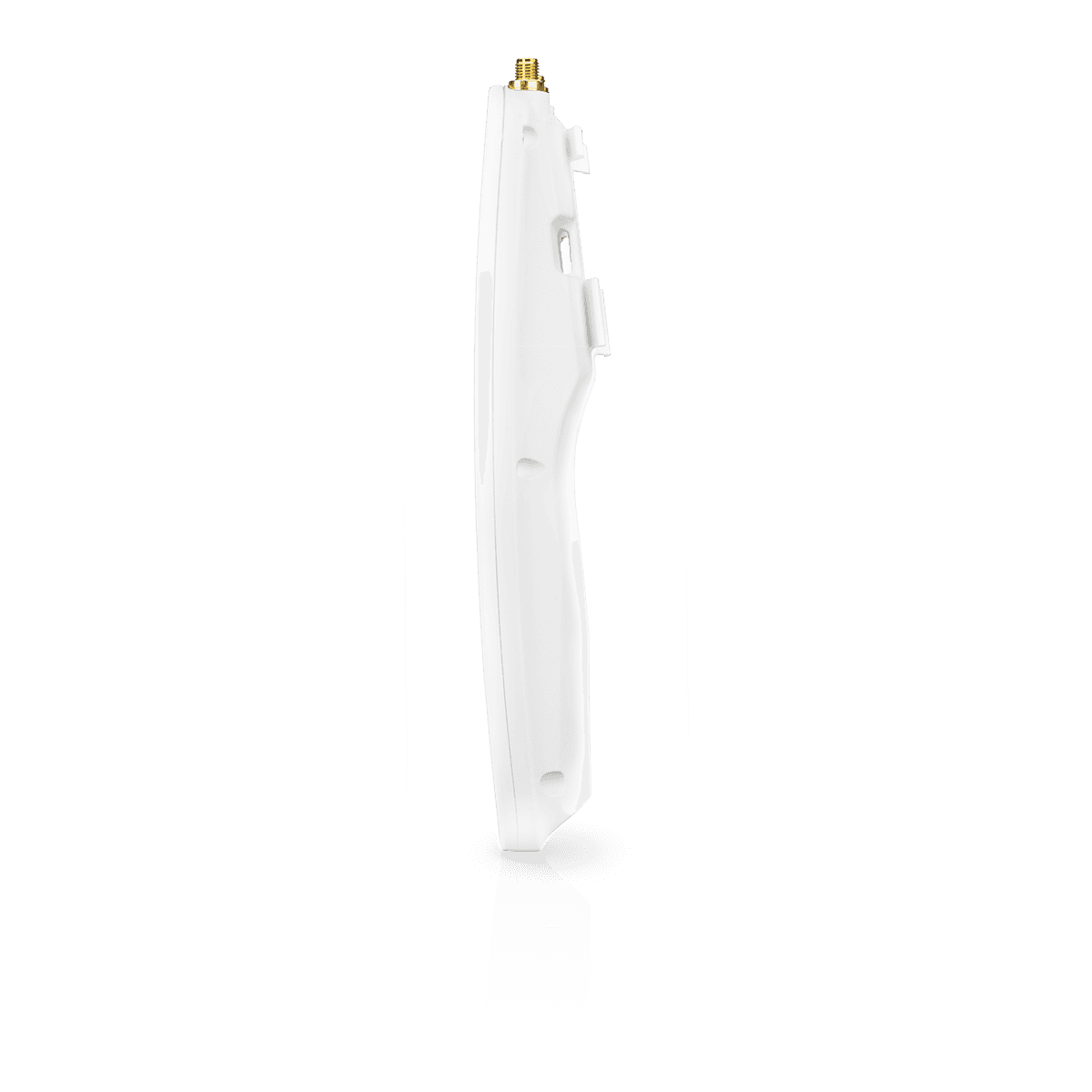

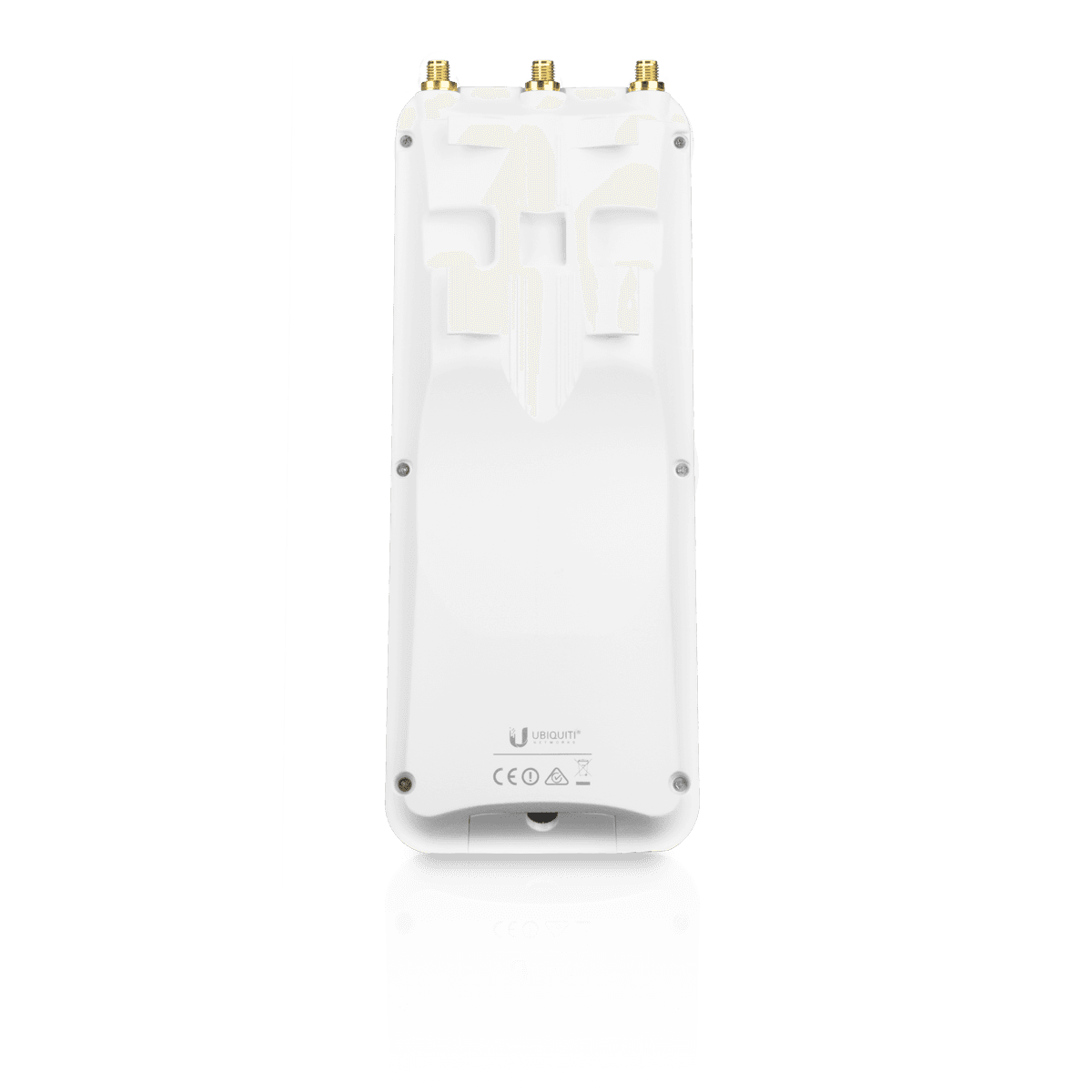

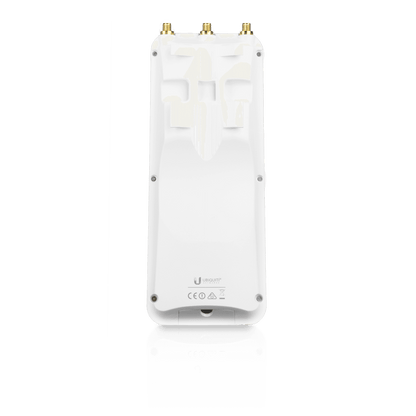

Ubiquiti UISP airMAX Rocket Prism AC 2GHz Radio

Ubiquiti's R2AC-PRISM airMAX ac 2GHz radio without antennae. Featuring airPrism technology which significantly reduces adjacent channel interference and is designed to work with Ubiquiti's wide range of antennas (sold separately). It can be used as PtMP (point to multipoint) access point in high interference environments or for high-performance, long-range PtP (point to point) links. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

*Note: Antenna not included.

FEATURES:

• airPrism RF Filtering: Blocks over 30 dB of adjacent channel interference, making it ideal for crowded towers with multiple radios.
• High Throughput: Uses airMAX ac technology to deliver real-time speeds up to 330+ Mbps.
• GPS Synchronization: Synchronizes transmission frames across multiple co-located radios to enable superior frequency reuse and network scaling.
• Management Wi-Fi: Features a dedicated, separate 2.4 GHz radio for quick setup and configuration via the UISP mobile app.
• Durable Design: Built with a weatherproof, die-cast aluminum casing and EMI shielding for harsh environments.
• Gigabit Connectivity: Includes one 10/100/1000 Ethernet port alongside standard weatherproof RP-SMA and GPS antenna connectors.

SPECIFICATIONS:

• Dimensions: 88 × 40 × 230 mm (3.5 × 1.6 × 9.1")
• Weight: 400 g (14.1 oz)
• Enclosure Materials: Die-cast aluminum
• Networking Interface: (1) GbE RJ45 port
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power Supply: 24V, 0.5A gigabit PoE adapter (included)
• Supported Voltage Range: 20–27V DC
• Max. Power Consumption: 9.5W
• ESD Protection: Air/contact ±24 kV

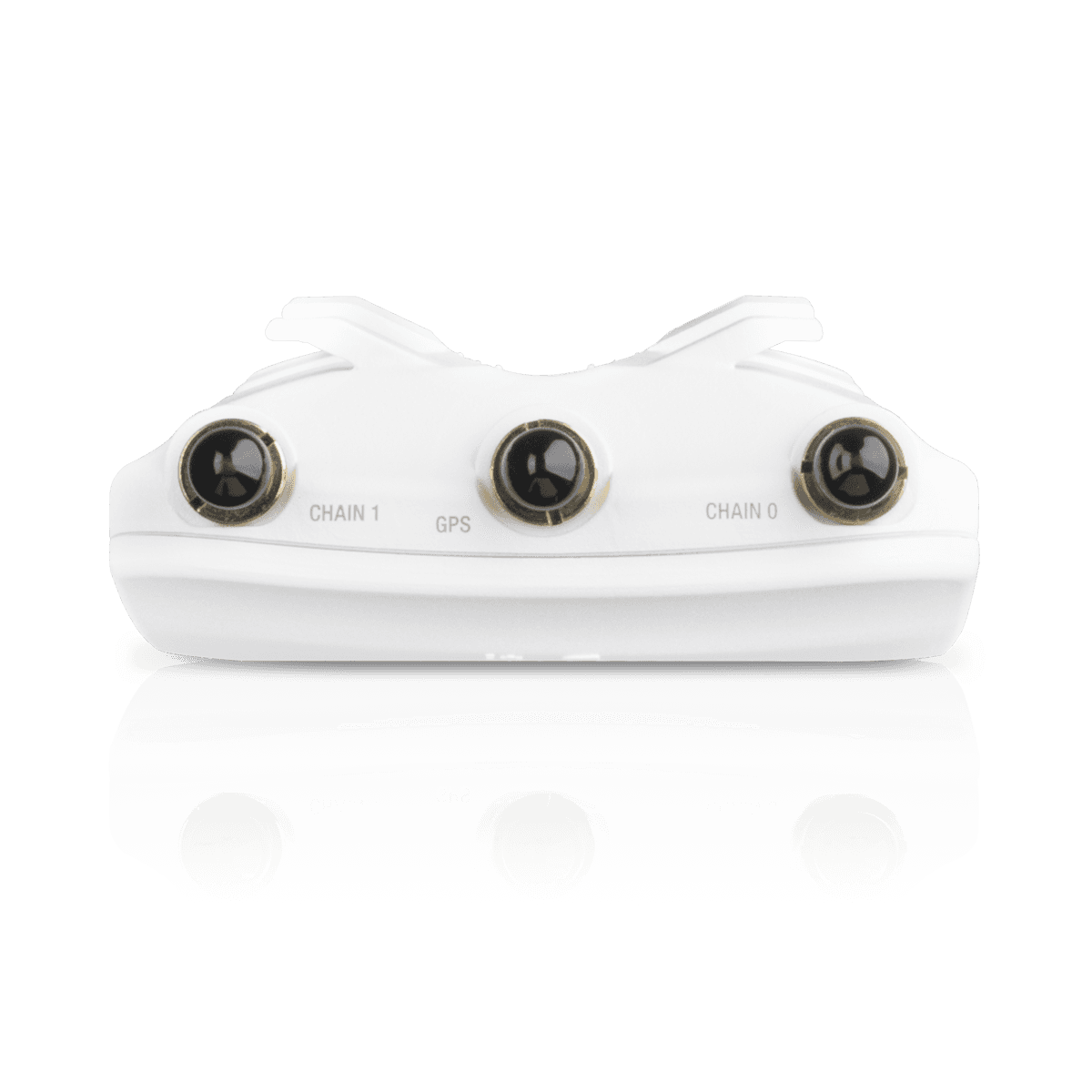

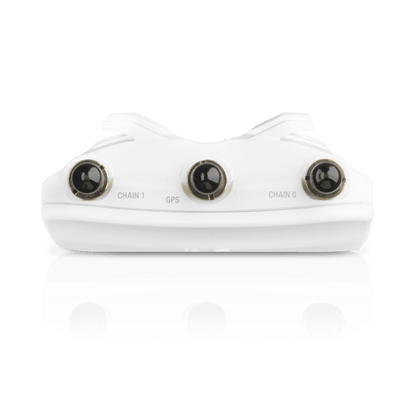

• RF Connections: (2) RP-SMA (waterproof), (1) GPS (waterproof)
• Buttons: (1) Factory reset
• LEDs:
  • Signal Strength ✓
  • Power ✓
  • LAN ✓
• Ambient Operating Temperature: -40 to 80°C (-40 to 176°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Shock and Vibration Certification: ETSI300-019-1.4
• Certifications: CE, FCC, IC
• Total Throughput: +150 Mbps
• Operating Frequency:
  • Worldwide: 2412–2472 MHz
  • US/CA: 2412–2462 MHz
• Management Radio — Supported Frequency Range:
  • Worldwide: 5150–5250 MHz
  • US/CA: U-NII-3: 5725–5850 MHz

WHAT’S IN THE BOX:

• Rocket 2AC Prism main radio unit x1
• GPS Antenna with mount x1
• Gigabit PoE Adapter (24V, 0.5A) with mounting bracket x1
• Power Cord x1
• Quick Start Guide x1

WARRANTY:

• 12 Months
