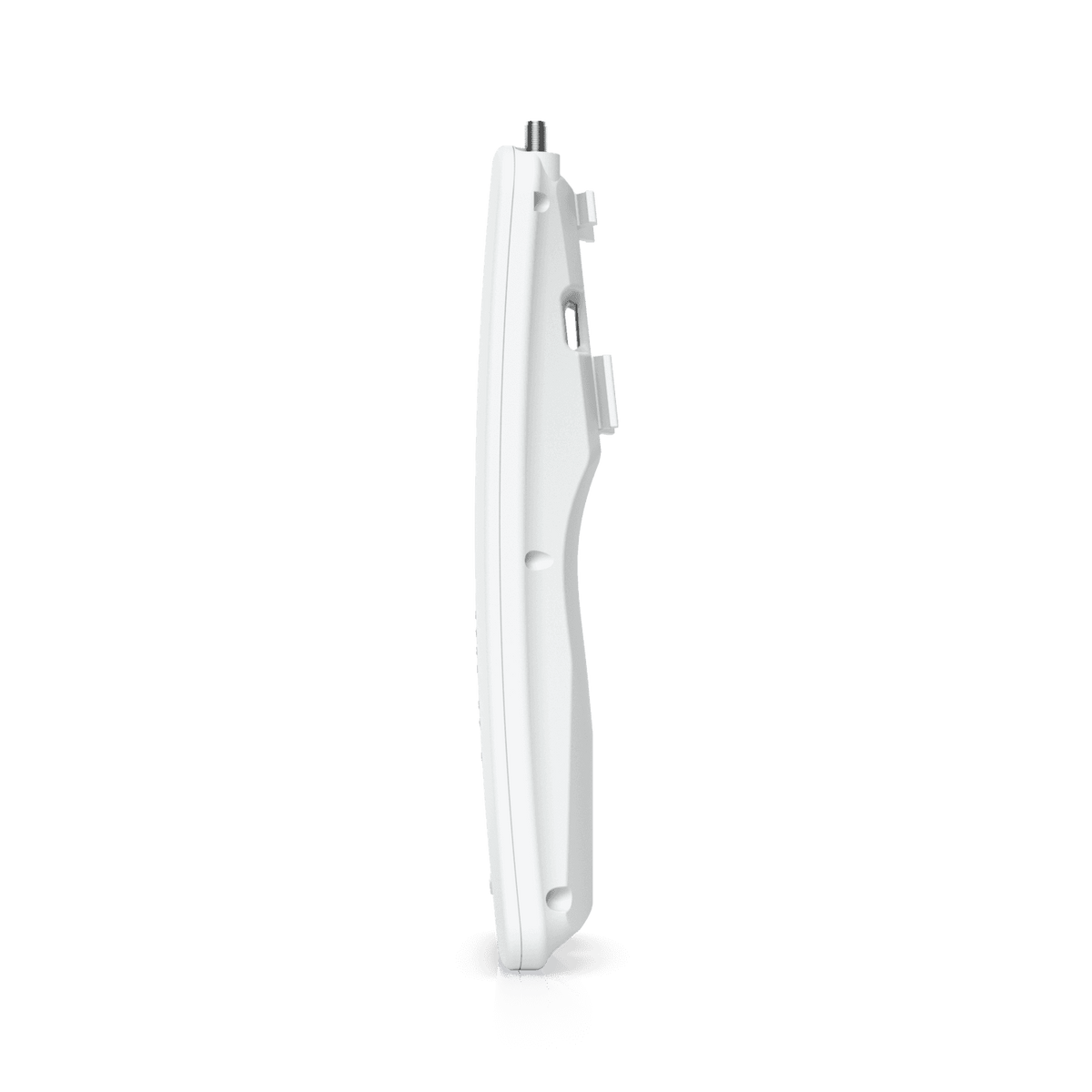

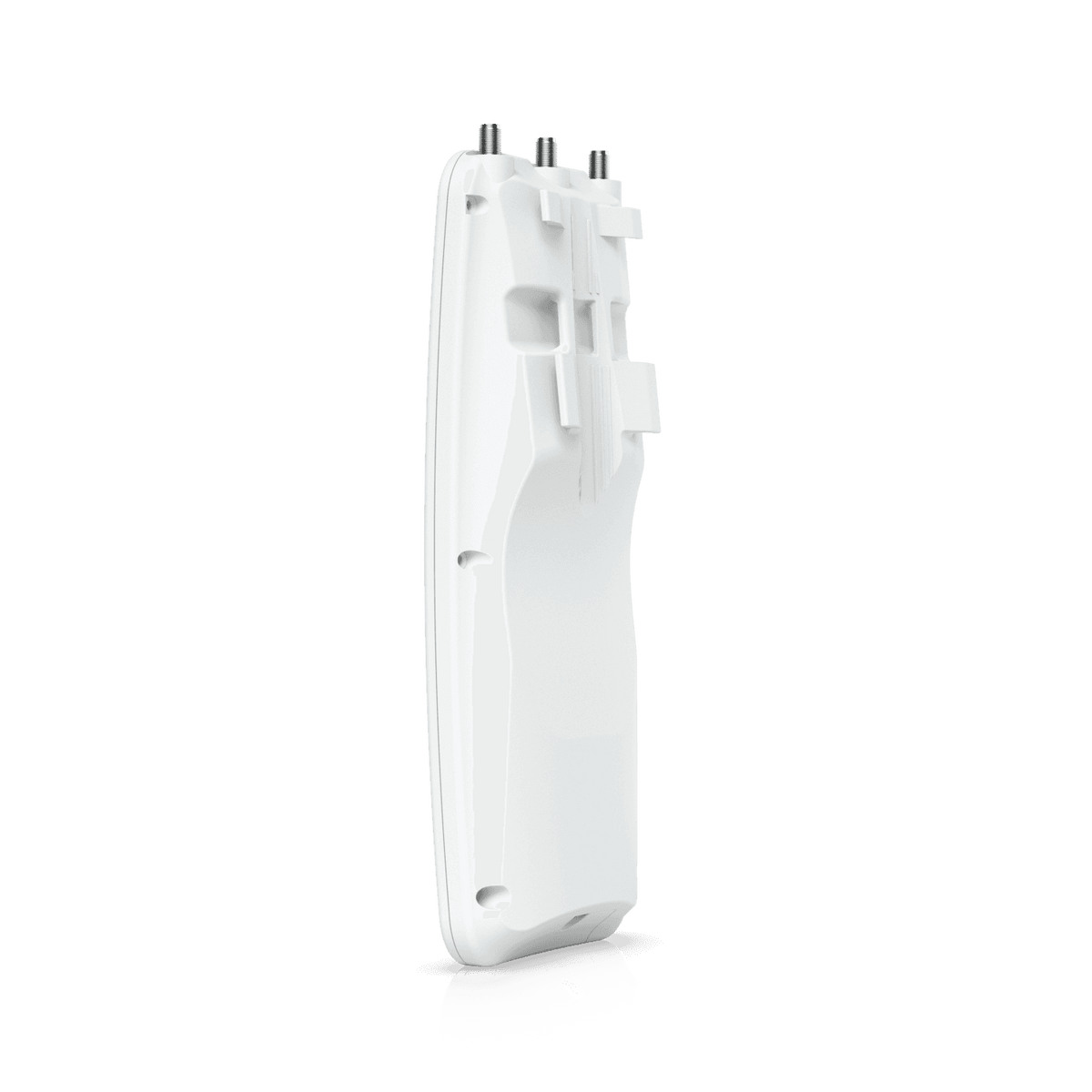

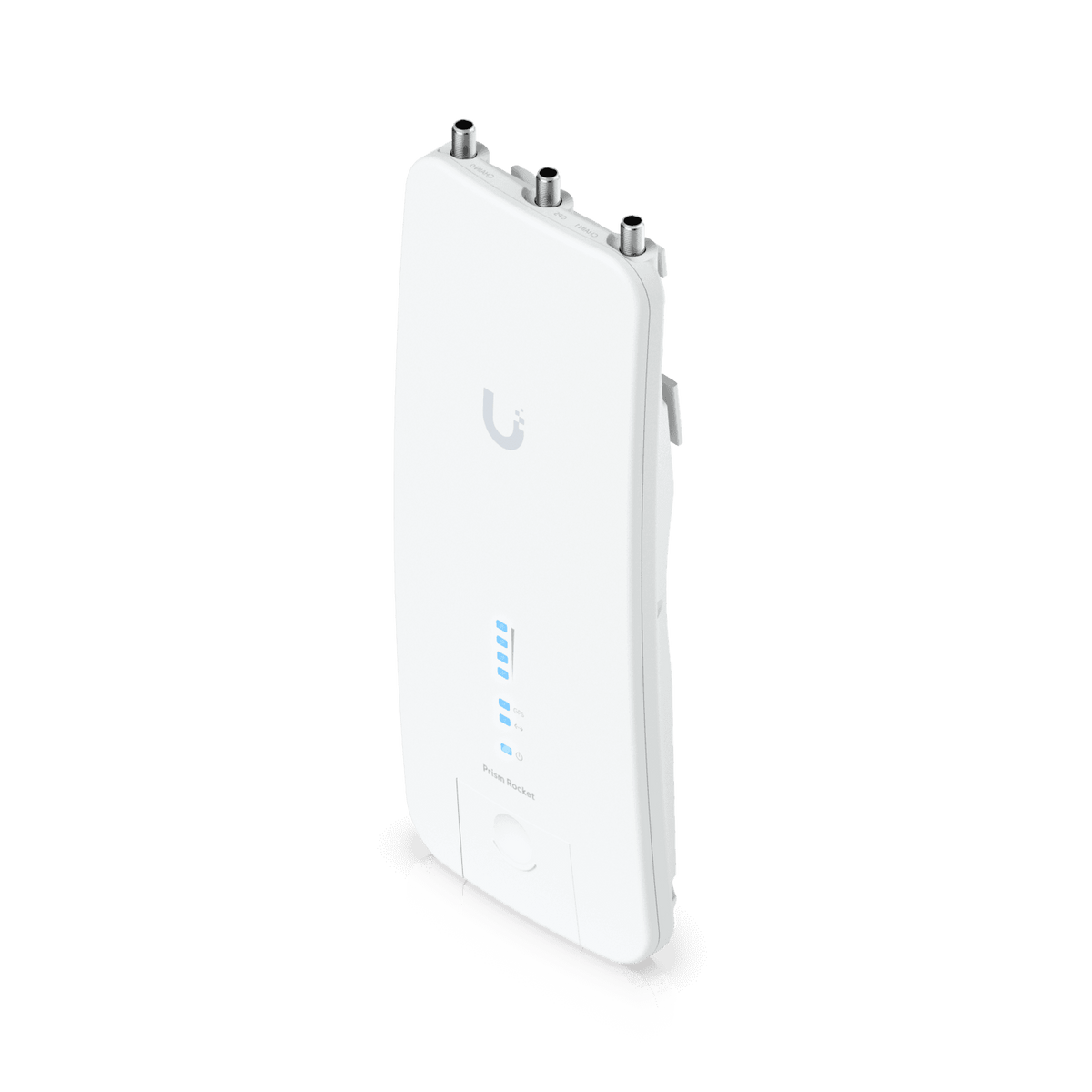

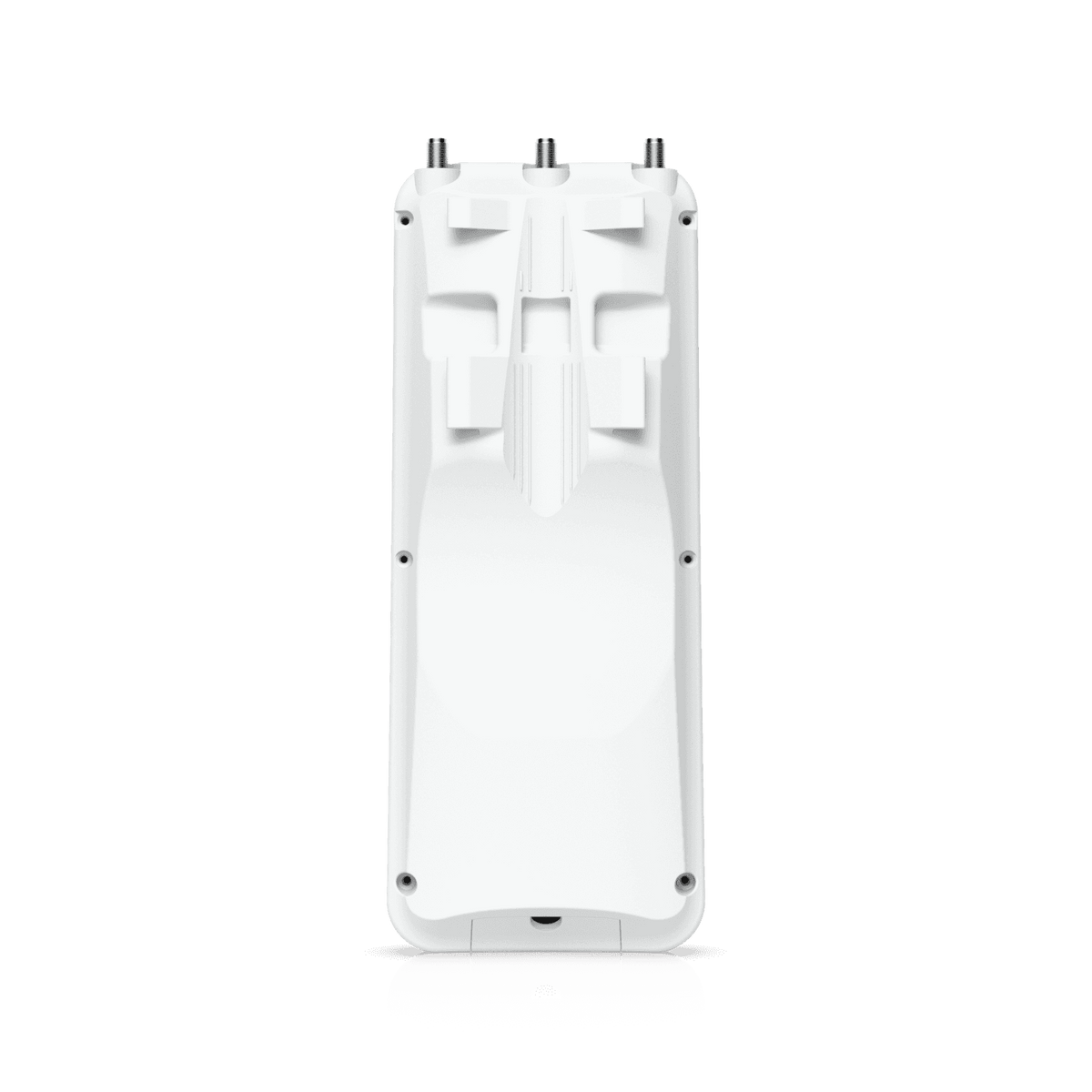

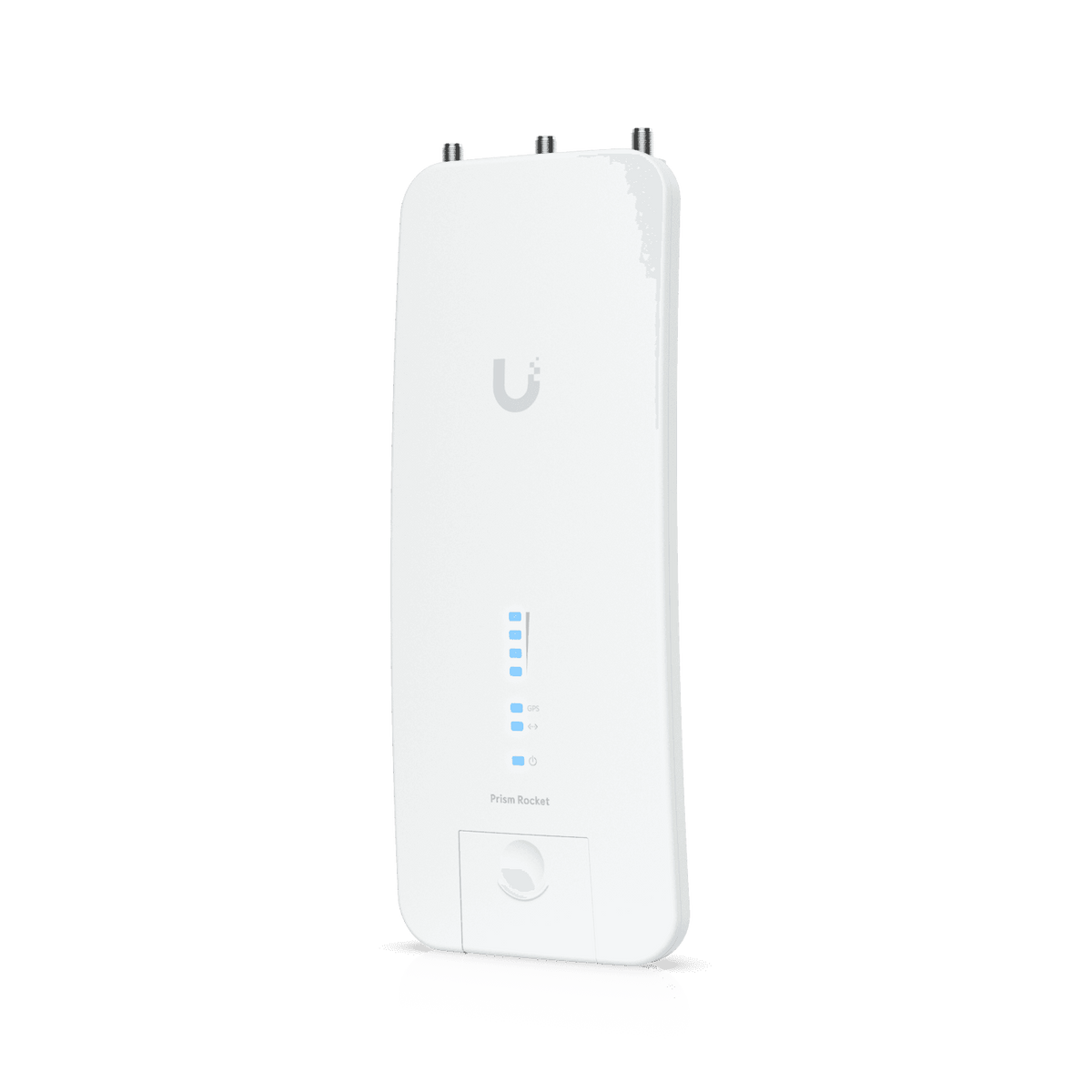

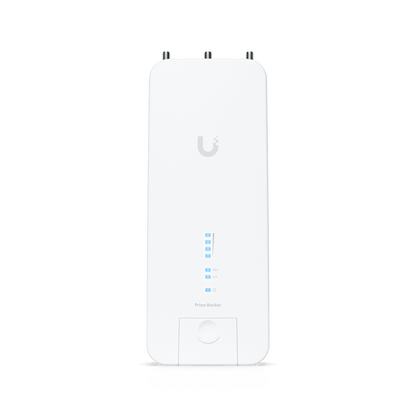

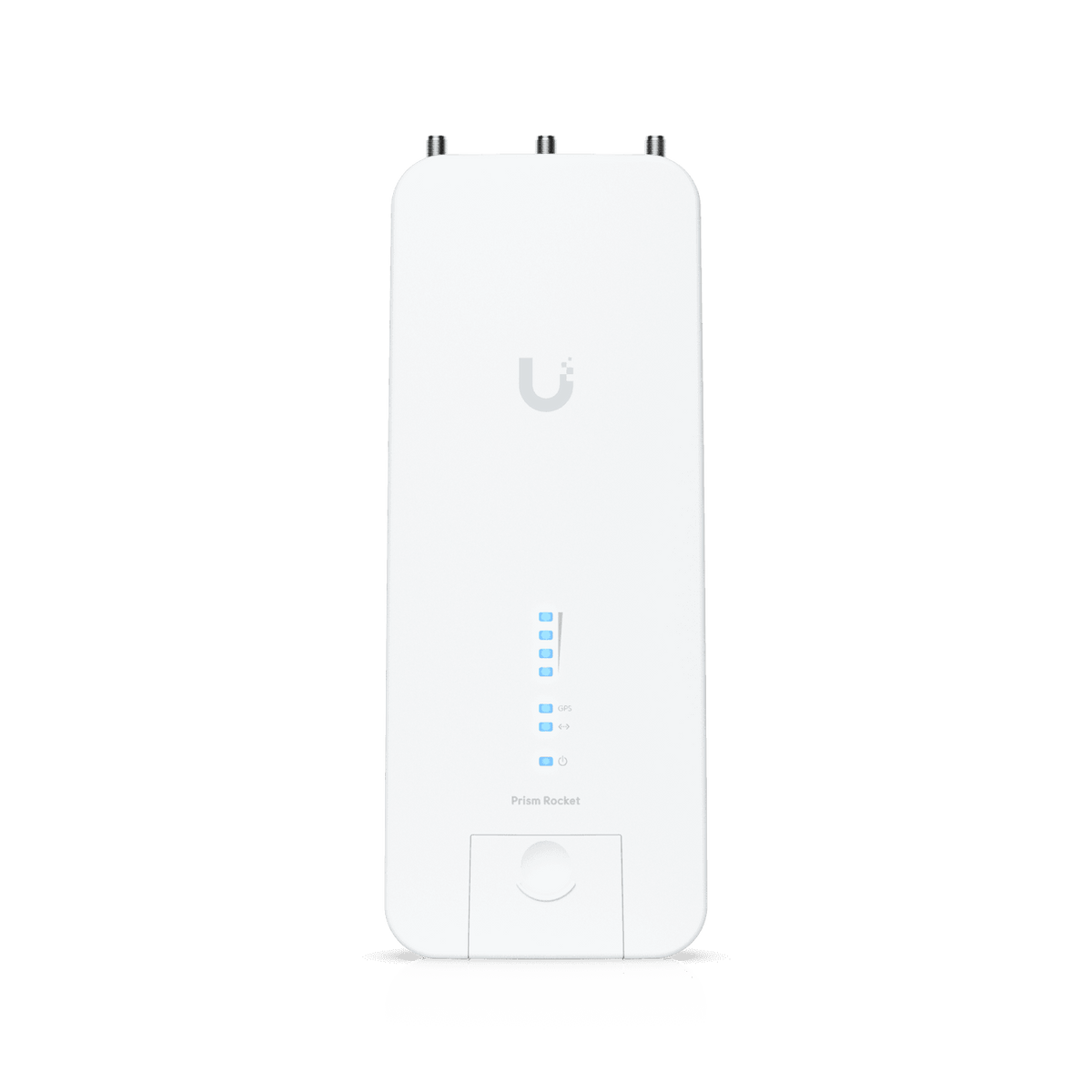

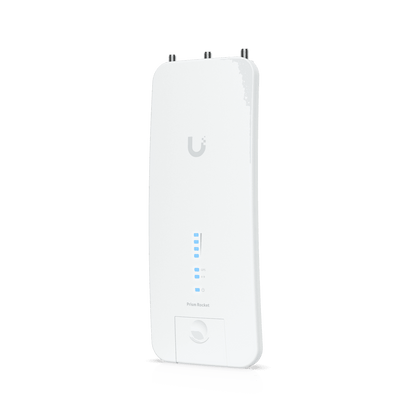

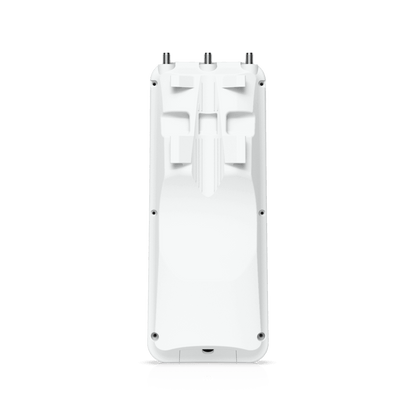

Ubiquiti UISP airMAX Rocket Prism AC 5GHz Radio

Ubiquiti’s RP-5AC-GEN2 is an airMAX ac 5GHz radio featuring airPrism technology. The airPrism significantly reduces adjacent channel interference and is designed to work with Ubiquiti’s wide range of antennas. It can be used as PtMP (point-to-multipoint) access point in high interference environments or for high-performance, long-range PtP (point-to-point) links. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

*Note: Antenna not included.

FEATURES:

• 5 GHz Full-Band Operation: Operates on the cleaner, wider 5 GHz spectrum (5150–5875 MHz) to avoid the heavy congestion of 2.4 GHz bands.
• 450+ Mbps Throughput: Uses airMAX ac custom silicon to deliver true TCP/IP speeds of 450+ Mbps and support 50+ active clients.
• 5 GHz airPrism Filtering: Actively isolates the operating channel and rejects off-channel noise, ensuring stable performance on crowded co-located towers.
• GPS Frame Sync: Synchronizes transmit and receive timing across adjacent radios to allow frequency reuse and eliminate self-interference.
• Dual-Radio Architecture: Includes a dedicated 2.4 GHz management radio for fast UISP app setup, plus a separate hardware chip running continuous airView real-time spectrum analysis.
• Tower-Grade Ruggedness: Features enhanced internal ESD surge protection and a die-cast aluminum housing for EMI shielding against severe weather and nearby electronics.

SPECIFICATIONS:

• Dimensions: 88 × 40 × 230 mm (3.5 × 1.6 × 9.1")
• Weight: 400 g (14.1 oz)
• Enclosure Materials: Die-cast aluminum
• Wind Loading: 342.5 N at 200 km/h (77 lbf at 125 mph)

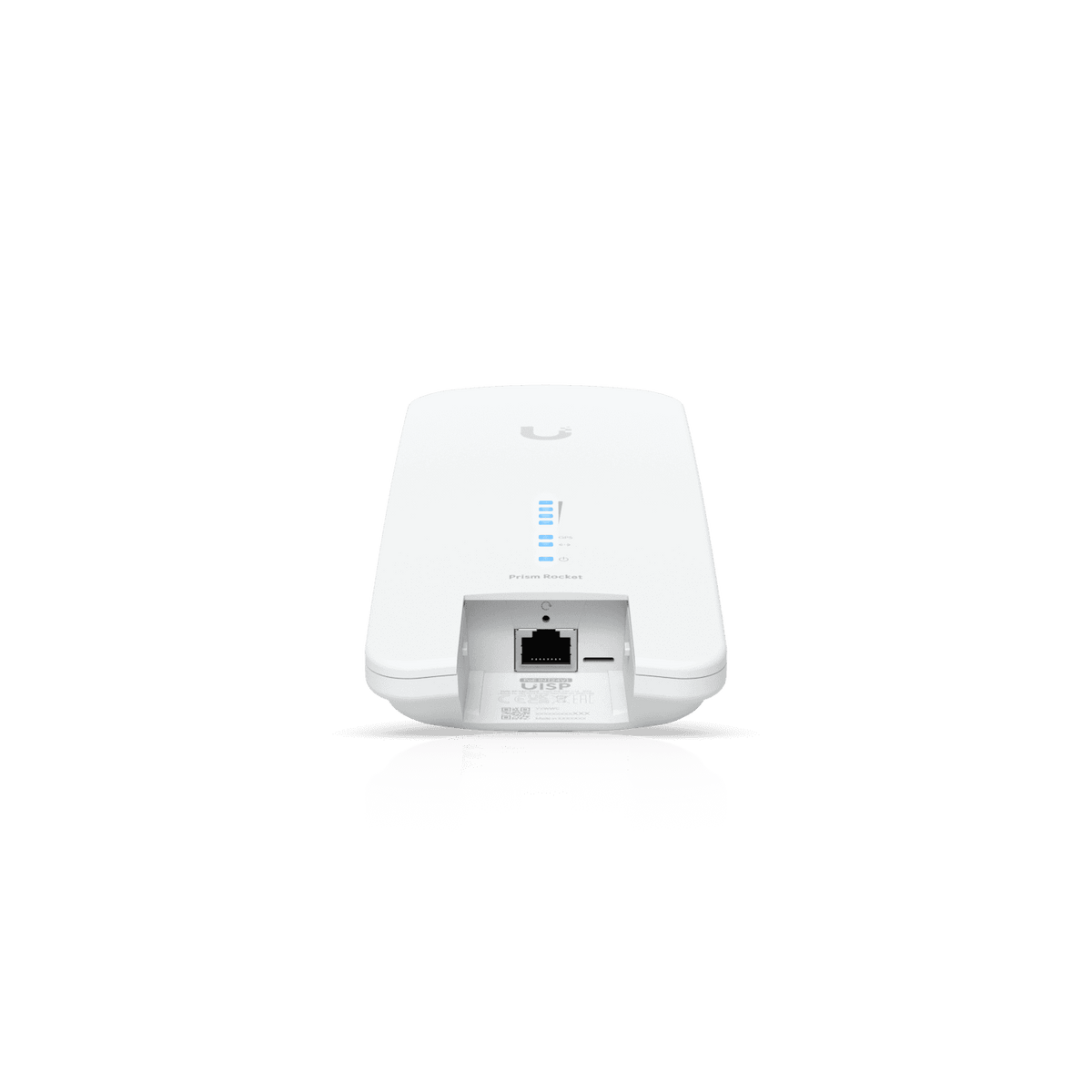

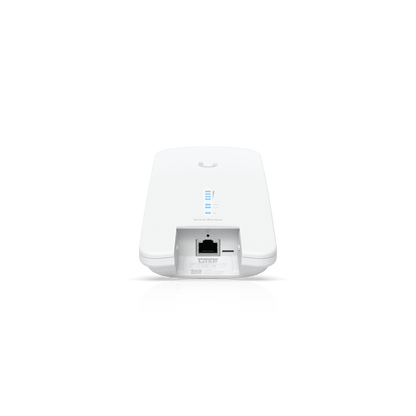

• Networking Interface: (1) GbE RJ45 port
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power Supply: 24V, 1A gigabit PoE adapter (included)
• Supported Voltage Range: 18–27V DC
• Max. Power Consumption: 9.5W
• GPS: ✓

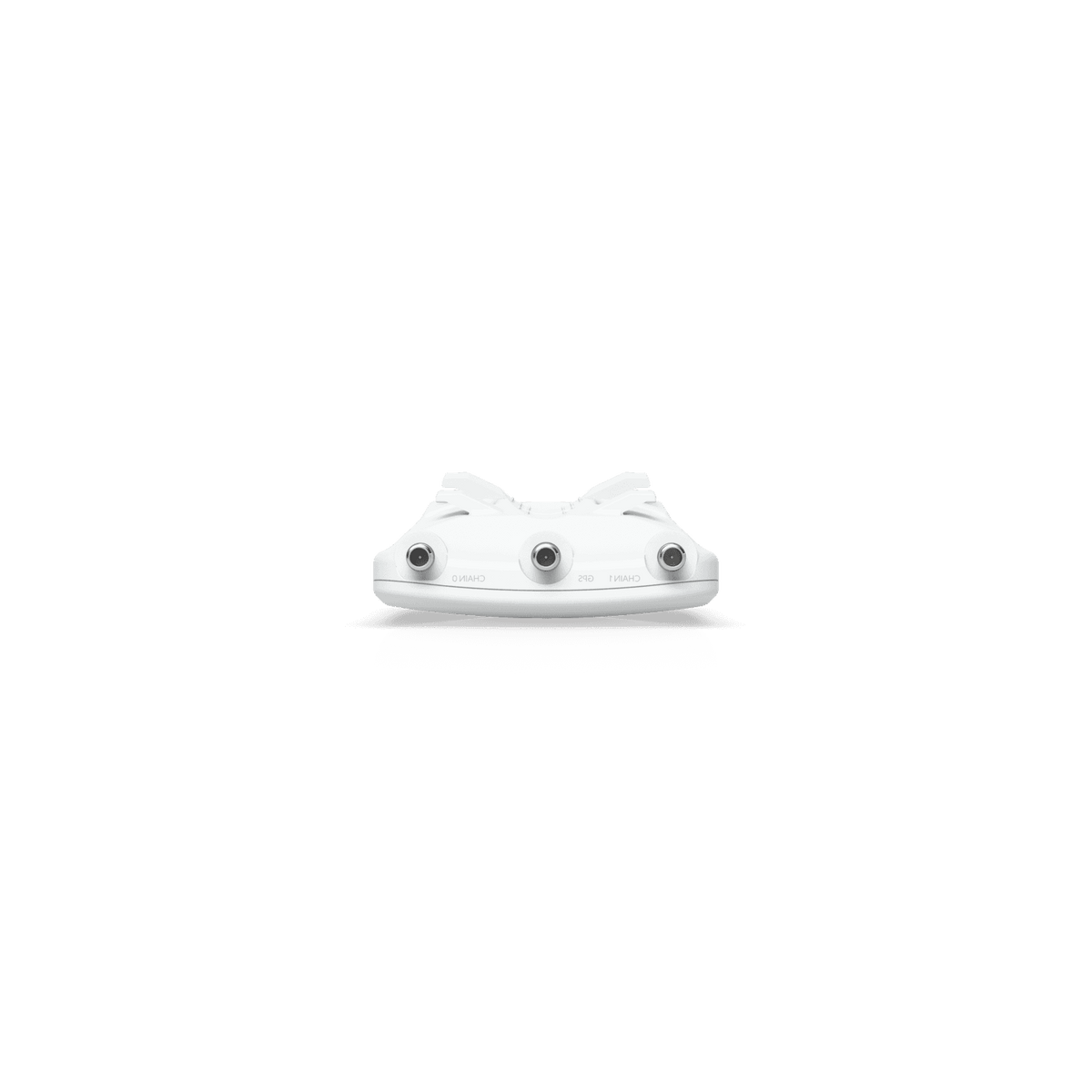

• RF Connections: (2) RP-SMA (waterproof), (1) GPS (waterproof)
• LEDs:
  • Signal Strength ✓
  • Power ✓
  • LAN ✓
  • GPS ✓
• Ambient Operating Temperature: -40 to 80°C (-40 to 176°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Shock and Vibration Certification: ETSI300-019-1.4
• Certifications: CE, FCC, IC, RoHS, Anatel: 02137-18-08356
• Operating Modes: Access Point, Station
• airMAX AC Mode: ✓
• Discovery Protocol: ✓
• Frequency Band Offset: ✓
• Traffic Shaping with Burst Support: ✓
• 30/50/60 MHz Channels: ✓
• Services:
  • Bridging ✓
  • DHCP ✓
  • Ping Watchdog ✓
  • Routing ✓
  • SNMP ✓
  • SSH ✓
  • Webserver ✓
• Distance Adjustment:
  • Ackless Mode ✓
  • Dynamic Ack ✓
• QoS: WMM packet classification with user-level priority: High, Medium, Low
• Statistical Reporting:
  • Data Rates ✓
  • Ethernet Link Rate ✓
  • Packet Errors ✓
  • Up Time ✓
  • Wireless Distance ✓
• Channel Bandwidth:
  • PtP mode: 10/20/30/40/50/60/80 MHz
  • PtMP mode: 10/20/30/40 MHz
• Radio Frequency — Supported Frequency Range:
• Worldwide: 5150–5875 MHz
• US/CA:
  • U-NII-1: 5150–5250 MHz
  • U-NII-2A: 5250–5350 MHz
  • U-NII-2C: 5470–5725 MHz
  • U-NII-3: 5725–5850 MHz
• Management Radio (MHz) — Supported Frequency Range:
  • Worldwide: 2412–2472 MHz
  • US/CA: 2412–2462 MHz

WHAT’S IN THE BOX:

• Rocket Prism 5AC Gen 2 radio unit x1
• GPS Antenna (magnetic base) x1
• Gigabit PoE Adapter (24V, 1A) with a wall-mounting bracket x1
• Power Cord x1
• Quick Start Guide x1

WARRANTY:

• 12 Months
