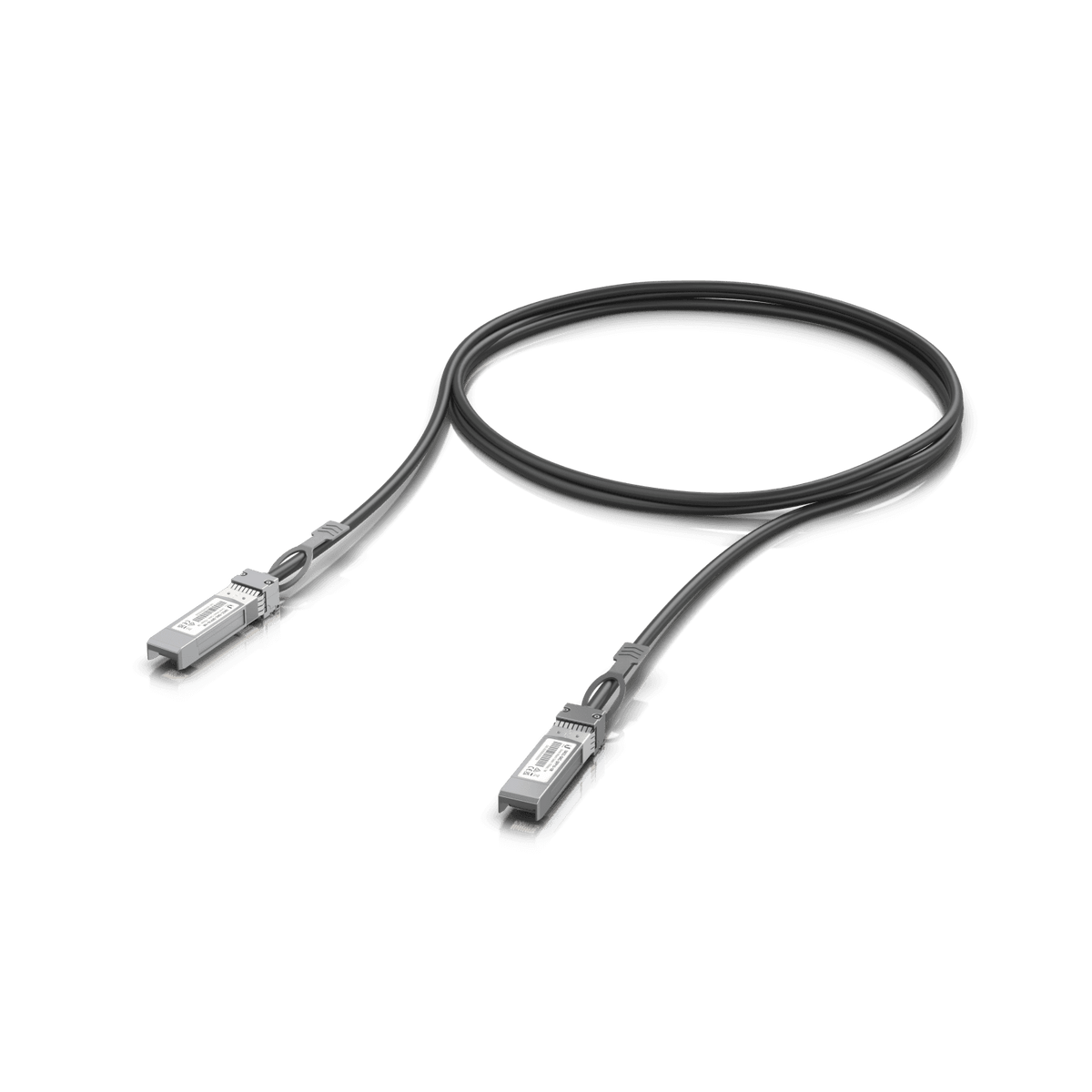

Ubiquiti UniFi 10Gbps Direct Attach 1M Cable

Ubiquiti's UACC-DAC-SFP10-1M is a SFP+ direct attach cable with a 1.25Gbps/10Gbps maximum data rate, compatible with both SFP and SFP+ connections.

FEATURES:

• High-Speed 10 Gbps: Provides high-bandwidth data transfers optimized for core switch uplinks and server links.
• Dual-Speed Support: Offers auto-negotiation to run smoothly at both 1 Gbps and 10 Gbps line speeds.
• Passive Twinax Copper: Delivers ultra-low latency data transmission while consuming zero extra power and creating no heat.
• Extended Rack Length: Measures 1.0 metre (3.3 ft), making it ideal for connecting devices spaced several rack units apart.
• Highly Flexible: Features a thin 4.2 mm diameter and a tight 22 mm bend radius to route cleanly in crowded enclosures.
• Plug-and-Play Integration: Arrives pre-terminated with SFP+ connectors on both ends, fully optimized for Ubiquiti UniFi hardware.

SPECIFICATIONS:

• Cable Length: 1.0 m (3.3 ft)
• Cable Type: Passive Copper Twinaxial Cable
• Connector Types: SFP+ to SFP+ (Factory Terminated)
• Maximum Data Rate: 10 Gbps
• Wire Gauge: 30 AWG
• Cable Outer Diameter: 4.2 mm
• Minimum Bend Radius: 22 mm
• Jacket Material: PVC (Black)
• Operating Temperature: 0 to 70°C (32 to 158°F)

WHAT’S IN THE BOX:

• UACC-DAC-SFP10-1M Cable (1.0-metre passive twinax cable pre-terminated with SFP+ transceiver modules on both ends) x1

WARRANTY:

• 12 Months
