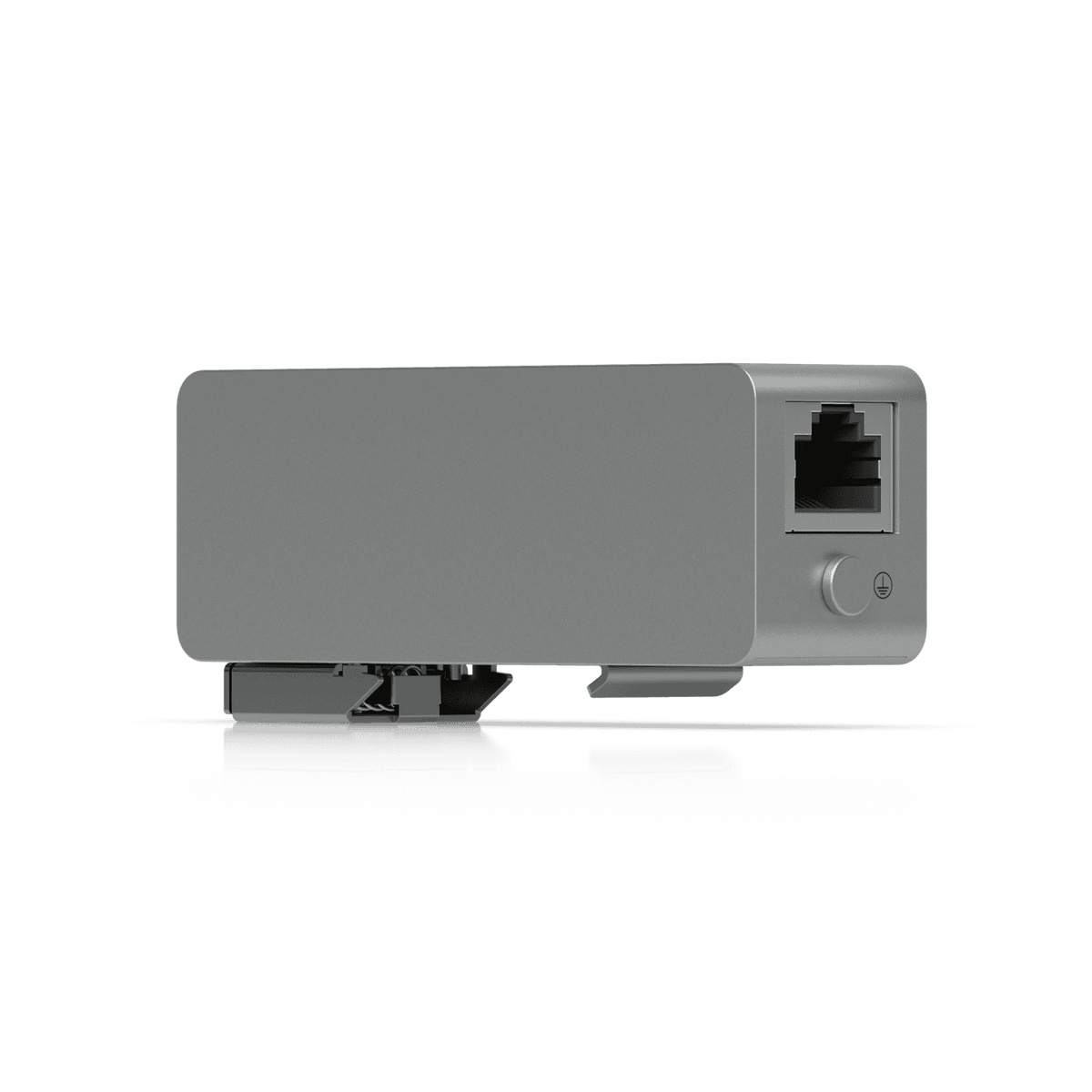

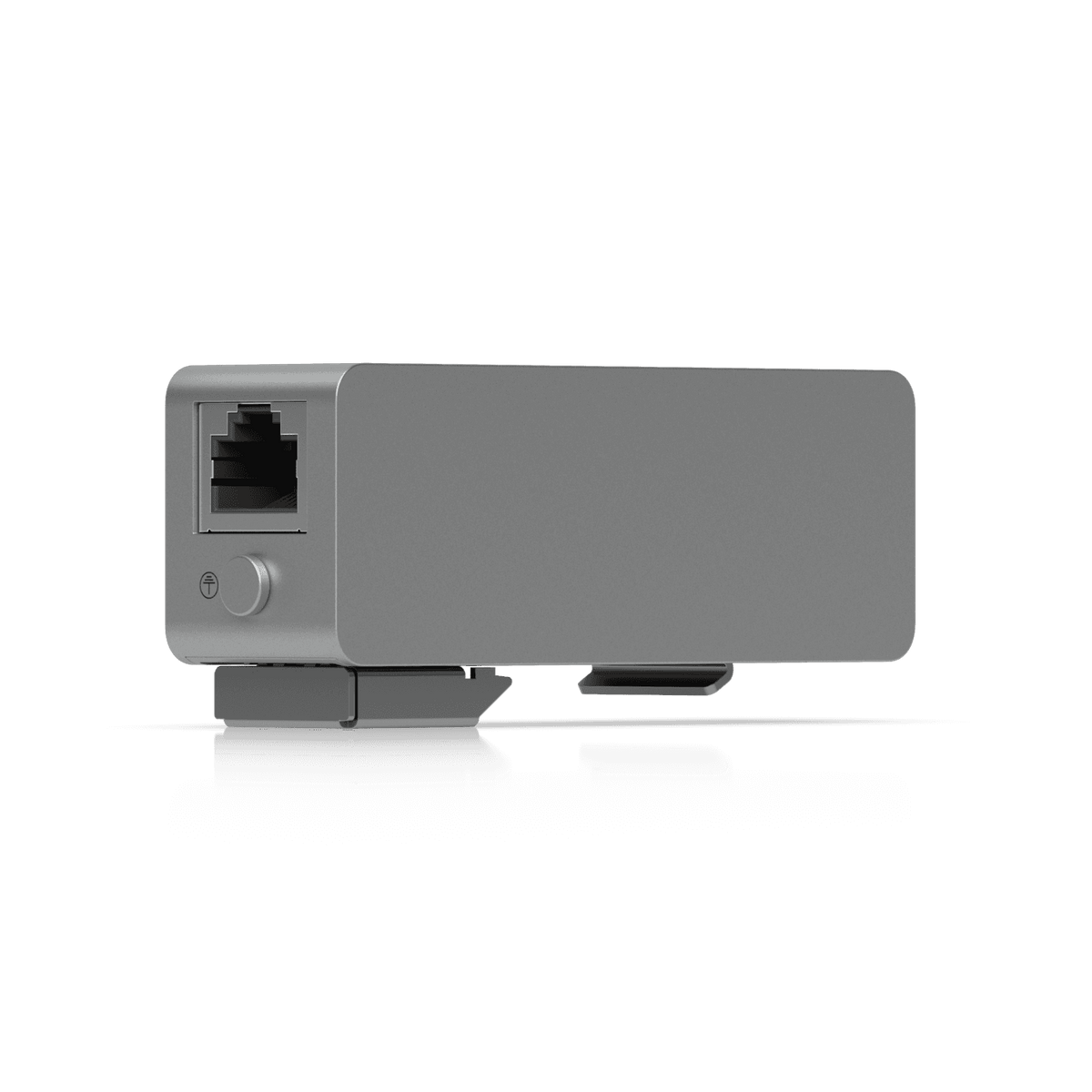

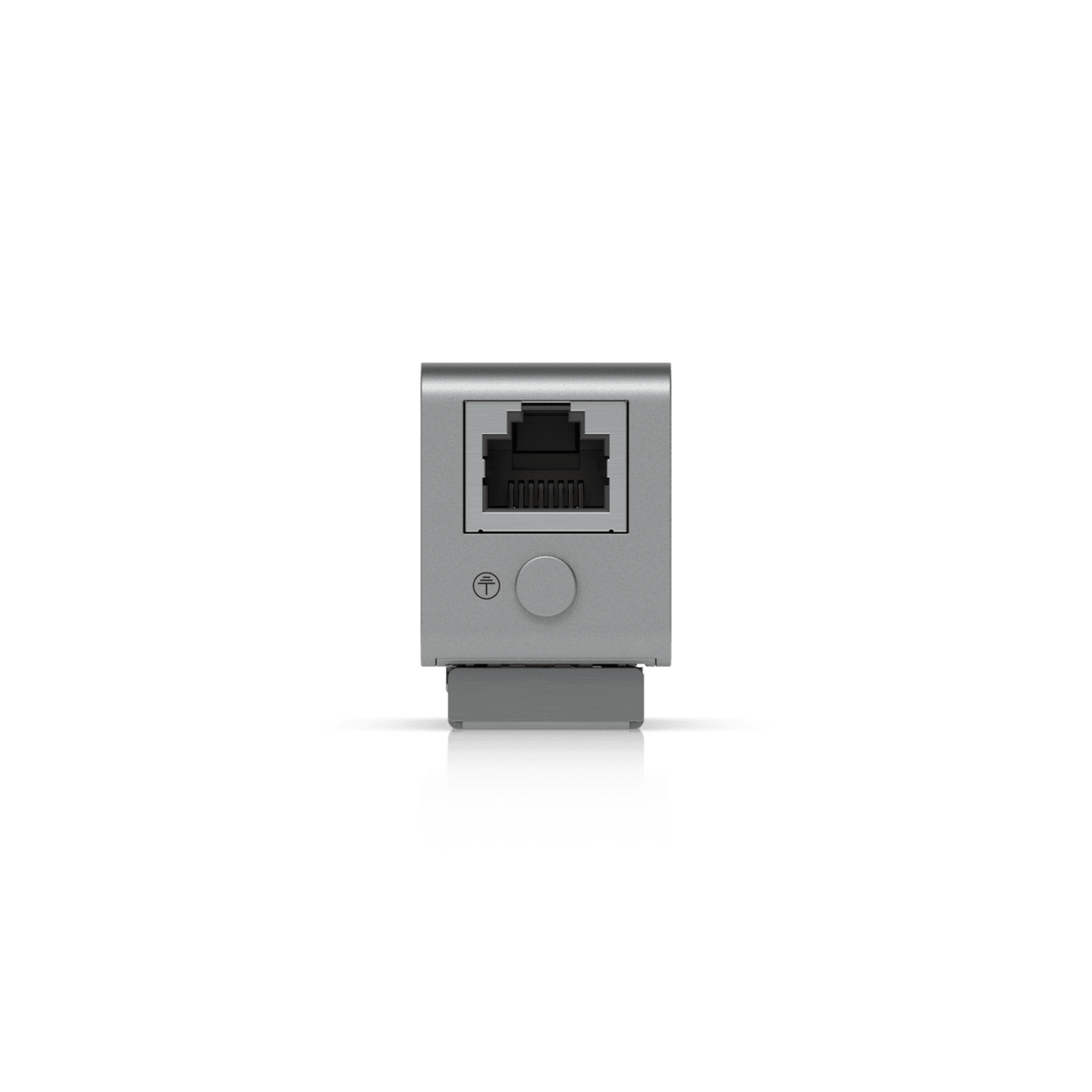

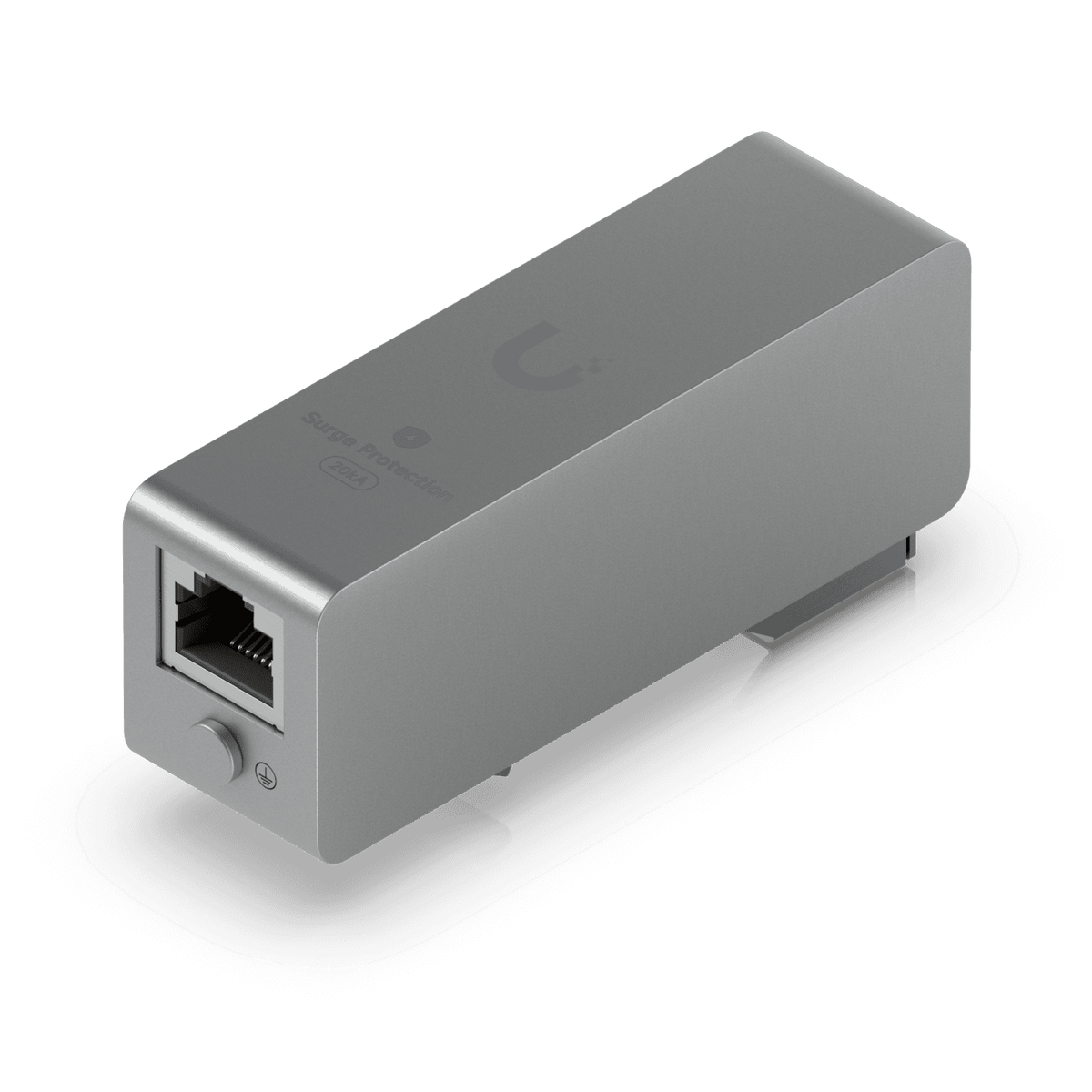

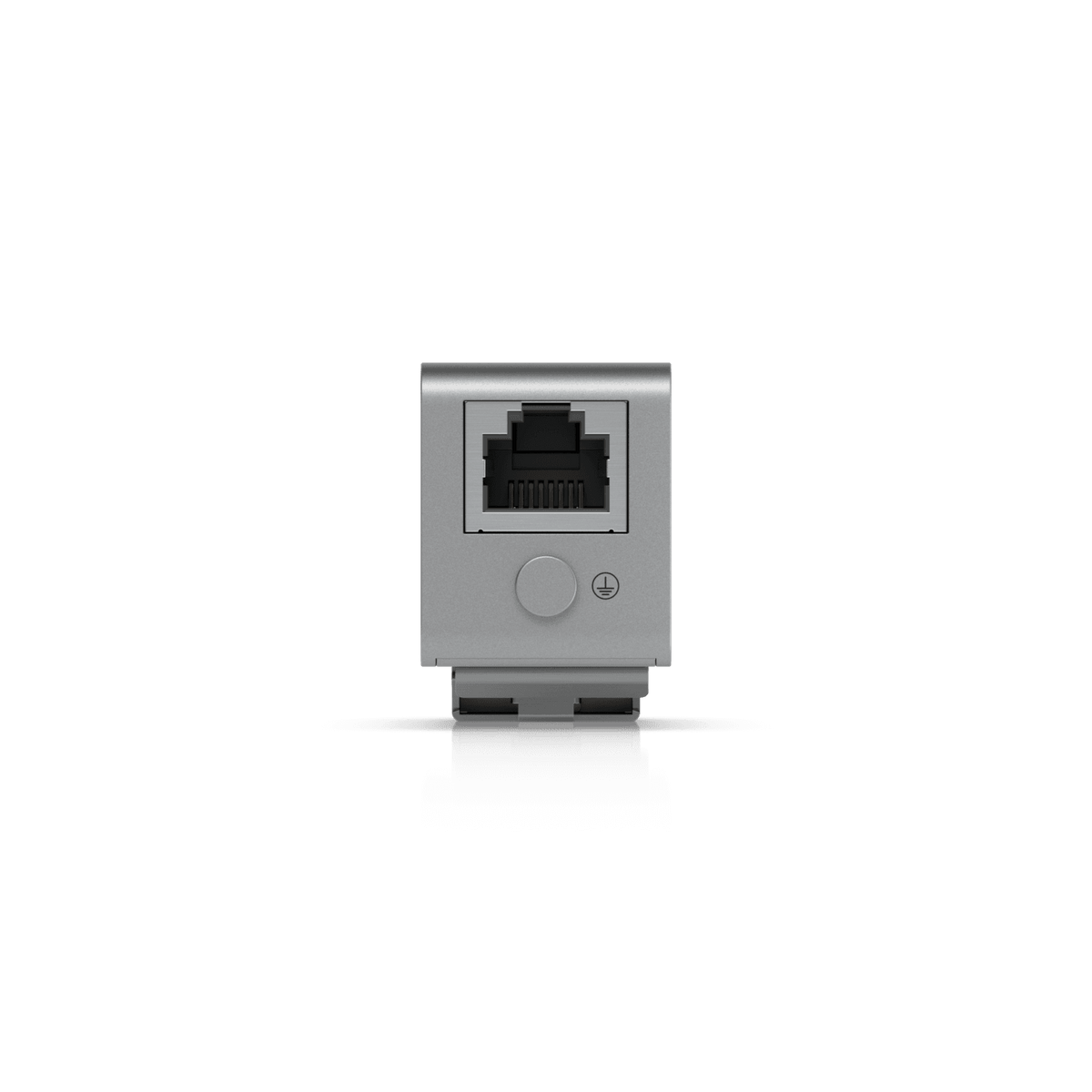

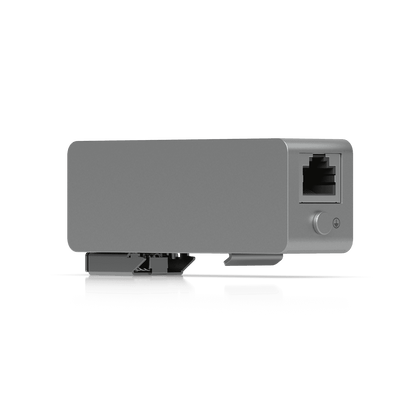

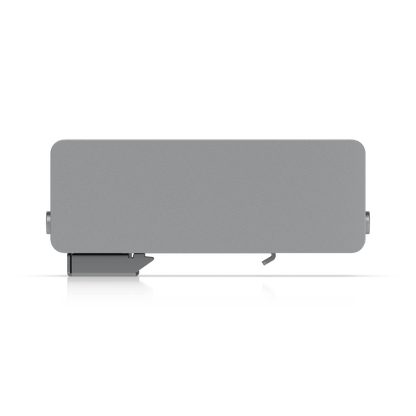

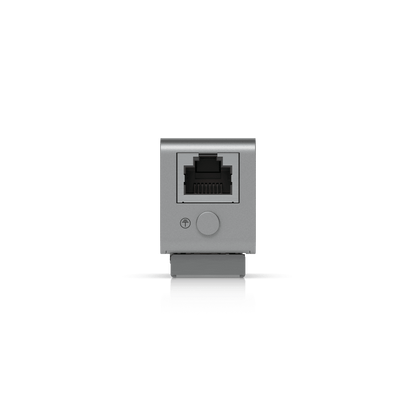

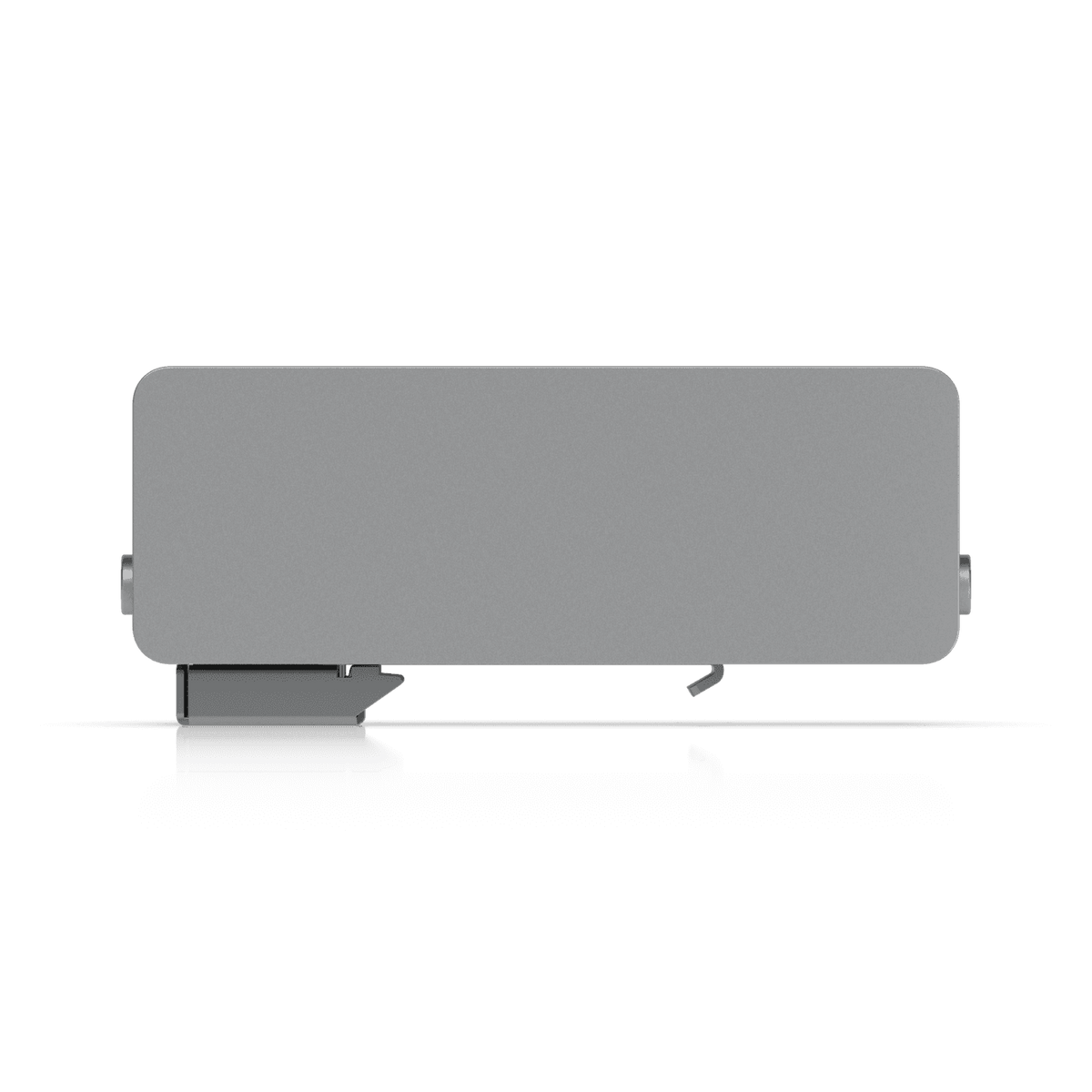

Ubiquiti UniFi 10Gbps PoE++ Single Port Din Rail Ethernet Surge Protector

Ubiquiti's UACC-ETH-SP-DIN is a UniFi Surge Protector with up to 10Gbps Ethernet, PoE+++ passthrough, and 20kA surge discharge for indoor installations.

FEATURES:

• Multi-Gigabit Speed: Supports blazing-fast data transfer line speeds up to 10 Gbps with zero packet or signal drop.
• PoE++ Passthrough: Safely handles high-power delivery streams all the way up to 60W PoE++ (802.3bt).

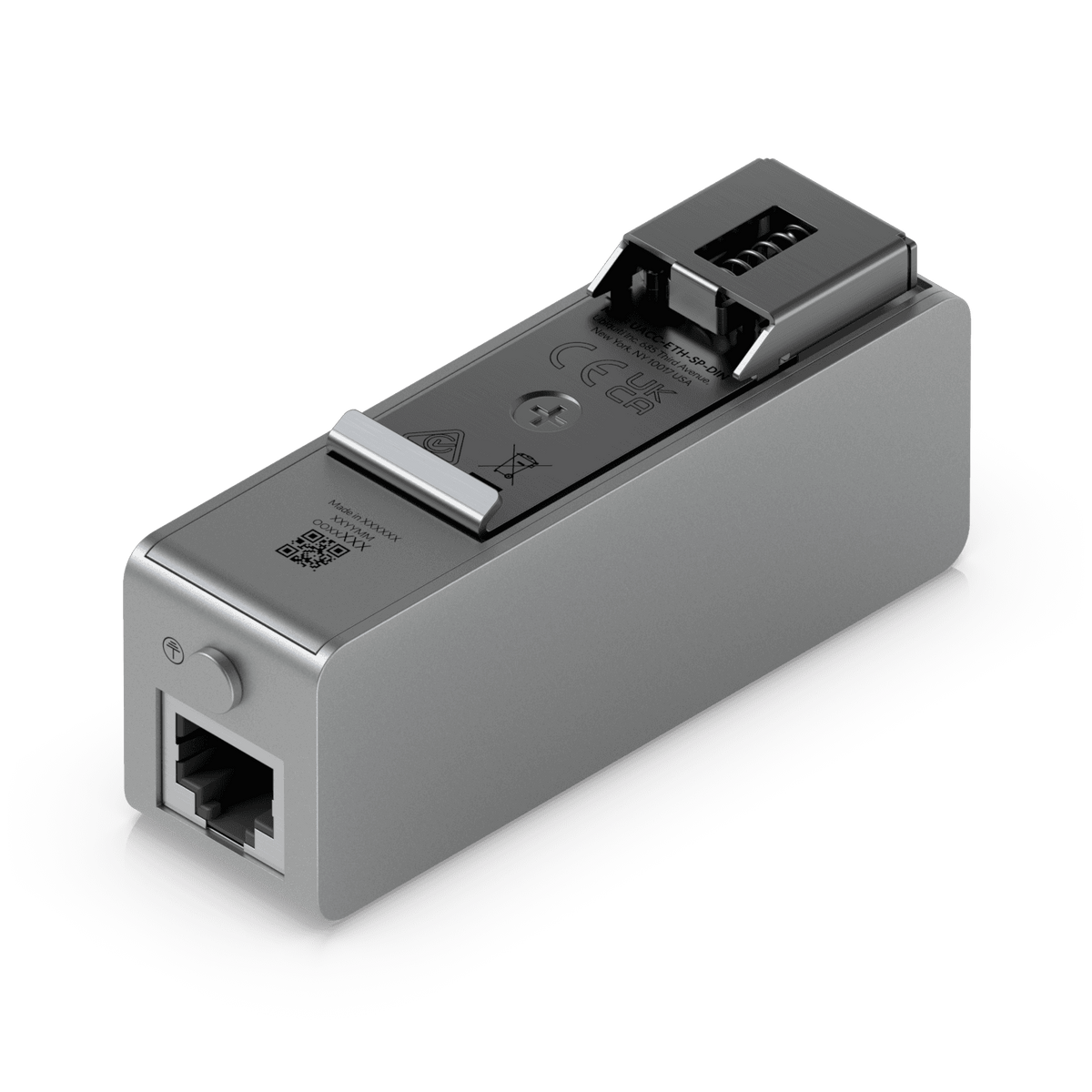

• Dual Mounting Options: Features a versatile built-in backplate that snaps directly onto standard DIN rails or mounts flat to a wall.
• Heavy-Duty Protection: Features a robust 20kA surge discharge capacity to absorb massive electrical hits and protect downstream hardware.
• Premium Grounding Shell: Forged from rigid SGCC steel and premium polycarbonate to ensure physical strength and a reliable grounding path.
• Extreme Temperature Rating: Engineered to run smoothly in harsh internal environments ranging from -40 to 80°C.

SPECIFICATIONS:

• Dimensions: 89 x 25.5 x 37.4 mm (3.5 x 1 x 1.5")
• Weight: 74 g (2.6 oz)
• Enclosure Material: Polycarbonate, SGCC steel

• Networking Interface: (2) RJ45 female connectors
• DC Spark-Over Voltage: 90V @ 100V/s
• Max. Impulse Spark-Over Voltage: 600V @ 1kV/µs
• Discharge Current: 20kA
• Insulation: Max. resistance: 1G ohm @ 50V
• Max. Capacitance: 1.0 pF @ 1 MHz
• Data Line Protection: Up to 10 Gbps
• PoE Support: ✓
• ESD/EMP Protection: Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
• Ambient Operating Temperature: -40° to +80° C (-40° to 176° F)
• Ambient Operating Humidity: 10 to 90% noncondensing

WHAT’S IN THE BOX:

• UACC-ETH-SP-DIN Unit x1
• Grounding Screw / Pin hardware kit x1
• Quick Installation & Compliance Guide x1

WARRANTY:

• 12 Months
