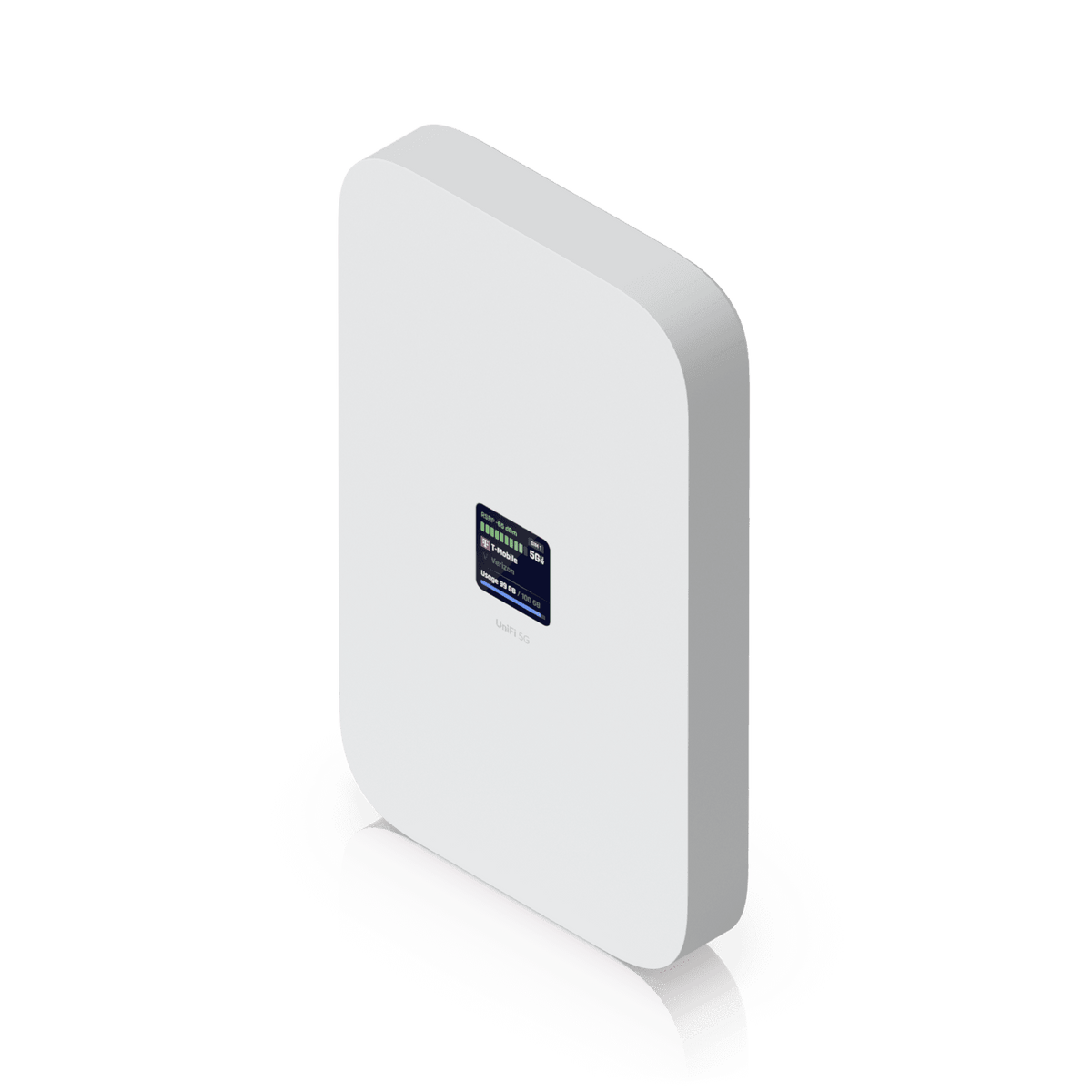

Ubiquiti UniFi 5G Max Modem with PoE input and 2.5Gbps Ethernet

Ubiquiti's U5G-Max is a high-performance 5G modem for any UniFi deployment. The unit instantly adopts through any UniFi PoE port, delivering automatic setup and features 1x 2.5Gbps Ethernet port, dual SIM/eSIM, and seamless failover.

It can be configured and managed with the UniFi Network Application.

*Note: This device only works with existing UniFi deployments and can not be used as a standalone device.

FEATURES:

• Full-Capacity 5G NR Speeds: Utilises full Sub-6 GHz 5G spectrum bands to deliver high-speed performance up to 3.4 Gbps downlink (5G NSA) and 650 Mbps uplink (5G SA).
• Automatic Multi-WAN Failover: Plugs into any PoE port on your network switch or gateway where it instantly adopts as a secondary internet source, automatically handling outages within seconds.

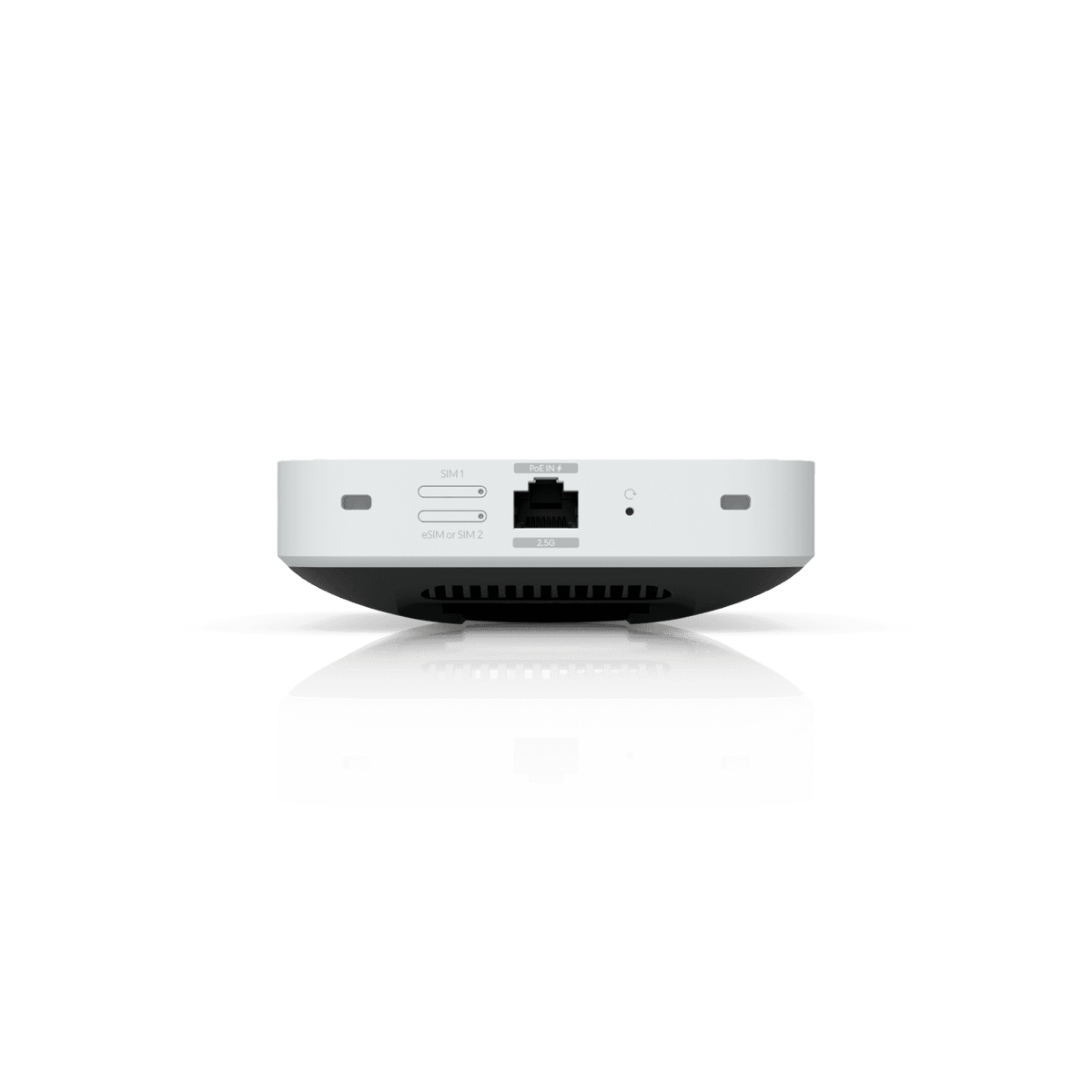

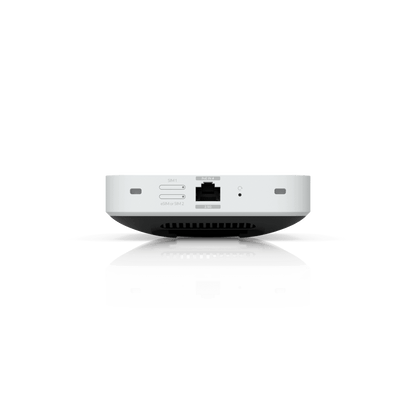

• 2.5 Gbps Ethernet Interface: Features a multi-gigabit 2.5 GbE RJ45 port to ensure the physical network cable never limits the incoming 5G data speeds.
• Dual SIM Redundancy: Provides two SIM options—one physical Nano-SIM slot and one Nano-SIM/eSIM combo slot—allowing you to configure primary and secondary mobile carriers for multi-network backup.

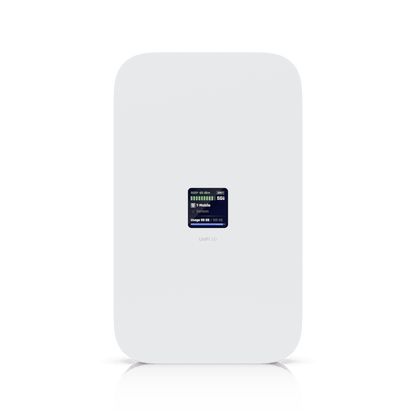

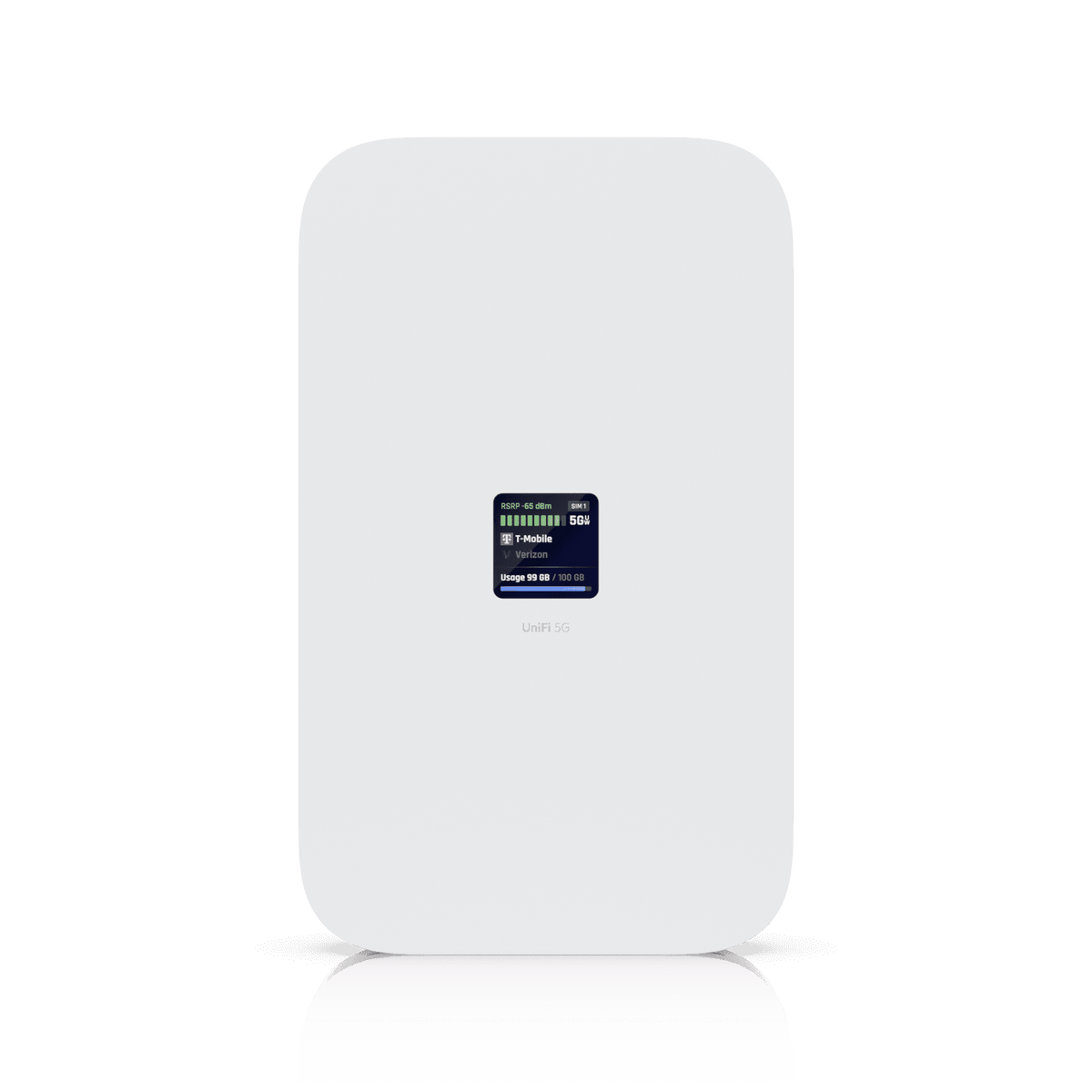

• 1.3" Touchscreen Display: Built with an interactive front screen that monitors real-time carrier stats, data speeds, and cellular signal strength.
• Integrated Gyroscope UI: Intelligently senses the physical placement of the device to automatically rotate and orient the touchscreen display whether it is standing upright or laid flat.
• Flexible Indoor Mounts: Ships with comprehensive mounting accessories to position the unit flat on a desk, mounted to a wall, or attached directly to a window glass pane for optimal cellular reception.

SPECIFICATIONS:

• Dimensions: 180 × 109 × 33.8 mm (7.1 × 4.3 × 1.3")
• Networking Interface: (1) 2.5 GbE RJ45 port
• 5G NR and LTE Radio: ✓
• SIM: (1) Nano SIM; (1) Nano-SIM or eSIM
• PoE Interface: (1) PoE input
• Mounting: Desktop stand, wall, window mount (included)
• Tamper Resistance: IK04
• Weight:
  • Device: 410 g (14.5 oz)
  • Stand: 215 g (7.6 oz)
  • Wall mount: 7.6 g (0.3 oz)
  • Window mount: 20 g (0.7 oz)
• Enclosure Material: Polycarbonate, aluminum alloy
• Mount Material: Polycarbonate, silicone rubber
• Management: Ethernet
• 5G NR:
  • Frequency Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
  • Max. TX Power: HPUE power class 2: 26 dBm
• 4G LTE:
  • Frequency Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
  • Max. TX Power: HPUE power class 2: 25 dBm
• 3G UMTS:
  • Frequency Bands: B1, B2, B4, B5, B8, B19
• Peak Data Speed:
  • 5G NSA: Downlink 3.4 Gbps, Uplink 560 Mbps
  • 5G SA: Downlink 1.8 Gbps, Uplink 650 Mbps
  • 4G LTE: Downlink 1.6 Gbps, Uplink 210 Mbps
• Antennas:
  • Type: (4) Embedded cellular antennas
• Max. Power Consumption: 14.5W
• Power Method: PoE
• Display: 1.3" touchscreen
• Buttons: (1) Factory reset
• Ambient Operating Temperature: 0 to 40°C (32 to 104°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, PTCRB, GCF
• Application Requirements: UniFi Network version 10.0.162 and later

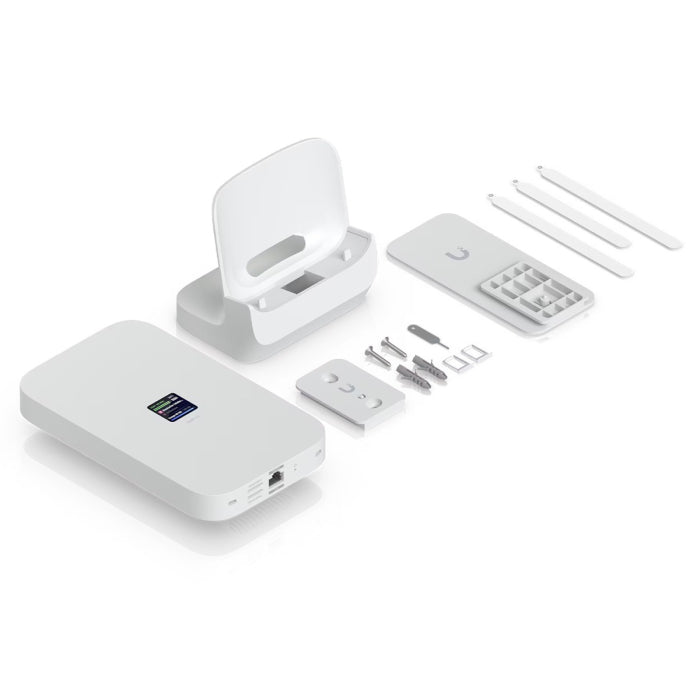

WHAT’S IN THE BOX:

• UniFi 5G Max main unit x1
• Desktop Stand / Base x1
• Adhesive Wall/Window Mount x1
• Screw-in Wall Mount Bracket x1
• Mounting Screws & Wall Lugs x1
• Drilling Guide with Built-in Bubble Level x1
• SIM Extraction Tool x1
• Quick Start Documentation x1

WARRANTY:

• 12 Months
