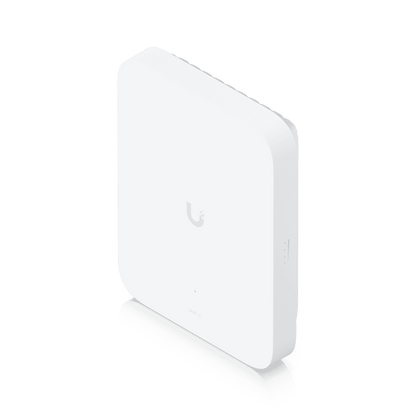

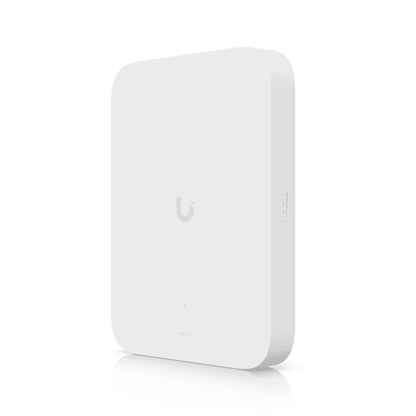

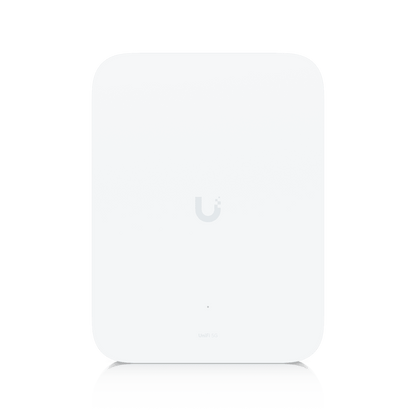

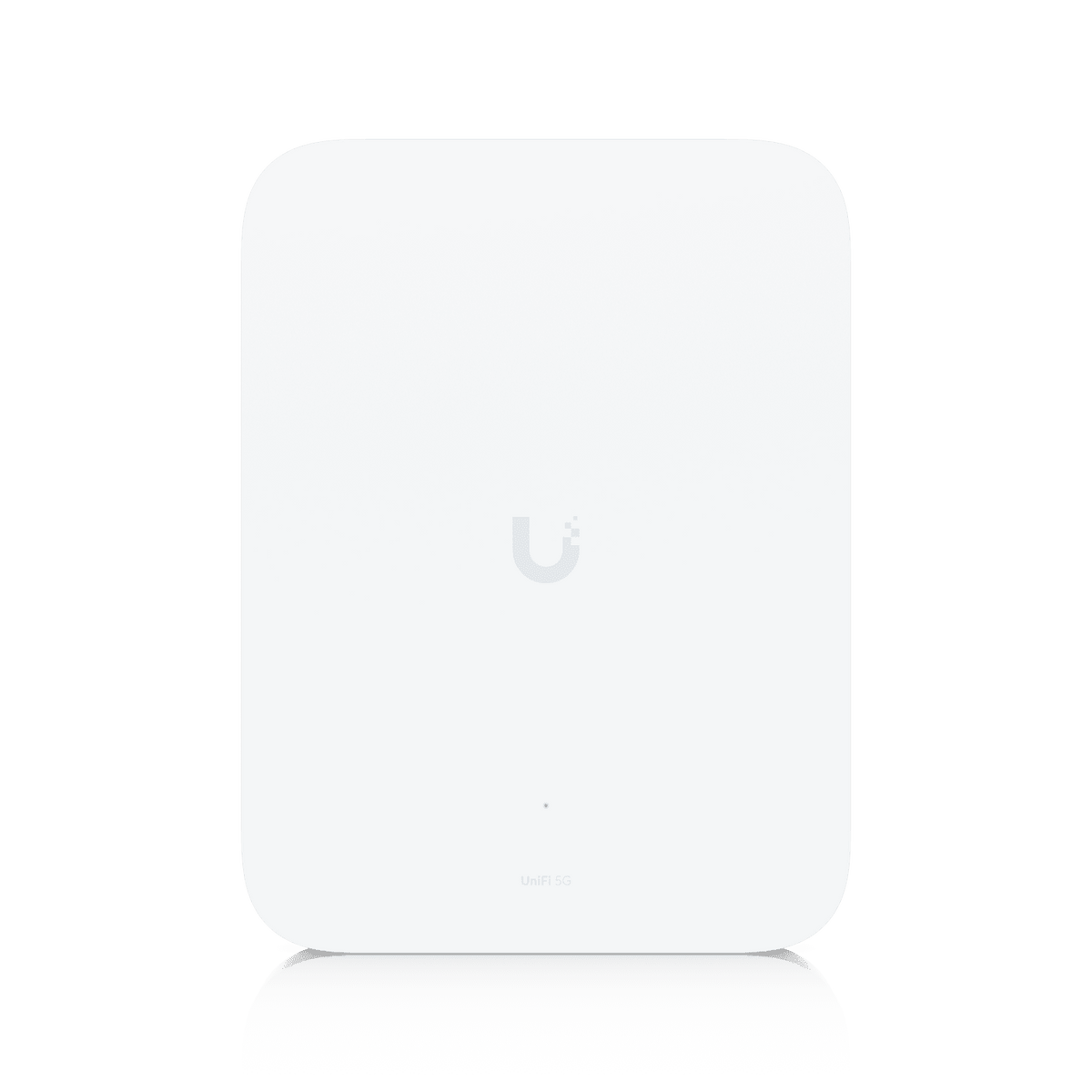

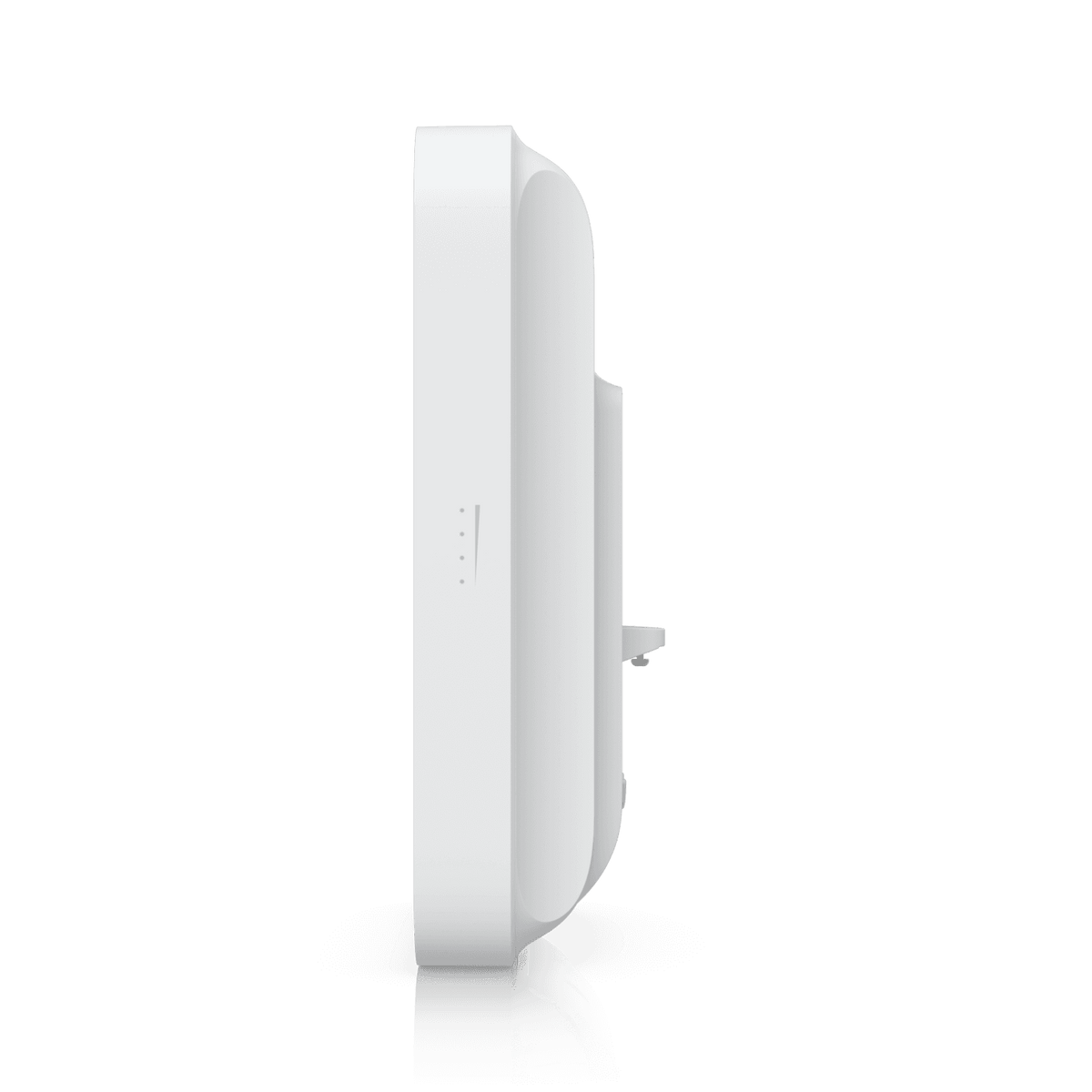

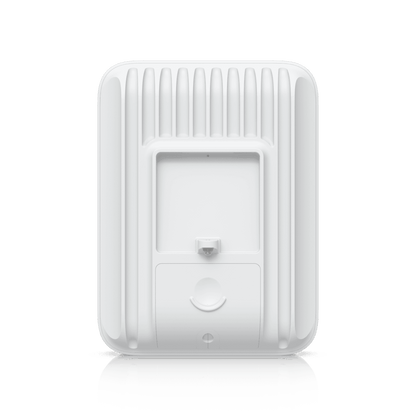

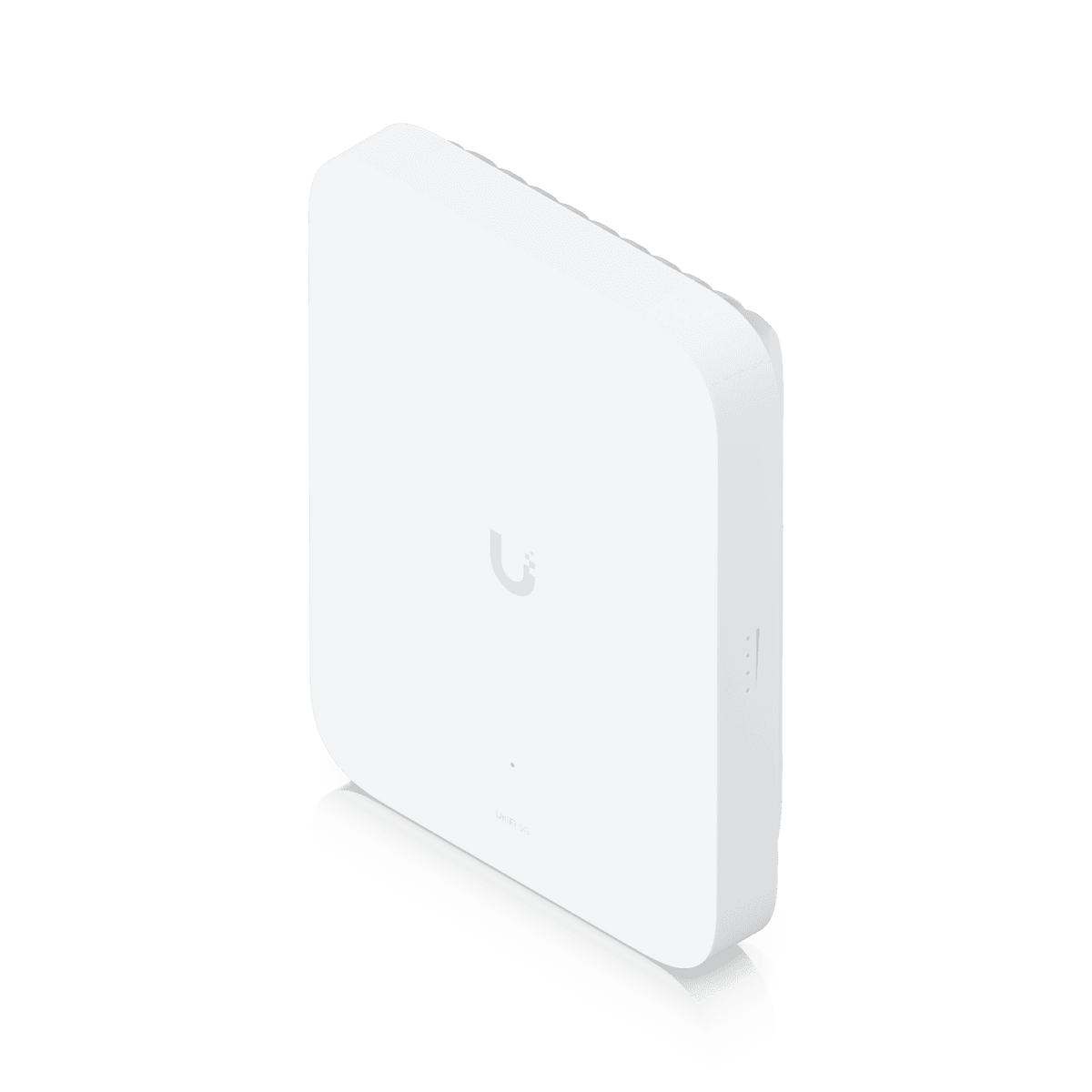

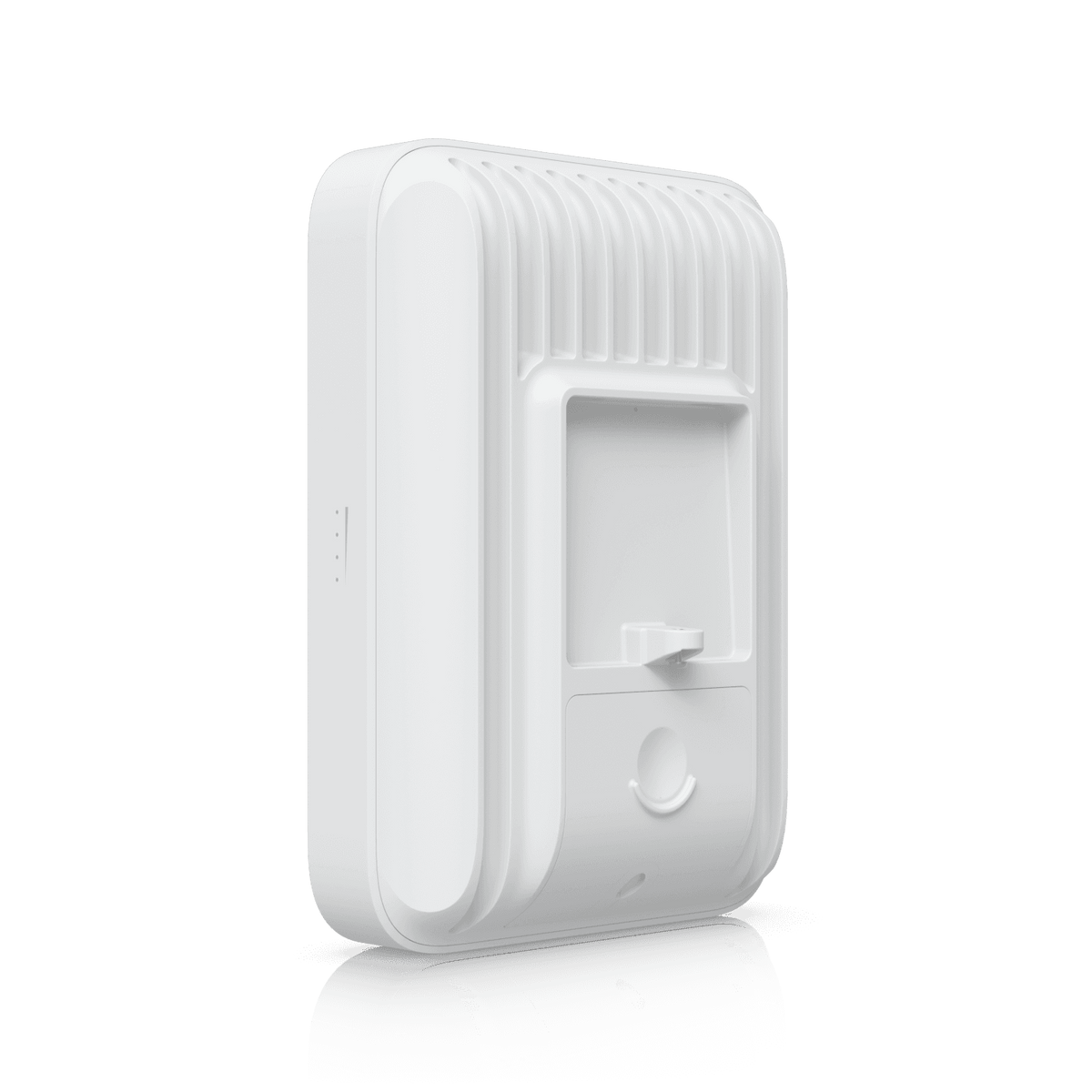

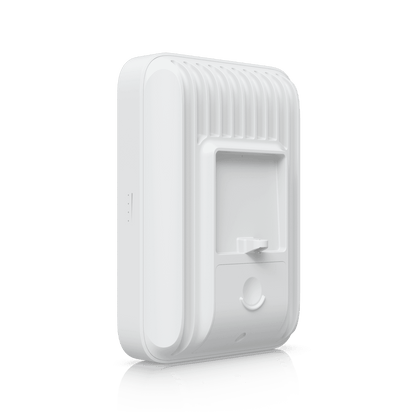

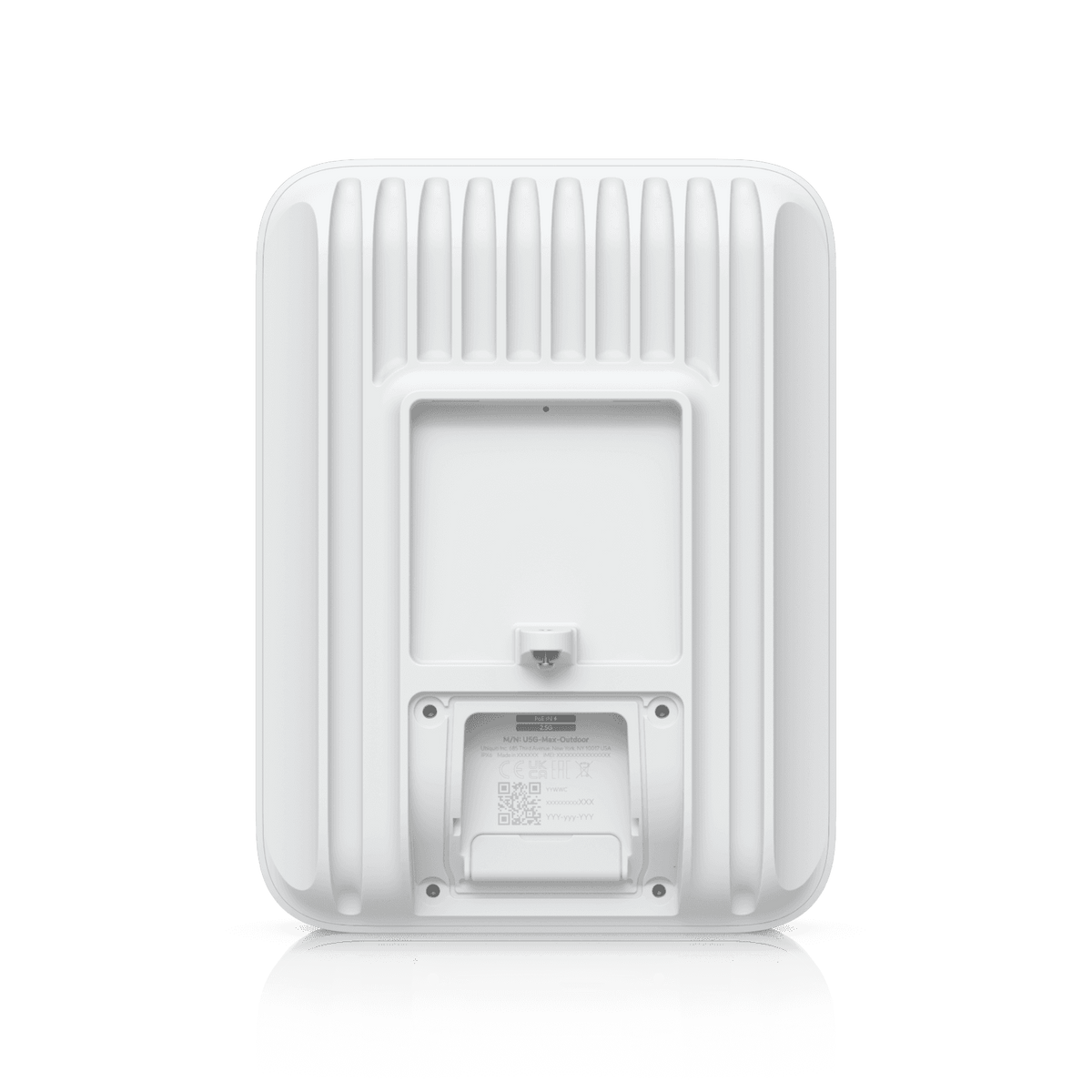

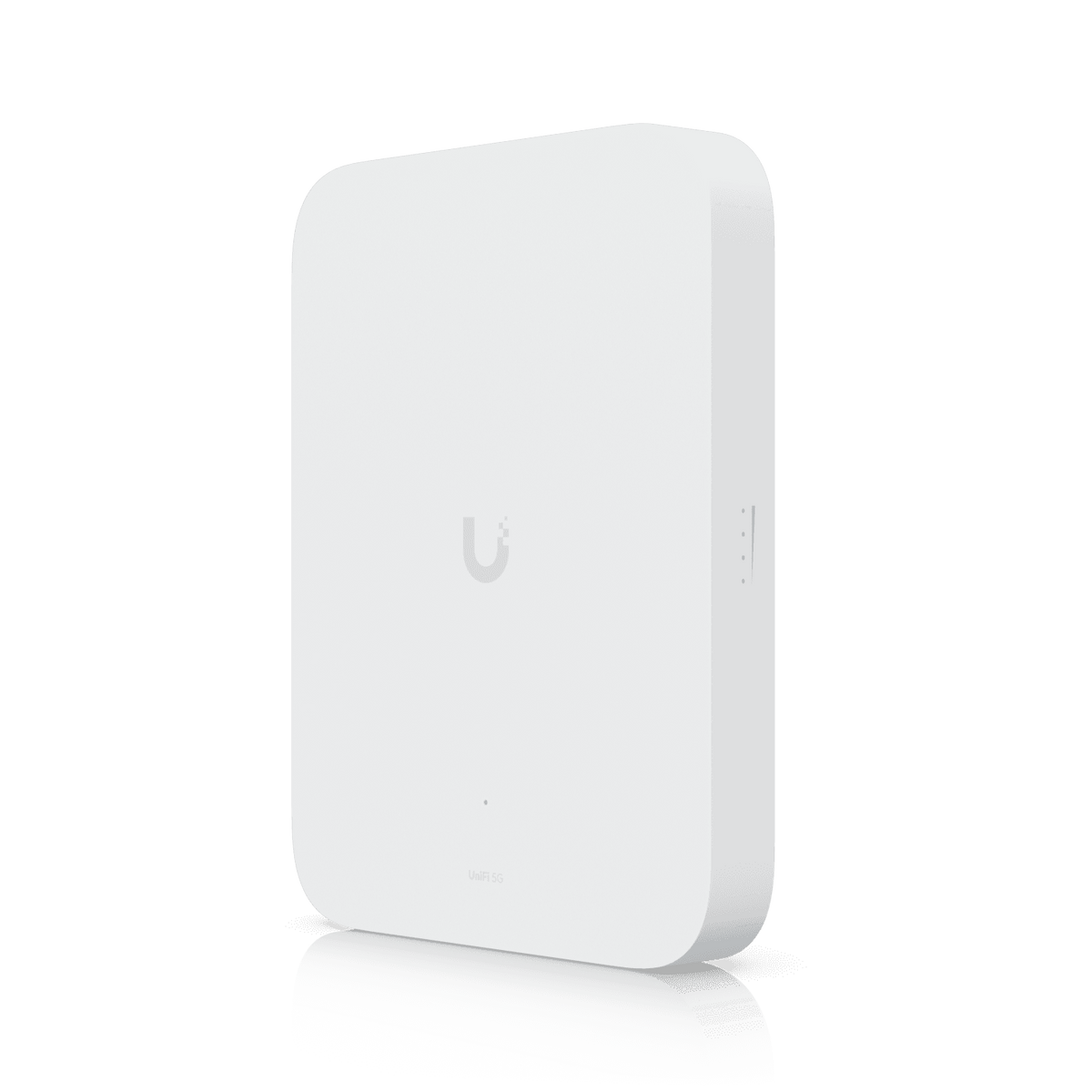

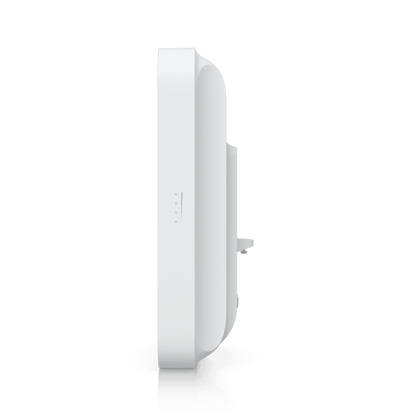

Ubiquiti UniFi 5G Max Outdoor Modem with PoE input and 2.5Gbps Ethernet

Ubiquiti's U5G-Max-Outdoor is a high-performance outdoor 5G modem for any UniFi deployment. The unit instantly adopts through any UniFi PoE port, delivering automatic setup and features 1x 2.5Gbps Ethernet port, dual SIM/eSIM, and seamless failover.

It can be configured and managed with the UniFi Network Application.

*Note: This device only works with existing UniFi deployments and cannot be used as a standalone 5G router.

FEATURES:

• High-Gain Directional Antennas: Equipped with built-in 9 dBi directional antennas that allow you to aim the device directly at a cellular tower to optimize weak signals over long distances.
• Full-Band 5G Performance: Delivers full Sub-6 GHz mobile throughput with theoretical speeds up to 3.4 Gbps downlink and 650 Mbps uplink.
• IP67 Weatherproofing: Encased in a rugged, UV-stabilized industrial shell that achieves a full IP67 waterproof and dust-tight rating when using the included cable-gland door kit.

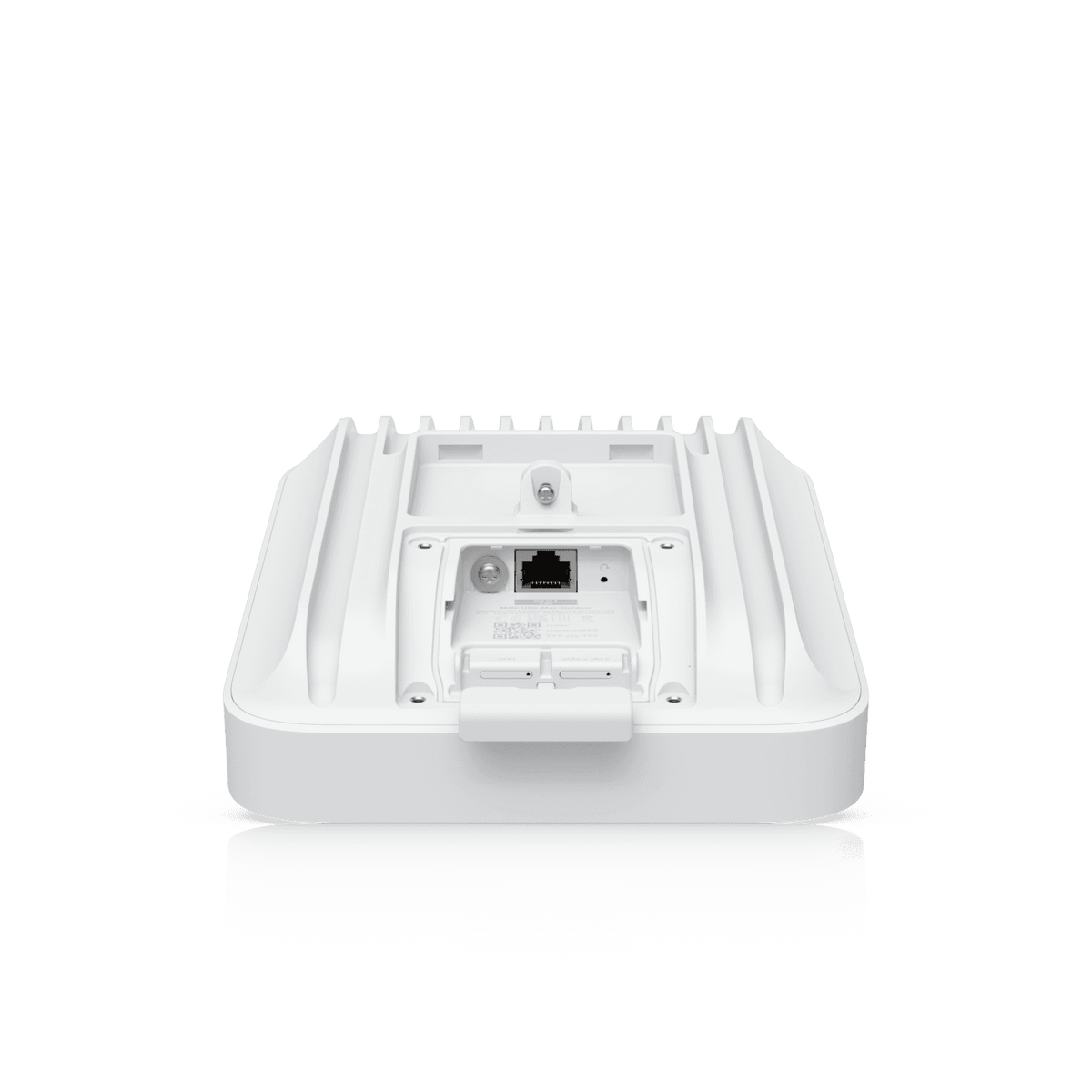

• 2.5 Gbps PoE Connection: Utilizes a multi-gigabit 2.5 GbE RJ45 port to handle high-speed data while drawing power over a single network cable.
• Dual SIM and eSIM Support: Built with two SIM paths—one physical Nano-SIM slot and one Nano-SIM/eSIM combo slot—to enable multi-carrier backup redundancy.
• Extreme Temperature Tolerance: Engineered to operate reliably in harsh external environments ranging from -40 to 65 °C (-40 to 149 °F).

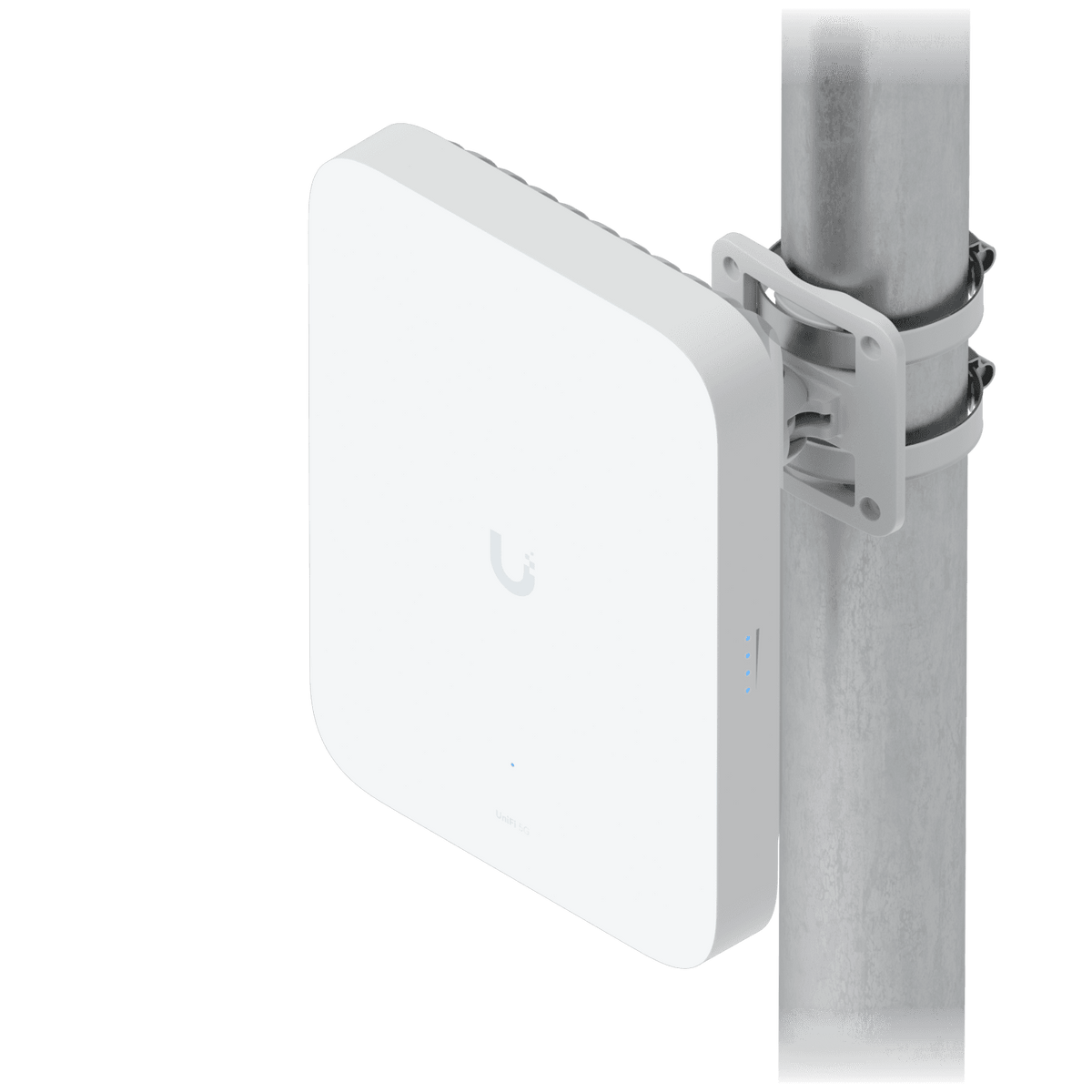

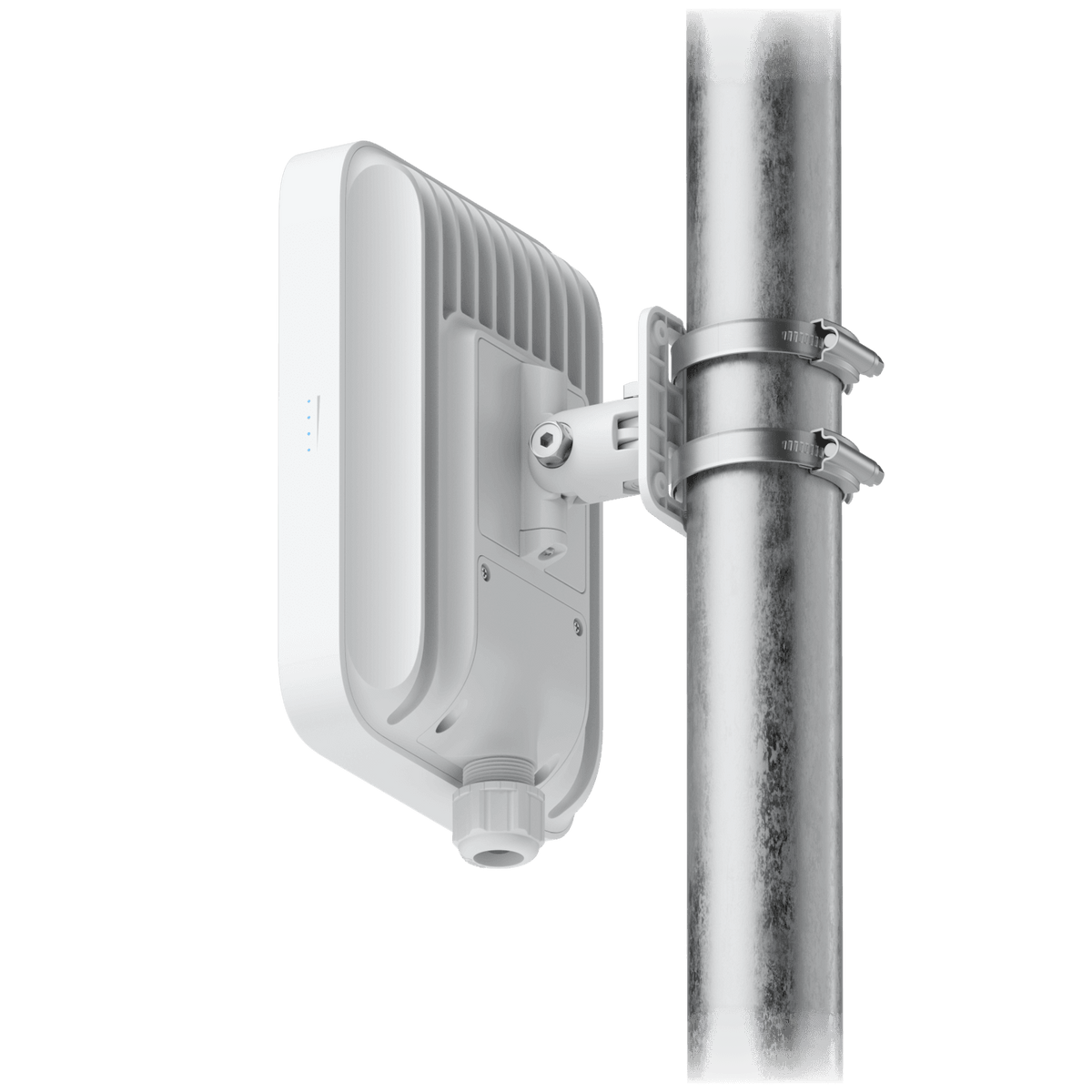

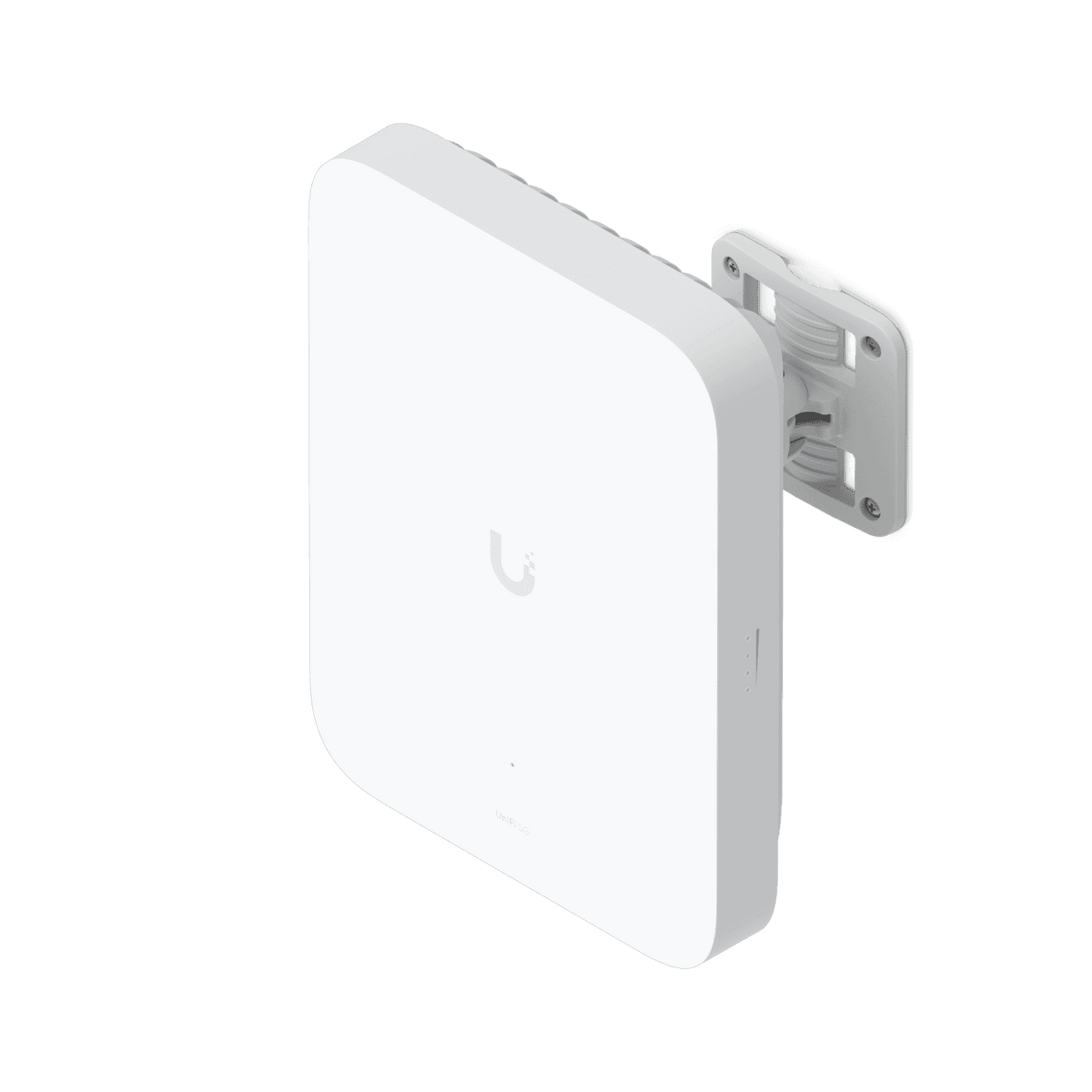

• Heavy-Duty Mast Mounts: Ships with robust metal hardware designed to lock the device firmly onto outdoor poles, masts, or exterior building walls.

SPECIFICATIONS:

• Dimensions:
  • Device: 220 × 165 × 66.9 mm (8.7 × 6.5 × 2.6")
  • With mount: 220 × 165 × 122 mm (8.7 × 6.5 × 4.8")
• Networking Interface: (1) 2.5 GbE RJ45 port
• 5G NR and LTE Radio: ✓
• SIM: (1) Nano SIM; (1) Nano-SIM or eSIM
• PoE Interface: (1) PoE input
• Mounting: Pole mount, wall mount (included)
• Weatherproofing:
  • IPX6
  • IP67 (with cable-gland door kit)
• Weight:
  • Device: 1.2 kg (2.6 lb)
  • Mount: 130 g (4.6 oz)
• Enclosure Material: Aluminum-alloy, UV-stabilized polycarbonate
• Mount Material: UV-stabilized polycarbonate
• Pole Mount Diameter: 1–2.5" (25–63.5 mm) pipe outer diameter
• Wind Loading: 91 N at 200 km/h (20.45 lbf at 125 mph)
• Management: Ethernet
• 5G NR:
  • Frequency Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
  • Max. TX Power: HPUE power class 2: 26 dBm
• 4G LTE:
  • Frequency Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
  • Max. TX Power: HPUE power class 2: 25 dBm
• 3G UMTS:
  • Frequency Bands: B1, B2, B4, B5, B8, B19
• Peak Data Speed:
  • 5G NSA: Downlink 3.4 Gbps, Uplink 560 Mbps
  • 5G SA: Downlink 1.8 Gbps, Uplink 650 Mbps
  • 4G LTE: Downlink 1.6 Gbps, Uplink 210 Mbps
• Antennas:
  • Type: (6) Embedded cellular antennas
  • High-gain downlink antennas: (2), peak 9 dBi, 85° × 85°
• Max. Power Consumption: 14.5W
• Power Method: PoE
• Buttons: (1) Factory reset
• LEDs: ✓
• Ambient Operating Temperature: -40 to 65°C (-40 to 149°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, PTCRB, GCF

WHAT’S IN THE BOX:

• UniFi 5G Max Outdoor main unit x1
• Heavy-Duty Mounting Bracket (for pole and wall installation) x1

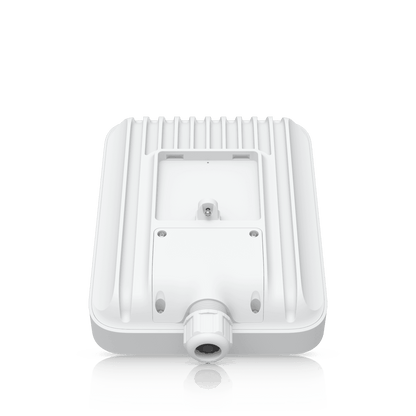

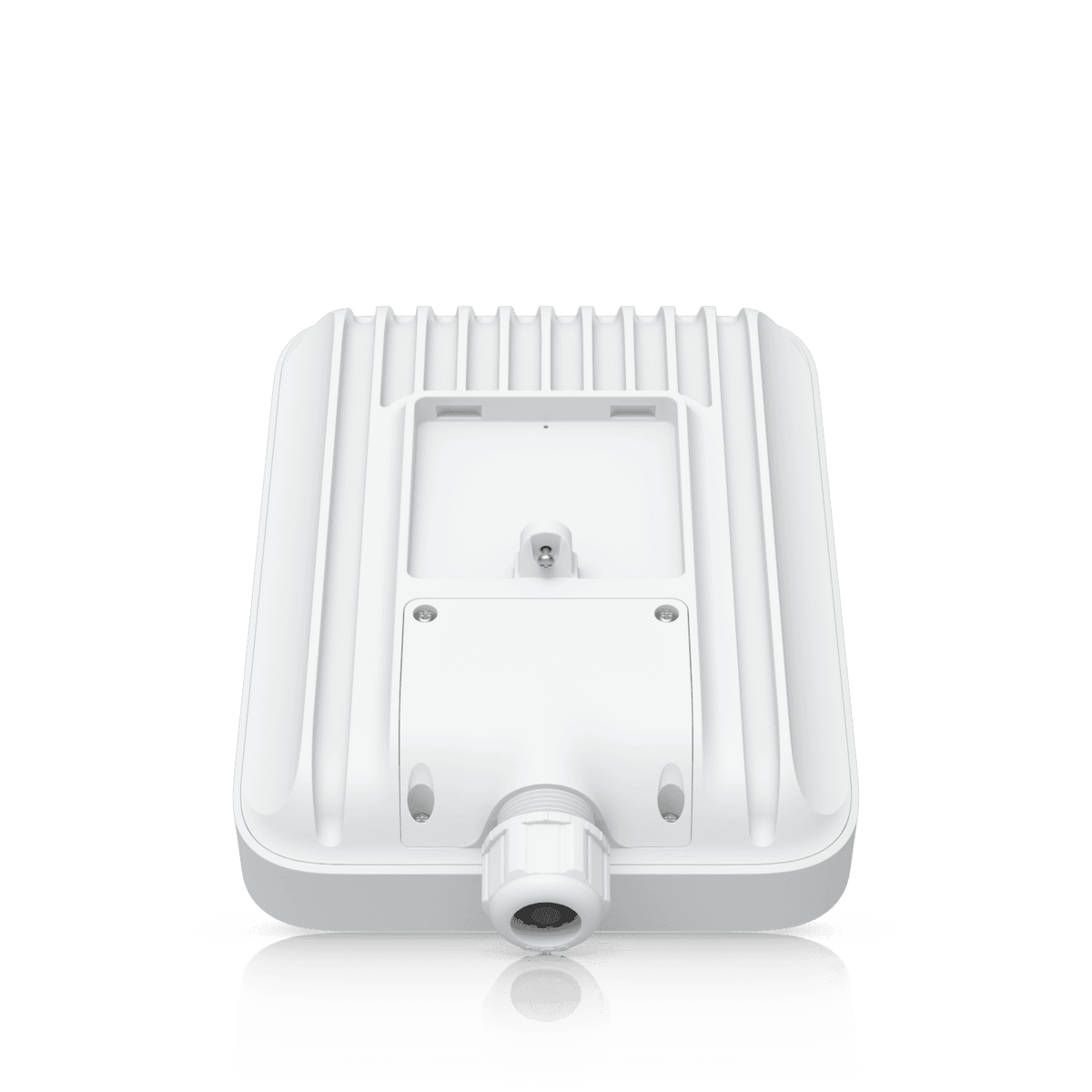

• Cable-Gland Weatherproofing Kit (door cover for sealing the RJ45 port area) x1
• Metal Worm-Gear Straps (for pole mounting) x1
• Wall Mount Anchors and Screws x1
• SIM Extraction Tool x1
• Quick Start Guide x1

WARRANTY:

• 12 Months
