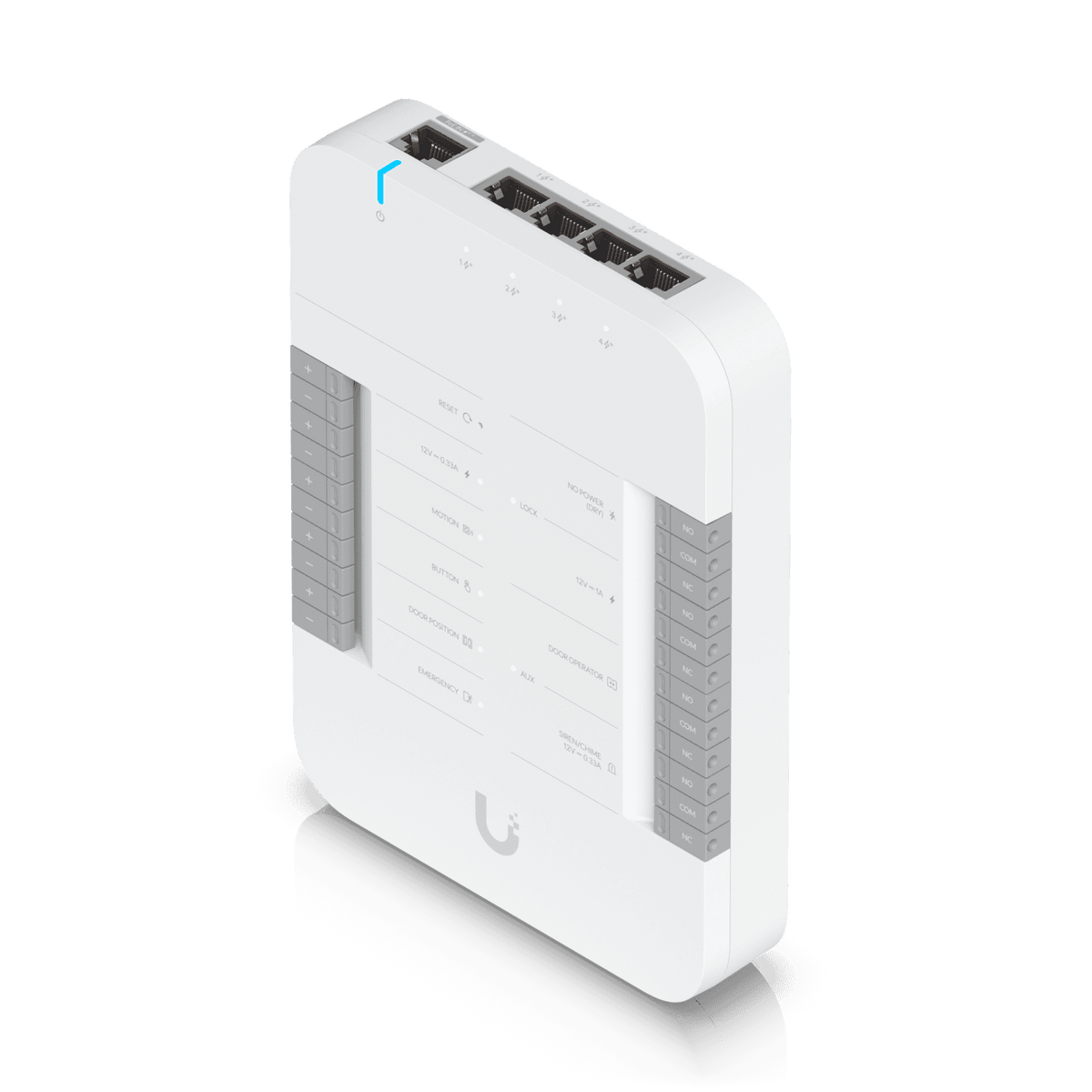

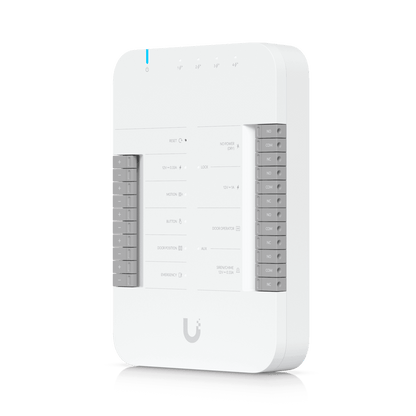

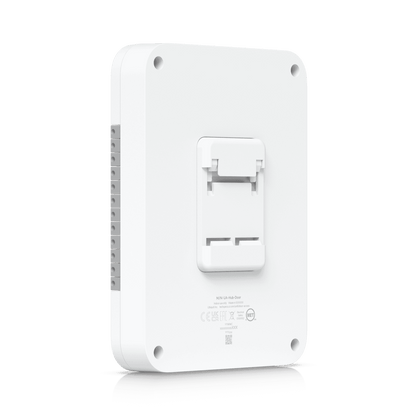

Ubiquiti UniFi Access Door Hub 4x Input, 4x Relay

Ubiquiti's UA-Hub-Door is a compact, indoor, access control hub which provides access control for a single door. It features 1x 802.3at PoE input and 4x Gigabit Ethernet Ports with PoE out. The hub also has 4x input terminals (2x door exit requests, 1x door position and 1x emergency), all of which can be unlocked using an NFC card or UniFi Identity Endpoint Mobile App.

FEATURES:

• Single-Door Management: Dedicated to controlling one physical entryway with support for up to 6,000 distinct users.
• 5-Port Gigabit Switch: Features one 802.3bt PoE++ input port to power the system, and four downstream PoE+ output ports for access readers and security cameras.
• Dual Lock Relays: Includes a 12V DC (1A) Wet Relay to power magnetic locks or electric strikes directly, plus a 30V DC (1A) Dry Relay for externally powered gates or garage operators.

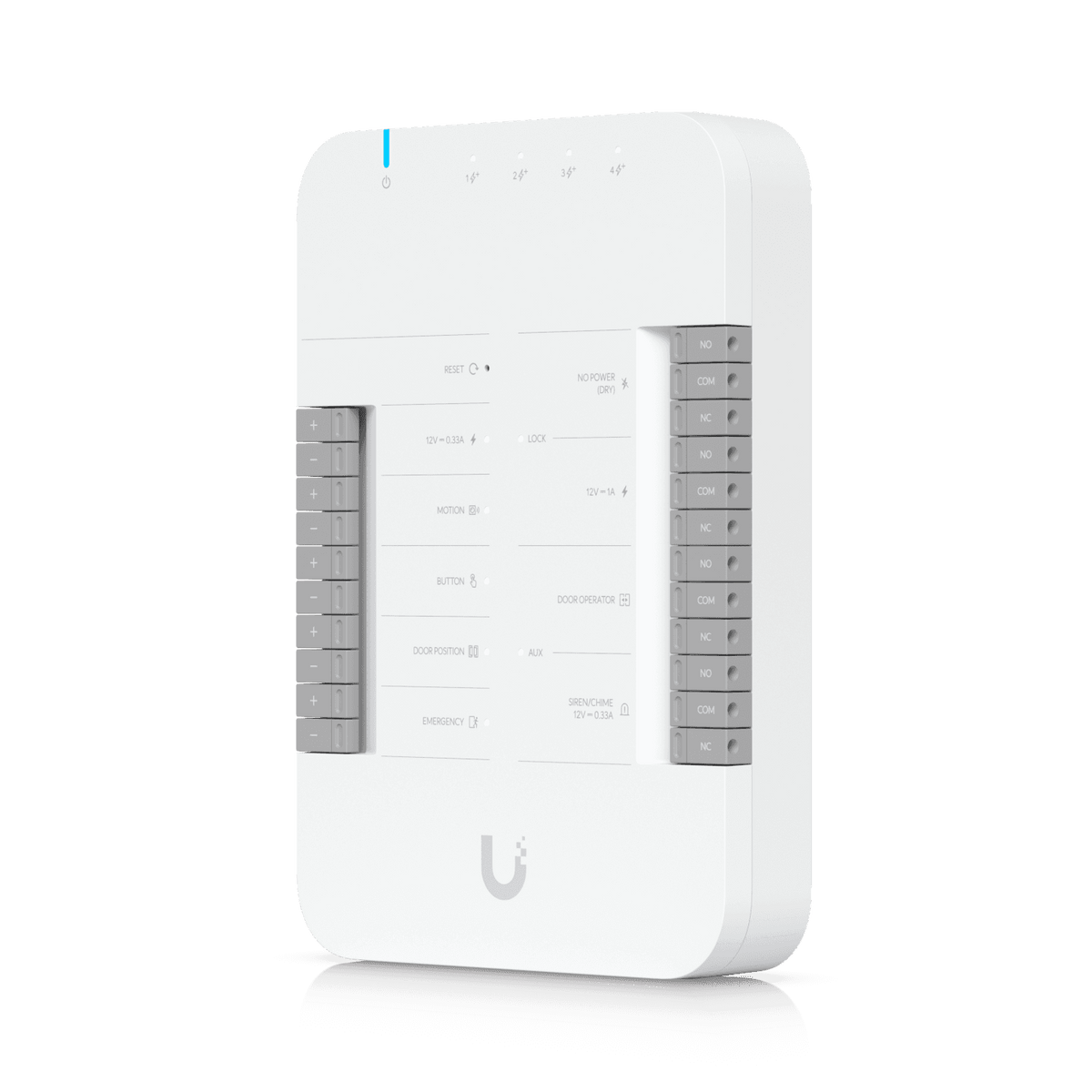

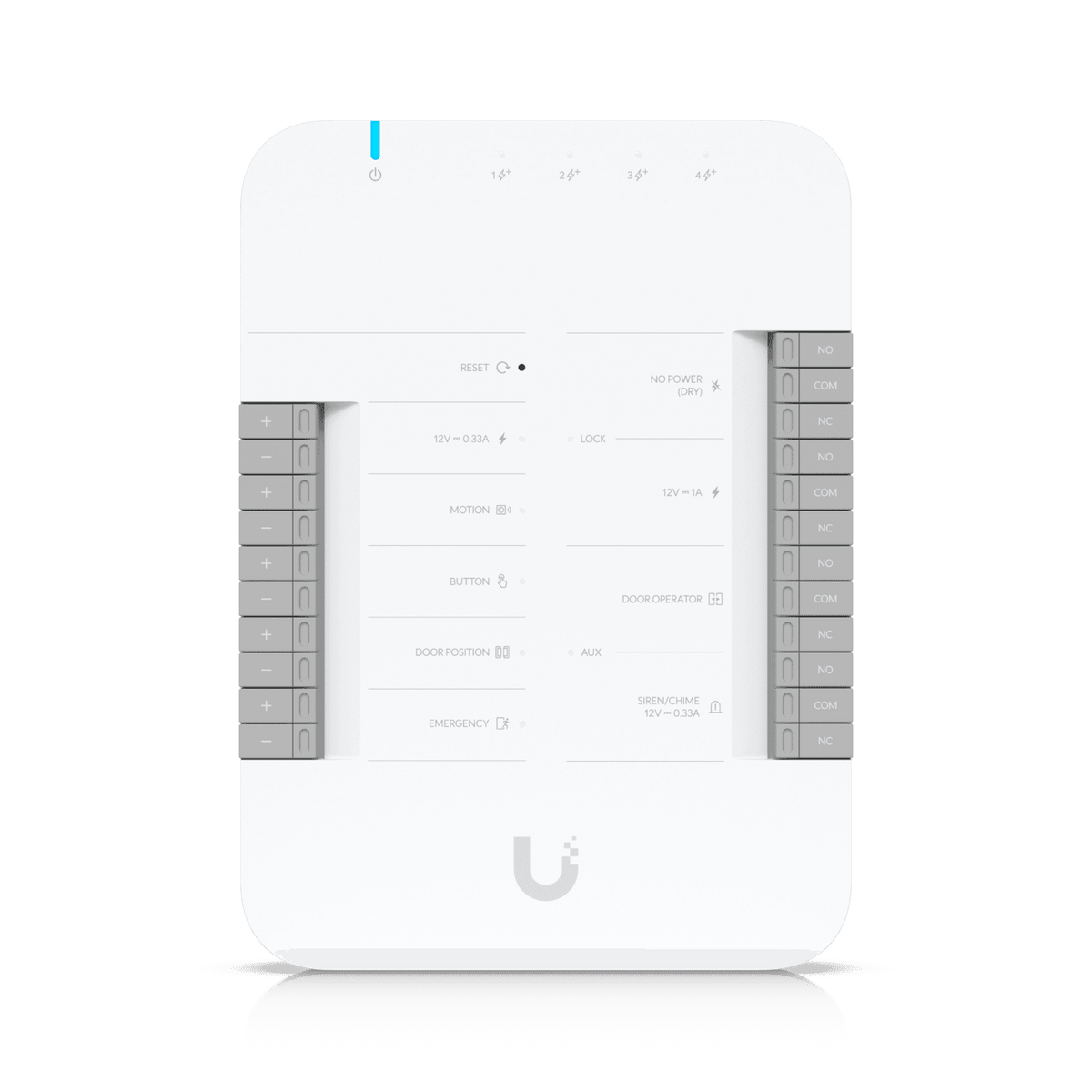

• Comprehensive Input Terminals: Outfitted with dedicated hardware screw terminals for two Request-to-Exit/Enter (REX/REN) sensors, one Door Position Sensor (DPS), and an emergency fire alarm override input.
• Enterprise Certification: Fully compliant with NDAA and UL 294 standard electrical and security regulations.

SPECIFICATIONS:

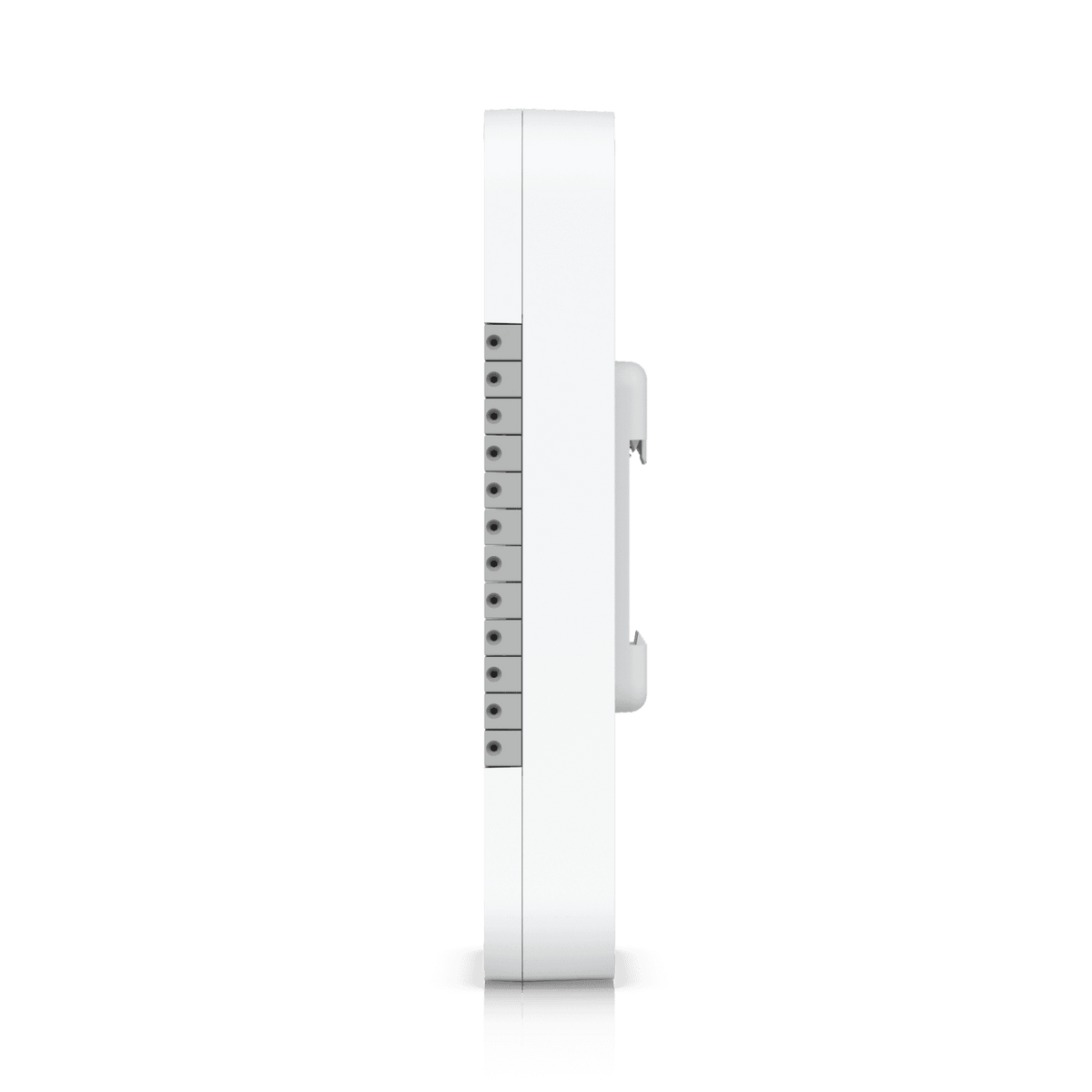

• Dimensions: 174.9 × 126 × 32.9 mm (6.9 × 5 × 1.3")
• Supported Doors: 1
• Maximum User Count: 6,000
• Input Terminals: 2 × Door exit request; 1 × Door position; 1 × Emergency
• Power Method: PoE++
• Power Supply: UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU
• NDAA Compliant: ✓
• UL 294 Level:
• Destructive attack: Level I
• Line security: Level I
• Endurance: Level I
• Standby power: Level I
• Weight: 363 g (12.8 oz)
• Enclosure Material: Polycarbonate
• Mount Material: Polycarbonate

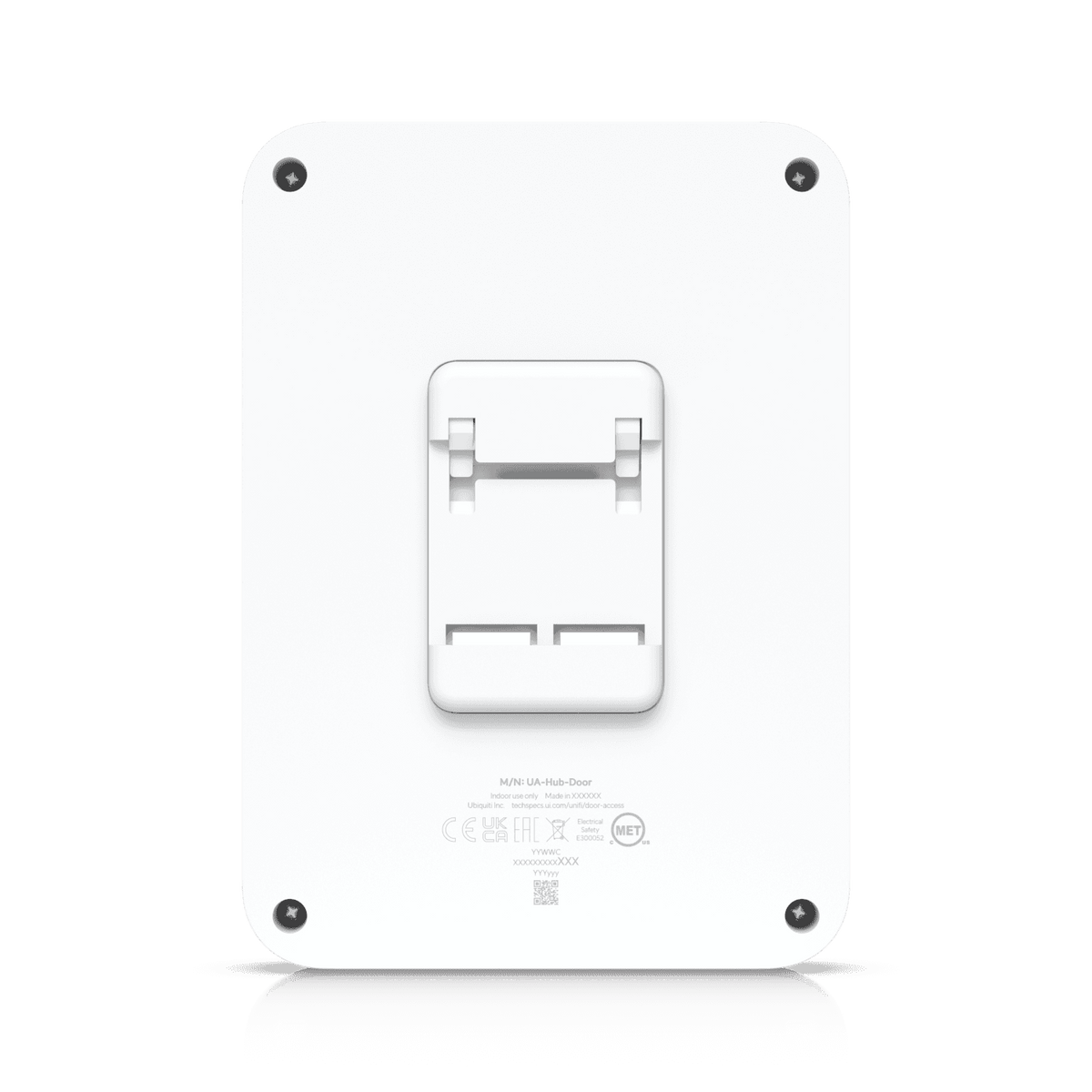

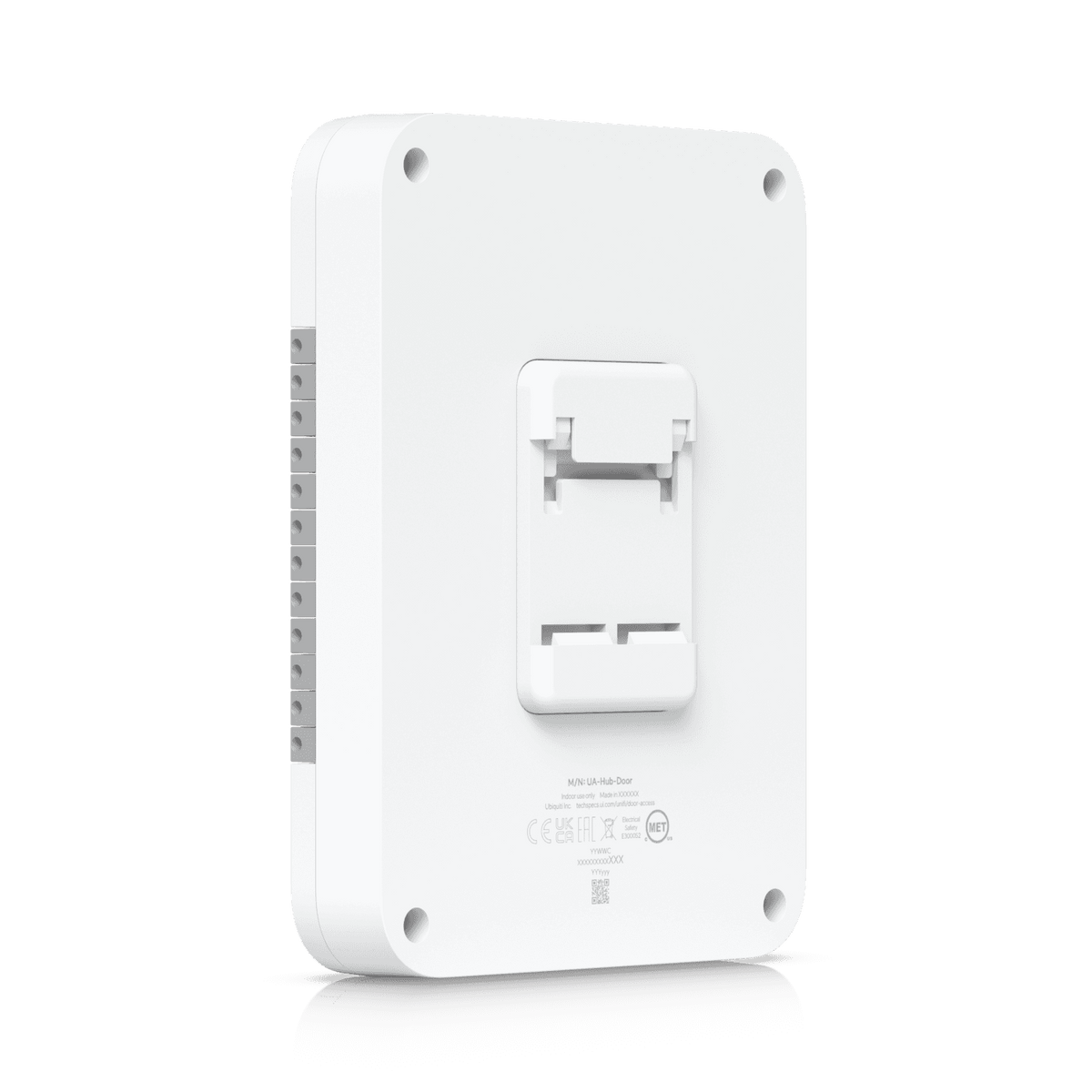

• Mounting: DIN-rail (included)
• Digital Input: Request to exit, request to enter, remote release, door position sensor
• Dry Output Relay:
• Lock: 30 V DC, 1 A
• Aux: 30 V DC, 1 A
• Powered Output Relay:
• Lock: 12 V DC, 1 A
• Aux: 12 V DC, 0.33 A
• 12 V DC, 0.33 A
• Indoor and Outdoor Use: Indoor only
• Ambient Operating Temperature: 0 to 40 °C (32 to 104 °F)
• Ambient Operating Humidity: 5–95% noncondensing

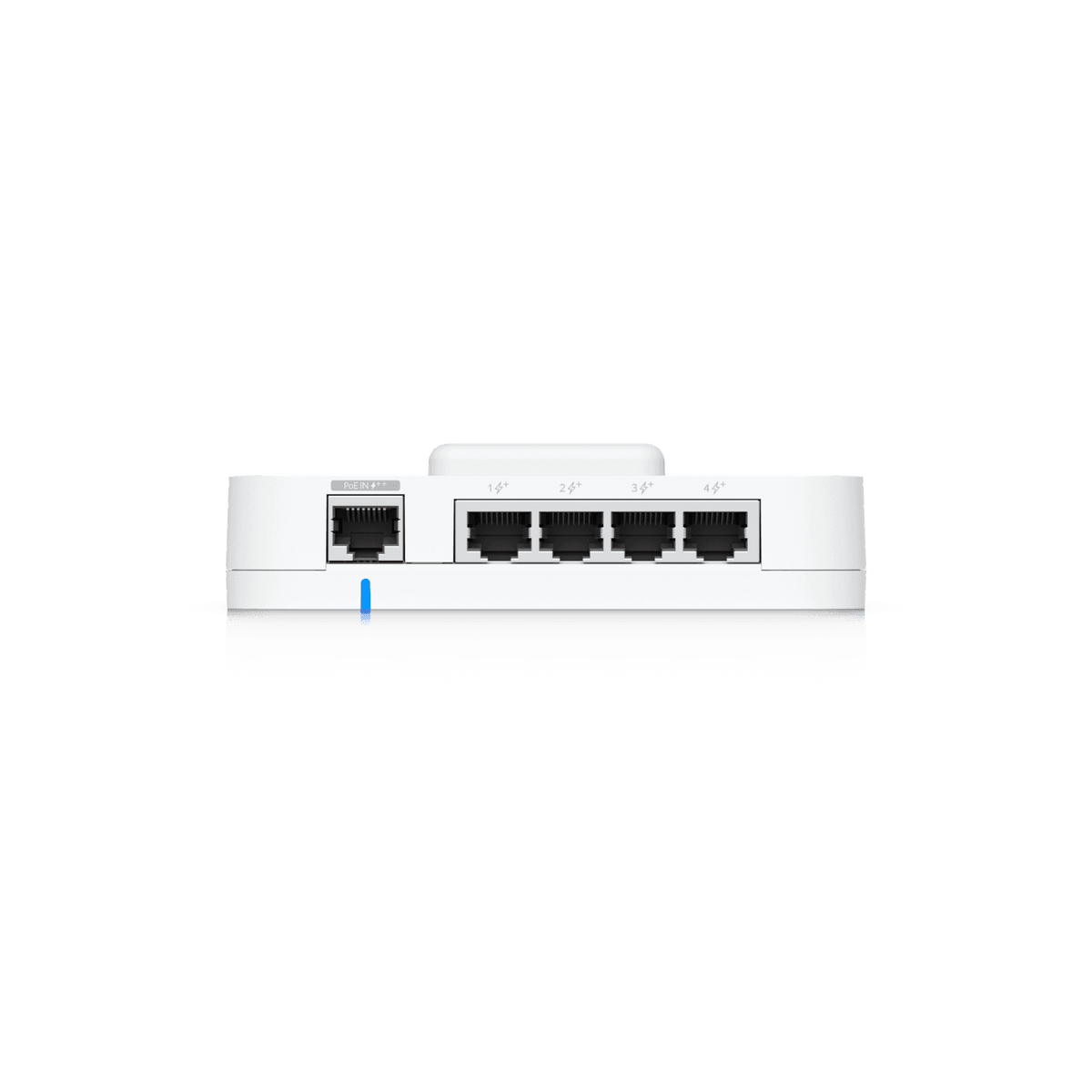

• Networking Interface: 5 × 10/100/1000 Base-T
• PoE Interface:
• 1 × PoE++ input, 50 V DC, 1 A
• 4 × PoE+ outputs, 50 V DC, 30 W per port
• Maximum 45 W aggregated
• Max. Power Consumption:
• 30 W without PoE output
• 50 W with PoE output
• LEDs: W/B
• Buttons: 1 × Factory reset
• Recommended Maximum Cable Length:
• UA-Lock-Electric (400 mA):
• 24 AWG: 25 m (82 ft)
• 22 AWG: 42 m (138 ft)
• 20 AWG: 66 m (217 ft)
• 18 AWG UACC-Cable-DoorLockRelay: 100 m (328 ft)
• UA-Lock-Magnetic-540kg (500 mA):
• 24 AWG: 20 m (66 ft)
• 22 AWG: 32 m (105 ft)
• 20 AWG: 51 m (167 ft)
• 18 AWG UACC-Cable-DoorLockRelay: 80 m (262 ft)
• UA-Lock-Magnetic-270kg (800 mA):
• 24 AWG: 12 m (39 ft)
• 22 AWG: 20 m (66 ft)
• 20 AWG: 30 m (98 ft)
• 18 AWG UACC-Cable-DoorLockRelay: 46 m (151 ft)
• Other locks (1 A):
• 24 AWG: 9 m (30 ft)
• 22 AWG: 15 m (49 ft)
• 20 AWG: 24 m (79 ft)
• 18 AWG UACC-Cable-DoorLockRelay: 36 m (118 ft)
• PoE Cabling Requirements:
• Cat 5e is the minimum recommended performance category
• Cable category should match the required transmission speed
• Minimum conductor gauge between PSE/power injector and PD:
• 26 AWG (0.13 mm²) for patch cords
• 24 AWG (0.21 mm²) for horizontal or riser cable
• UL 294 Statement: Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294
• Power Source Compliance: Intended to comply with NEC ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits
• CAN/ULC-60839-11-1 Grade: Grade 1
• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
• Document Number / Revision: UA-Hub-Door002, V01
• Management Application: Access

WHAT’S IN THE BOX:

• UniFi Access Door Hub unit x1
• DIN-rail mounting bracket x1
• Self-tapping installation screws and anchors x1
• Quick Start Guide x1
• Note: Requires an external PoE++ (802.3bt) network switch or power injector to run, which is sold separately.

WARRANTY:

• 12 Months
