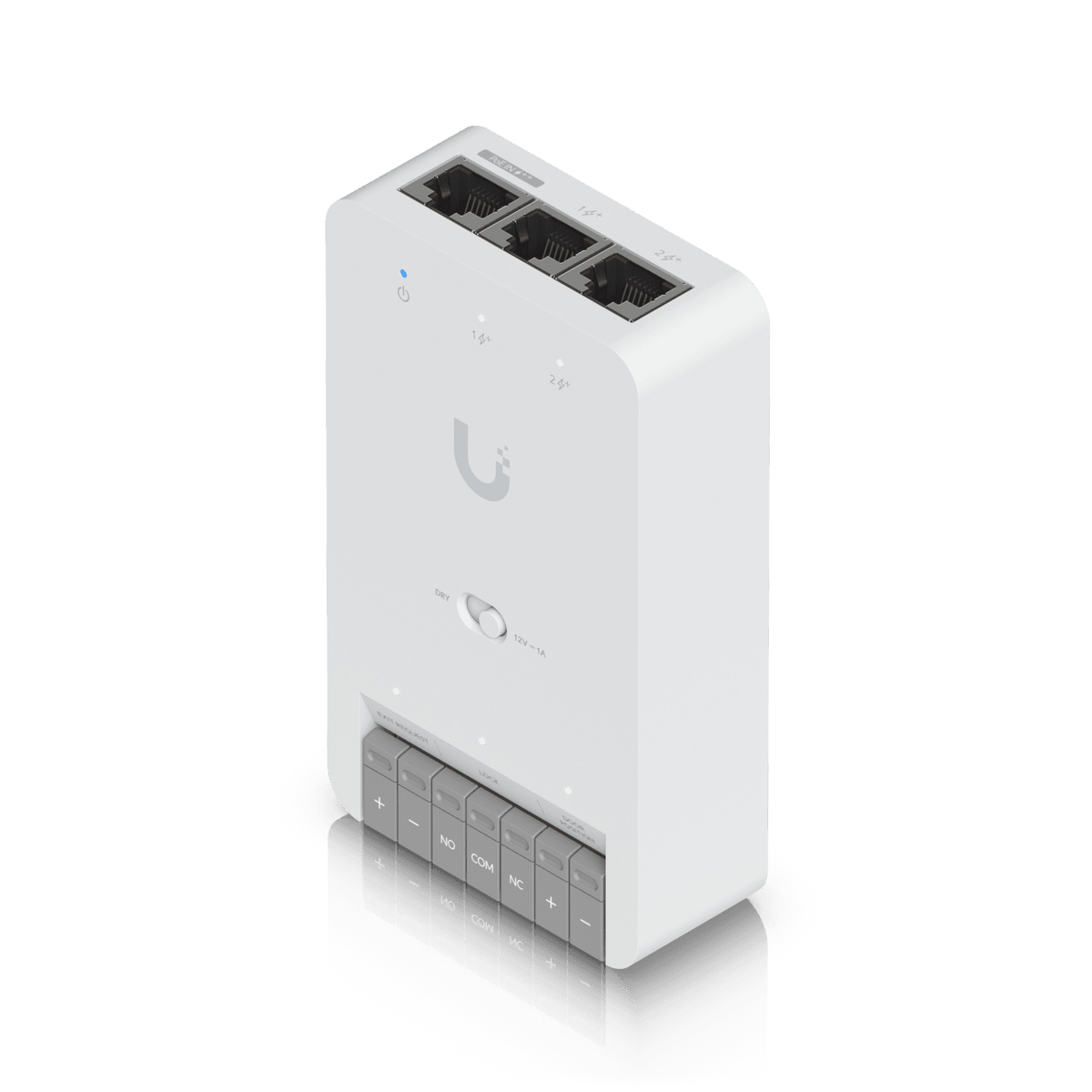

Ubiquiti UniFi Access Door Hub Mini 2x Input, 1x Relay

Ubiquiti's UA-Hub-Door-Mini is a compact, indoor, access control hub which provides access control for a single door. It features 1x 802.3at PoE input and 2x Gigabit Ethernet Ports with PoE out. The hub also has 2x input terminals (1x Door exit request, 1x door position) for simplified user exit, all of which can be unlocked using an NFC card or UniFi Identity Mobile App.

FEATURES:

• Compact Single-Door Control: Manages a single entryway and supports up to 3,000 unique users.
• 3x Gigabit Ethernet Ports: Features one 802.3bt PoE++ input port to power the system, and two PoE passthrough output ports for access readers or security cameras.
• Flexible 12V Relay: Includes a single lock control loop that can toggle between Wet mode (supplying 12V DC, 1A directly to a lock) or Dry mode (for externally powered locks/gates).

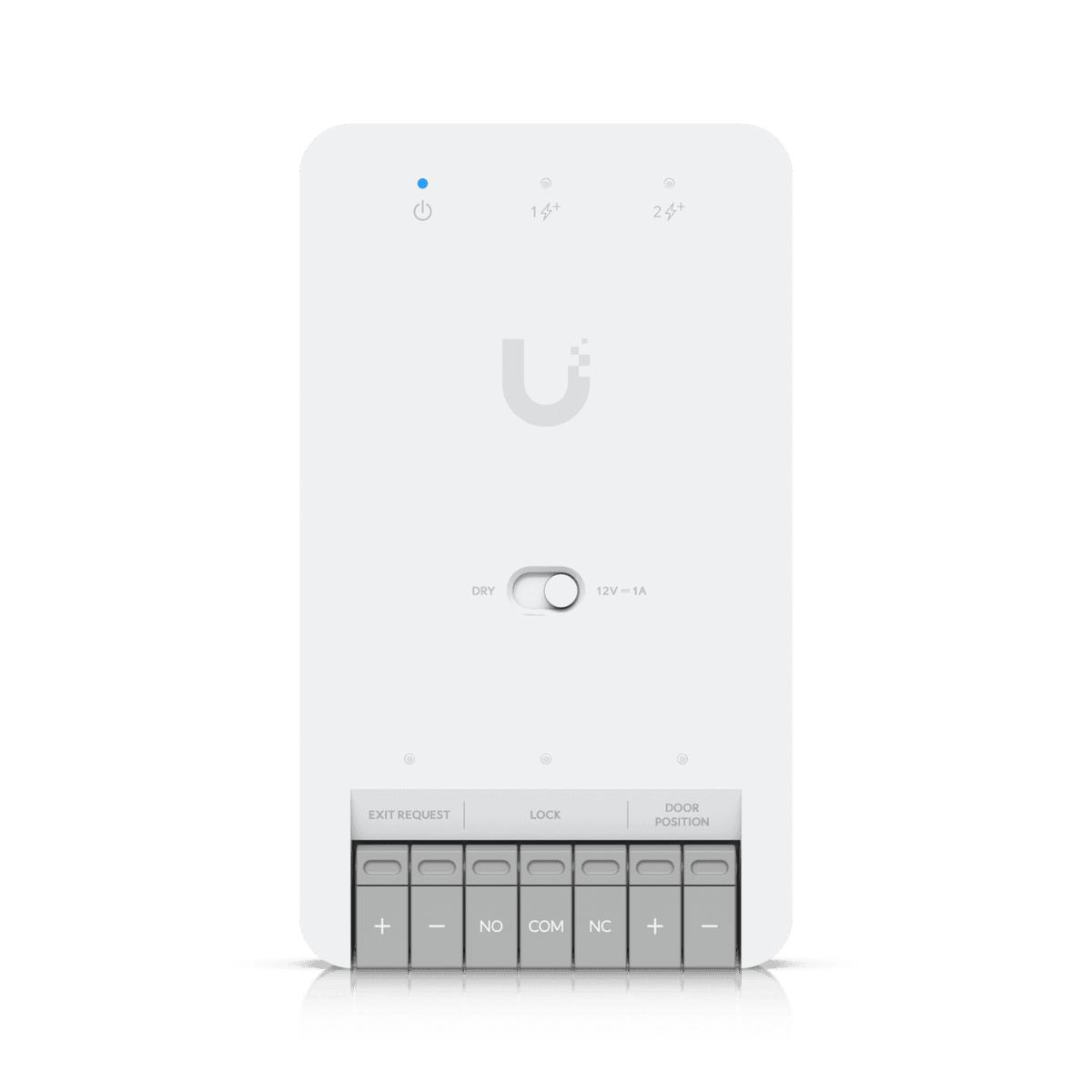

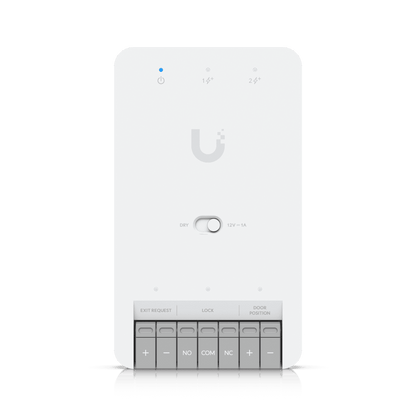

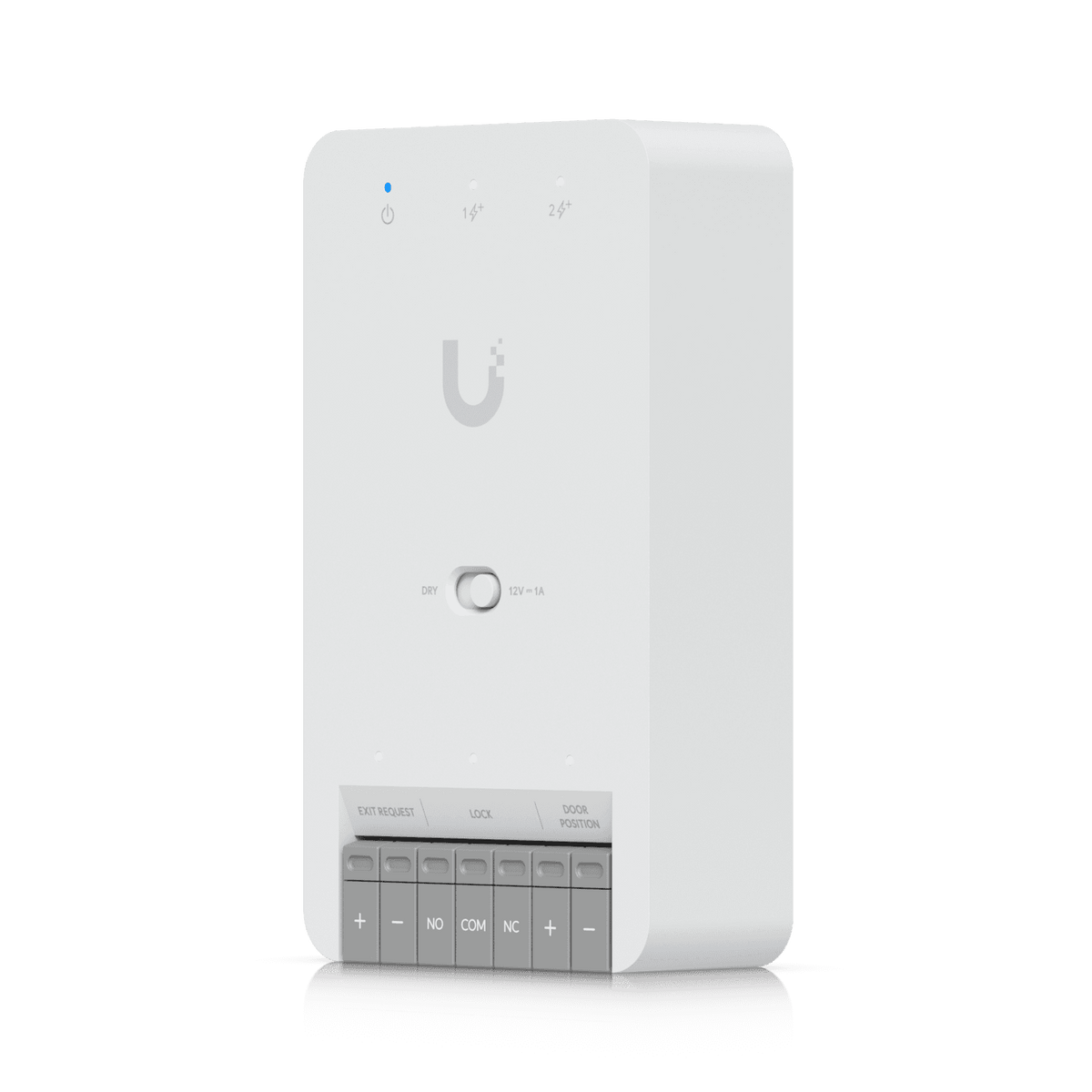

• Auxiliary Input Terminals: Outfitted with dedicated hardware terminals to connect one Door Position Sensor and one Request-to-Exit (REX) button or motion sensor.
• Micro Form Factor: Measures only 113 x 66 x 27.6 mm and weighs 190 grams, making it easy to hide inside small structural cavities or tight enclosures.

SPECIFICATIONS:

• Dimensions: 113 × 66 × 27.6 mm (4.4 × 2.6 × 1.1")
• Supported Doors: 1
• Maximum User Count: 3,000
• Input Terminals: 1 × Door exit request; 1 × Door position
• Power Method: PoE++
• Power Supply: UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU
• NDAA Compliant: ✓
• UL 294 Level:
  • Destructive attack: Level I
  • Line security: Level I
  • Endurance: Level I
  • Standby power: Level I
• Weight: 190 g (6.7 oz)
• Enclosure Material: Polycarbonate, metal

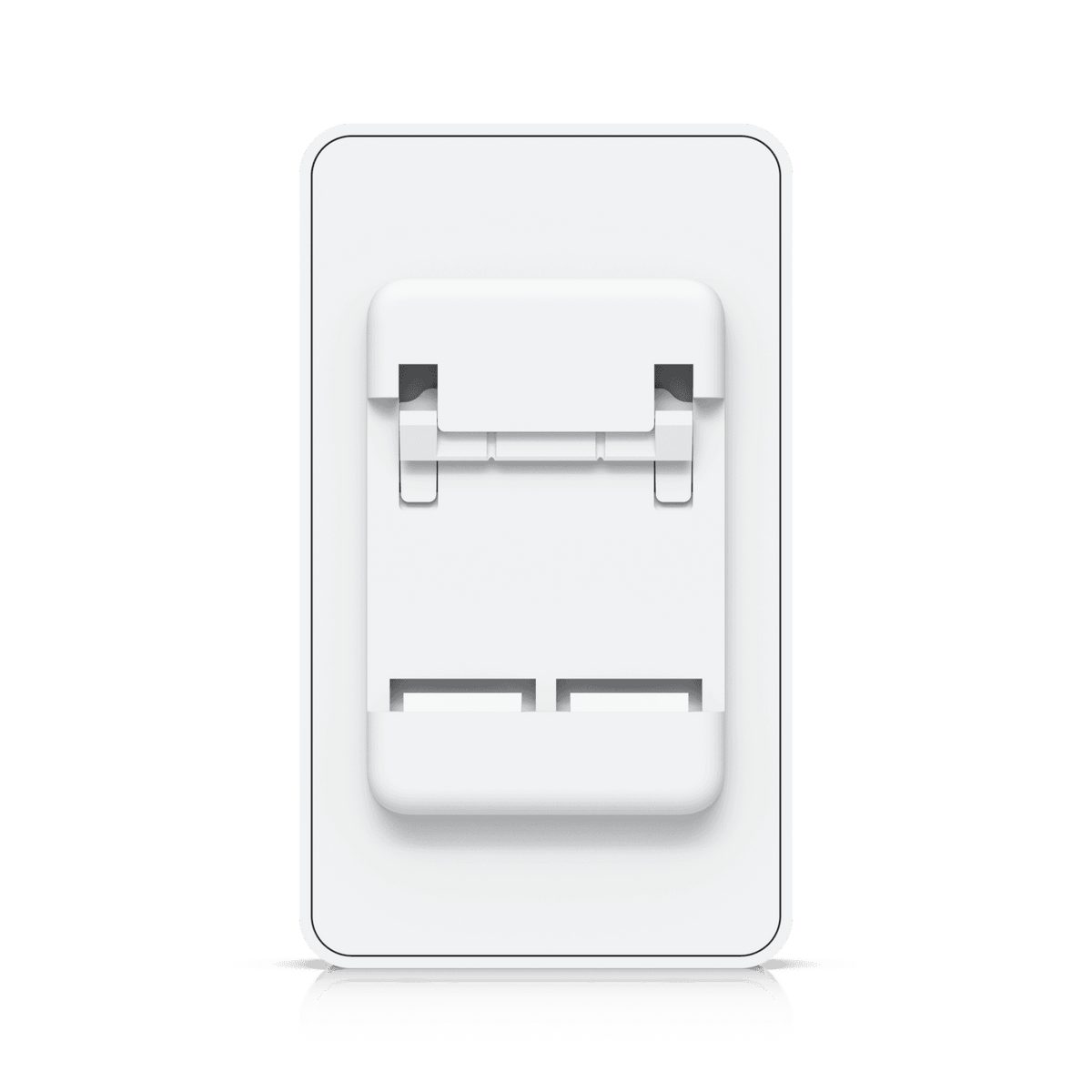

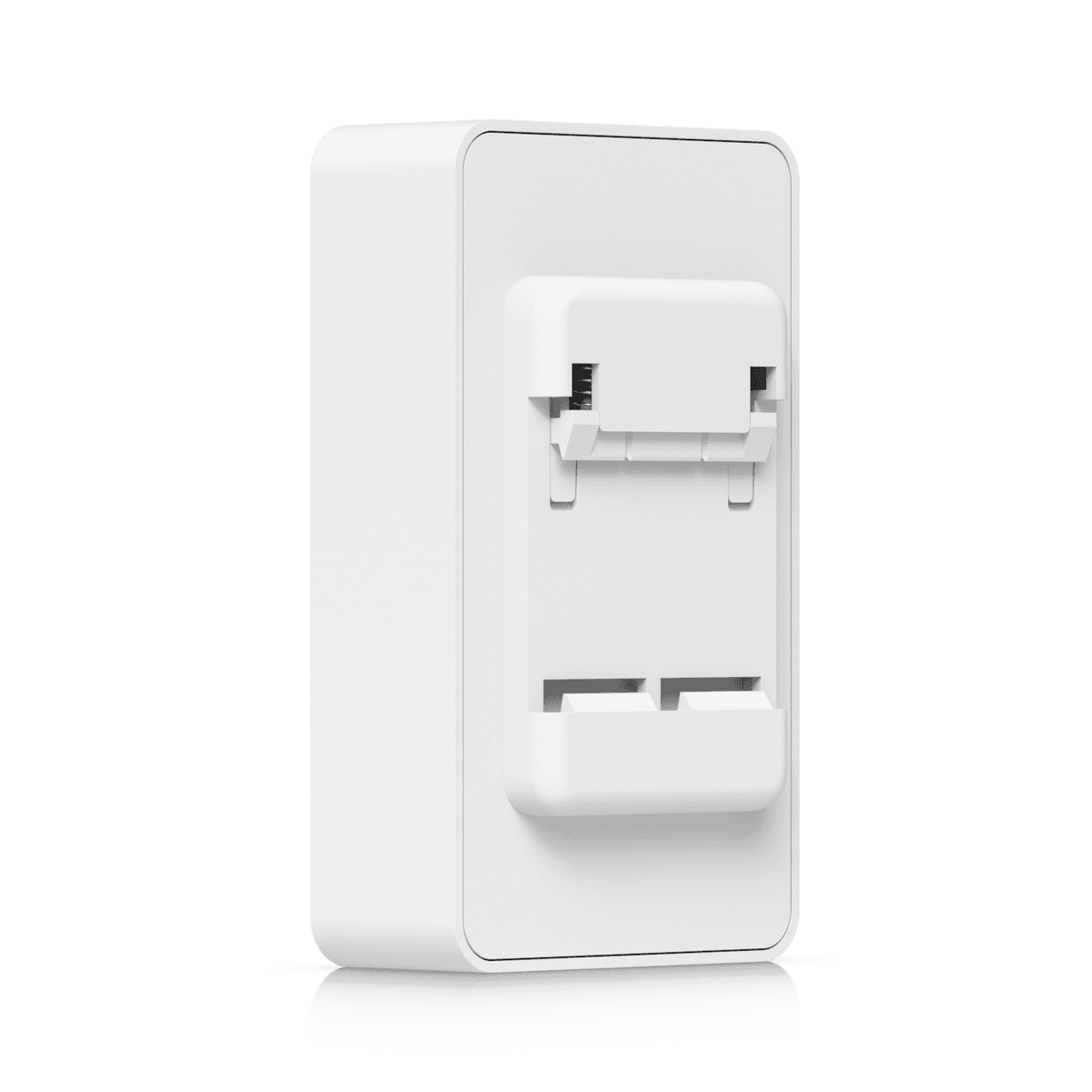

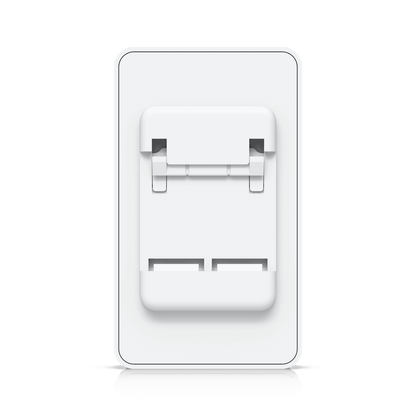

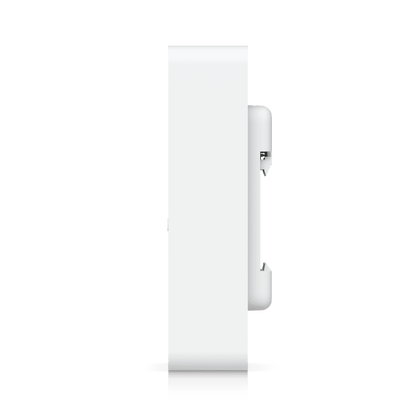

• Mounting: DIN-rail (included)
• Dry Output Relay: 30 V DC, 1 A
• Wet Output Relay: 12 V DC, 1 A
• Indoor and Outdoor Use: Indoor only
• Ambient Operating Temperature: 0 to 40 °C (32 to 104 °F)
• Ambient Operating Humidity: 5–90% noncondensing

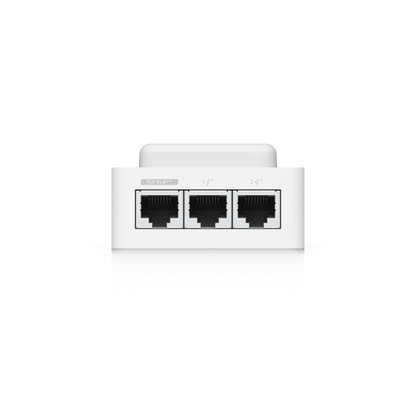

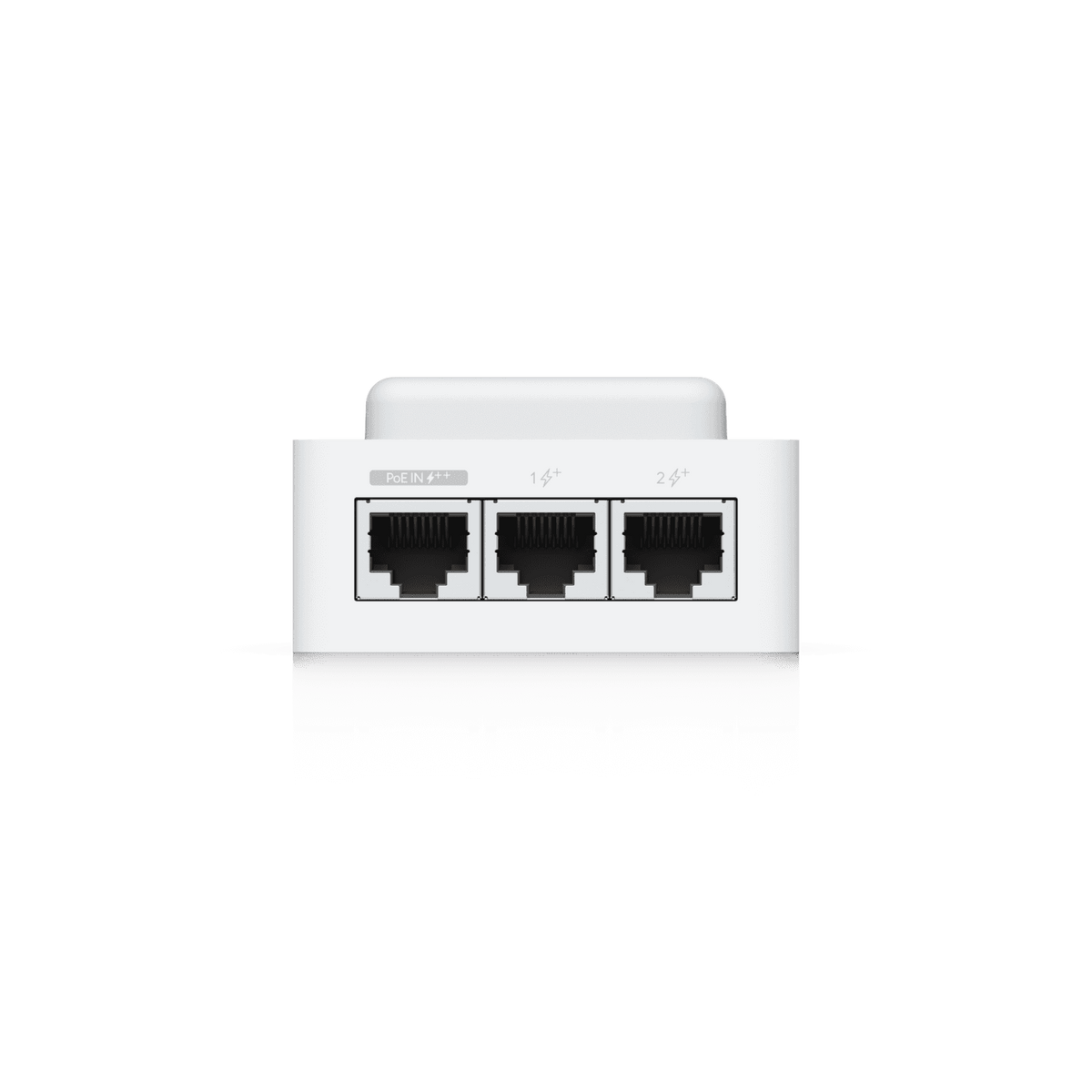

• Networking Interface: 3 × GbE RJ45 ports
• PoE Interface: 1 × PoE++ input, 50 V DC, 1 A; 2 × PoE+ outputs, 50 V DC, 30 W per port (45 W maximum aggregated)
• Max. Power Consumption: 19 W without PoE output; 50 W with PoE output
• LEDs: W/B

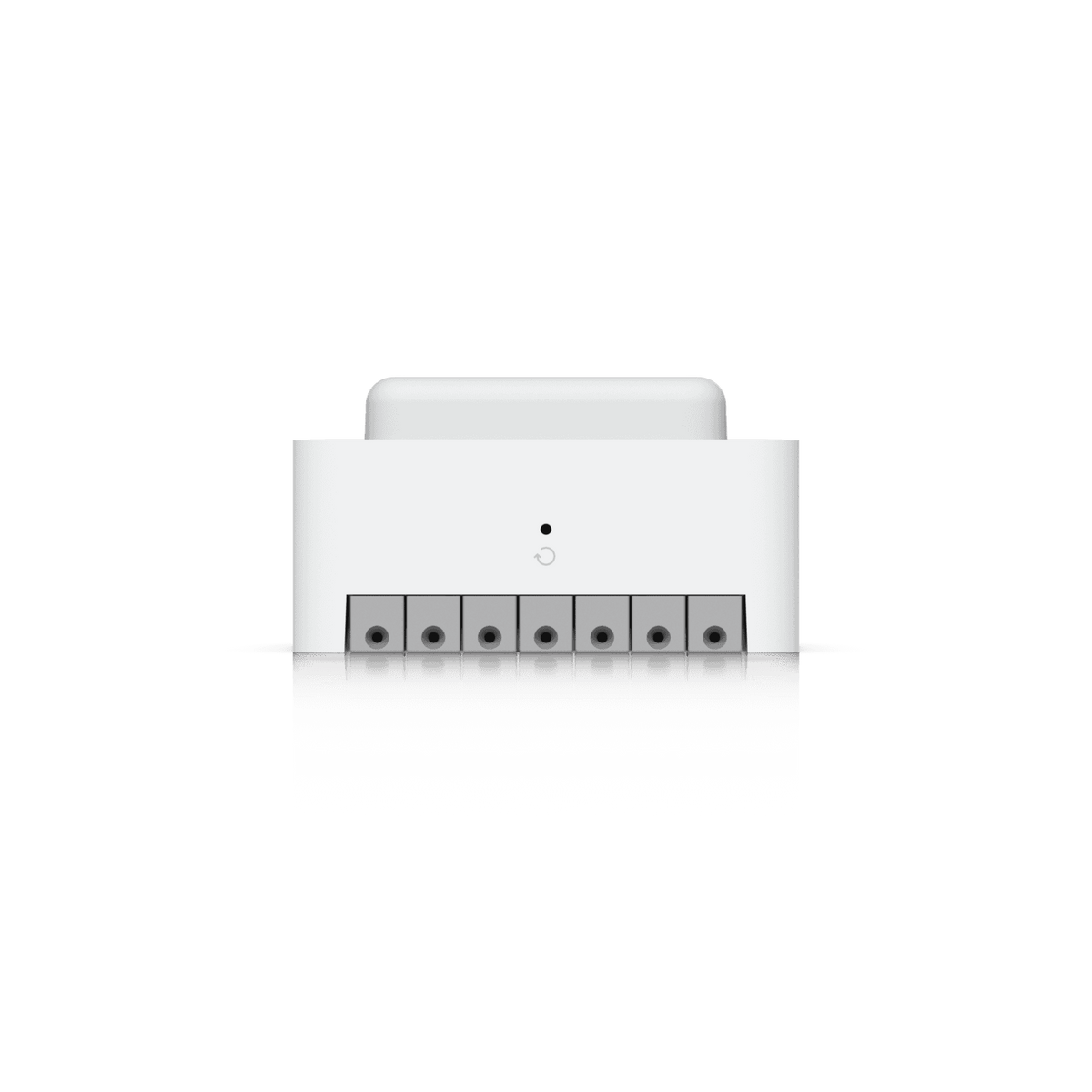

• Buttons: 1 × Factory reset; 1 × Dry/Wet switch
• Recommended Maximum Cable Length:
• UA-Lock-Electric (400 mA):
• 24 AWG: 25 m (82 ft)
• 22 AWG: 42 m (138 ft)
• 20 AWG: 66 m (217 ft)
• 18 AWG UACC-Cable-DoorLockRelay: 100 m (328 ft)
• UA-Lock-Magnetic-540kg (500 mA):
• 24 AWG: 12 m (39 ft)
• 22 AWG: 20 m (66 ft)
• 20 AWG: 30 m (98 ft)
• 18 AWG UACC-Cable-DoorLockRelay: 46 m (151 ft)
• UA-Lock-Magnetic-270kg (800 mA):
• 24 AWG: 12 m (39 ft)
• 22 AWG: 20 m (66 ft)
• 20 AWG: 30 m (98 ft)
• 18 AWG UACC-Cable-DoorLockRelay: 46 m (151 ft)
• Other locks (1 A):
• 24 AWG: 9 m (30 ft)
• 22 AWG: 15 m (49 ft)
• 20 AWG: 24 m (79 ft)
• 18 AWG UACC-Cable-DoorLockRelay: 36 m (118 ft)
• PoE Cabling Requirements:
• Cat 5e cabling is the minimum recommended performance category
• Cable category should match the transmission speed required at the installation site
• Minimum conductor gauge between the PSE/power injector and PD:
• 26 AWG (0.13 mm²) for patch cords
• 24 AWG (0.21 mm²) for horizontal or riser cable
• UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294
• Power Source Compliance: Intended to comply with NEC ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits
• CAN/ULC-60839-11-1 Grade: Grade I
• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
• Document Number / Revision: UA-Hub-Door-Mini, V01
• Management Application: Access

WHAT’S IN THE BOX:

• Access Door Hub Mini unit x1
• Pre-attached DIN-rail mounting bracket (for quick clipping into place) x1
• Installation hardware kit (screws and anchors for wall mounting) x1
• Conformity and quick-start guide x1

WARRANTY:

• 12 Months
