Ubiquiti UniFi Access G3 Starter Kit Pro with Hub & 2x Readers

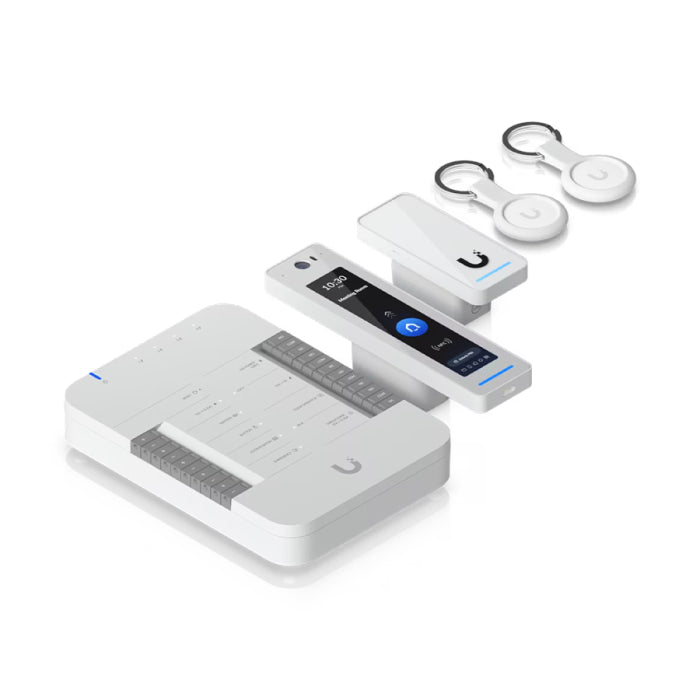

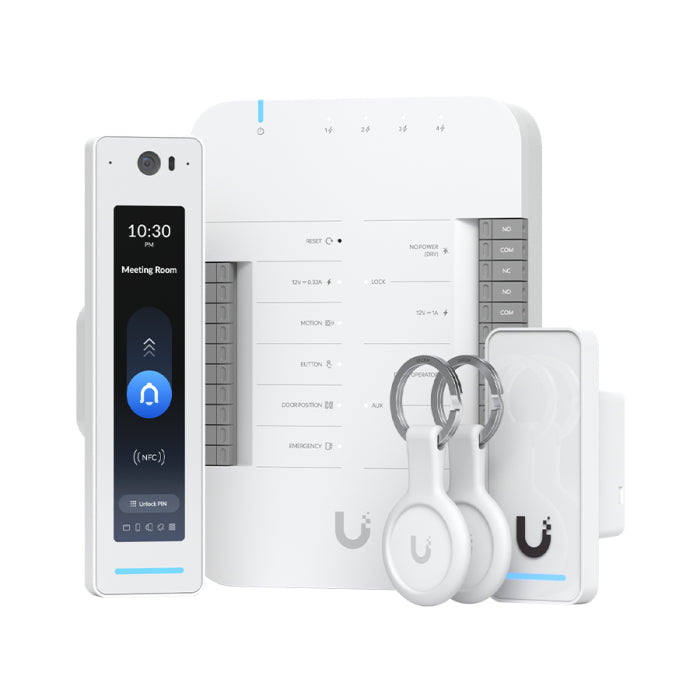

Ubiquiti's UA-G3-SK-Pro starter kit includes a Door Hub, an IP55 G3 Reader Pro with integrated camera, an IP55 G3 Reader, and 2x Pocket Keyfobs. This starter kit provides complete entry and exit control for a single door and includes Touch Pass support, for which users will receive 10 free Touch Passes in the first year; thereafter, passes are billed annually per user. The kit can be configured and managed with the UniFi Access Application.

FEATURES:

• Complete Single-Door Topology: Orchestrates full bidirectional tracking by utilizing the G3 Reader Pro for inbound traffic and the touchless standard G3 Reader for outbound tracking.
• Biometric Face Unlock & Intercom: The G3 Reader Pro features an integrated 2MP portrait camera that supports Face ID/Face Unlock alongside real-time two-way audio video calls to network admins.
• Dynamic 4.7-inch Touch Display: Includes an interactive screen on the exterior Pro model that operates as a visual visitor doorbell and displays randomized digital security PIN pads.
• Diverse Authentication Protocol: Seamlessly reads Apple Wallet and Google Wallet Touch Pass (even if the smartphone battery has died), physical NFC keyfobs, temporary guest QR codes, or BLE-proximity mobile app unlocks.

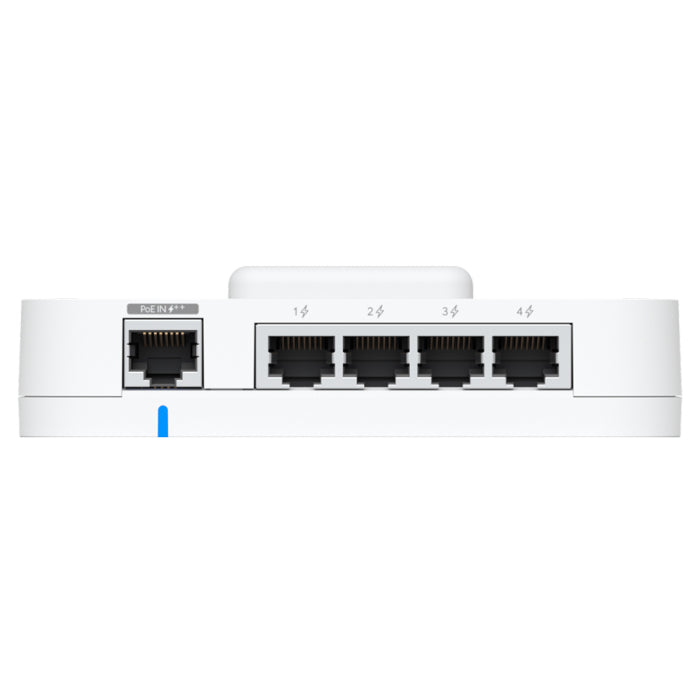

• PoE++ Power Infrastructure: The central Door Hub utilizes a high-power PoE++ (802.3bt) input to simultaneously drive internal circuitry and output power via 4 downstream PoE ports to its linked readers and lock relays.
• Robust Alarm & Sensor Integration: Built-in terminals on the hub effortlessly wire directly to external auxiliary security mechanisms like door position sensors, motion detectors, emergency fire alarms, and manual push-to-exit buttons.
• Weatherproof & Scalable Enclosures: Both access readers are rated IP55 for indoor or covered exterior environments, supporting a platform capable of handling up to 6,000 distinct users.

SPECIFICATIONS:

• Door Hub:
• Dimensions: 174.9 × 126 × 32.9 mm (6.9 × 5 × 1.3")
• Supported Doors: 1
• Maximum User Count: 6,000
• Input Terminals: 2 × Door exit request; 1 × Door position; 1 × Emergency
• Power Method: PoE++
• Power Supply: UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU
• Weight: 363 g (12.8 oz)
• Enclosure Material: Polycarbonate
• Mount Material: Polycarbonate
• Mounting: DIN-rail (included)
• Networking Interface: 5 × 10/100/1000 Base-T
• PoE Interface: 1 × PoE++ input, 50 V DC, 1 A; 4 × PoE outputs, 50 V DC, 30 W per port (45 W maximum aggregated)
• Max. Power Consumption: 30 W without PoE output; 50 W with PoE output
• Digital Input: Request to exit, request to enter, remote release, door position sensor
• Dry Output Relay:
  • Lock: 30 V DC, 1 A
  • Aux: 30 V DC, 1 A
• Powered Output Relay:
  • Lock: 12 V DC, 1 A
  • Aux: 12 V DC, 0.33 A
  • 12 V DC, 0.33 A
• LEDs: B/W
• Button: 1 × Factory reset
• Recommended Maximum Cable Length:
• UA-Lock-Electric (400 mA):
• 24 AWG: 25 m (82 ft)
• 22 AWG: 42 m (138 ft)
• 20 AWG: 66 m (217 ft)
• 18 AWG UACC-Cable-DoorLockRelay: 100 m (328 ft)
• UA-Lock-Magnetic-540kg (500 mA):
• 24 AWG: 20 m (66 ft)
• 22 AWG: 32 m (105 ft)
• 20 AWG: 51 m (167 ft)
• 18 AWG UACC-Cable-DoorLockRelay: 80 m (262 ft)
• UA-Lock-Magnetic-270kg (800 mA):
• 24 AWG: 12 m (39 ft)
• 22 AWG: 20 m (66 ft)
• 20 AWG: 30 m (98 ft)
• 18 AWG UACC-Cable-DoorLockRelay: 46 m (151 ft)
• Other locks (1 A):
• 24 AWG: 9 m (30 ft)
• 22 AWG: 15 m (49 ft)
• 20 AWG: 24 m (79 ft)
• 18 AWG UACC-Cable-DoorLockRelay: 36 m (118 ft)
• PoE Cabling Requirements:
  • Cat 5e is the minimum recommended performance category
  • Cable category should match the transmission speed required at the installation site
  • Minimum conductor gauge between PSE/power injector and PD:
  • 26 AWG (0.13 mm²) for patch cords
  • 24 AWG (0.21 mm²) for horizontal or riser cable
• UL 294 Level
• Destructive attack: Level I
• Line security: Level I
• Endurance: Level I
• Standby power: Level I
• UL 294 Statement: Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294
• Power Source Compliance: Intended to comply with NEC ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits
• CAN/ULC-60839-11-1 Grade: Grade 1
• Ambient Operating Temperature: 0 to 40 °C (32 to 104 °F)
• Ambient Operating Humidity: 5–95% noncondensing
• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
• Management Application: UniFi Access
• Software Information: The software version can be checked at https://unifi.ui.com
• Document Number / Revision: UA-Hub-Door002, V01
• G3 Reader Pro:
• Dimensions: 160 × 40.4 × 40.55 mm (6.3 × 1.59 × 1.6")
• Integrated Camera: ✓
• NFC Card & Keyfob Access: ✓
• PIN Access: ✓
• Apple/Google Wallet: ✓
• Mobile Unlock: ✓
• Face Unlock: ✓
• Two-Way Intercom & Doorbell Access: ✓
• Weatherproofing: IP55
• Weight: 136 g (4.8 oz)
• Enclosure Material: Polycarbonate, glass
• Mount Material: Aluminum alloy
• Mounting: Wall, gang-box mount (included); Angle mount, junction box (optional)
• Indoor and Outdoor Use: ✓
• Networking Interface: 1 × GbE RJ45 port
• Connectivity: BLE 4.2, NFC
• Power Method: PoE
• Power Supply: UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU
• Max. Power Consumption: 6 W
• Supported Voltage Range: 48 V DC
• ESD/EMP Protection: Air: ±15 kV; Contact: ±8 kV
• Video
• Max. Frame Rate: 30 FPS
• Resolution: 2 MP, 1200 × 1600 (3:4)
• Optics
• Resolution: 12 MP (3072 × 4096)
• Field of View: H 98.6°, V 125.7°, D 157.8°
• Sensors: Proximity sensor
• Display
• Size: 120 mm (4.7") diagonal
• Screen Technology: Capacitive touch
• Luminance: 480 nits (typical)
• Screen Orientation: Portrait
• Resolution: 1280 × 286 px
• Microphone: ✓
• Speaker: 1 × 1.5 W
• LEDs: R/G/B/W/Amber
• Button: 1 × Factory reset
• NFC Frequency: 13.56 MHz
• NFC Read Range: <30 mm (1.18")
• NFC Technology
• ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
• MIFARE Classic / MIFARE DESFIRE
• Sony FeliCa™ (ID only)
• NFC Forum tags T1T, T2T, T3T, T4T and T5T
• ECP 2.0
• PoE Cabling Requirements
• Cat 5e is the minimum recommended performance category
• Cable category should match the transmission speed required at the installation site
• Minimum conductor gauge between PSE/power injector and PD:
• 26 AWG (0.13 mm²) for patch cords
• 24 AWG (0.21 mm²) for horizontal or riser cable
• Ambient Operating Humidity: 5–90% noncondensing
• UL 294 Level
• Destructive attack: Level I
• Line security: Level I
• Endurance: Level I
• Standby power: Level I
• UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294
• Power Source Compliance: Intended to comply with NEC ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits
• CAN/ULC-60839-11-1 Grade: Grade I
• Ambient Operating Temperature
• Device: -30 to 45 °C (-22 to 113 °F)
• Display: -10 to 45 °C (14 to 113 °F)
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
• Document Number / Revision: UA-G3-Pro-W/UA-G3-Pro-B, V01
• Management Application: UniFi Access
• Software Information: The software version can be checked at https://unifi.ui.com

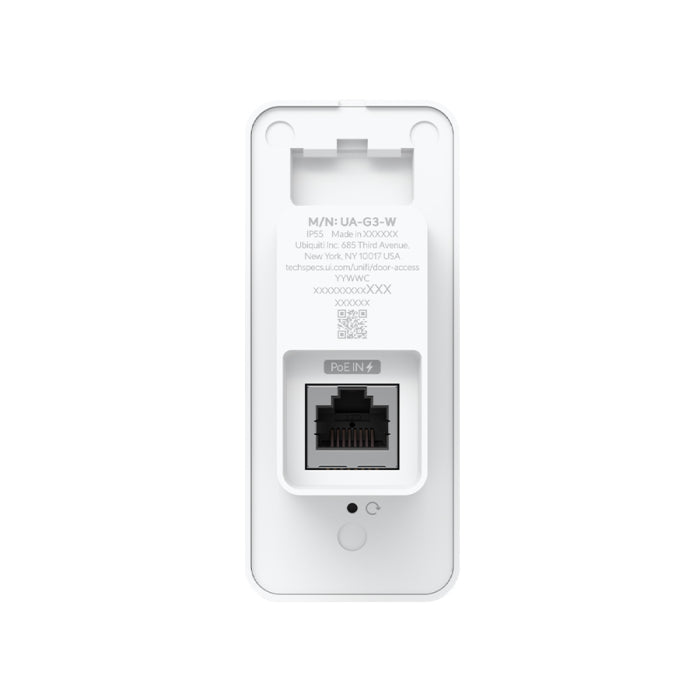

• G3 Reader
• Dimensions: 93 × 40 × 36.5 mm (3.7 × 1.6 × 1.4")
• NFC Card & Keyfob Access: ✓
• Apple/Google Wallet: ✓
• Mobile Unlock: ✓
• Handwave Request to Exit: ✓
• Weatherproofing: IP55
• Weight: 82 g (2.9 oz)
• Enclosure Material: Polycarbonate, glass
• Mount Material: Aluminum alloy
• Mounting: In-wall, gang box (included); Junction box (optional)
• Indoor and Outdoor Use: ✓
• Networking Interface: 1 × 10/100 MbE RJ45 port
• Connectivity: BLE 4.1, NFC
• Power Method: PoE
• Power Supply: UL 294 Power-limited Class 2

WHAT’S IN THE BOX:

• Door Hub x1
• G3 Reader Pro x1
• G3 Reader x1
• Pocket Keyfobs x1
• Touch Pass: 10 free 1-year Touch Passes included

WARRANTY:

• 12 Months
