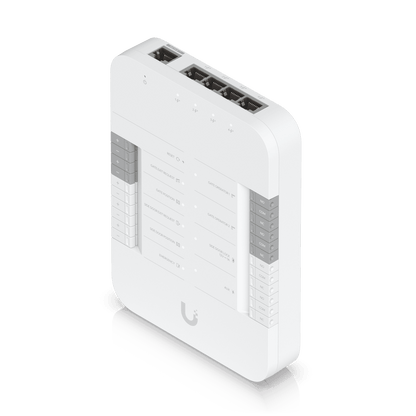

Ubiquiti UniFi Access Gate Hub 5x Input, 4x Relay

Ubiquiti's UA-Hub-Gate is a compact, indoor, access control hub which provides access control for a single gate. It features 1x 802.3at PoE input and 4x Gigabit Ethernet Ports with PoE out. The hub also has 5x input terminals (1x Gate exit request, 1x Gate position, 1x Side door exit request, 1x Side door position 1x Emergency), all of which can be unlocked using an NFC card, UniFi Identity Endpoint Mobile App, or Licence Plate Recognition if paired with a UniFi Protect AI Camera.

FEATURES:

• Dual Vehicle & Pedestrian Control: Manages one automated main gate (sliding, swinging, or roll-up garage) and one side door on a single hub.
• Smart LPR Integration: Works with UniFi Protect AI cameras to automatically trigger gate openings using authorized vehicle license plate numbers.
• Isolated Gate Operator Relays: Includes two 30V DC (1A) Dry Relays to send safe open and close commands directly to third-party motorized gate loops.
• Powered Side Door Relay: Outfitted with a 12V DC (1A) Wet Relay to power a companion pedestrian gate's magnetic lock or electric strike directly.

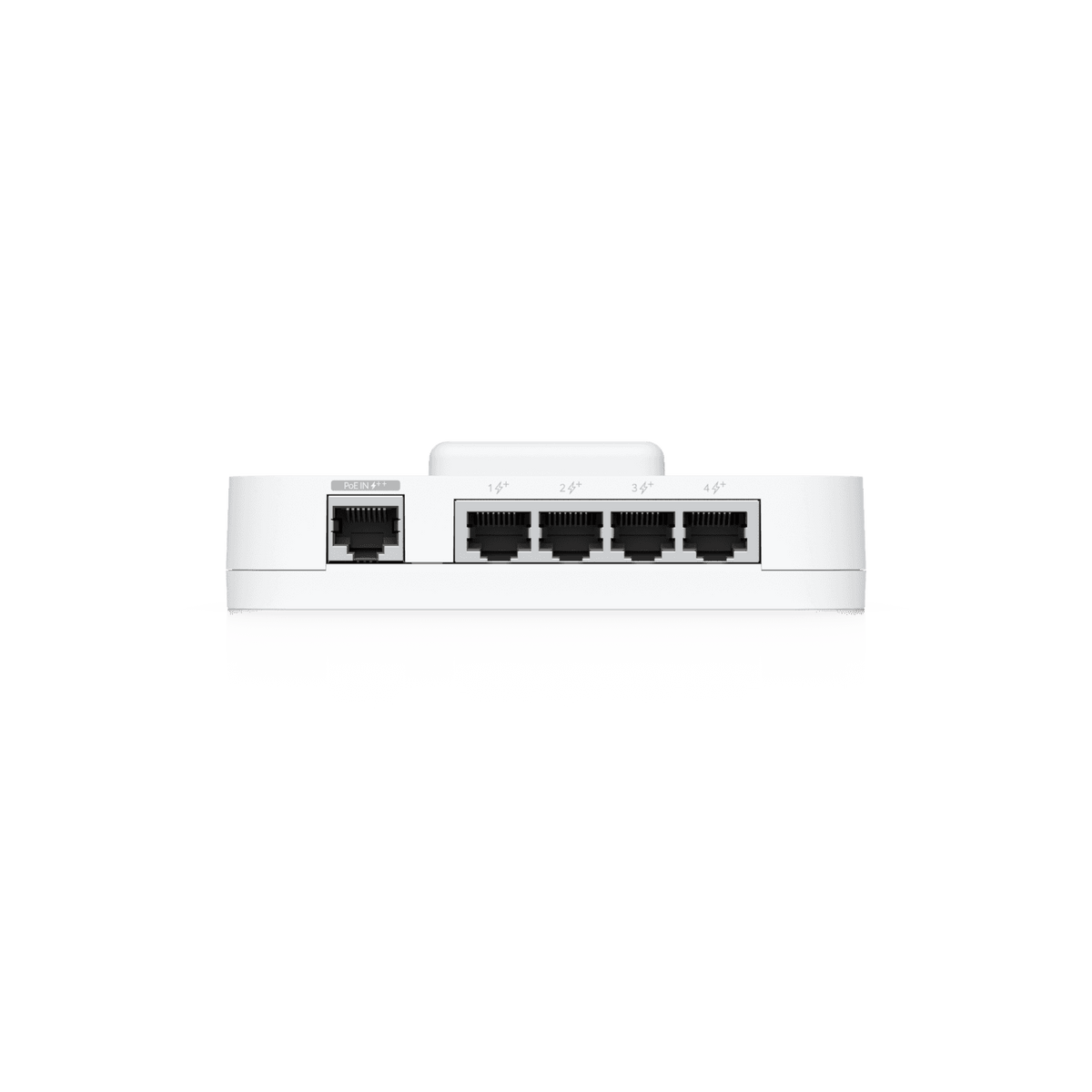

• 5-Port Gigabit Switch: Features one 802.3bt PoE++ input port to power the system, and four downstream PoE+ output ports for access readers, intercoms, or security cameras.
• Advanced Monitoring Inputs: Equipped with hardware terminals for two Request-to-Exit (REX) triggers, two separate position sensors (gate and door status), and an emergency fire override.
• High Scalability: Reliably handles granular credential access rules for up to 6,000 unique users.

SPECIFICATIONS:

• Dimensions: 175 × 126 × 26 mm (6.9 × 5 × 1")
• Supported Doors: 1 gate, 1 side door
• Maximum User Count: 6,000

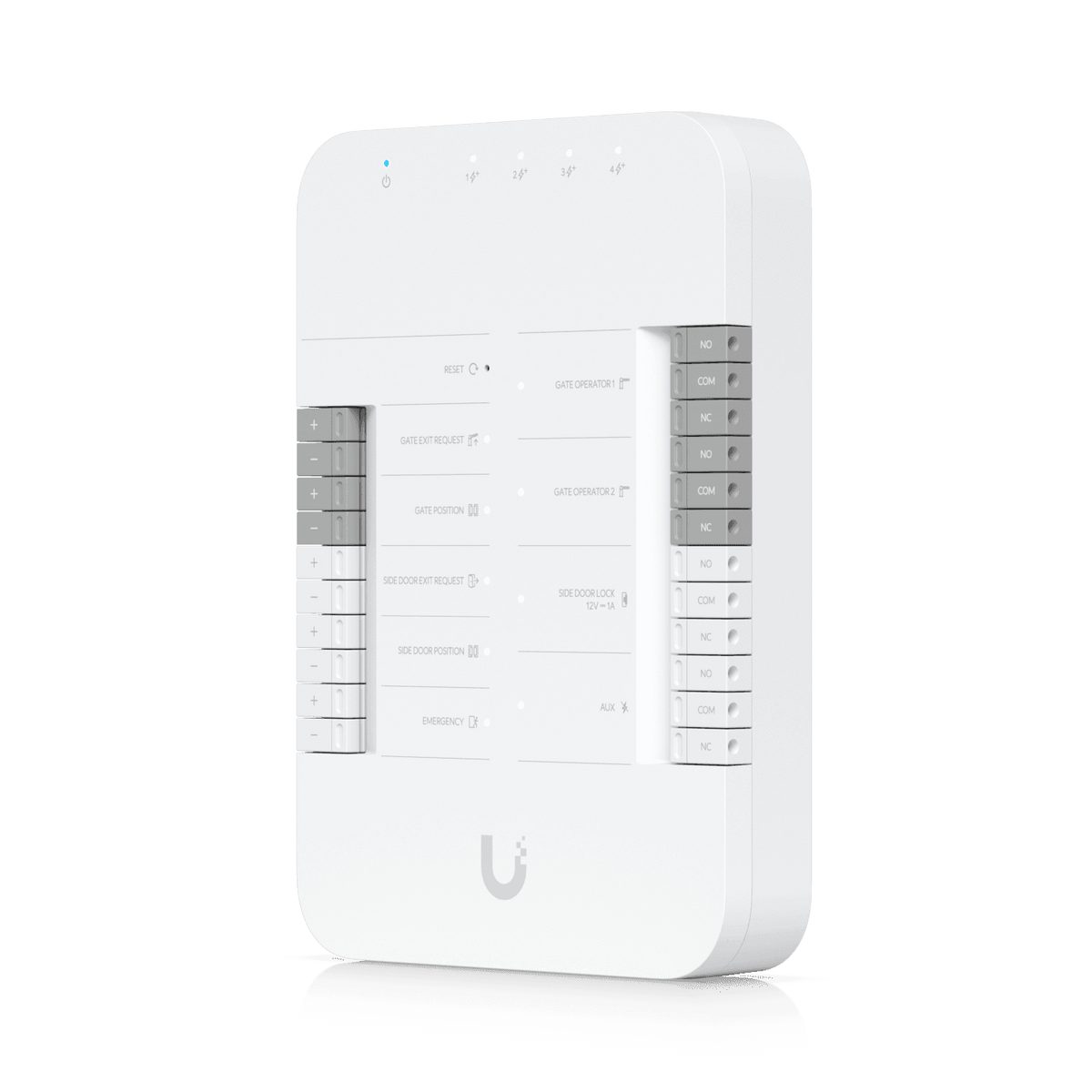

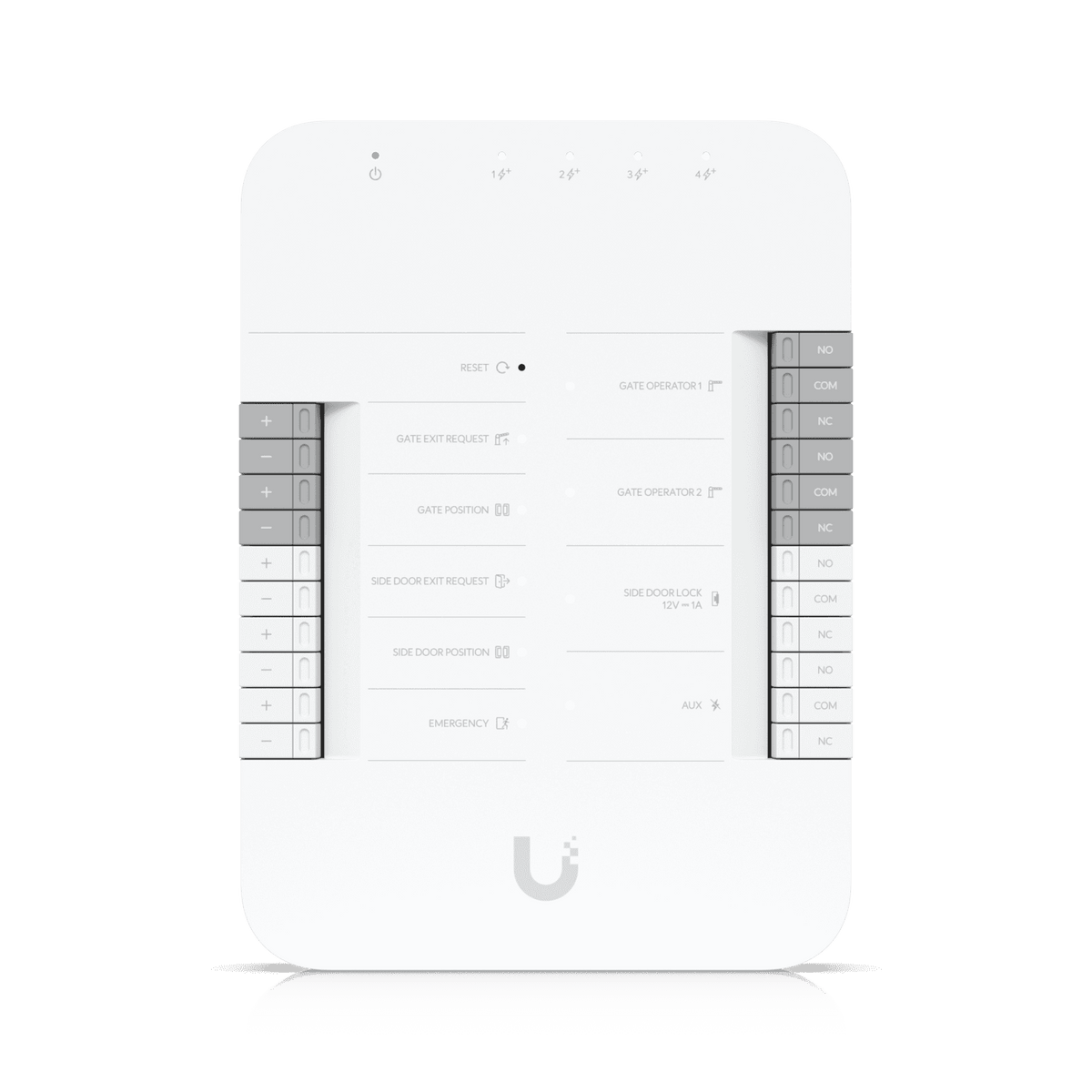

• Input Terminals: 1 × Gate exit request; 1 × Gate position; 1 × Side door exit request; 1 × Side door position; 1 × Emergency
• Power Method: PoE++
• Power Supply: UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU
• NDAA Compliant: ✓
• UL 294 Level:
• Destructive attack: Level I
• Line security: Level I
• Endurance: Level I
• Standby power: Level I
• Weight: 460 g (1 lb)
• Enclosure Material: Polycarbonate

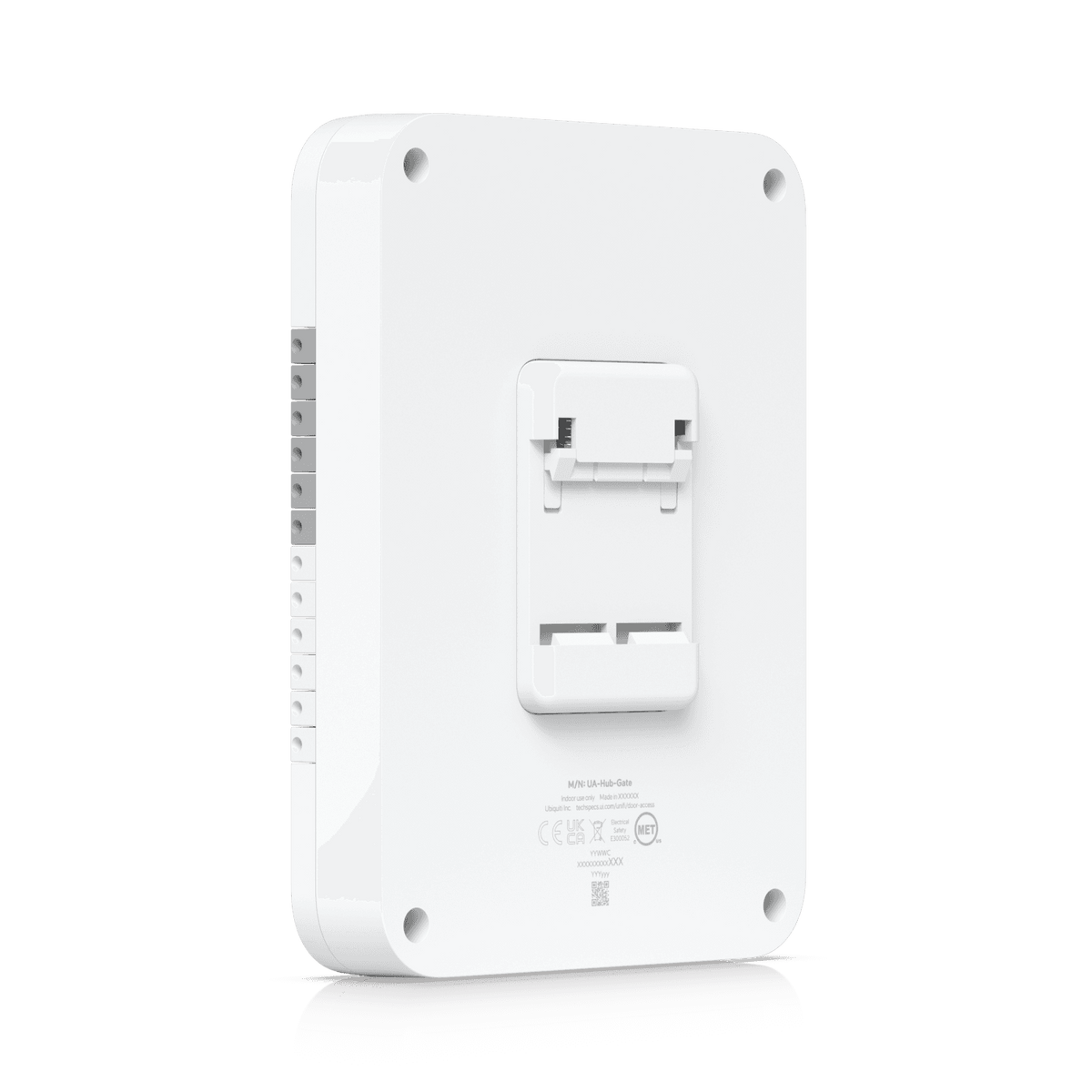

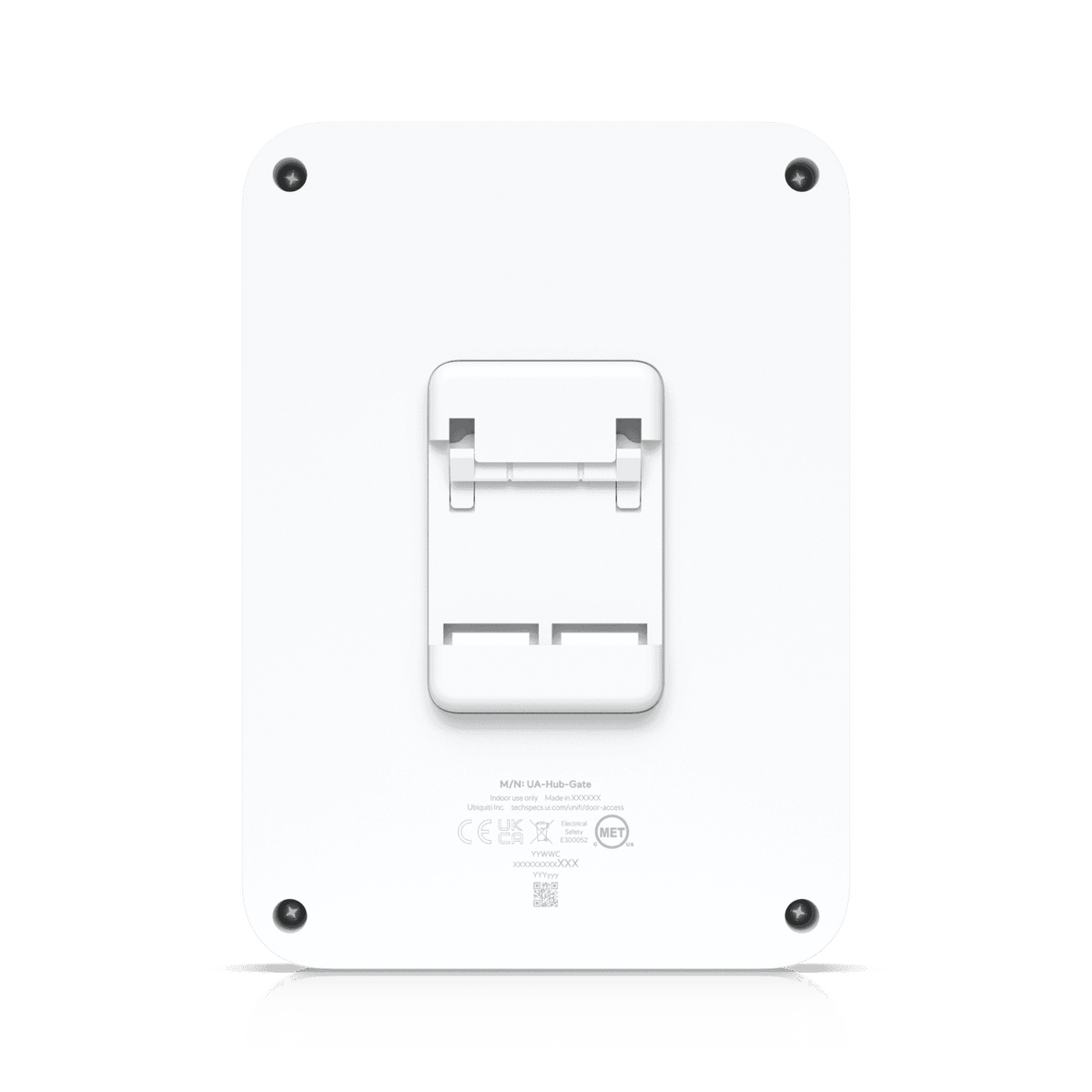

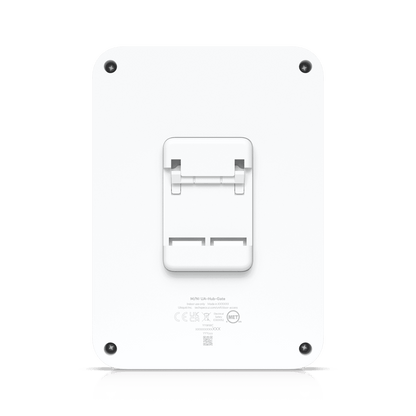

• Mounting: DIN-rail (included)
• Digital Input: Gate exit request, gate position, side door exit request, side door position, emergency
• Dry Output Relay:
• 2 × Operator: rated 30 V DC, up to 1 A
• 1 × Aux: rated 30 V DC, up to 1 A
• Powered Output Relay: Side door lock: 12 V DC, up to 1 A
• Indoor and Outdoor Use: Indoor only for device itself; outdoor use with waterproof junction box
• Ambient Operating Temperature: -30 to 60 °C (-22 to 140 °F)
• Ambient Operating Humidity: 5–90% noncondensing

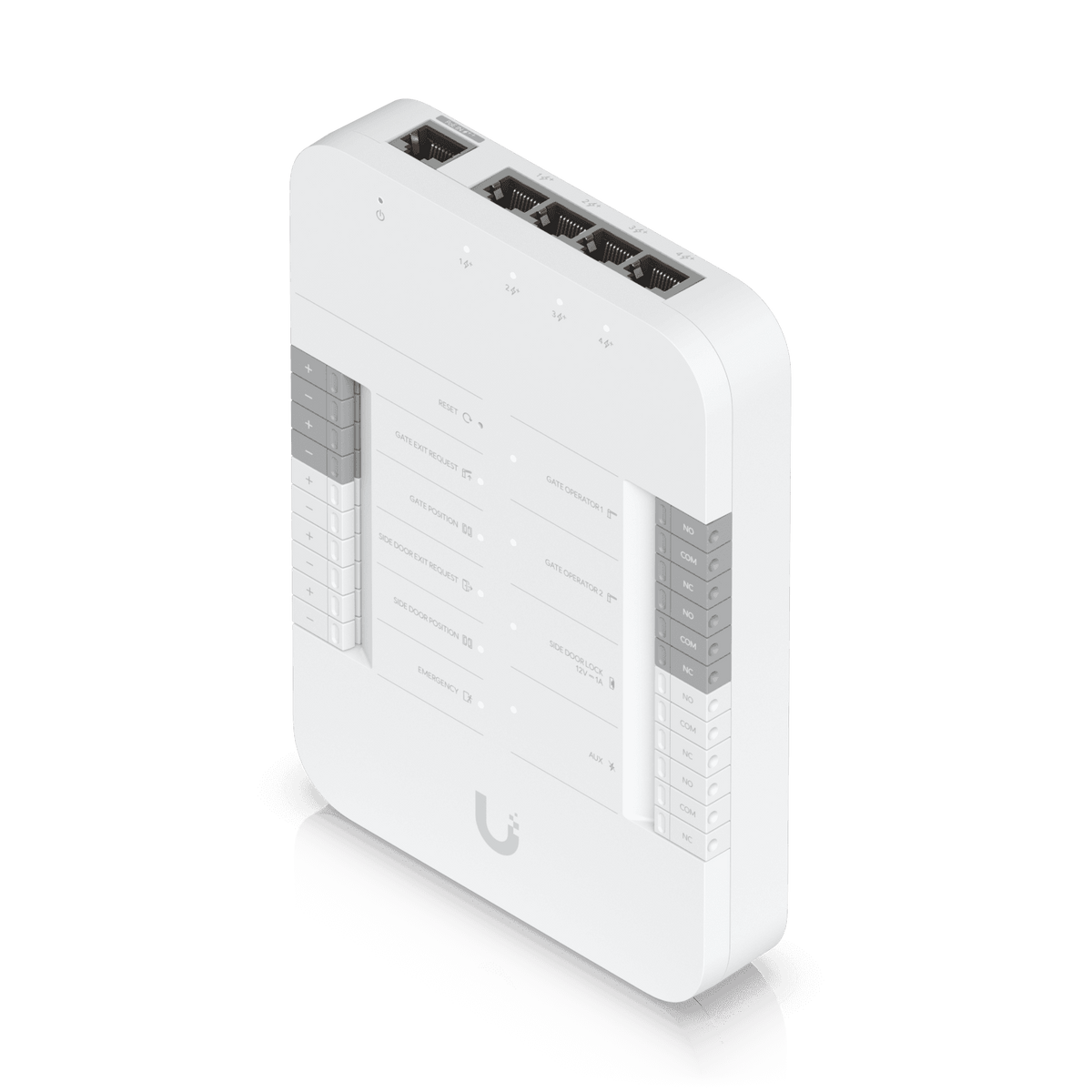

• Networking Interface: 5 × 10/100/1000 Base-T
• PoE Interface:
• 1 × PoE++ input, 50 V DC, 1 A
• 4 × PoE+ outputs, 50 V DC, 30 W per port
• Maximum 55 W aggregated
• Max. Power Consumption:
• 22 W without PoE output
• 60 W with PoE output
• LEDs: W/B
• Buttons: 1 × Factory reset
• Recommended Maximum Cable Length:
• UA-Lock-Electric (400 mA):
• 24 AWG: 25 m (82 ft)
• 22 AWG: 42 m (138 ft)
• 20 AWG: 66 m (217 ft)
• 18 AWG UACC-Cable-DoorLockRelay: 100 m (328 ft)
• UA-Lock-Magnetic-540kg (500 mA):
• 24 AWG: 20 m (66 ft)
• 22 AWG: 32 m (105 ft)
• 20 AWG: 51 m (167 ft)
• 18 AWG UACC-Cable-DoorLockRelay: 80 m (262 ft)
• UA-Lock-Magnetic-270kg (800 mA):
• 24 AWG: 12 m (39 ft)
• 22 AWG: 20 m (66 ft)
• 20 AWG: 30 m (98 ft)
• 18 AWG UACC-Cable-DoorLockRelay: 46 m (151 ft)
• Other locks (1 A):
• 24 AWG: 9 m (30 ft)
• 22 AWG: 15 m (49 ft)
• 20 AWG: 24 m (79 ft)
• 18 AWG UACC-Cable-DoorLockRelay: 36 m (118 ft)
• PoE Cabling Requirements:
• Cat 5e is the minimum recommended performance category
• Cable category should match the transmission speed required at the installation site
• Minimum conductor gauge between PSE/power injector and PD:
• 26 AWG (0.13 mm²) for patch cords
• 24 AWG (0.21 mm²) for horizontal or riser cable
• UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294
• Power Source Compliance: Intended to comply with NEC ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits
• CAN/ULC-60839-11-1 Grade: Grade I
• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
• Document Number / Revision: UA-Hub-Gate, V01
• Management Application: Access

WHAT’S IN THE BOX:

• UniFi Access Gate Hub unit x1
• DIN-rail mounting bracket x1
• Wall mounting kit (self-tapping screws, anchors, and wire lugs) x1
• Quick Start Guide with QR code and conformity manual x1

WARRANTY:

• 12 Months
