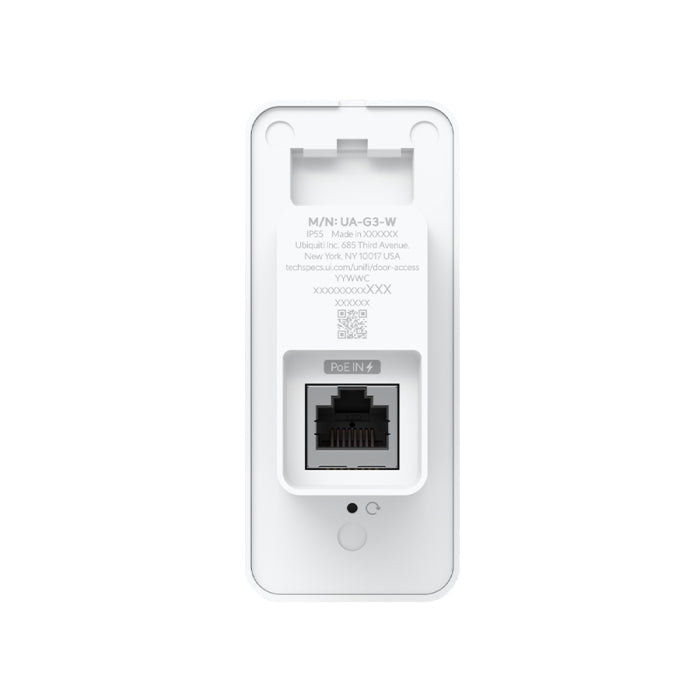

Ubiquiti UniFi Access Reader

Ubiquiti's UA-G3-W is an IP55 tamper resistant access reader with speaker for single door access control indoors and outdoors. PoE powers the unit, which connects to a UniFi Access Hub via PoE and can be unlocked using an NFC card or UniFi Identity Mobile App.

Note: This device needs to be paired with a UniFi Access Hub.

FEATURES:

• Flexible Entry Options: Supports unlocking via Apple/Google Wallet, physical NFC cards, or the UniFi Identity app [ua-g3-w].
• Wave-to-Exit: Features hand-wave proximity detection for convenient, touchless exits [ua-g3-w].
• Single-Cable PoE: Connects and powers directly from a UniFi Access Hub via standard Ethernet [ua-g3-w].
• Built-in Speaker: Plays audio greetings, confirmation tones, or system prompts [ua-g3-w].
• IP55 Weatherproof: Built with an outdoor-rated, tamper-resistant enclosure suitable for protected exterior entryways [ua-g3-w].
• LED Status Ring: Features a multi-colour light ring to give immediate visual feedback for access grants or denials [ua-g3-w].

SPECIFICATIONS:

• Dimensions: 93 × 40 × 36.5 mm (3.7 × 1.6 × 1.4")
• UniFi Application Suite: Access
• NFC Card & Keyfob Access: ✓
• Apple/Google Wallet: ✓
• Mobile Unlock: ✓
• Handwave Request to Exit: ✓
• Weatherproofing: IP55
• UL 294 Level:
  • Destructive attack: Level I
  • Line security: Level I
  • Endurance: Level I
  • Standby power: Level I
• NDAA Compliant: ✓
• Weight: 82 g (2.9 oz)
• Enclosure Material: Polycarbonate, glass
• Mount Material: Aluminum alloy
• Mounting: In-wall, gang box (included); Junction box (optional)
• Indoor and Outdoor Use: Yes
• Networking Interface: 1 × 10/100 MbE RJ45 port
• Connectivity: BLE 4.1, NFC
• Power Method: PoE
• Power Supply: UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU
• Max. Power Consumption: 5 W
• Supported Voltage Range: 48 V DC
• ESD/EMP Protection: Air: ±15 kV; Contact: ±8 kV
• Sensors: Proximity sensor
• Speaker: ✓
• LEDs: R/G/B/W
• Button: 1 × Factory reset
• NFC Frequency: 13.56 MHz
• NFC Read Range: <30 mm (1.18")
• NFC Technology:
  • ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
  • MIFARE Classic / MIFARE DESFIRE
  • Sony FeliCa™ (ID only)
  • NFC Forum tags T1T, T2T, T3T, T4T and T5T
  • ECP 2.0
• PoE Cabling Requirements:
  • Cat 5e is the minimum recommended performance category
  • Cable performance category should match the required transmission speed at the installation site
  • Minimum conductor gauge between the PSE/power injector and PD:
  • 26 AWG (0.13 mm²) for patch cords
  • 24 AWG (0.21 mm²) for horizontal or riser cable
• UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294
• Power Source Compliance: Intended to comply with NEC ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits
• CAN/ULC-60839-11-1 Grade: Grade I
• Certifications: CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1
• Document Number / Revision: UA-G3, V01
• Ambient Operating Temperature: -30 to 45 °C (-22 to 113 °F)
• Ambient Operating Humidity: 5–90% noncondensing
• Management Application: Access

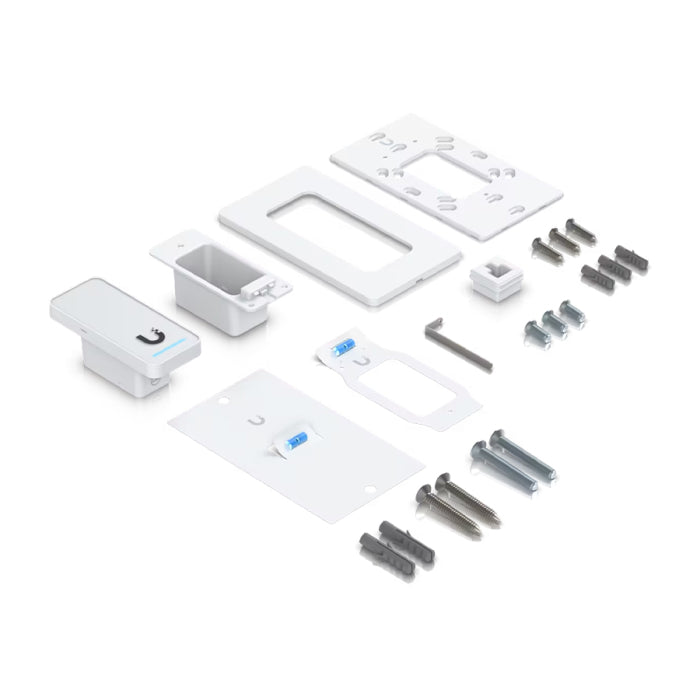

WHAT’S IN THE BOX:

• Access G3 Reader (White unit) x1
• Wall mounting plate x1
• Installation hardware kit (screws and wall anchors) x1

WARRANTY:

• 12 Months
