Ubiquiti UniFi Access Reader Flex Black

The Ubiquiti UA-G3-Flex-B is a black IP55-rated NFC card reader featuring a keypad and Touch Pass support, for which users will receive 10 free Touch Passes in the first year. Thereafter, passes are billed annually per user. Powered via PoE, it's designed for seamless integration with UniFi Access Hubs.

*Note: This device needs to be paired with a UniFi Access Hub.

FEATURES:

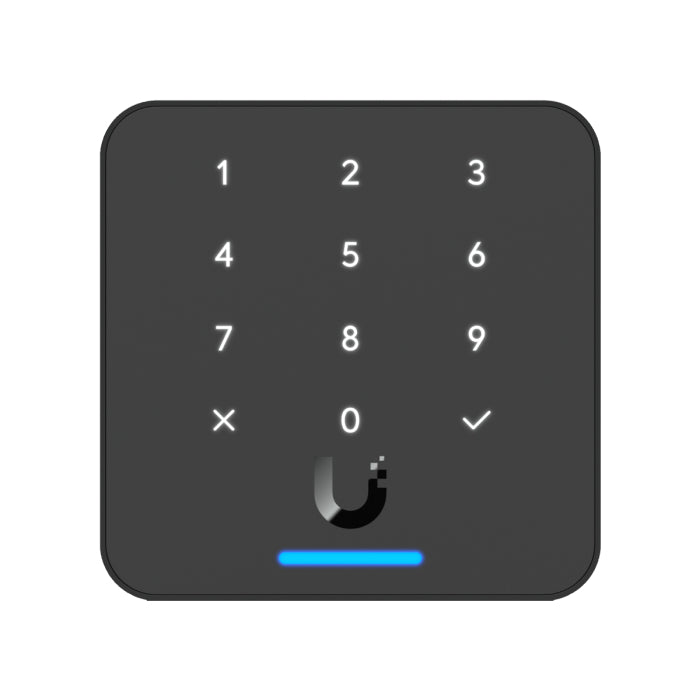

• 12-Button Keypad: Features a capacitive keypad that supports manual PIN entry and works even in wet weather or with gloves.
• Flexible Credentials: Supports unlocking via Apple/Google Wallet, physical NFC cards, unique PIN codes, or the UniFi Identity app.
• IP55 Weatherproofing: Built with a durable, weather-resistant enclosure that operates in extreme temperatures from -30°C to 60°C.
• Single-Cable PoE: Draws both power and data over a single standard Ethernet line connected directly to a UniFi Access Hub.
• Audio Feedback: Houses an internal speaker to broadcast entry chimes, verification tones, or system greetings.
• Adaptable Mounting: Includes hardware to easily mount flat against a wall or directly onto standard electrical gang boxes.

SPECIFICATIONS:

• Dimensions: 84 × 84 × 40.8 mm (3.3 × 3.3 × 1.6")
• UniFi Application Suite: Access
• NFC Card & Keyfob Access: ✓
• PIN Access: ✓
• Apple/Google Wallet: ✓
• Mobile Unlock: ✓
• Weatherproofing: IP55
• UL 294 Level:
  • Destructive attack: Level I
  • Line security: Level I
  • Endurance: Level I
  • Standby power: Level I
• NDAA Compliant: ✓
• Weight: 165 g (5.8 oz)
• Enclosure Material: Polycarbonate, glass, aluminium alloy
• Mount Material: Polycarbonate, aluminum alloy
• Mounting: Wall (included); Gang-box, junction box (optional)
• Indoor and Outdoor Use: Yes

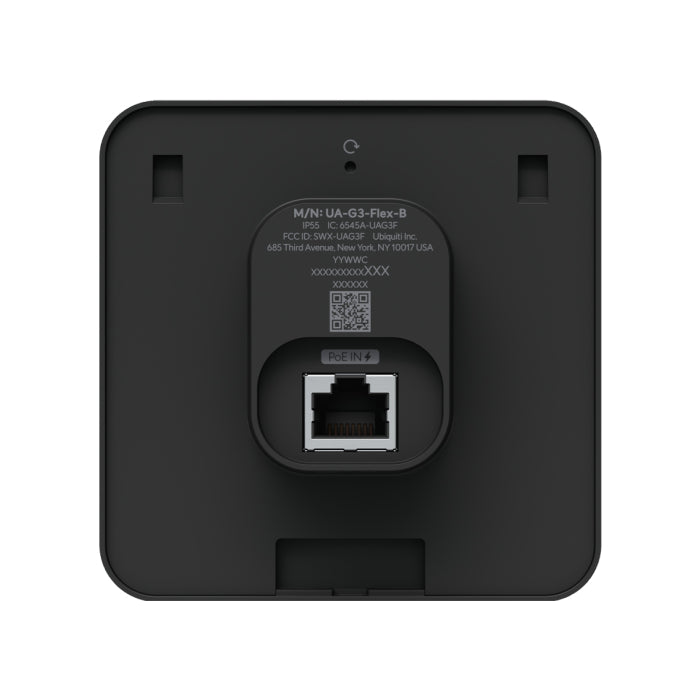

• Networking Interface: 1 × 10/100 MbE RJ45 port
• Connectivity: BLE 4.1, NFC
• Power Method: PoE
• Power Supply: UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU
• Max. Power Consumption: 5 W
• Supported Voltage Range: 44–57 V DC
• ESD/EMP Protection: Air: ±15 kV; Contact: ±8 kV
• Sensors: 12 × Capacitive buttons
• Speaker: ✓
• LEDs: R/G/B/W
• Button: 1 × Factory reset
• NFC Frequency: 13.56 MHz
• NFC Read Range: <30 mm (1.18")
• NFC Technology:
• ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
• MIFARE Classic / MIFARE DESFIRE
• Sony FeliCa™ (ID only)
• NFC Forum tags T1T, T2T, T3T, T4T and T5T
• ECP 2.0
• PoE Cabling Requirements:
  • Cat 5e is the minimum recommended performance category
  • Cable performance category should match the required transmission speed at the installation site
  • Minimum conductor gauge between the PSE/power injector and PD:
  • 26 AWG (0.13 mm²) for patch cords
  • 24 AWG (0.21 mm²) for horizontal or riser cable
• UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294
• Power Source Compliance: Intended to comply with NEC ANSI

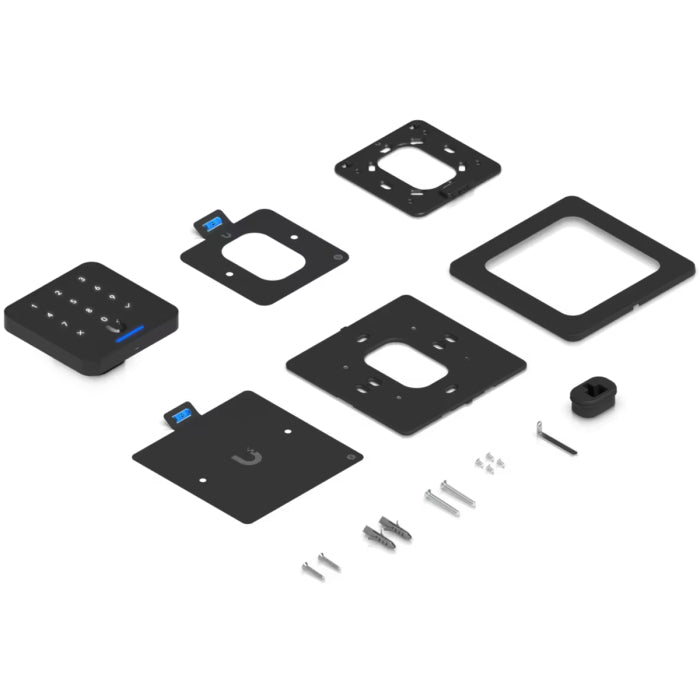

WHAT’S IN THE BOX:

• Access G3 Reader Flex (Black unit) x1
• Standard wall mounting plate x1
• Gang box adapter plate x1
• Installation hardware package (including mounting screws and anchors) x1

WARRANTY:

• 12 Months
