Ubiquiti UniFi Access Reader Pro Black

The Ubiquiti UA-G3-Pro-B is a black IP55-rated intercom with a built-in NFC card reader featuring a 4.7'' Touchscreen, Face Recognition, 2-way Audio and Touch Pass support, for which users will receive 10 free Touch Passes in the first year. Thereafter, passes are billed annually per user. Powered via PoE, it's designed for seamless integration with UniFi Access Hubs.

Note: This device needs to be paired with a UniFi Access Hub.

FEATURES:

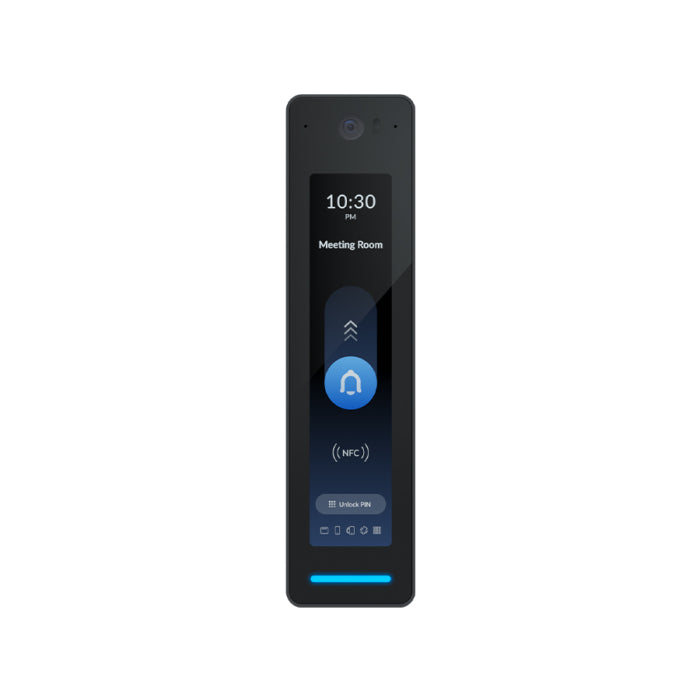

• 4.7-inch Touchscreen: Features a bright display that serves as a dynamic visitor doorbell and a digital PIN keypad.
• Integrated 2MP Camera: Streams live portrait video logs and enables hands-free Face Unlock biometric entry.
• Two-Way Audio Intercom: Includes a built-in microphone and speaker, allowing visitors to make live video calls directly to network administrators.
• Comprehensive Entry Options: Supports Apple/Google Wallet, physical NFC cards, unique PIN codes, temporary visitor QR codes, and BLE mobile unlocking.
• IP55 Weatherproof: Built with a durable aluminum alloy and polycarbonate frame that stands up to covered outdoor environments.
• Proximity Wake Sensor: Automatically wakes the screen as someone approaches for instant, seamless authentication.

SPECIFICATIONS:

• Dimensions: 160 × 40.4 × 40.55 mm (6.3 × 1.59 × 1.6")
• Integrated Camera: ✓
• UniFi Application Suite: Protect, Access
• NFC Card & Keyfob Access: ✓
• PIN Access: ✓
• QR Code Unlock: ✓
• Apple/Google Wallet: ✓
• Mobile Unlock: ✓
• Face Unlock: ✓
• Two-Way Intercom & Doorbell Access: ✓
• Weatherproofing: IP55
• Audio: Two-way audio
• UL 294 Level:
  • Destructive attack: Level I
  • Line security: Level I
  • Endurance: Level I
  • Standby power: Level I
• NDAA Compliant: ✓
• Weight: 136 g (4.8 oz)
• Enclosure Material: Polycarbonate, glass
• Mount Material: Aluminum alloy
• Mounting: Wall, gang-box mount (included); Angle mount, junction box (optional)
• Indoor and Outdoor Use: Yes

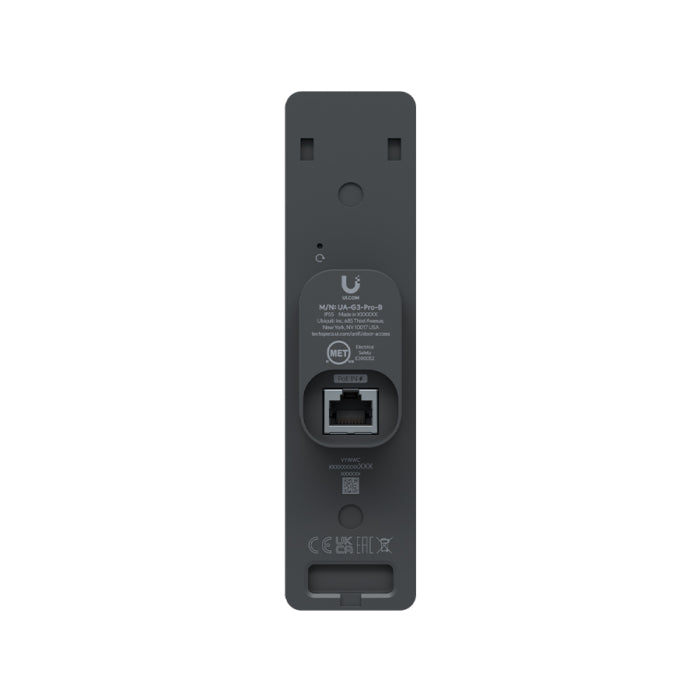

• Networking Interface: 1 × GbE RJ45 port
• Connectivity: BLE 4.2, NFC
• Power Method: PoE
• Power Supply: UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU
• Max. Power Consumption: 6 W
• Supported Voltage Range: 48 V DC
• ESD/EMP Protection: Air: ±15 kV; Contact: ±8 kV
• Video:
  • Max. Frame Rate: 30 FPS
  • Resolution: 2 MP, 1200 × 1600 (3:4)
• Optics:
  • Resolution: 12 MP (3072 × 4096)
  • Field of View: H 98.6°, V 125.7°, D 157.8°
• Sensors: Proximity sensor
• Display:
  • Size: 120 mm (4.7") diagonal
  • Screen Technology: Capacitive touch
  • Luminance: 480 nits (typical)
  • Screen Orientation: Portrait
  • Resolution: 1280 × 286 px
• Microphone: ✓
• Speaker: ✓
• LEDs: R/G/B/W/Amber
• Button: 1 × Factory reset
• NFC Frequency: 13.56 MHz
• NFC Read Range: <30 mm (1.18")
• NFC Technology:
  • ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
  • MIFARE Classic / MIFARE DESFIRE
  • Sony FeliCa™ (ID only)
  • NFC Forum tags T1T, T2T, T3T, T4T and T5T
  • ECP 2.0
• PoE Cabling Requirements:
  • Cat 5e cabling is the minimum recommended performance category
  • The cable category should match the transmission speed required at the installation site
  • Minimum conductor gauge between the PSE/power injector and PD:
  • 26 AWG (0.13 mm²) for patch cords
  • 24 AWG (0.21 mm²) for horizontal or riser cable
• UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294
• Power Source Compliance: Intended to comply with NEC ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits
• CAN/ULC-60839-11-1 Grade: Grade I
• Certifications: CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1
• Document Number / Revision: UA-G3-Pro-W/UA-G3-Pro-B, V01
• Ambient Operating Temperature:
  • Device: -30 to 45 °C (-22 to 113 °F)
  • Display: -10 to 45 °C (14 to 113 °F)
• Ambient Operating Humidity: 5–90% noncondensing
• Management Application: Access

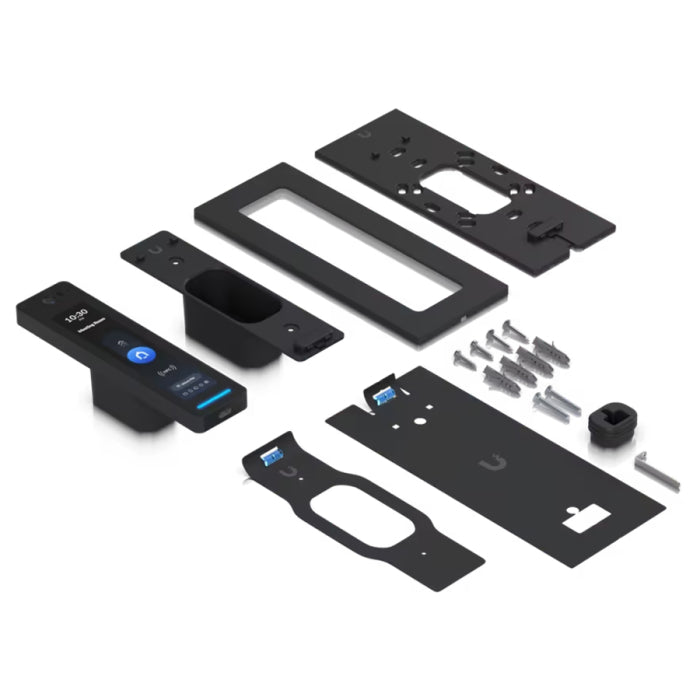

WHAT’S IN THE BOX:

• Access G3 Reader Pro (Black unit) x1
• Standard wall mounting plate x1
• Electrical gang box mount adapter/cover x1
• Mounting template with integrated bubble level x1
• Watertight rubber grommet/bung (for weatherproofing the RJ45 cable entry) x1
• Quick-release pin/security key (to unlatch the reader from the bracket) x1
• Installation hardware kit (screws, anchors, and wall lugs) x1

WARRANTY:

• 12 Months
