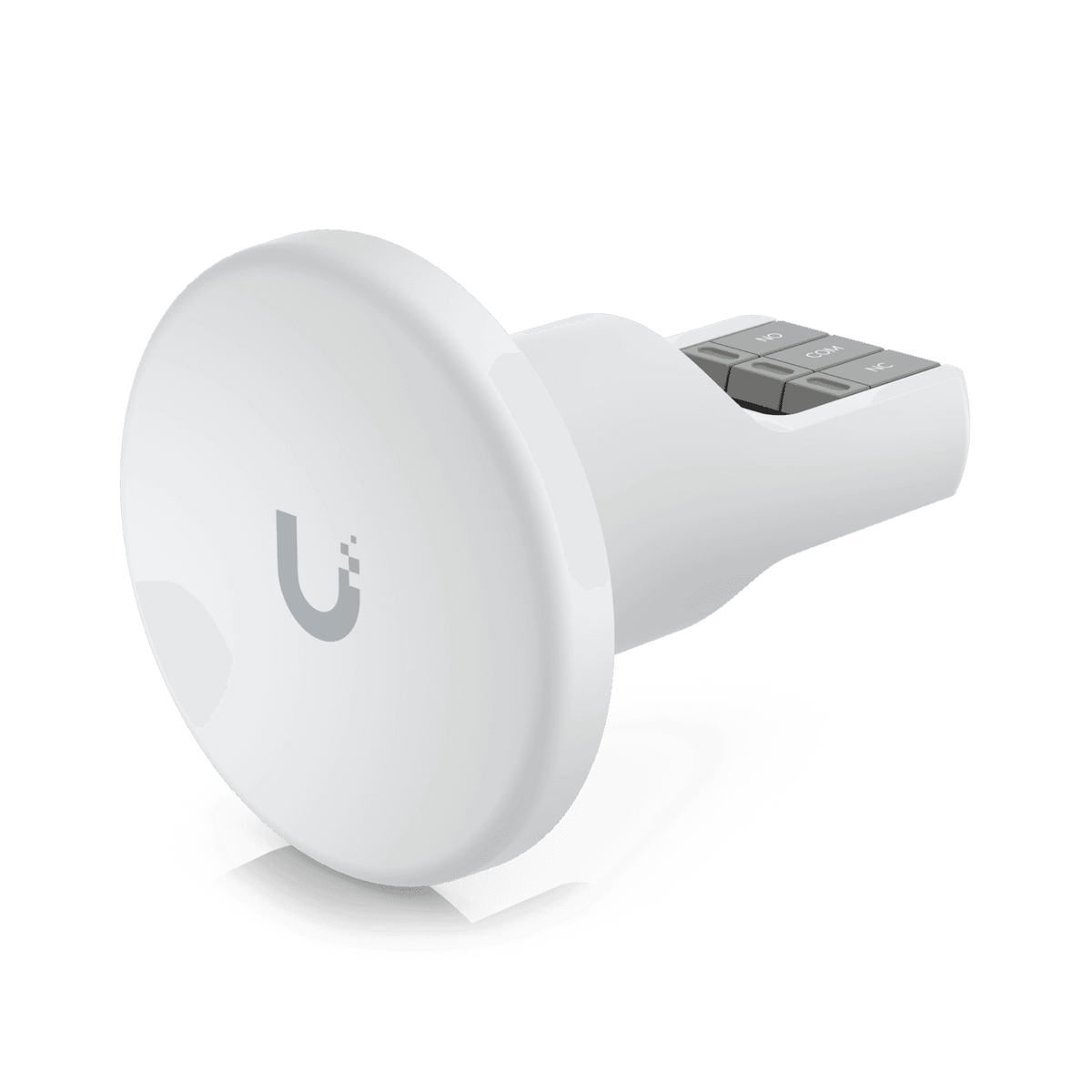

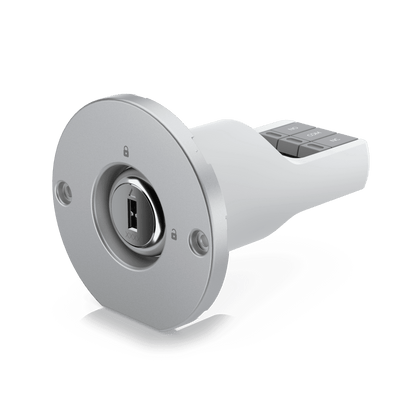

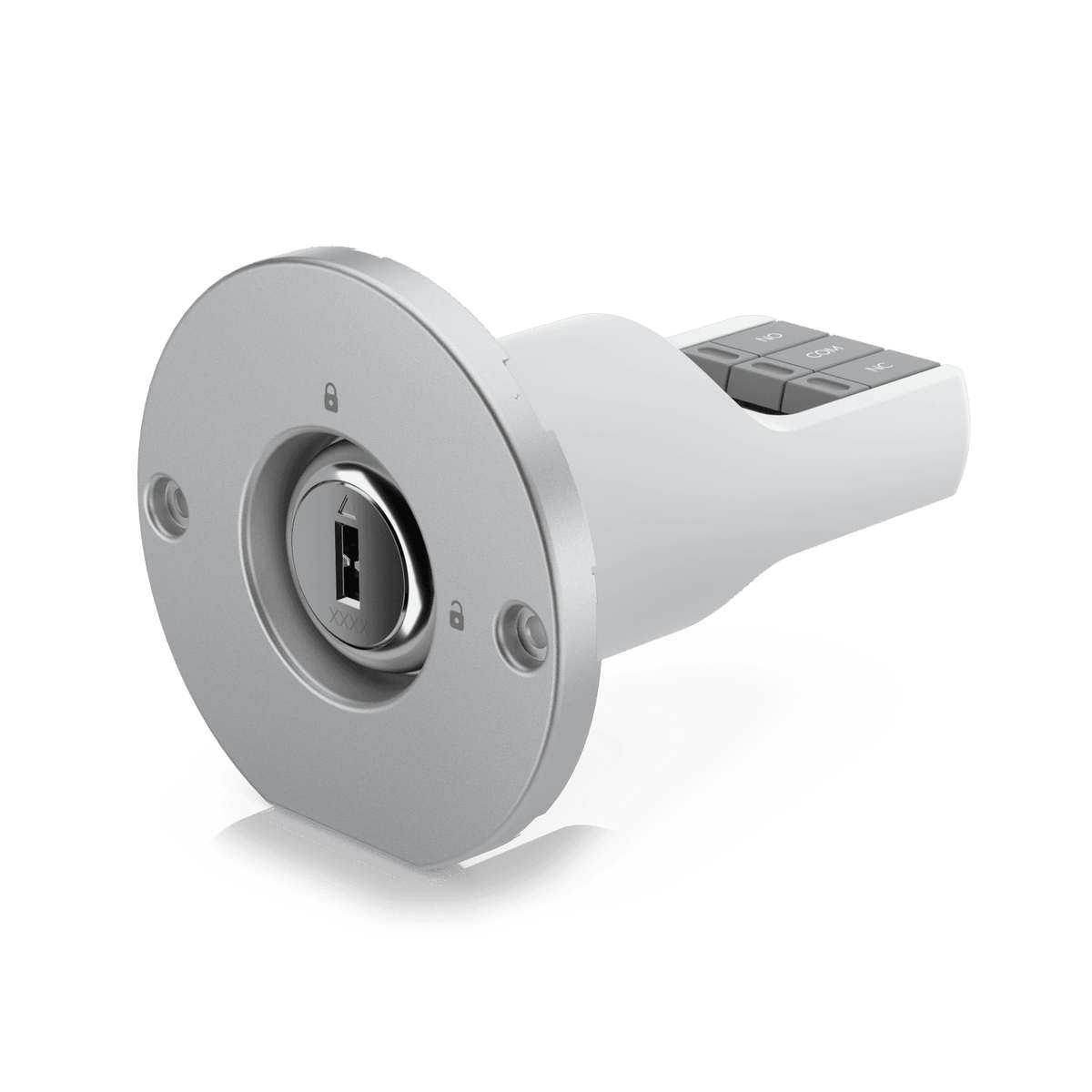

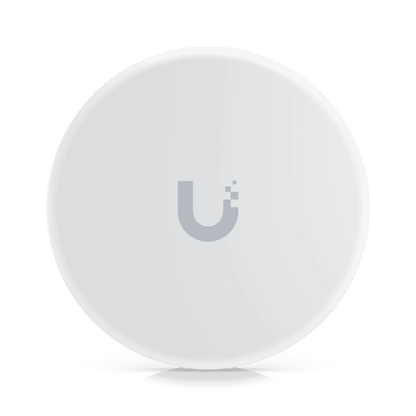

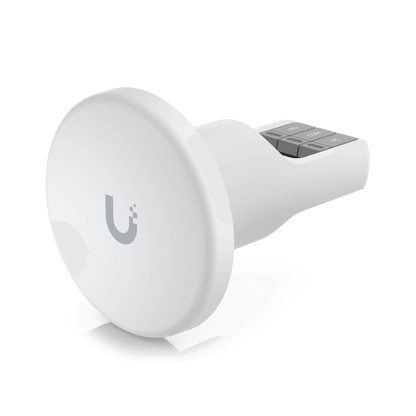

Ubiquiti UniFi Access Rescue Manual Key Switch

Ubiquiti's UA-RESCUE is a single pole, dual throw, manual KeySwitch designed to work with the UniFi Access system. In the event of a system malfunction, the UA-Rescue KeySwitch allows a user to manually unlock any door controlled by the UniFi Access Hub. The key is compatible with both Fail Safe and Fail Secure lock systems.

FEATURES:

• Manual Override: Safely cuts power or triggers relays manually to unlock doors during system failures or power outages.
• Dual Compatibility: Works with both Fail-Safe (e.g., maglocks) and Fail-Secure (e.g., electric strikes) locking systems.

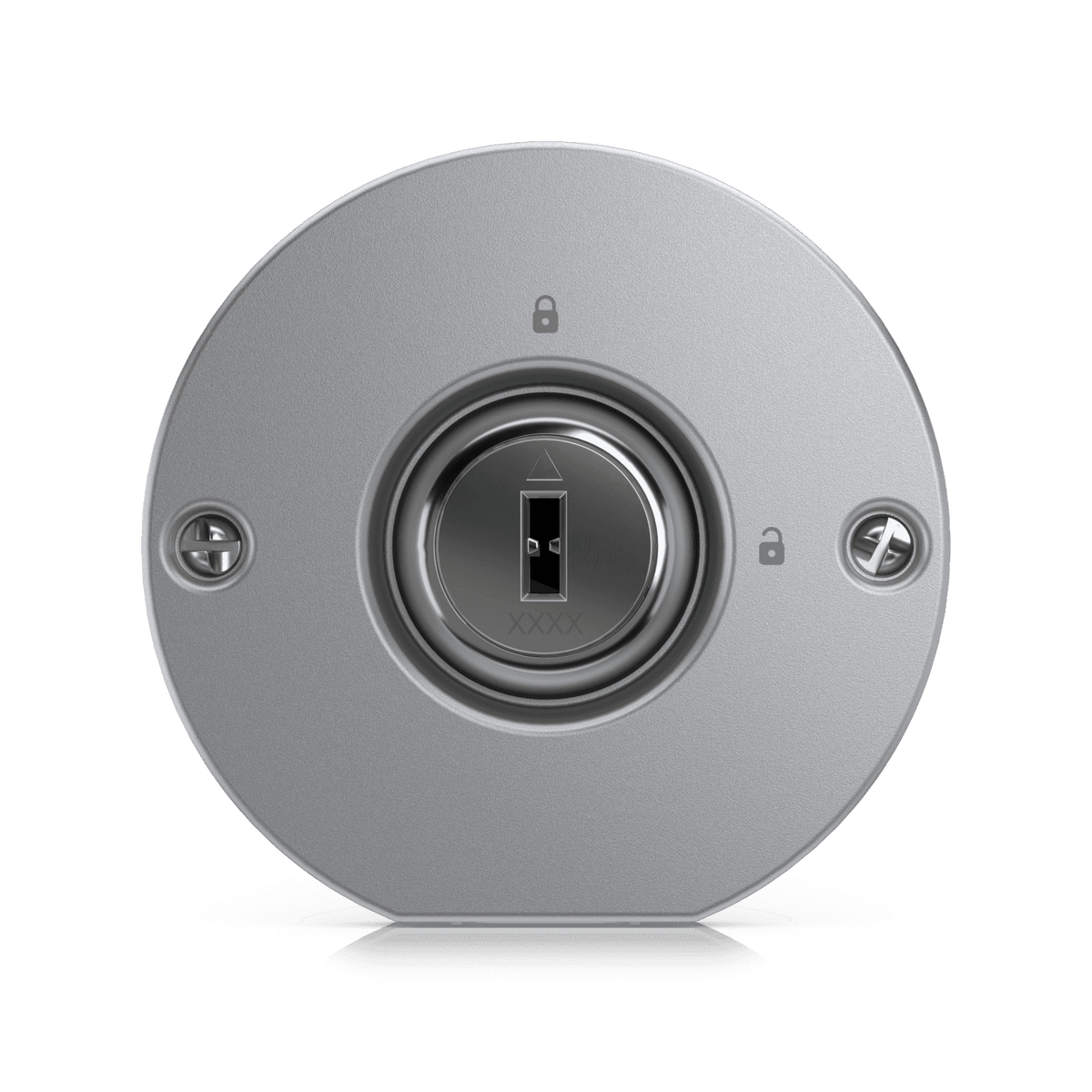

• Secure Lock Cylinder: Utilizes a specialized brass internal wave key for high-security physical access control.

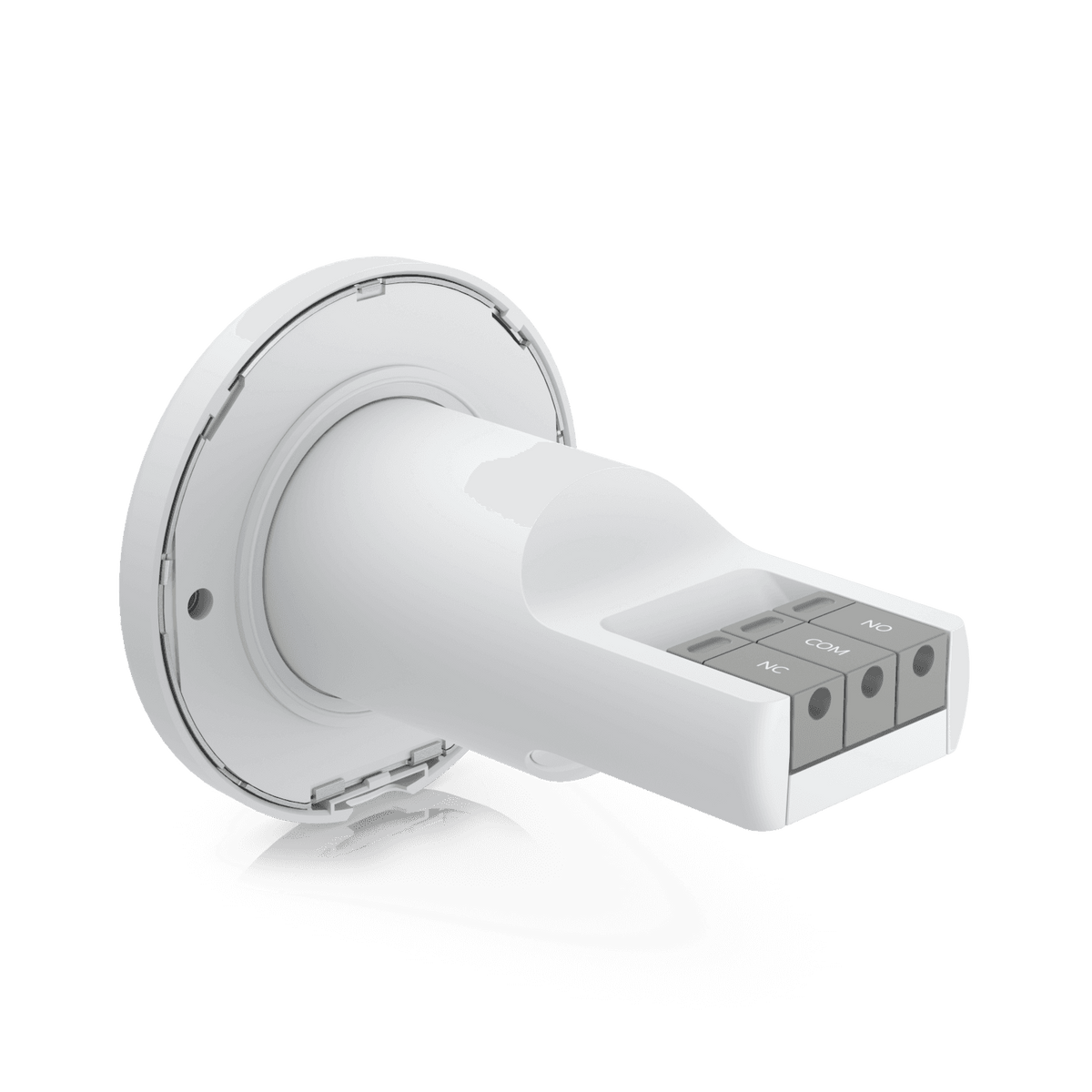

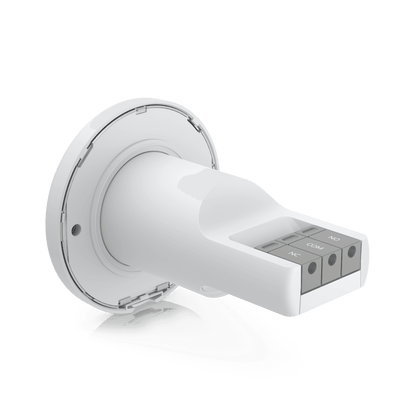

• Standard Wiring: Includes a built-in COM / NO / NC terminal block that supports common 18–24 AWG wires.
• Weather Resistant: Built from a rugged polycarbonate housing rated for temperatures from -30 to 65°C.

SPECIFICATIONS:

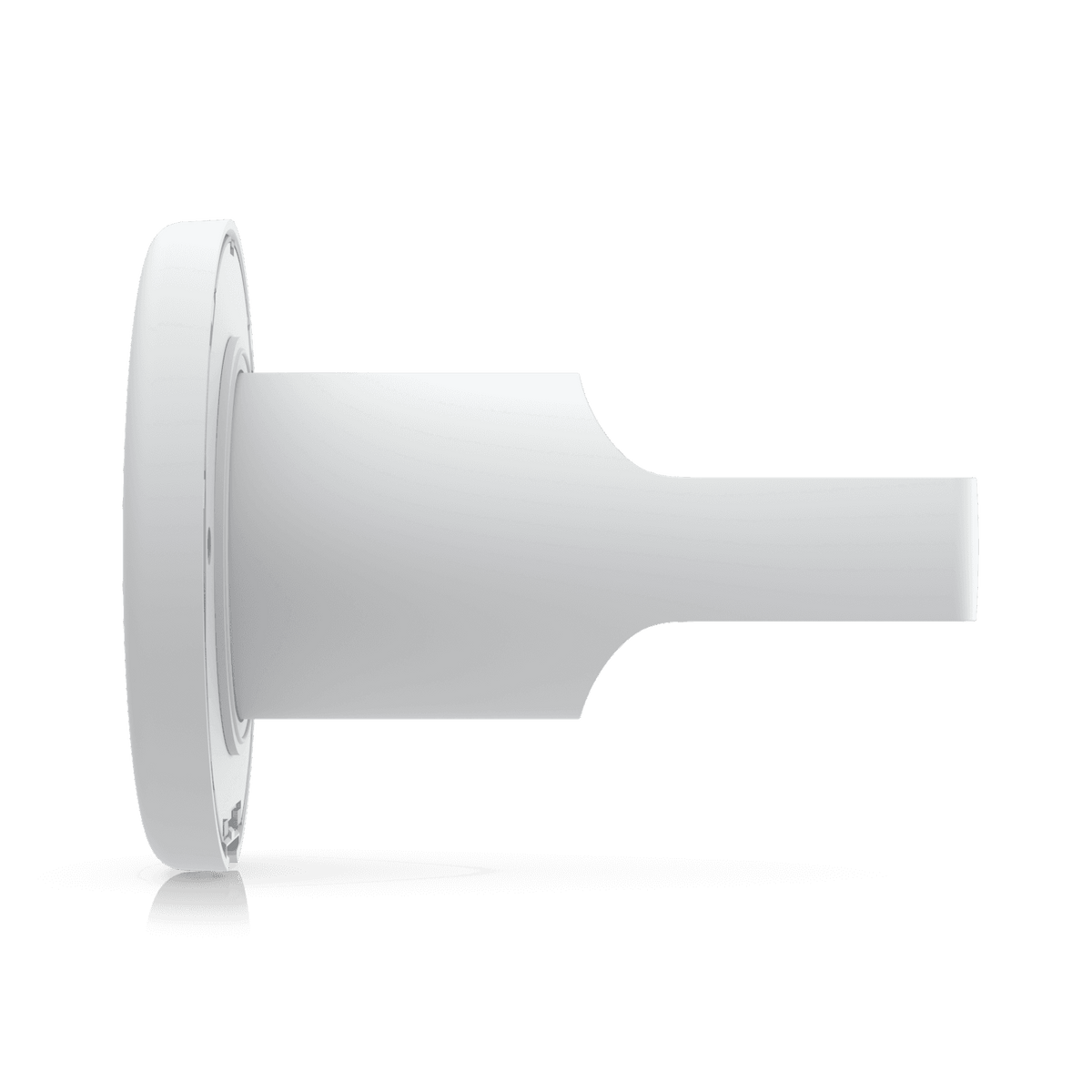

• Dimensions: ⌀60 x 74 mm (⌀2.4 x 2.9")
• Weight: 94 g (3.3 oz)
• Enclosure Material: Polycarbonate
• Hardware:
• Key Switch: Brass internal wave key, 28V DC, 4A
• Terminal Block: COM/NO/NC, 18–24 AWG
• Ambient Operating Temperature: -30 to 65° C (-22 to 149° F)
• Ambient Storage Temperature: -40 to 85° C (-40 to 185° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: FCC, IC, CE

WHAT’S IN THE BOX:

• UA-Rescue KeySwitch device x1
• Physical mechanical keys (Brass internal wave design) x2
• Front faceplate cover (clicks over the front to keep it sealed/tamper-resistant) x1
• Mounting kit (Includes wall screws and expansion plugs/lugs) x1
• Drilling template guide (equipped with a small bubble level) x1
• Quick start guide / QR code x1

WARRANTY:

• 12 Months
