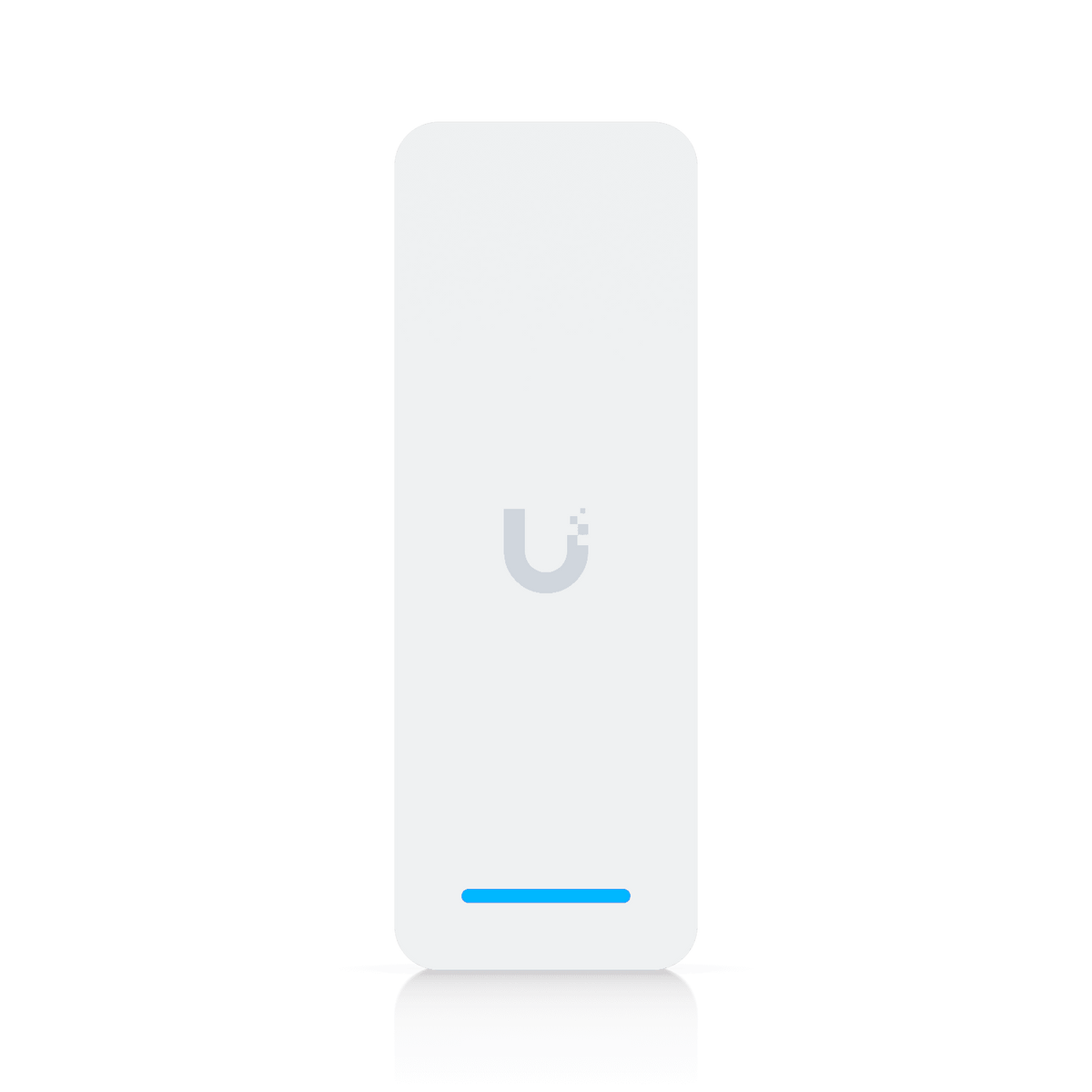

Ubiquiti UniFi Access Ultra Reader and Hub

Ubiquiti's UA-Ultra is an IP55 tamper resistant access reader with an integrated hub for complete single door access control. The unit is powered by PoE+ and features 1x Lock terminal (12V/1A), 1x Exit request input and can be unlocked using an NFC card or UniFi Identity Mobile App.

FEATURES:

• All-in-One Design: Combines the credential reader and door controller hub into a single compact device.
• Flexible Credentials: Supports entry via NFC cards, key fobs, or smartphone access using the UniFi Identity app.
• Built-in Terminals: Includes an integrated 12V/1A lock terminal and a Request-to-Exit (REX) input sensor.
• PoE+ Powered: Runs data and powers a standard door lock over a single 802.3at PoE+ Ethernet connection.
• Weather & Tamper Proof: Features an IP55 weather rating (-30 to 40°C) and an internal anti-tamper switch for added physical security.
• High Capacity: Locally manages profiles and access logging for up to 3,000 distinct users.

SPECIFICATIONS:

• Dimensions: 126 x 45 x 37.45 mm (4.9 x 1.8 x 1.5")
• NFC Card & Keyfob Access: ✓
• Mobile Unlock: ✓
• Weatherproofing: IP55
• Maximum User Count: 3,000
• Tamper Switch: ✓
• UL 294 Level:
• Destructive attack: Level I
• Line security: Level I
• Endurance: Level I
• Standby power: Level I
• NDAA Compliant: ✓
• Mechanical:
• Weight: 140 g (4.9 oz)
• Enclosure Material: Polycarbonate, aluminum alloy
• Mount Material: Stainless steel
• Mounting: Wall mount, gang box mount (Included)
• Junction Box: Optional
• Hardware:
• Indoor and Outdoor Use: Yes
• Networking Interface: (1) 10/100 MbE RJ45 port
• Connectivity: BLE 4.2, Ethernet
• Power Method: PoE+
• Power Supply: UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU
• Max. Power Consumption: 18W
• Supported Voltage Range: 44–57V DC
• ESD/EMP Protection: Air: ±8kV; Contact: ±4kV
• Powered Output Relay: Lock: 12V DC, 1A
• Speaker: ✓
• LEDs: R/G/B/W — Learn More
• Button: (1) Factory reset
• NFC Frequency: 13.56 MHz
• NFC Read Range: <50 mm (1.95")
• NFC Technology:
• ISO 14443A
• ISO 14443B
• ISO 15693
• NFC Tag 1, 2, 3, 4, 5
• MIFARE Classic
• MIFARE Plus
• MIFARE Ultralight
• MIFARE DESFire
• PoE Cabling Requirements:
• Cat 5e cabling is the minimum performance category recommended.
• The performance category used should match the transmission speed required at the installation site.
• Minimum conductor gauge between the PSE or power injector and the PD:
• 26 AWG (0.13 mm²) for patch cords
• 24 AWG (0.21 mm²) for horizontal or riser cable
• UL 294 Statement:
• Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
• Equipment is intended to comply with the National Electrical Code, ANSI/NFPA 70, Article 725.121, for Class 2 and Class 3 circuit power sources.
• CAN/ULC-60839-11-1 Grade:
• Grade assignment: I
• Certifications:
  • CE
  • FCC
  • IC
  • Anatel: 06371-24-08356
  • SRRC
  • UL 294
  • CAN/ULC-60839-11-1
• Document Number / Revision: UA-Ultra, V01
• Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
• Ambient Operating Humidity: 5 to 90% noncondensing

• Management Application: Access

WHAT’S IN THE BOX:

• UA-Ultra Device (All-in-one reader and door hub) x1
• Wall-Mounting Bracket (Gang box compatible layout) x1
• Flush-Mount / Backplate cover x1
• Installation Screws & Anchors kit x1
• Quick Start Guide x1

WARRANTY:

• 12 Months
