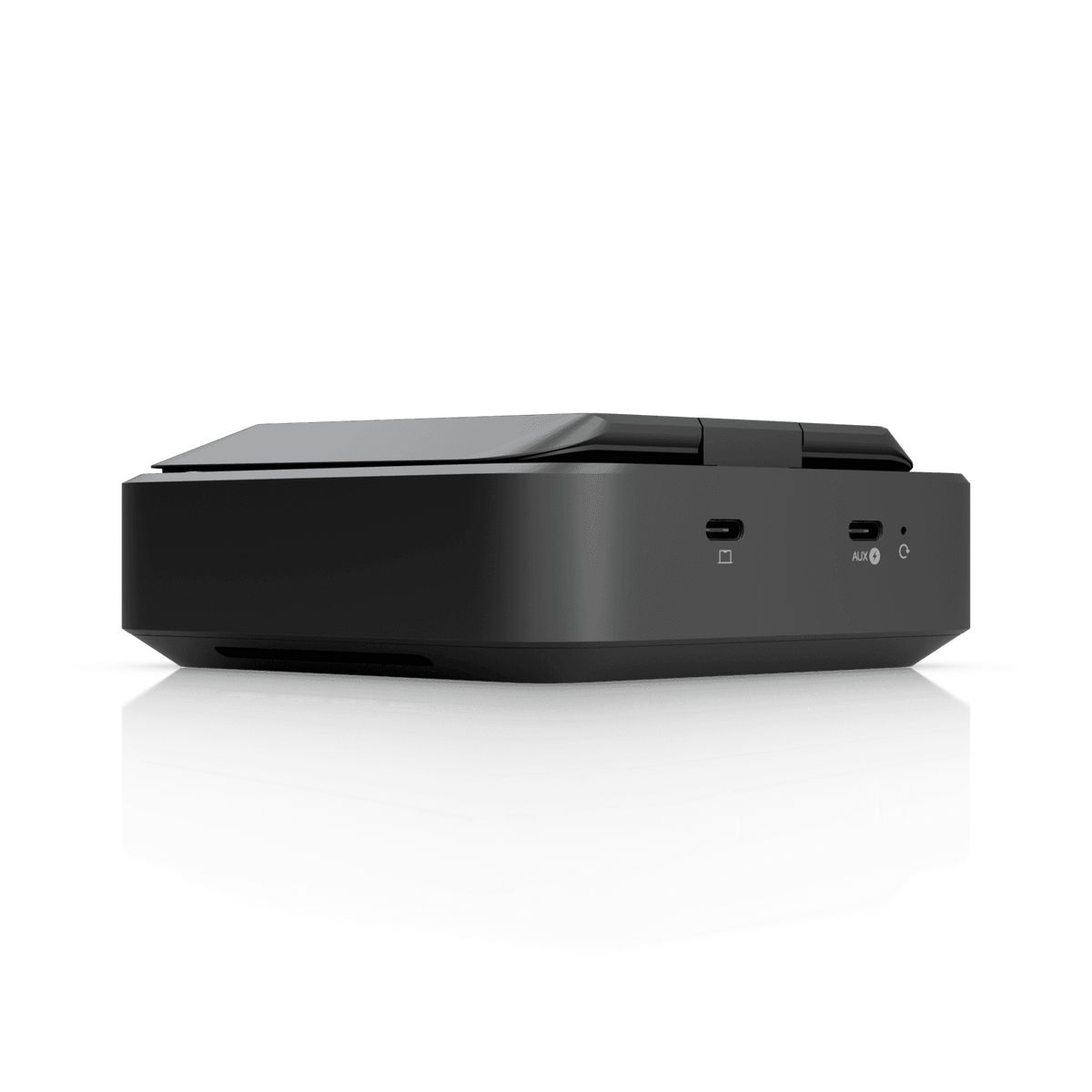

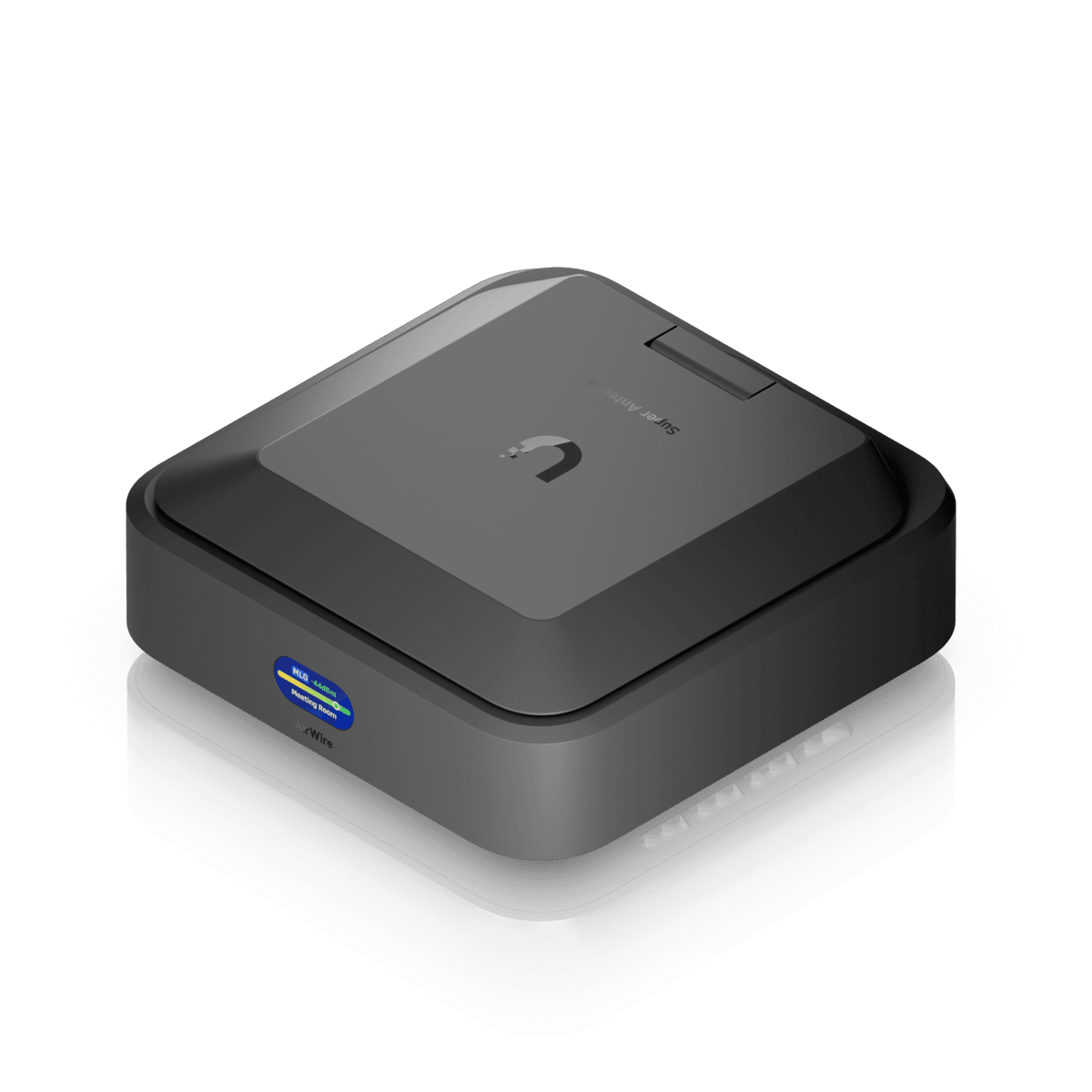

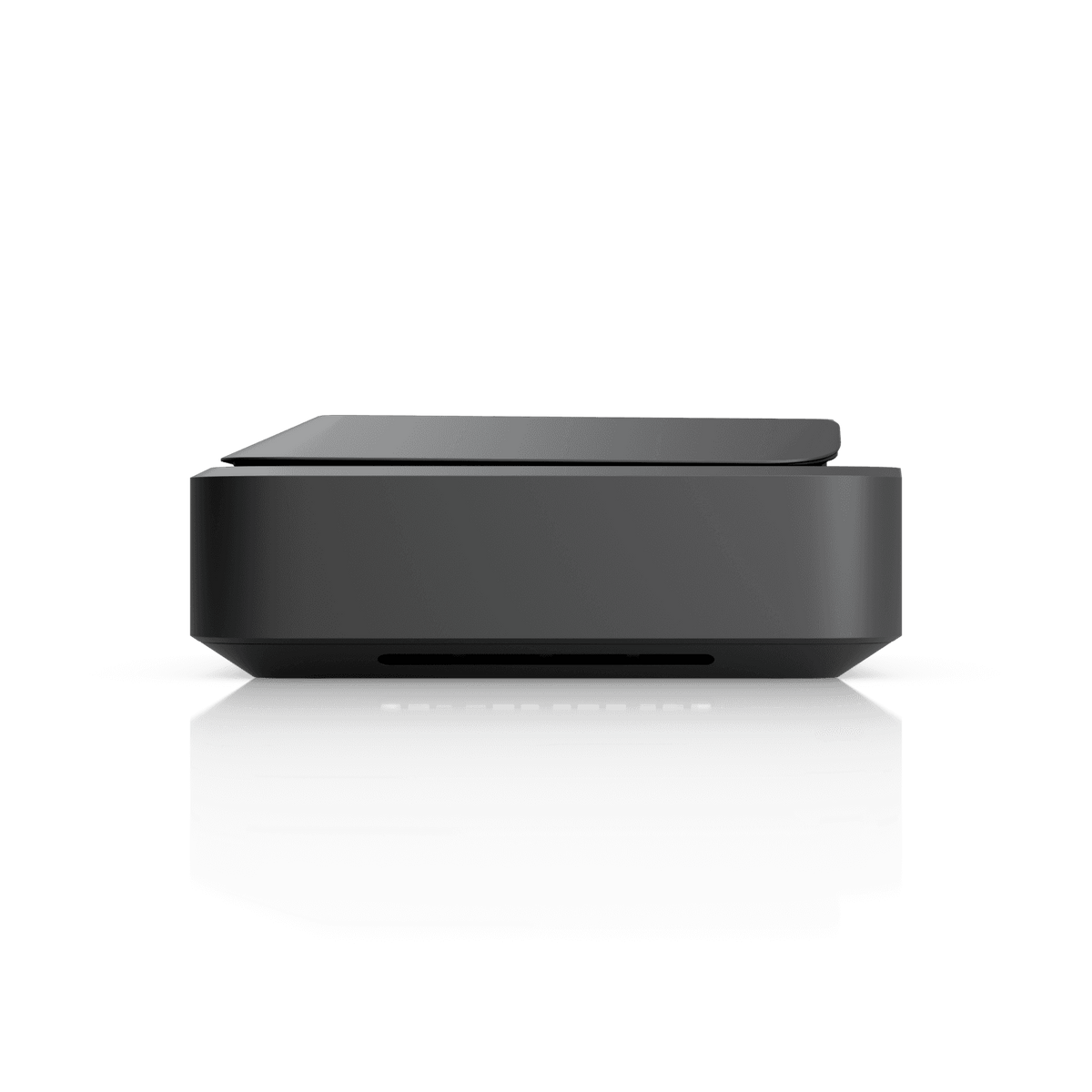

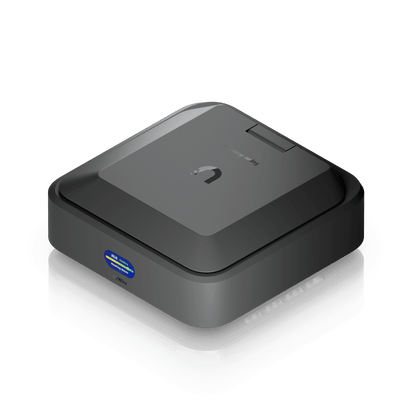

Ubiquiti UniFi AirWire WiFi 7 Client Device

Ubiquiti's U-AirWire is a high-performance WiFi 7 client adapter with STR (Simultaneous Transmit and Receive) MLO. It delivers an aggregate data rate of up to 10Gbps over its 5GHz (2x2 MU-MIMO) and 6GHz (2x2 MU-MIMO) bands.

It can be configured and managed with the UniFi Network Application.

FEATURES:

• Wi-Fi 7 Multi-Link Operation (STR MLO): Combines the 5 GHz and 6 GHz bands simultaneously for high reliability and ultra-low latency.
• Multi-Gigabit Wireless: Supports speeds up to 5.8 Gbps on 6 GHz (using 320 MHz channels) and 4.3 Gbps on 5 GHz.

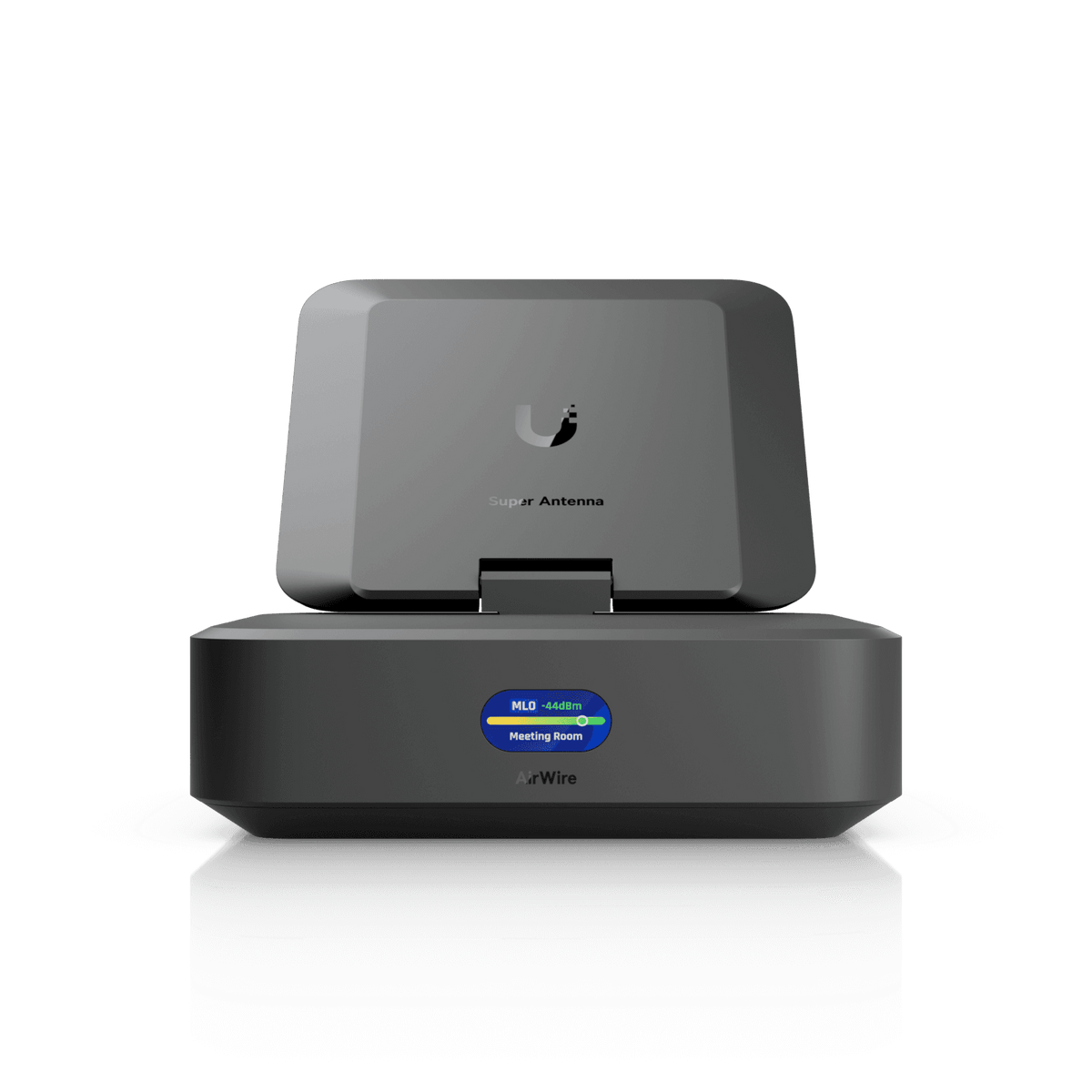

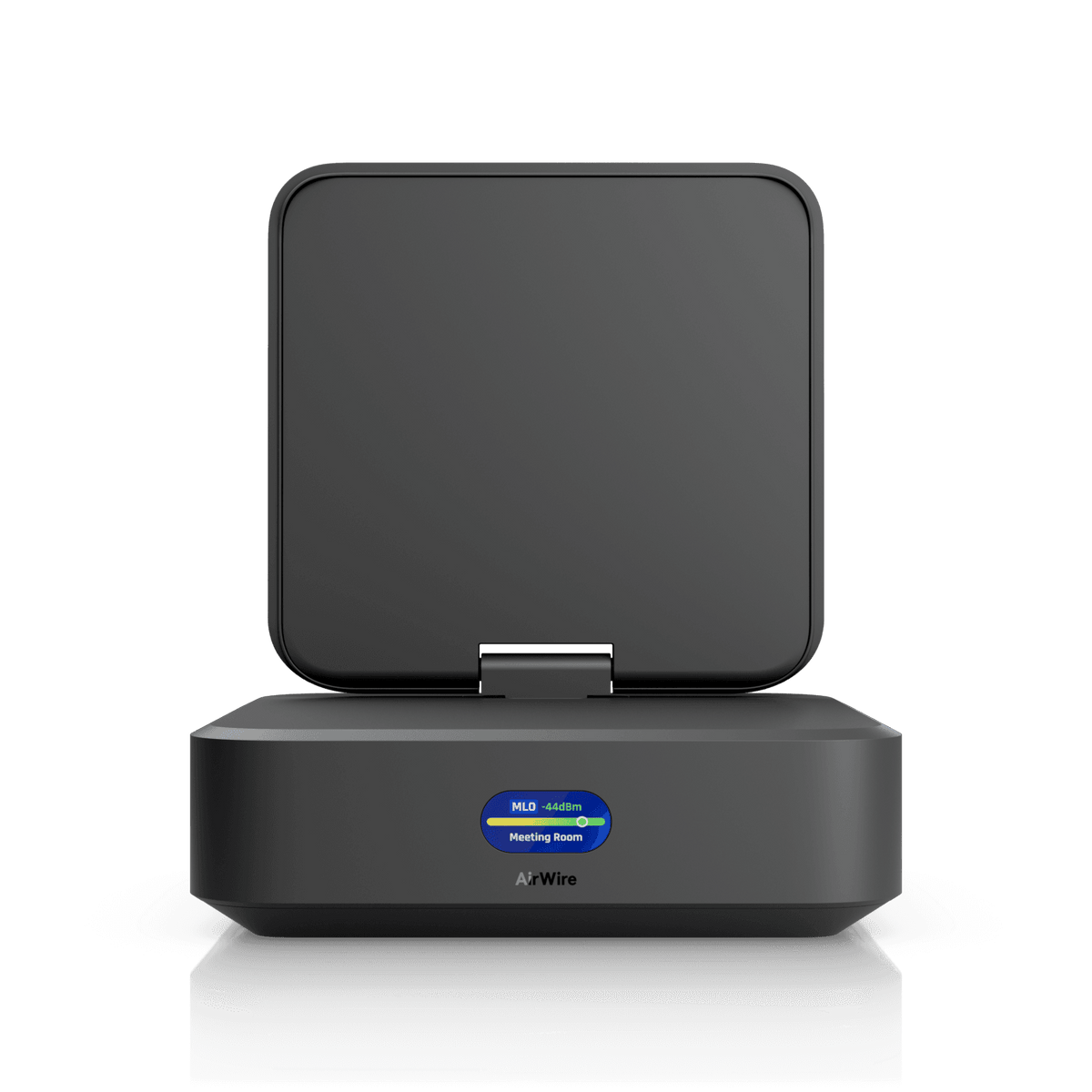

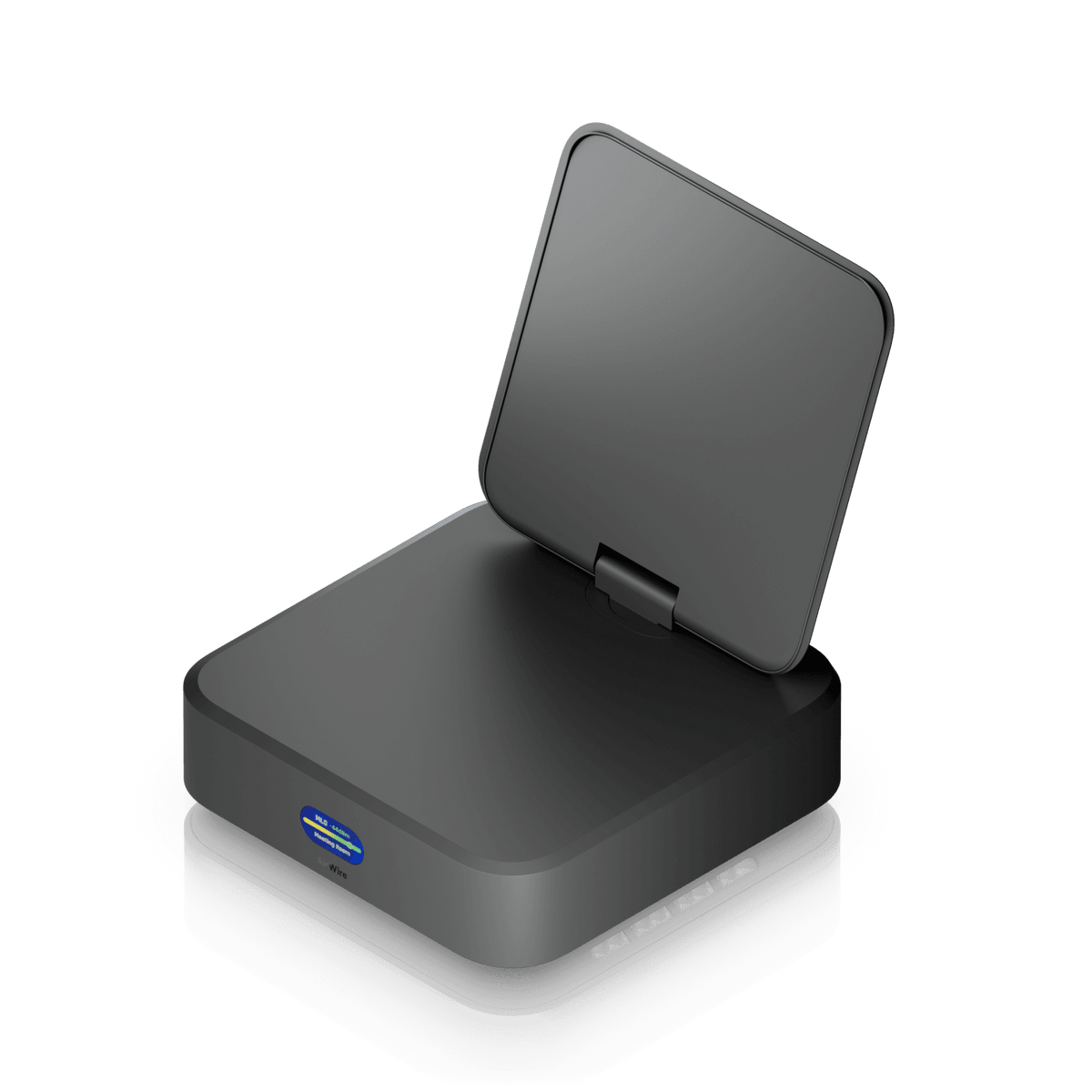

• High-Gain Super Antenna: Features an adjustable 11 dBi integrated array designed to significantly extend signal range.
• 5 Gbps USB-C Interface: Uses a USB 3.2 Gen 2 Type-C connection to prevent physical data bottlenecks to the PC.

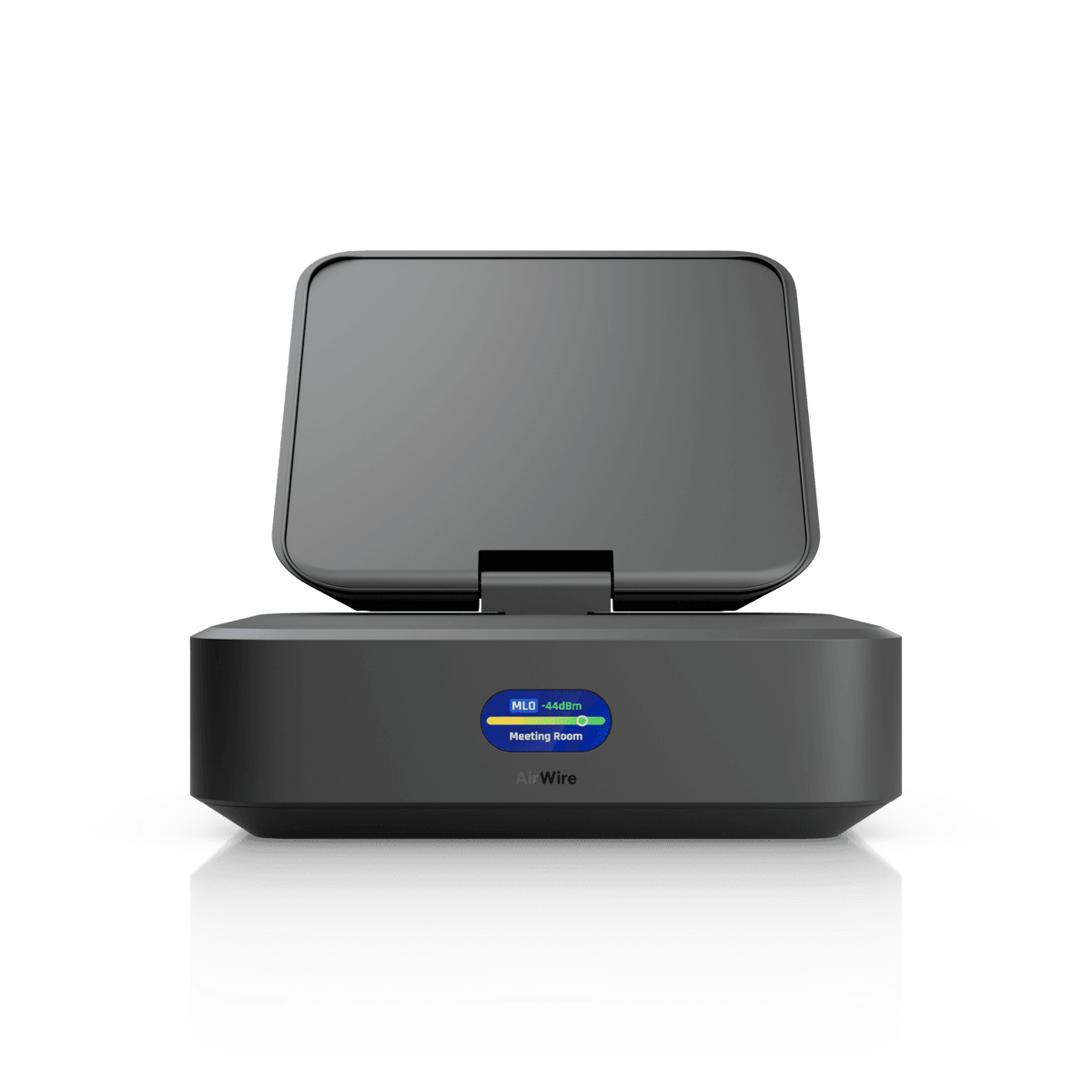

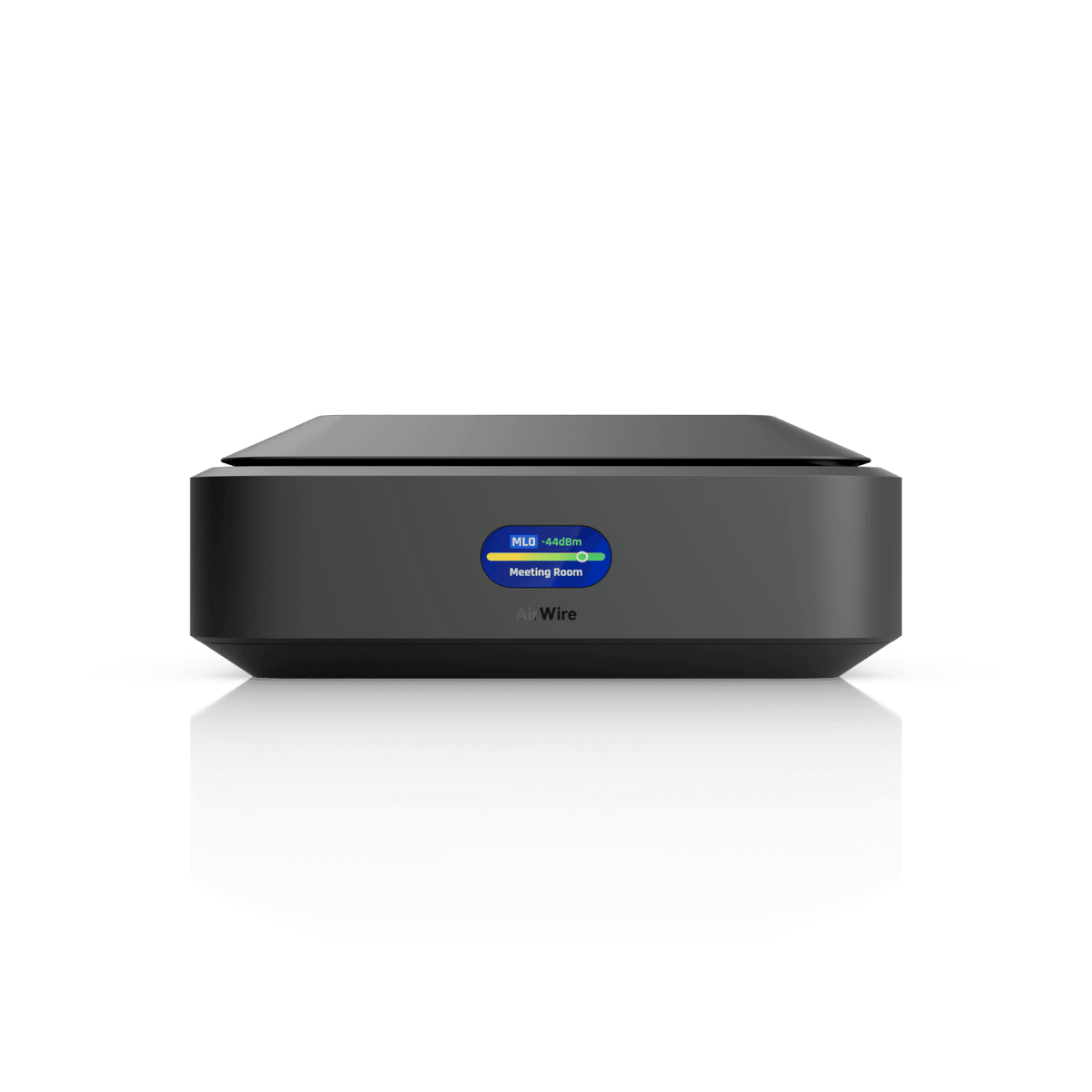

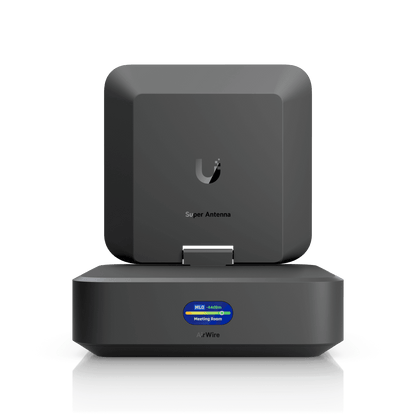

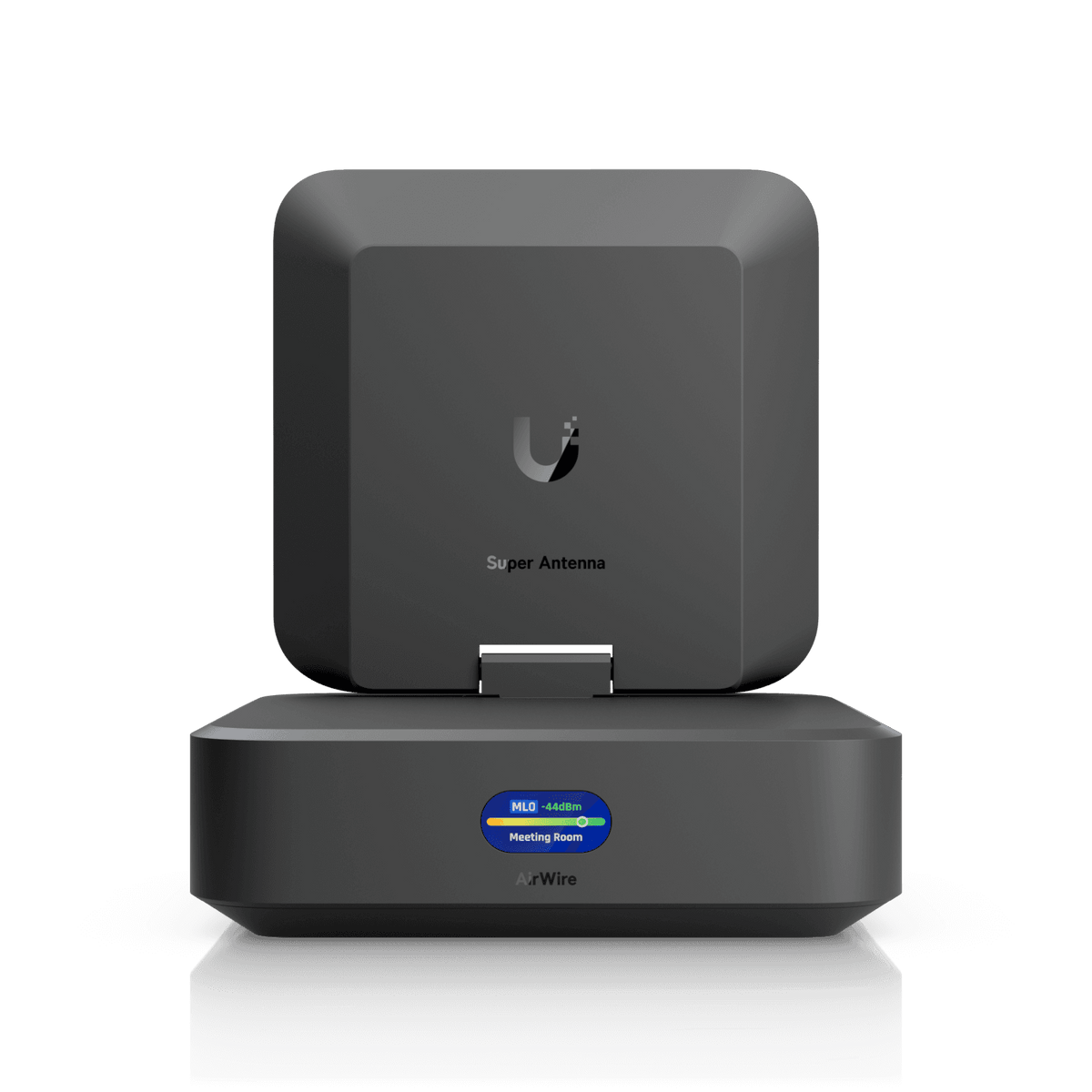

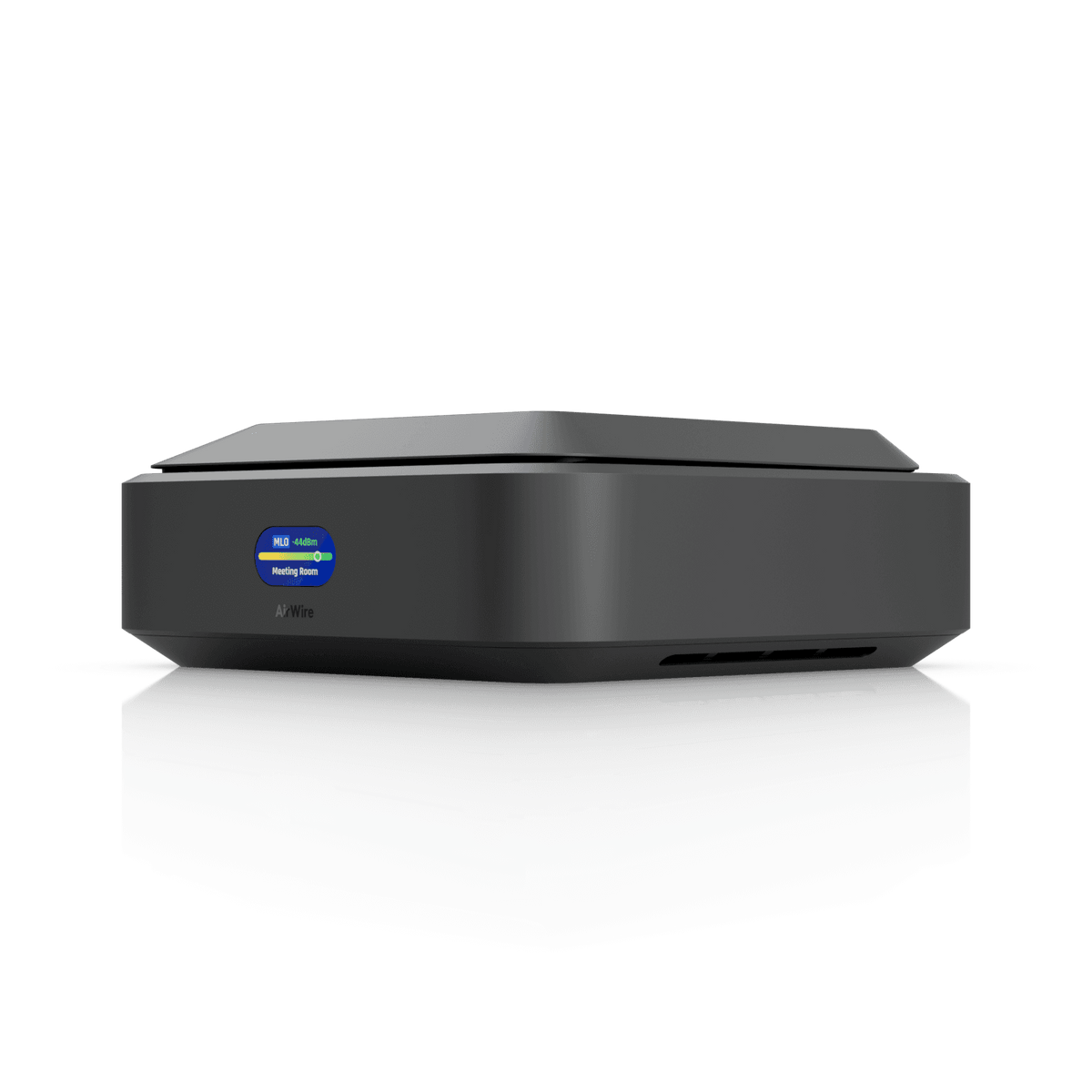

• Onboard LCM Status Screen: Displays real-time signal strength, link speeds, and network status directly on a 0.96-inch front display.

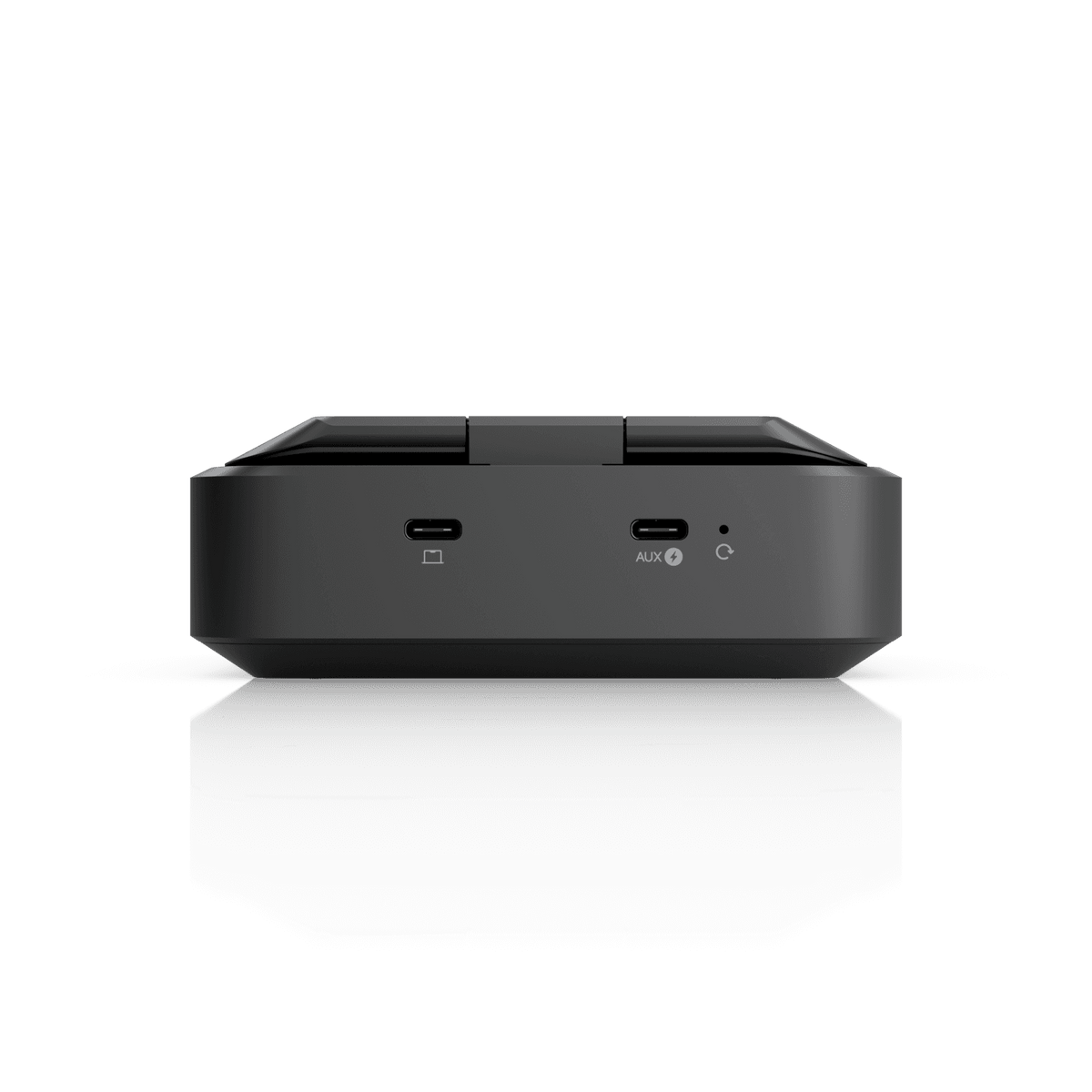

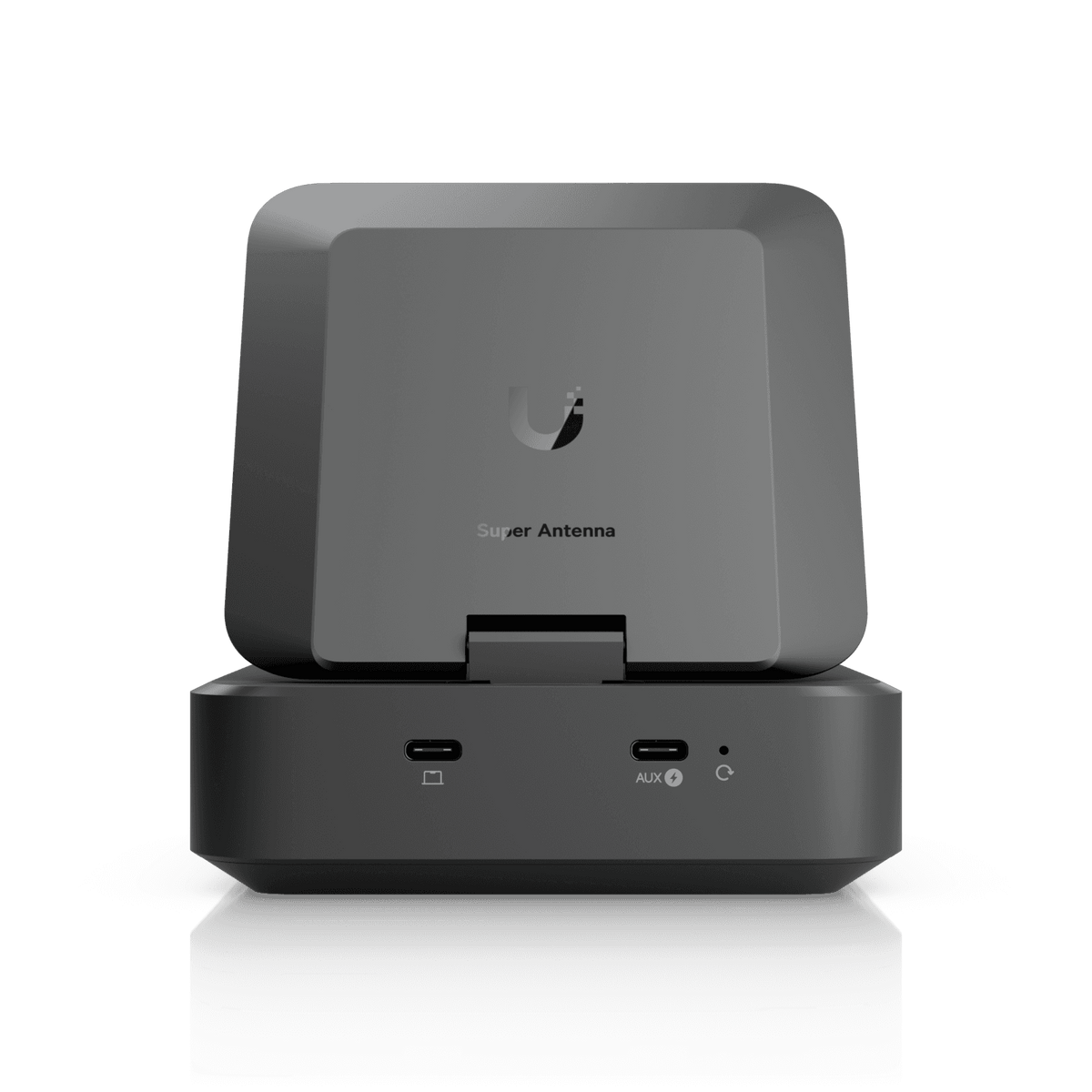

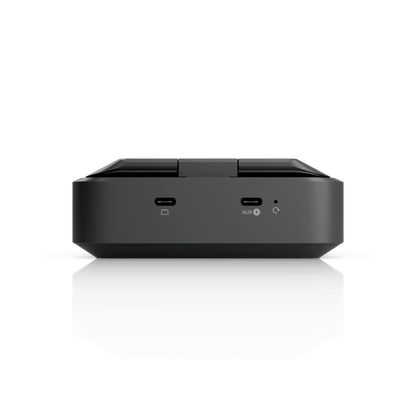

• Dual USB-C Power Ports: Incorporates an auxiliary power port to meet the 20W requirement if the PC's primary port lacks sufficient power.
• Dedicated Spectrum Scanning: Uses an independent background radio to monitor local spectrum interference.

SPECIFICATIONS:

• Dimensions: 117 × 117 × 42.5 mm (4.6 × 4.6 × 1.7")
• WiFi Standard: WiFi 7
• Spatial Streams: 4
• Uplink: WiFi
• MIMO:
  • 6 GHz: 2 × 2 (DL/UL MU-MIMO)
  • 5 GHz: 2 × 2 (DL/UL MU-MIMO)
• Max. Data Rate:
  • 6 GHz: 5.8 Gbps (BW320)
  • 5 GHz: 4.3 Gbps (BW240)
• Antenna Gain:
  • 6 GHz: 11 dBi
  • 5 GHz: 11 dBi
• Max. TX Power:
  • 6 GHz: 20 dBm
  • 5 GHz: 25 dBm
• Supported Data Rates:
  • 802.11be (WiFi 7): 7.3 Mbps to 5.8 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/320)
  • 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0–MCS11 NSS1/2, HE 20/40/80/160)
  • 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0–MCS9 NSS1/2, VHT 20/40/80/160)
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)
• Wireless Meshing: ✓
• Real-Time Spectral Analysis: ✓
• Max. Power Consumption: 18W
• Power Supply:
  • USB PD 5/9/12V, 15W (Standard mode)
  • USB PD 5/9/12V, 20W (Enhanced mode)
• Networking Interface: (1) 5 GbE port (USB 3.2 Gen 2)
• Weight: 544 g (1.2 lb)
• Management: USB-C
• Enclosure Material: Polycarbonate
• Display: 0.96" status display
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 MHz
• Ambient Operating Temperature: -10 to 40°C (14 to 104°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC
• Application Requirements: UniFi Network version 10.2 and later

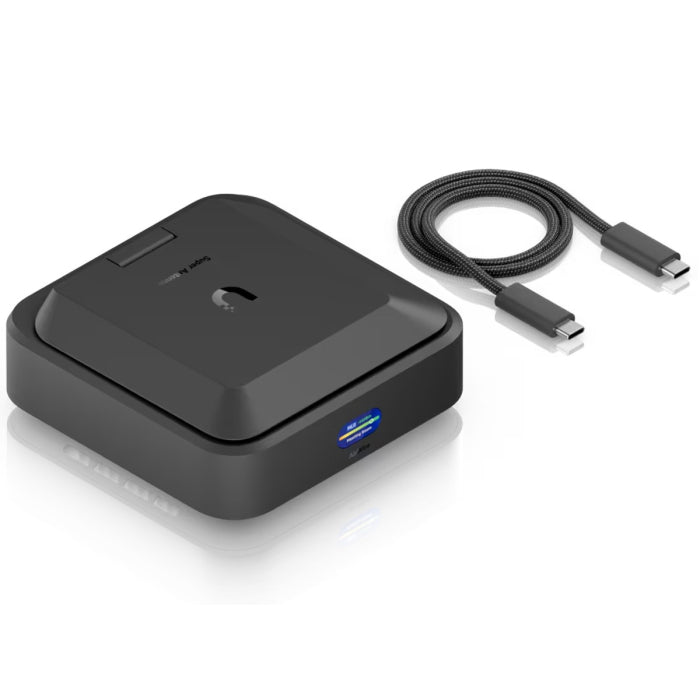

WHAT’S IN THE BOX:

• U-AirWire main unit x1
• USB-C Data/Power Cable x1
• Quick Start / Get Started Guide x1

WARRANTY:

• 12 Months
