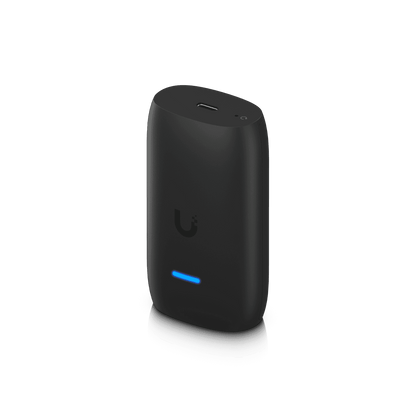

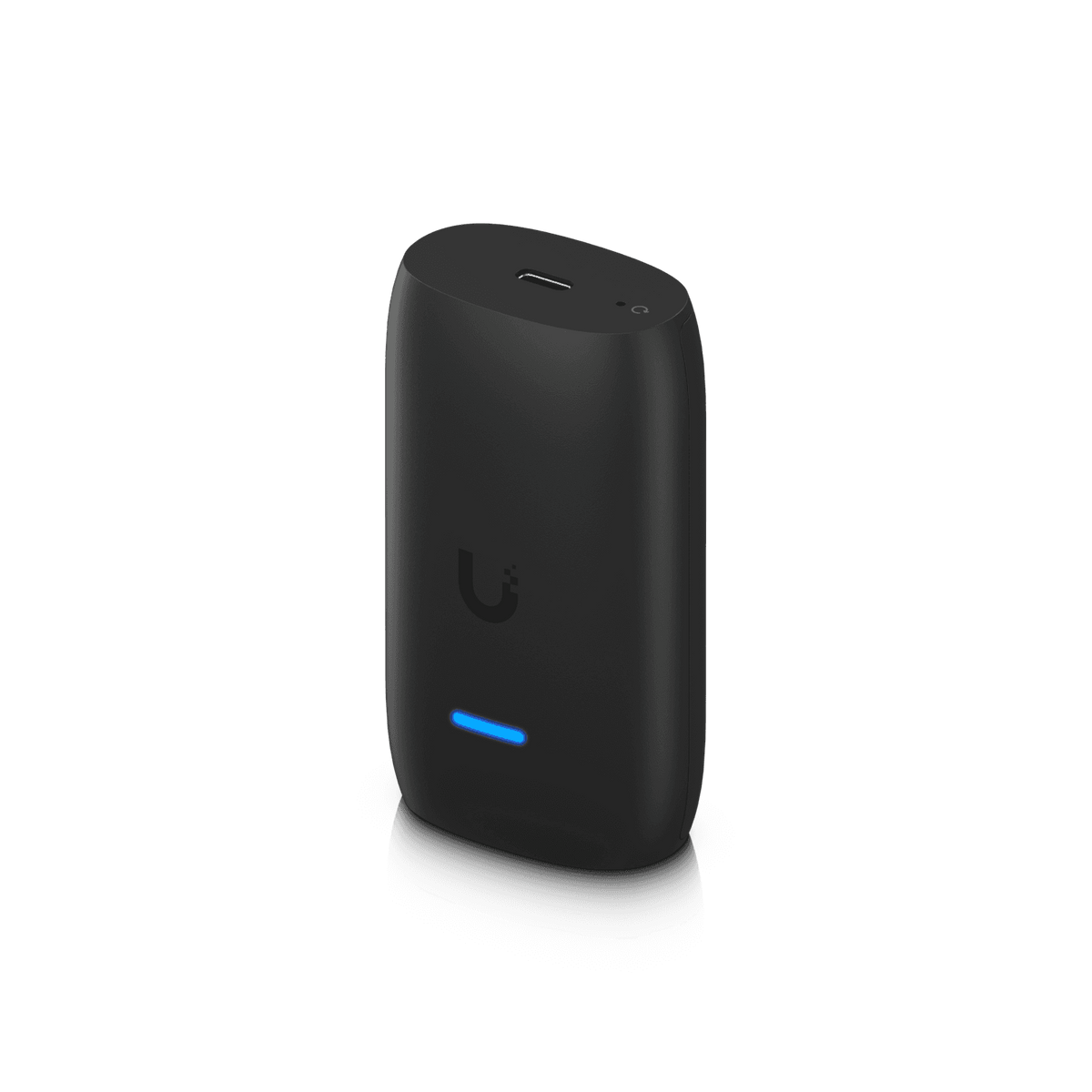

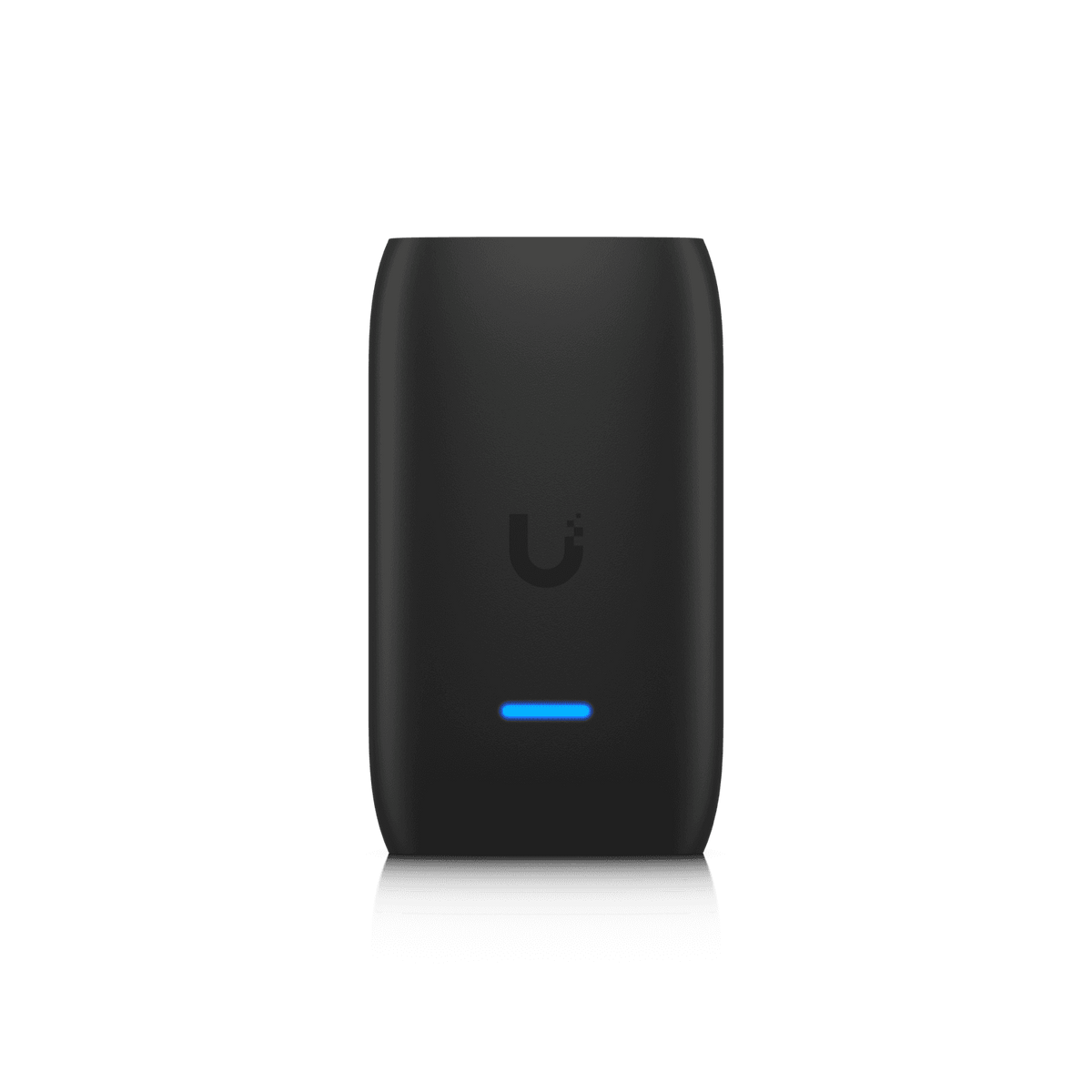

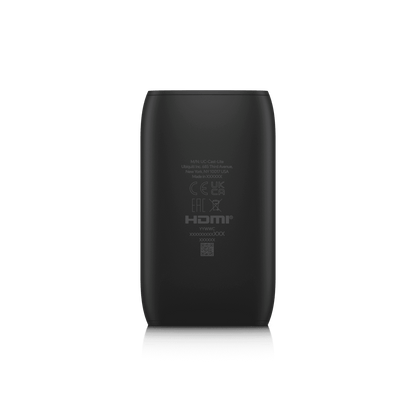

Ubiquiti UniFi Dual Band WiFi 6 HDMI Display Cast Lite

Ubiquiti's UC-Cast-Lite is a digital signage player designed for media playback on HDMI displays. It is powered by the included USB-C adapter and has a single HDMI output. It features Dual-Band WiFi for seamless integration with UniFi Access points.

This product is managed and configured using the UniFi Connect application.

FEATURES:

• Full HD Playback: Streams crisp digital signage media, looping videos, and audio up to 1080p at 60 FPS.
• Wi-Fi 6 & Auto-Link: Utilises dual-band Wi-Fi 6 and automatically pairs with nearby UniFi access points for fast setup.
• HDMI CEC Smart Power: Automatically turns your TV or monitor on and off based on your custom content schedules.
• Solid Core Internals: Equipped with a Quad-Core processor, 2 GB of RAM, and 16 GB of local storage for smooth caching.
• Ultra-Compact & Wireless: Relies entirely on Wi-Fi for data and a USB-C port for power, weighing a light 160 grams.

SPECIFICATIONS:

• Dimensions: 90 × 52 × 31 mm (3.5 × 2.1 × 1.2") without mount; 92.1 × 56.3 × 40.8 mm (3.6 × 2.2 × 1.6") with mount

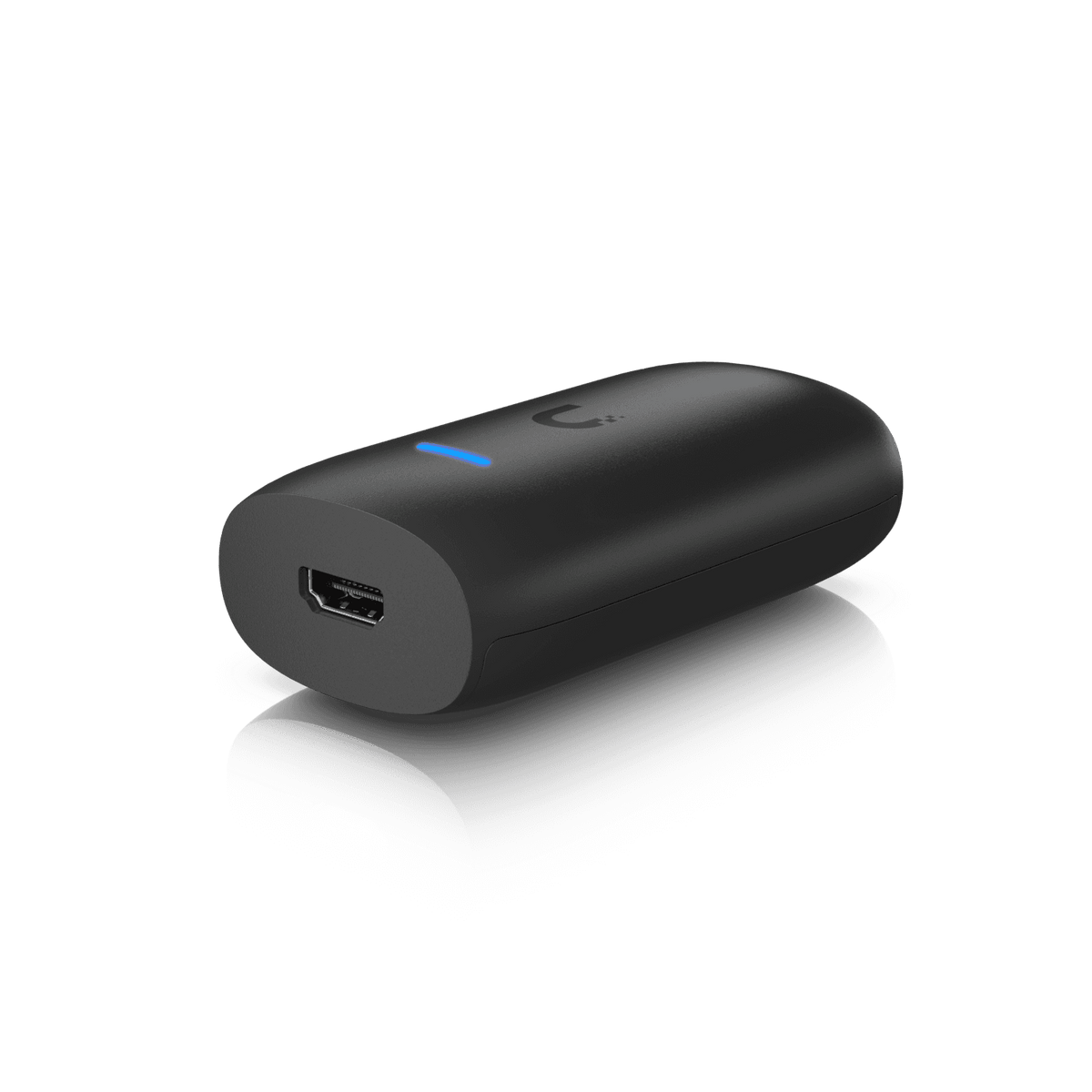

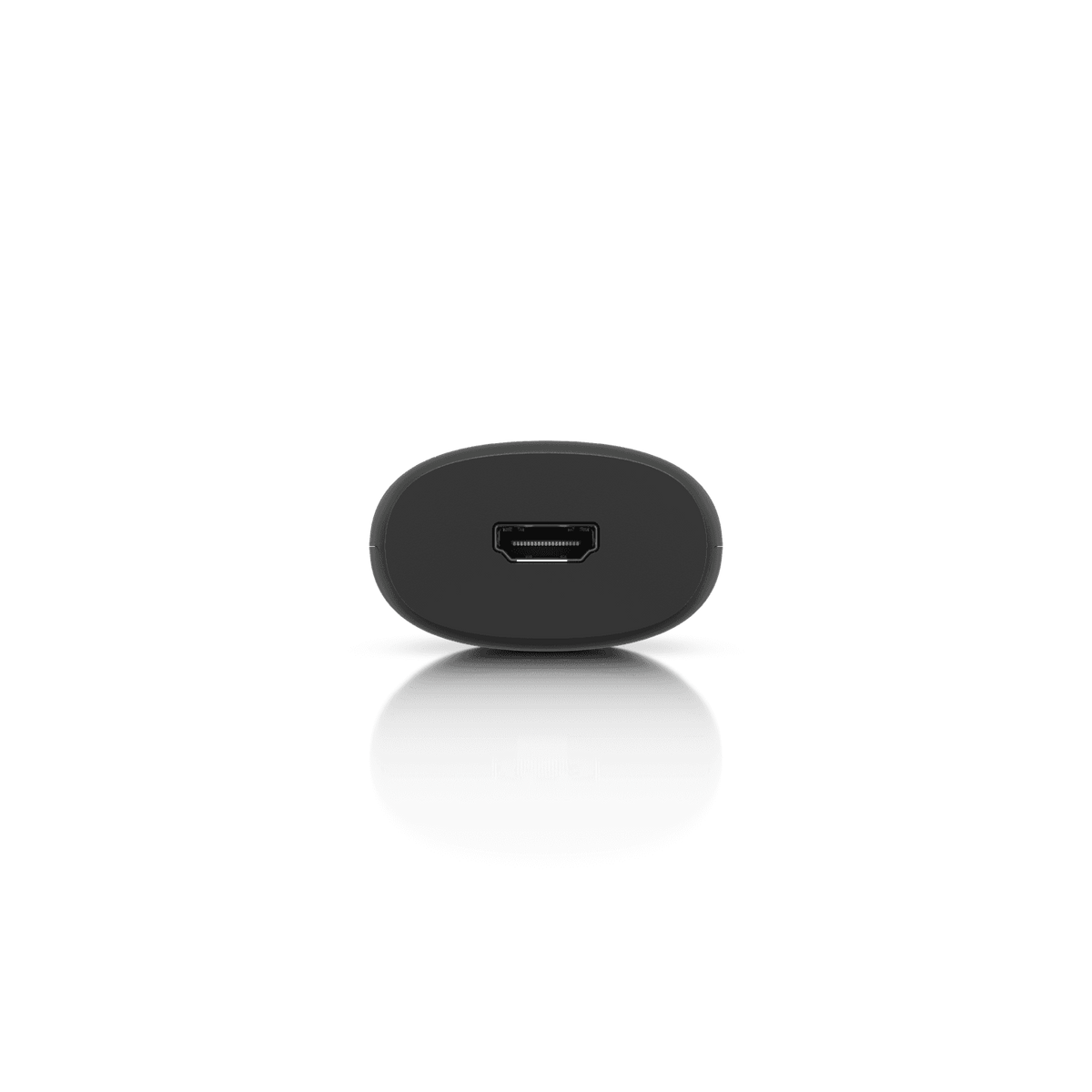

• Display Output: (1) HDMI port
• Video Content Support: 480p / 720p / 1080p
• UniFi Application Suite: Connect ✓
• Weight: 160 g (5.6 oz) without mount; 180 g (6.3 oz) with mount
• Pole Mount Diameter: 1–2" (25–50 mm)
• Processor: Quad-Core Arm® Cortex®-A55, 1.9 GHz
• Memory: 16 GB storage, 2 GB RAM

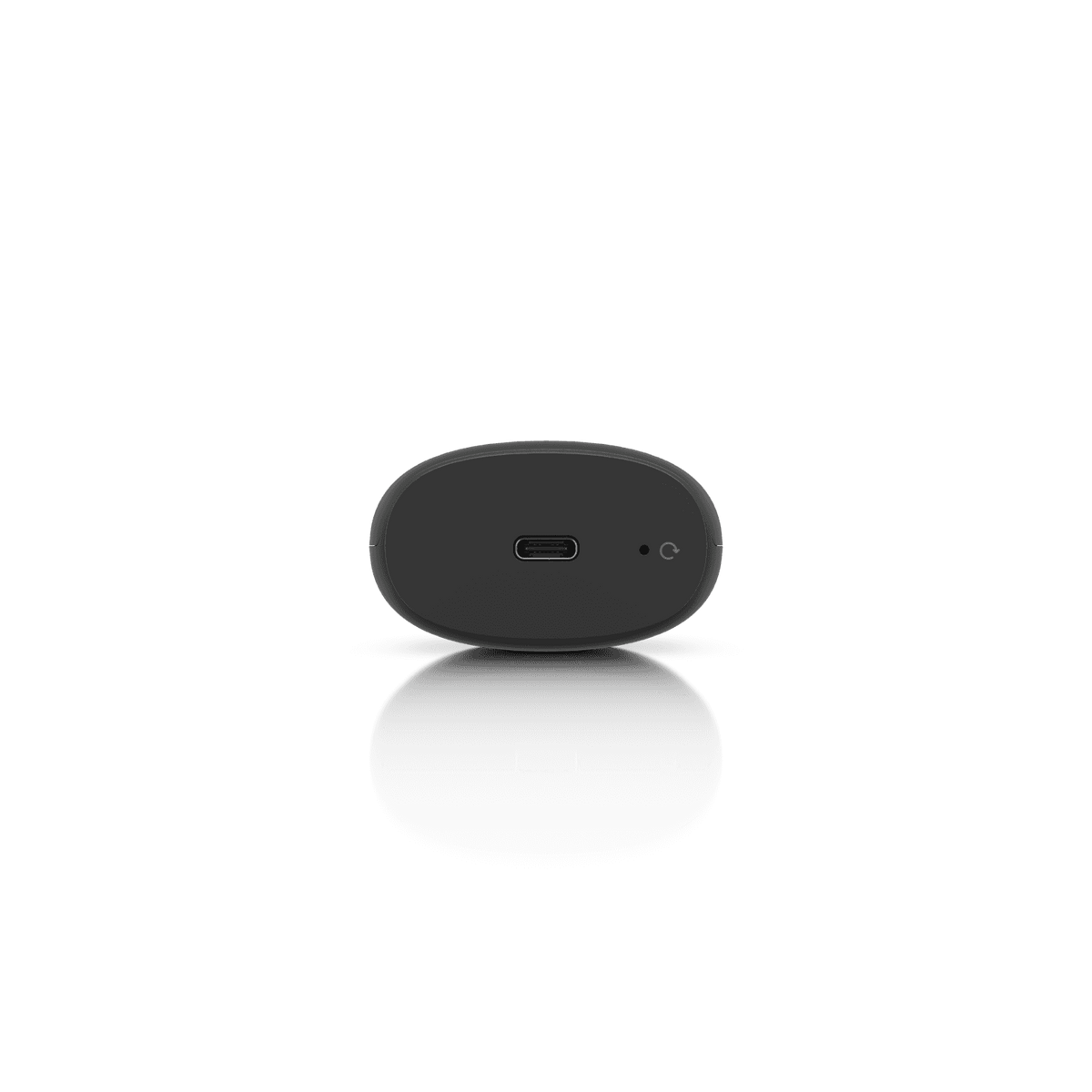

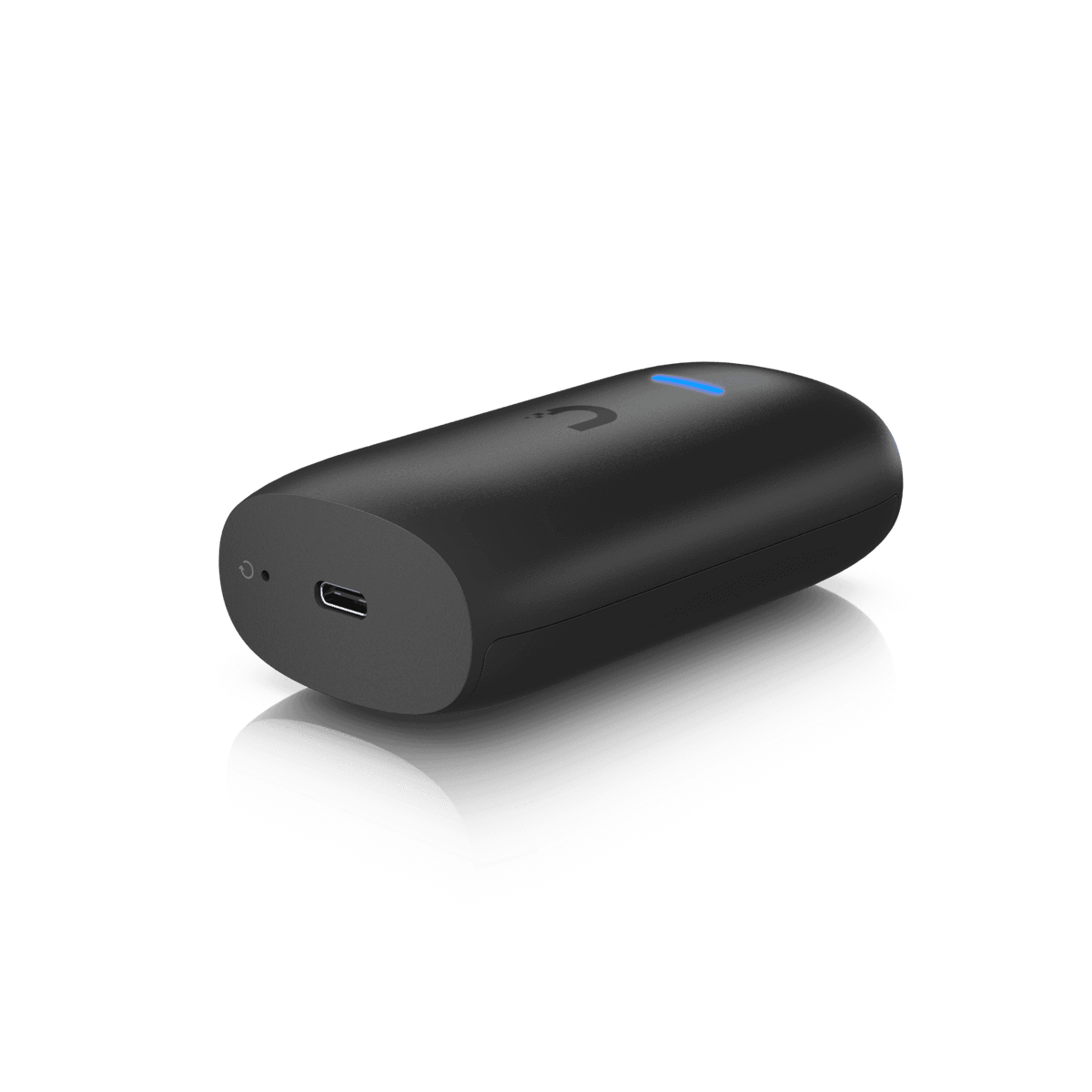

• Power Method: (1) USB Type-C 5V DC, 1A
• Max. Power Consumption: 5W
• Connectivity: WiFi 2.4G, BW 20/40 MHz; WiFi 5G, BW 20/40/80 MHz
• WiFi Standards: 802.11 a/b/g/n/ac/ax

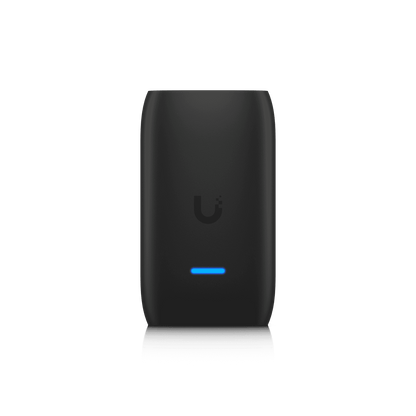

• LEDs: System — White/blue
• Buttons: (1) Factory reset
• Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
• Ambient Operating Humidity: 20 to 90% noncondensing

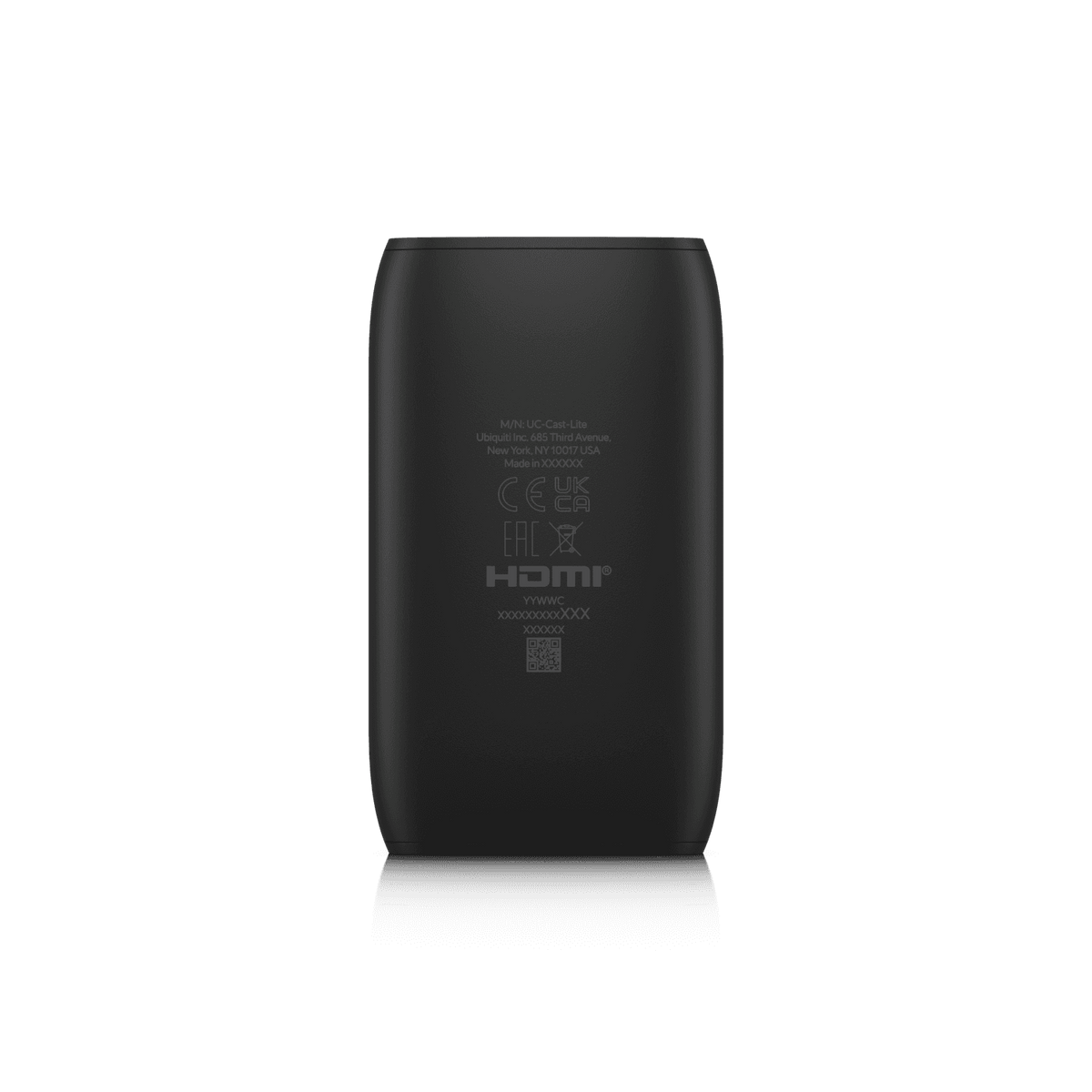

• Certifications: CE, FCC, IC, Wi-Fi CERTIFIED, UL 62368-1, CSA C22.2 No. 62368-1
• NDAA Compliant: ✓
• Management Application: UniFi Connect Web v3.17.0+; UniFi Connect iOS™ and Android™ v2.26.0+

WHAT’S IN THE BOX:

• UniFi Display Cast Lite device x1
• Mounting Bracket / Clip (Supports surface and 1–2" pole/pipe mounting options) x1
• USB-C Power Adapter (5V, 1A) x1

WARRANTY:

• 12 Months
