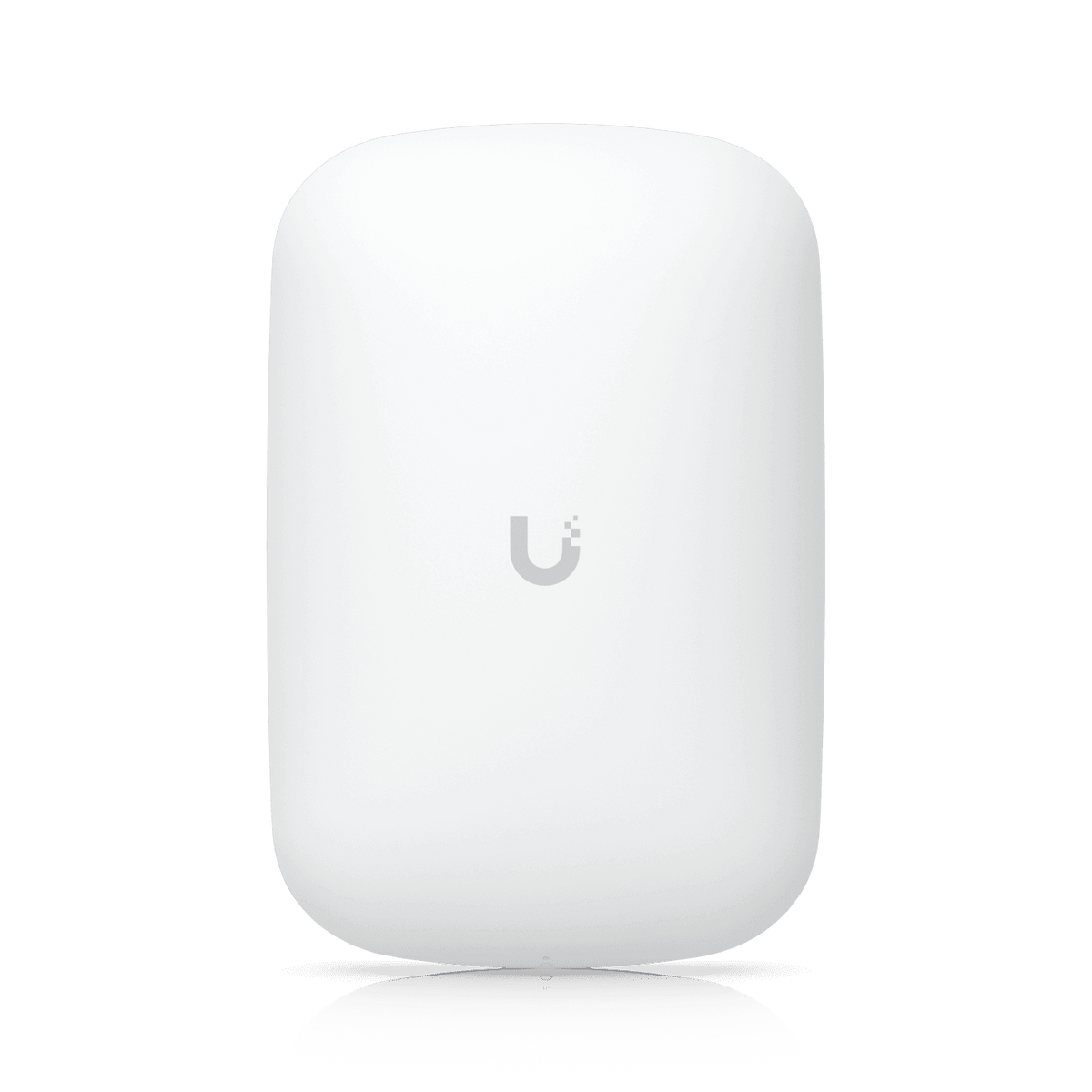

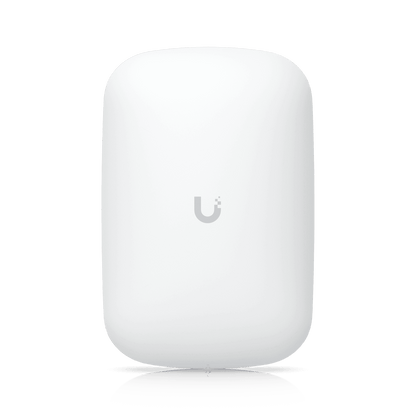

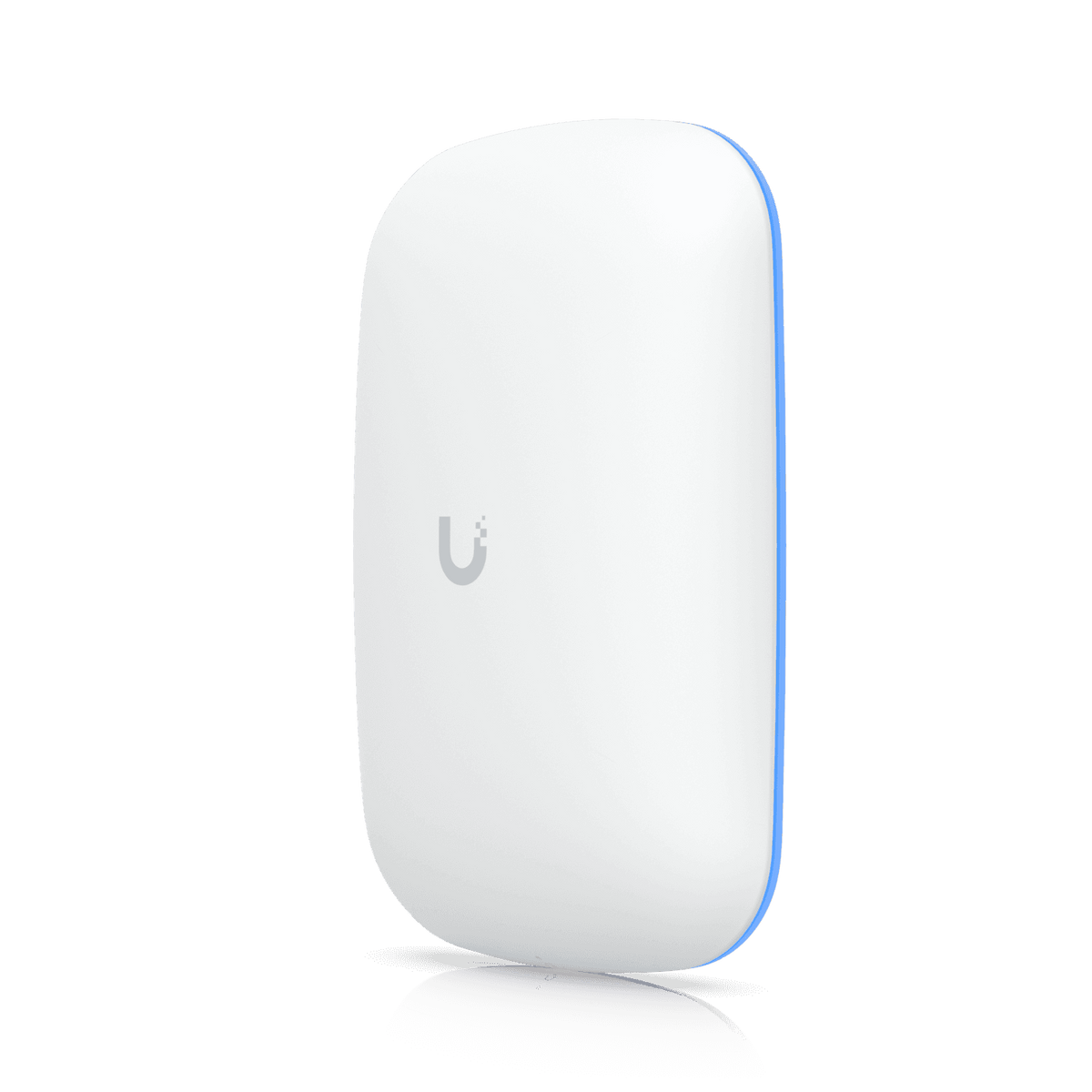

Ubiquiti UniFi Dual Band WiFi 6 Range Extender

Ubiquiti's U6-EXTENDER is a plug and play, dual band, WiFi 6 (802.11ax) Range Extender. It delivers an aggregate data rate of up to 5.3Gbps over 5GHz (4x4 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands.

It can be configured and managed with the UniFi Network Application.

*Note: Schuko (EUR-SCH) adapter sold separately.

FEATURES:

• High-Speed Wi-Fi 6 Performance: Offers an aggregate wireless throughput rate of up to 5.3 Gbps across its dual bands.
• High-Efficiency 6-Stream Layout: Uses a 4x4 MU-MIMO array on the 5 GHz band (delivering up to 4.8 Gbps) and a 2x2 MU-MIMO array on the 2.4 GHz band (up to 573.5 Mbps).
• Seamless Mesh Uplink: Connects wirelessly over-the-air to any nearby wired UniFi access point, repeating the signal under your same network name (SSID) without dropping connections.
• Eliminates Dead Zones: Designed to extend a network's wireless coverage footprint by up to 115 m² (1,250 ft²).
• High-Density Capacity: Built with the processing power to manage 250+ simultaneous active devices effortlessly.
• Instant App Onboarding: Features a built-in Bluetooth low-energy radio for discovery and adoption via the UniFi Network mobile app.

SPECIFICATIONS:

• Dimensions: 169.7 × 112.2 × 77.6 mm (6.7 × 4.4 × 3.1")
• WiFi Standard: WiFi 6
• Spatial Streams: 6
• Coverage Area: 115 m² (1,250 ft²)
• Max. Client Count: 250+

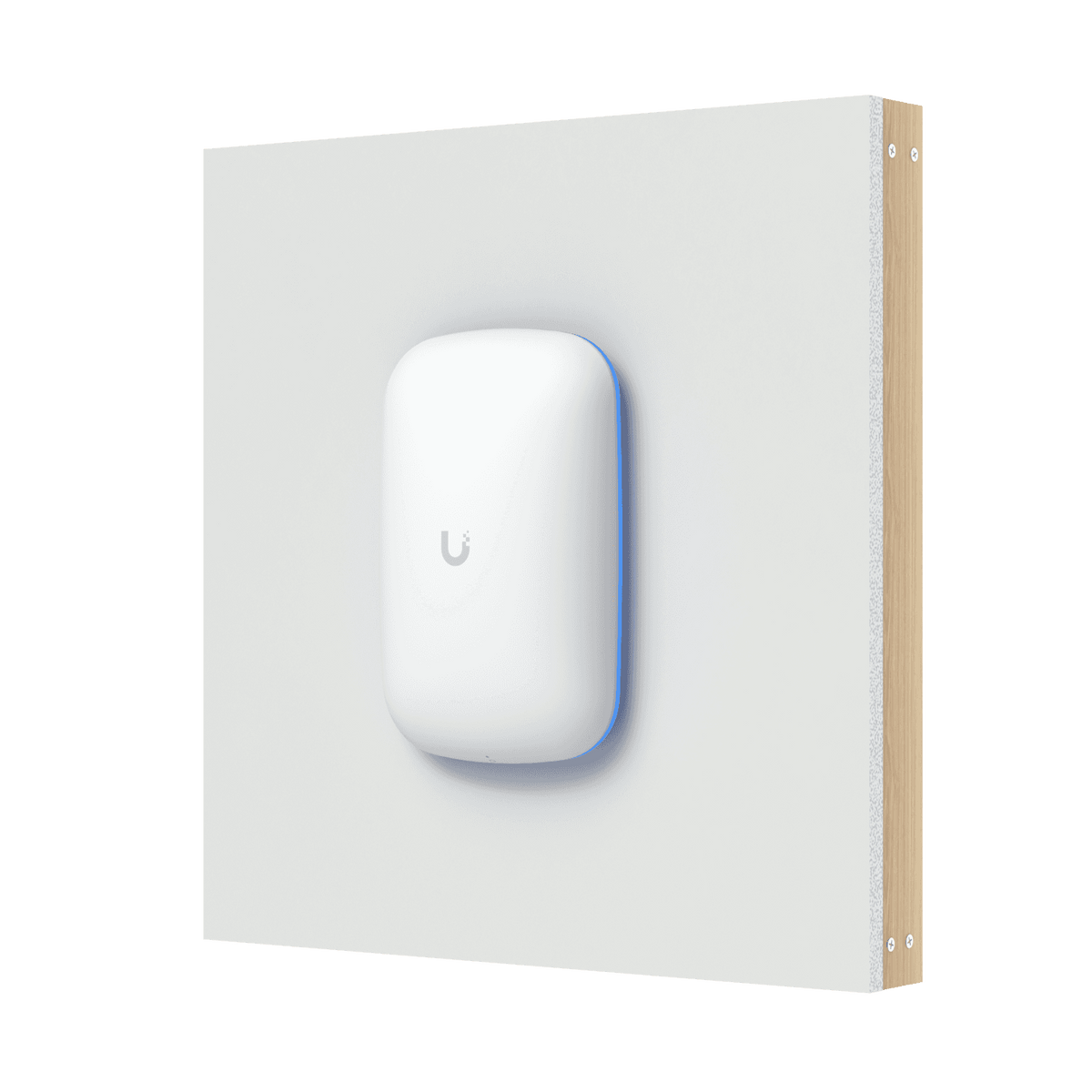

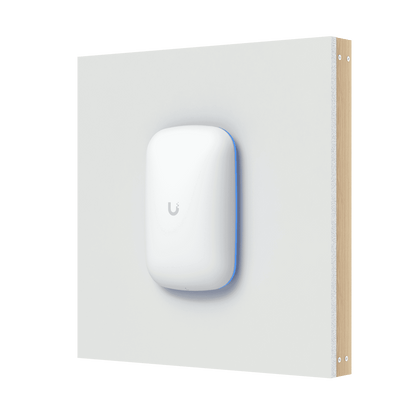

• Mounting: Wall (wall power socket included)
• Power Method: Universal AC input, 100–240V AC, 0.3A Max., 50/60 Hz
• MIMO:
  • 5 GHz: 4 × 4 (DL/UL MU-MIMO)
  • 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)
• Max. Data Rate:
  • 5 GHz: 4.8 Gbps (BW160)
  • 2.4 GHz: 573.5 Mbps (BW40)
• Antenna Gain:
  • 5 GHz: 6 dBi
  • 2.4 GHz: 5 dBi
• Max. TX Power:
  • 5 GHz: 26 dBm
  • 2.4 GHz: 22 dBm
• Max. BSSIDs: 8 per radio
• Supported Data Rates:
  • 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0–MCS11 NSS1/2/3/4, HE 20/40/80/160)
  • 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0–MCS9 NSS1/2/3/4, VHT 20/40/80/160)
  • 802.11n: 6.5 Mbps to 600 Mbps (MCS0–MCS31, HT 20/40)
• Wireless Meshing: ✓
• Band Steering: ✓
• 802.11v BSS Transition Management: ✓
• 802.11r Fast Roaming: ✓
• 802.11k Radio Resource Management (RRM): ✓
• Advanced Radio Management: ✓
• Passpoint (Hotspot 2.0): ✓
• Captive Hotspot Portal:
  • Custom Branding Landing Page ✓
  • Voucher Authentication ✓
  • Payment-Based Authentication ✓
  • External Portal Server Support ✓
• Password Authentication: ✓
• Guest Network Isolation: ✓
• Private Pre-Shared Key (PPSK): ✓
• WiFi Speed Limiting: ✓
• Client Device Isolation: ✓
• WiFi Schedules: ✓
• RADIUS over TLS (RadSec): ✓
• Dynamic RADIUS-assigned VLAN: ✓
• Max. Power Consumption: 11W
• Supported Voltage Range: 100–240V AC
• Weight: 340 g (12 oz)
• Management: Bluetooth
• Enclosure Material: Polycarbonate
• LEDs: System — White/Blue
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 MHz
• Operating Frequency:
• US/CA:
  • 2.4 GHz: 2400–2472 MHz
  • U-NII-1: 5150–5250 MHz
  • U-NII-2A: 5250–5350 MHz
  • U-NII-2C: 5470–5725 MHz
  • U-NII-3: 5725–5850 MHz
• Worldwide:
  • 2.4 GHz: 2400–2483.5 MHz
  • 5 GHz: 5150–5850 MHz
• Ambient Operating Temperature: -10 to 50°C (14 to 122°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC
• Application Requirements: UniFi Network version 6.0.45 and later

WHAT’S IN THE BOX:

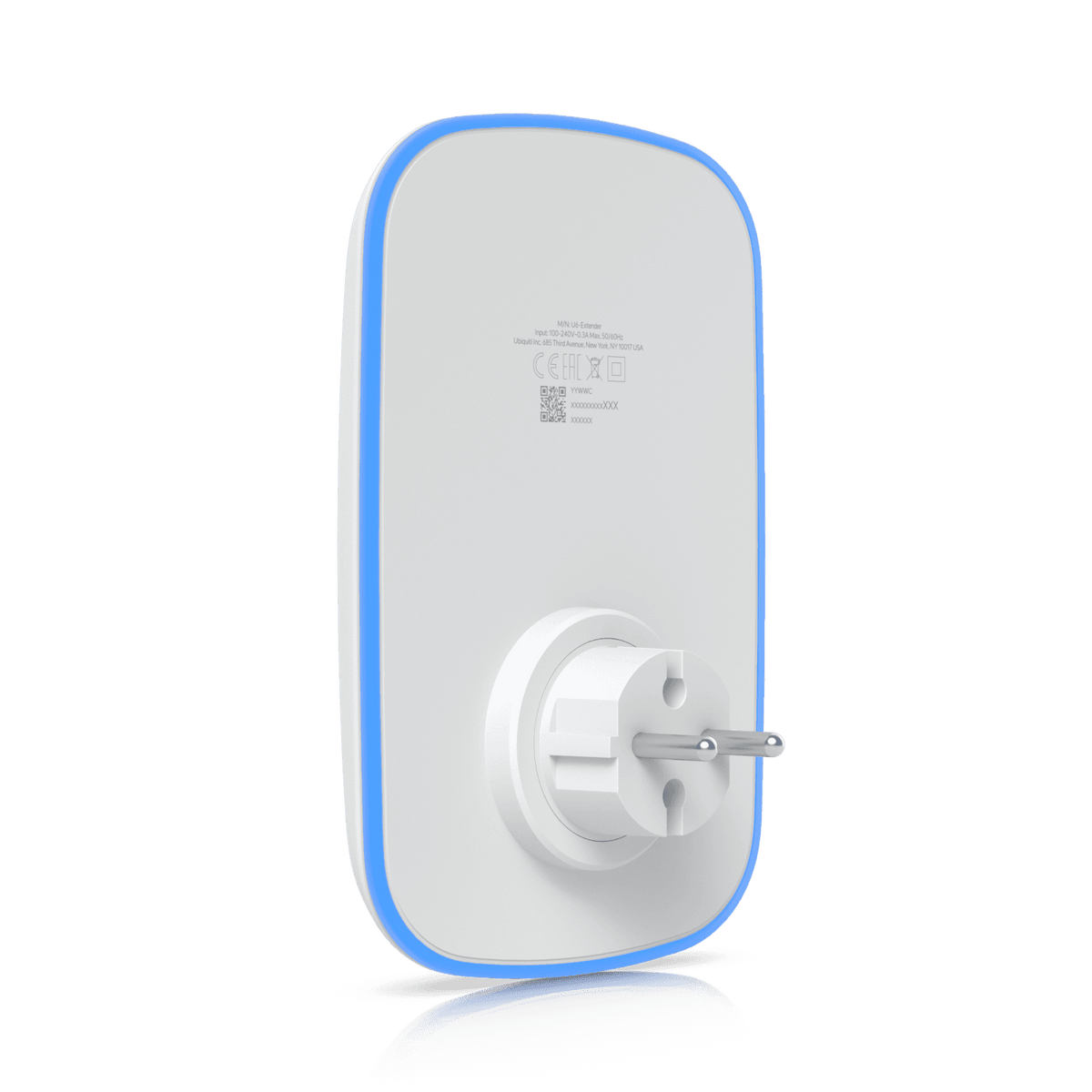

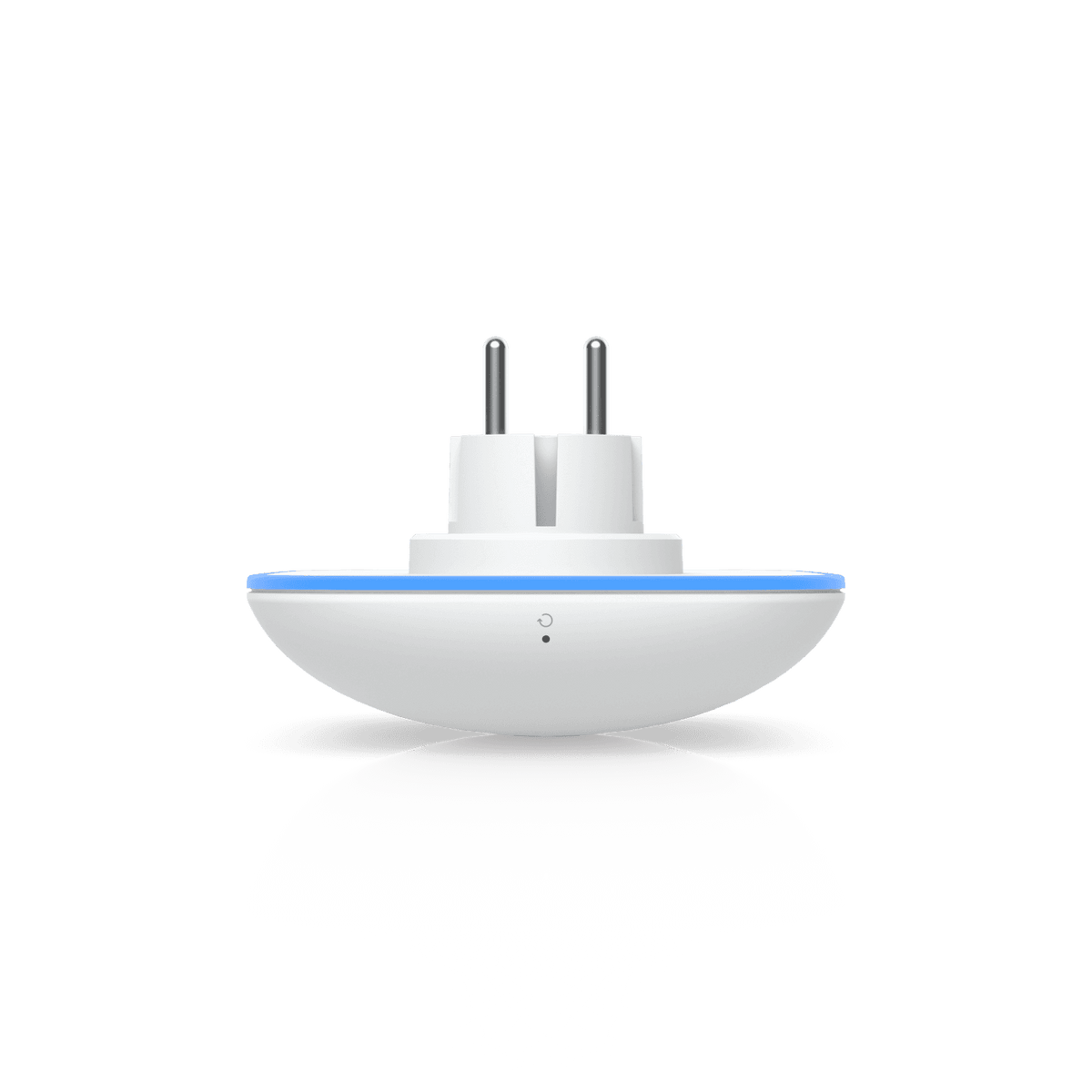

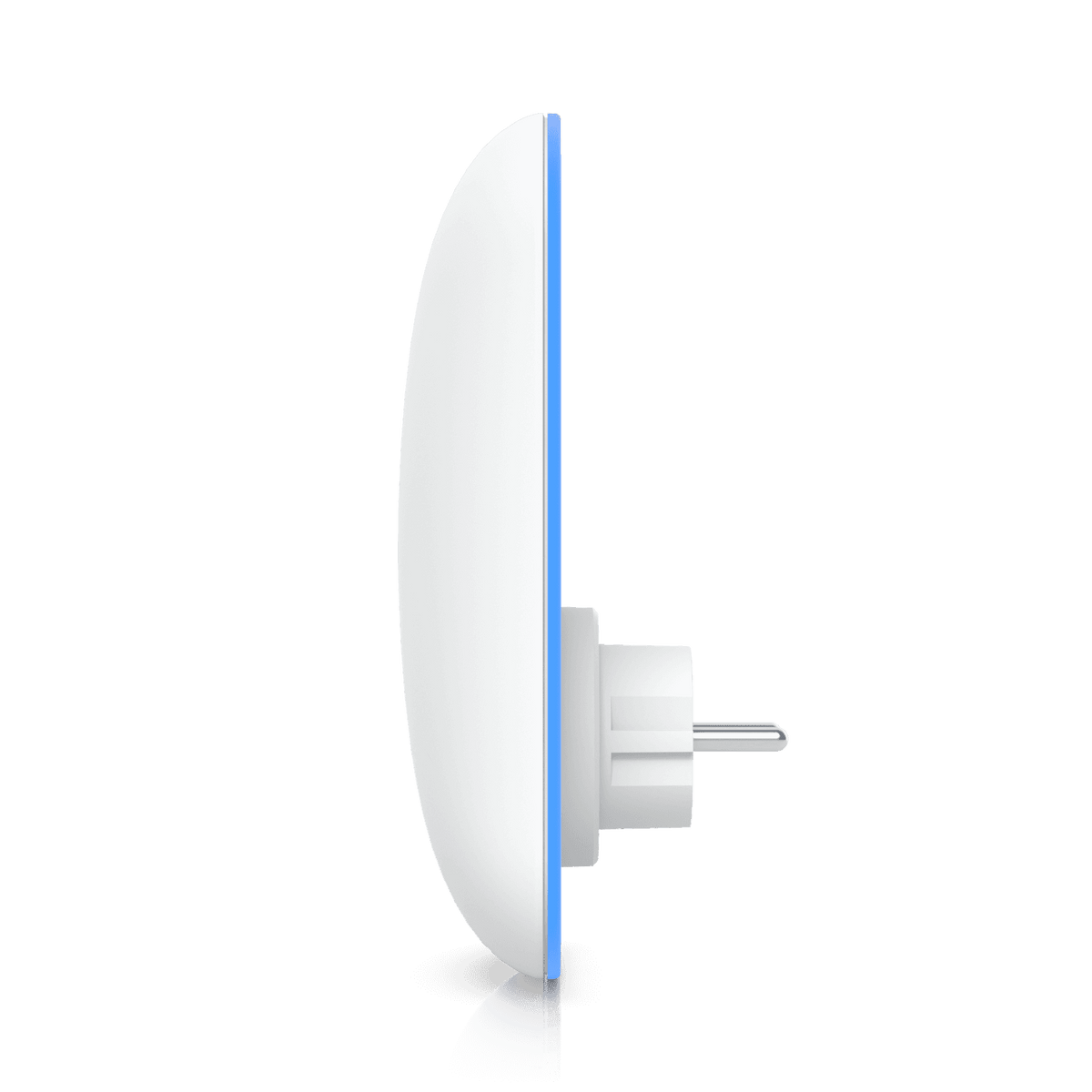

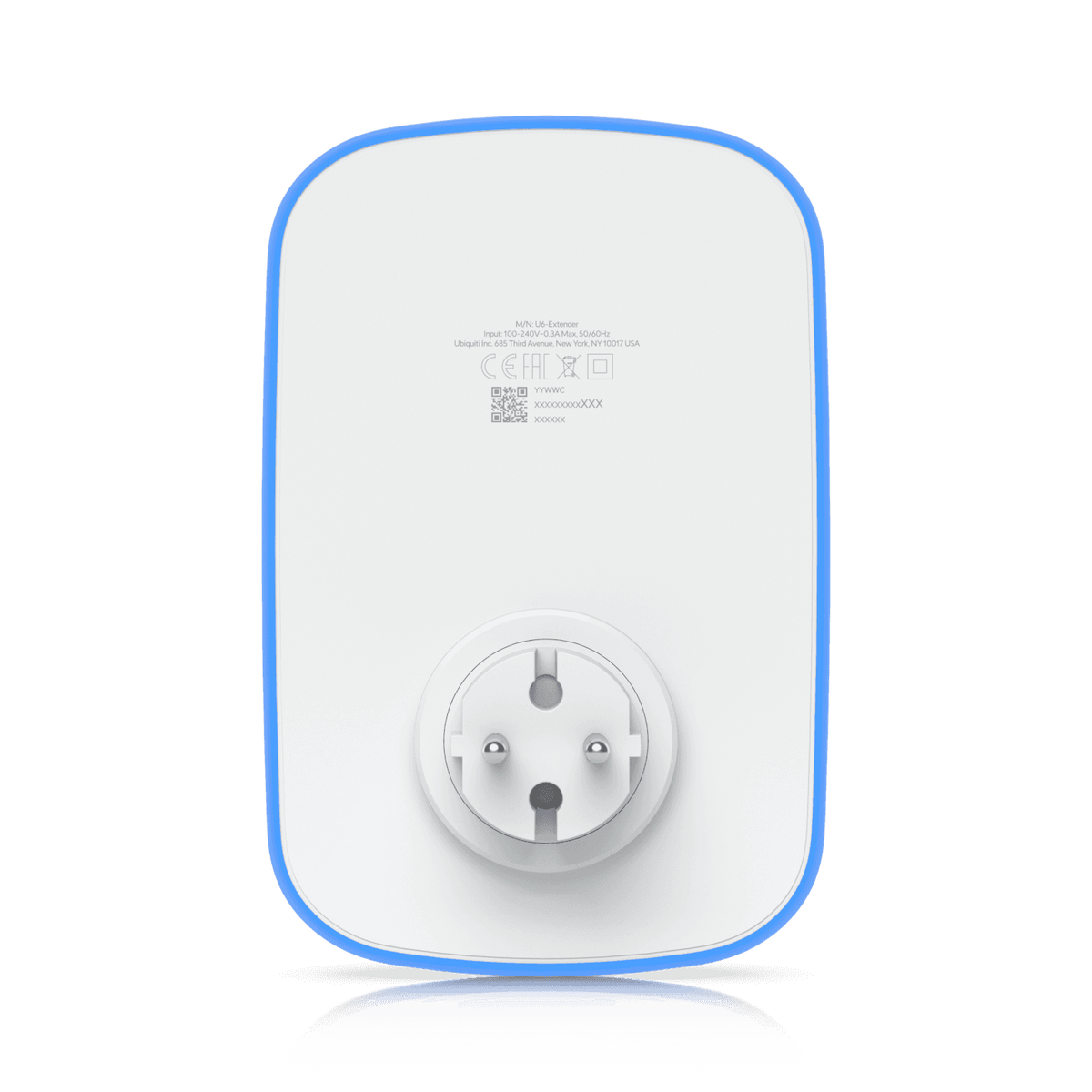

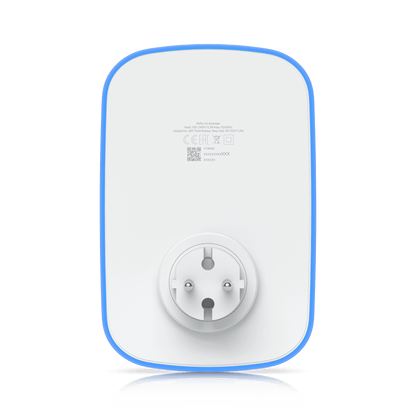

• UniFi6 Extender main unit (with integrated wall power prongs) x1
• Quick Start Guide x1

WARRANTY:

• 12 Months
