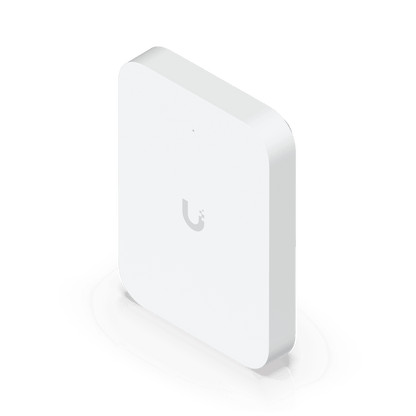

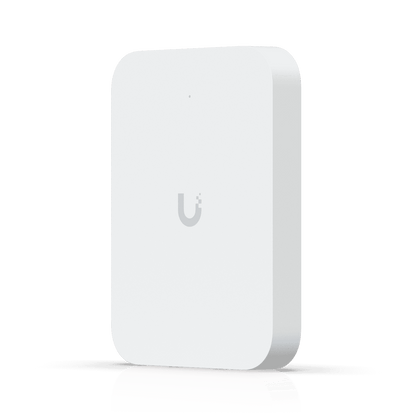

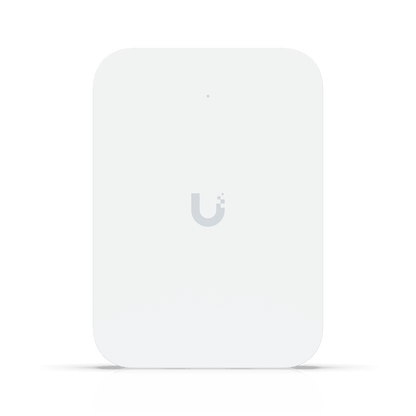

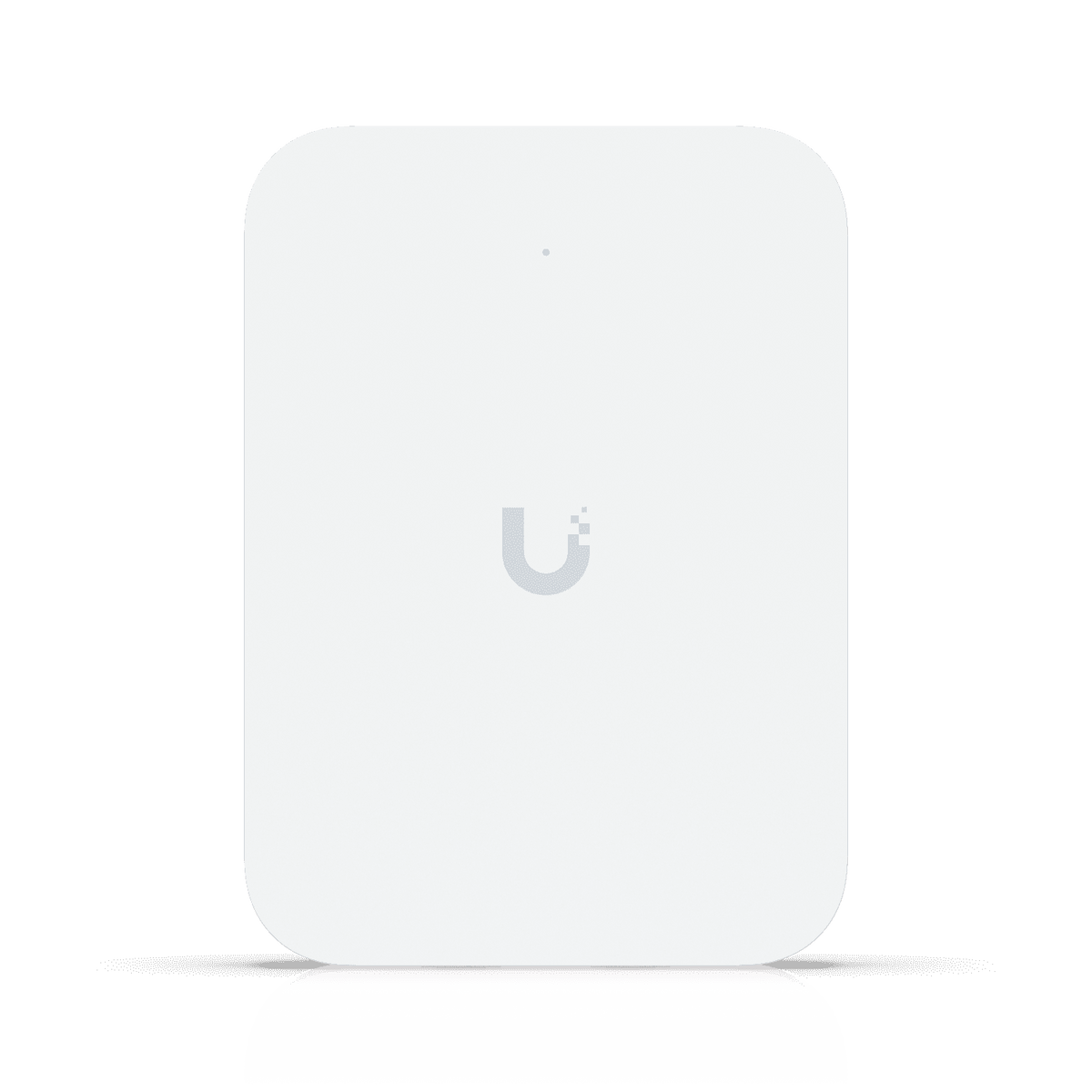

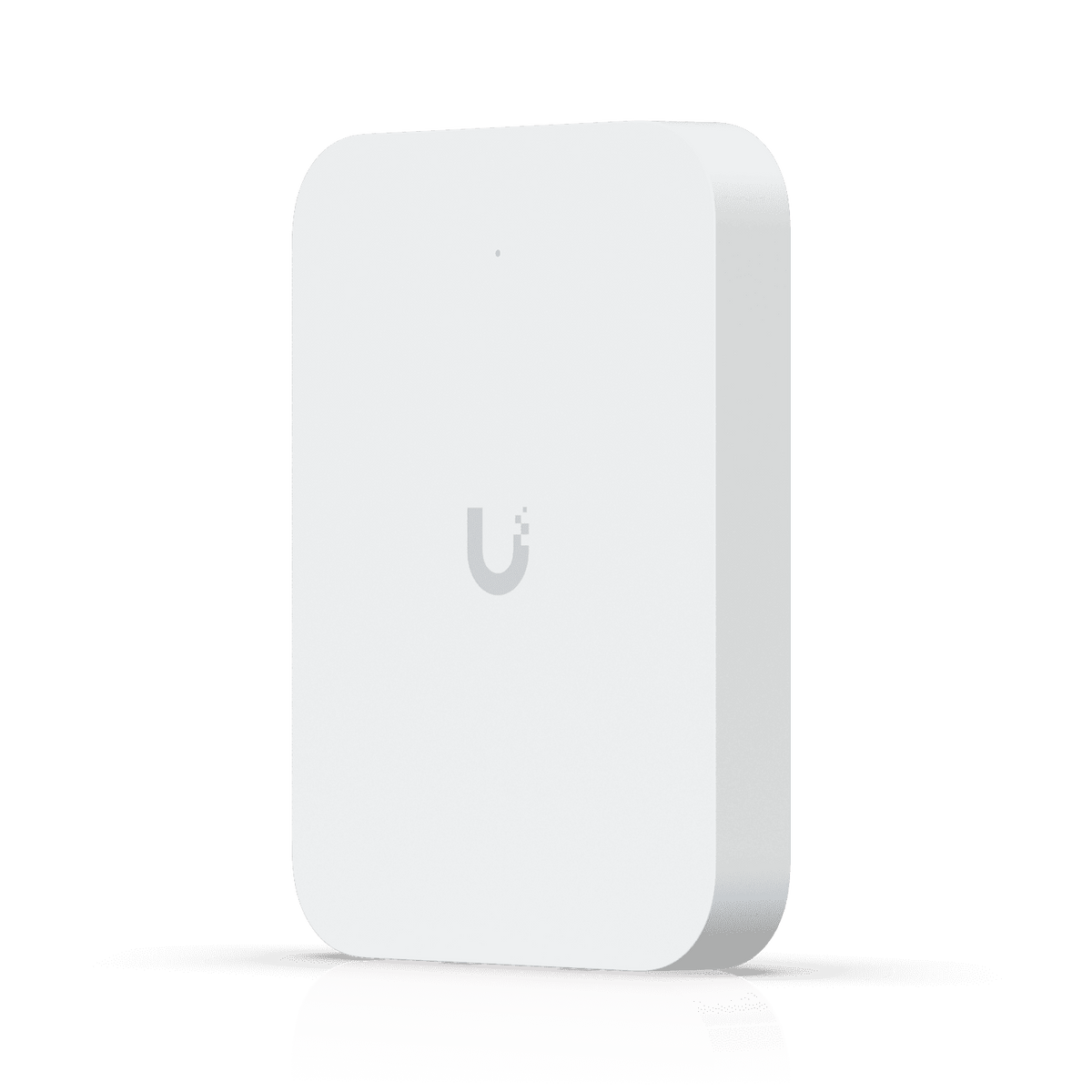

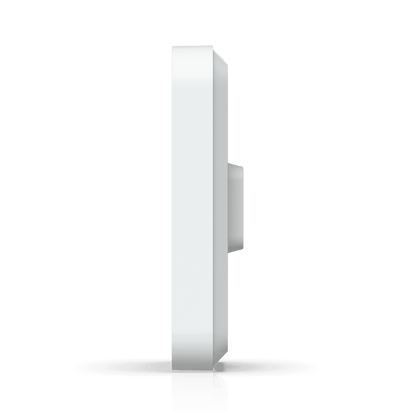

Ubiquiti UniFi Dual Band WiFi 7 2.5G PoE Out In-Wall AP

Ubiquiti's U7-IW is a Dual-Band WiFi 7, wall-mounted AP with 4 spatial streams and 3x 2.5Gbps ports, with one supporting PoE input and one supporting PoE output. It delivers an aggregate data rate of up to 5Gbps over its 5GHz (2x2 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands.

It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included.

FEATURES:

• WiFi 7 Technology: Uses the 802.11be standard for fast data transfer and low lag.
• Dual-Band Speeds: Delivers up to 4.3 Gbps on the 5 GHz band and up to 688 Mbps on the 2.4 GHz band.

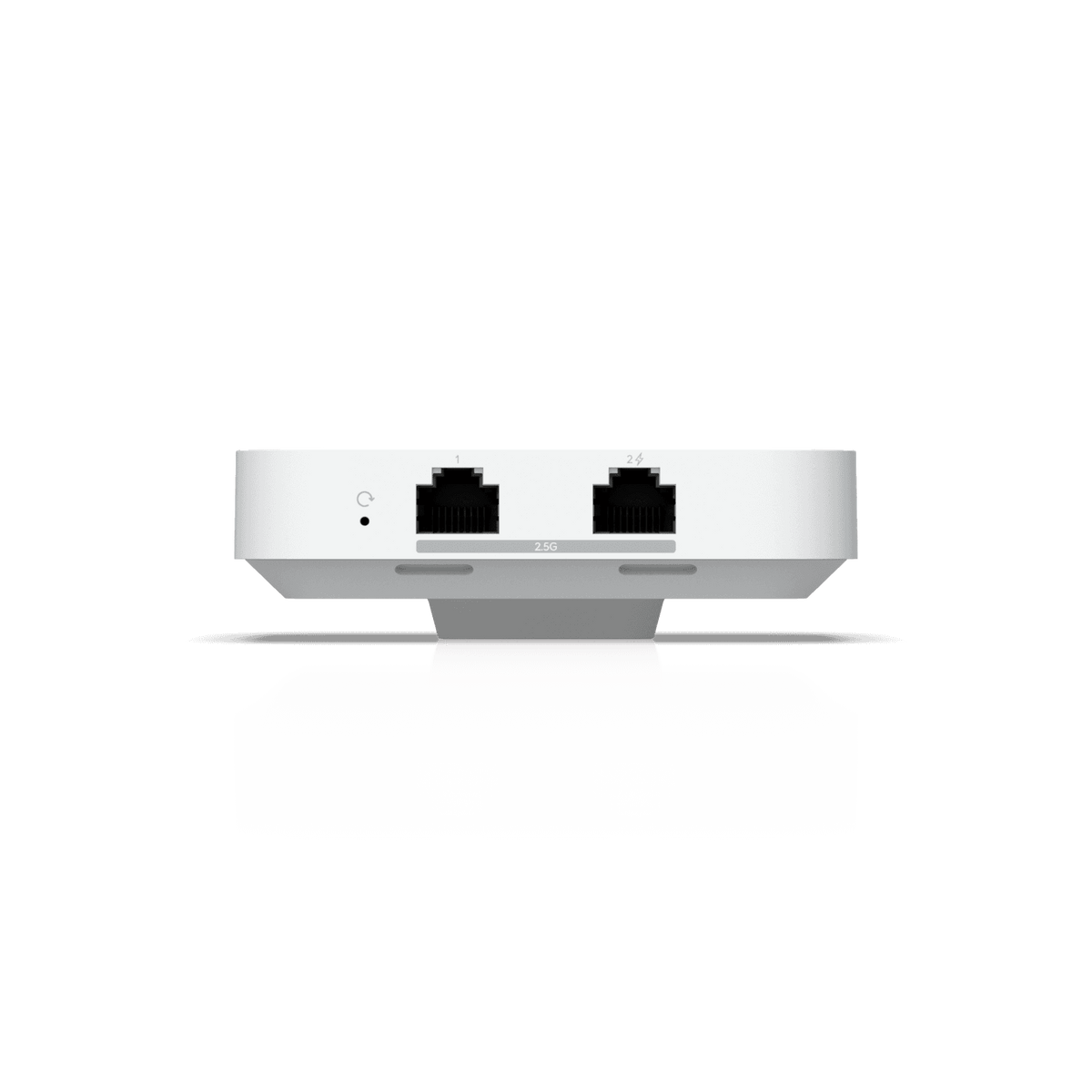

• 2.5G Ethernet Ports: Includes three fast 2.5 GbE RJ45 ports for high-speed wired hookups.
• PoE Output: One port can supply power to a downstream device like an IP desk phone if the access point receives strong enough PoE++ power.
• High Capacity: Handles over 200 concurrently connected wireless clients.

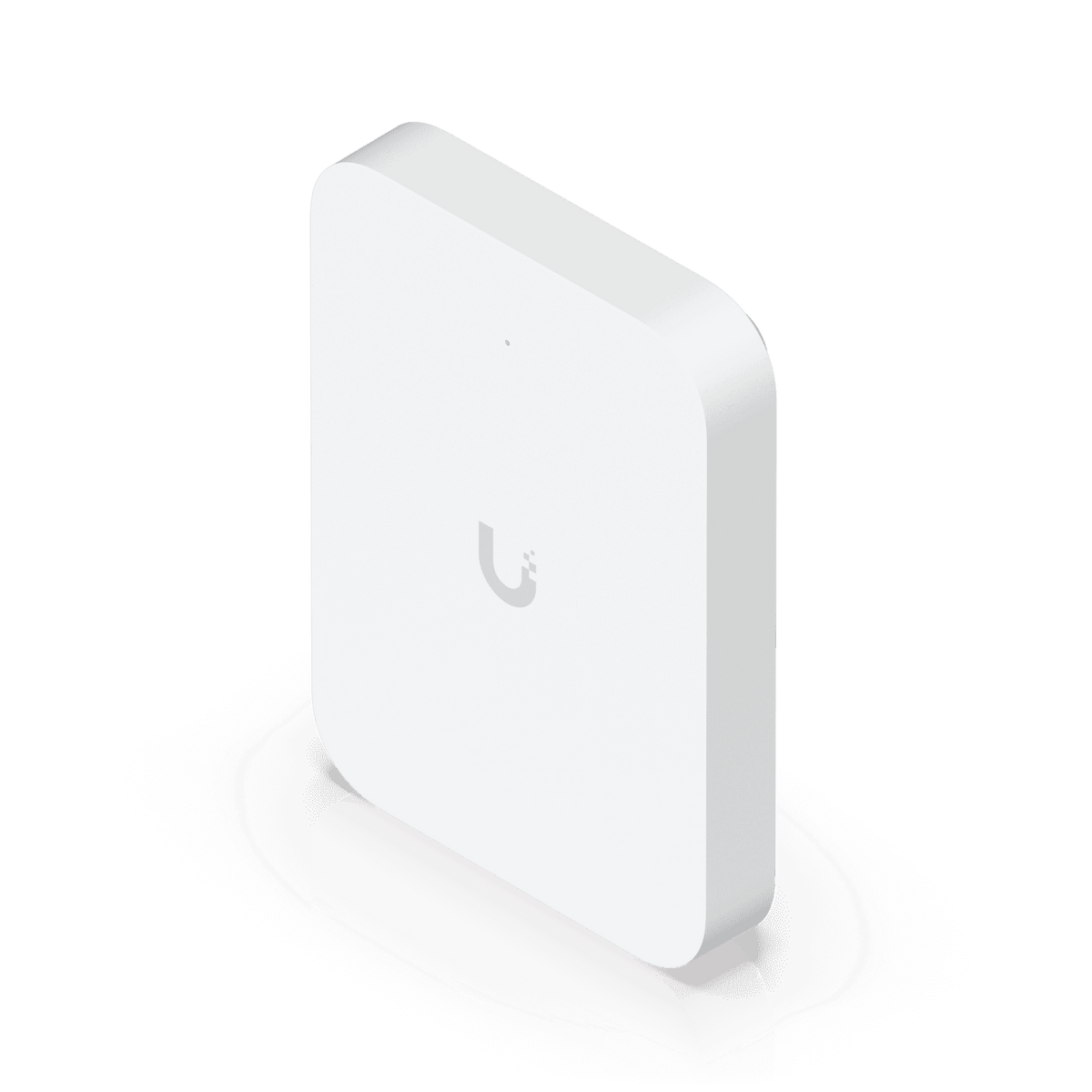

• Discreet Design: Mounts flat against standard wall junction boxes to save space and keep rooms looking clean.

SPECIFICATIONS:

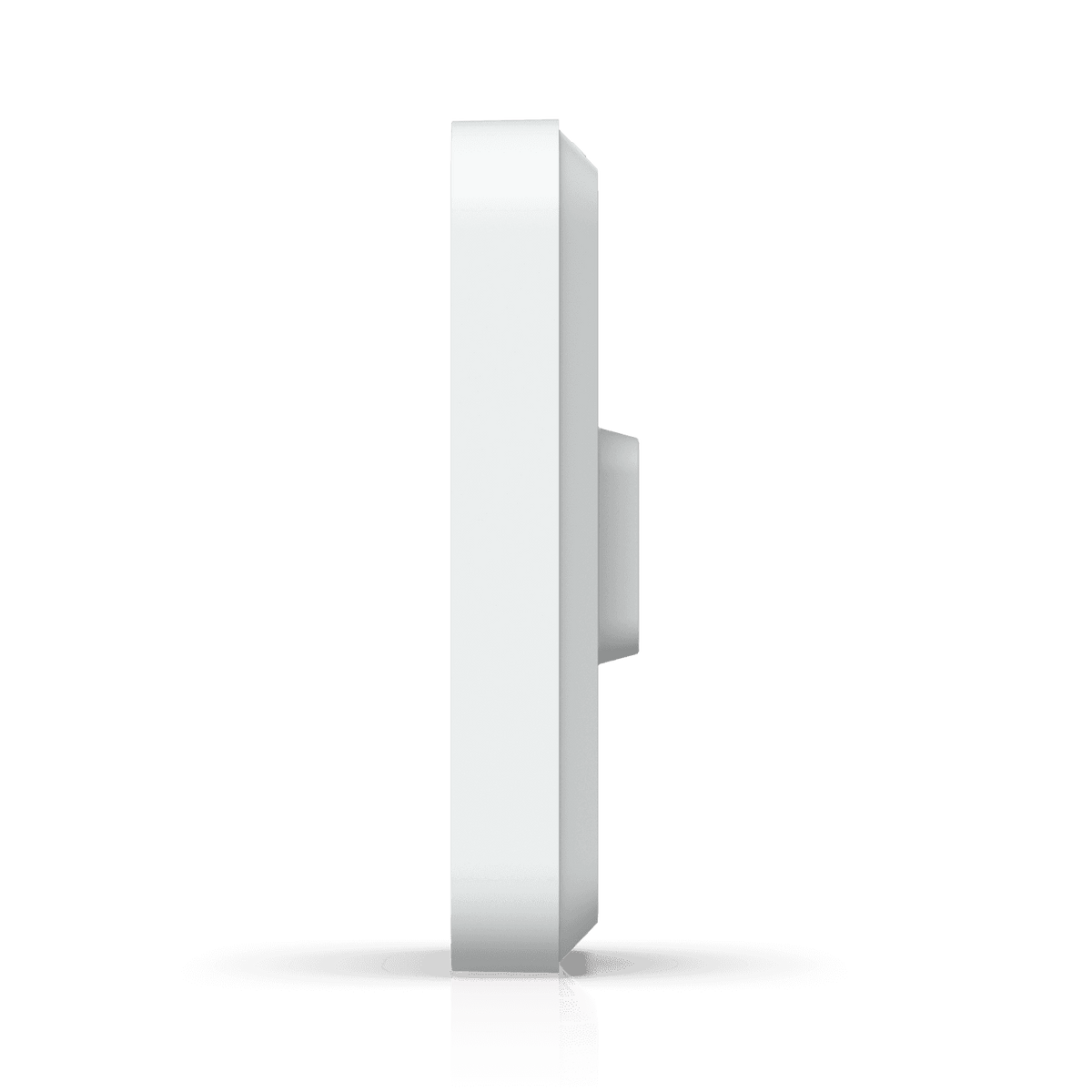

• Dimensions: 137 × 98.7 × 30.2 mm (5.4 × 3.9 × 1.2")
• WiFi Standard: WiFi 7
• Spatial Streams: 4
• Coverage Area: 115 m² (1,250 ft²)
• Max. Client Count: 200+
• Uplink: 2.5 GbE
• Mounting: Wall (metal wall mount included)
• Power Method: PoE; PoE+ required for PoE output
• MIMO:
  • 5 GHz: 2 × 2 (DL/UL MU-MIMO)
  • 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)
• Max. Data Rate:
  • 5 GHz: 4.3 Gbps (BW240)
  • 2.4 GHz: 688 Mbps (BW40)
• Antenna Gain:
  • 5 GHz: 8 dBi
  • 2.4 GHz: 4 dBi
• Max. TX Power:
  • 5 GHz: 24 dBm
  • 2.4 GHz: 23 dBm
• Max. BSSIDs: 8 per radio
• Supported Data Rates:
  • 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/240)
  • 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0–MCS11 NSS1/2, HE 20/40/80/160)
  • 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0–MCS9 NSS1/2, VHT 20/40/80/160)
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)
• Wireless Meshing: ✓
• Band Steering: ✓
• 802.11v BSS Transition Management: ✓
• 802.11r Fast Roaming: ✓
• 802.11k Radio Resource Management (RRM): ✓
• Advanced Radio Management: ✓
• Passpoint (Hotspot 2.0): ✓
• Captive Hotspot Portal: ✓
• Custom Branding Landing Page: ✓
• Voucher Authentication: ✓
• Payment-Based Authentication: ✓
• External Portal Server Support: ✓
• Password Authentication: ✓
• Guest Network Isolation: ✓
• Private Pre-Shared Key (PPSK): ✓
• WiFi Speed Limiting: ✓
• Client Device Isolation: ✓
• WiFi Schedules: ✓
• RADIUS over TLS (RadSec): ✓
• Dynamic RADIUS-assigned VLAN: ✓
• Max. Power Consumption: 13 W (excluding PoE output)
• Supported Voltage Range: 42.5–57 V DC

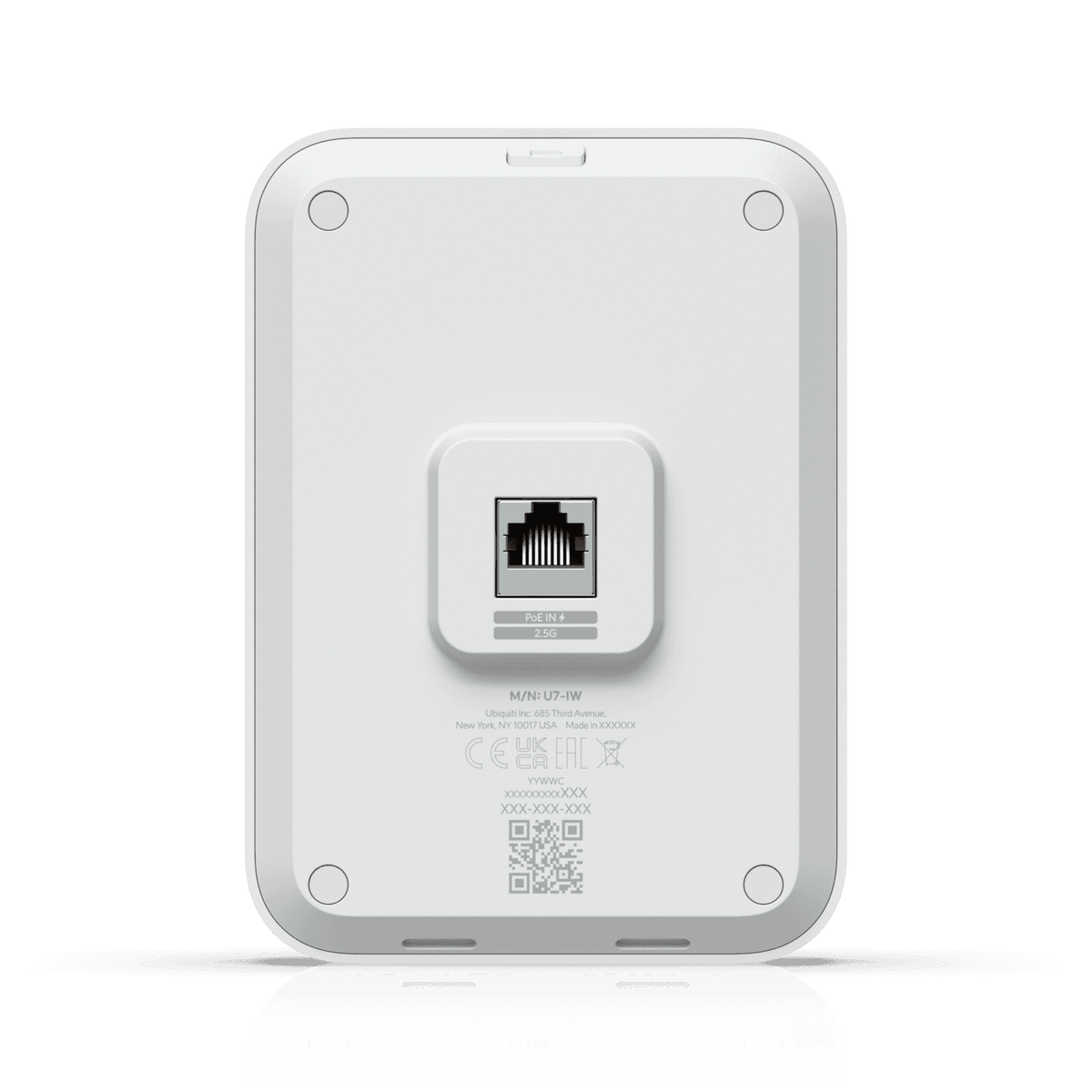

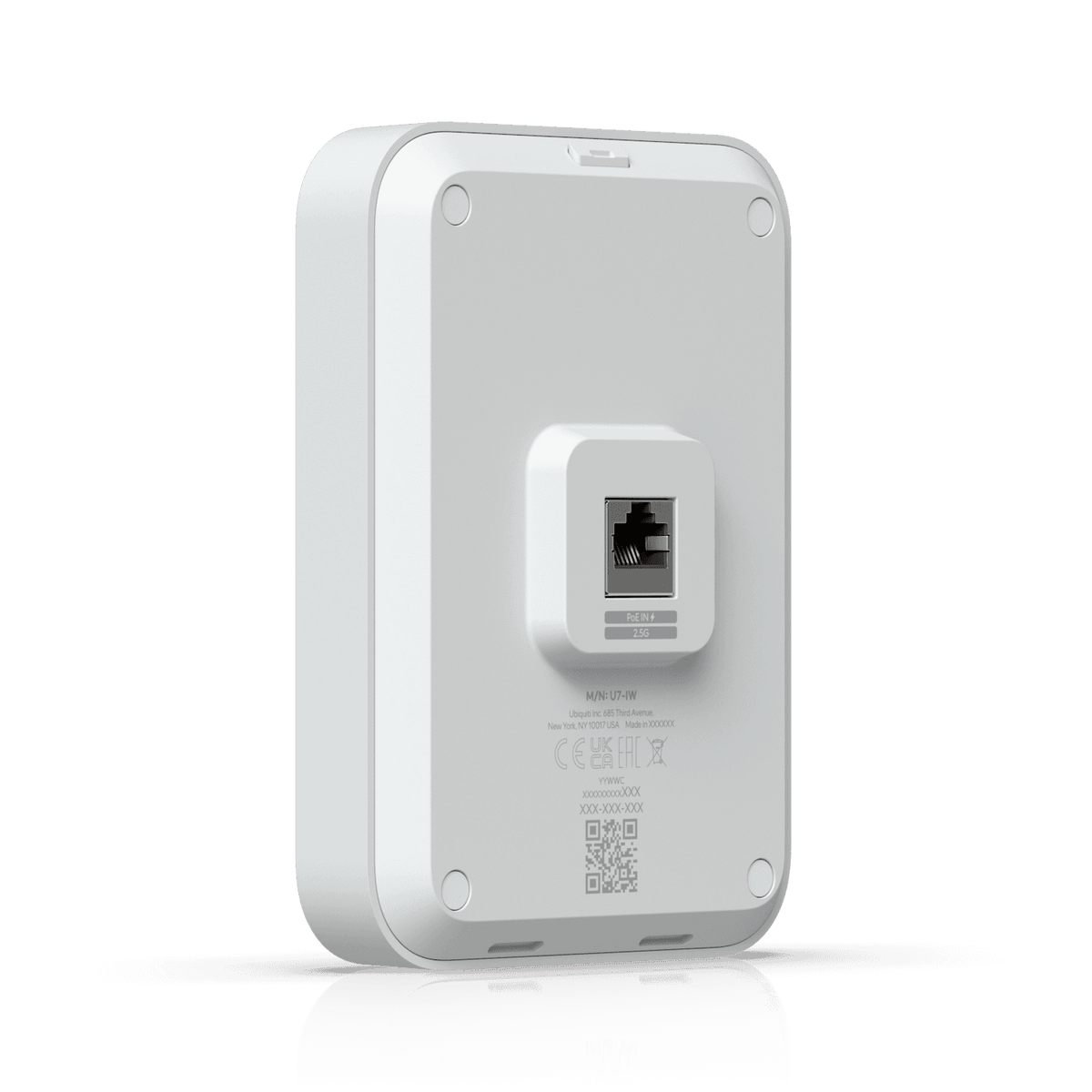

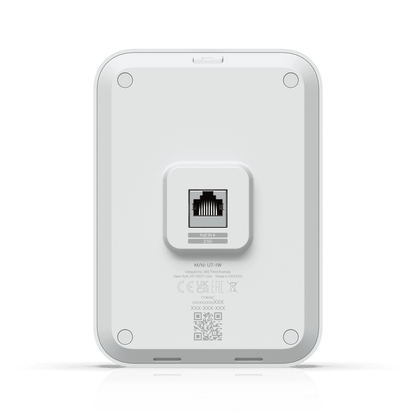

• Networking Interface: 3 × 2.5 GbE RJ45 ports
• Weight: 400 g (14.1 oz)
• Management: Ethernet
• Built-In Switch: 1 × PoE+ input and 1 × PoE output
• Enclosure Material: Polycarbonate, aluminum alloy
• Mount Material: Aluminum alloy
• LEDs: System — White/Blue
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 MHz
• Ambient Operating Temperature: -30 to 40°C (-22 to 104°F)
• Ambient Operating Humidity: 5–95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, SRRC, Anatel: 03909-25-08356
• Application Requirements: UniFi Network version 9.0.114 and later
• Mobile App: iOS™ version 10.20.2 and later
• Mobile App: Android™ version 10.21.7 and later

WHAT’S IN THE BOX:

• U7-IW Access Point unit wrapped in protective cellophane. x1
• Metal backing plate made of anodized aluminum for a secure wall fit.  x1
• Drill and marking template featuring a tiny built-in spirit level. x1
• Mounting hardware including wall plugs and machine screws. x1
• Ejection tool used to unlock the device from its wall plate. x1
• Quick start guide. x1

WARRANTY:

• 12 Months
