Ubiquiti UniFi Enterprise Audio/Video Fiber

Ubiquiti's EAV-FIBER is an Enterprise Audio Visual Switch featuring 20x SFP+ 10Gbps ports, 2x QSFP28 100Gbps uplink ports, dual power supplies for redundancy and Etherlighting support. This switch also supports PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio, with a high-precision OCXO clock and optional GPS grandmaster input (SMA) for deterministic media synchronisation.

It can be managed and controlled using the UniFi Network Application.

FEATURES:

• High-Capacity AV Port Layout: Equipped with 20x 10G SFP+ ports and 2x 100G QSFP28 uplink ports to deliver a total switching capacity of 800 Gbps.
• Deterministic Precision Timing: Integrates a built-in high-precision OCXO clock with an optional GPS grandmaster input (SMA) to support sub-microsecond, phase-accurate synchronization across all network hops.
• Broad Industry AV Standards Support: Built natively to handle demanding broadcasting environments running SMPTE ST 2110, SDVoE, Dante, and AES67 audio.
• Advanced Real-Time Latency Visualization: Fully integrates with the UniFi Network Application (v10.0+), allowing you to monitor jitter, trace delays, and use the "Time Machine" feature to troubleshoot historic network conditions.
• Hardware Redundancy: Designed with dual hot-swappable PSUs and four hot-swappable fans to guarantee continuous uptime in live events, stadiums, and studios.
• Etherlighting™ Ports: Ports glow with functional color coding to indicate speed, duplex, native VLANs, and device locator paths at a glance.
• 1.3" Touchscreen Display: Features an LCM color touch display on the front panel for instant real-time network health diagnostics and throughput stats.

SPECIFICATIONS:

• IEEE 1588-2008 PTPv2
• Hardware timestamping on all Ethernet and QSFP28 ports
• Clock roles: Grandmaster, Boundary Clock, and Transparent Clock
• Boundary Clock operation: two-step only
• Profiles: IEEE1588, SMPTE 2059-2, AES67, and AES-R16
• End-to-End (E2E) delay mechanism
• Layer 2 Ethernet and UDP/IPv4 transport
• Custom profile configuration:
  • Sync, Announce, and Delay Request intervals from −3 to +4
  • Announce Receipt Timeout from 2 to 9
  • Configurable PTP domain number
• BMCA with configurable Priority1 and Priority2

WHAT’S IN THE BOX:

• EAV-Fiber Switch (1U full-depth rack-mount chassis) x1
• Hot-Swappable Power Supply Units (PSUs) (Pre-installed) x2
• Rackmount Bracket Kit (Supports 4-post standard server racks) x1

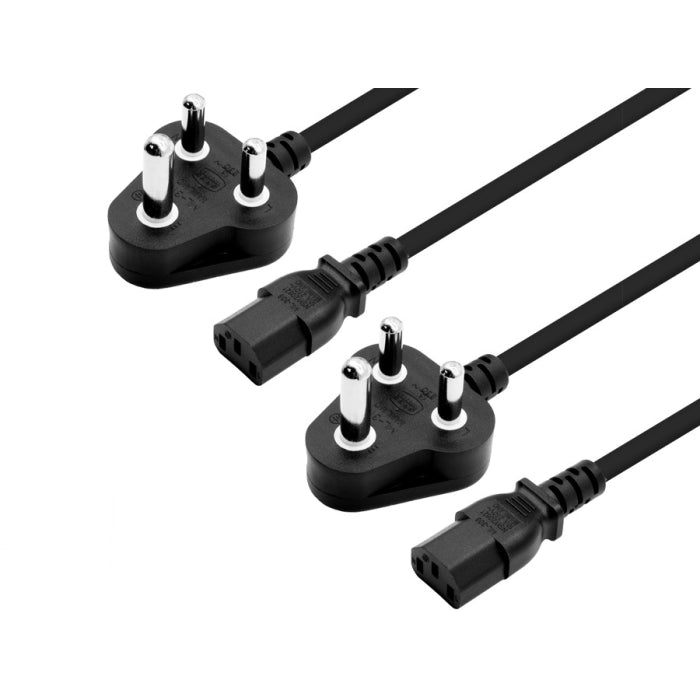

• Power Cord x1
• Quick Start Guide x1

WARRANTY:

• 12 Months
