Ubiquiti UniFi Enterprise Firewall Core Gateway

Ubiquiti's EF-Core is an Enterprise-Class Cloud Gateway delivering up to 79 Gbps IDS/IPS, 22,500+ client capacity, and 5,000+ concurrent IPsec tunnels. It features a 1.3-inch touch screen, 2x Gigabit Ethernet ports, 8x 10Gbps Ethernet ports, 4x 2.5Gbps SFP28 ports, 4x 100Gbps QSFP28 ports, an integrated 128GB hard drive and dual power supplies for redundancy.

FEATURES:

• Massive Processing & Capacity: Powered by a 24-core ARM Neoverse N2 platform (2.5 GHz) with 32 GB RAM and a built-in 128 GB SSD. It handles over 2,250 managed UniFi devices, 22,500+ simultaneous users, and 10 million concurrent sessions.
• Ultra-High Threat Inspection: Deliveries up to 79 Gbps of IDS/IPS throughput and 61 Gbps of full SSL inspection without traffic bottlenecks. Threat intelligence signatures are continuously updated license-free via Proofpoint.
• High-Density Port Layout: Features a powerful mix of interfaces including four 100G QSFP28 ports, four 25G SFP28 ports, eight 10G RJ45 ports, and two 1G RJ45 ports. Up to 8 of these interfaces can be designated as WAN ports.

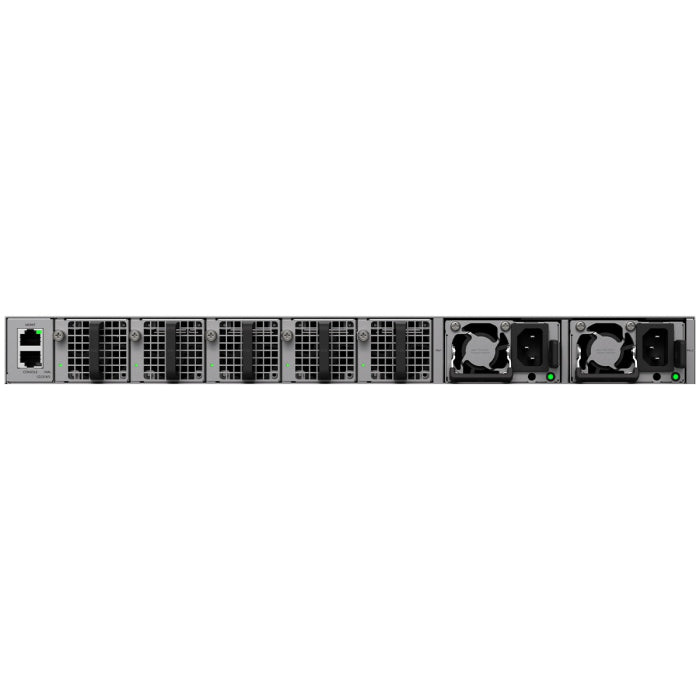

• Carrier-Class Redundancy: Employs two hot-swappable 550W power supplies and five hot-swappable cooling fans. It natively supports Shadow Mode (VRRP) for instantaneous stateful gateway failover.
• Advanced Networking Control: Includes built-in license-free SD-WAN orchestration, over 5,000 concurrent IPsec VPN tunnels, Policy-Based Routing, and Multi-WAN Load Balancing.
• Zero Licensing Fees: Like all UniFi hardware, full security definitions, SD-WAN coordination, and deep configuration capabilities come completely free of recurring subscriptions

SPECIFICATIONS:

• Dimensions: 442.4 × 43.7 × 400 mm (17.4 × 1.7 × 15.8")
• UniFi Application Suite: Network
• Managed UniFi Devices: 2,250+
• Simultaneous Users Connected: 22,500+
• Max. WAN Port Count: 8
• Default WAN Ports:
• 1 × 100G QSFP28
• 1 × 25G SFP28
• 1 × 10 GbE RJ45
• Port Layout:
• 2 × 1 GbE RJ45 (1G/100M/10M)
• 8 × 10 GbE RJ45 (10G/5G/2.5G/1G/100M)
• 4 × 25G SFP28 (25G/10G/1G)
• 4 × 100G QSFP28 (100G/40G)
• 1 × MGMT (1G/100M/10M)
• 1 × Console
• IDS/IPS Throughput: 79 Gbps
• SSL/TLS Inspection Concurrent Sessions: 10,000
• Concurrent Sessions: 10 million
• New Sessions / Second: 120,000
• Form Factor: Rack mount (1U)
• Redundancy: Shadow Mode (VRRP) Gateway Failover
• Power Supplies: 2 × hot-swappable PSUs
• Stateful Firewall: ✓
• Application-Aware Layer 7 Firewall: ✓
• SSL Inspection & URL Filtering: ✓
• DPI & Traffic Identification: ✓
• Zone-Based Firewall Advanced Filtering: ✓ (Regions, Domains, Apps)
• Content Filtering: ✓
• Intrusion Prevention (IPS/IDS): ✓
• Ad Blocking: ✓
• IDS/IPS Signatures: 95,000+ with CyberSecure Enterprise
• License-Free SD-WAN: ✓
• Site-to-Site VPN — Site Magic: ✓
• Site-to-Site VPN — IPsec: ✓
• Site-to-Site VPN — OpenVPN: ✓
• VPN Server — Identity Endpoint One-Click VPN: ✓
• VPN Server — Teleport Zero-Configuration VPN: ✓
• VPN Server — WireGuard: ✓
• VPN Server — OpenVPN: ✓
• VPN Server — L2TP: ✓
• VPN Client — OpenVPN: ✓
• VPN Client — WireGuard: ✓
• Multi-WAN Load Balancing: ✓
• Shadow Mode (VRRP) High Availability: ✓
• LACP Port Aggregation: ✓
• Dynamic Routing — OSPF: ✓
• Dynamic Routing — BGP: ✓
• Advanced QoS: ✓
• Multicast DNS (mDNS): ✓
• Advanced NAT: ✓ (SNAT, DNAT, Masquerade, NAT Pooling, 1-to-1 NAT)
• Integrated RADIUS Server: ✓
• RADIUS over TLS (RadSec): ✓
• Additional Internet Failover with UniFi LTE Backup: ✓
• Internet Quality and Outage Reporting: ✓
• MAC Address Table Size: 130,000
• Policy-Based WAN and VPN Routing: ✓
• Customizable DHCP Server: ✓
• IPv6 ISP Support: ✓
• IGMP Proxy: ✓
• All Traffic Flows: ✓
• Max. Power Consumption: 171 W
• Power Method: Universal AC input, 100–240V AC, 7.5A max., 50/60 Hz
• Power Supply: 2 × hot-swappable AC/DC 550 W PSU
• Supported Voltage Range: 100–240V AC
• Heat Dissipation: 585 BTU/hr
• Processor: 24-core ARM® v9 at 2.5 GHz
• System Memory: 32 GB
• On-board Storage: Integrated 128 GB SSD
• Weight: 7.85 kg (17.31 lb)
• Enclosure Material: Aluminium CNC, SGCC steel
• LCM Display: 1.3" touchscreen
• Management: Ethernet, Bluetooth
• LEDs — Ethernet: ✓
• LEDs — SFP28: ✓
• LEDs — QSFP28: ✓
• Swappable Fan: ✓
• CRPS: ✓
• Button: 1 × Factory reset
• ESD/EMP Protection — Air: ±8 kV
• ESD/EMP Protection — Contact: ±4 kV
• Ambient Operating Temperature: 0 to 40°C (32 to 104°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC
• Mobile App — UniFi iOS™: Version 10.35.0 and later
• Mobile App — UniFi Android™: Version 10.38.1 and later

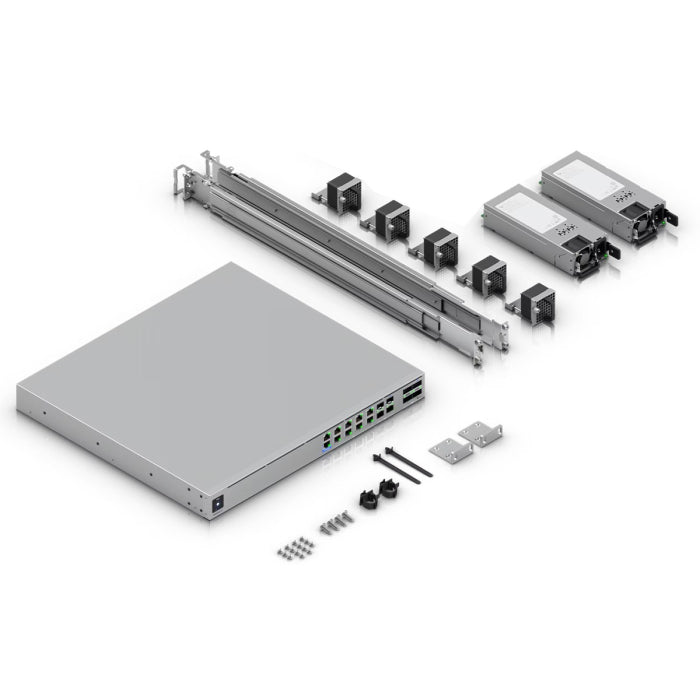

WHAT’S IN THE BOX:

• Enterprise Firewall Core (EF-Core) Appliance x1
• PoE-Powered 5G RedCap Antenna (A compact cellular antenna providing automated 5G internet failover) x1
• QSFP28 Direct Attach Cable (Supporting maximum 100 Gbps line rates) x1
• Rackmount Brackets & Hardware Kit (For standard 1U server rack installation) x1

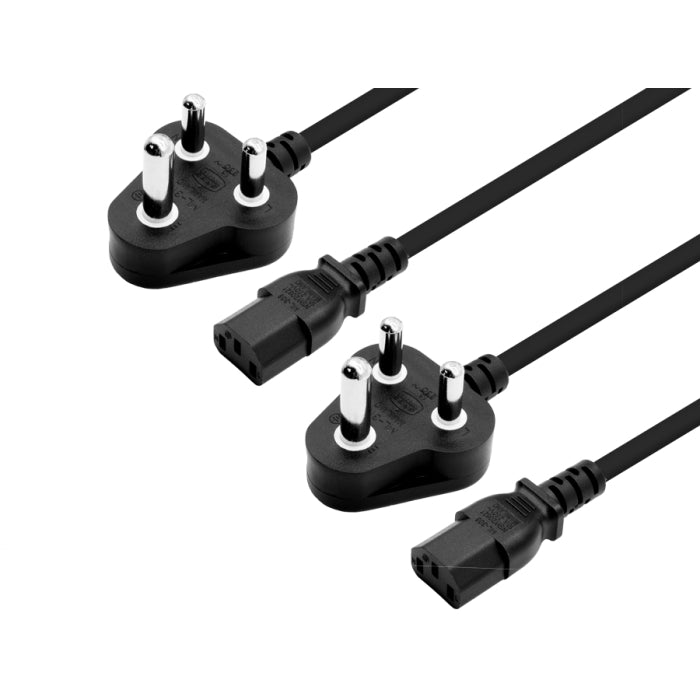

• Two (2) IEC Power Cables (To power the dual redundant power supplies) x2

WARRANTY:

• 12 Months
