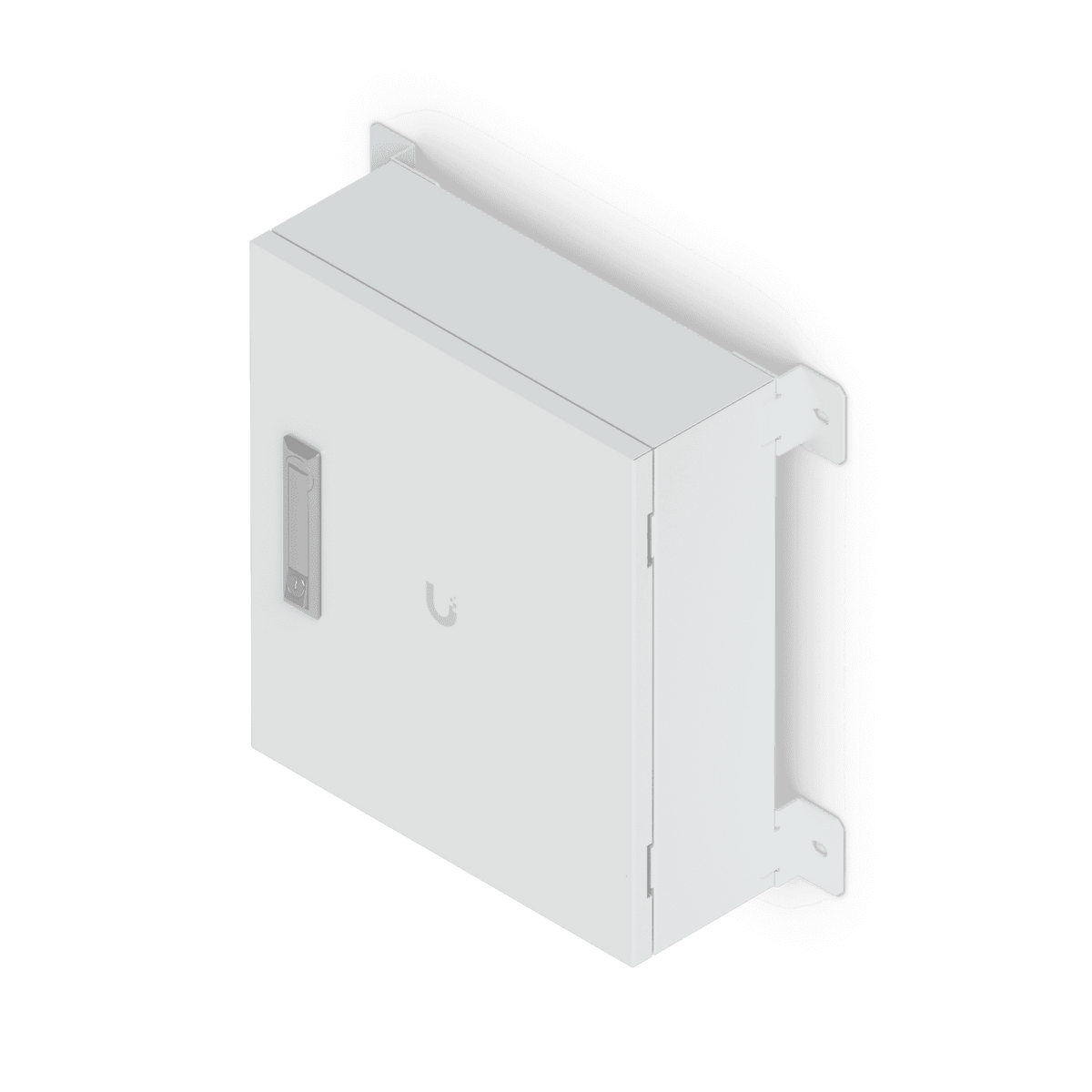

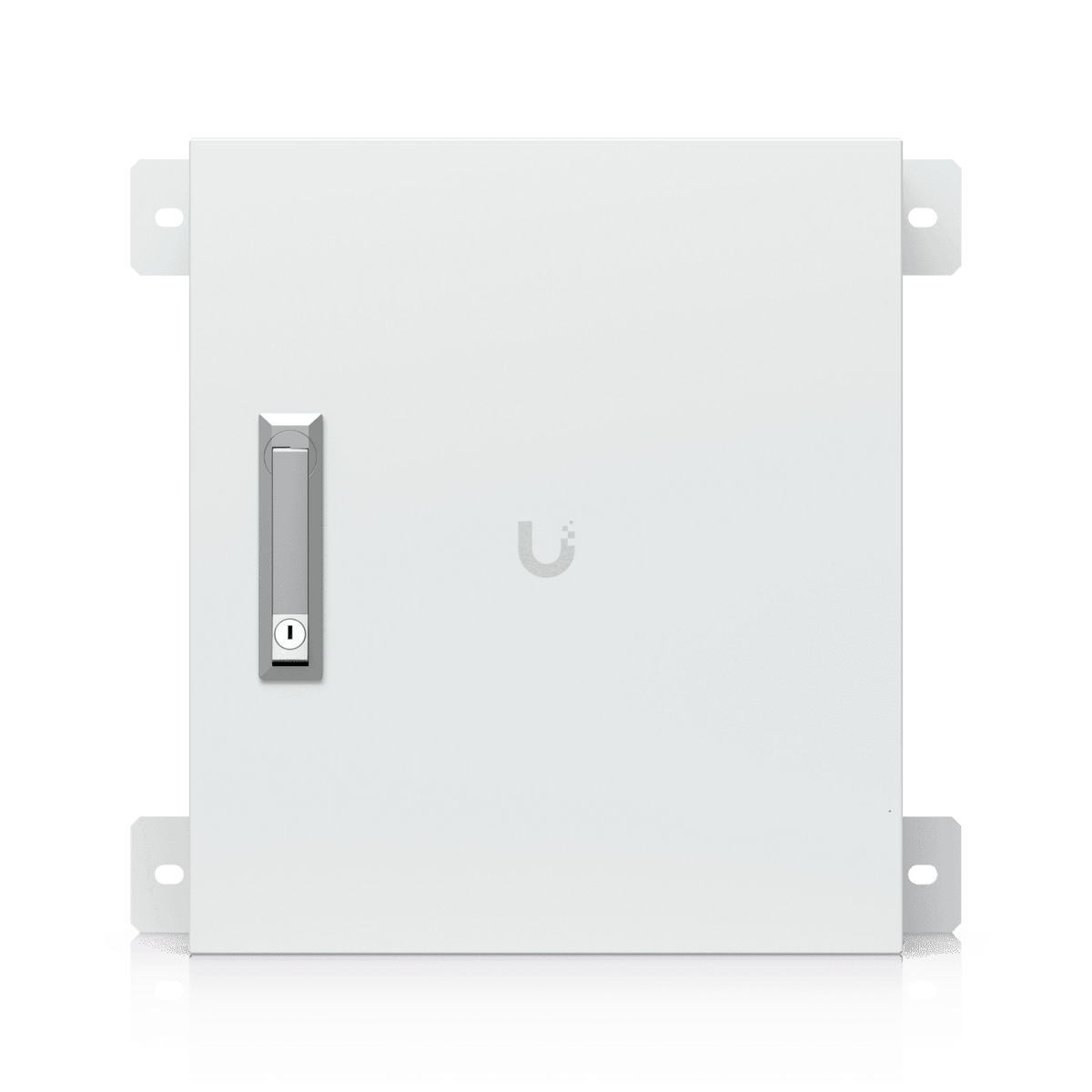

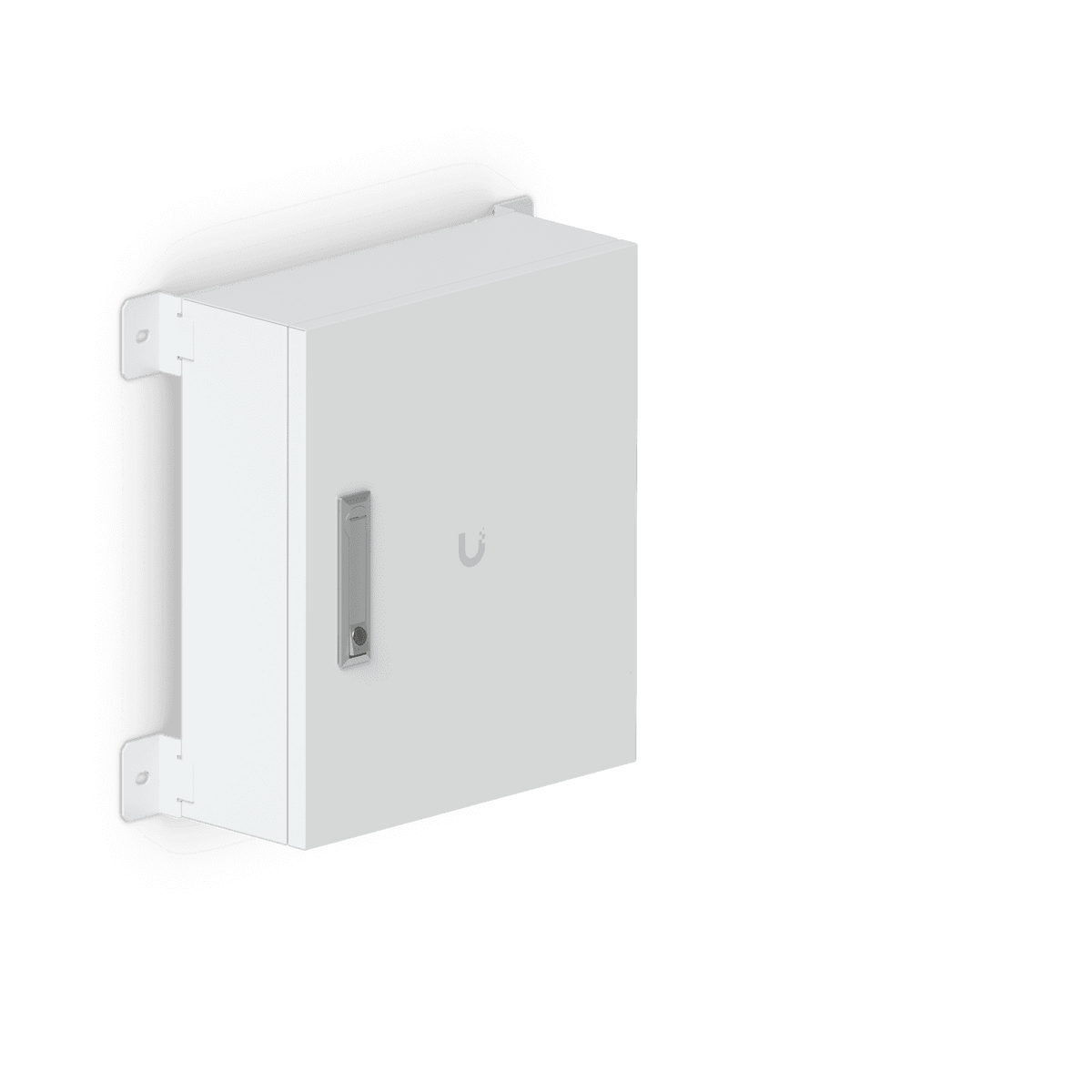

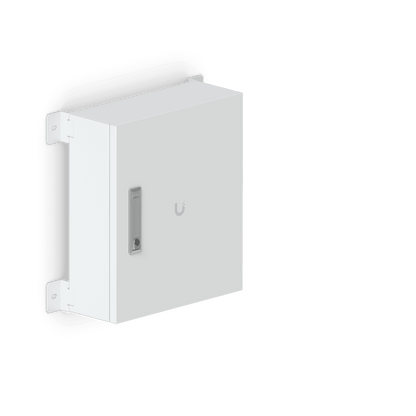

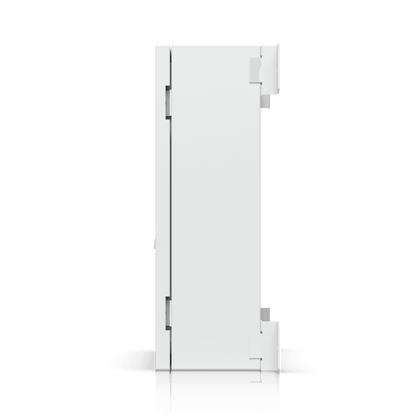

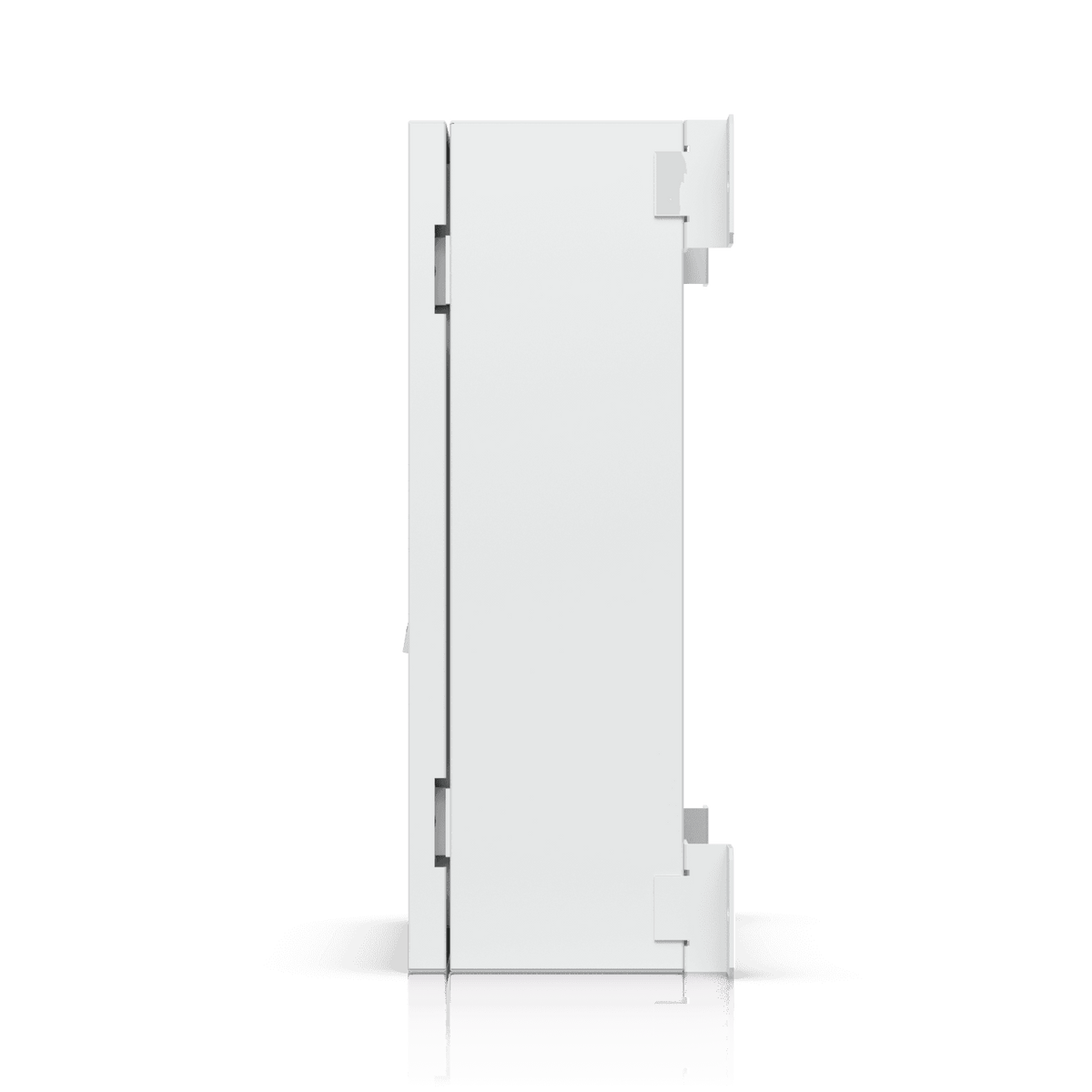

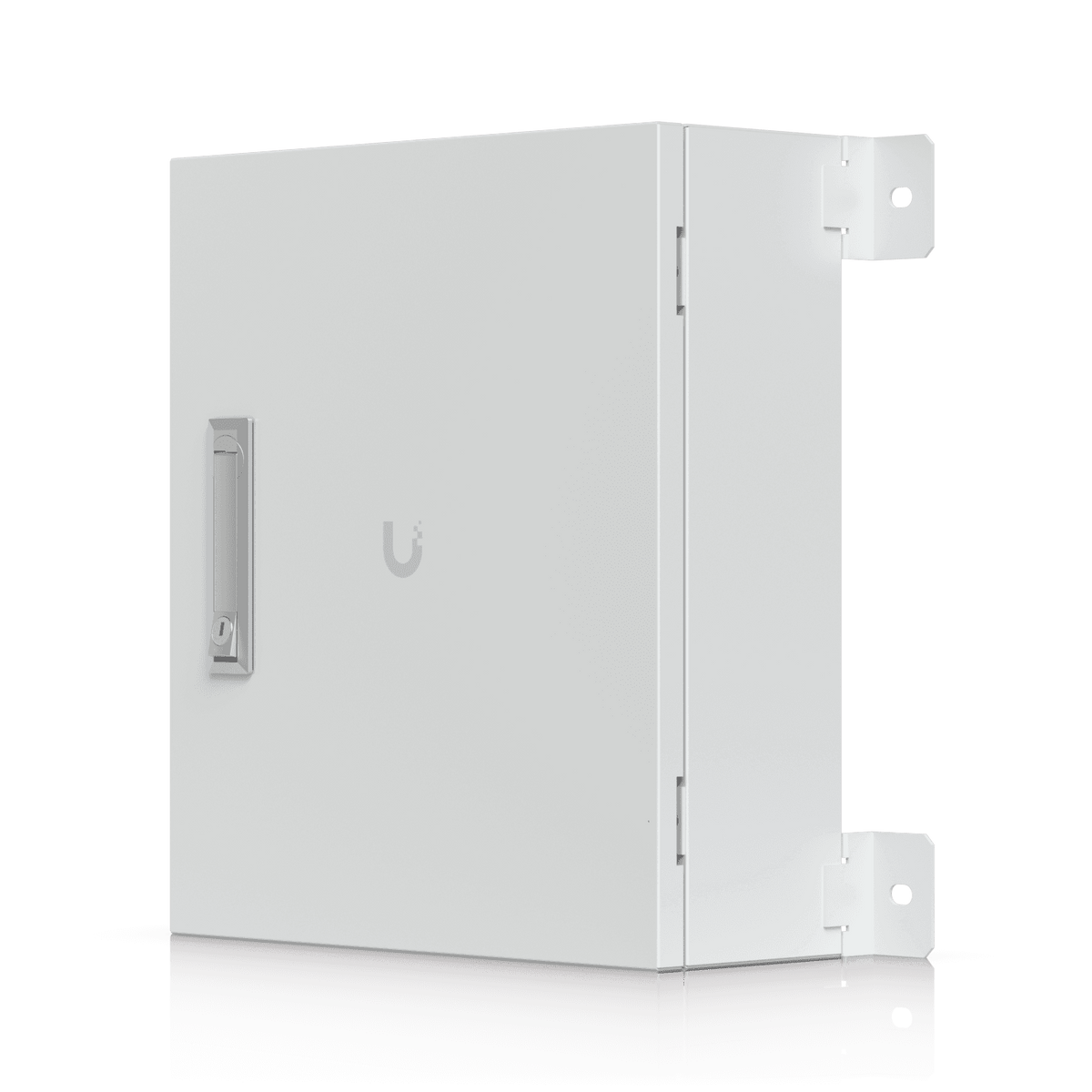

Ubiquiti UniFi Indoor / Outdoor Junction Utility Enclosure

Ubiquiti's UACC-Junction-Utility is a Galvanised steel, indoor or outdoor enclosure, designed for UniFi Access Hubs, Switches, and Accessories.

FEATURES:

• Industrial Protection: Built from heavy-duty Galvanized Steel (SGCC) to resist tampering, vandalism, and harsh environmental wear.
• Dual-Environment Rated: Certified with IP55 weatherproofing and a UL 50E NEMA Type 3R rating, protecting equipment from dust, rain, sleet, and ice.

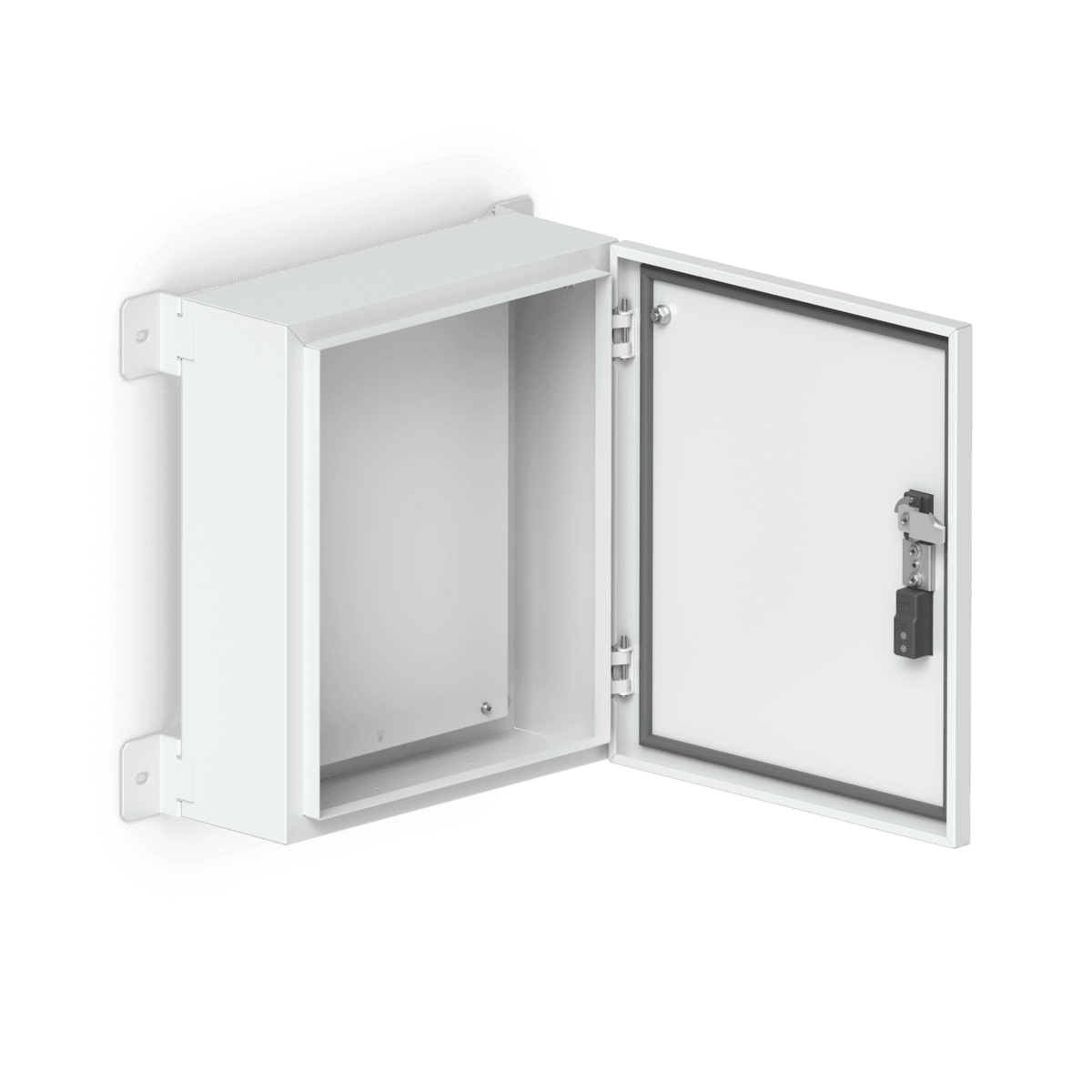

• Smart Serviceable Layout: Designed with a fully removable lift-off door, clean 2-inch bottom knockouts, and a pre-leveled drilling installation template.
• Removable Gear Plate: Includes a separate 270 x 355 mm internal mounting plate to simplify device staging and layout wiring before the box is hung.
• Multi-Device Compatibility: Built to cleanly organize UniFi Access Hubs (Gate, Door, Elevator), compact switches (USW-Flex or USW-Ultra series), and power adapters.

SPECIFICATIONS:

• Dimensions:
• Enclosure: 400 × 350 × 152 mm (15.7 × 13.8 × 6")
• Inner mounting plate: 270 × 355 mm (10.6 × 14")
• Weight: 7 kg (15.4 lb)
• Enclosure Material: Galvanized steel (SGCC)
• Mounting: Wall
• Weatherproofing: IP55
• Certifications: UL 50E NEMA Type 3R Outdoor Enclosure certified

WHAT’S IN THE BOX:

• Junction Utility Enclosure (Galvanized steel housing with a removable door and perimeter weather seal) x1
• Inner Mounting Plate (Removable metal plate for easy drilling and device layouts) x1
• Drilling Template / Mounting Plate (Heavy-duty template equipped with a built-in level bubble) x1
• Rubber Cable Seals / Grommets (For weatherproofing the bottom knockout ports) x3

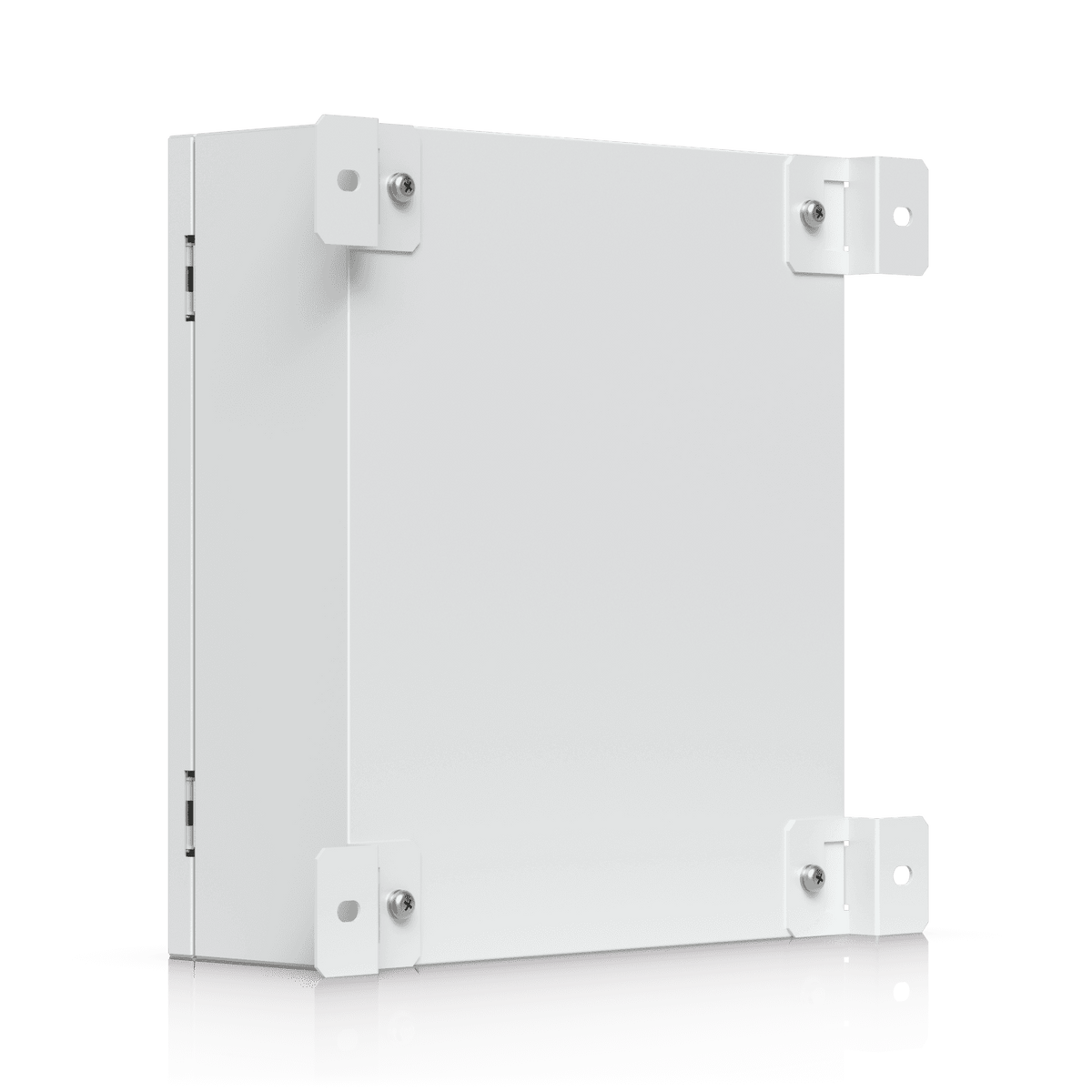

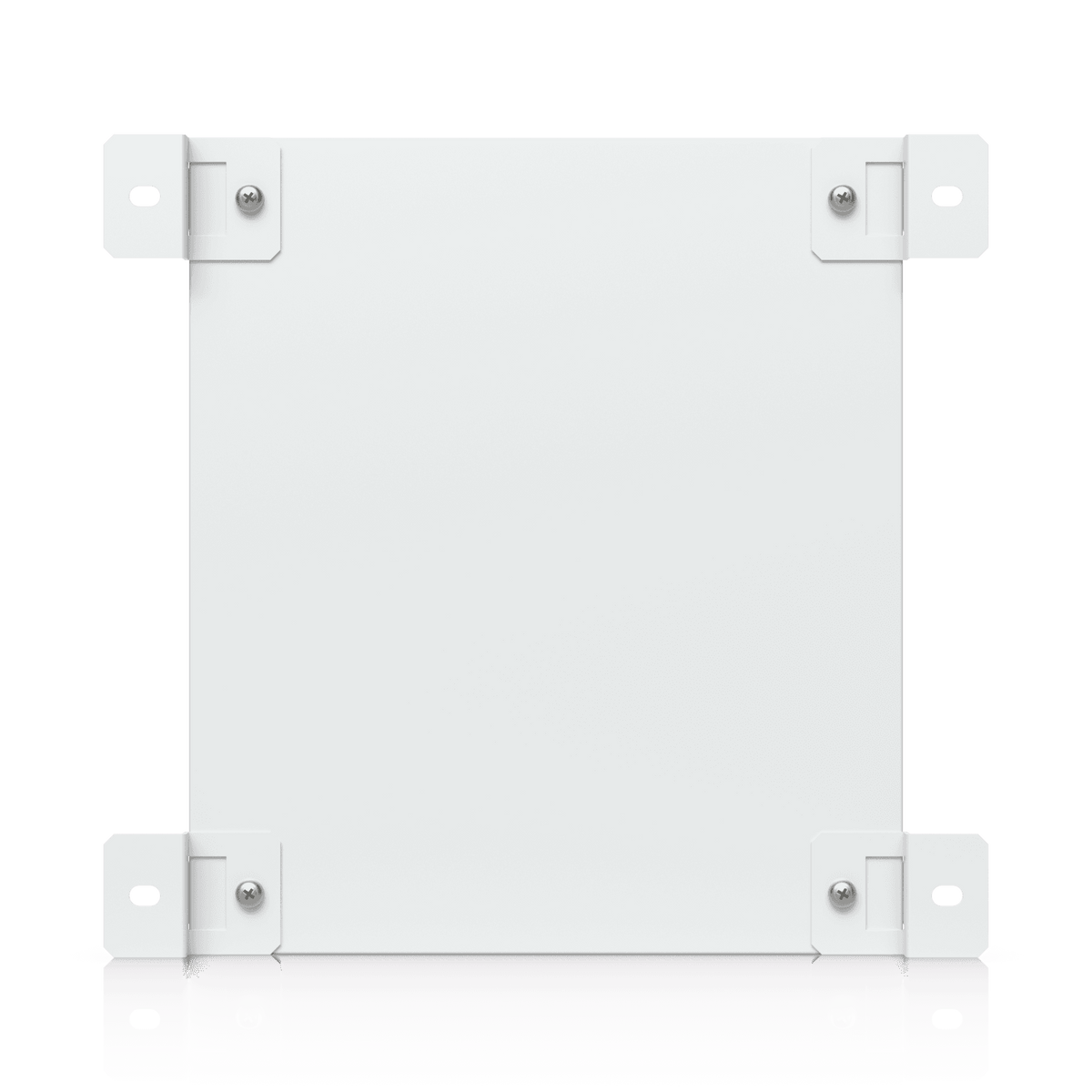

• Wall Mounting Hardware Kit (Includes metal mounting flanges, wall anchors, and structural screws) x1
• Grounding hardware and screw cap covers x1

WARRANTY:

• 12 Months
