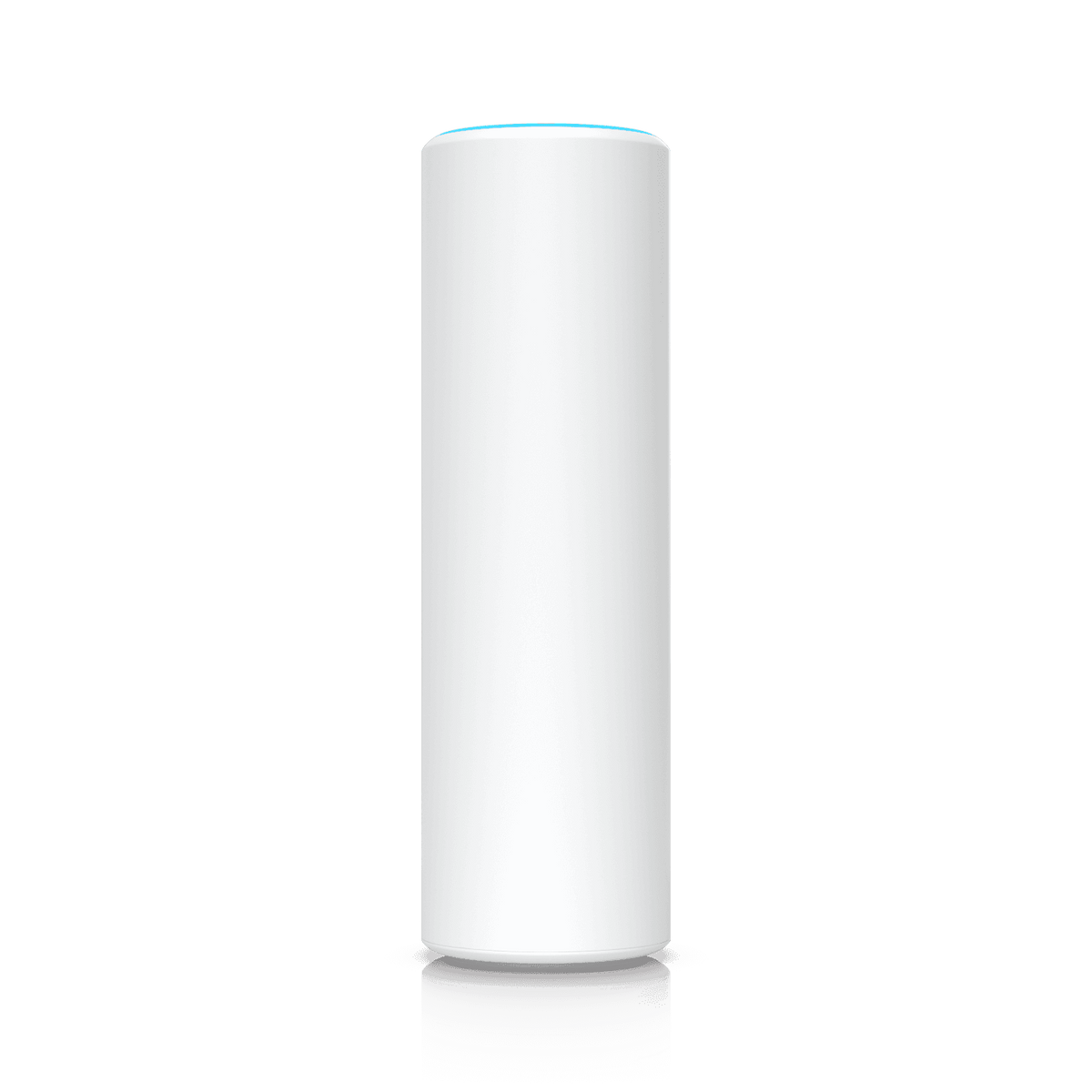

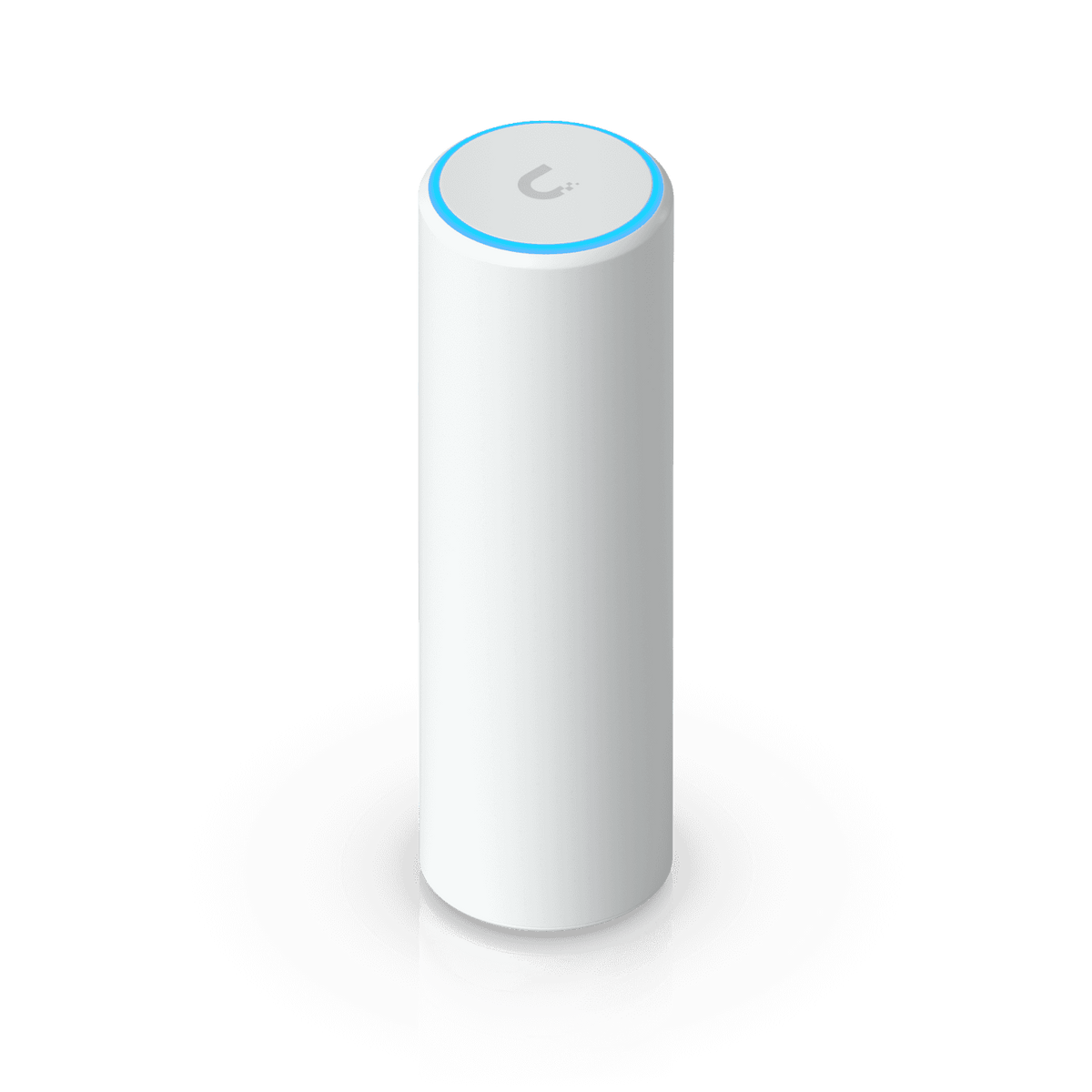

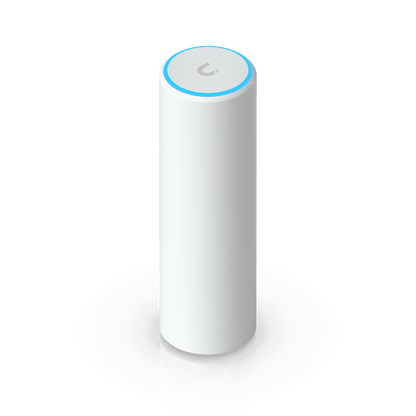

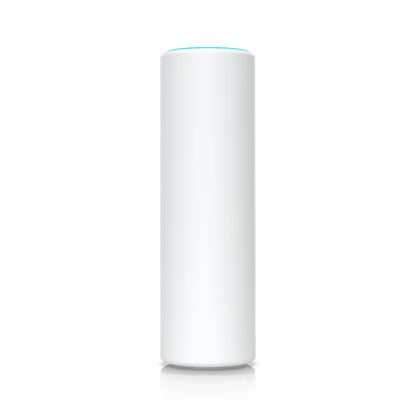

Ubiquiti UniFi Mesh Indoor / Outdoor WiFi 6 AP

Ubiquiti’s U6-Mesh is an indoor / outdoor dual band, WiFi 6 (802.11ax) mesh access point with a compact IPX5 indoor/outdoor enclosure. It delivers an aggregate data rate of up to 5.3 Gbps over its 5GHz (4x4 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands.

It can be configured and managed with the UniFi Network Application.

FEATURES:

• High-Speed Wi-Fi 6: Delivers aggregate data speeds up to 5.3 Gbps across its concurrent bands.
• 6-Stream Spatial Architecture: Uses 4x4 MU-MIMO and OFDMA on the 5 GHz band (reaching up to 4.8 Gbps) alongside a 2x2 MU-MIMO array on the 2.4 GHz band (up to 573.5 Mbps).
• 160 MHz Channel Width: Supports full 160 MHz channel configurations on 5 GHz to establish high-capacity wireless uplinks and data-heavy transfers.
• IPX5 Weatherproofing: Enclosed in a compact, sleek cylindrical shell that is outdoor-ready and waterproof (provided it is installed LED-side up).
• Robust Client Capacity: Equipped to handle 250+ simultaneous active user devices gracefully.
• High-Gain Internal Antennas: Features built-in omnidirectional internal antennas providing 5 dBi on 5 GHz and 3 dBi on 2.4 GHz.

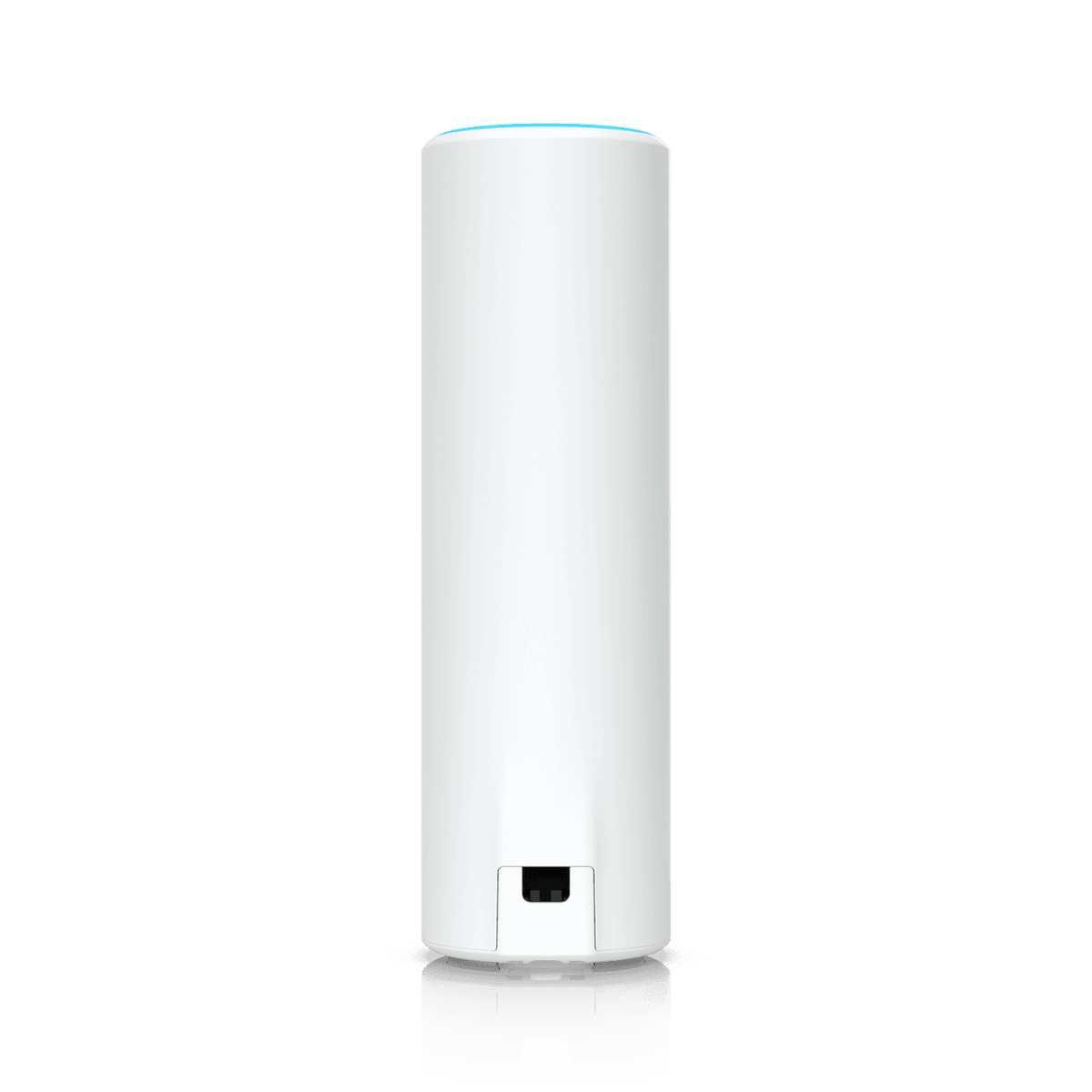

• Physical Connections: Contains one 10/100/1000 Gigabit Ethernet RJ45 port


SPECIFICATIONS:

• Dimensions: ⌀48.5 × 159.5 mm (⌀1.9 × 6.3")
• WiFi Standard: WiFi 6
• Spatial Streams: 6
• Coverage Area: 140 m² (1,500 ft²)
• Max. Client Count: 250+
• Uplink: GbE

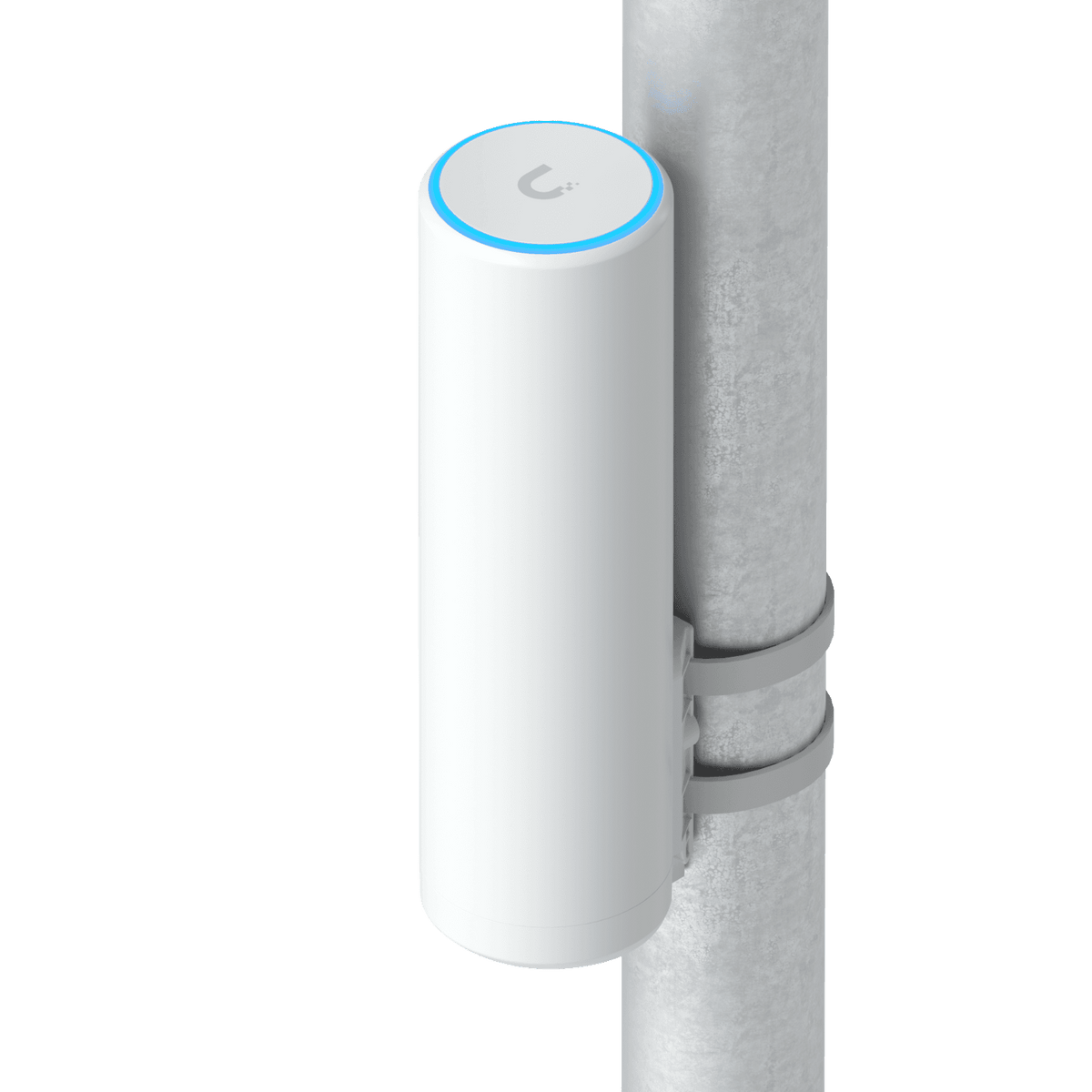

• Mounting: Wall, pole (mounts included)
• Weatherproofing: IPX5
• Power Method: PoE
• MIMO:
  • 5 GHz: 4 × 4 (DL/UL MU-MIMO)
  • 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)
• Max. Data Rate:
  • 5 GHz: 4.8 Gbps (BW160)
  • 2.4 GHz: 573.5 Mbps (BW40)
• Antenna Gain:
  • 5 GHz: 5 dBi
  • 2.4 GHz: 3 dBi
• Max. TX Power:
  • 5 GHz: 26 dBm
  • 2.4 GHz: 22 dBm
• Max. BSSIDs: 8 per radio
• Supported Data Rates:
  • 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0–MCS11 NSS1/2/3/4, HE 20/40/80/160)
  • 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0–MCS9 NSS1/2/3/4, VHT 20/40/80/160)
  • 802.11n: 6.5 Mbps to 600 Mbps (MCS0–MCS31, HT 20/40)
• Wireless Meshing: ✓
• Band Steering: ✓
• 802.11v BSS Transition Management: ✓
• 802.11r Fast Roaming: ✓
• 802.11k Radio Resource Management (RRM): ✓
• Advanced Radio Management: ✓
• Passpoint (Hotspot 2.0): ✓
• Captive Hotspot Portal:
  • Custom Branding Landing Page ✓
  • Voucher Authentication ✓
  • Payment-Based Authentication ✓
  • External Portal Server Support ✓
• Password Authentication: ✓
• Guest Network Isolation: ✓
• Private Pre-Shared Key (PPSK): ✓
• WiFi Speed Limiting: ✓
• Client Device Isolation: ✓
• WiFi Schedules: ✓
• RADIUS over TLS (RadSec): ✓
• Dynamic RADIUS-assigned VLAN: ✓
• Max. Power Consumption: 13W
• Includes PoE Adapter: ✓
• Supported Voltage Range: 44–57V DC

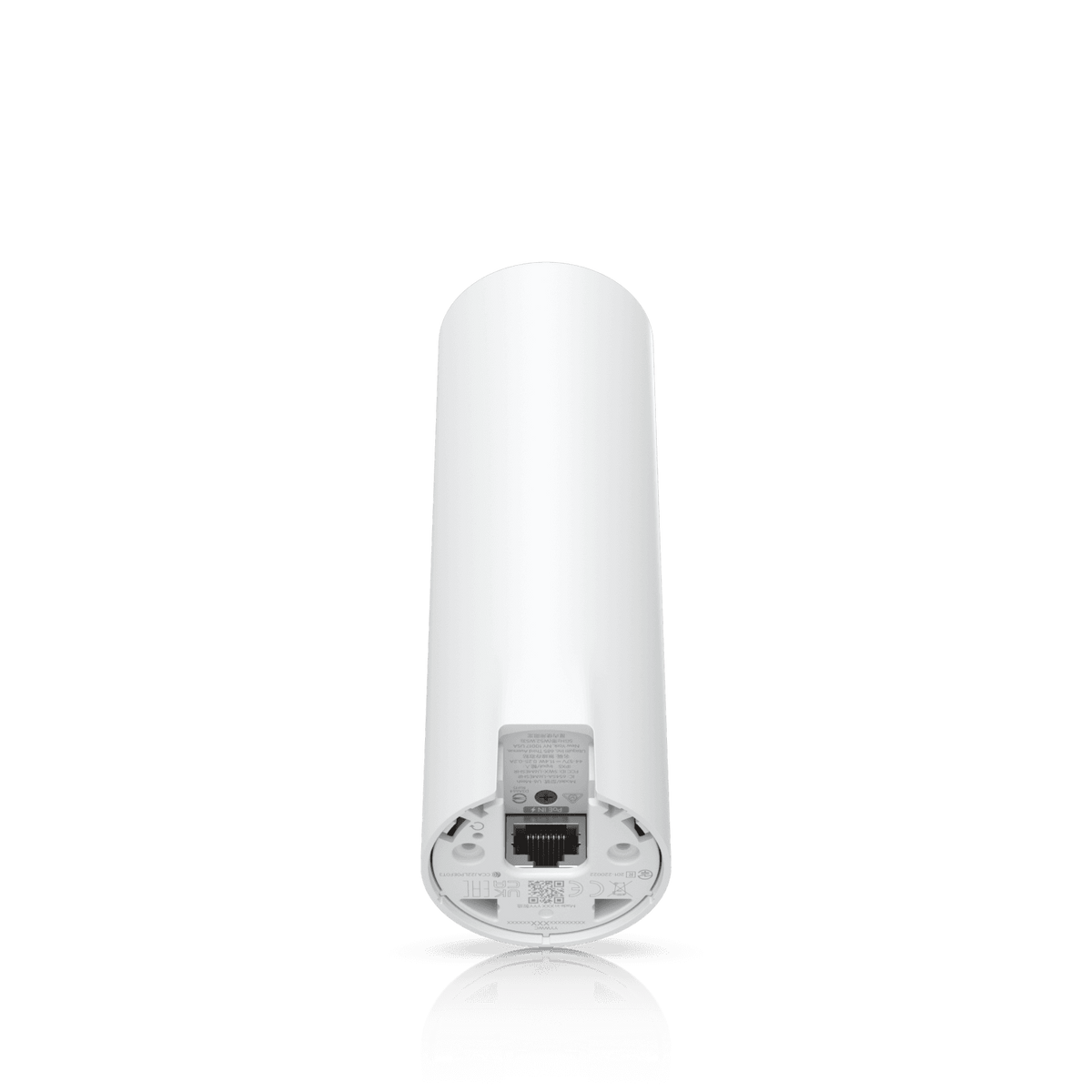

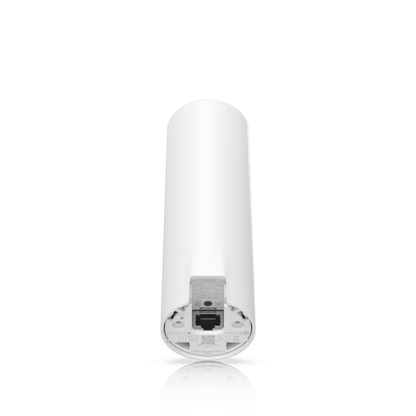

• Networking Interface: (1) GbE RJ45 port
• Weight: 400 g (14.1 oz)
• Management: Ethernet
• Enclosure Material: Polycarbonate, aluminum
• Mount Material: Polycarbonate
• LEDs: System — White/Blue
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 MHz
• Operating Frequency:
  • US/CA:
  • 2.4 GHz: 2400–2472 MHz
  • U-NII-1: 5150–5250 MHz
  • U-NII-2A: 5250–5350 MHz
  • U-NII-2C: 5470–5725 MHz
  • U-NII-3: 5725–5850 MHz
  • Worldwide:
  • 2.4 GHz: 2400–2483.5 MHz
  • 5 GHz: 5150–5850 MHz
• Ambient Operating Temperature: -30 to 60°C (-22 to 140°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, SRRC, Anatel: 02111-22-08356
• Application Requirements: UniFi Network version 6.0.45 and later

WHAT’S IN THE BOX:

• UniFi6 Mesh access point unit x1
• Tabletop / Desktop Stand Base (Pre-installed) x1

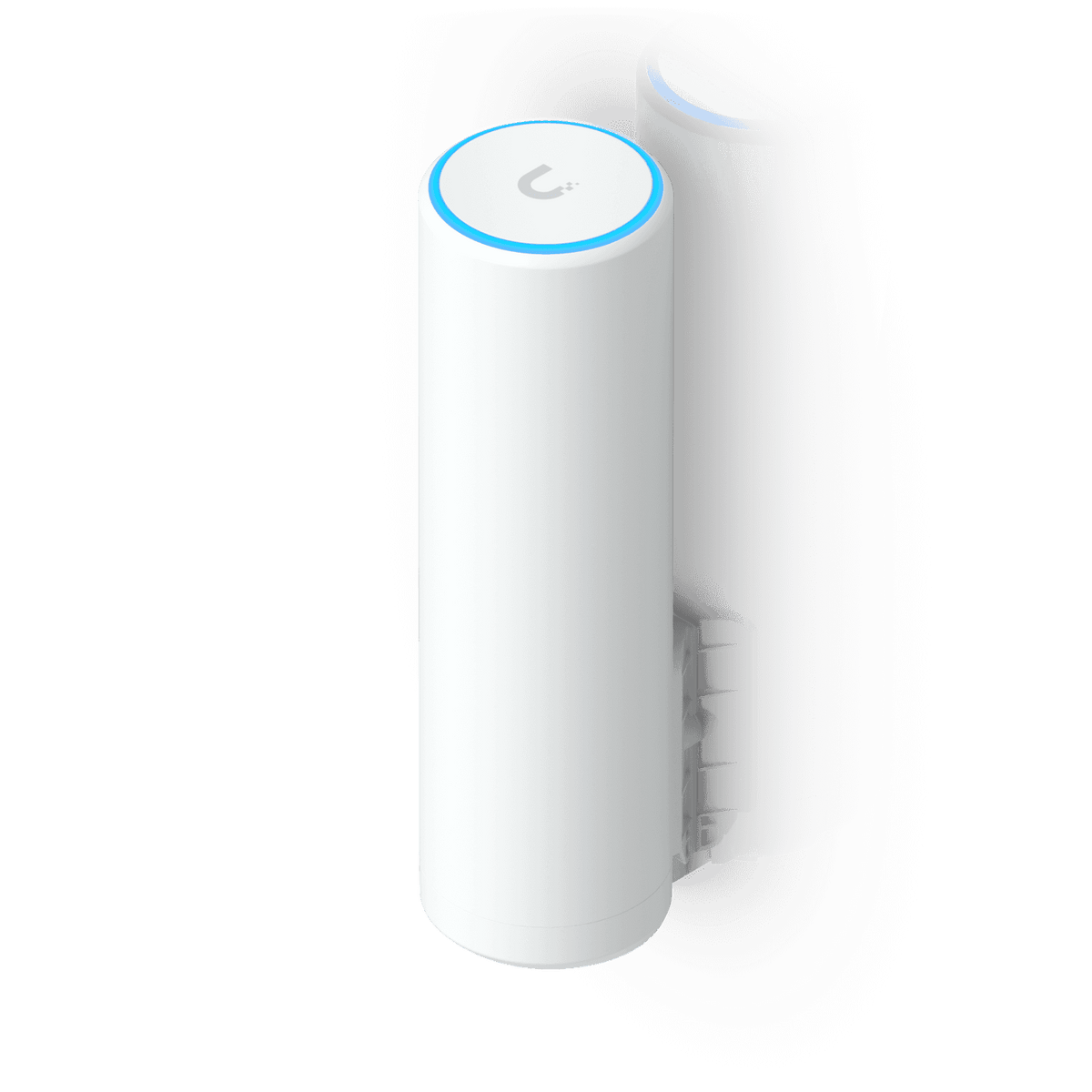

• Wall / Pole Mounting Plate x1

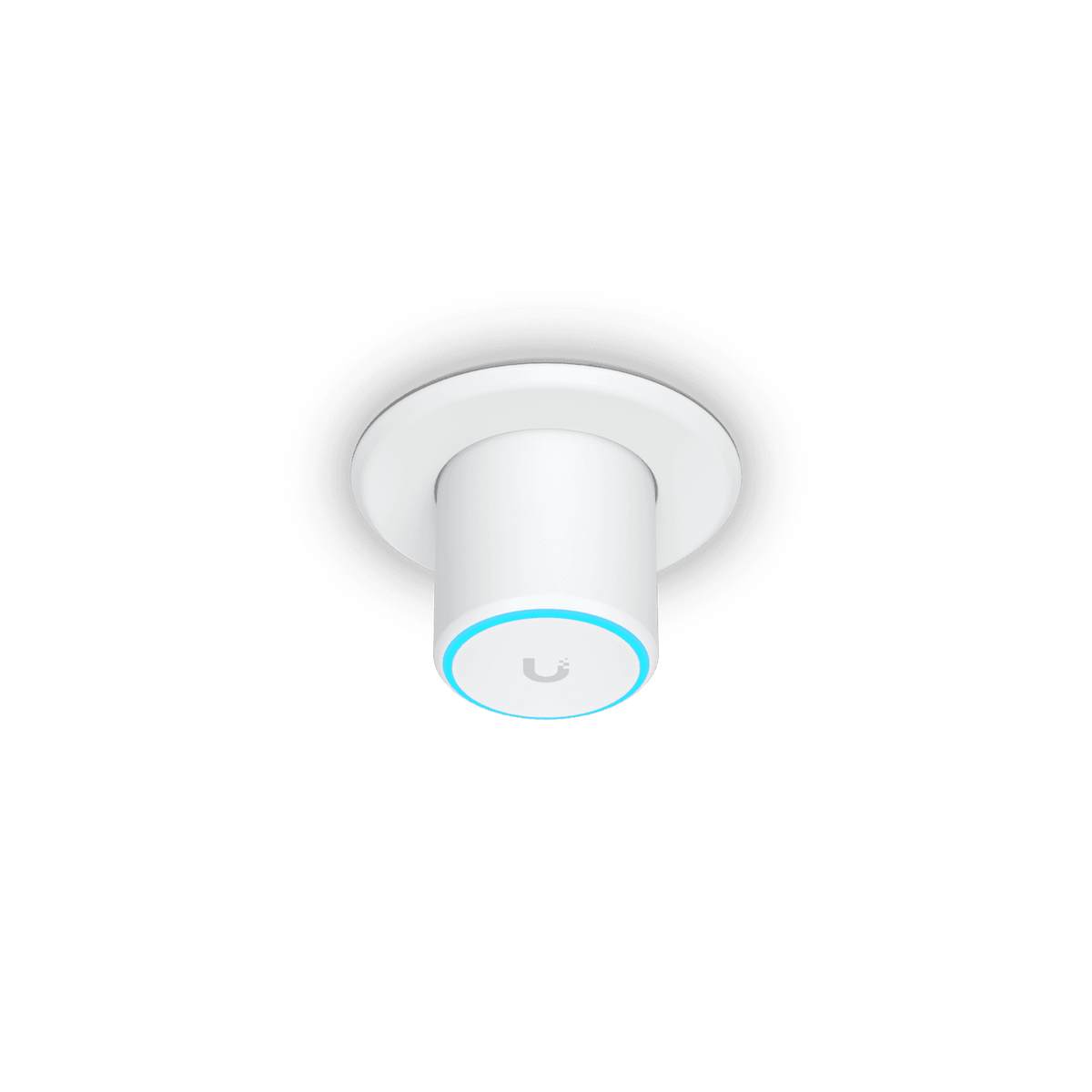

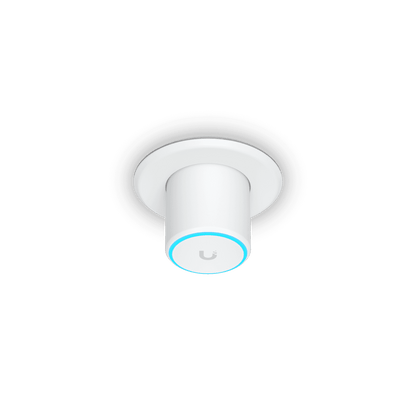

• Ceiling Mount Kit x1
• Gigabit PoE Injector (48V, 0.32A) x1
• Power Cord for the PoE injector x1
• Plastic Zip Ties / Strap Fasteners x1
• Quick Start Guide x1

WARRANTY:

• 12 Months
