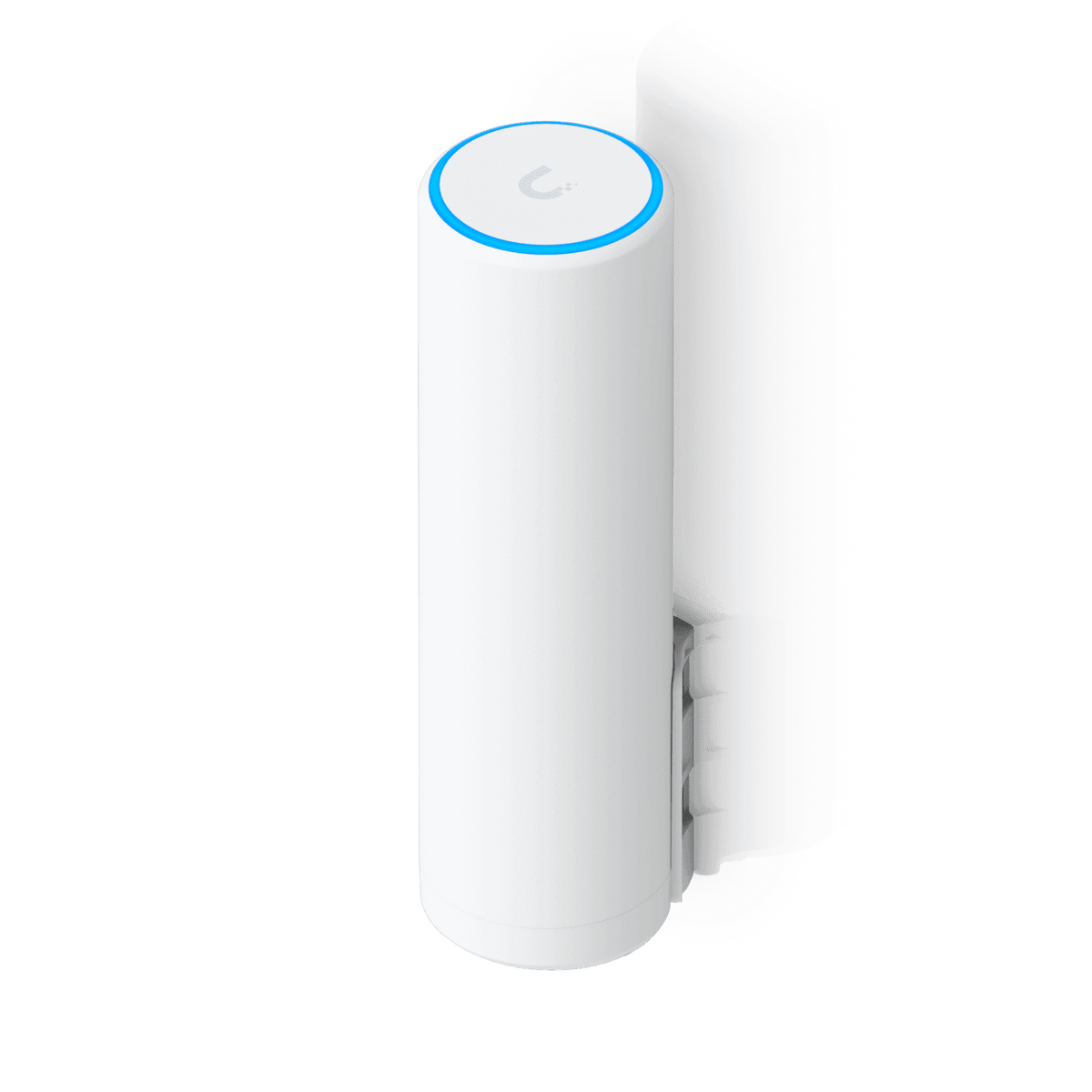

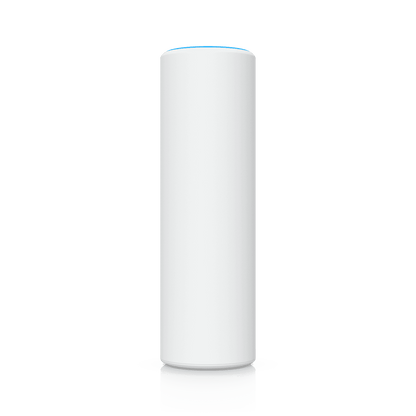

Ubiquiti UniFi Mesh Indoor / Outdoor WiFi 7 AP

Ubiquiti’s U7-Mesh is an indoor/outdoor dual-band, WiFi 7 (802.11be) mesh access point with a compact IPX6 indoor/outdoor enclosure. It delivers an aggregate data rate of up to 5 Gbps over its 5GHz (2x2 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands.

It can be configured and managed with the UniFi Network Application.

FEATURES:

• Next-Gen WiFi 7: Delivers total throughput up to 5 Gbps across 2.4 GHz and 5 GHz bands with 2x2 MU-MIMO.
• Super Antenna System: Uses a hybrid omnidirectional and high-gain directional beam (up to 10dBi) to triple standard mesh range.
• 2.5 GbE Wired Uplink: Features a 2.5 Gbps Ethernet port with 802.3af PoE input for fast backhaul.
• Weatherproof Design: Holds an IPX6 rating, making it completely safe for both indoor and outdoor installations.
• Range & Capacity: Covers up to 140 m² (1,500 ft²) and handles 200+ connected devices simultaneously.
• Smart Tuning: Includes a built-in RF engine for automated channel and signal optimization.

SPECIFICATIONS:

• Dimensions: ⌀48.5 × 159.5 mm (⌀1.9 × 6.3")
• WiFi Standard: WiFi 7
• Spatial Streams: 4
• Coverage Area: 140 m² (1,500 ft²)
• Max. Client Count: 200+
• Uplink: 2.5 GbE

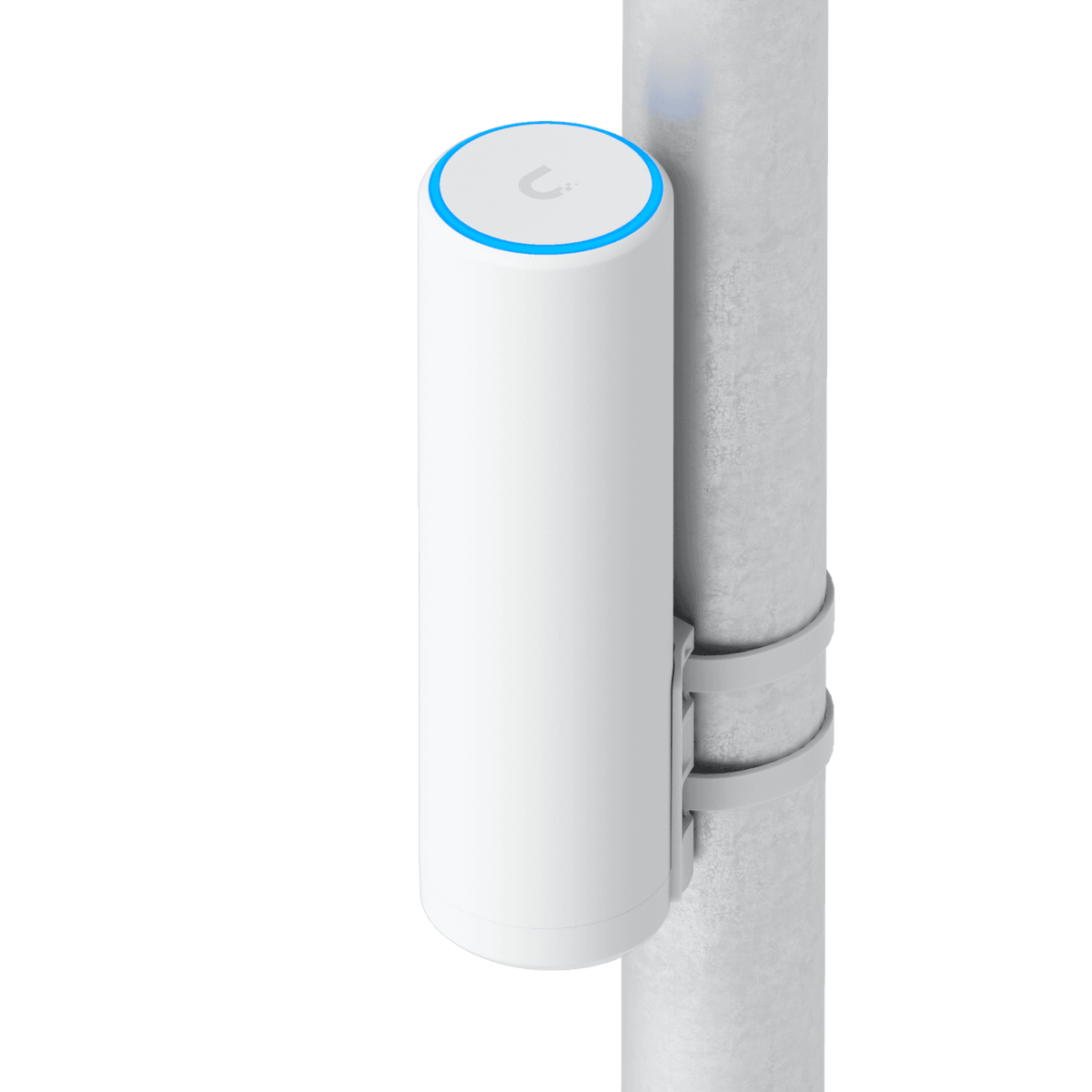

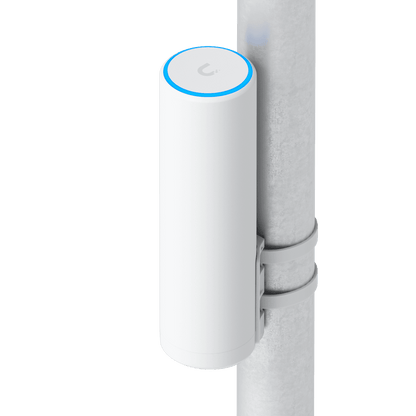

• Mounting: Wall, Pole, Table stand (mounts included)
• Weatherproofing: IPX6 (installed with the outdoor mount)
• Power Method: PoE
• MIMO:
  • 5 GHz: 2 × 2 (DL/UL MU-MIMO)
  • 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)
• Max. Data Rate:
  • 5 GHz: 4.3 Gbps (BW240)
  • 2.4 GHz: 688 Mbps (BW40)
• Antenna Gain:
  • 5 GHz, Omnidirectional: 6 dBi
  • 5 GHz, Directional: 10 dBi
  • 2.4 GHz: 3 dBi
• Max. TX Power:
  • 5 GHz: 24 dBm
  • 2.4 GHz: 23 dBm
• Max. BSSIDs: 8 per radio
• Supported Data Rates:
  • 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/240)
  • 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0–MCS11 NSS1/2, HE 20/40/80/160)
  • 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0–MCS9 NSS1/2, VHT 20/40/80/160)
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)
• Wireless Meshing: ✓
• Band Steering: ✓
• 802.11v BSS Transition Management: ✓
• 802.11r Fast Roaming: ✓
• 802.11k Radio Resource Management (RRM): ✓
• Advanced Radio Management: ✓
• Passpoint (Hotspot 2.0): ✓
• Captive Hotspot Portal: ✓
• Custom Branding Landing Page: ✓
• Voucher Authentication: ✓
• Payment-Based Authentication: ✓
• External Portal Server Support: ✓
• Password Authentication: ✓
• Guest Network Isolation: ✓
• Private Pre-Shared Key (PPSK): ✓
• WiFi Speed Limiting: ✓
• Client Device Isolation: ✓
• WiFi Schedules: ✓
• RADIUS over TLS (RadSec): ✓
• Dynamic RADIUS-assigned VLAN: ✓
• Max. Power Consumption: 13 W
• Includes PoE Adapter: ✓
• Supported Voltage Range: 42.5–57 V DC

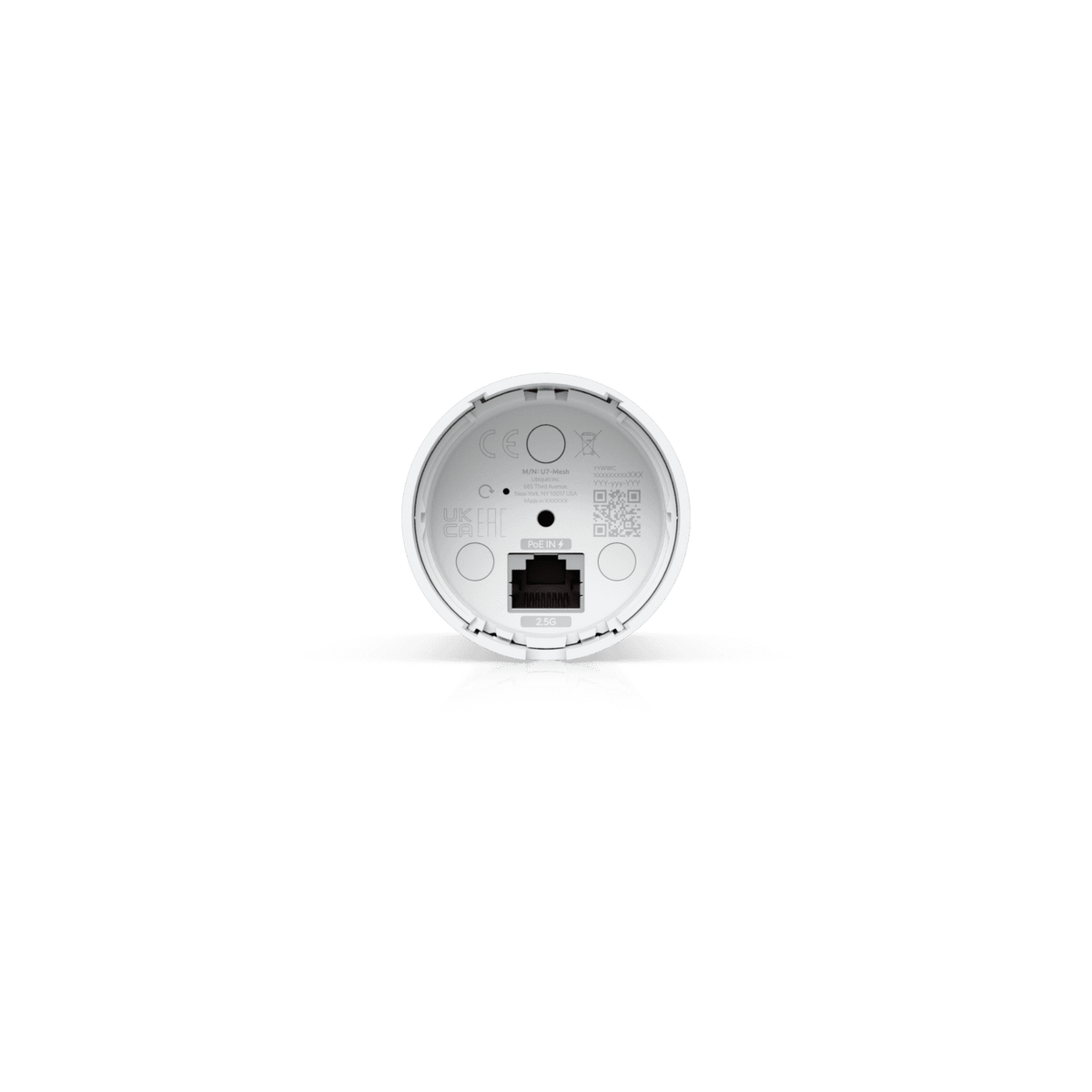

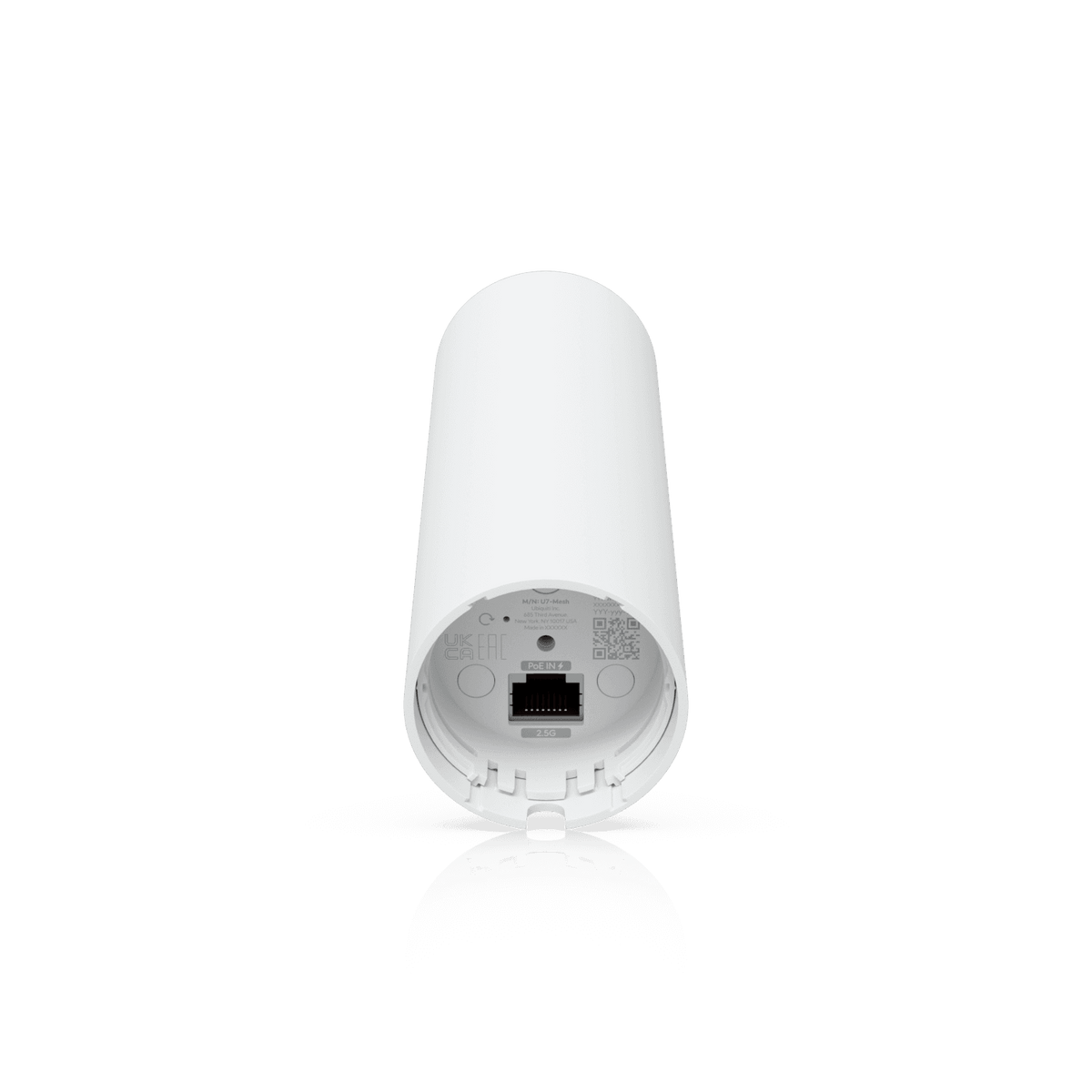

• Networking Interface: 1 × 2.5 GbE RJ45 port
• Weight: 313 g (11 oz)
• Management: Ethernet
• Enclosure Material: UV-stabilized polycarbonate
• Mount Material: UV-stabilized polycarbonate
• LEDs: System — R/G/B/W
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 MHz
• Ambient Operating Temperature: -30 to 60°C (-22 to 140°F)
• Ambient Operating Humidity: 5–95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC
• Application Requirements: UniFi Network version 10.1.85 and later
• Mobile App: UniFi iOS™ version 10.32.1 and later
• Mobile App: Android™ version 10.35.1 and later


WHAT’S IN THE BOX:

• U7 Mesh Access Point x1
• Wall Mount and Pole Mount adapters x1
• Table stand / Desktop base x1
• PoE Adapter (Injector) and power cord x1
• Waterproofing cable grommet / gland x1
• Custom Ubiquiti screwdriver and zip ties x1
• Mounting template and screws x1
• Quick start documentation x1

WARRANTY:

• 12 Months
