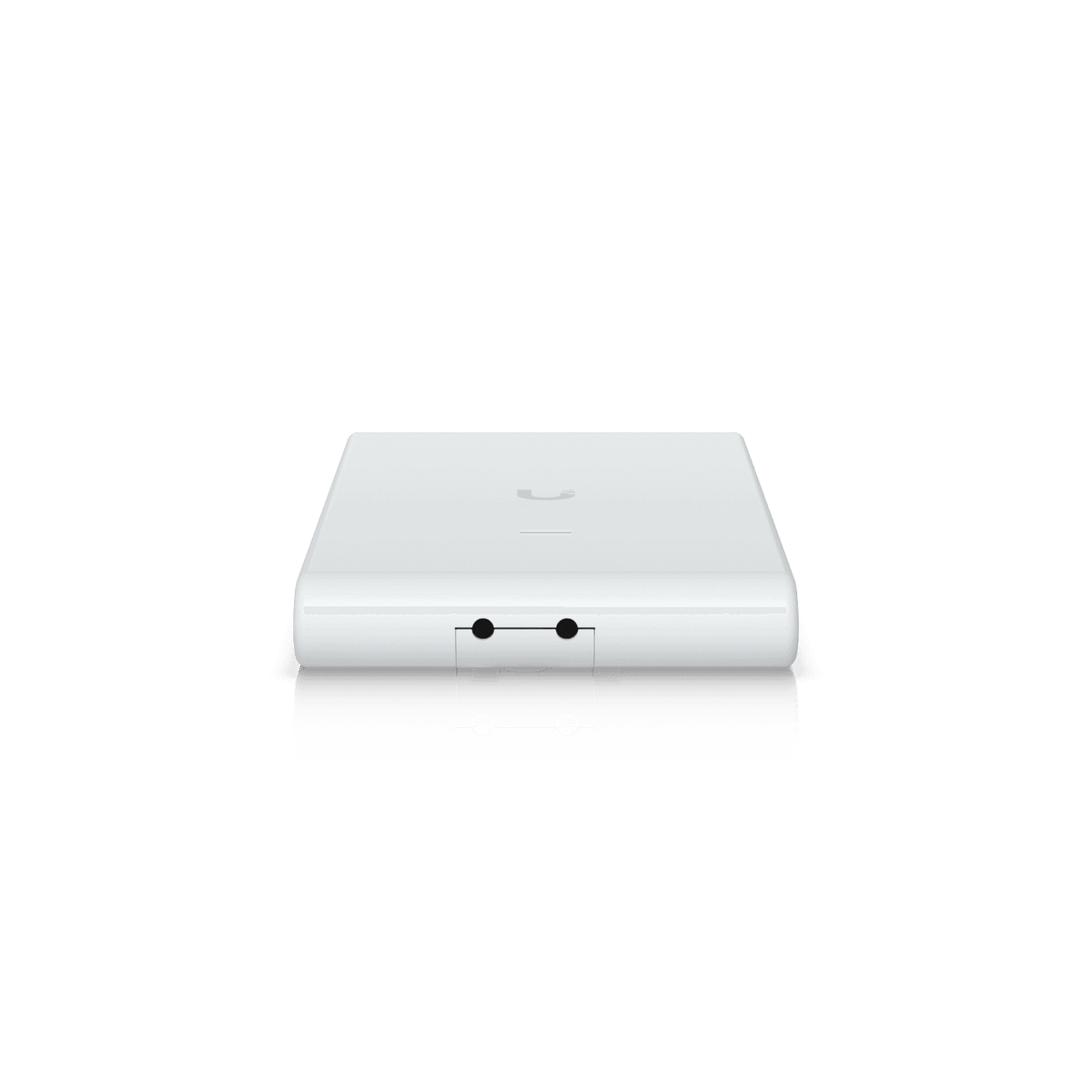

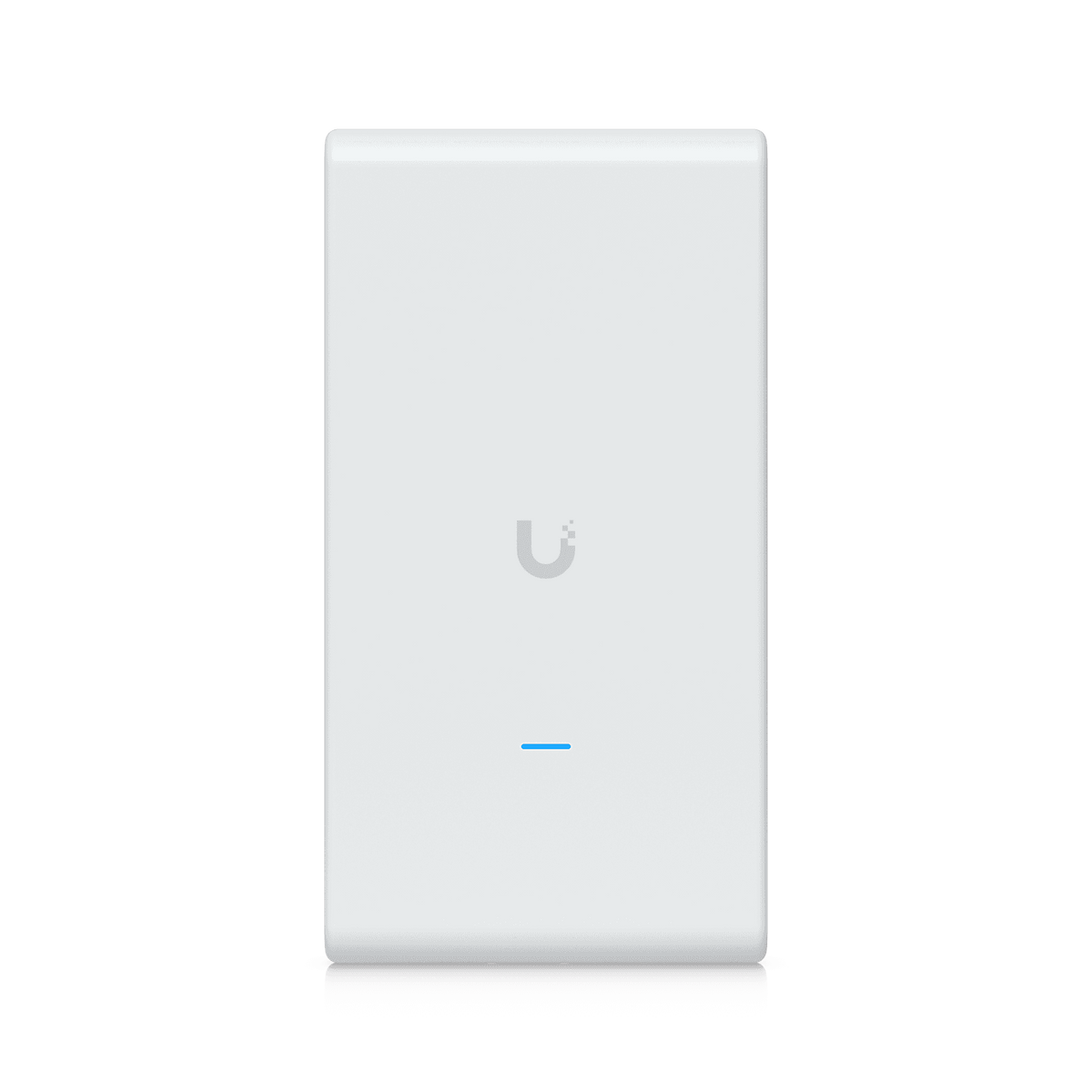

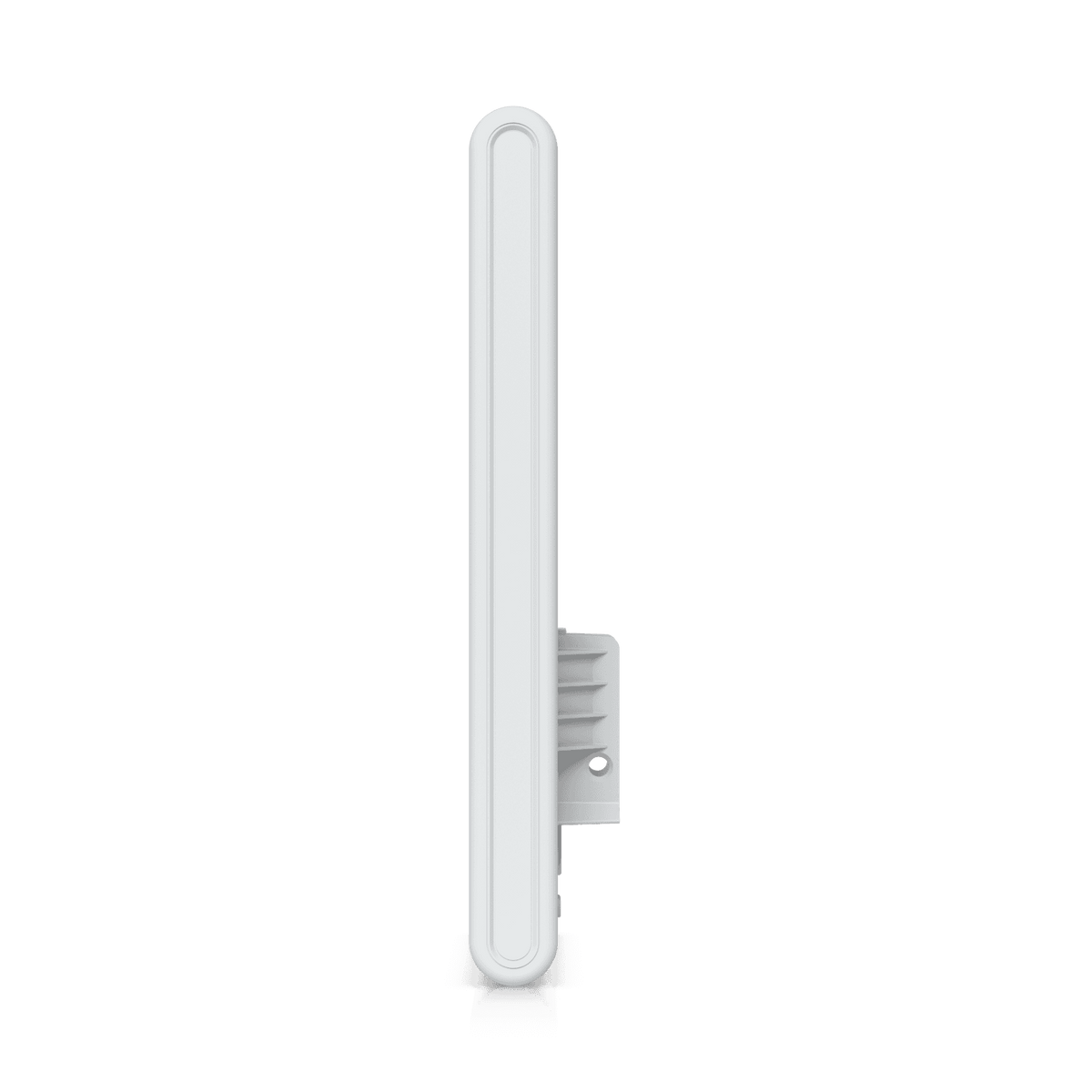

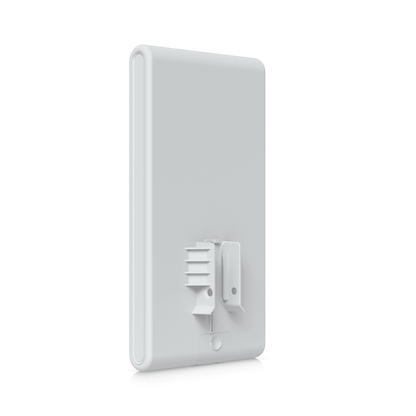

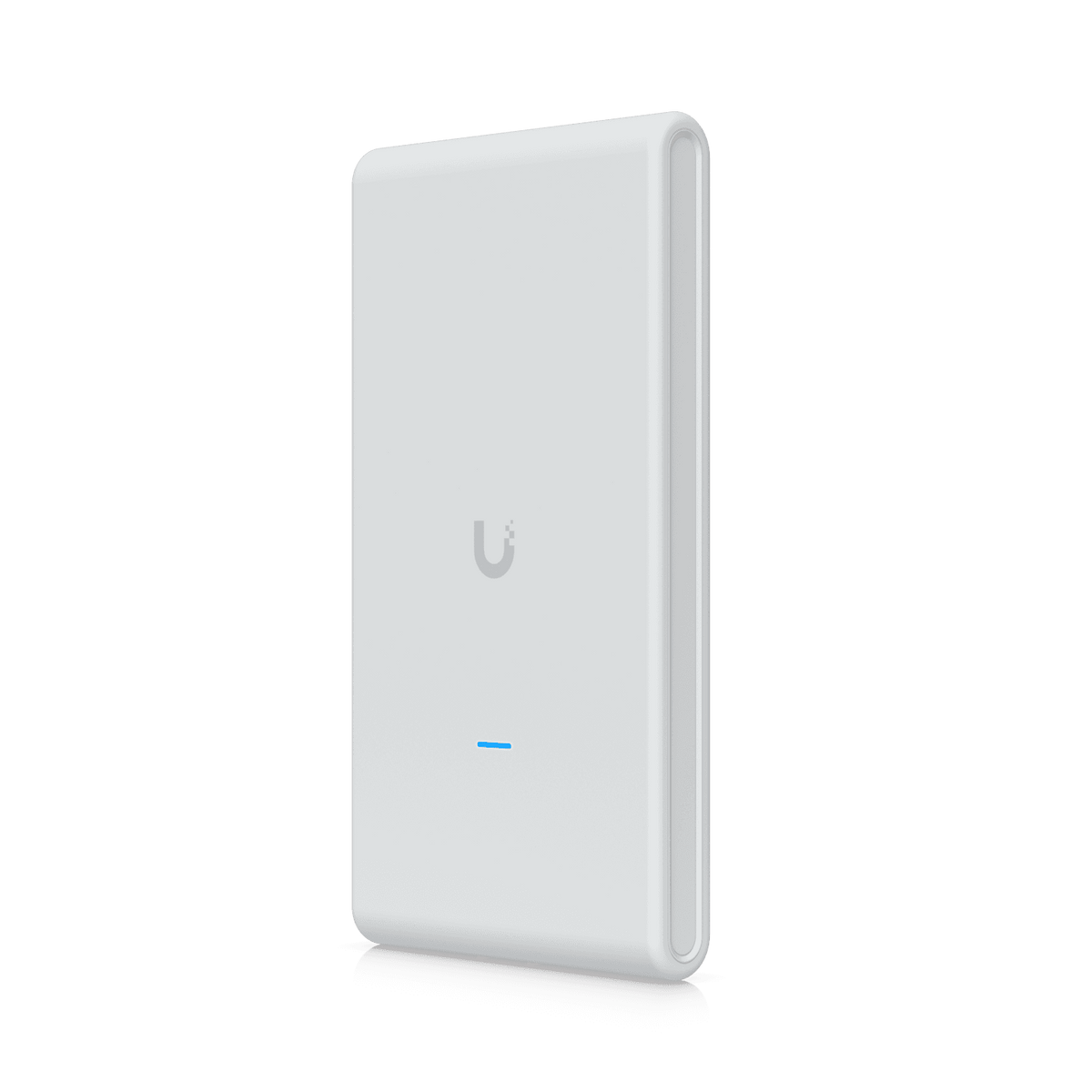

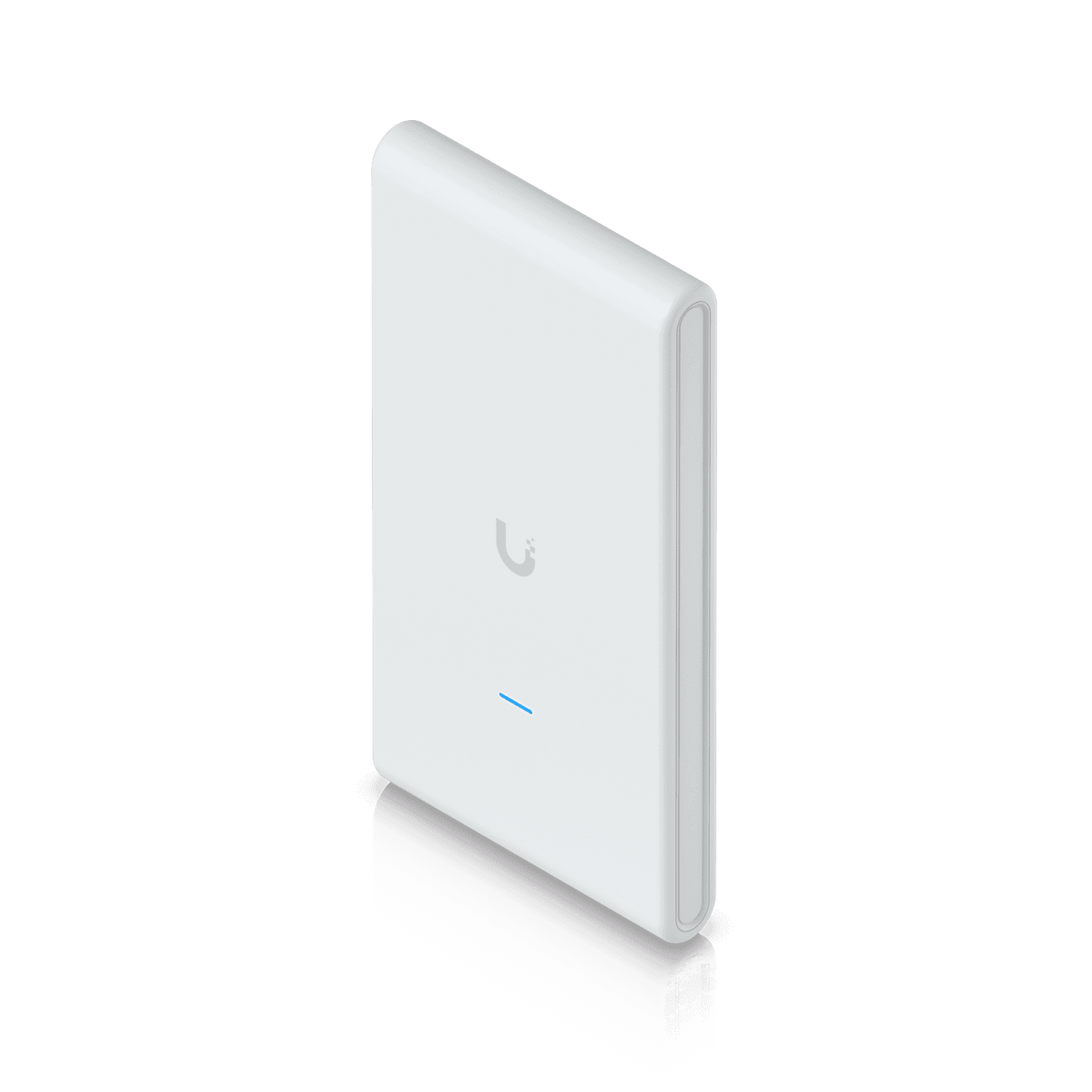

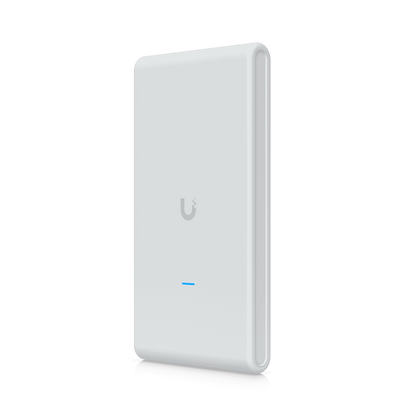

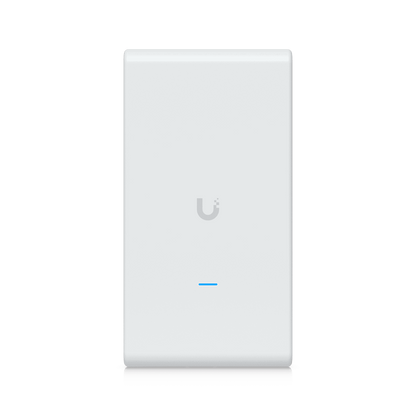

Ubiquiti UniFi Mesh Pro Indoor / Outdoor WiFi 6 AP

Ubiquiti’s U6-Mesh-Pro is an indoor / outdoor dual band, WiFi 6 (802.11ax) mesh access point featuring 2x Gigabit Ethernet ports, 4 spacial streams and integrated high power 8dBi antennas. It delivers an aggregate data rate of up to 3Gbps over its 5GHz (2x2 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands.

Note: It can be configured and managed with the UniFi Network Application.

FEATURES:

• High-Power Super Antenna: Built with high-gain 8 dBi omnidirectional internal antennas that broadcast 360-degree coverage across a massive 185 m² (2,000 ft²) area.
• 3 Gbps Total Speeds: Delivers concurrent dual-band wireless performance up to 2.4 Gbps on 5 GHz and 573.5 Mbps on 2.4 GHz.

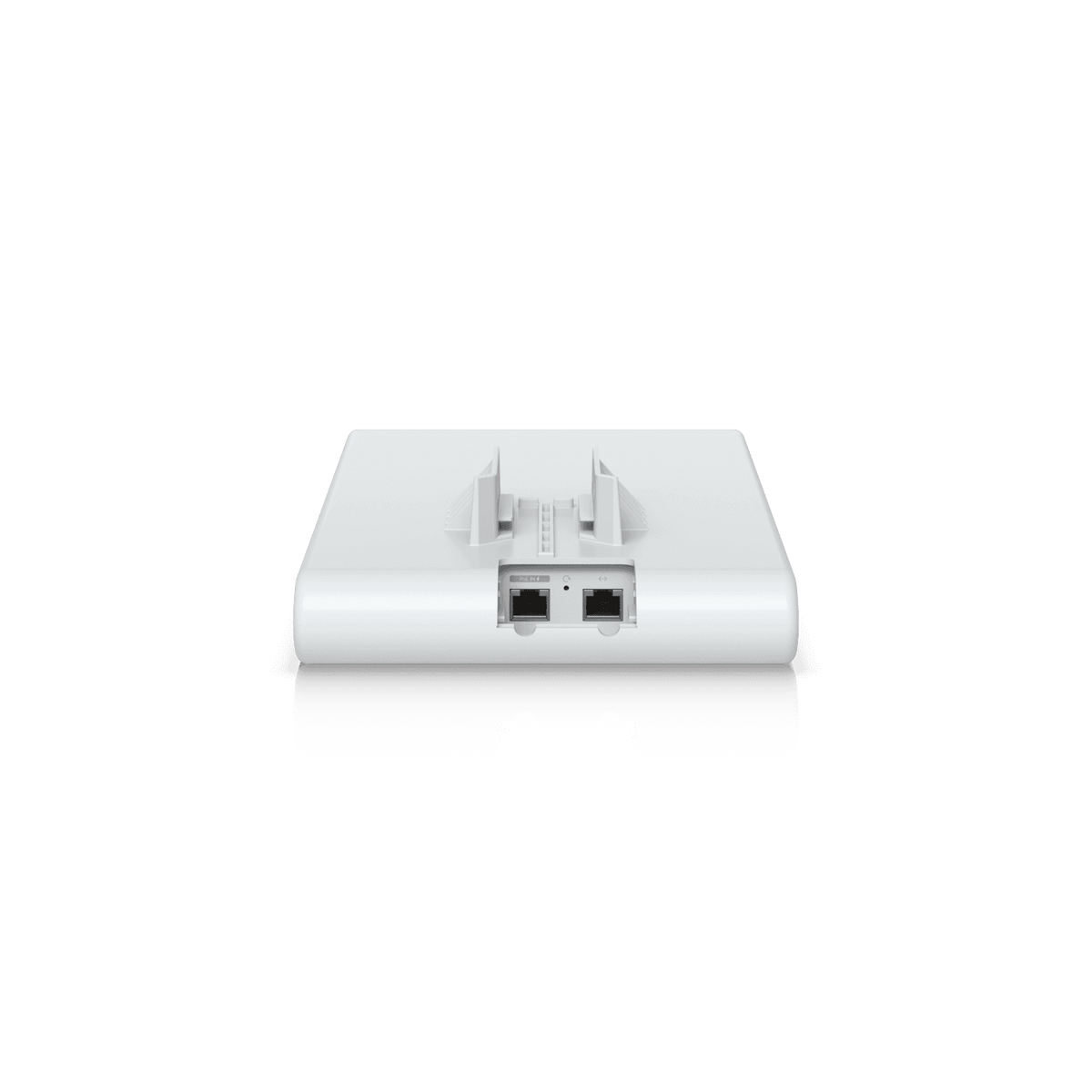

• Dual Gigabit Ethernet Ports: Includes a primary PoE-In port and a secondary Gigabit passthrough port to easily daisy-chain outdoor devices like IP security cameras.
• IPX6 Weatherproofing: Protected by an industrial, UV-stabilized outdoor casing built to withstand severe wind, driving rain, and intense sunlight.
• Massive Client Support: Engineered with high processing capacity to comfortably support 350+ simultaneous active devices.
• 4-Stream MU-MIMO: Uses a 2x2 layout on both frequency bands to maintain stable connections and high data efficiency in dense environments.

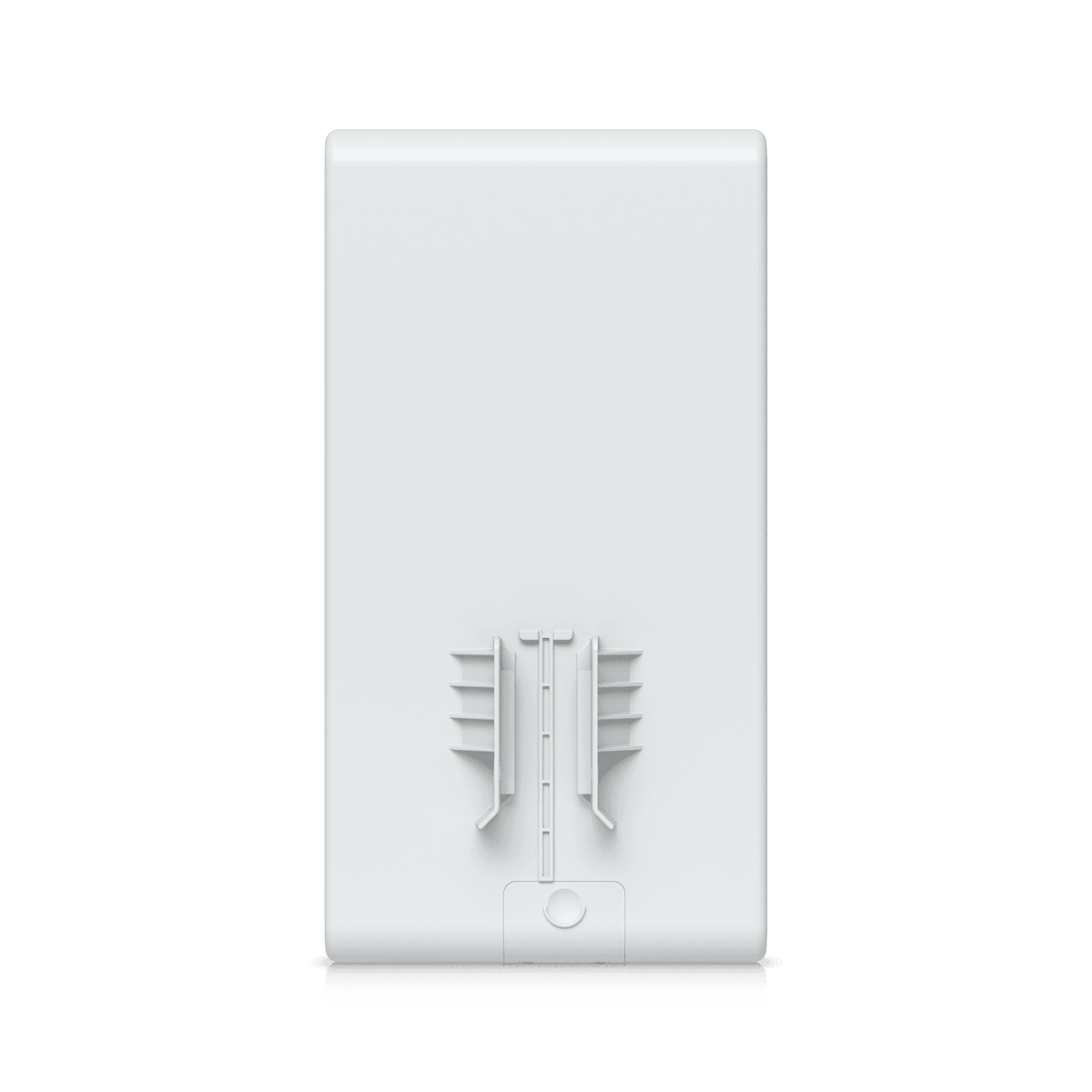

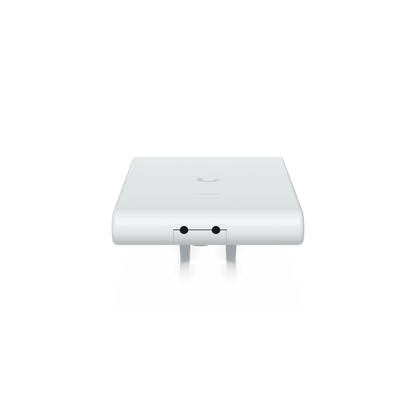

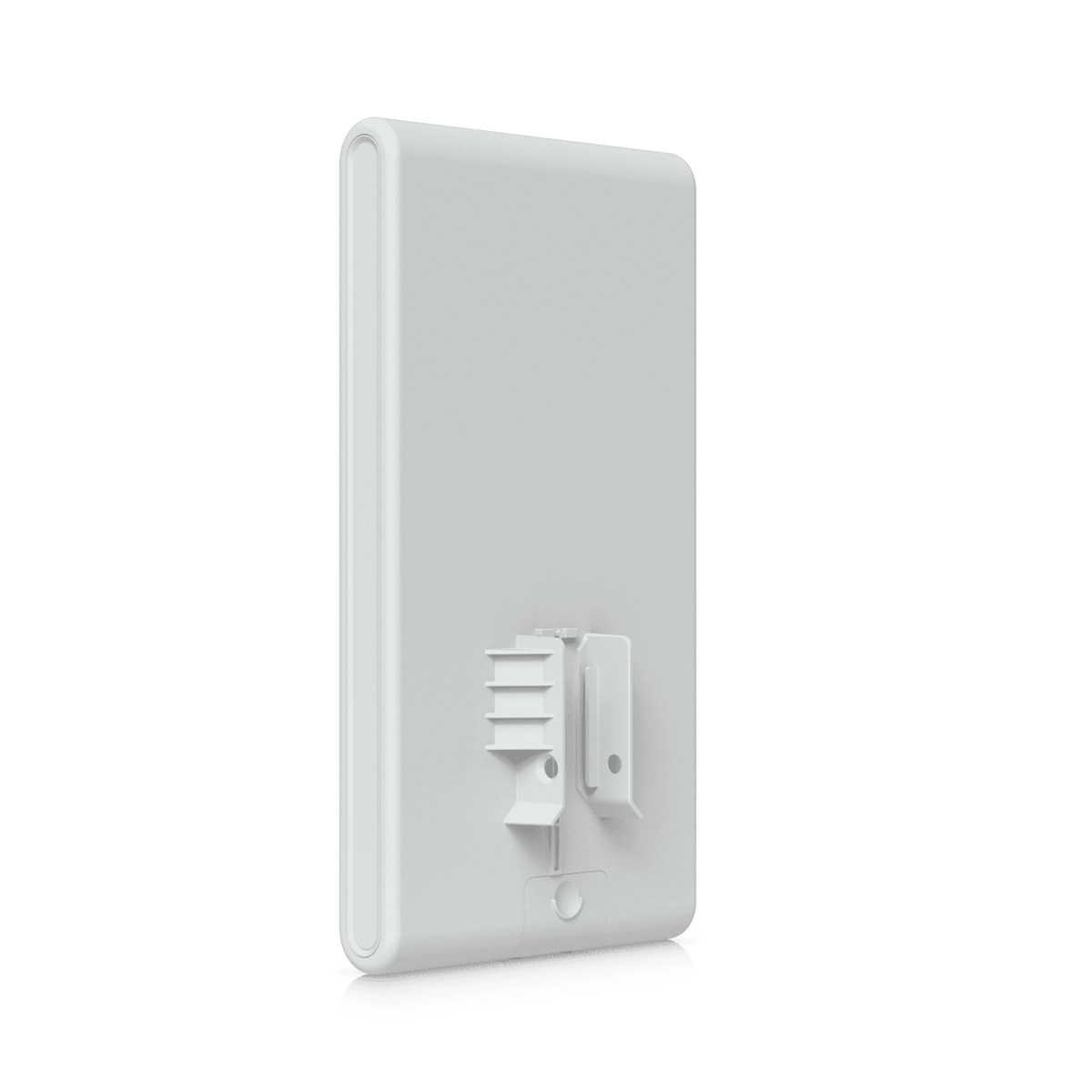

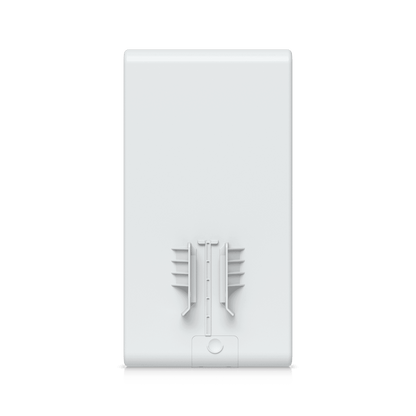

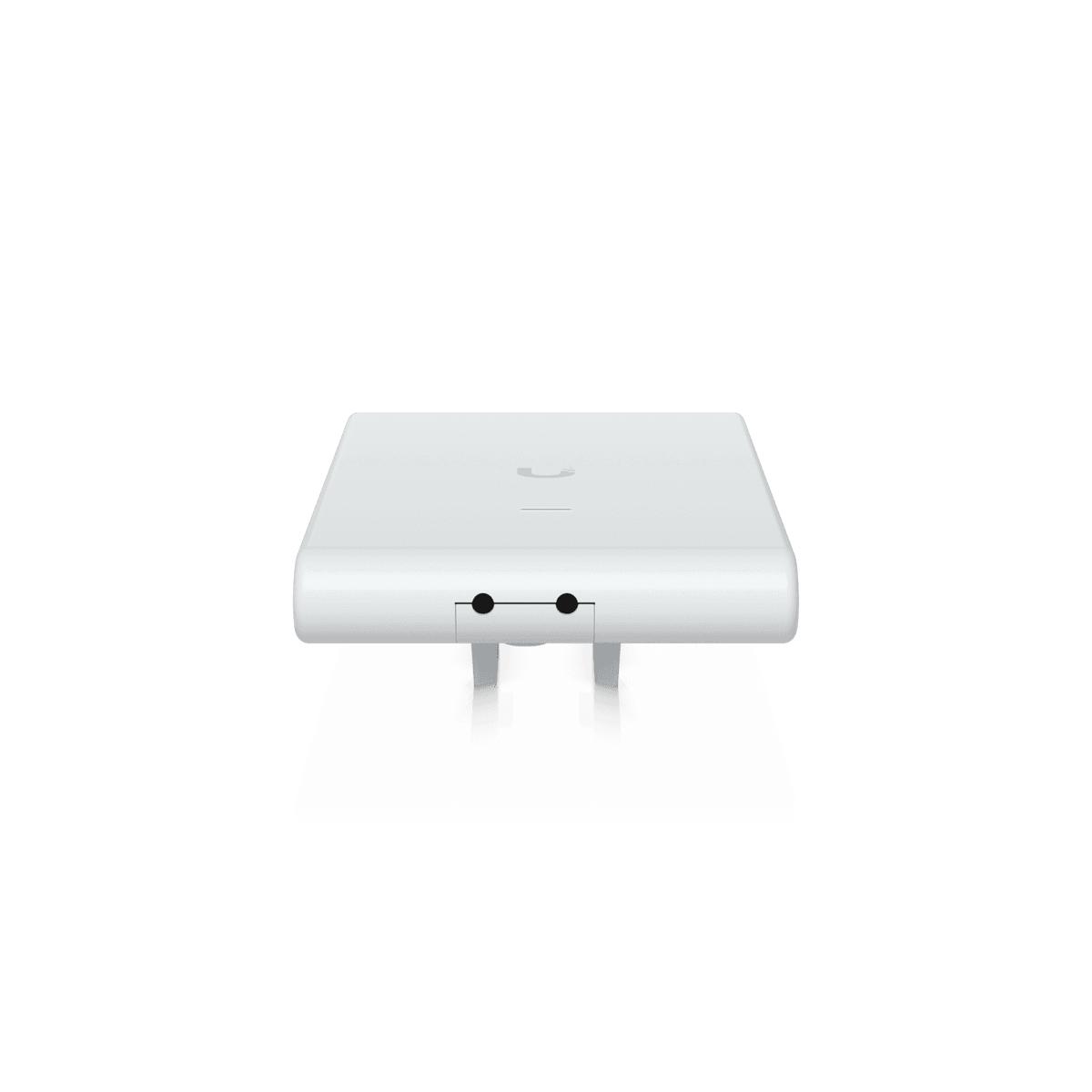

• Versatile Mounting: Includes robust metal hardware out of the box for secure installation flat against an exterior wall or clamped onto a rooftop mast.

SPECIFICATIONS:

• Dimensions: 343.2 × 181.2 × 60.2 mm (13.5 × 7.1 × 2.4")
• WiFi Standard: WiFi 6
• Spatial Streams: 4
• Coverage Area: 185 m² (2,000 ft²)
• Max. Client Count: 250+
• Uplink: GbE
• Mounting: Wall, pole (mounts included)
• Weatherproofing: IPX6
• Power Method: PoE
• MIMO:
  • 5 GHz: 2 × 2 (DL/UL MU-MIMO)
  • 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)
• Max. Data Rate:
  • 5 GHz: 2.4 Gbps (BW160)
  • 2.4 GHz: 573.5 Mbps (BW40)
• Antenna Gain:
  • 5 GHz: 8 dBi
  • 2.4 GHz: 8 dBi
• Max. TX Power:
  • 5 GHz: 27 dBm
  • 2.4 GHz: 22 dBm
• Max. BSSIDs: 8 per radio
• Supported Data Rates:
  • 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0–MCS11 NSS1/2, HE 20/40/80/160)
  • 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0–MCS9 NSS1/2, VHT 20/40/80/160)
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)
• Wireless Meshing: ✓
• Band Steering: ✓
• 802.11v BSS Transition Management: ✓
• 802.11r Fast Roaming: ✓
• 802.11k Radio Resource Management (RRM): ✓
• Advanced Radio Management: ✓
• Passpoint (Hotspot 2.0): ✓
• Captive Hotspot Portal:
  • Custom Branding Landing Page ✓
  • Voucher Authentication ✓
  • Payment-Based Authentication ✓
  • External Portal Server Support ✓
• Password Authentication: ✓
• Guest Network Isolation: ✓
• Private Pre-Shared Key (PPSK): ✓
• WiFi Speed Limiting: ✓
• Client Device Isolation: ✓
• WiFi Schedules: ✓
• RADIUS over TLS (RadSec): ✓
• Dynamic RADIUS-assigned VLAN: ✓
• Max. Power Consumption: 9W
• Includes PoE Adapter: ✓
• Supported Voltage Range: 42.5–57V DC
• Networking Interface: (2) GbE RJ45 ports
• Weight: 819 g (1.8 lb)
• Pole Mount Diameter: 1–2.5" (25–63.5 mm)
• Management: Ethernet, WiFi
• Enclosure Material: UV-stabilized polycarbonate
• Mount Material: Aluminum alloy, steel
• LEDs: System — White/Blue
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 MHz
• Operating Frequency:
• US/CA:
  • 2.4 GHz: 2400–2472 MHz
  • U-NII-1: 5150–5250 MHz
  • U-NII-2A: 5250–5350 MHz
  • U-NII-2C: 5470–5725 MHz
  • U-NII-3: 5725–5850 MHz
• Worldwide:
  • 2.4 GHz: 2400–2483.5 MHz
  • 5 GHz: 5150–5850 MHz
• Ambient Operating Temperature: -30 to 60°C (-22 to 140°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, Anatel: 06377-24-08356
• Application Requirements: UniFi Network version 8.1.127 and later

WHAT’S IN THE BOX:

• UniFi6 Mesh Pro access point unit x1
• Wall and Pole Mounting Brackets x1
• Metal Hose Clamps / Worm-Gear Straps (for pole installation) x1
• Mounting Screws & Wall Anchors x1
• 48V, 0.5A Gigabit PoE Adapter (with power cord) x1
• Quick Start Guide x1

WARRANTY:

• 12 Months
