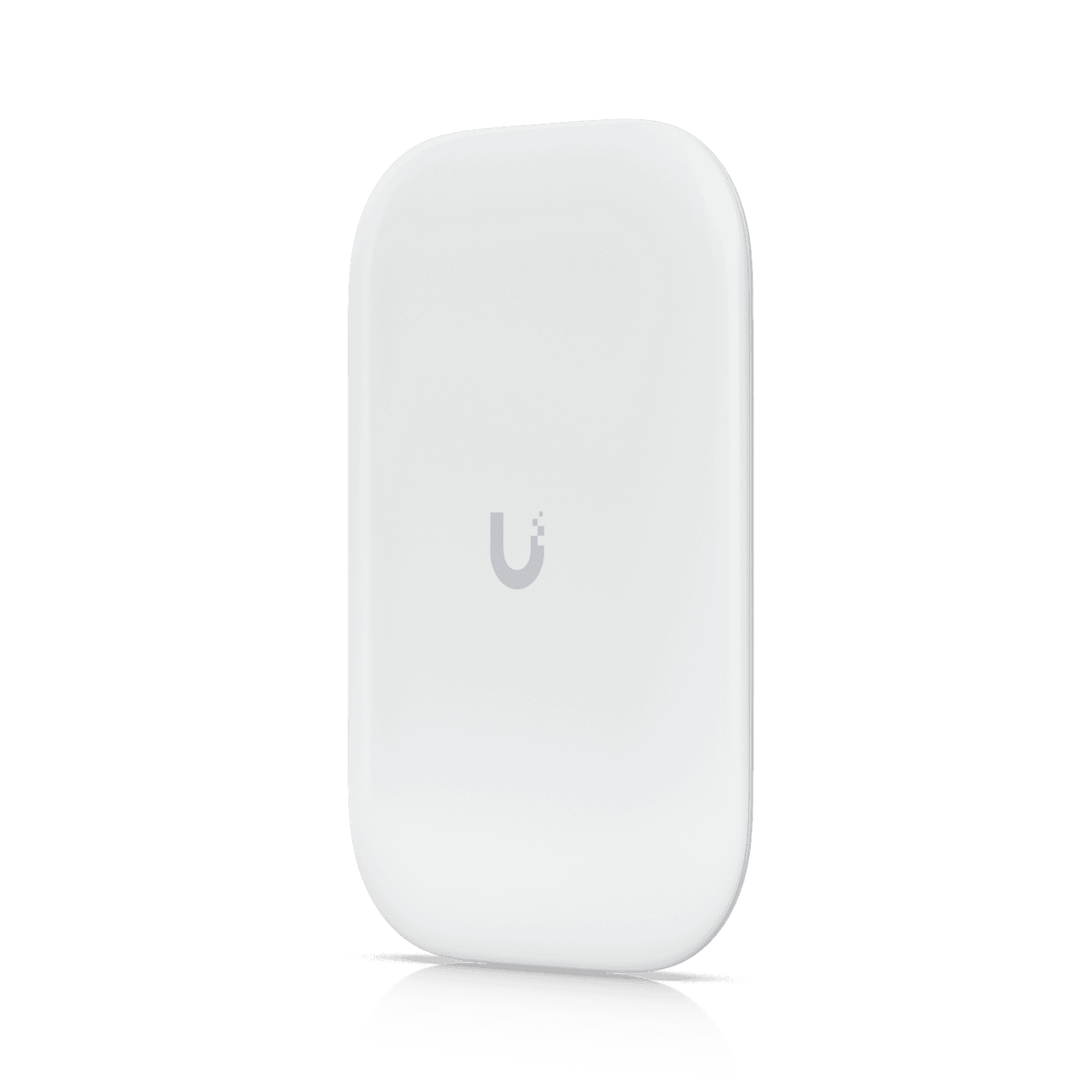

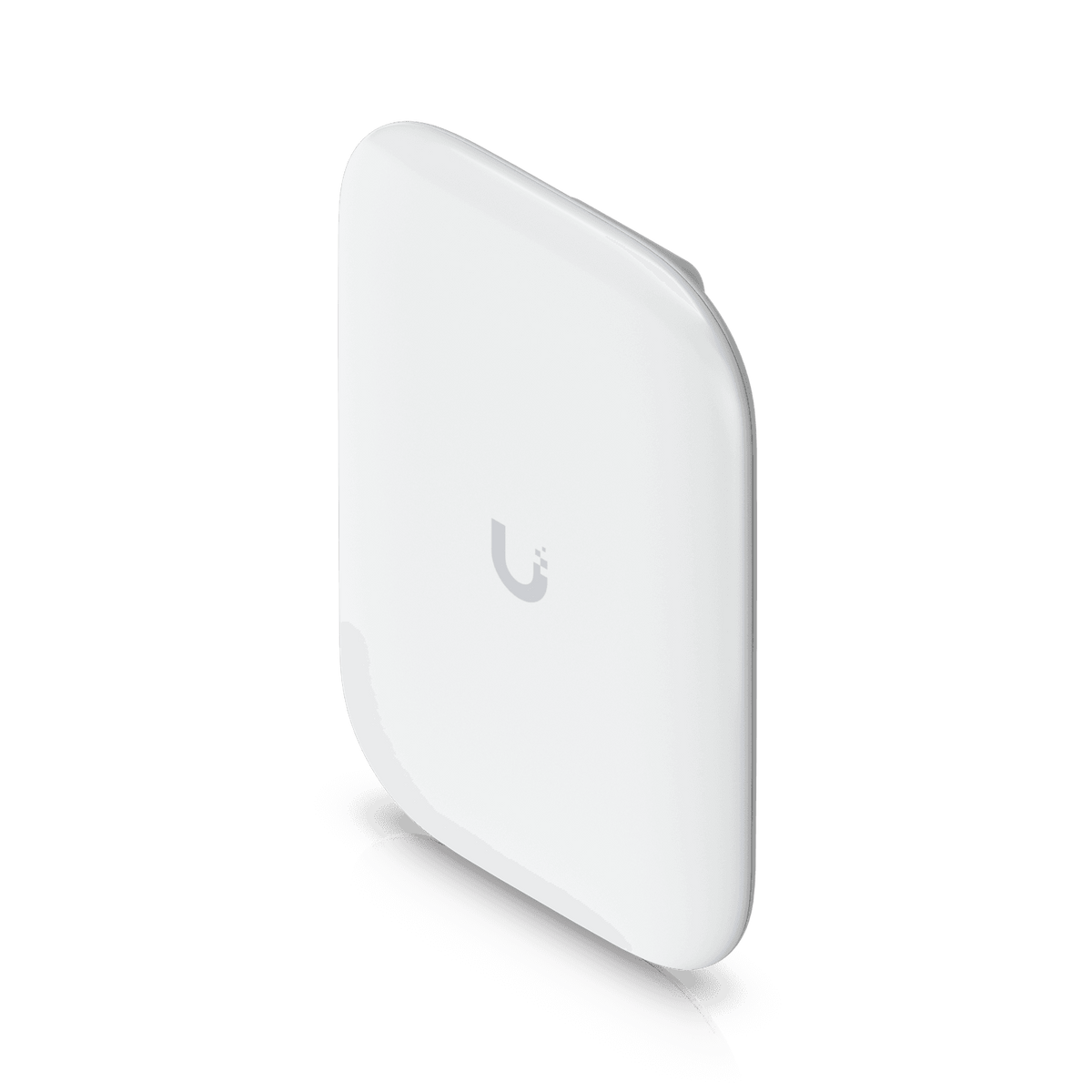

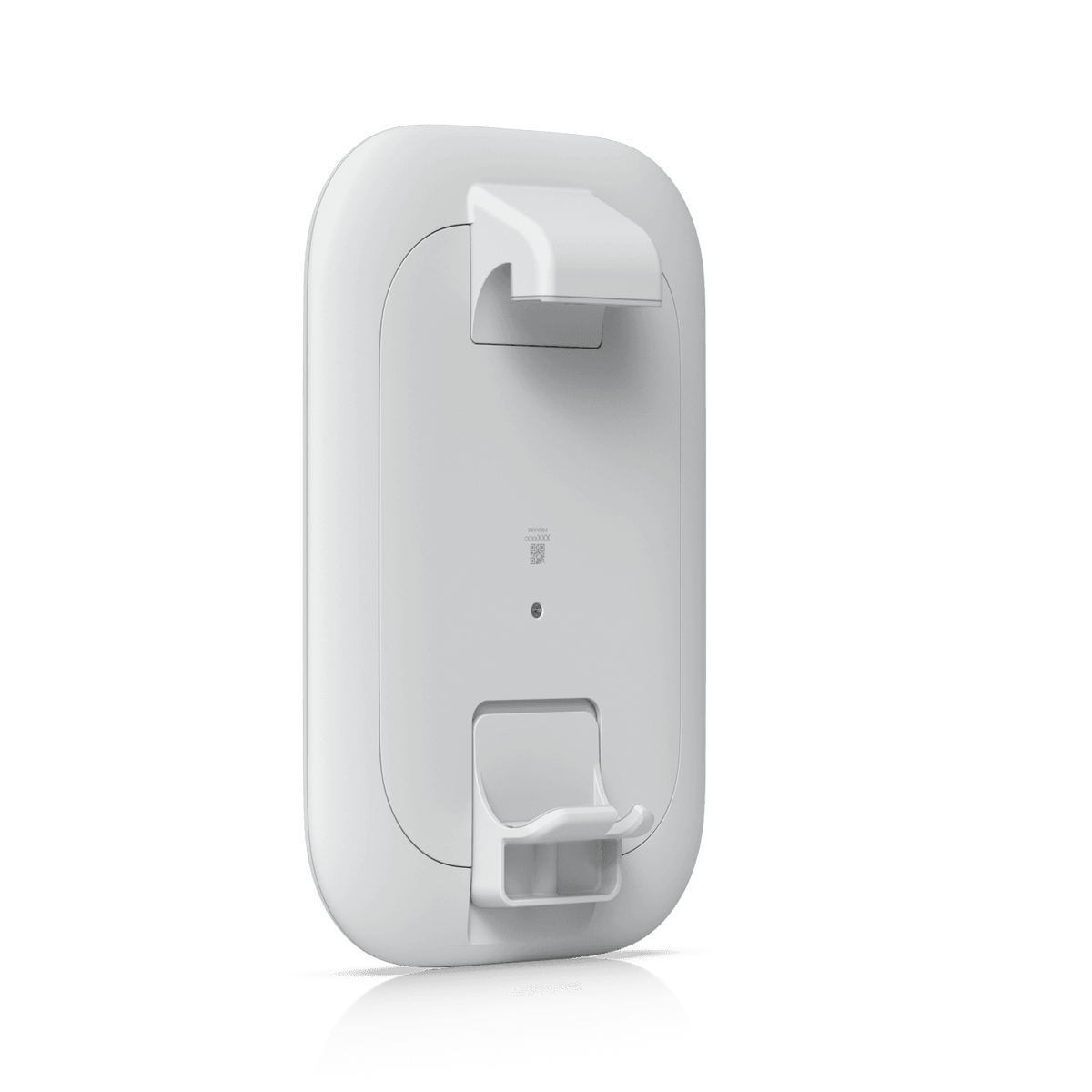

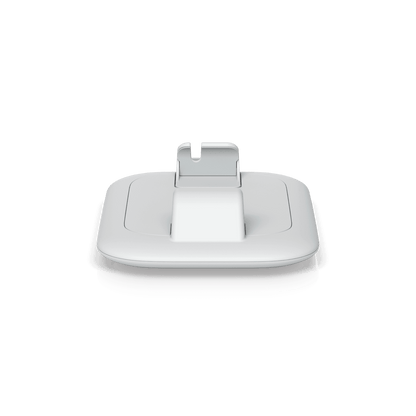

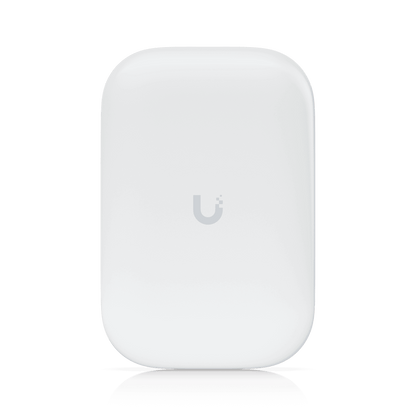

Ubiquiti UniFi Panel Antenna for Swiss Army Knife Ultra

Ubiquiti's UACC-UK-Ultra-Panel-Antenna is an IPx6, clip-on external antenna for the Swiss Army Knife (UK-ULTRA) that provides extended 90-degree directional coverage.

FEATURES:

• Directional Extension: Transforms omnidirectional coverage into a focused 90-degree directional beam for targeted, long-range outdoor zones.
• High Dual-Band Gain: Significantly boosts signal strength with 10 dBi gain at 2.4 GHz and 15 dBi gain at 5 GHz.

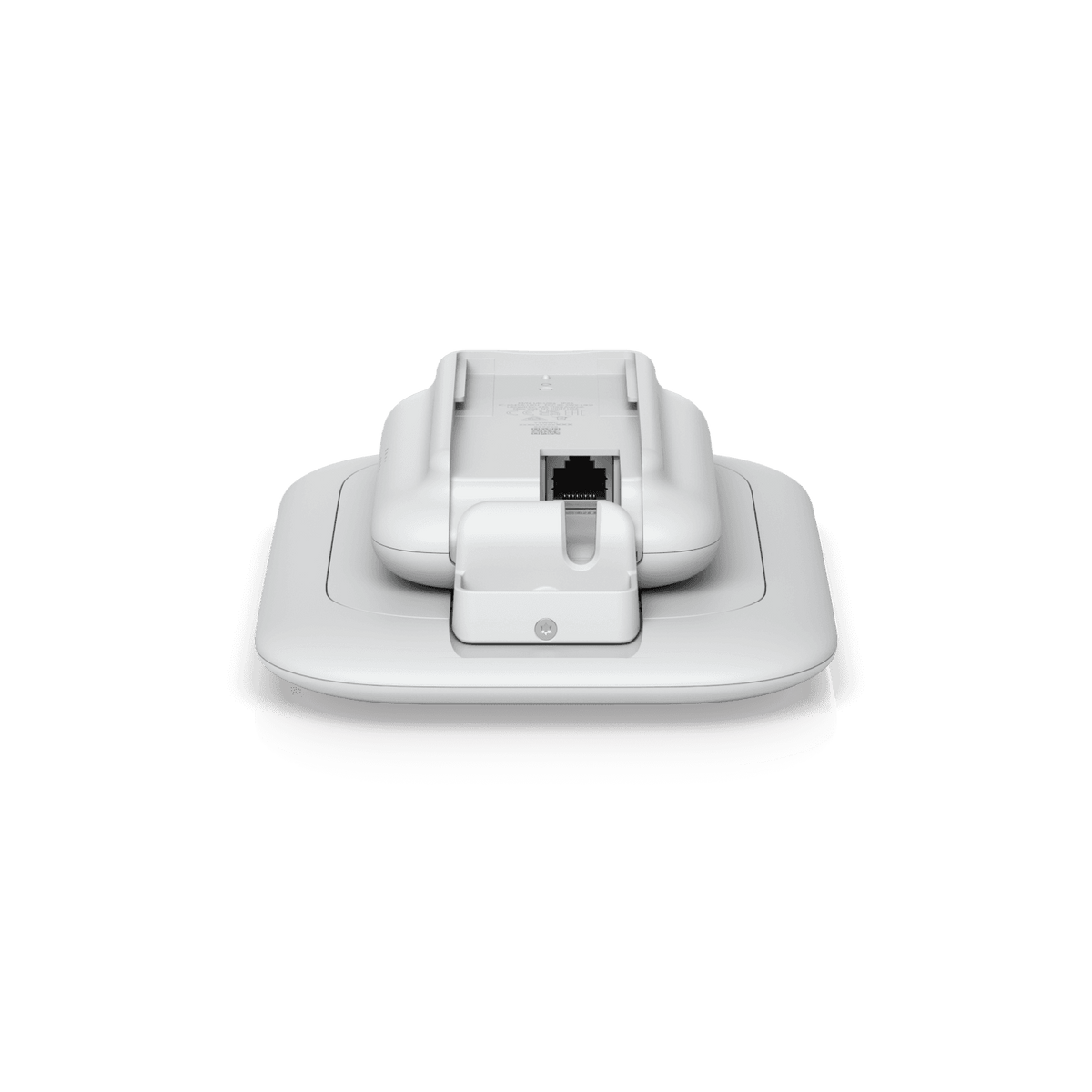

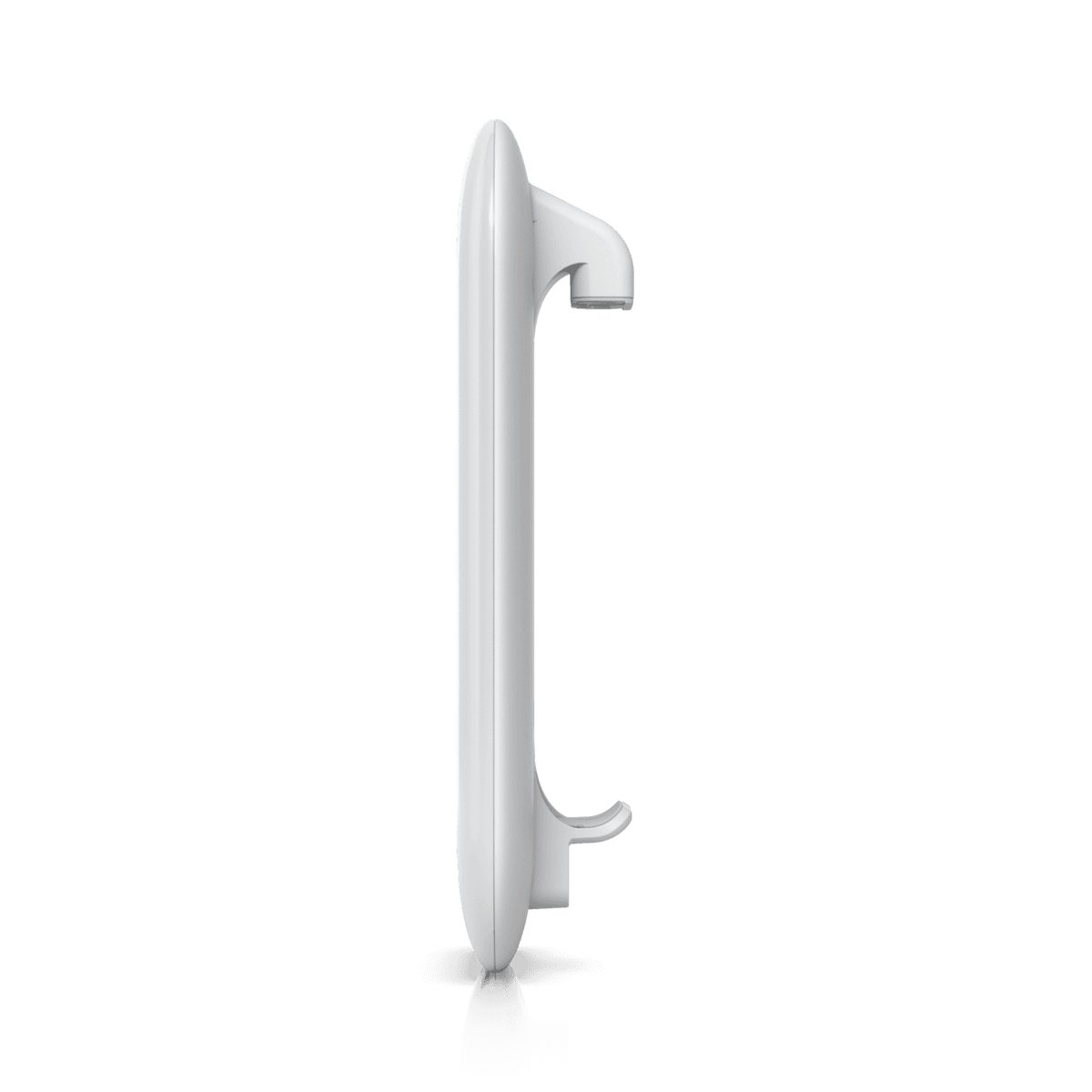

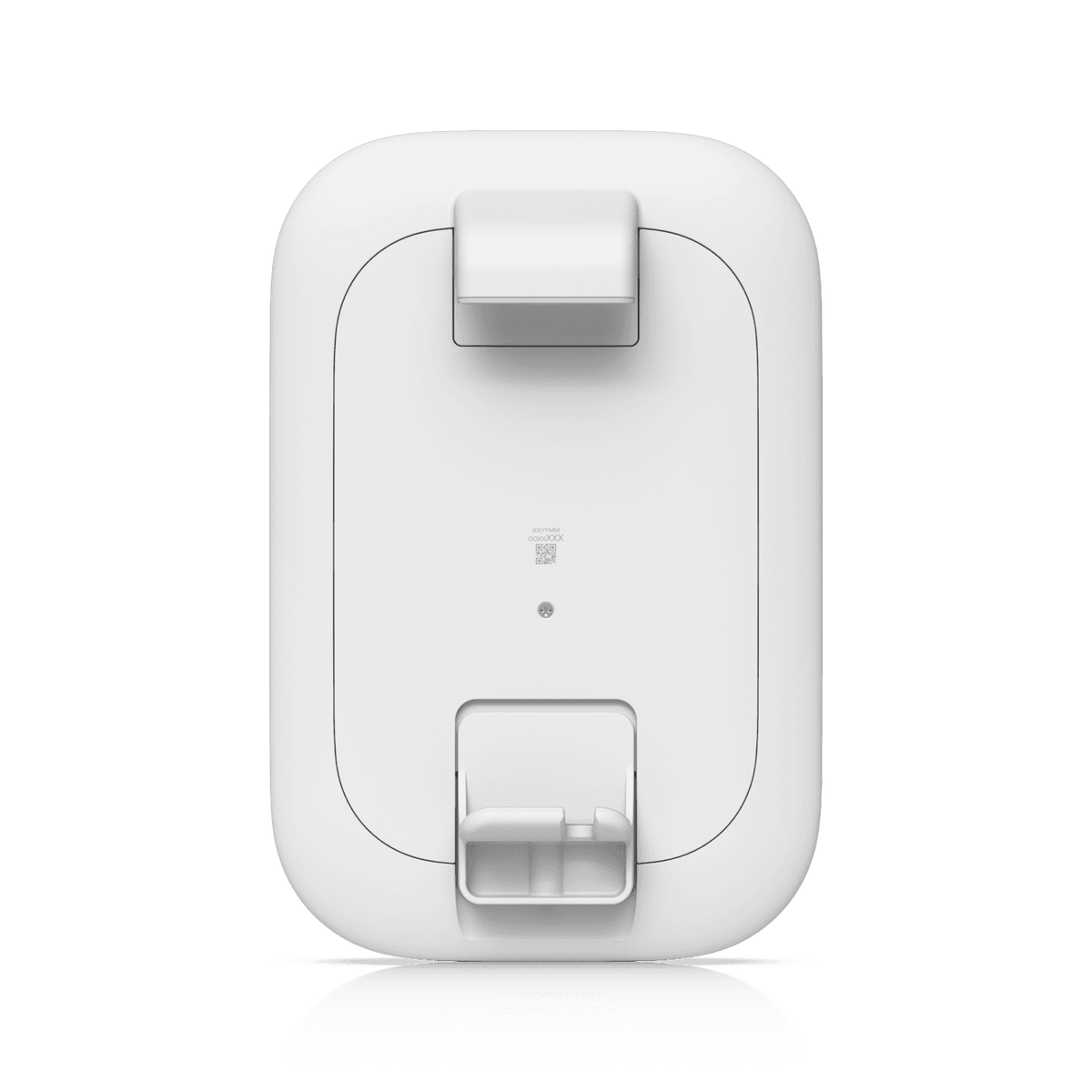

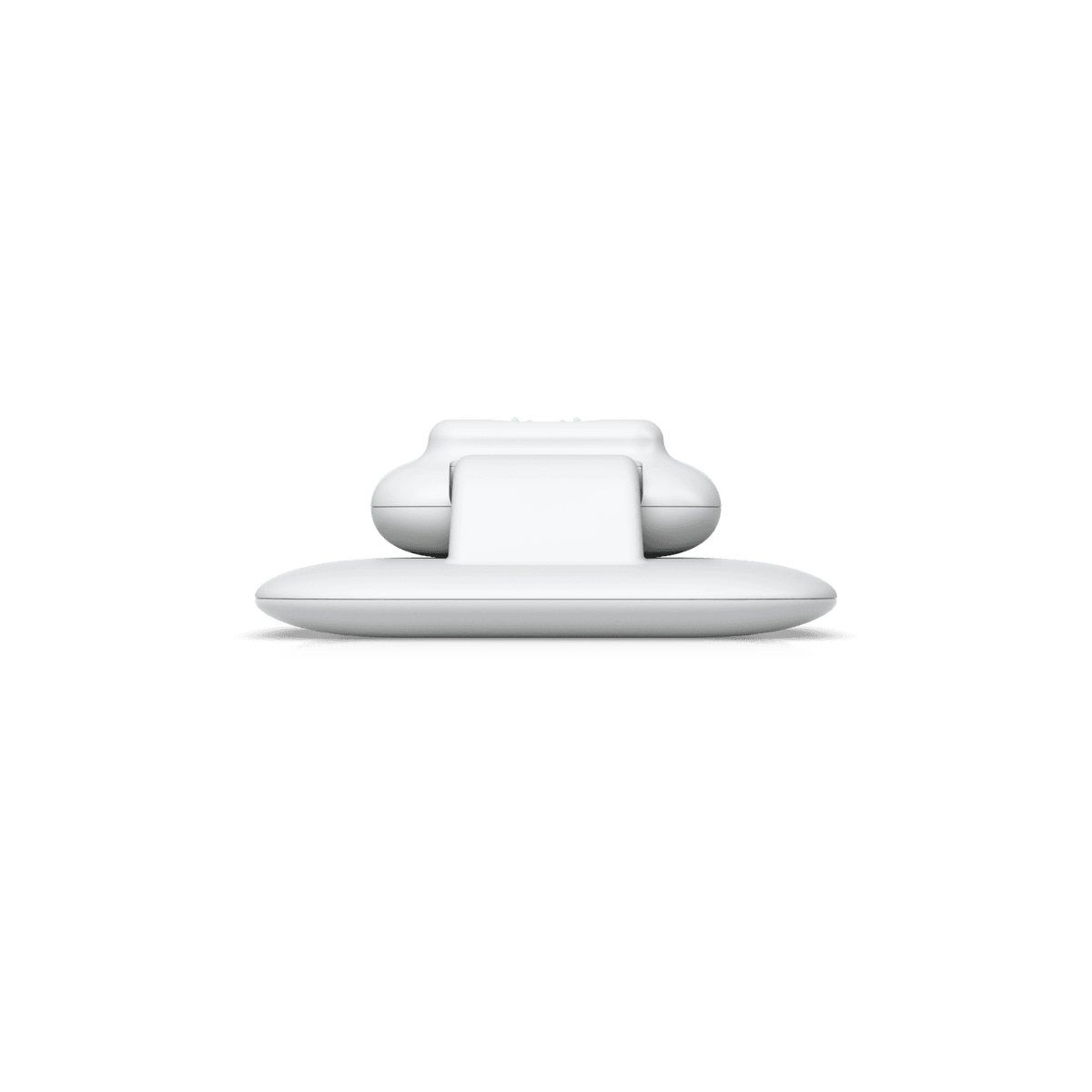

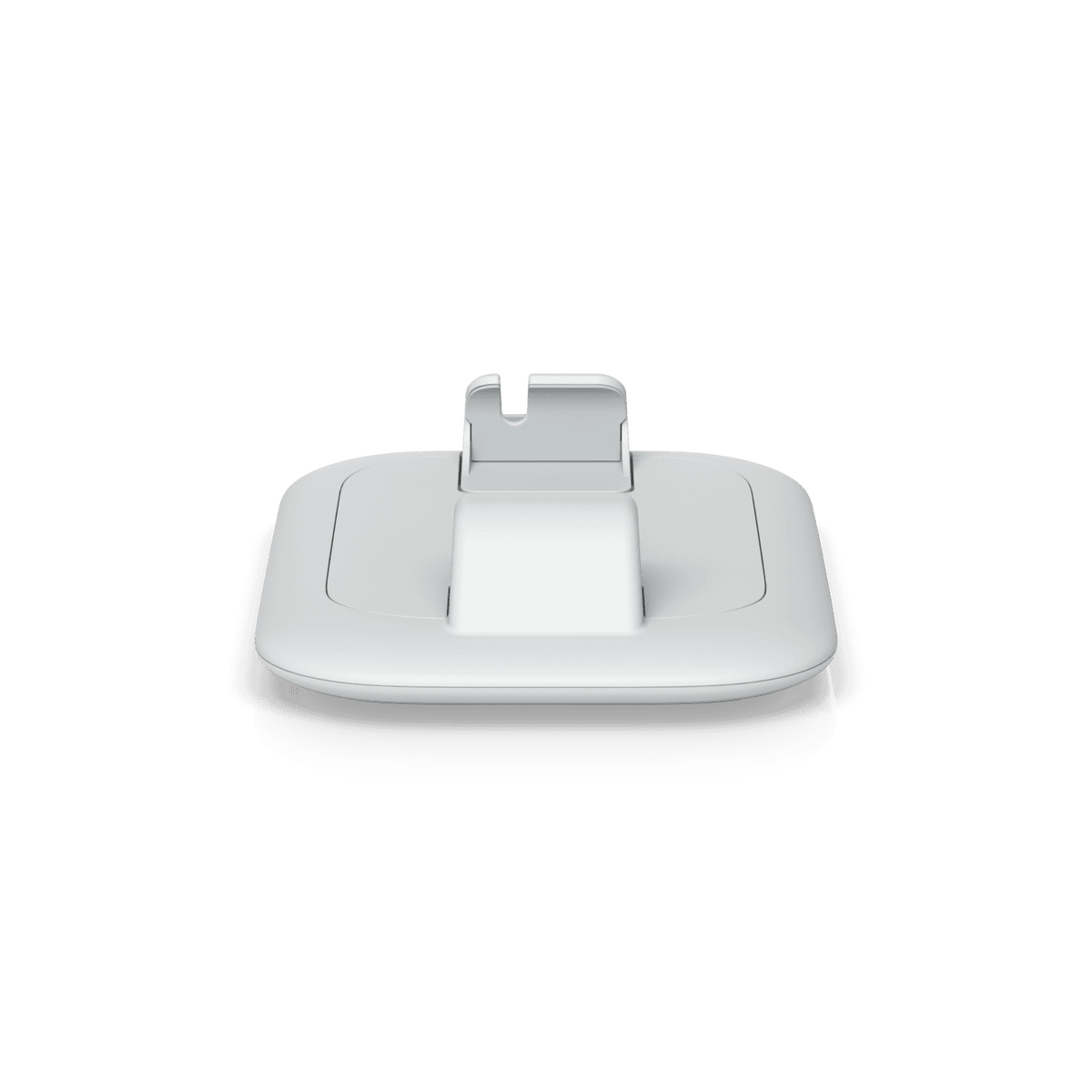

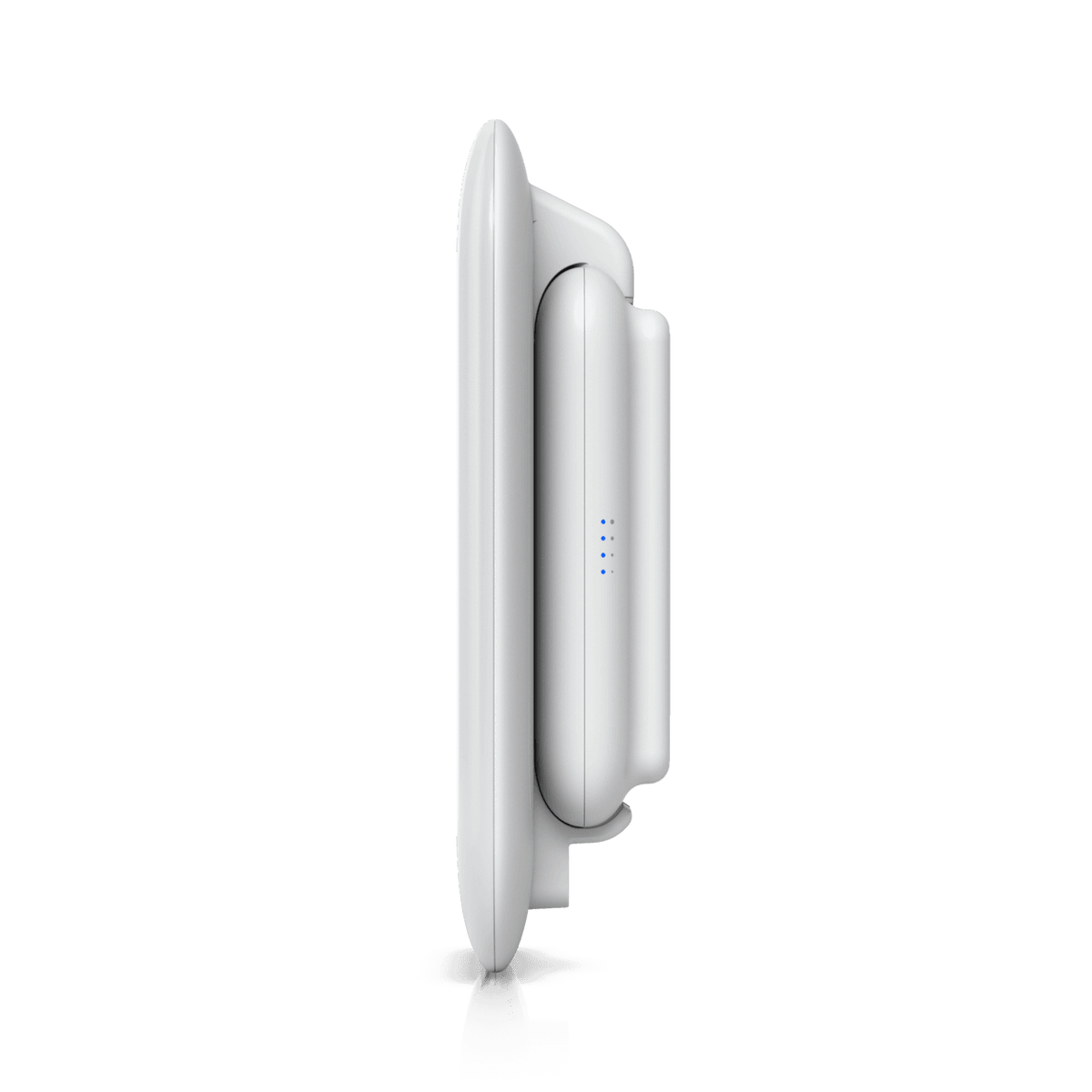

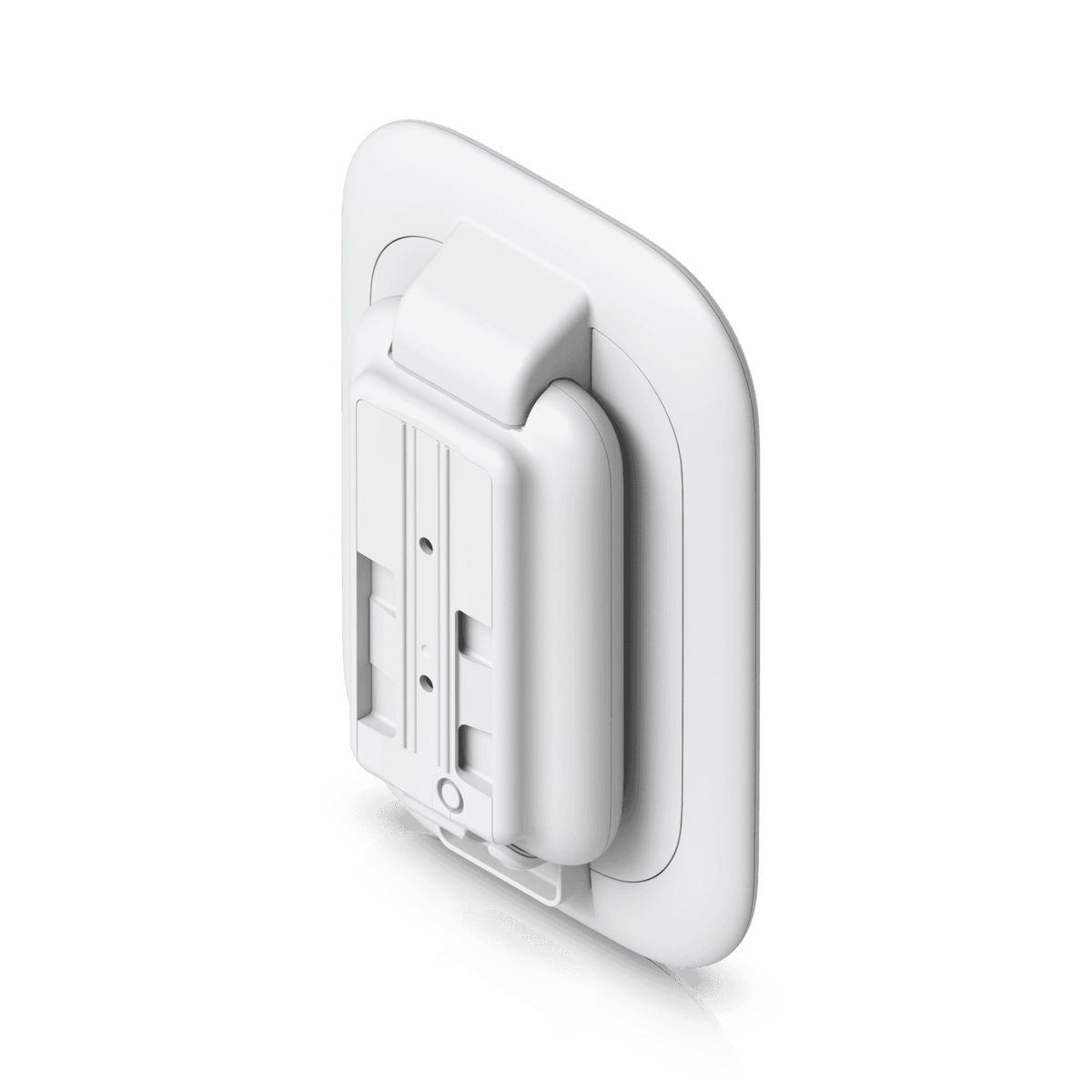

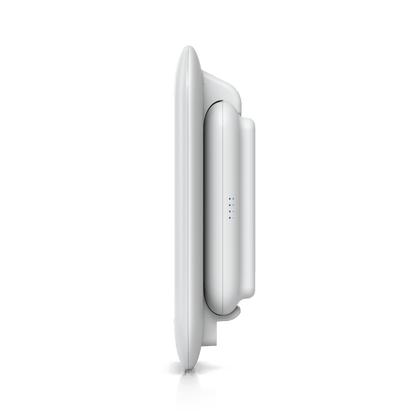

• Toolless Clip-On Design: Snaps directly onto the UniFi Swiss Army Knife Ultra (UK-Ultra) without blocking its original wall or pole mount configurations.
• All-Weather Resilience: Features an IPX6 weatherproof rating and is aerodynamically built to survive extreme wind loads up to 200 km/h (125 mph).
• Compact Build: Measures a slim 138 x 207 x 43 mm and weighs only 450 grams (1 lb).

SPECIFICATIONS:

• Dimensions: 138 × 207 × 43 mm (5.4 × 8.1 × 1.7")
• Weight: 450 g (1 lb)
• Enclosure Material: UV-stabilized polycarbonate, aluminum
• Mounting: 1–2" on pipe outer diameter
• Compatible with: UK-Ultra
• Wind Survivability: 75 N at 200 km/h (16.7 lbf at 125 mph)
• Weatherproofing: IPX6

• Antenna Gain:
• 5 GHz: 15 dBi
• 2.4 GHz: 10 dBi
• NDAA Compliant: ✓

WHAT’S IN THE BOX:

• Panel Antenna Ultra x1
• Pole/Pipe Mounting Hardware (Supports attachment to pipes with a 1" to 2" outer diameter) x1

WARRANTY:

• 12 Months
