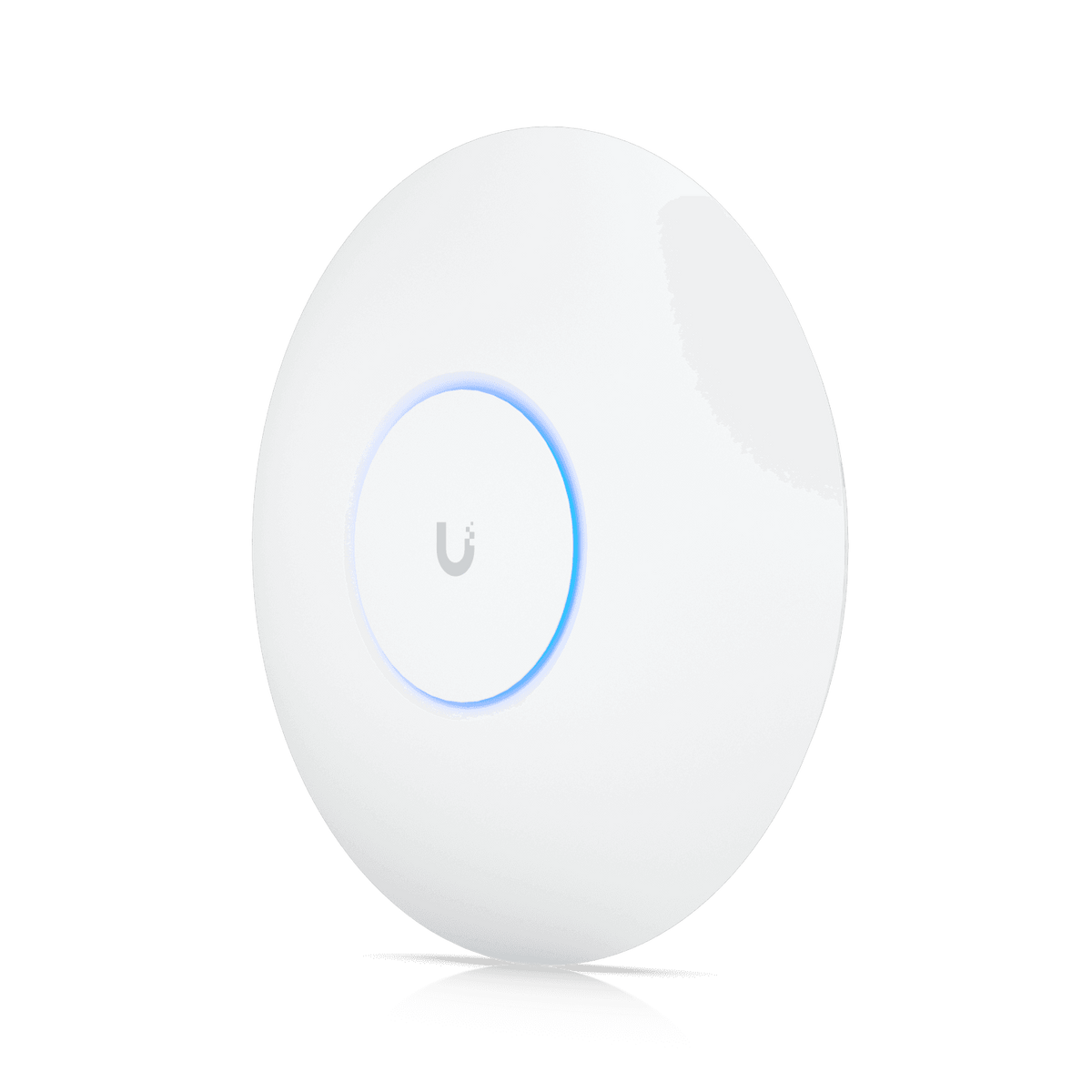

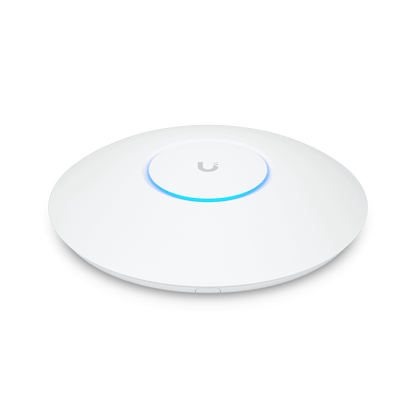

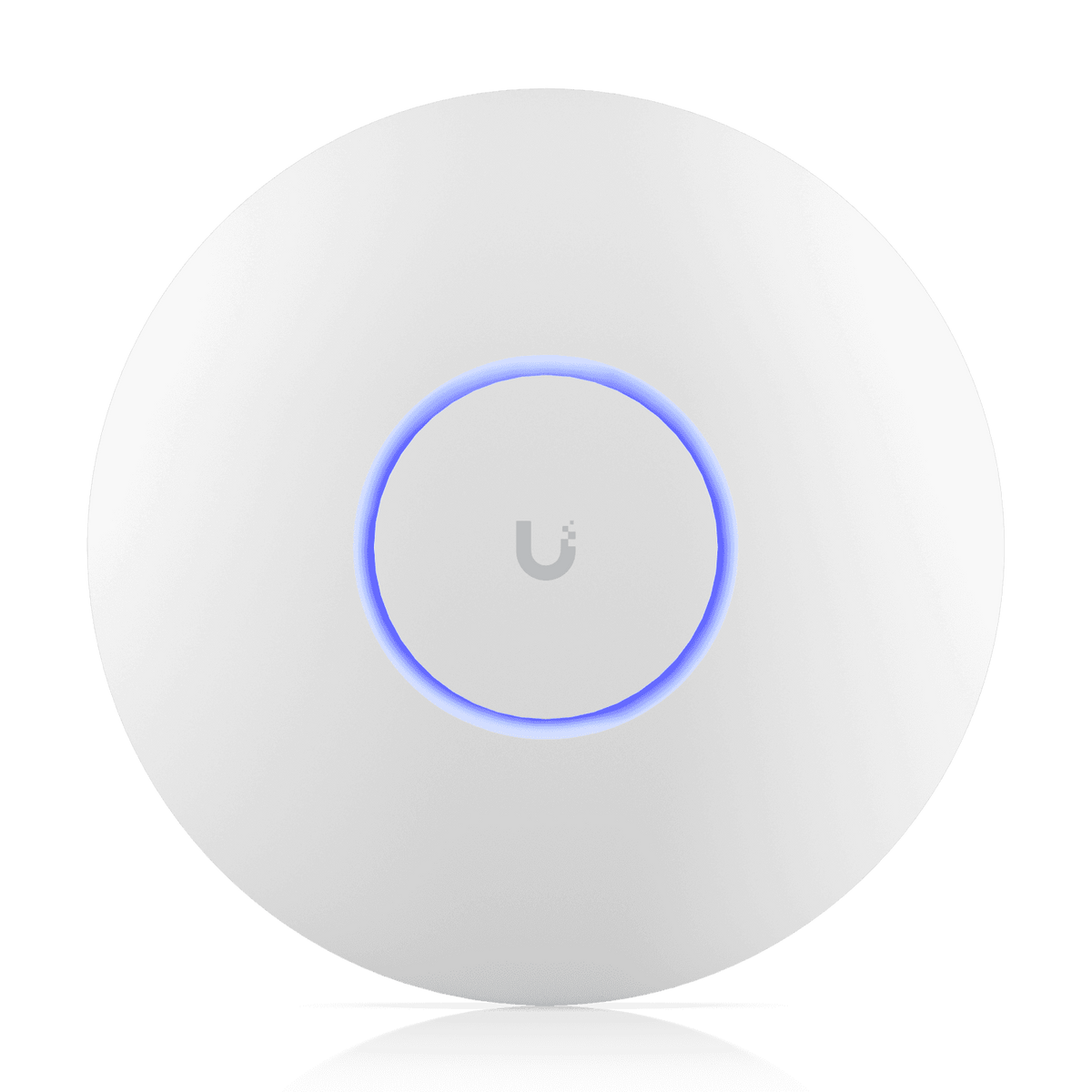

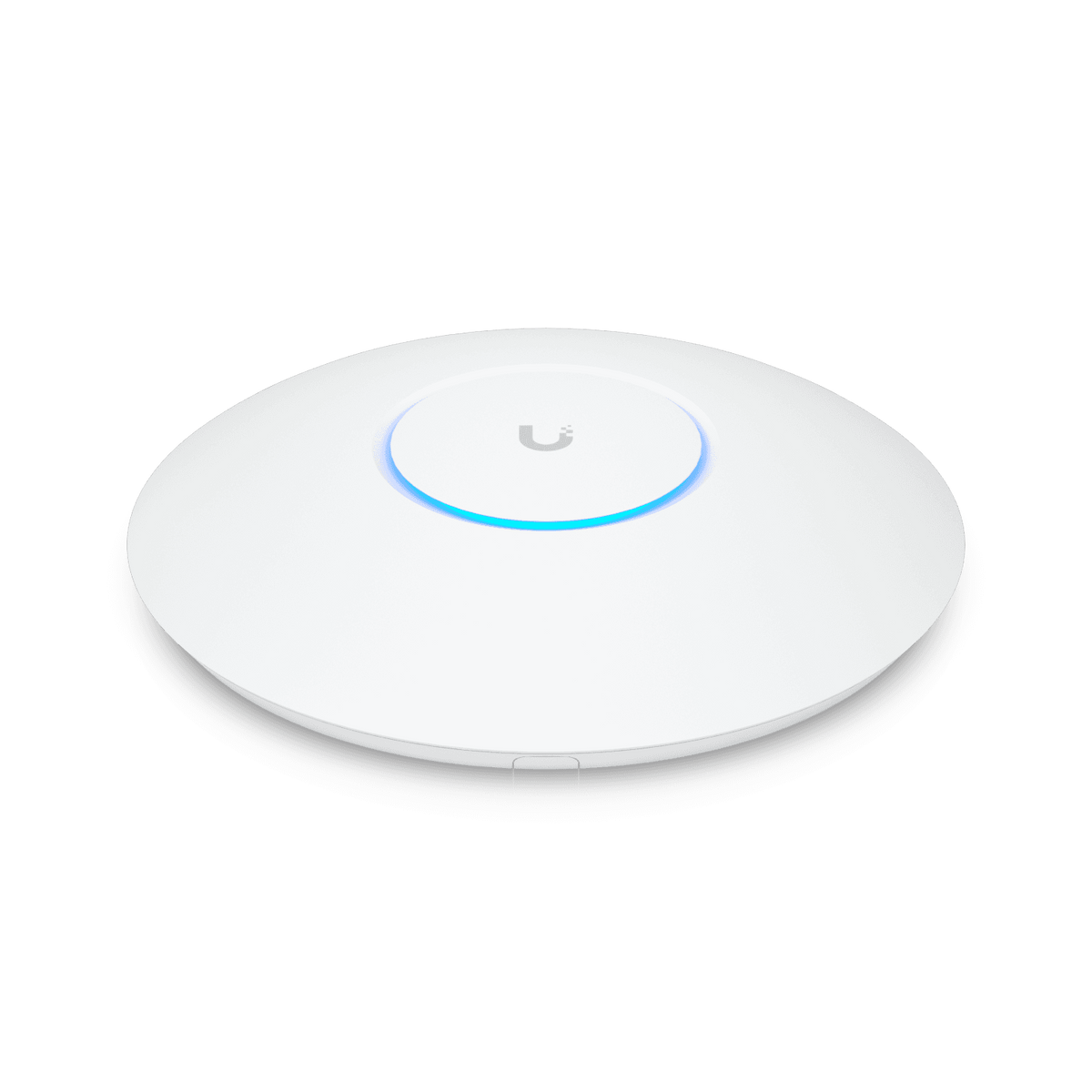

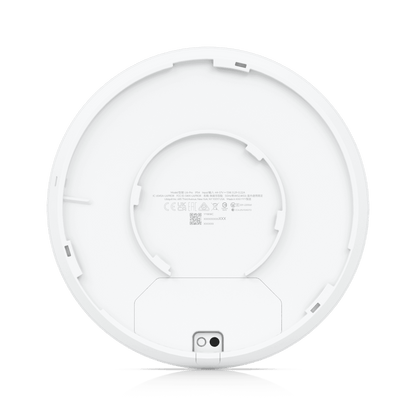

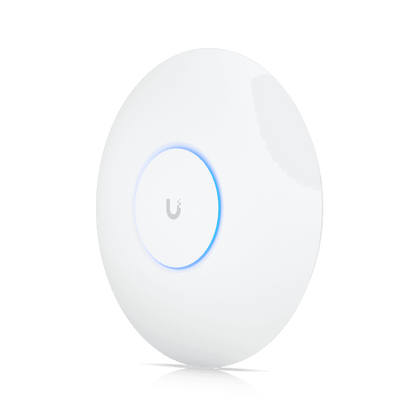

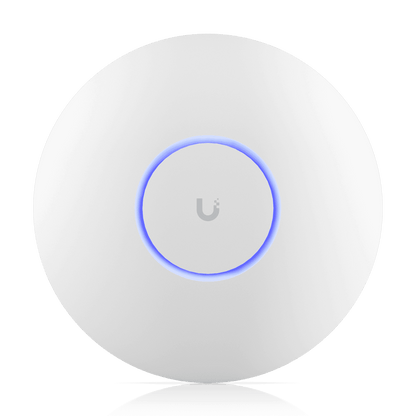

Ubiquiti UniFi Pro Dual Band WiFi 6 AP

Ubiquiti's U6-PRO is a high-performance, dual band WiFi 6 (802.11ax) access point. It delivers an aggregate data rate of up to 5.3Gbps over its 5GHz (4x4 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands.

It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included.

FEATURES:

• 5.3 Gbps Dual-Band Speeds: Delivers concurrent performance up to 4.8 Gbps on the 5 GHz band and 573.5 Mbps on the 2.4 GHz band.
• 6-Stream MU-MIMO: Utilises a heavy-duty 4x4 layout on 5 GHz and a 2x2 layout on 2.4 GHz to handle multiple dense data streams simultaneously.
• 160 MHz Wide Channels: Supports ultra-wide 160 MHz channels on the 5 GHz frequency to unlock maximum wireless throughput.
• 350+ Active Clients: Engineered with robust internal processing capacity to maintain low latency across high-density environments.
• IP54 Dust & Moisture Rating: Semi-ruggedised shell makes it safe for high-moisture indoor environments or covered outdoor settings like a protected patio.
• Bluetooth App Provisioning: Features a built-in Bluetooth low-energy radio for quick, one-click discovery and adoption via the UniFi Network mobile app.

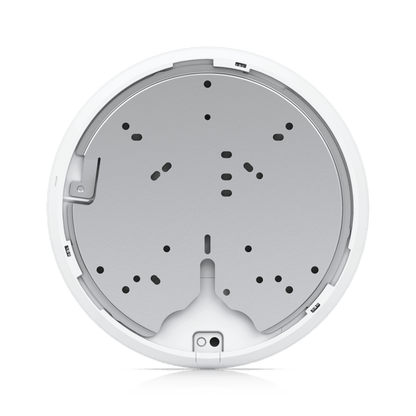

• Universal Ceiling & Wall Mounts: Ships with a versatile stainless steel mounting plate and a drop-ceiling backing ring for a flush, clean installation.

SPECIFICATIONS:

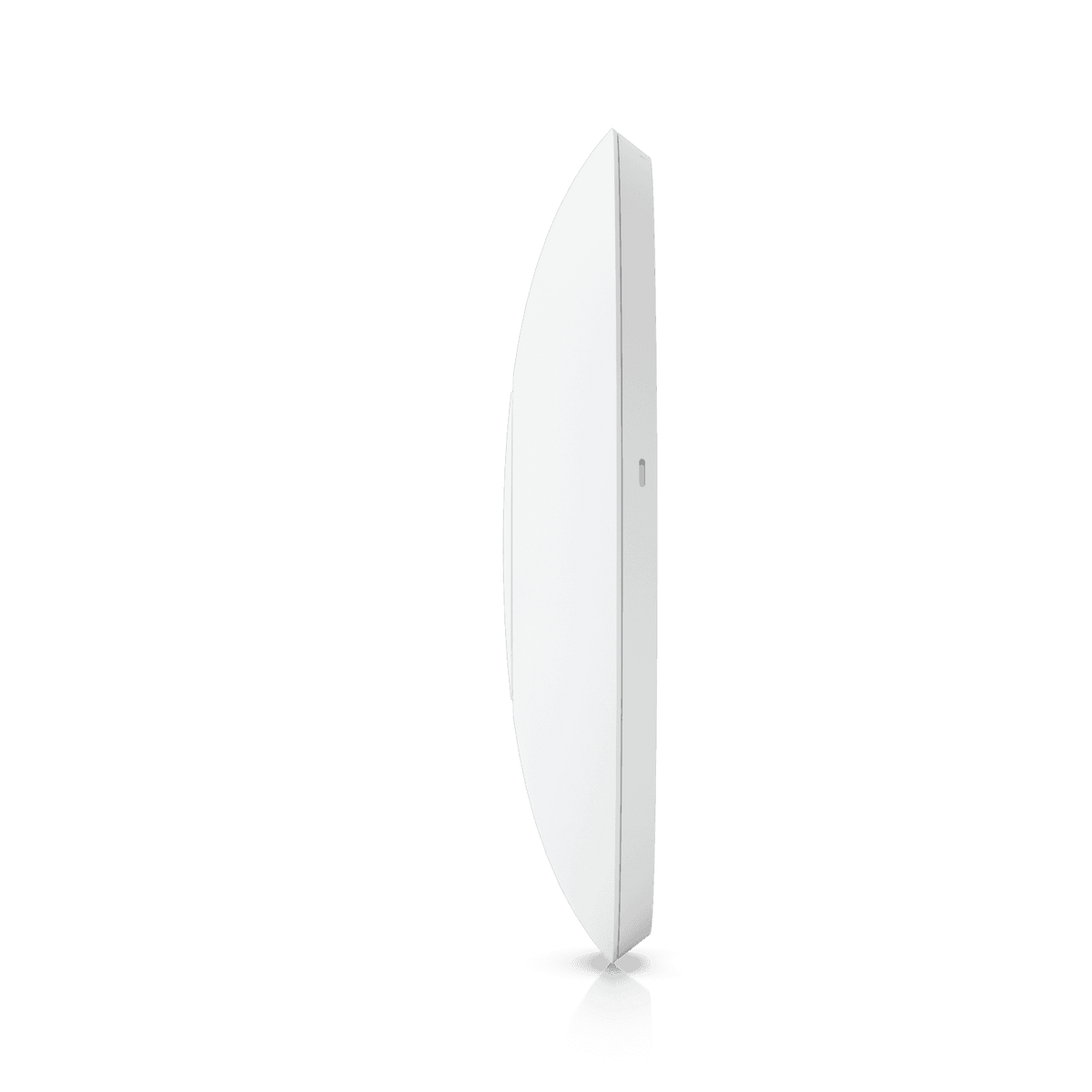

• Dimensions: ⌀197 × 35 mm (⌀7.8 × 1.4")
• WiFi Standard: WiFi 6
• Spatial Streams: 6
• Coverage Area: 140 m² (1,500 ft²)
• Max. Client Count: 250+
• Uplink: GbE
• Mounting: Ceiling, wall (Pro Mount included)
• Weatherproofing: IP54
• Power Method: PoE
• MIMO:
  • 5 GHz: 4 × 4 (DL/UL MU-MIMO)
  • 2.4 GHz: 2 × 2 (UL MU-MIMO)
• Max. Data Rate:
  • 5 GHz: 4.8 Gbps (BW160)
  • 2.4 GHz: 573.5 Mbps (BW40)
• Antenna Gain:
  • 5 GHz: 6 dBi
  • 2.4 GHz: 4 dBi
• Max. TX Power:
  • 5 GHz: 26 dBm
  • 2.4 GHz: 22 dBm
• Max. BSSIDs: 8 per radio
• Supported Data Rates:
  • 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0–MCS11 NSS1/2/3/4, HE 20/40/80/160)
  • 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0–MCS9 NSS1/2/3/4, VHT 20/40/80/160)
  • 802.11n: 6.5 Mbps to 600 Mbps (MCS0–MCS31, HT 20/40)
• Wireless Meshing: ✓
• Band Steering: ✓
• 802.11v BSS Transition Management: ✓
• 802.11r Fast Roaming: ✓
• 802.11k Radio Resource Management (RRM): ✓
• Advanced Radio Management: ✓
• Passpoint (Hotspot 2.0): ✓
• Captive Hotspot Portal:
  • Custom Branding Landing Page ✓
  • Voucher Authentication ✓
  • Payment-Based Authentication ✓
  • External Portal Server Support ✓
• Password Authentication: ✓
• Guest Network Isolation: ✓
• Private Pre-Shared Key (PPSK): ✓
• WiFi Speed Limiting: ✓
• Client Device Isolation: ✓
• WiFi Schedules: ✓
• RADIUS over TLS (RadSec): ✓
• Dynamic RADIUS-assigned VLAN: ✓
• Max. Power Consumption: 13W
• Supported Voltage Range: 44–57V DC

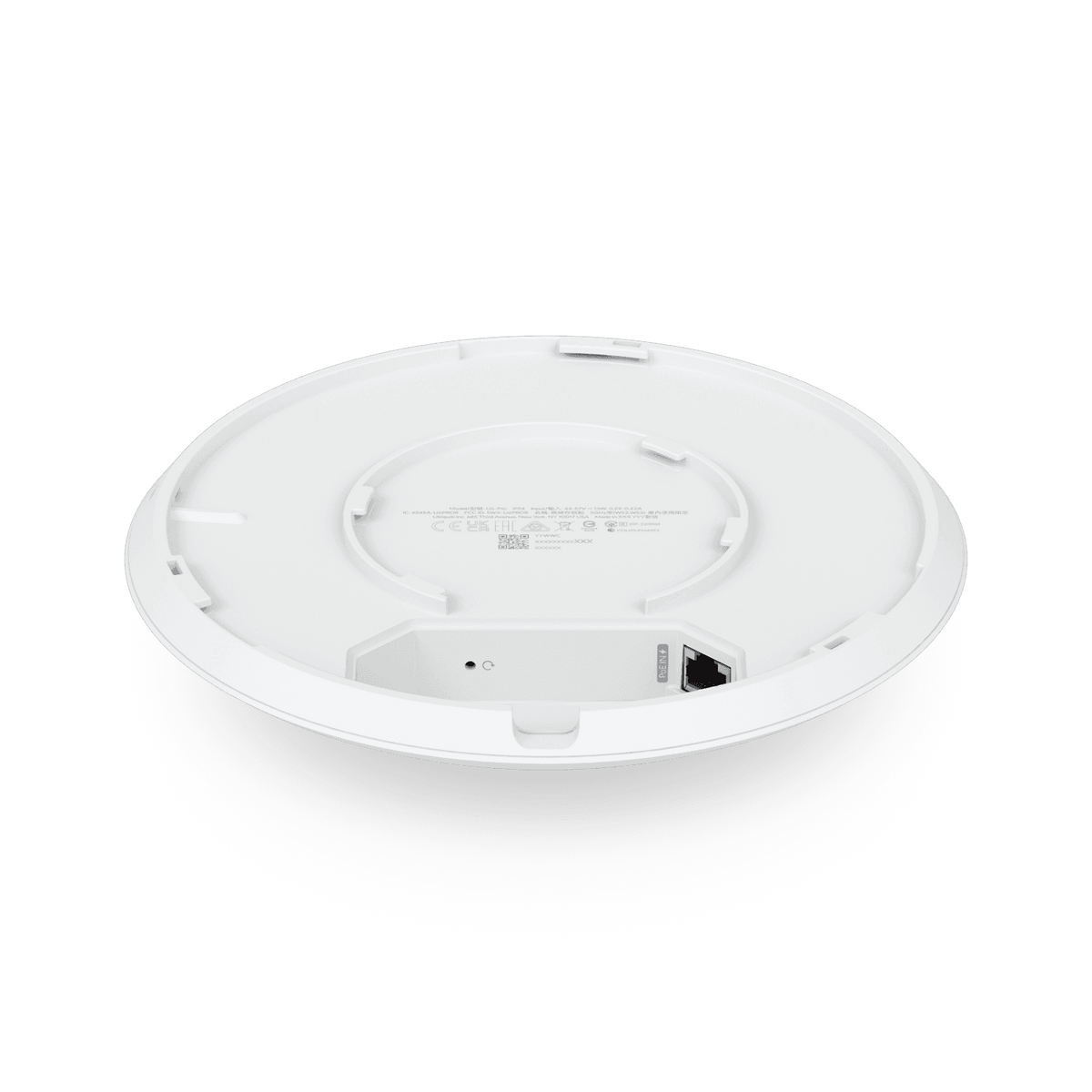

• Networking Interface: (1) GbE RJ45 port
• Weight:
  • Device: 580 g (1.3 lb)
  • With mount: 720 g (1.6 lb)
• Management: Ethernet, Bluetooth
• Enclosure Material: Polycarbonate
• Mount Material: Stainless steel (SUS304)
• LEDs: System — White/Blue
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 MHz
• Operating Frequency:
  • US/CA:
  • 2.4 GHz: 2400–2472 MHz
  • U-NII-1: 5150–5250 MHz
  • U-NII-2A: 5250–5350 MHz
  • U-NII-2C: 5470–5725 MHz
  • U-NII-3: 5725–5850 MHz
  • Worldwide:
  • 2.4 GHz: 2400–2483.5 MHz
  • 5 GHz: 5150–5850 MHz
• Ambient Operating Temperature: -30 to 60°C (-22 to 140°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, SRRC, Anatel: 00910-22-08356
• Application Requirements: UniFi Network version 6.0.45 and later

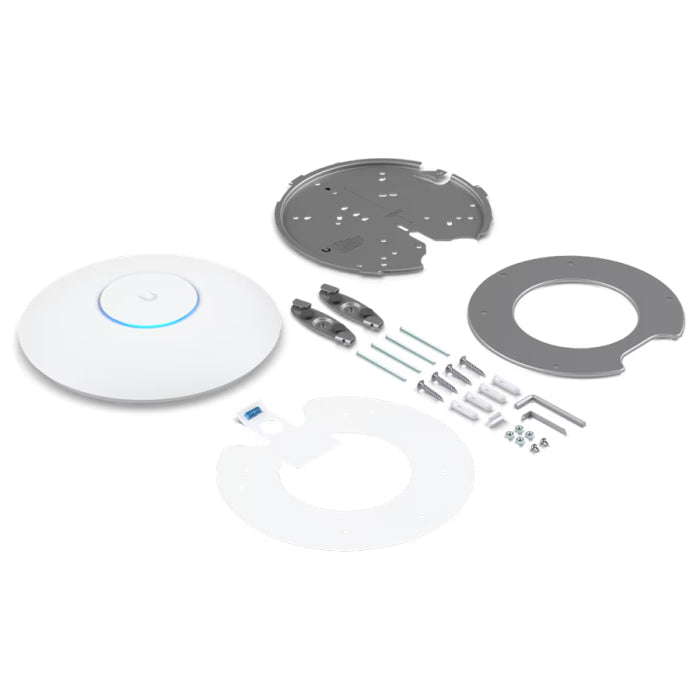

WHAT’S IN THE BOX:

• UniFi6 Pro access point unit x1

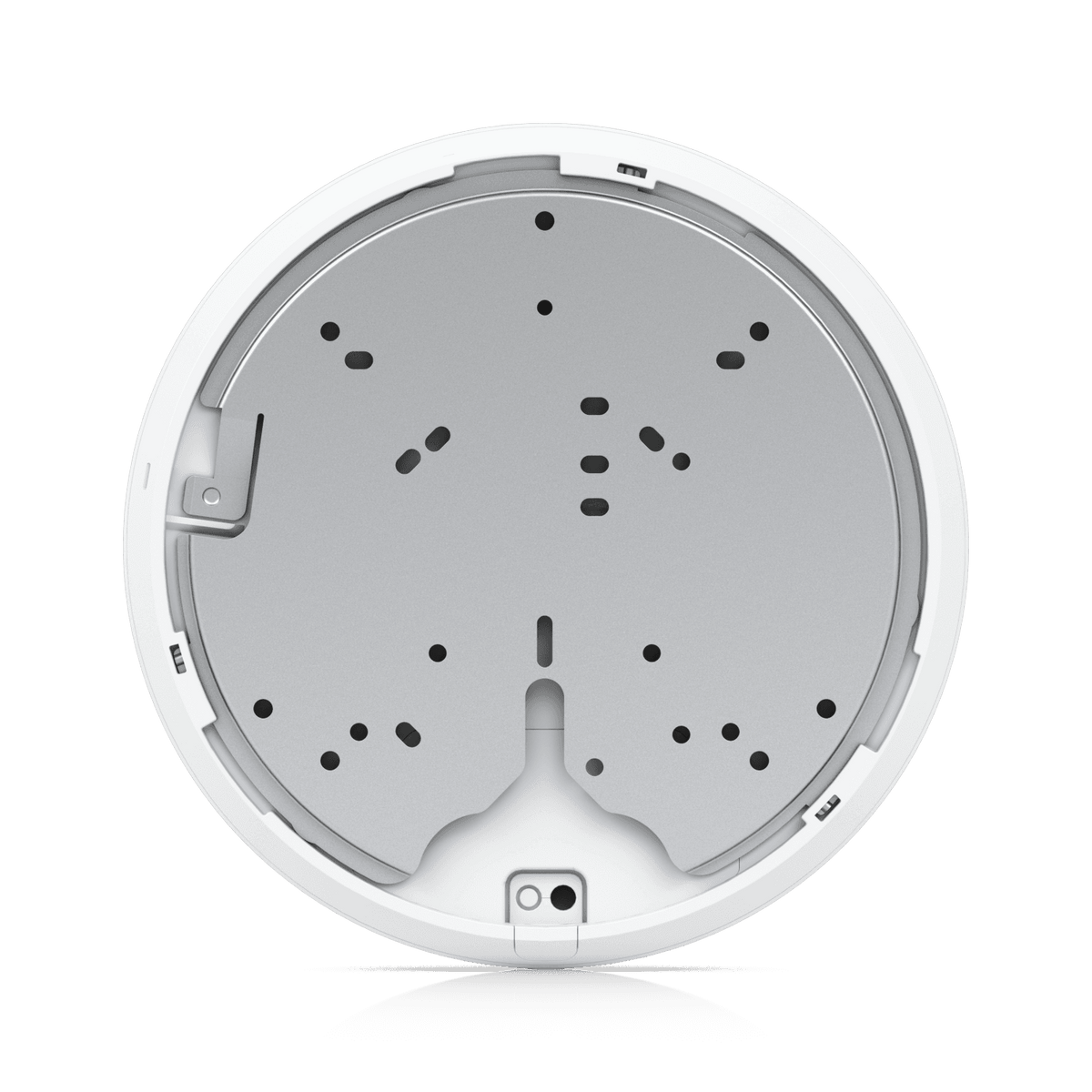

• Stainless Steel Universal Mounting Plate x1
• Ceiling Backing Plate / Ring (for suspended or false ceilings) x1
• Cardboard Drilling Template with a built-in bubble spirit level x1
• Weatherproof Silicon Port Cover / Rubber Grommet (protects the cable entry area) x1
• Wall Anchors, Screws, and Fixings Kit x1
• Quick Start Card with setup QR code x1

WARRANTY:

• 12 Months
