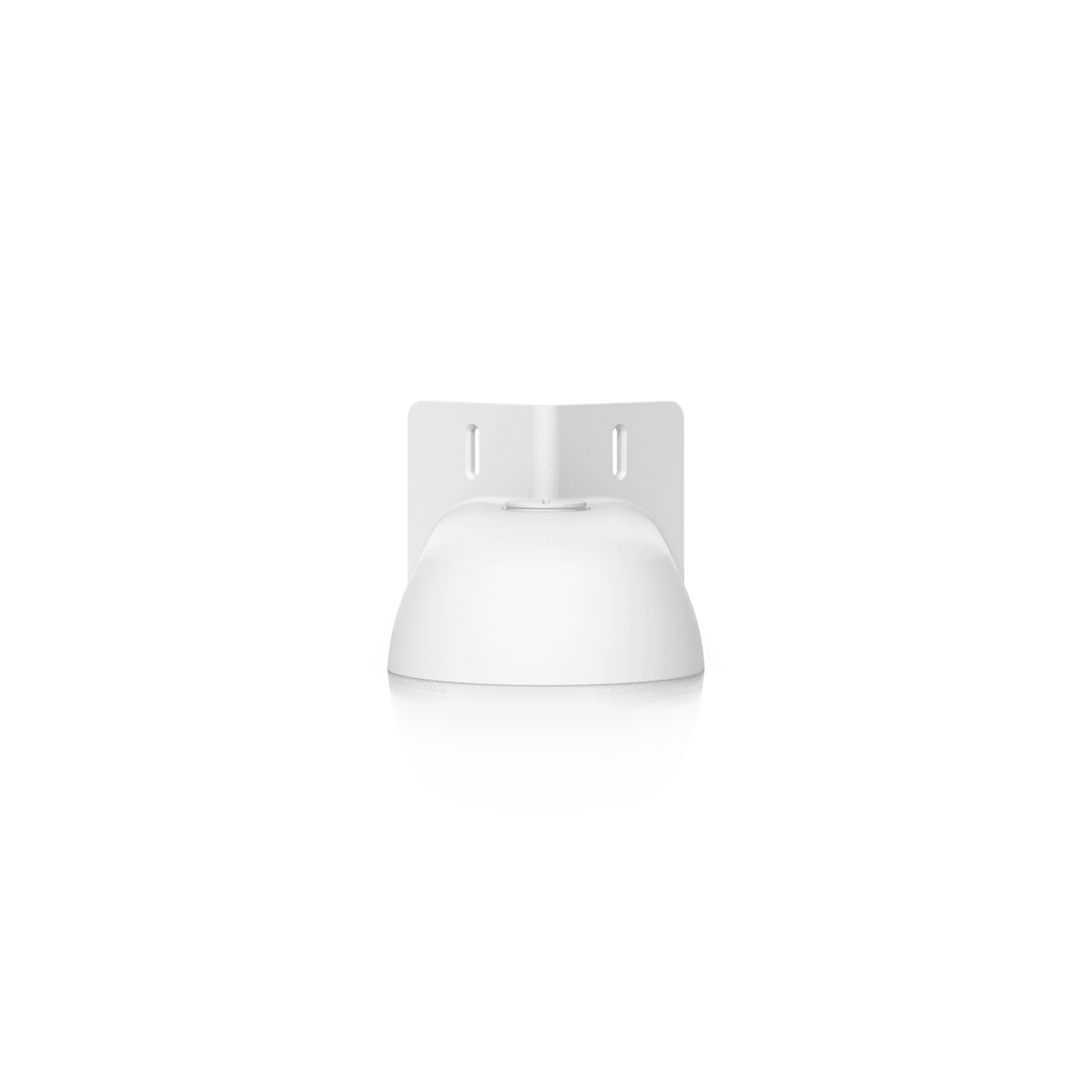

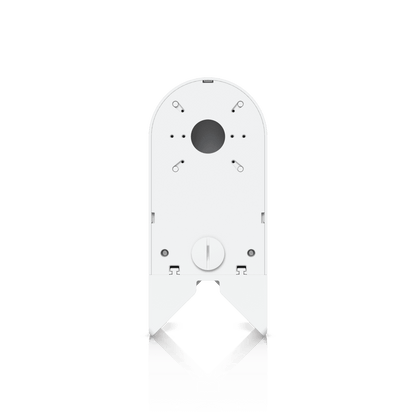

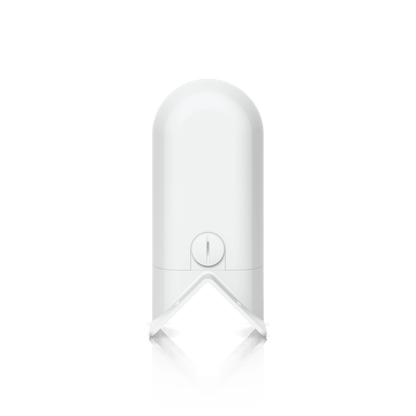

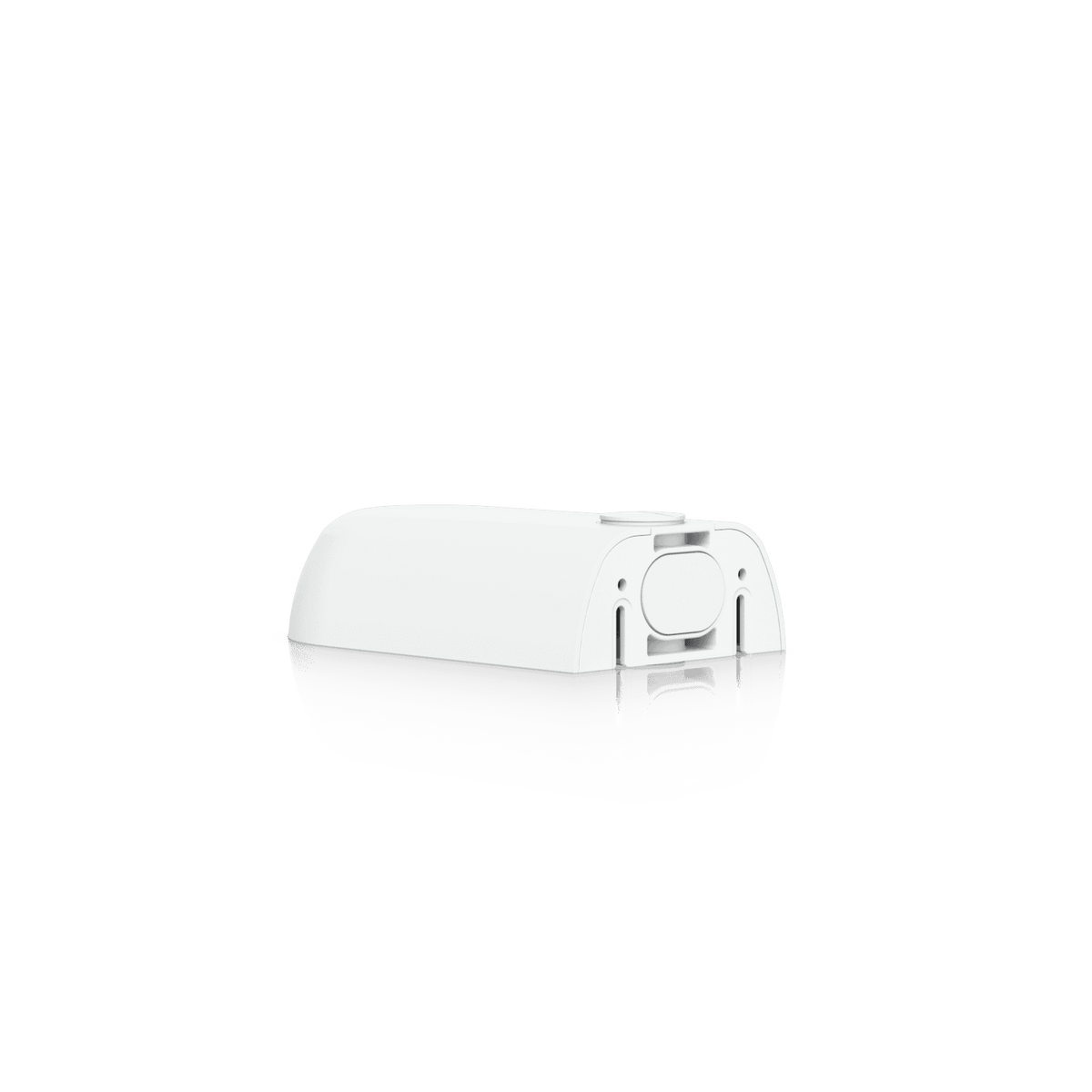

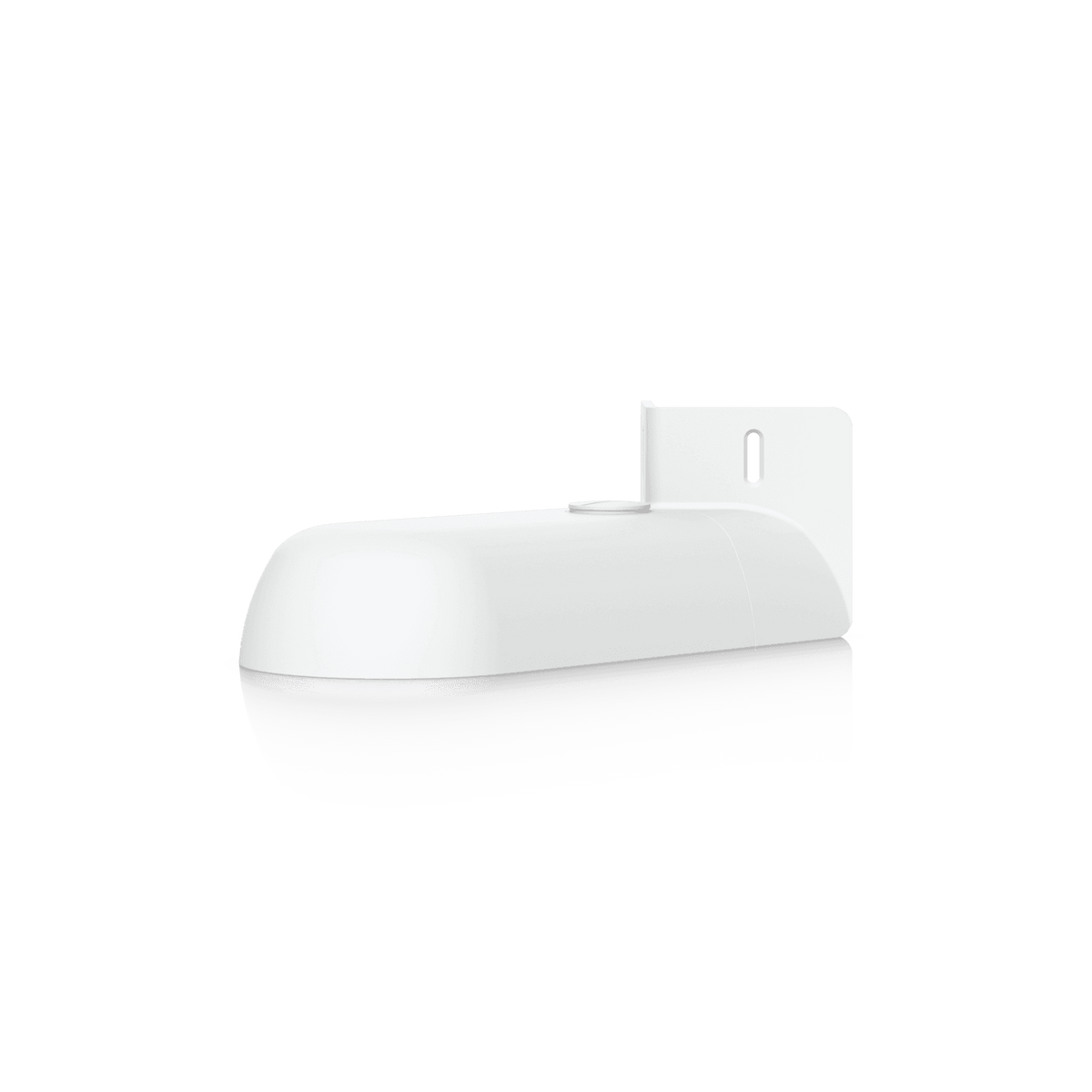

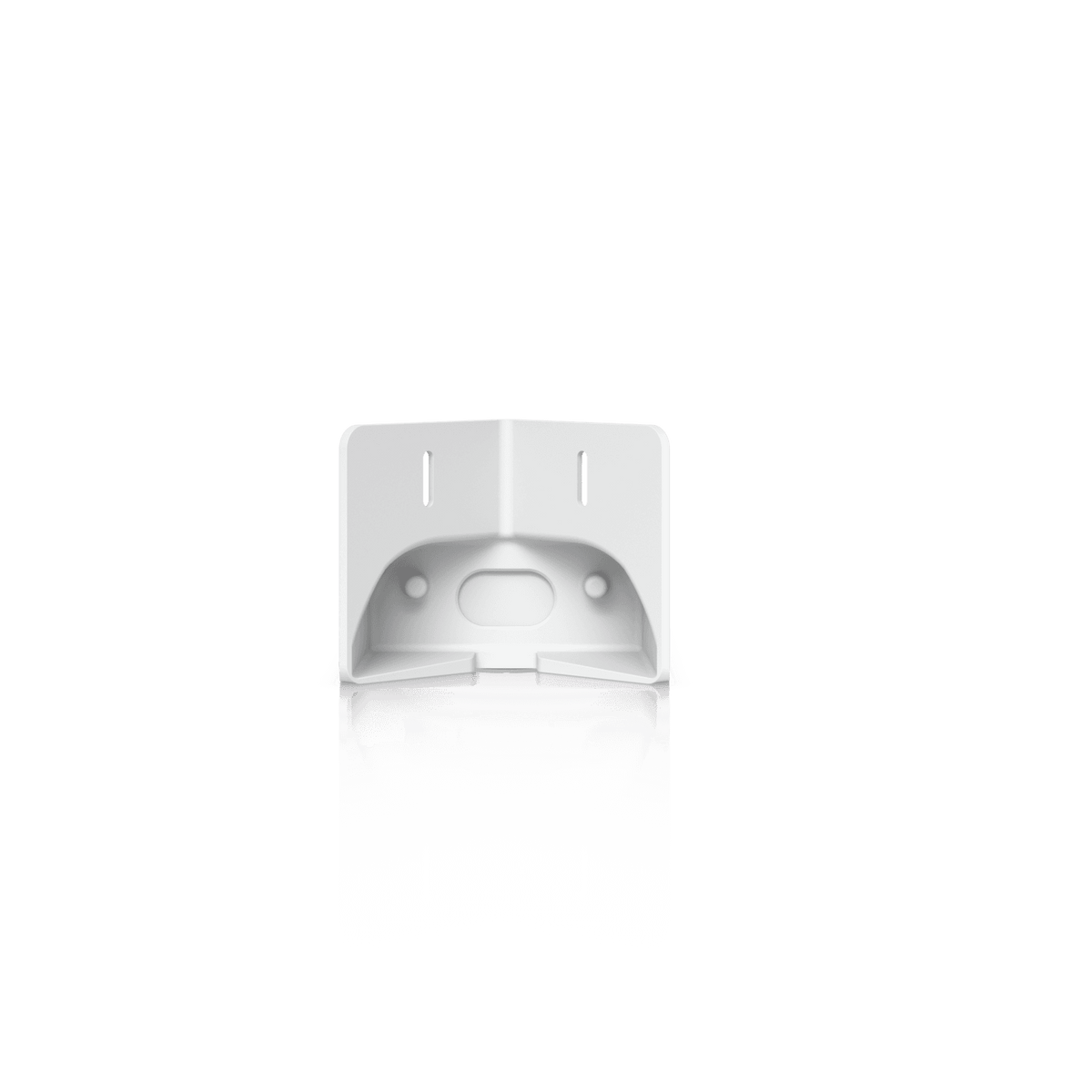

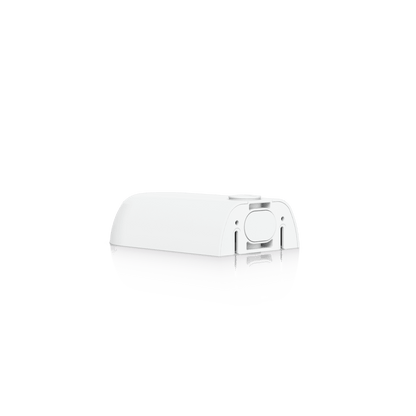

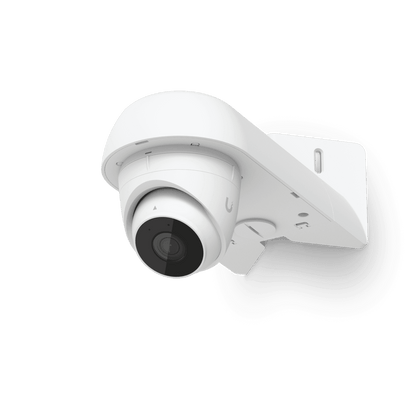

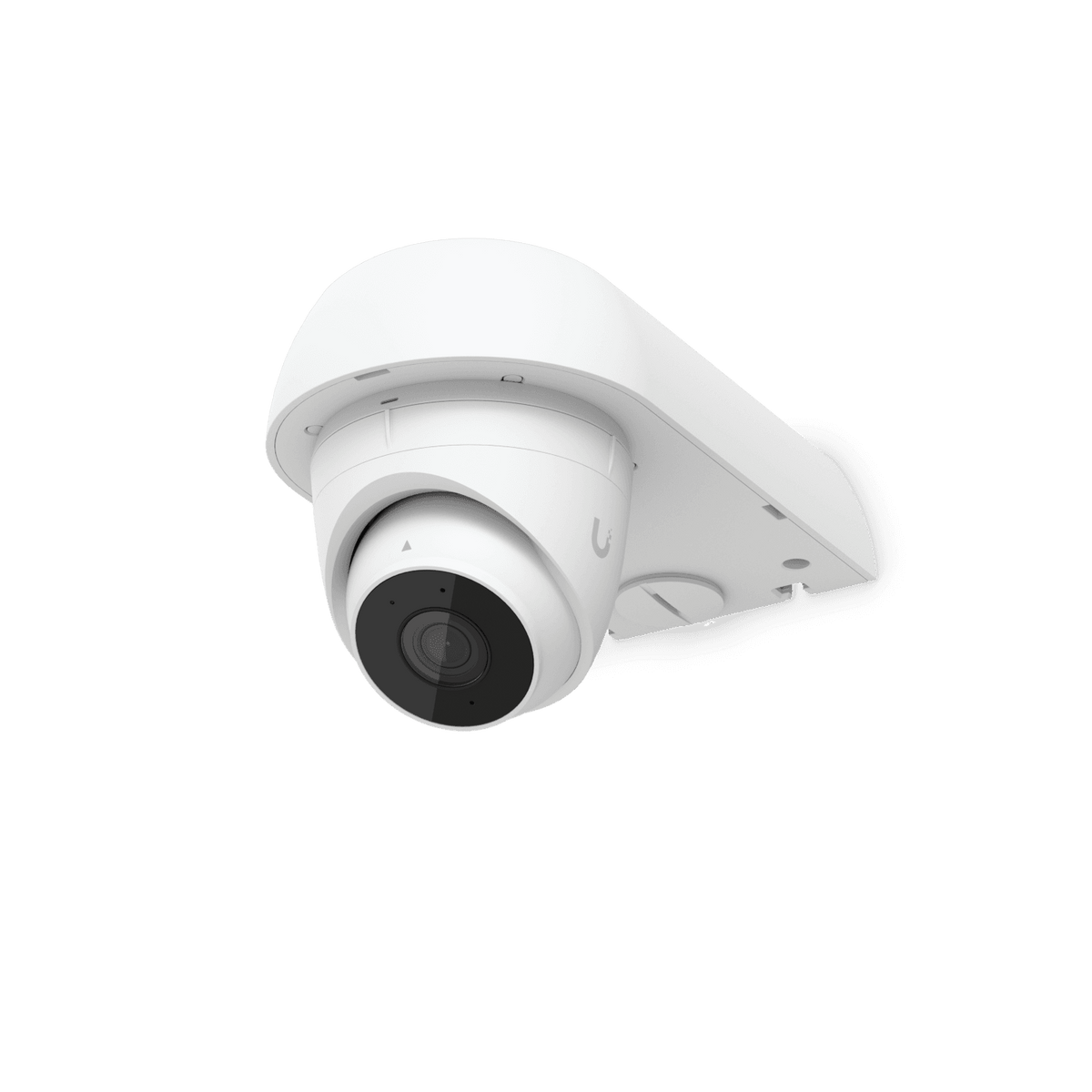

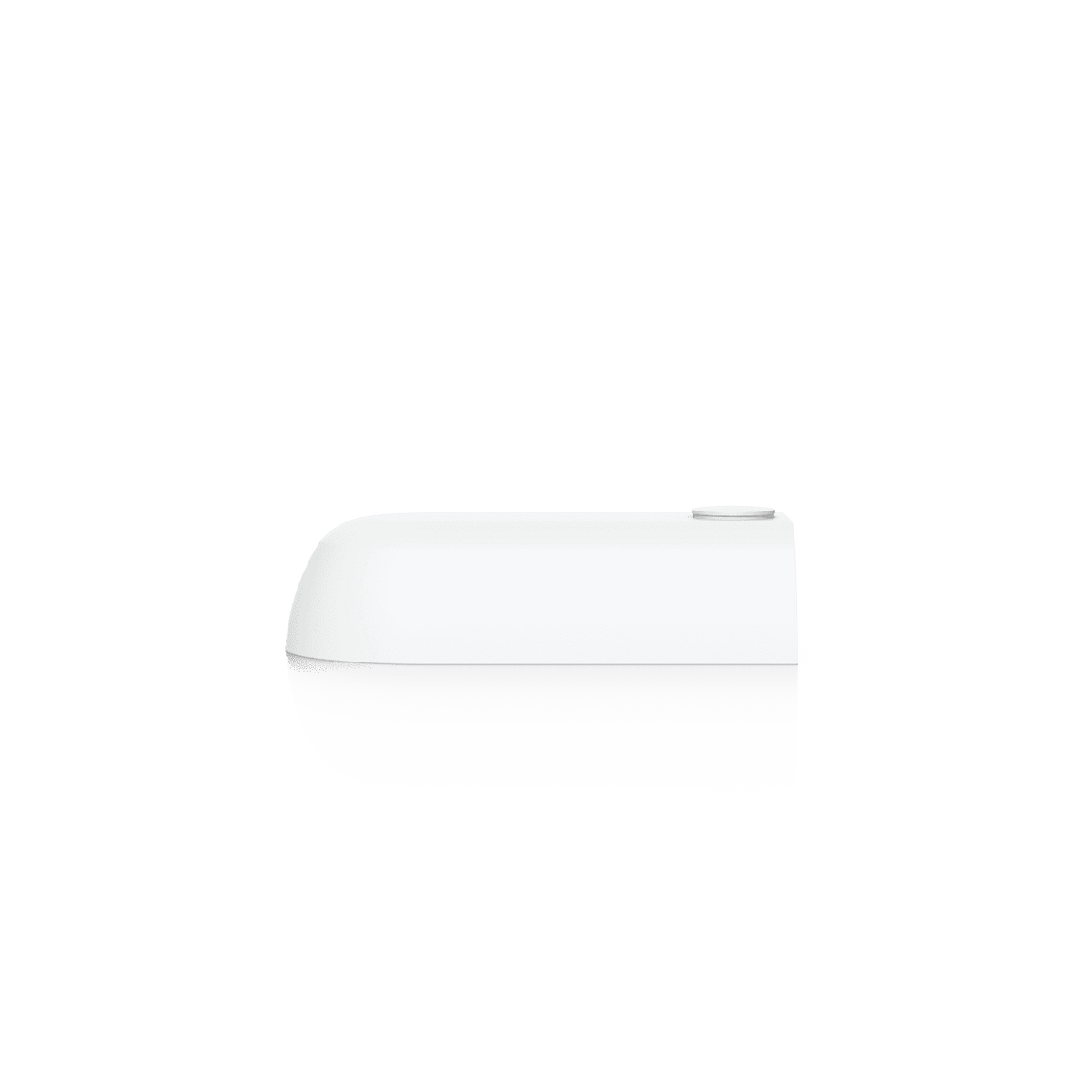

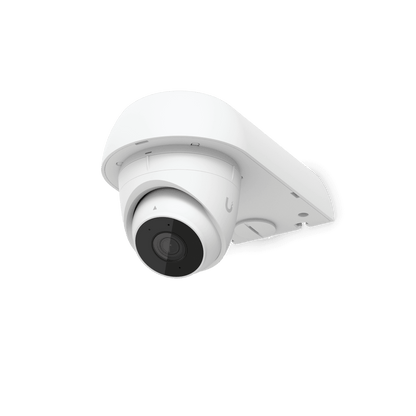

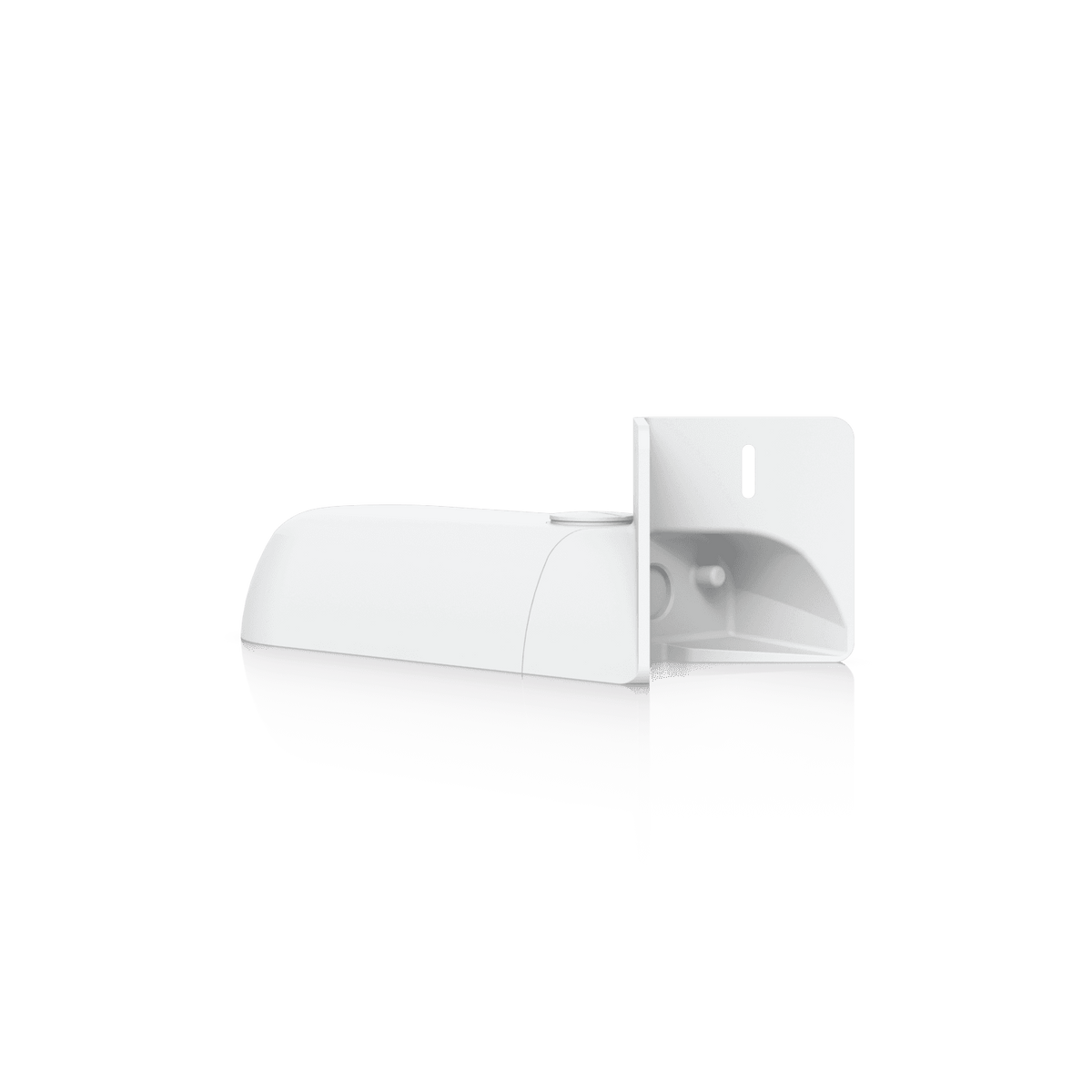

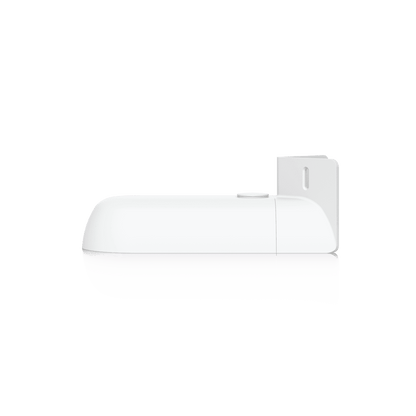

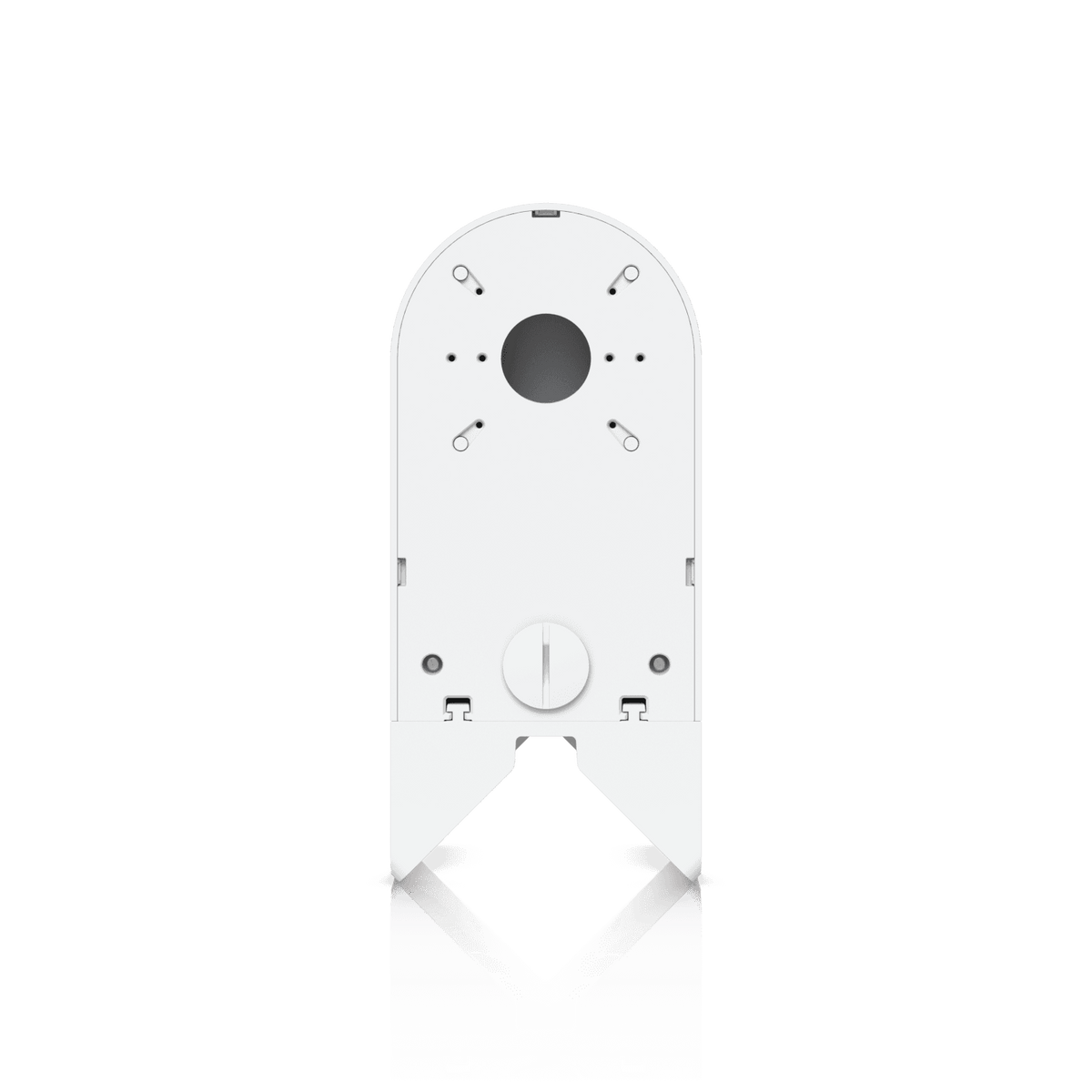

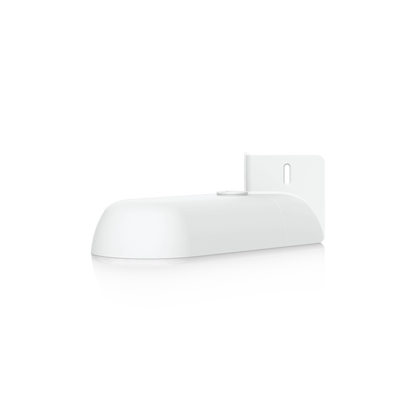

Ubiquiti UniFi Protect G5 Turret Ultra Arm Mount

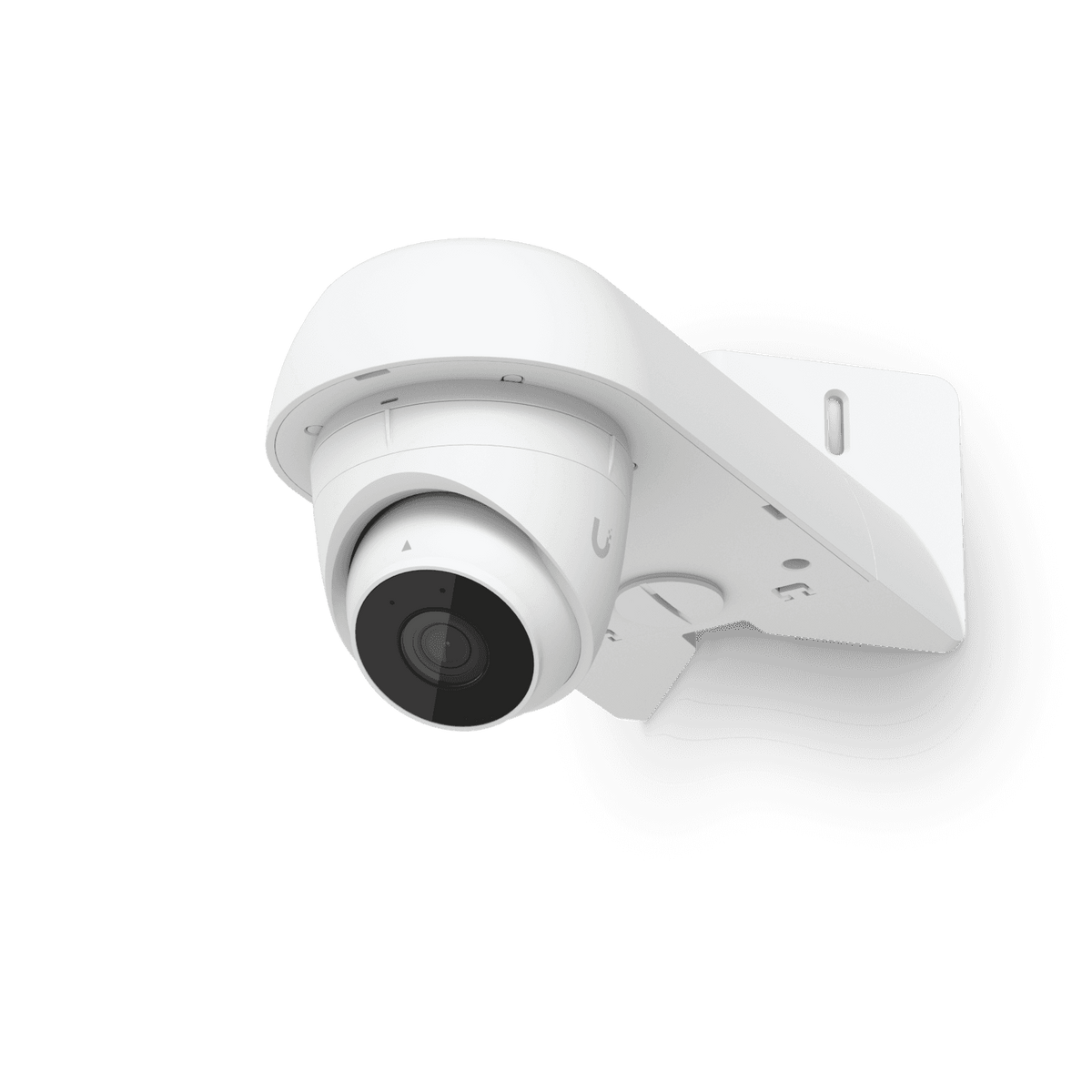

Ubiquiti's UACC-G5TAM is a IP66 weatherproof arm mount, designed for the G5 Turret Ultra for either wall, corner, or pole mounting.

FEATURES:

• 3-in-1 Mounting: Easily installs onto flat walls, external corners, or poles (38 to 50 mm diameter) right out of the box.
• Extended View: Projects the camera away from the surface to expand its viewing angle and reduce blind spots.
• Conduit Protection: Dual integrated cutouts accept 3/4" conduit pipes to safely conceal and shield network cables.
• IP66 Rugged Build: Heavy-duty aluminum alloy base with a thick polycarbonate cover built to withstand severe weather.
• Camera Compatibility: Designed specifically for G5/G6/AI Turret and G5/G6/AI Dome cameras.

SPECIFICATIONS:

• Dimensions: 115 × 252 × 90 mm (4.5 × 9.9 × 3.5")
• Pole Mount Diameter: 1.5–2" (38–50 mm)
• Weight: 670 g (1.5 lb)
• Enclosure Material: Aluminum alloy, polycarbonate
• Mounting Material: Aluminum alloy
• Weatherproofing: IP66
• Compatibility:
• UVC-AI-Dome
• UVC-AI-Turret
• UVC-G6-Turret
• UVC-G6-Pro-Turret
• UVC-G6-Edge-Turret
• UVC-G6-Dome
• UVC-G6-Pro-Dome
• UVC-G6-Edge-Dome
• UVC-G6-Mini-Dome
• UVC-G6-180
• UVC-G6-Pro-360
• UVC-G5-Turret-Ultra

WHAT’S IN THE BOX:

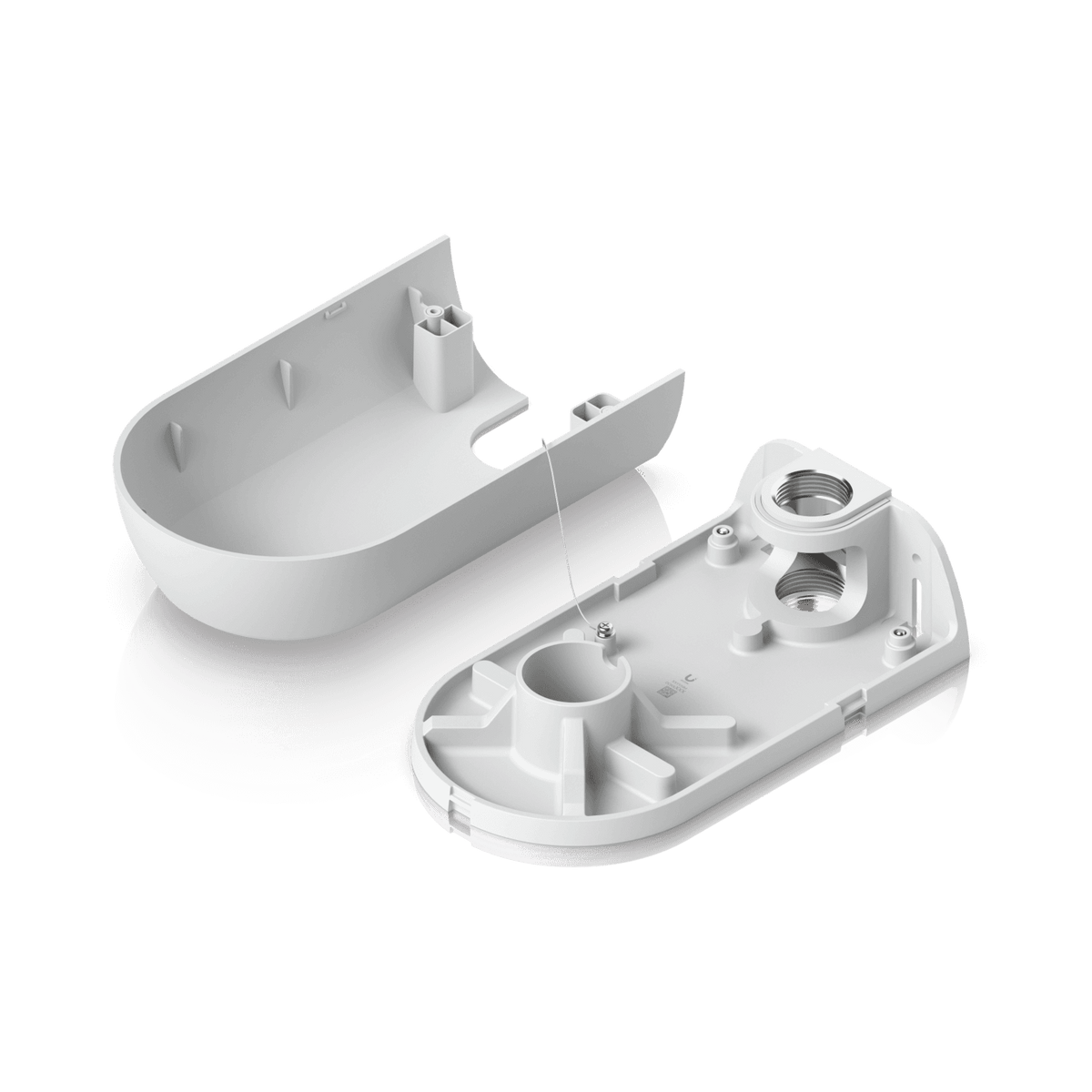

• Ubiquiti Camera Arm Mount (Main housing base and top arm cover joined by safety drop cables) x1
• Hose clamp / metal zip-tie kit (for pole mounting) x1
• Silicone sealing gasket x1
• Drill template / screw marking guide x1
• Mounting fasteners (including wall anchors, Phillips head screws, M4 machine screws, and camera mounting screws) x1

WARRANTY:

• 12 Months
