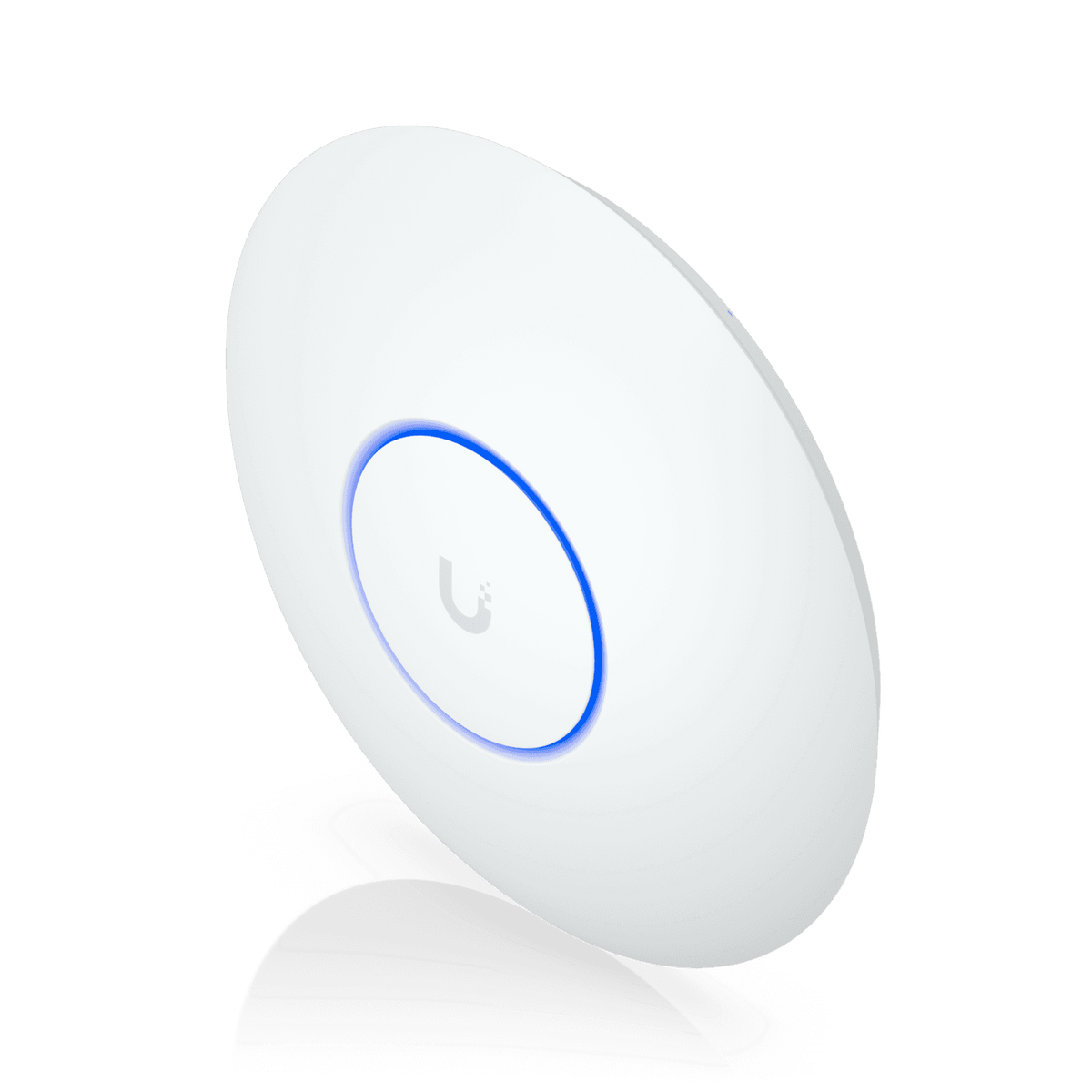

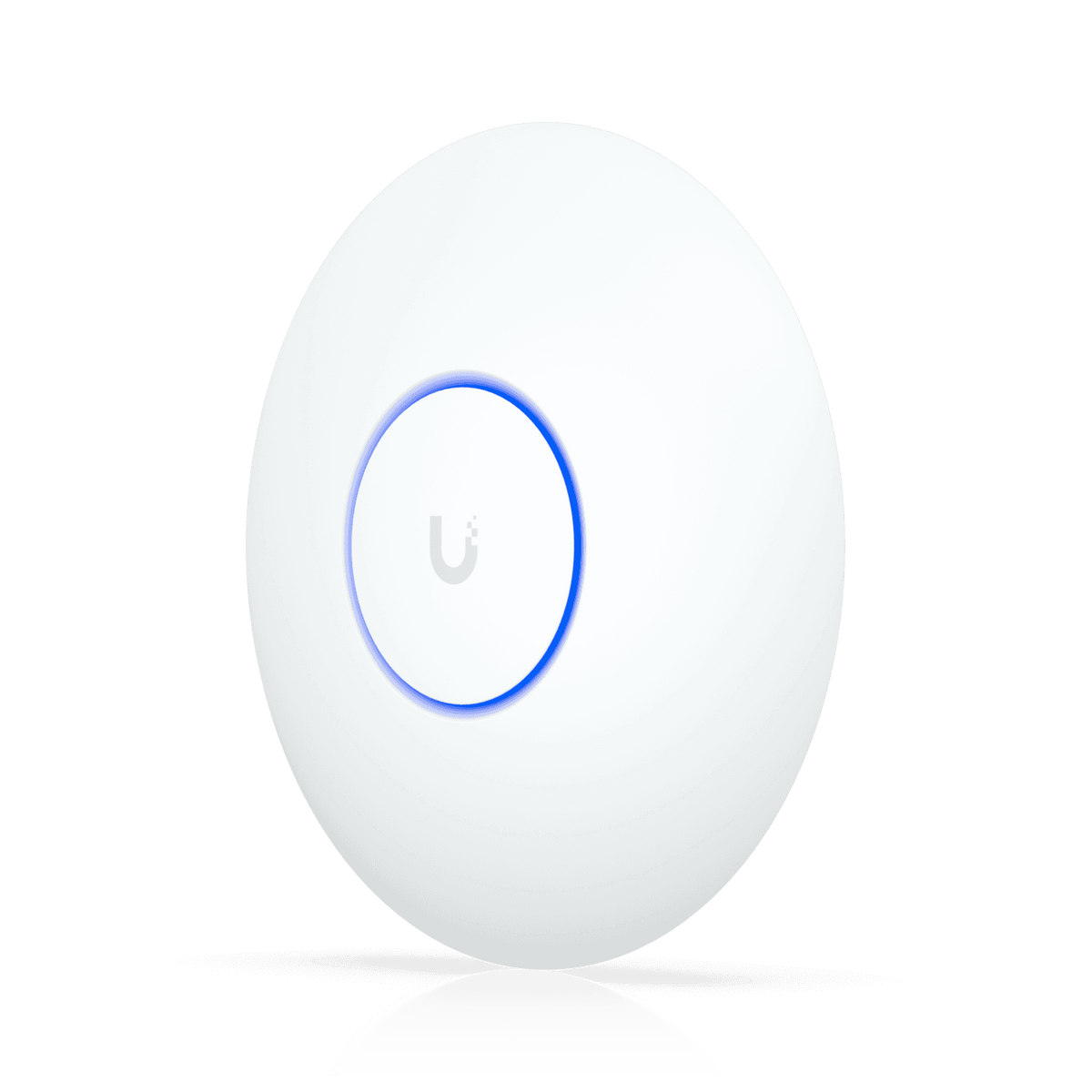

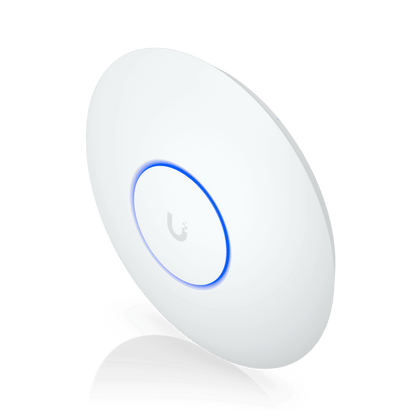

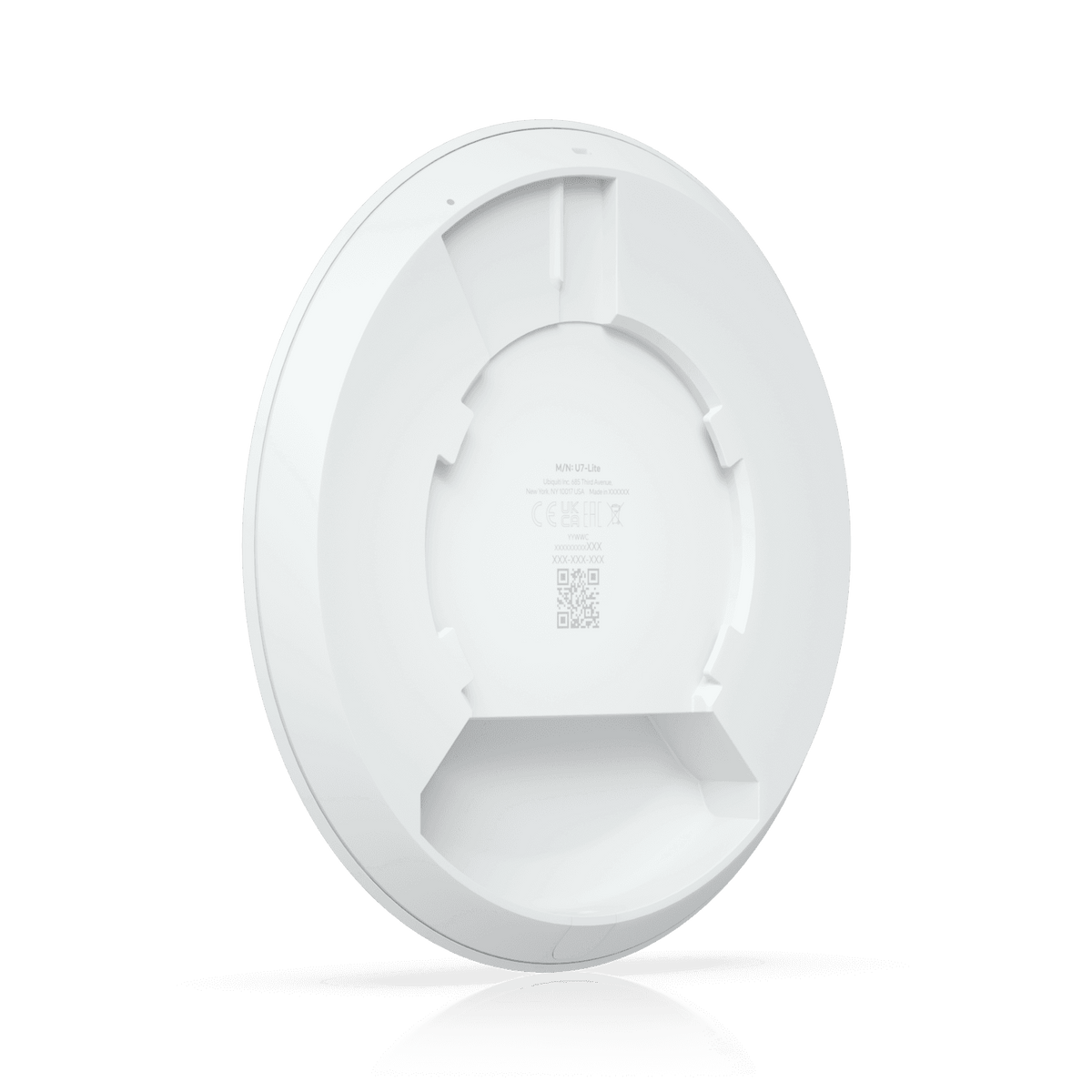

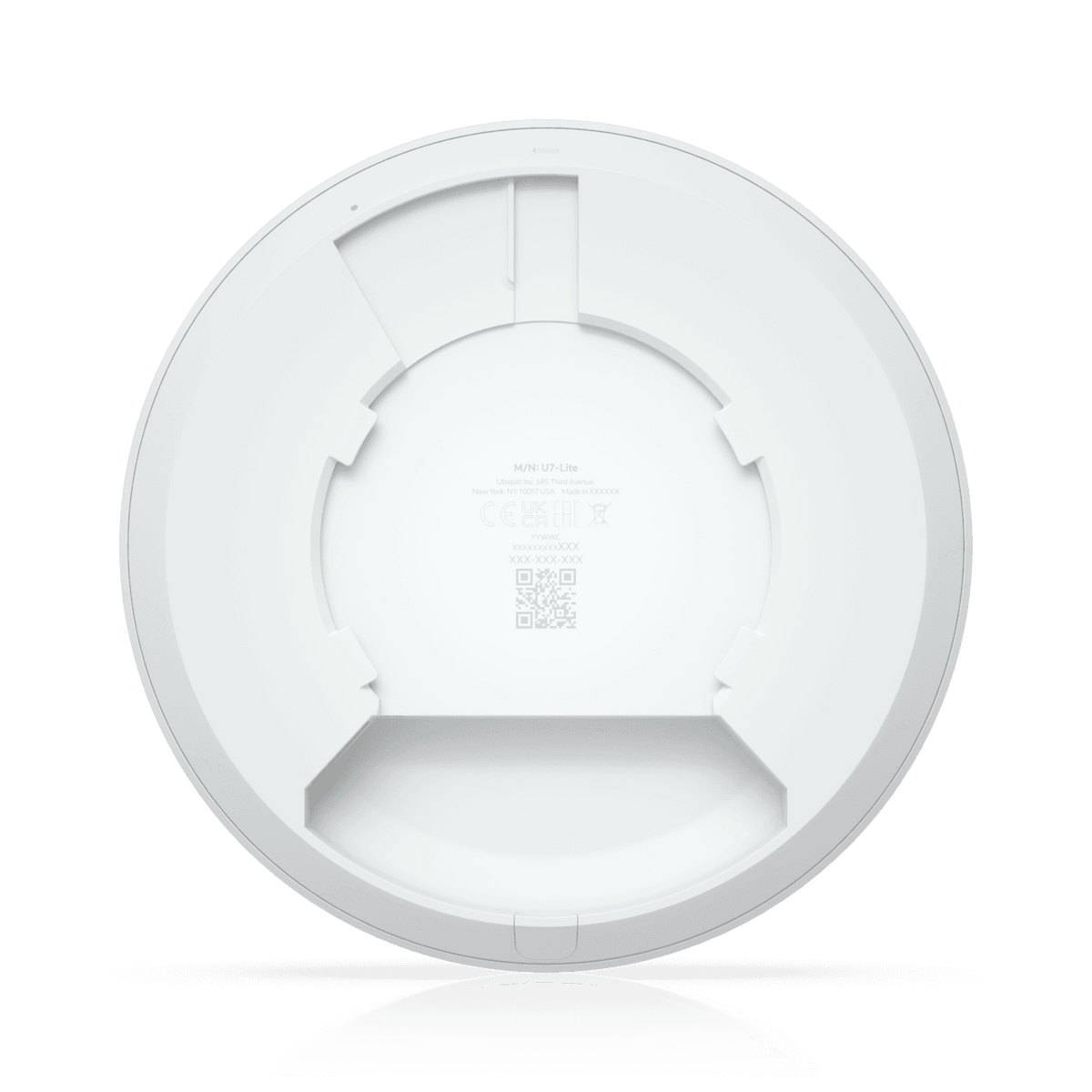

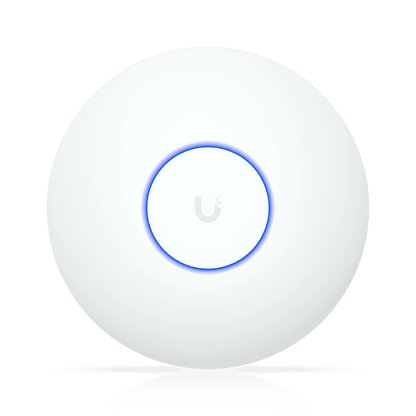

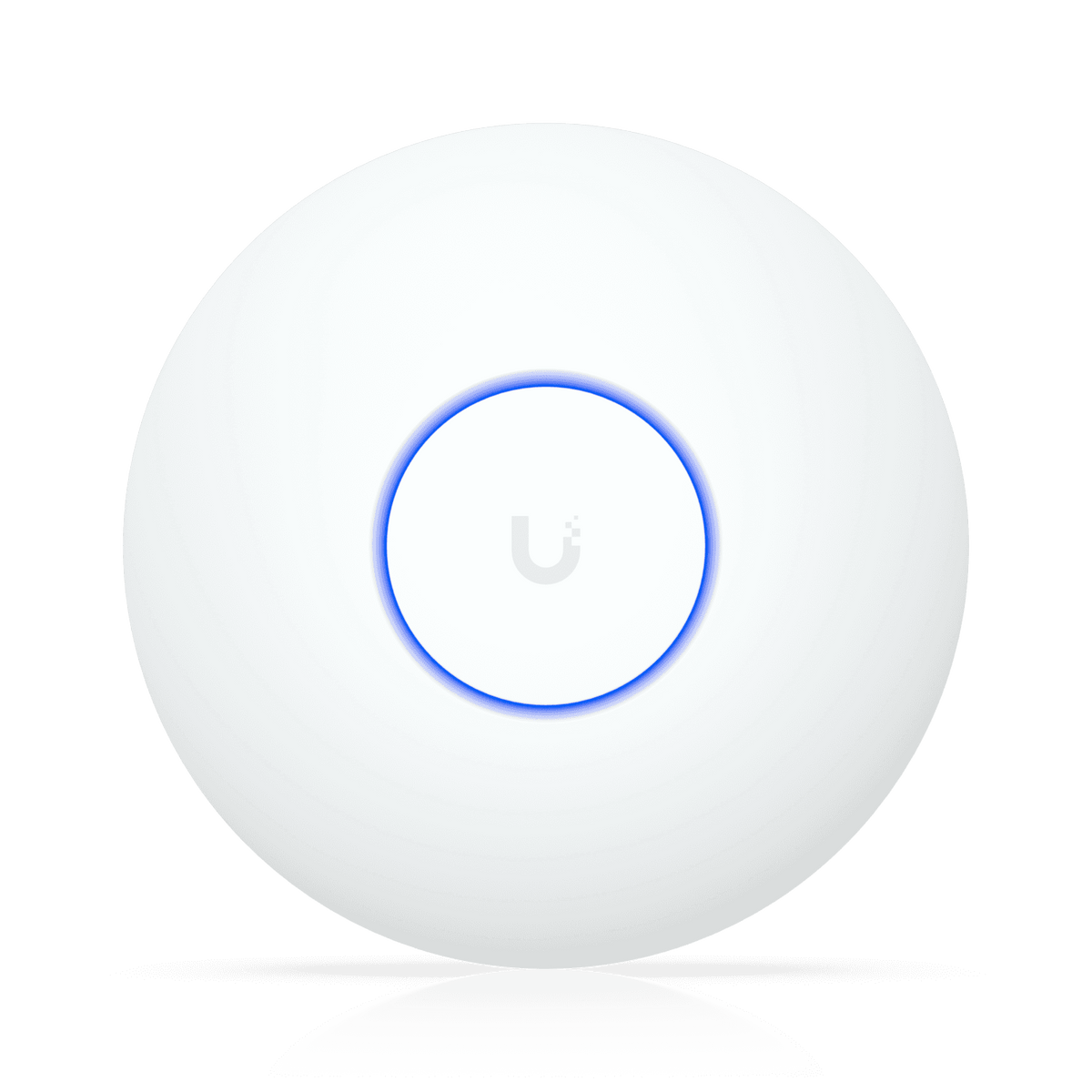

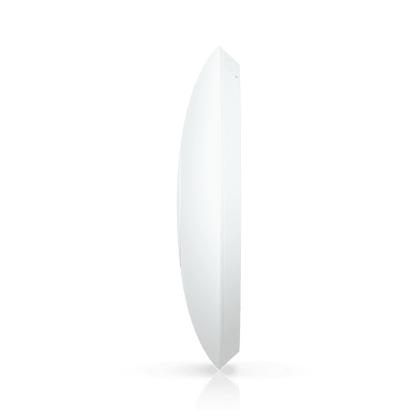

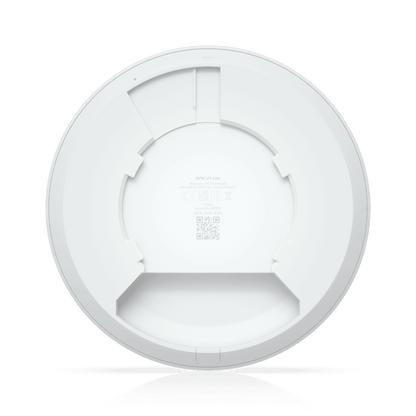

Ubiquiti UniFi WiFi 7 Lite Dual Band AP

Ubiquiti's U7-Lite is a Dual-Band WiFi 7 access point featuring high gain integrated antennas and 1x 2.5Gbps Ethernet port. It delivers an aggregate data rate of up to 5Gbps over its 5GHz (2x2 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands.

It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included.

FEATURES:

• Entry-Level WiFi 7: Operates on the 802.11be standard to offer advanced features like Multi-Link Operation (MLO) and preamble puncturing for significantly lowered latency.
• Dual-Band Throughput: Focuses entirely on the 2.4 GHz and 5 GHz bands to maximize affordability (does not include the 6 GHz radio). It clocks maximum theoretical speeds up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz.
• 2.5G Ethernet Uplink: Equipped with a single 2.5 GbE RJ45 port to prevent wired bottlenecks and take full advantage of wider 240 MHz wireless channels.
• Lightweight Power Footprint: Has a maximum power consumption of just 13W and operates efficiently on standard 802.3af Power over Ethernet (PoE).
• Coverage & Capacity: Efficiently blankets up to 115 m² (1,250 ft²) and supports 200+ connected clients concurrently.

SPECIFICATIONS:

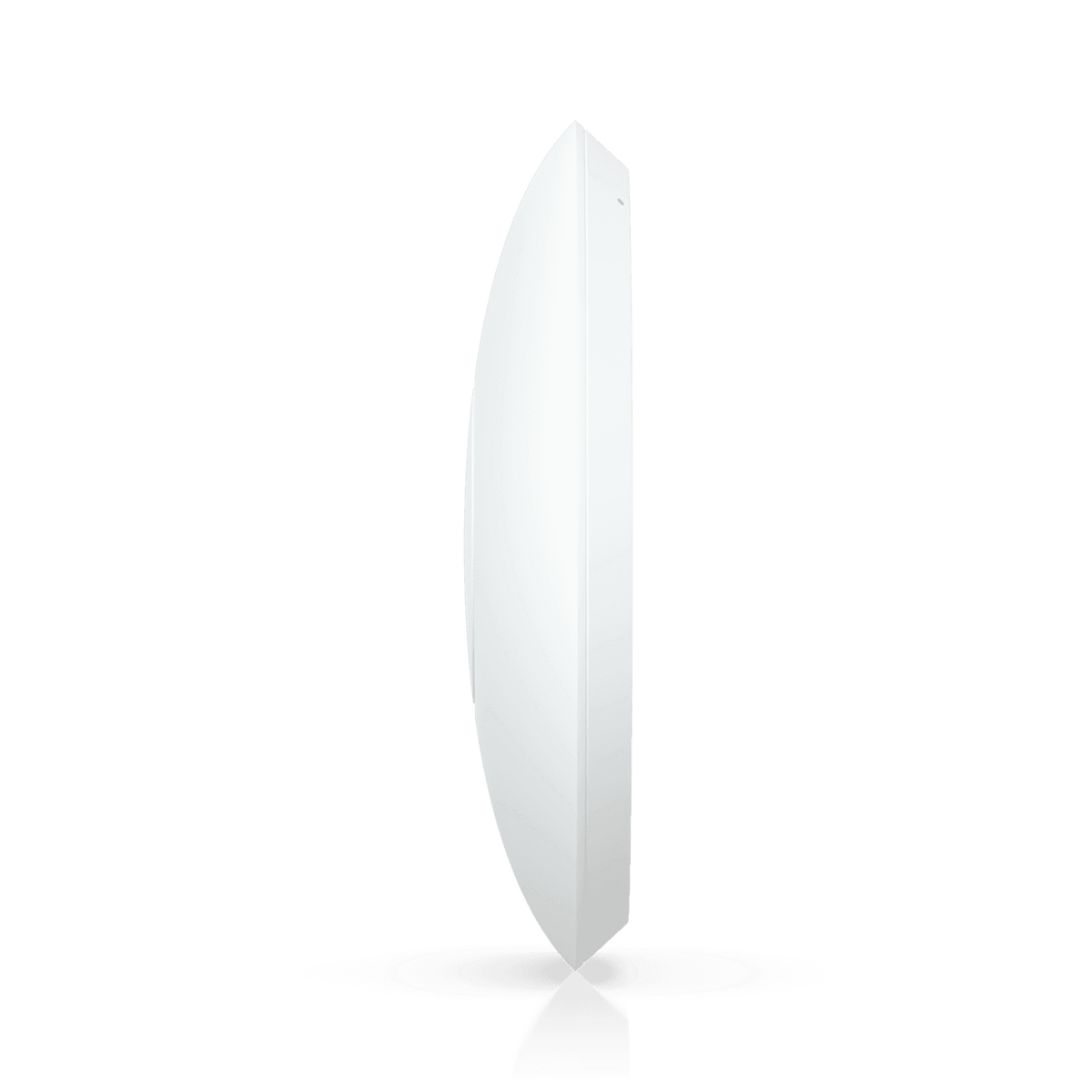

• Dimensions: ⌀171.5 × 33 mm (⌀6.8 × 1.3")
• WiFi Standard: WiFi 7
• Spatial Streams: 4
• Coverage Area: 115 m² (1,250 ft²)
• Max. Client Count: 200+
• Uplink: 2.5 GbE
• Mounting: Ceiling, Wall (Lite Mount included)
• Power Method: PoE
• MIMO:
• 5 GHz: 2 × 2 (DL/UL MU-MIMO)
• 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)
• Max. Data Rate:
• 5 GHz: 4.3 Gbps (BW240)
• 2.4 GHz: 688 Mbps (BW40)
• Antenna Gain:
• 5 GHz: 5 dBi
• 2.4 GHz: 4 dBi
• Max. TX Power:
• 5 GHz: 24 dBm
• 2.4 GHz: 23 dBm
• Max. BSSIDs: 8 per radio
• Supported Data Rates:
• 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/240)
• 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0–MCS11 NSS1/2, HE 20/40/80/160)
• 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0–MCS9 NSS1/2, VHT 20/40/80/160)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)
• Wireless Meshing: ✓
• Band Steering: ✓
• 802.11v BSS Transition Management: ✓
• 802.11r Fast Roaming: ✓
• 802.11k Radio Resource Management (RRM): ✓
• Advanced Radio Management: ✓
• Passpoint (Hotspot 2.0): ✓
• Captive Hotspot Portal: ✓
• Custom Branding Landing Page: ✓
• Voucher Authentication: ✓
• Payment-Based Authentication: ✓
• External Portal Server Support: ✓
• Password Authentication: ✓
• Guest Network Isolation: ✓
• Private Pre-Shared Key (PPSK): ✓
• WiFi Speed Limiting: ✓
• Client Device Isolation: ✓
• WiFi Schedules: ✓
• RADIUS over TLS (RadSec): ✓
• Dynamic RADIUS-assigned VLAN: ✓
• Max. Power Consumption: 13 W
• Supported Voltage Range: 42.5–57 V DC

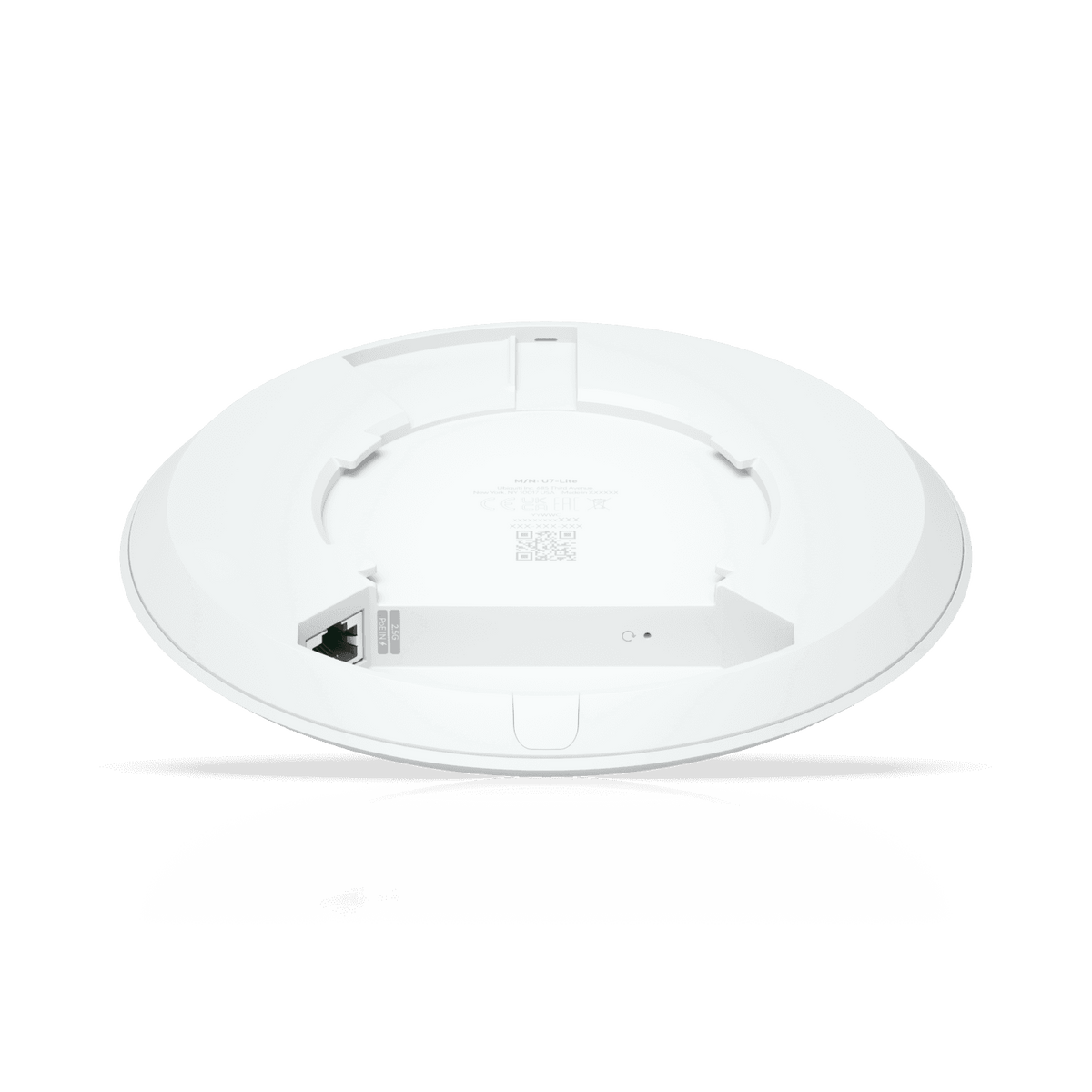

• Networking Interface: 1 × 2.5 GbE RJ45 port
• Weight: 313 g (11 oz)
• Management: Ethernet
• Enclosure Material: UV-stabilized polycarbonate
• Mount Material: UV-stabilized polycarbonate, galvanized steel (SGCC)
• LEDs: System — White/Blue
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 MHz
• Ambient Operating Temperature: -30 to 40°C (-22 to 104°F)
• Ambient Operating Humidity: 5–95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, SRRC, Anatel: 02143-25-08356
• Application Requirements: UniFi Network version 9.0.114 and later
• Mobile App: iOS™ version 10.20.2 and later
• Mobile App: Android™ version 10.21.7 and later

WHAT’S IN THE BOX:

• U7 Lite Access Point unit x1
• Plastic Lite Mount bracket (shares the exact same mounting footprint as the older U6 Lite for an easy drop-in upgrade) x1
• Ceiling/Wall hardware kit (screws, drywall plugs, and standard mounting fasteners) x1
• Security removal tool (used to release the AP's locking tab from the bracket) x1
• Quick Start Guide x1

WARRANTY:

• 12 Months
