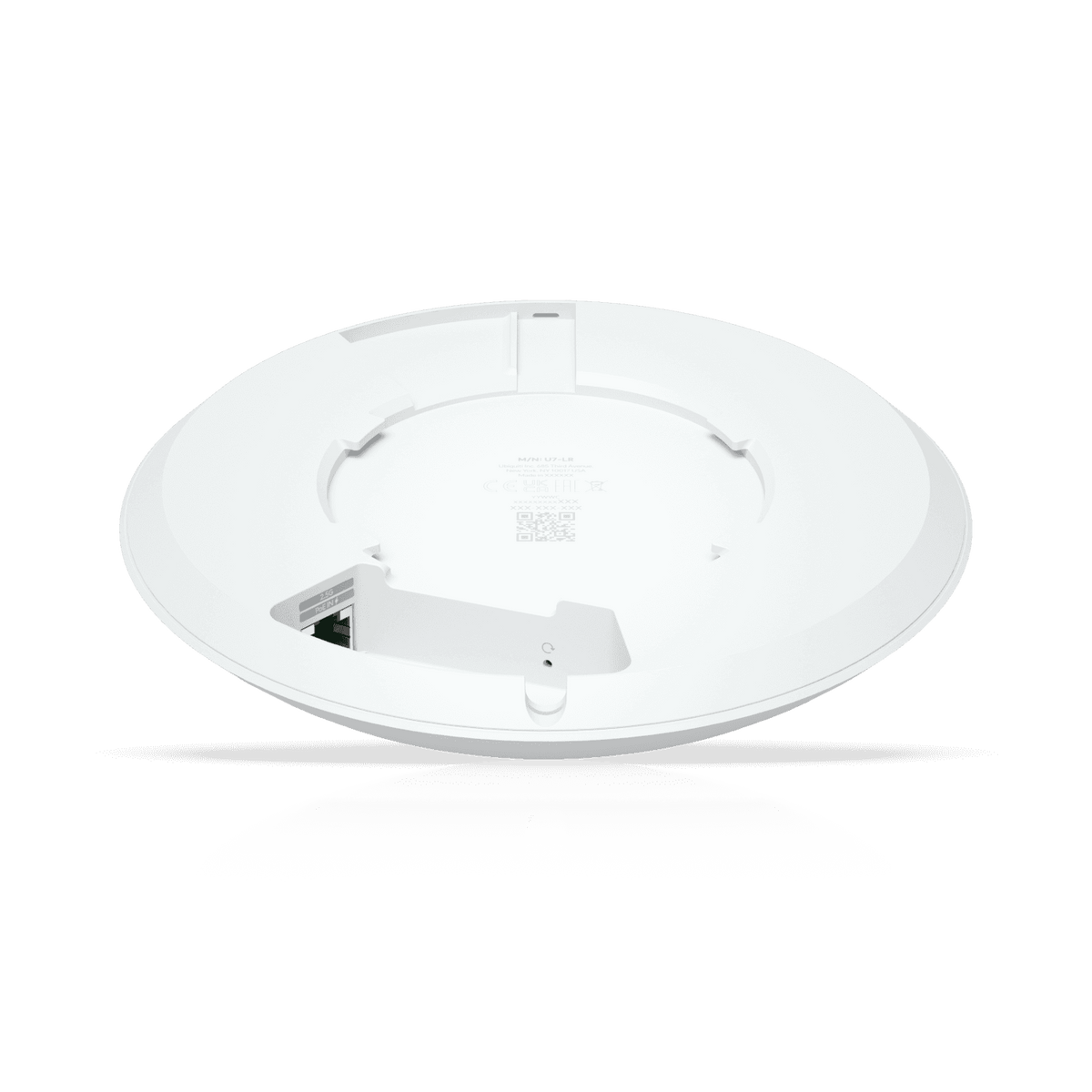

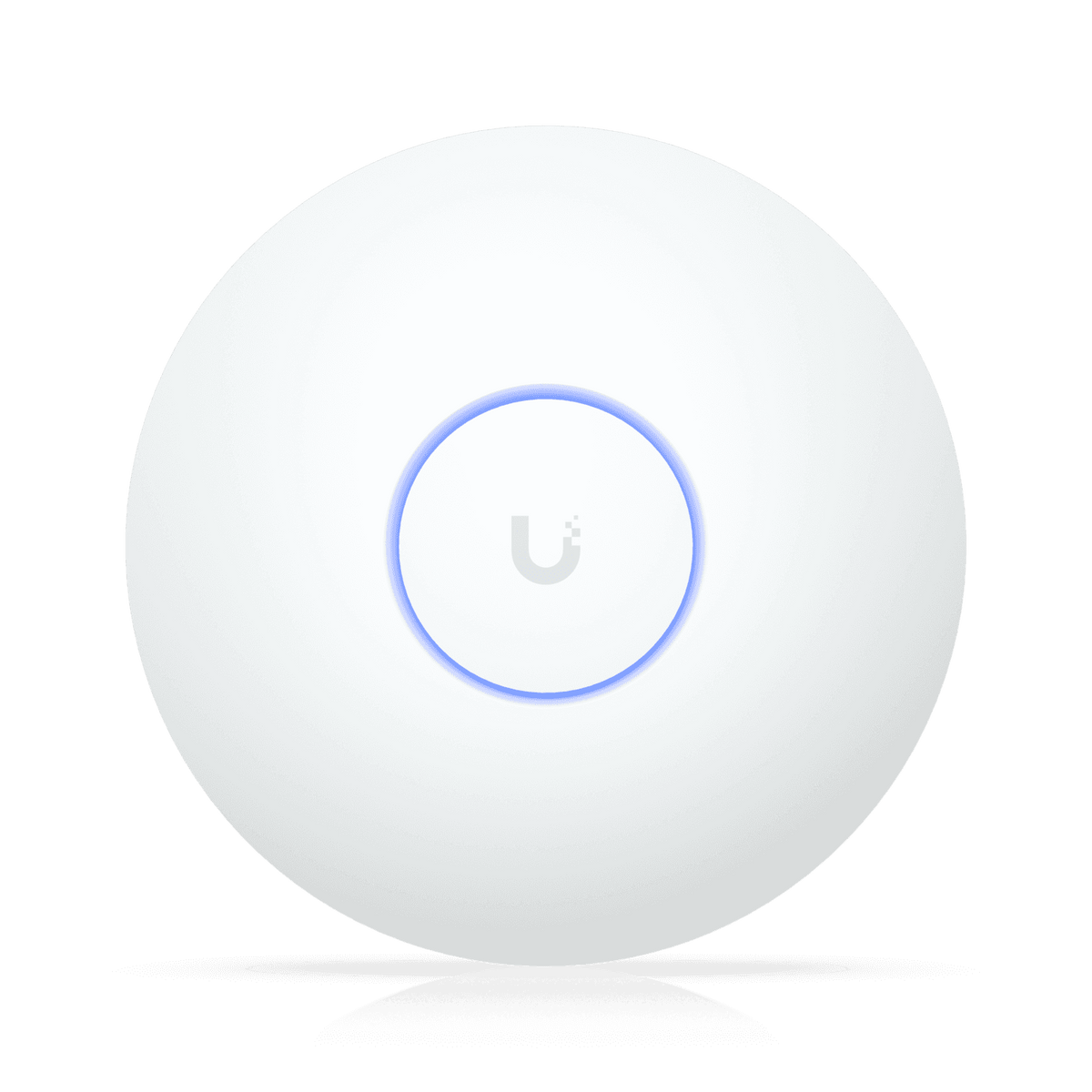

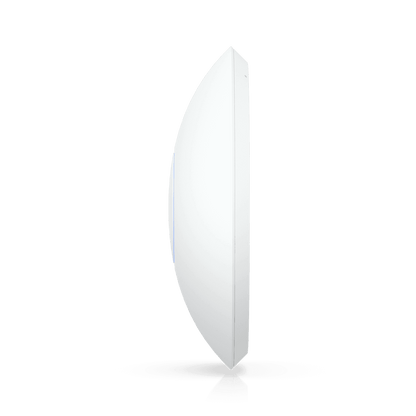

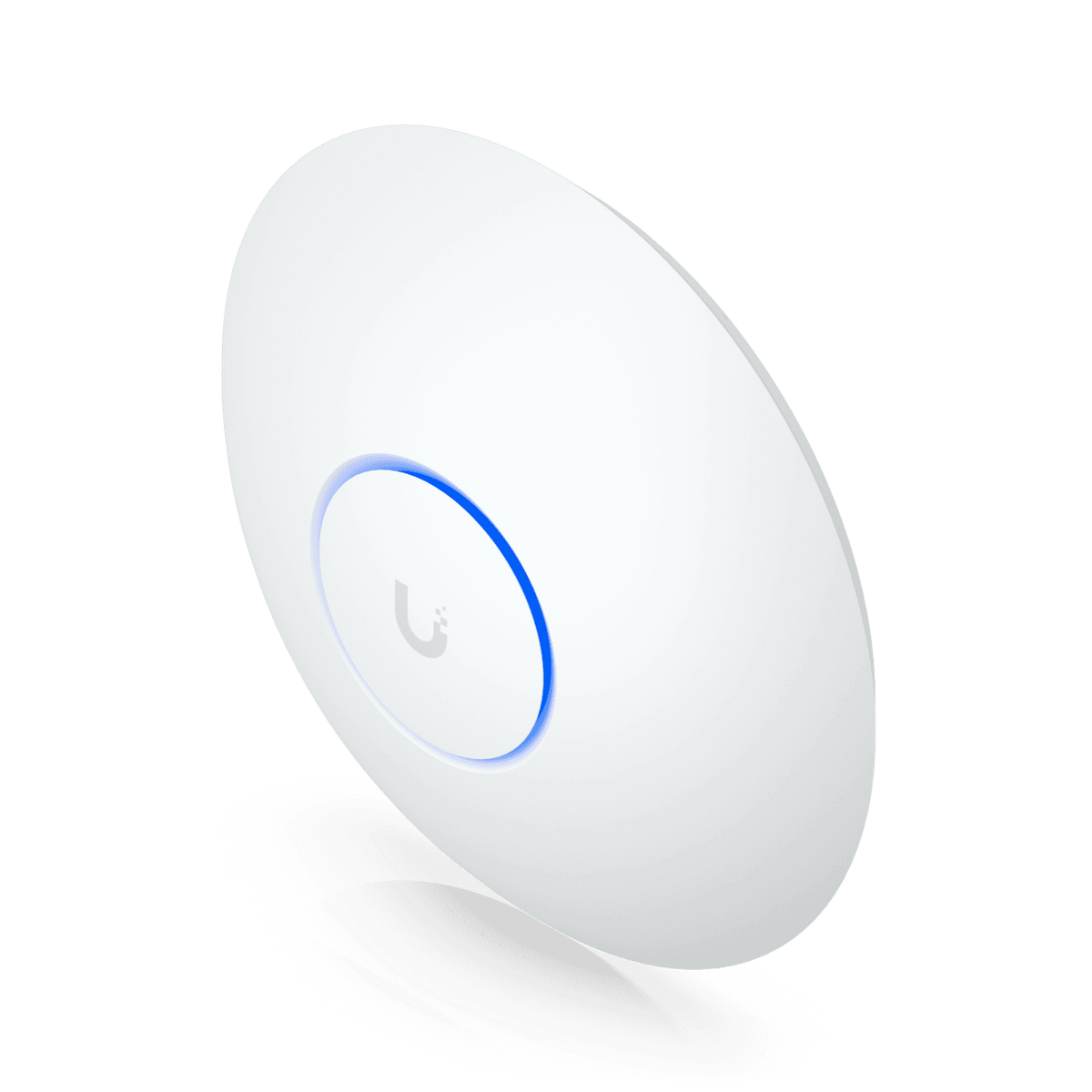

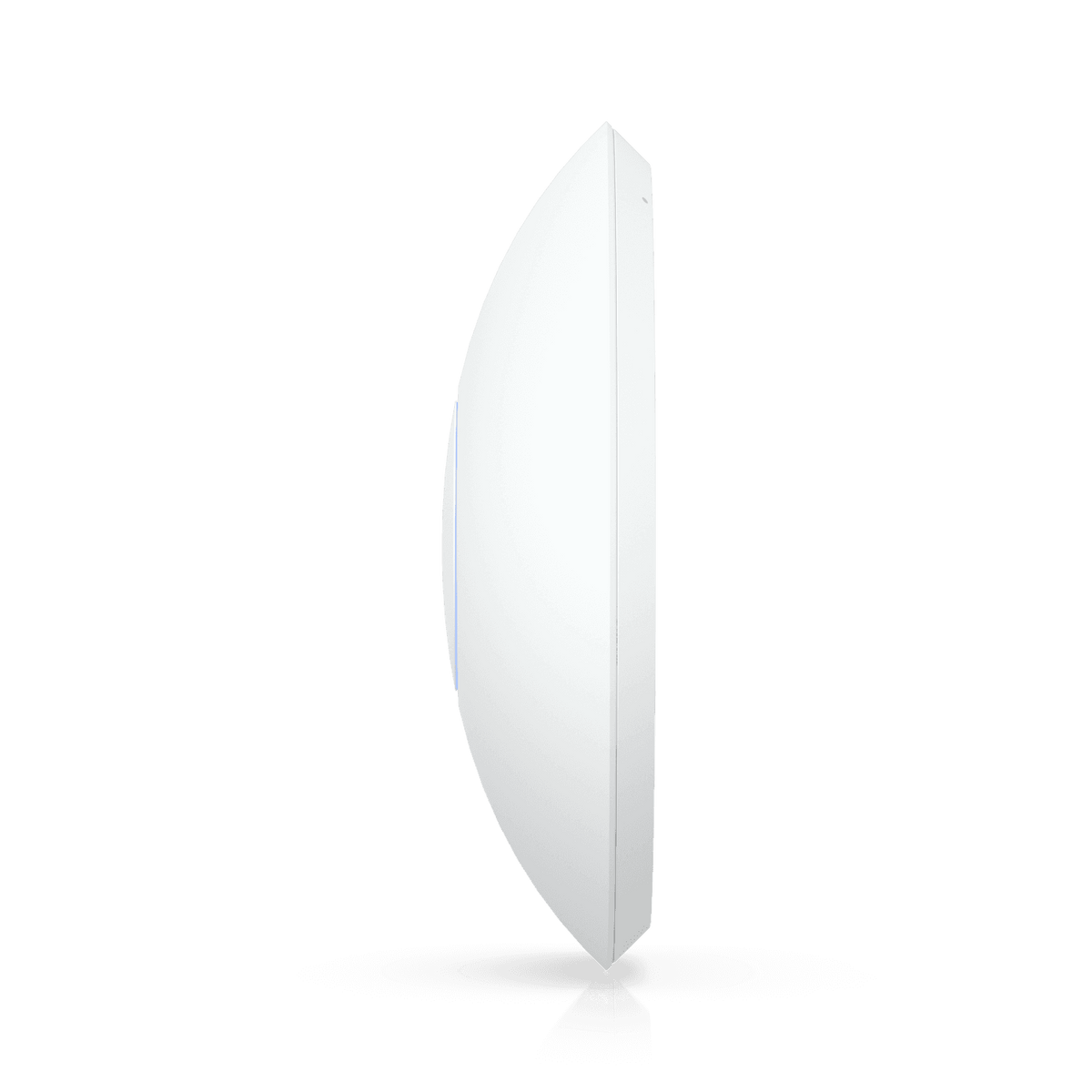

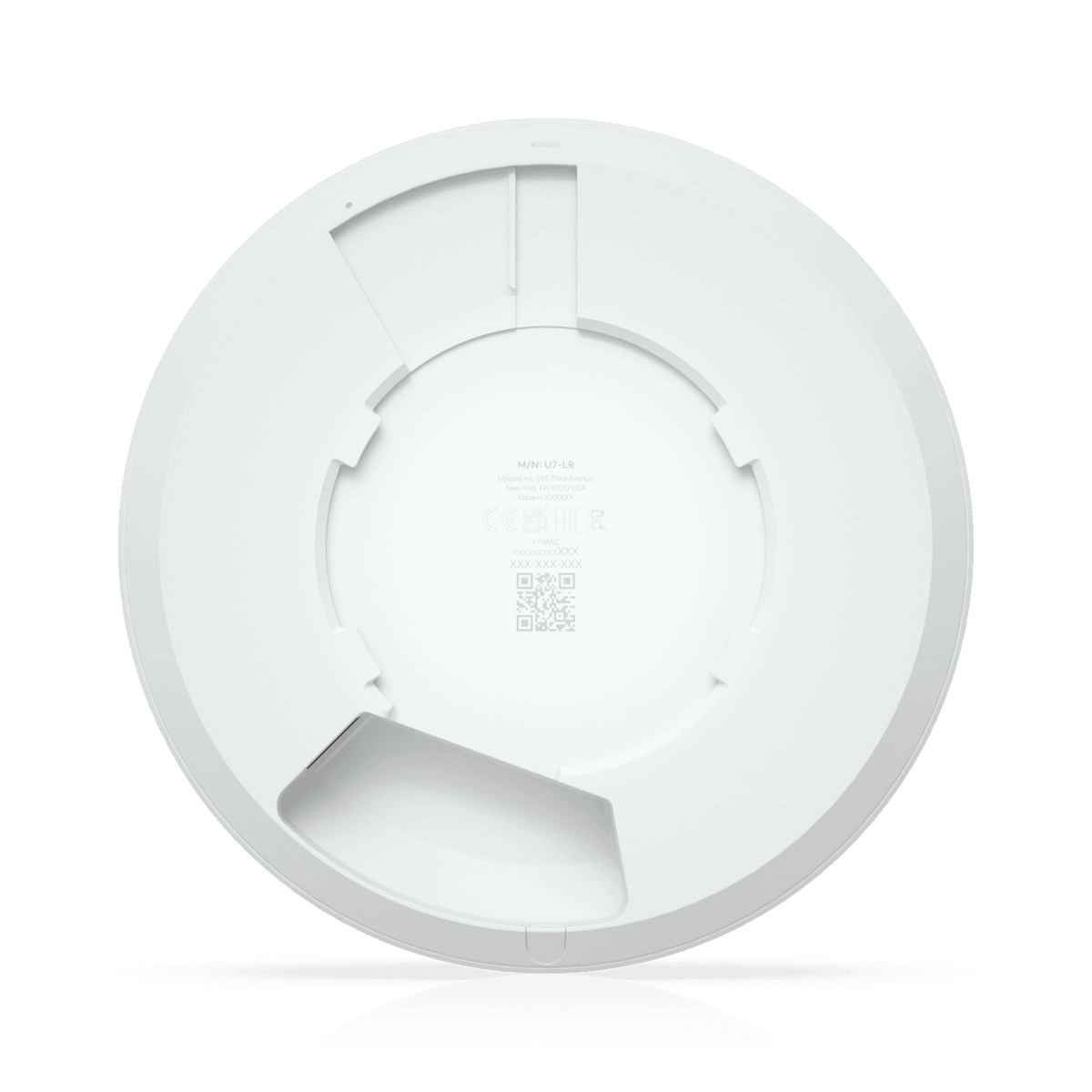

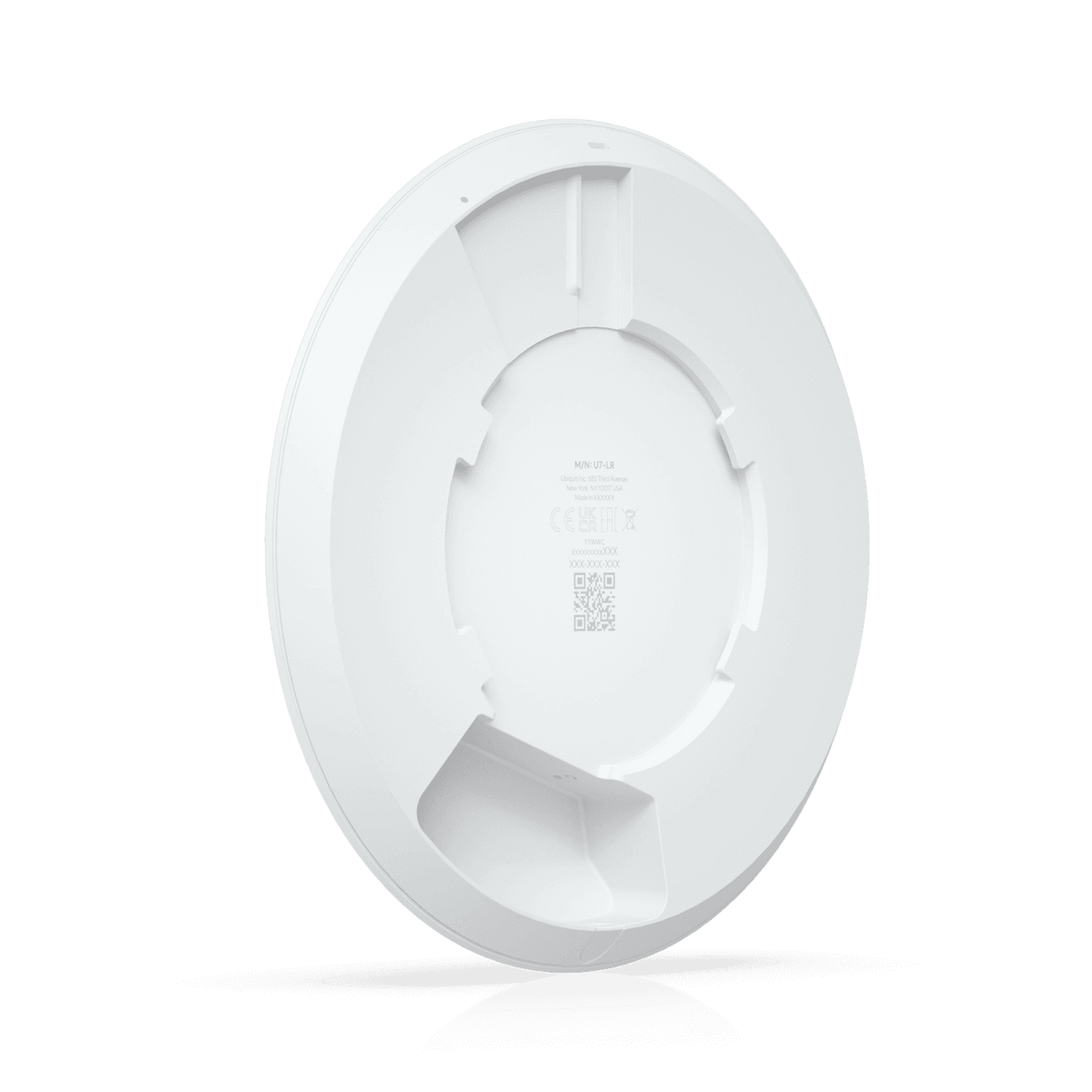

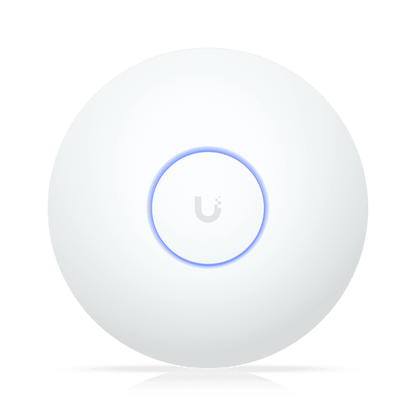

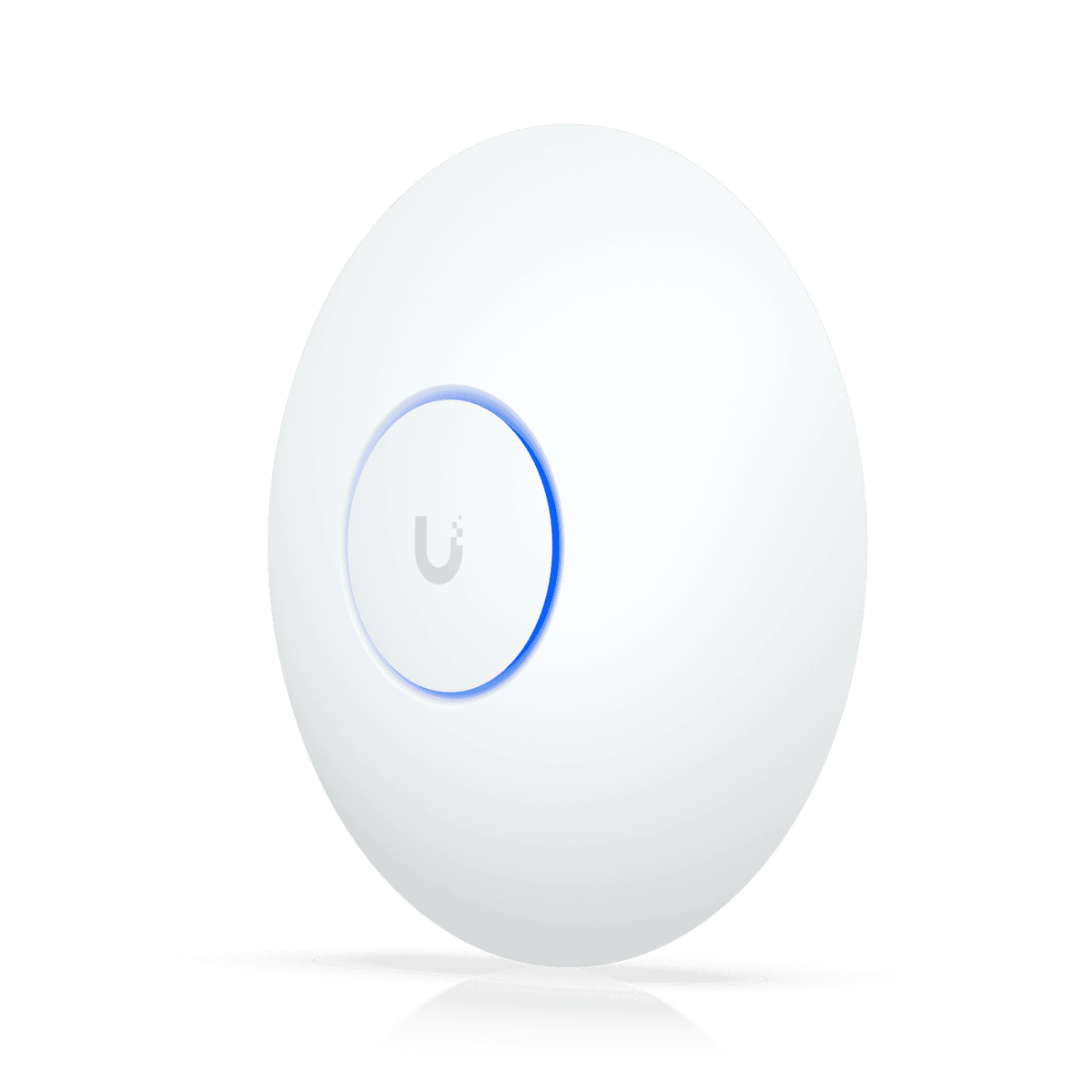

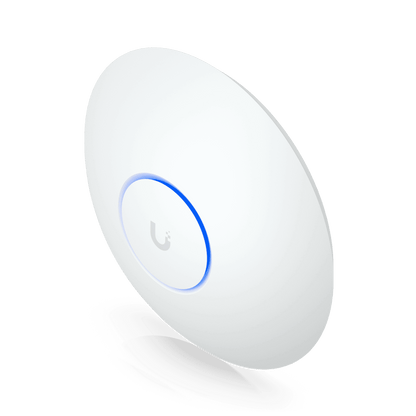

Ubiquiti UniFi WiFi 7 Long Range Dual Band AP

Ubiquiti's U7-LR is an indoor, Dual-Band, WiFi 7 (802.11be) long-range access point. It delivers an aggregate data rate of up to 5Gbps over its 5GHz (3x3 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands.

It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included.

FEATURES:

• Long-Range Antenna Array: Designed with high-gain internal antennas (6 dBi on 5 GHz and 4 dBi on 2.4 GHz) and optimized patterns to provide expansive coverage up to 160 m² (1,750 ft²).
• WiFi 7 Performance: Operates on the 802.11be standard, featuring high-speed 3x3 MU-MIMO on the 5 GHz band and 2x2 MU-MIMO on the 2.4 GHz band. It supports speeds up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz.
• 2.5G Ethernet Uplink: Features a 2.5 GbE RJ45 port to fully support the multi-gigabit wireless backhaul without bottlenecking.
• Massive Client Support: Engineered to handle high-density environments, effortlessly supporting 300+ connected clients concurrently.
• Low Power Draw: Consumes a maximum of just 14W, making it highly efficient to power via standard 802.3af or 802.3at Power over Ethernet (PoE/PoE+).

SPECIFICATIONS:

• Dimensions: ⌀175.7 × 43 mm (⌀6.9 × 1.7")
• WiFi Standard: WiFi 7
• Spatial Streams: 5
• Coverage Area: 160 m² (1,750 ft²)
• Max. Client Count: 300+
• Uplink: 2.5 GbE
• Mounting: Ceiling, Wall (plastic mounting plate included)
• Power Method: PoE
• MIMO:
  • 5 GHz: 3 × 3 (DL/UL MU-MIMO)
  • 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)
• Max. Data Rate:
  • 5 GHz: 4.3 Gbps (BW160)
  • 2.4 GHz: 688 Mbps (BW40)
• Antenna Gain:
  • 5 GHz: 6 dBi
  • 2.4 GHz: 4 dBi
• Max. TX Power:
  • 5 GHz: 27 dBm
  • 2.4 GHz: 26 dBm
• Supported Data Rates:
  • 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0–MCS13 NSS1/2/3, EHT 20/40/80/160)
  • 802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0–MCS11 NSS1/2/3, HE 20/40/80/160)
  • 802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0–MCS9 NSS1/2/3, VHT 20/40/80/160)
  • 802.11n: 6.5 Mbps to 450 Mbps (MCS0–MCS23, HT 20/40)
• Wireless Meshing: ✓
• Band Steering: ✓
• 802.11v BSS Transition Management: ✓
• 802.11r Fast Roaming: ✓
• 802.11k Radio Resource Management (RRM): ✓
• Advanced Radio Management: ✓
• Passpoint (Hotspot 2.0): ✓
• Captive Hotspot Portal: ✓
• Custom Branding Landing Page: ✓
• Voucher Authentication: ✓
• Payment-Based Authentication: ✓
• External Portal Server Support: ✓
• Password Authentication: ✓
• Guest Network Isolation: ✓
• Private Pre-Shared Key (PPSK): ✓
• WiFi Speed Limiting: ✓
• Client Device Isolation: ✓
• WiFi Schedules: ✓
• RADIUS over TLS (RadSec): ✓
• Dynamic RADIUS-assigned VLAN: ✓
• Max. Power Consumption: 14 W
• Supported Voltage Range: 42.5–57 V DC
• Networking Interface: 1 × 2.5 GbE RJ45 port
• Weight: 448 g (15.8 oz)
• Management: Ethernet
• Enclosure Material: Polycarbonate, aluminum alloy
• Mount Material: Polycarbonate, galvanized steel (SGCC)
• LEDs: System — White/Blue
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 MHz
• Ambient Operating Temperature: -30 to 50°C (-22 to 122°F)
• Ambient Operating Humidity: 5–95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, SRRC, Anatel: 04071-25-08356
• Application Requirements: UniFi Network version 9.1.120 and later
• Mobile App: iOS™ version 10.20.2 and later
• Mobile App: Android™ version 10.21.7 and later

WHAT’S IN THE BOX:

• U7 Long-Range Access Point unit x1
• Plastic Mounting Plate for ceiling or wall placement x1
• Ceiling/Wall hardware kit (screws, drywall plugs, and fasteners for both hard and false ceilings) x1
• Quick-release tool (used to unlock the unit from the mounting plate) x1
• Quick Start Guide x1

WARRANTY:

• 12 Months
