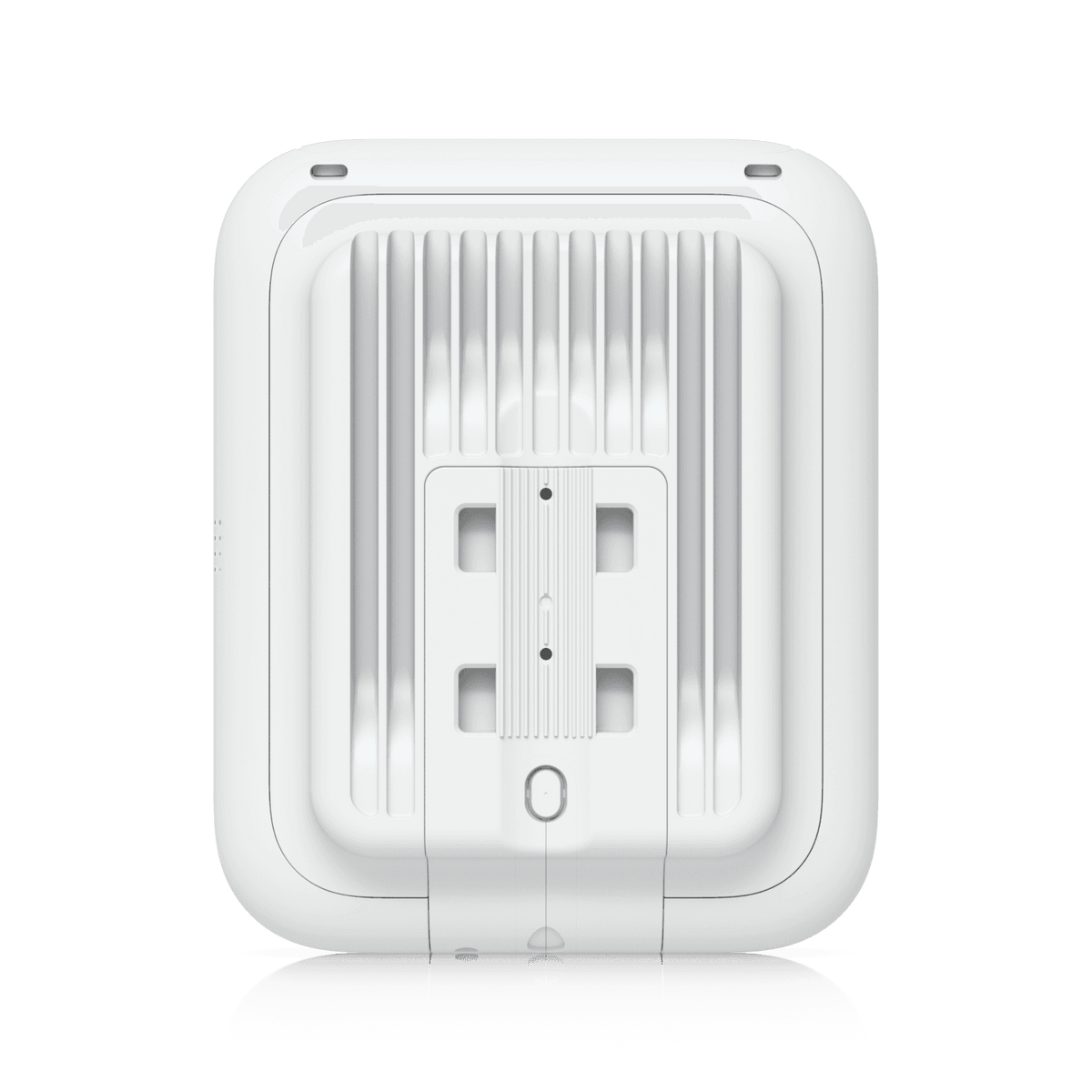

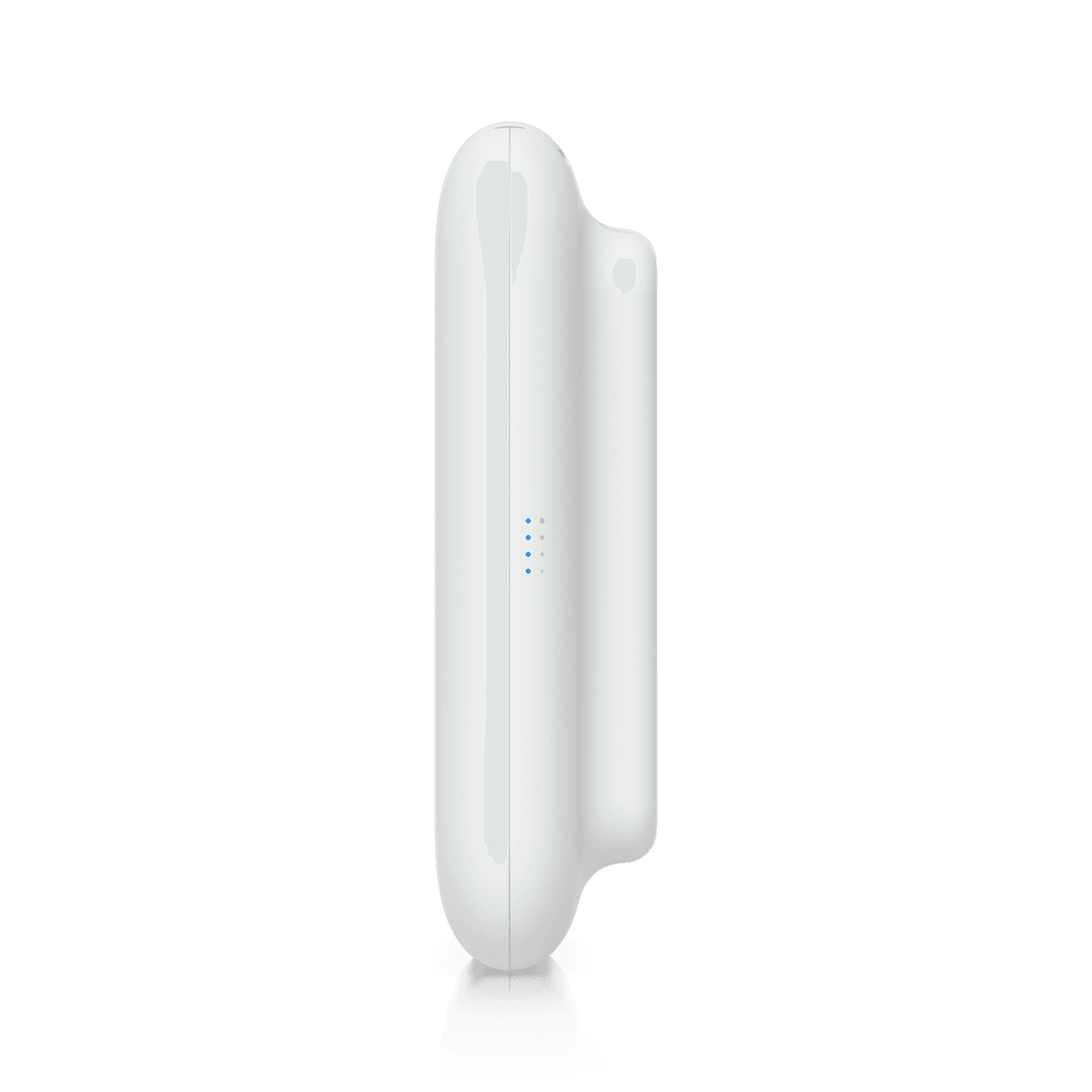

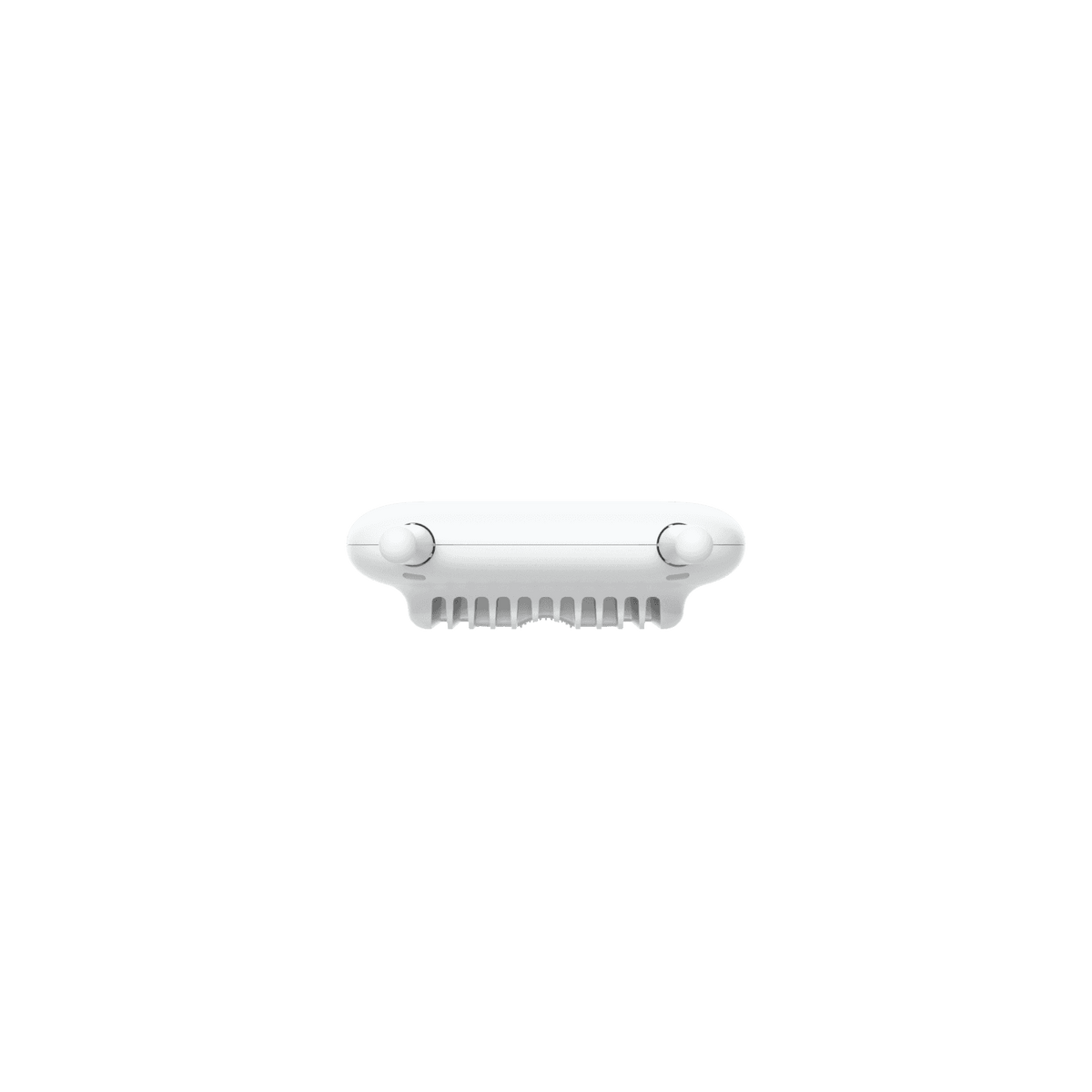

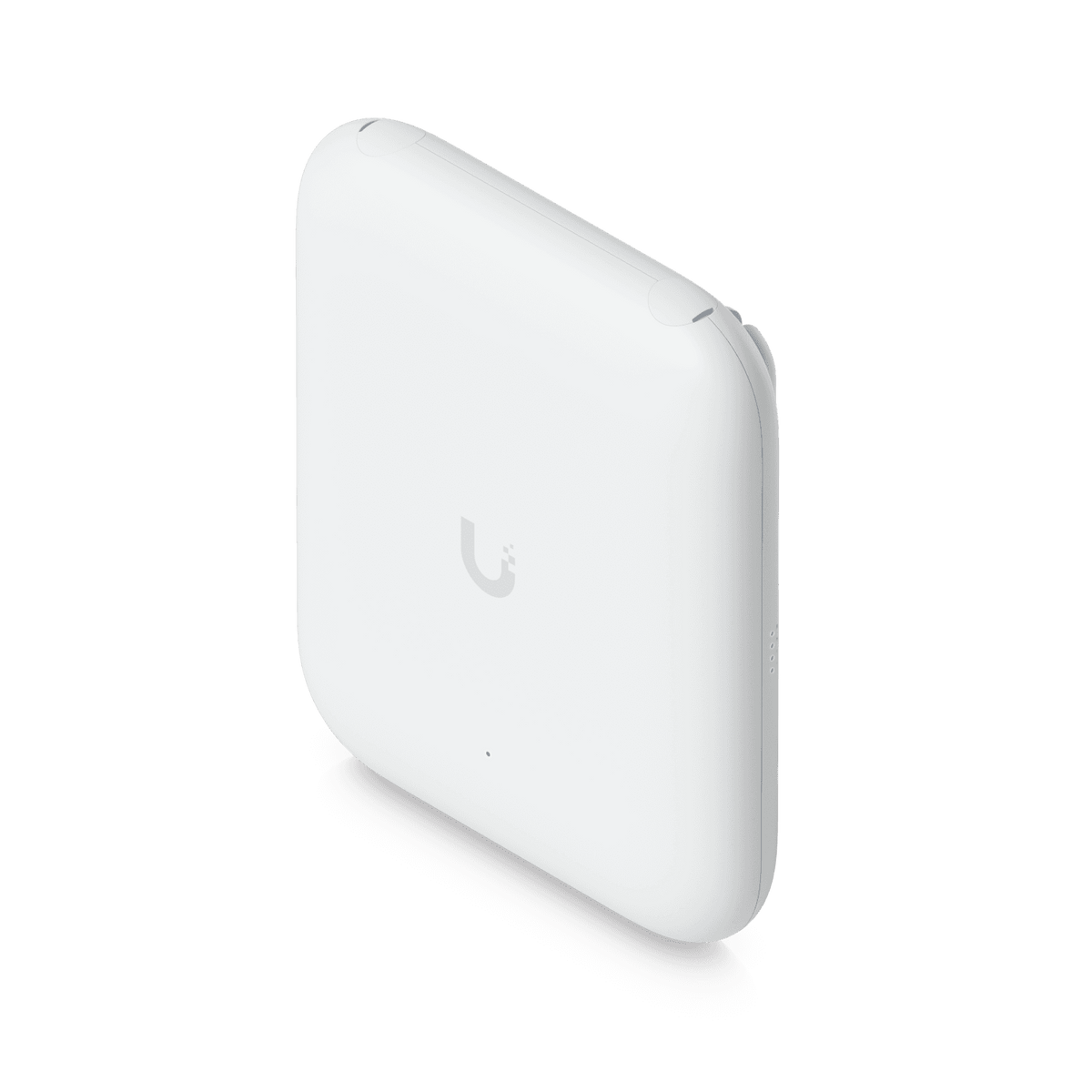

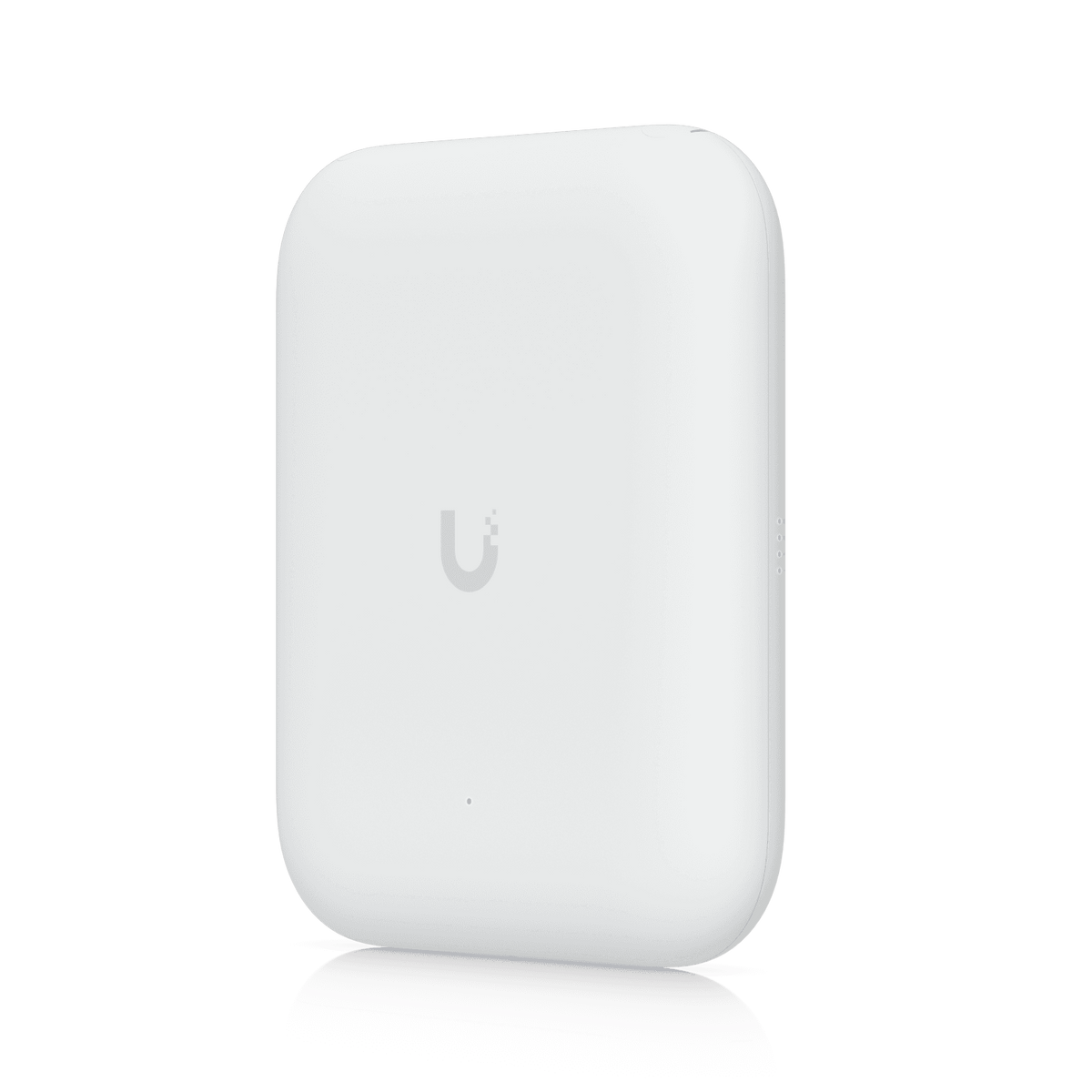

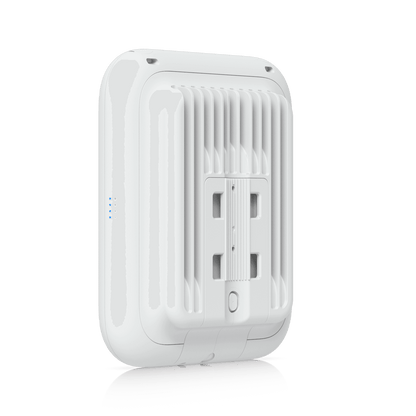

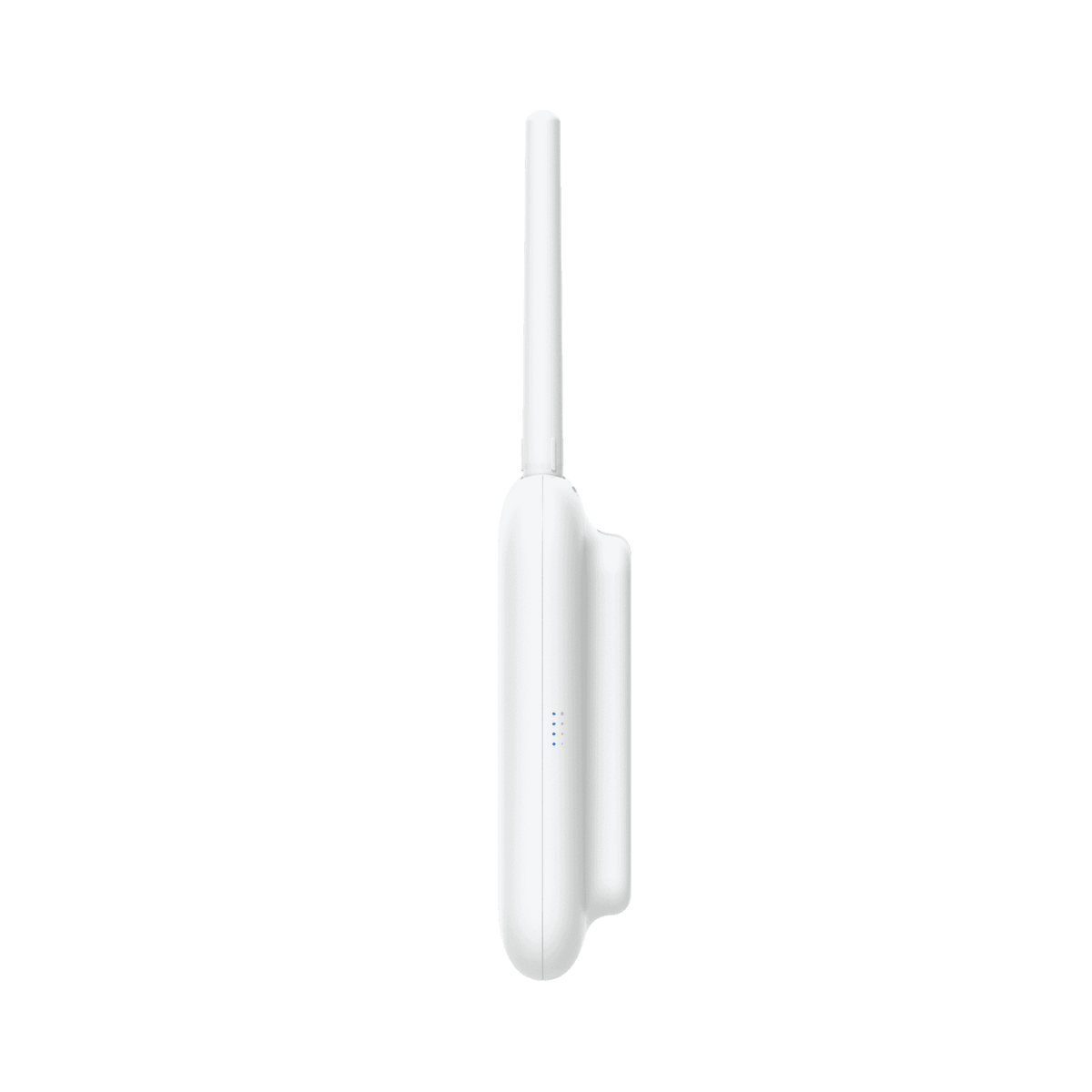

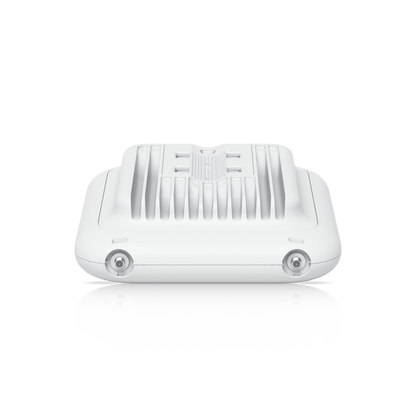

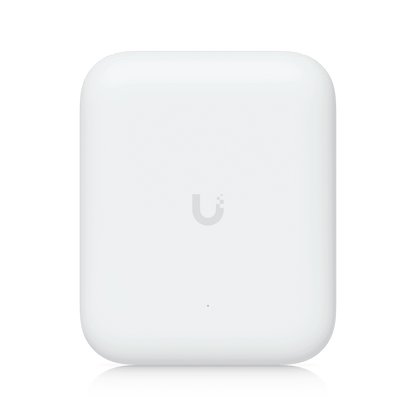

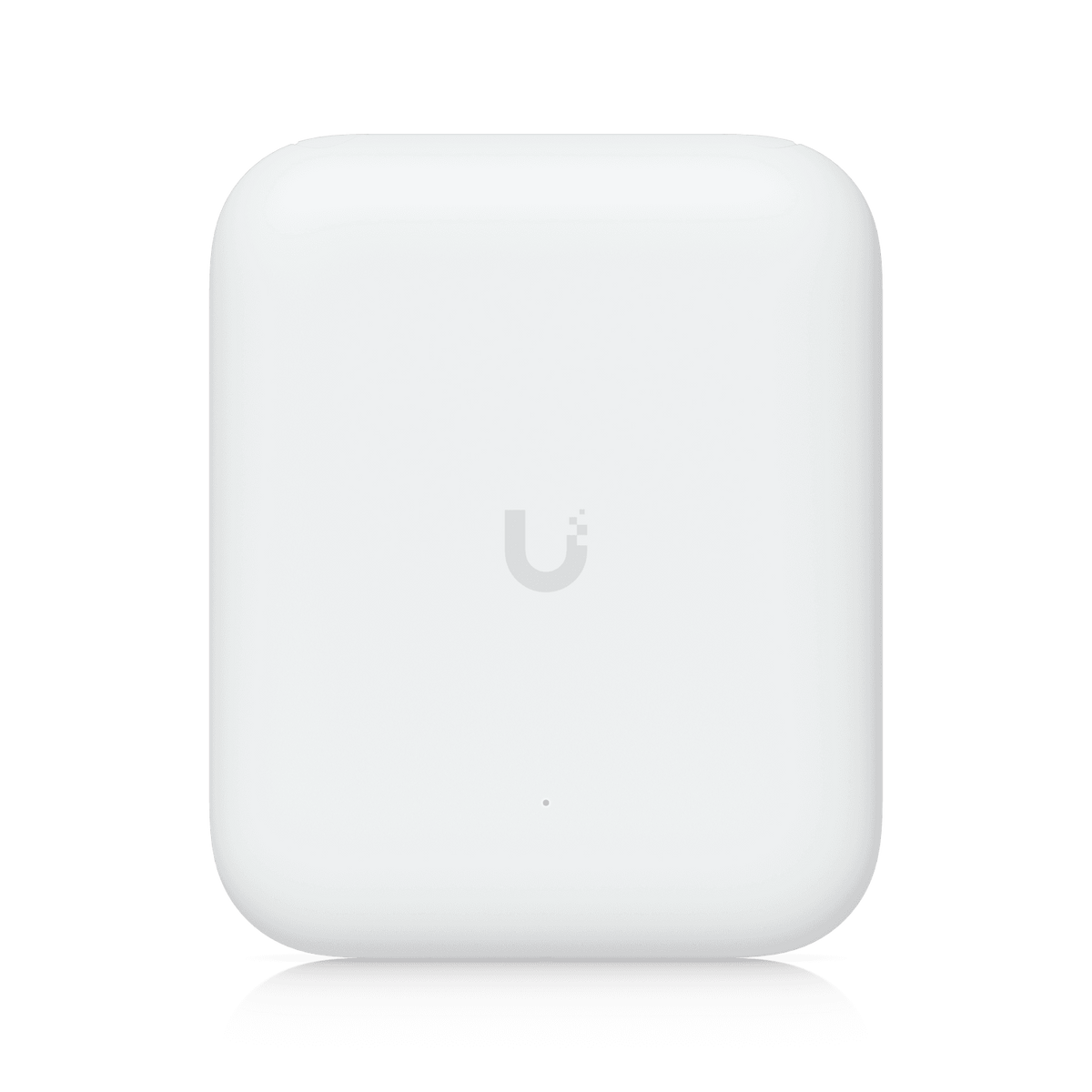

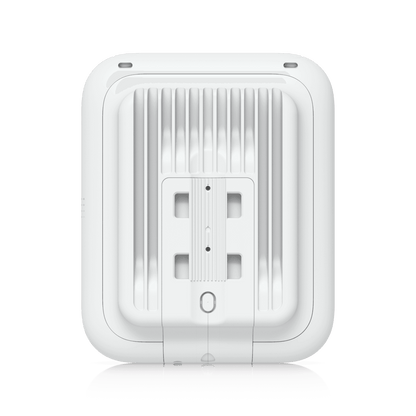

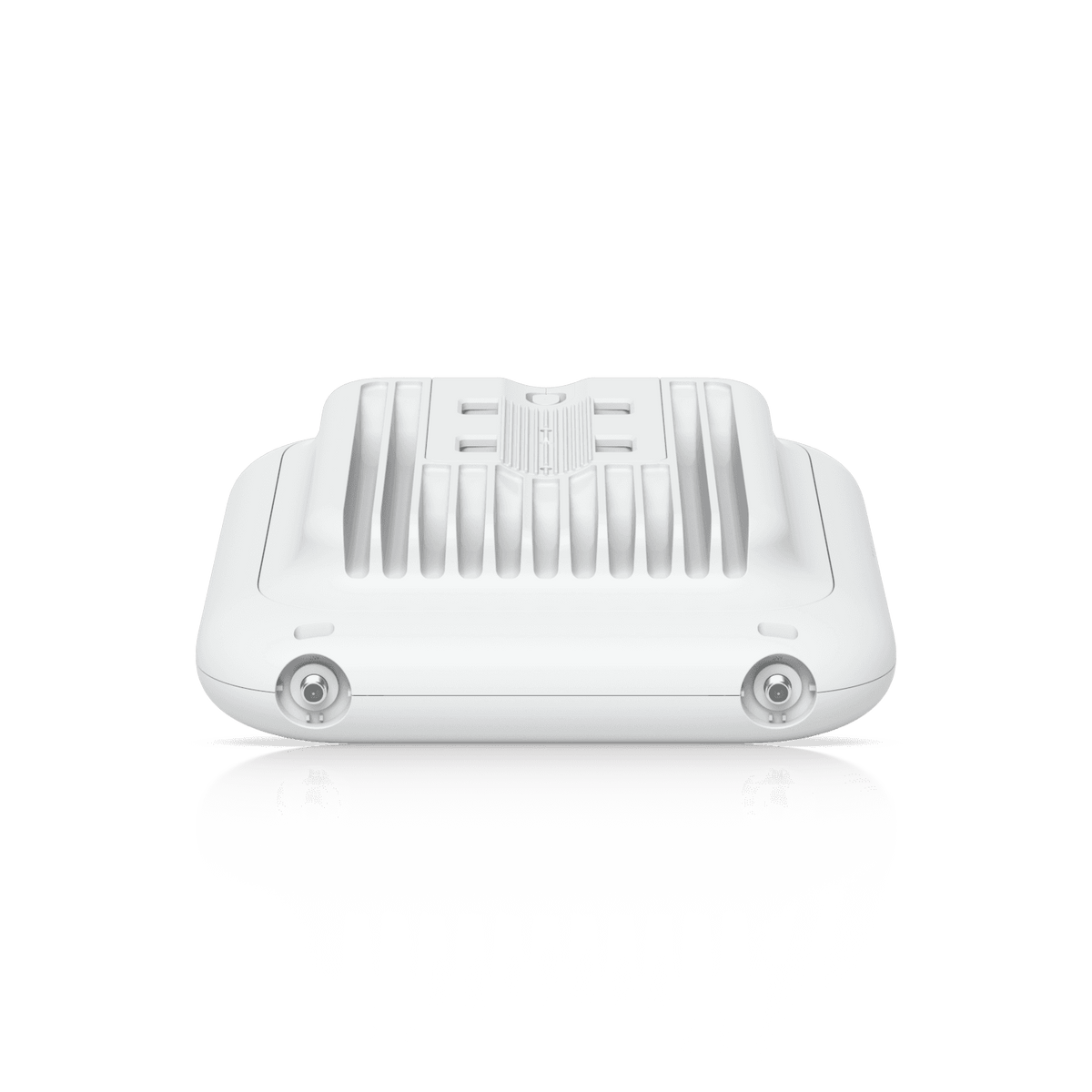

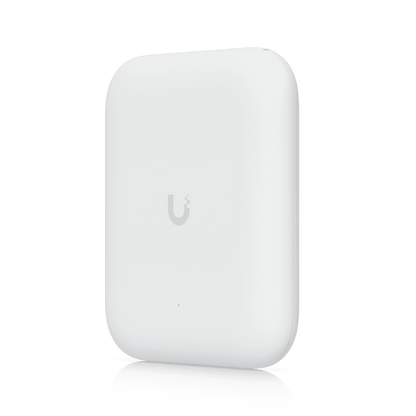

Ubiquiti UniFi WiFi 7 Outdoor Dual Band AP

Ubiquiti's U7-Outdoor is a WiFi 7 outdoor access point featuring 1x 2.5Gbps Ethernet port, versatile wall and pole mounting and is software-switchable from the internal directional antenna to the included external omni antennas. It delivers an aggregate data rate of up to 5Gbps over its 5GHz (2x2 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands.
It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included.

FEATURES:

• Wi-Fi 7 Standards: Uses 4 spatial streams (2x2 MIMO on 2.4 GHz and 5 GHz) for high-speed wireless throughput.

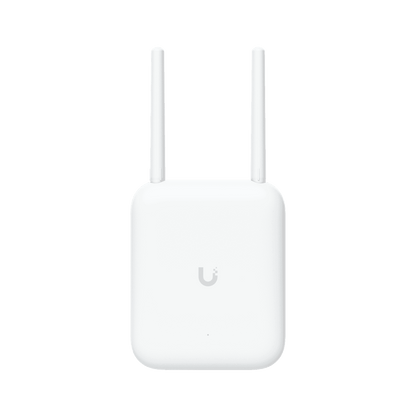

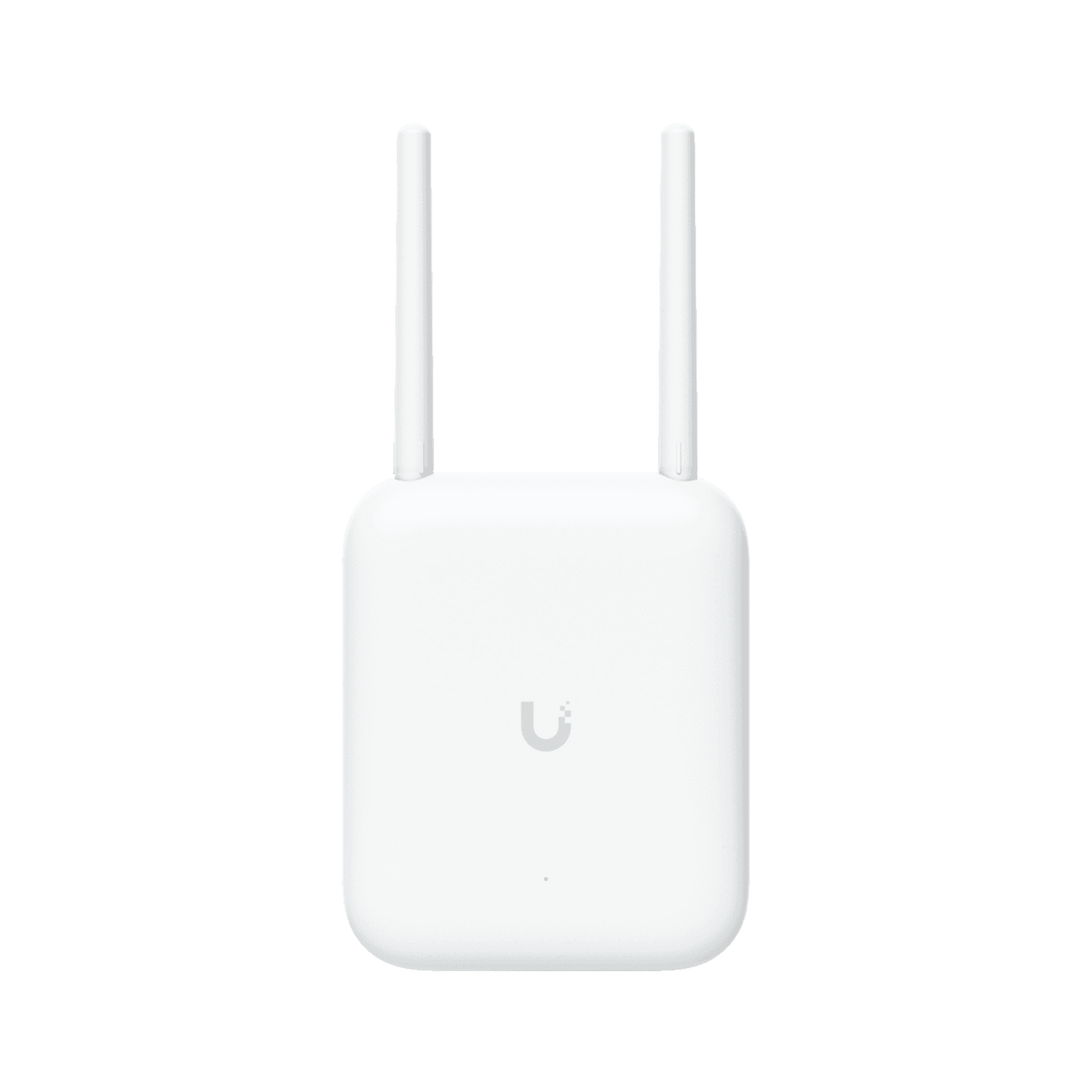

• Dual Antenna Mode: Offers a software-switchable internal directional "Super Antenna" or dual external omnidirectional antennas.
• Massive Range: Covers up to 465 m² (5,000 ft²) of open space.
• High Client Capacity: Supports 200+ concurrent client connections seamlessly.

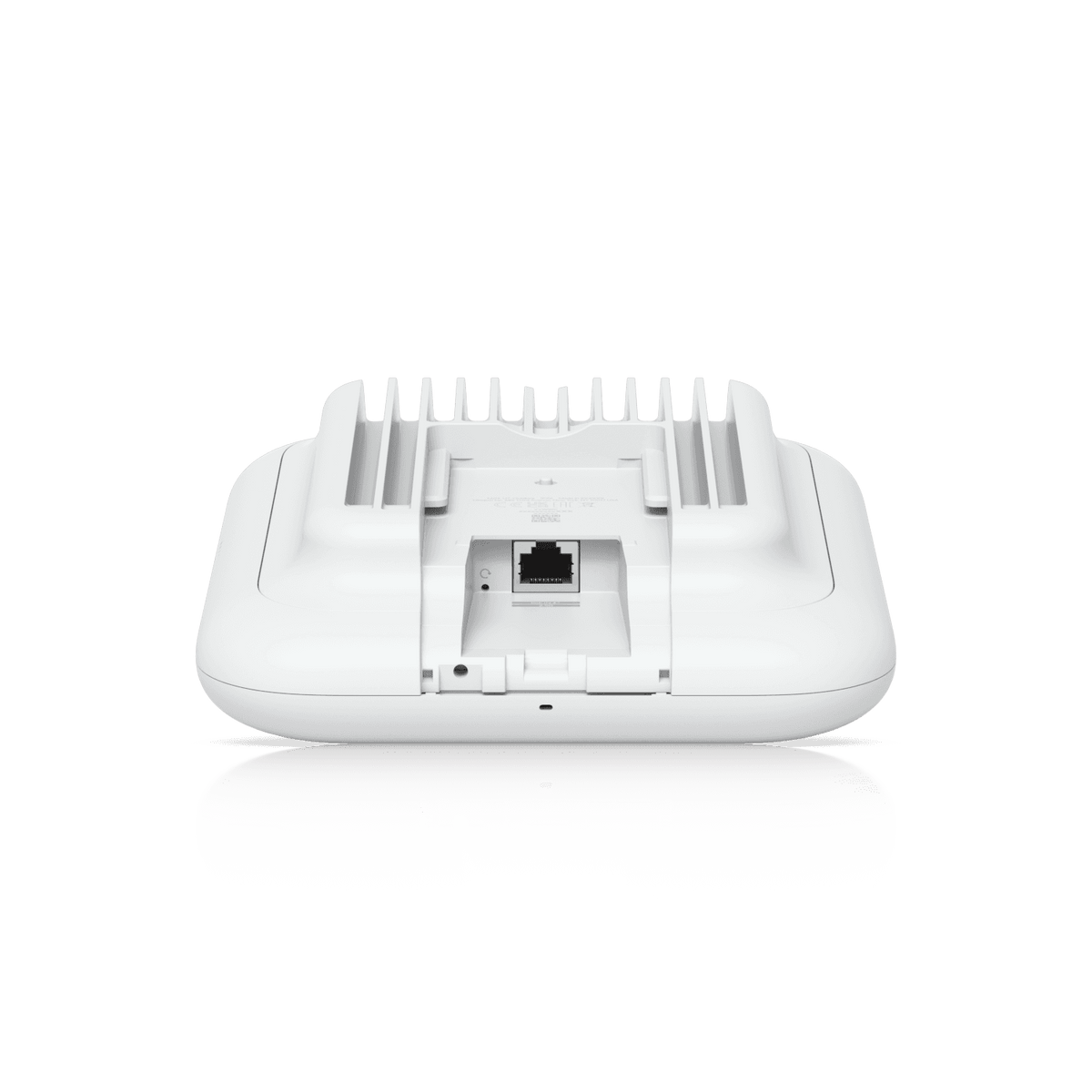

• 2.5 GbE Uplink: Powered by a 2.5 GbE RJ45 port using PoE+ power.

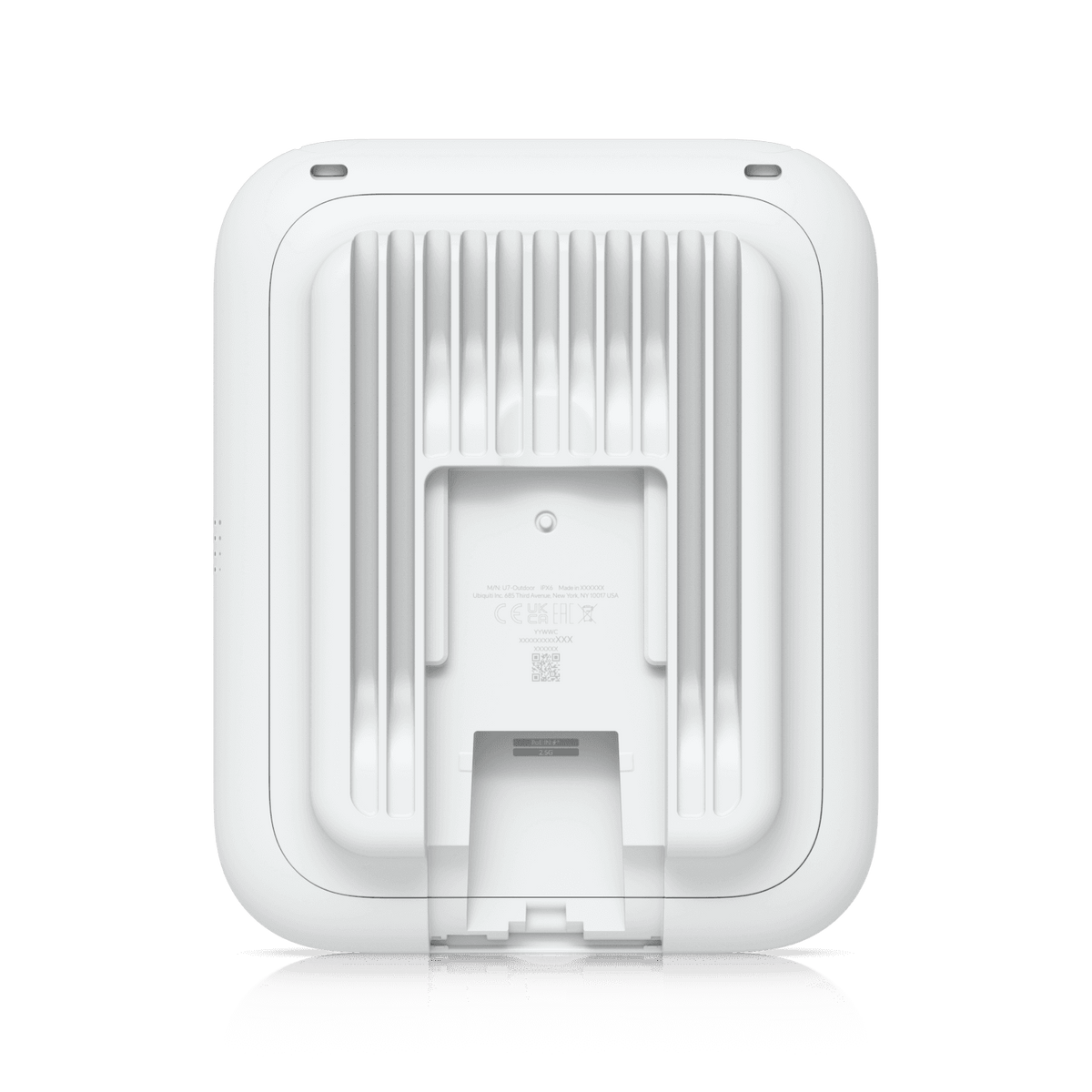

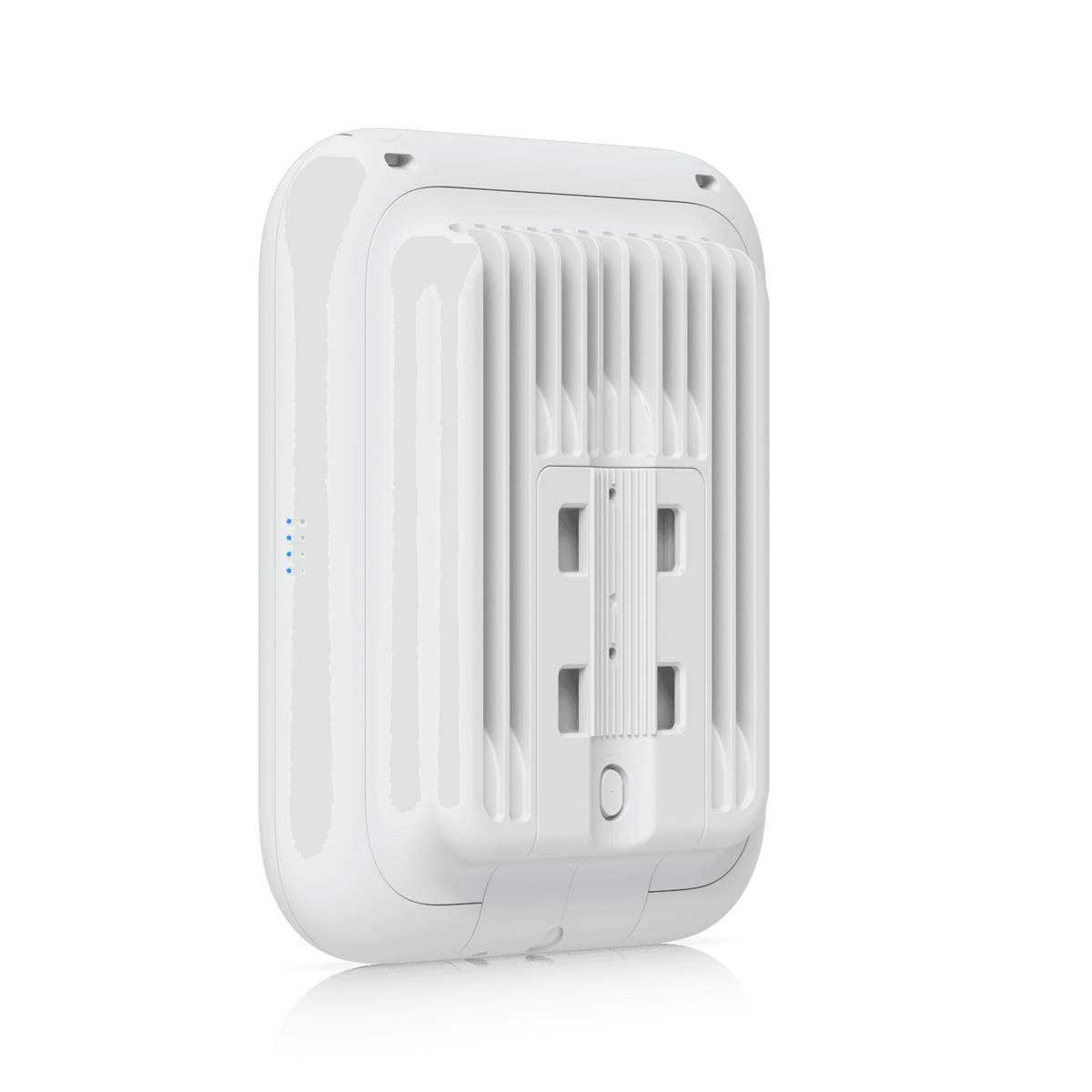

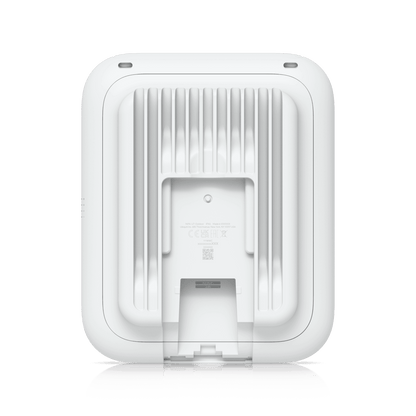

• IPX6 Weatherproof: Built to withstand severe rain, dust, and outdoor elements with an integrated industrial heatsink.

SPECIFICATIONS:

• Dimensions: 170 × 208 × 54.5 mm (6.7 × 8.2 × 2.1")
• WiFi Standard: WiFi 7
• Spatial Streams: 4
• Coverage Area: 465 m² (5,000 ft²)
• Max. Client Count: 250+
• Uplink: 2.5 GbE
• Mounting: Wall, pole (mounts included)
• Weatherproofing: IPX6
• Power Method: PoE+
• MIMO:
  • 5 GHz: 2 × 2 (DL/UL MU-MIMO)
  • 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)
• Maximum Data Rate:
  • 5 GHz: 4.3 Gbps (BW240)
  • 2.4 GHz: 688 Mbps (BW40)
• Antenna Gain:
  • 5 GHz: Directional internal: 12.5 dBi, 45° × 45°
  • 5 GHz: External omni: 4 dBi, 360° × 30°
  • 2.4 GHz: Directional internal: 8 dBi, 90° × 90°
  • 2.4 GHz: External omni: 3 dBi, 360° × 30°
• Maximum TX Power:
  • 5 GHz: 26 dBm
  • 2.4 GHz: 23 dBm
• Maximum BSSIDs: 8 per radio
• 802.11be (WiFi 7) Data Rates: 7.3 Mbps to 4.3 Gbps (MCS0–MCS13, NSS1/2, EHT 20/40/80/160/240)
• 802.11ax (WiFi 6) Data Rates: 7.3 Mbps to 2.4 Gbps (MCS0–MCS11, NSS1/2, HE 20/40/80/160)
• 802.11ac (WiFi 5) Data Rates: 6.5 Mbps to 1.7 Gbps (MCS0–MCS9, NSS1/2, VHT 20/40/80/160)
• 802.11n Data Rates: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)
• Wireless Meshing: ✓
• Band Steering: ✓
• 802.11v BSS Transition Management: ✓
• 802.11r Fast Roaming: ✓
• 802.11k Radio Resource Management (RRM): ✓
• Advanced Radio Management: ✓
• Passpoint (Hotspot 2.0): ✓
• Custom Branding Landing Page: ✓
• Voucher Authentication: ✓
• Payment-Based Authentication: ✓
• External Portal Server Support: ✓
• Password Authentication: ✓
• Guest Network Isolation: ✓
• Private Pre-Shared Key (PPSK): ✓
• WiFi Speed Limiting: ✓
• Client Device Isolation: ✓
• WiFi Schedules: ✓
• RADIUS over TLS (RadSec): ✓
• Dynamic RADIUS-assigned VLAN: ✓
• Maximum Power Consumption: 19 W
• Supported Voltage Range: 42.5–57 V DC
• Networking Interface: 1 × 1/2.5 GbE RJ45 port
• Weight: 1.2 kg (2.6 lb)
• Wind Loading: 74.6 N at 200 km/h (16.8 lbf at 125 mph)
• Pole Mount Diameter: 1–2.36" (25–60 mm)
• Antennas: 1 × directional internal antenna
• Antennas: 2 × external omni antennas
• External Antenna Connectors: 2 × RP-SMA
• Antenna Beamwidth: 5 GHz: 45°
• Antenna Beamwidth: 2.4 GHz: 90°
• Management: Ethernet
• Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
• Mount Material: Polycarbonate, SGCC steel
• LEDs: 1 × Power (White/Blue)
• LEDs: 1 × System (White/Blue)
• LEDs: 4 × Mesh Signal (Blue)
• Channel Bandwidth: HT 20/40 MHz
• Channel Bandwidth: VHT 20/40/80/160 MHz
• Channel Bandwidth: HE 20/40/80/160 MHz
• Channel Bandwidth: EHT 20/40/80/160/240 MHz
• Operating Frequency (US/Canada): 2400–2472 MHz
• Operating Frequency (US/Canada): U-NII-1: 5150–5250 MHz
• Operating Frequency (US/Canada): U-NII-2A: 5250–5350 MHz
• Operating Frequency (US/Canada): U-NII-2C: 5470–5725 MHz
• Operating Frequency (US/Canada): U-NII-3: 5725–5850 MHz
• Operating Frequency (Worldwide): 2400–2483.5 MHz
• Operating Frequency (Worldwide): 5150–5850 MHz
• Ambient Operating Temperature: −30 to 60°C (−22 to 140°F)
• Ambient Operating Humidity: 5–95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, Anatel: 08999-24-08356
• Application Requirements: UniFi Network
• Minimum UniFi Network Version: 8.2.93 or later

WHAT’S IN THE BOX:

• U7-Outdoor Access Point unit with an integrated heatsink x1
• Two external omnidirectional antennas (detachable) x1
• Wall and pole mounting brackets x1
• Worm clamps/hose clamps for pole mounting x1
• Screws and wall anchors x1
• Cable gland / waterproof grommet for the Ethernet cable seal x1
• Quick start guide / documentation x1

WARRANTY:

• 12 Months
