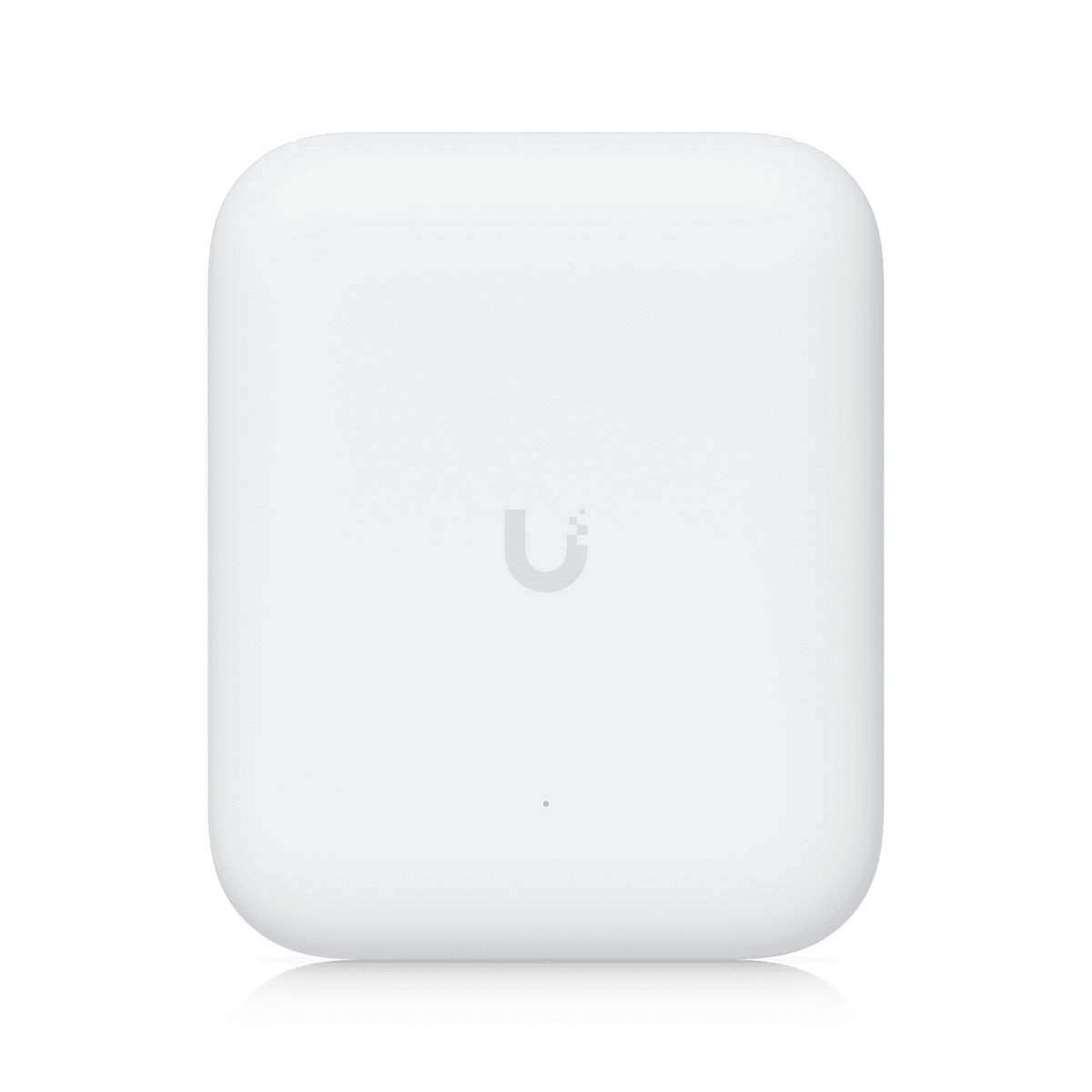

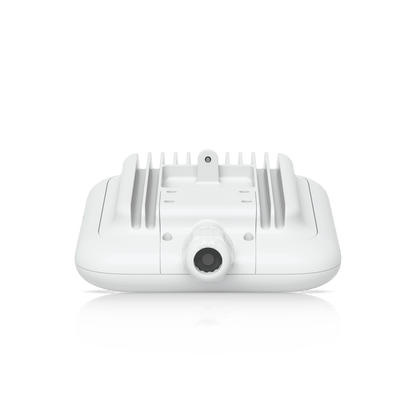

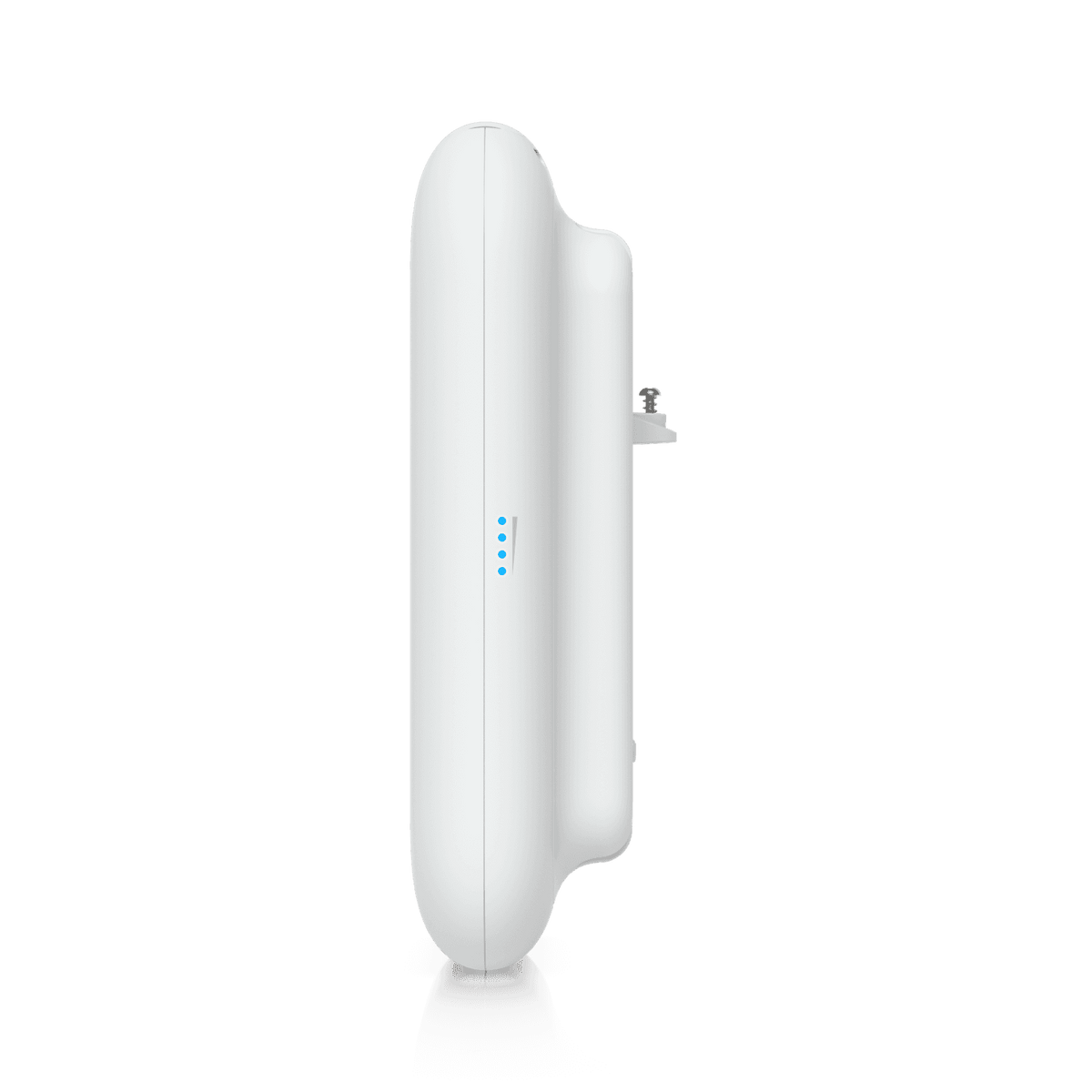

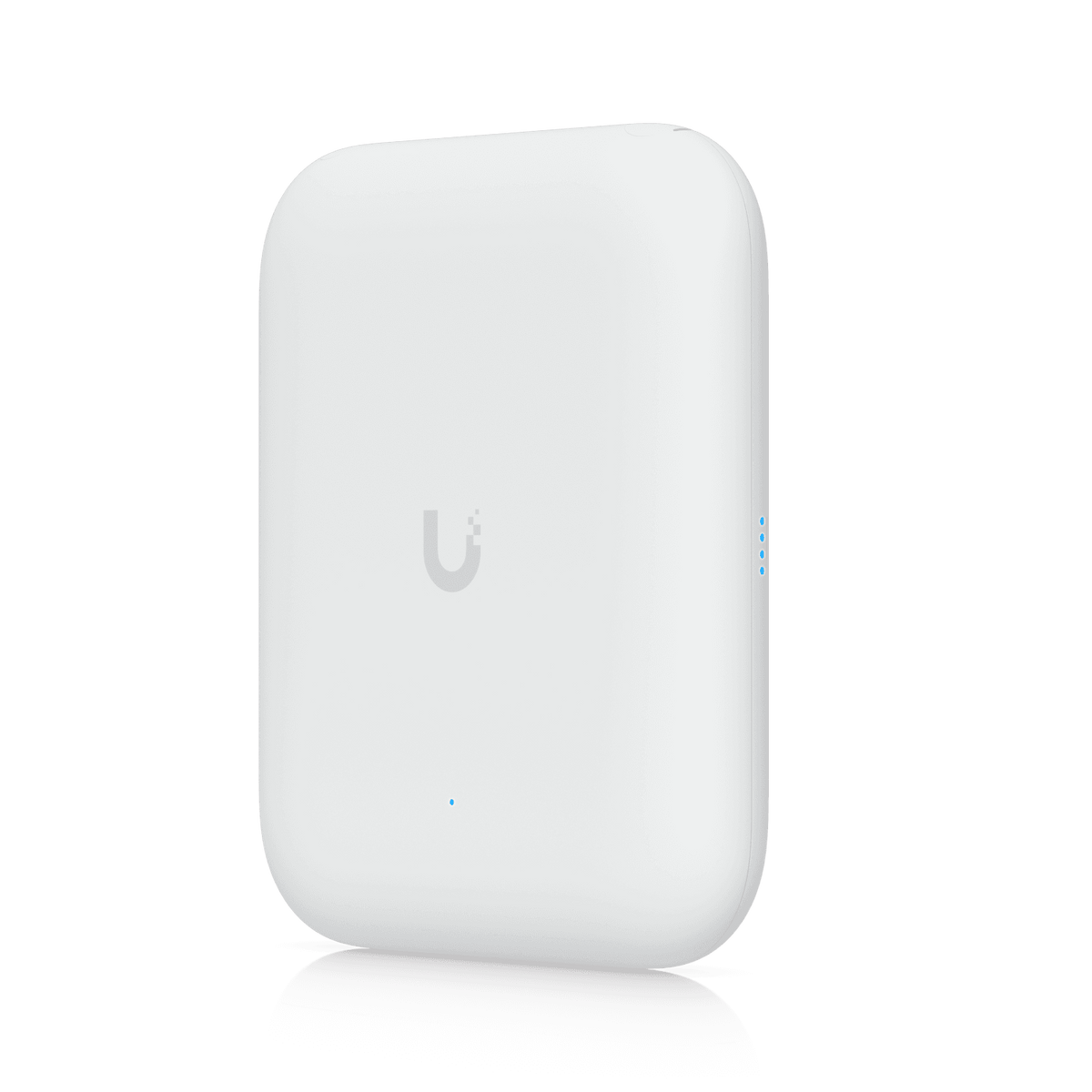

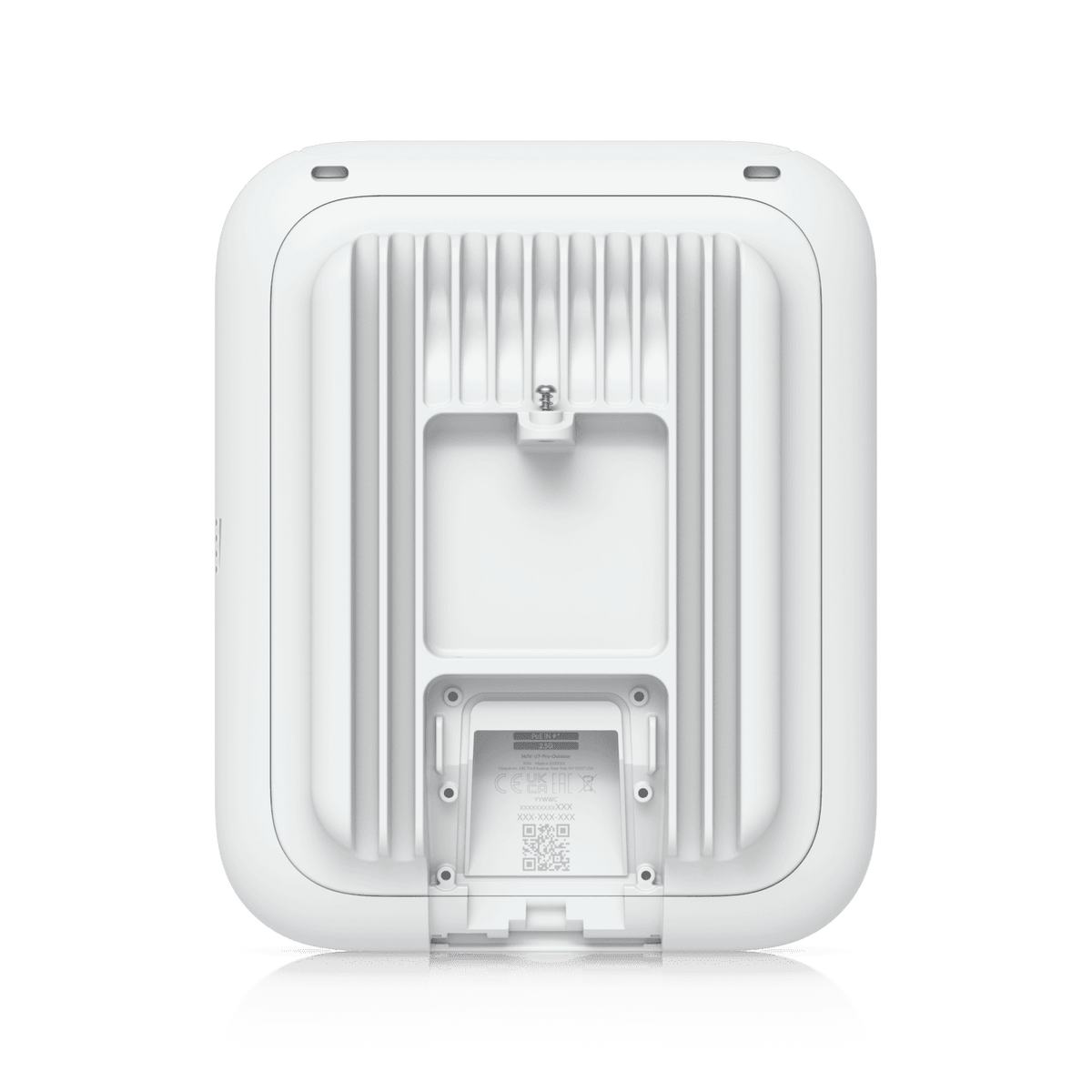

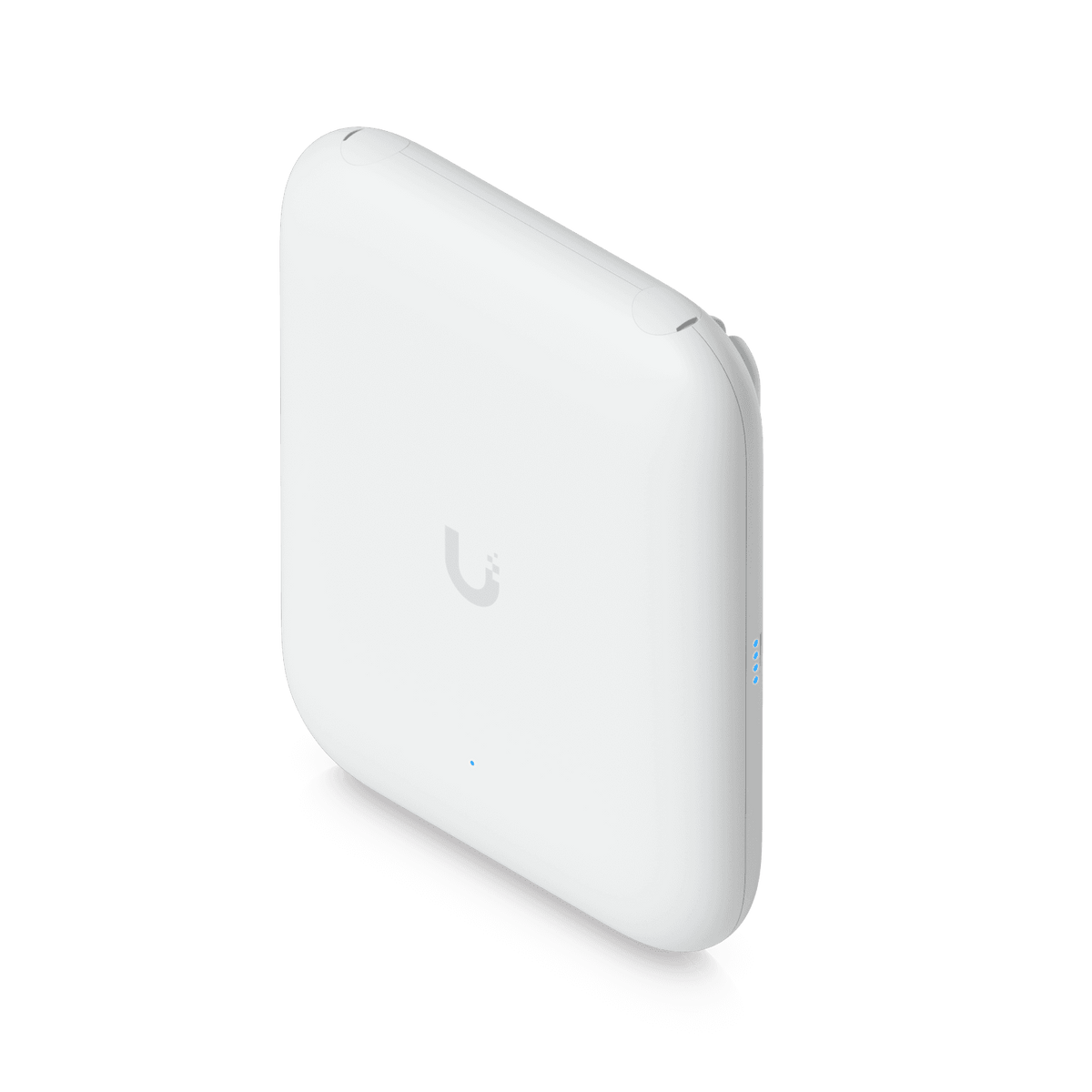

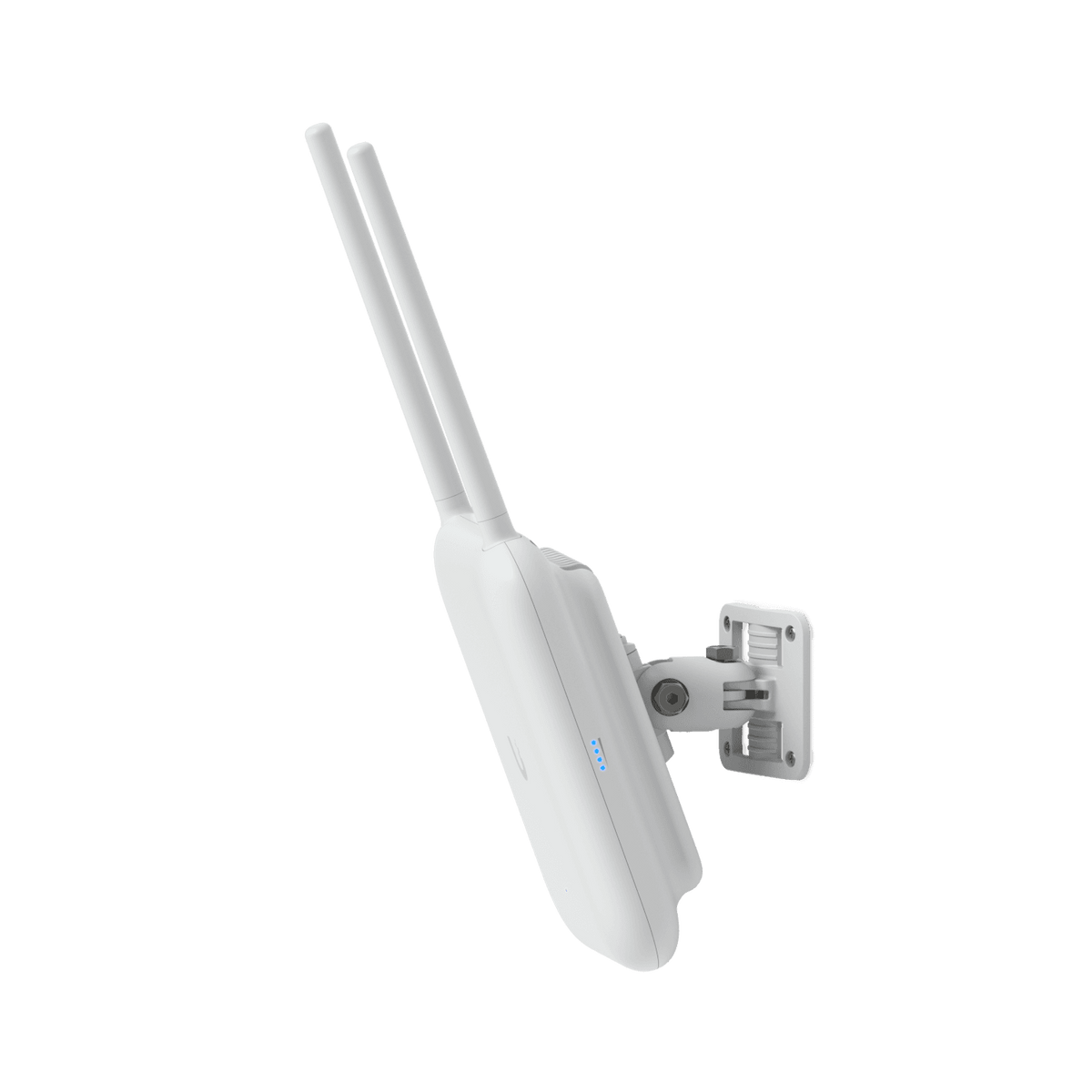

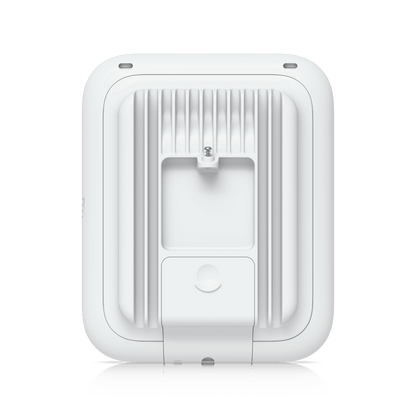

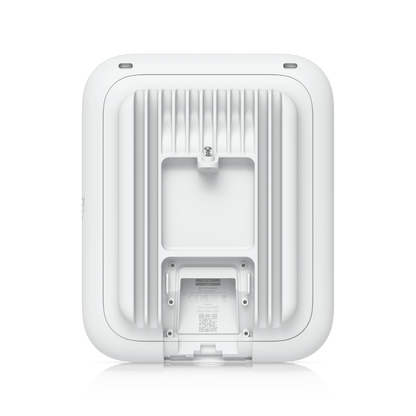

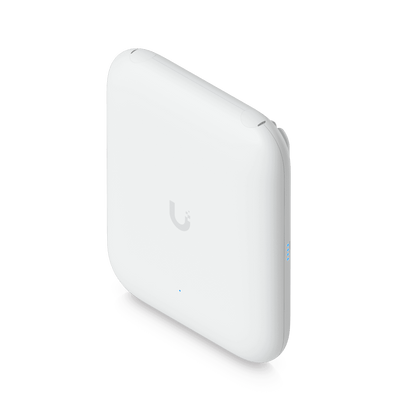

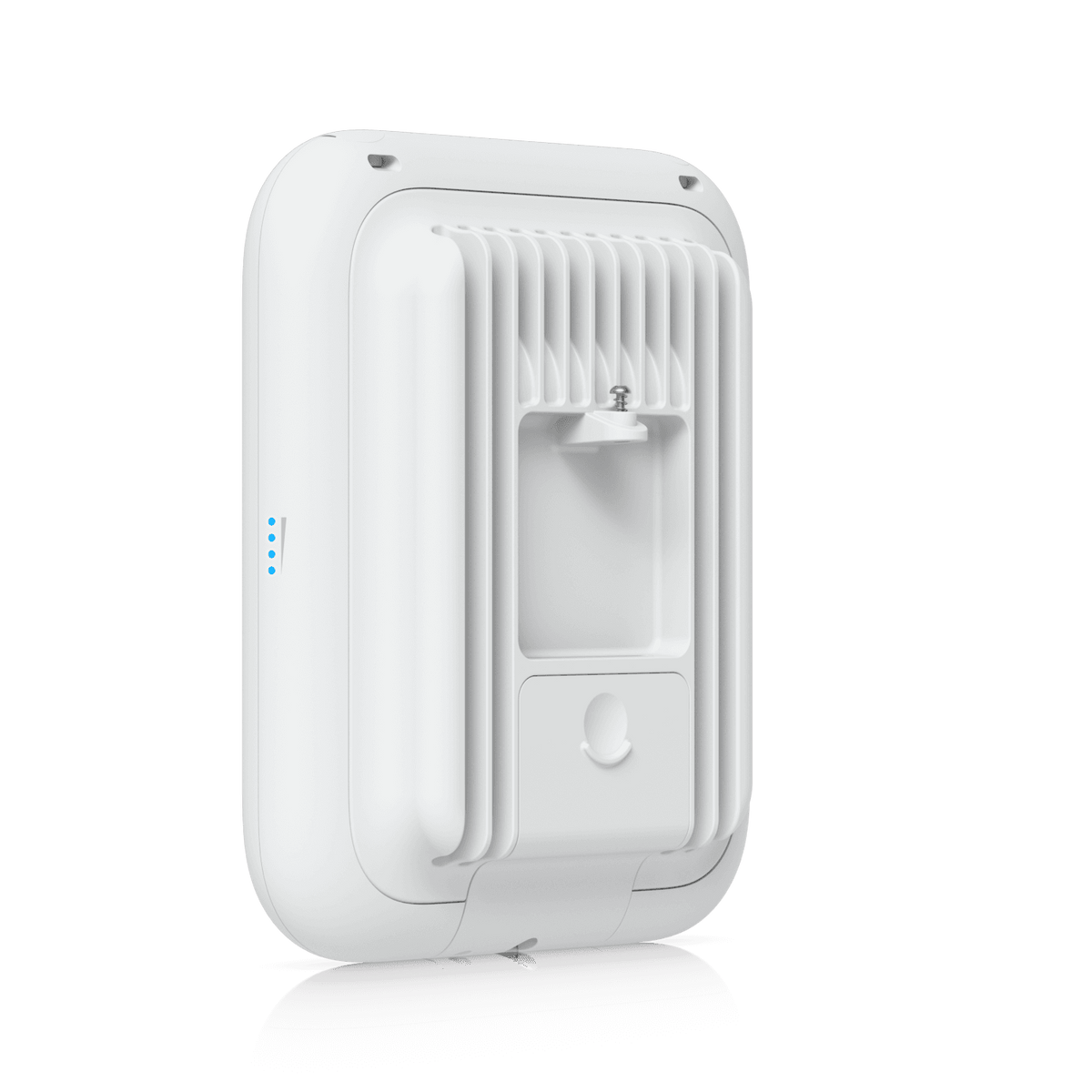

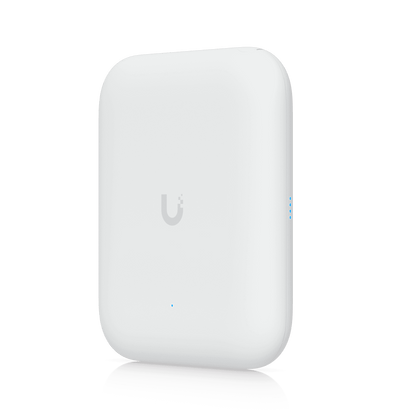

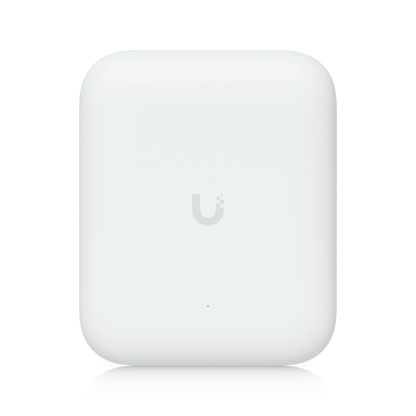

Ubiquiti UniFi WiFi 7 Outdoor Pro Dual Band AP

Ubiquiti's U7-Pro-Outdoor is a WiFi 7 Dual Band, IP67 outdoor access point featuring 4 spatial streams, 1x 2.5Gbps Ethernet port, two external antennas and a versatile wall and pole mounting. It delivers an aggregate data rate of up to 5Gbps over its 5GHz (2x2 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands. It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included.

FEATURES:

• Triple-Band Wi-Fi 7: Operates across the 2.4 GHz, 5 GHz, and 6 GHz wireless bands.
• Flexible Coverage: Includes built-in directional high-gain antennas for long-range focus, plus detachable external omnidirectional antennas for 360-degree coverage.
• High Capacity: Supports up to 465 m² (5,000 ft²) of coverage and 300+ connected devices.
• 2.5 GbE Uplink: Features a multi-gigabit Ethernet port to prevent network bottlenecks.
• PoE+ Powered: Operates using standard 802.3at Power over Ethernet.
• IP67 Weatherproofing: Built to withstand harsh weather, heavy rain, and extreme dust when properly sealed.

SPECIFICATIONS:

• Dimensions
  • Without mount: 170 × 208 × 66.5 mm (6.7 × 8.2 × 2.6")
  • With mount: 170 × 208 × 121.8 mm (6.7 × 8.2 × 4.8")
• WiFi Standard: WiFi 7
• Spatial Streams: 6
• Coverage Area: 465 m² (5,000 ft²)
• Max. Client Count: 300+
• Uplink: 2.5 GbE

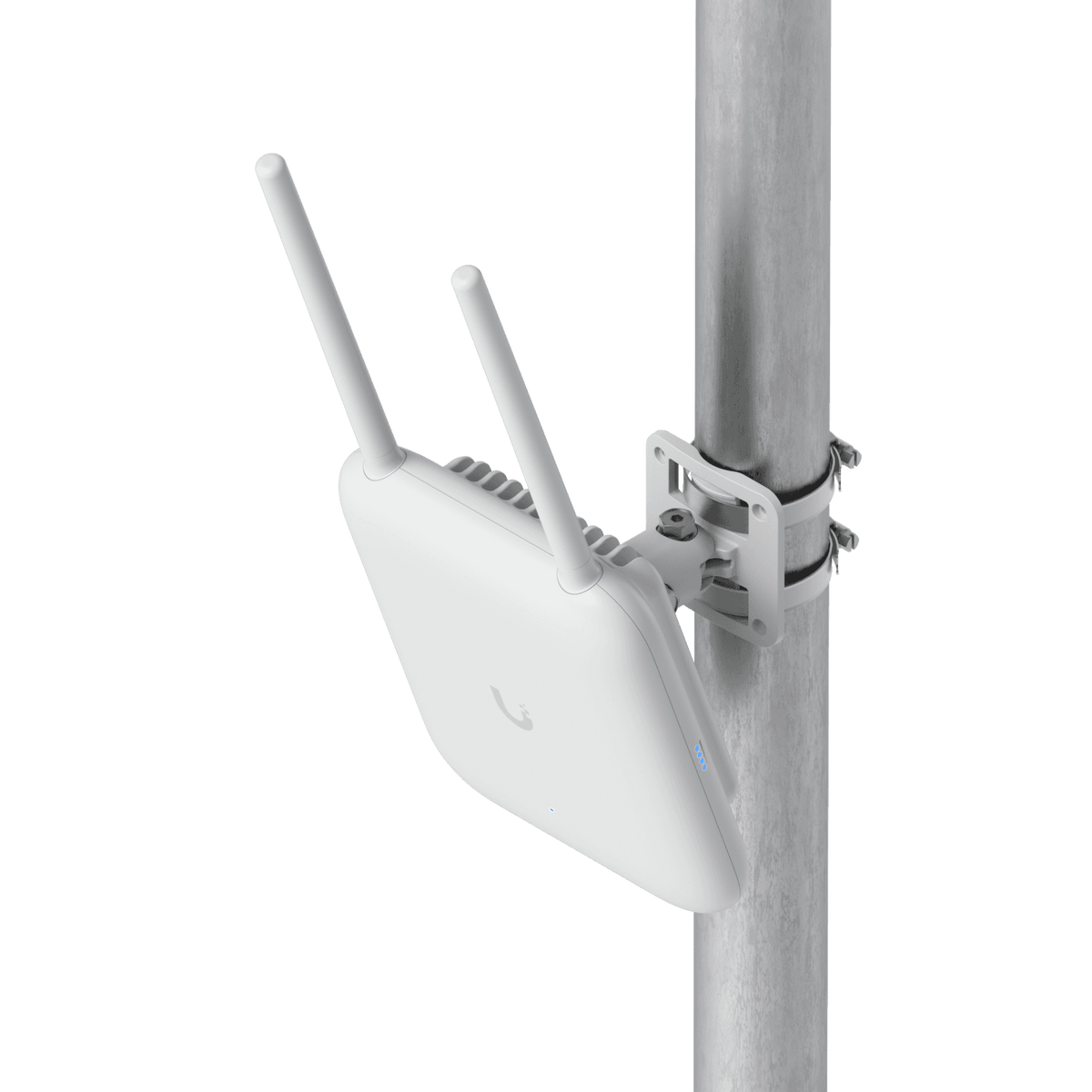

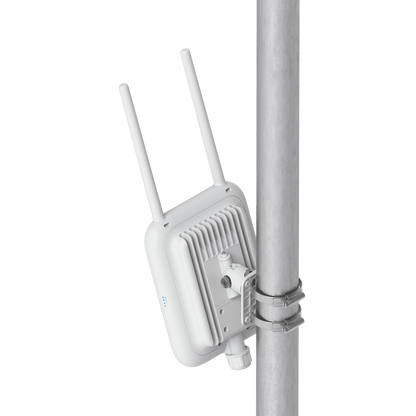

• Mounting: Wall, Pole (mounts included)
• Weatherproofing: IPX6; IP67 with cable-gland door kit
• Power Method: PoE+
• MIMO
  • 5 GHz: 4 × 4 (DL/UL MU-MIMO)
  • 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)
• Max. Data Rate
  • 5 GHz: 8.6 Gbps (BW240)
  • 2.4 GHz: 688 Mbps (BW40)
• Antenna Gain
  • 5 GHz: Directional internal: 11 dBi, 90° × 45°; External omni: 8 dBi, 360° × 15°
  • 2.4 GHz: Directional internal: 8 dBi, 90° × 90°; External omni: 6 dBi, 360° × 15°
• Max. TX Power
  • 5 GHz: 29 dBm
  • 2.4 GHz: 23 dBm
• Max. BSSIDs: 8 per radio
• Supported Data Rates
  • 802.11be (WiFi 7): 7.3 Mbps to 8.6 Gbps (MCS0–MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
  • 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0–MCS11 NSS1/2/3/4, HE 20/40/80/160)
  • 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0–MCS9 NSS1/2/3/4, VHT 20/40/80/160)
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)
• Wireless Meshing: ✓
• Band Steering: ✓
• 802.11v BSS Transition Management: ✓
• 802.11r Fast Roaming: ✓
• 802.11k Radio Resource Management (RRM): ✓
• Advanced Radio Management: ✓
• Passpoint (Hotspot 2.0): ✓
• Captive Hotspot Portal: ✓
• Custom Branding Landing Page: ✓
• Voucher Authentication: ✓
• Payment-Based Authentication: ✓
• External Portal Server Support: ✓
• Password Authentication: ✓
• Guest Network Isolation: ✓
• Private Pre-Shared Key (PPSK): ✓
• WiFi Speed Limiting: ✓
• Client Device Isolation: ✓
• WiFi Schedules: ✓
• RADIUS over TLS (RadSec): ✓
• Dynamic RADIUS-assigned VLAN: ✓
• Max. Power Consumption: 21 W
• Supported Voltage Range: 42.5–57 V DC

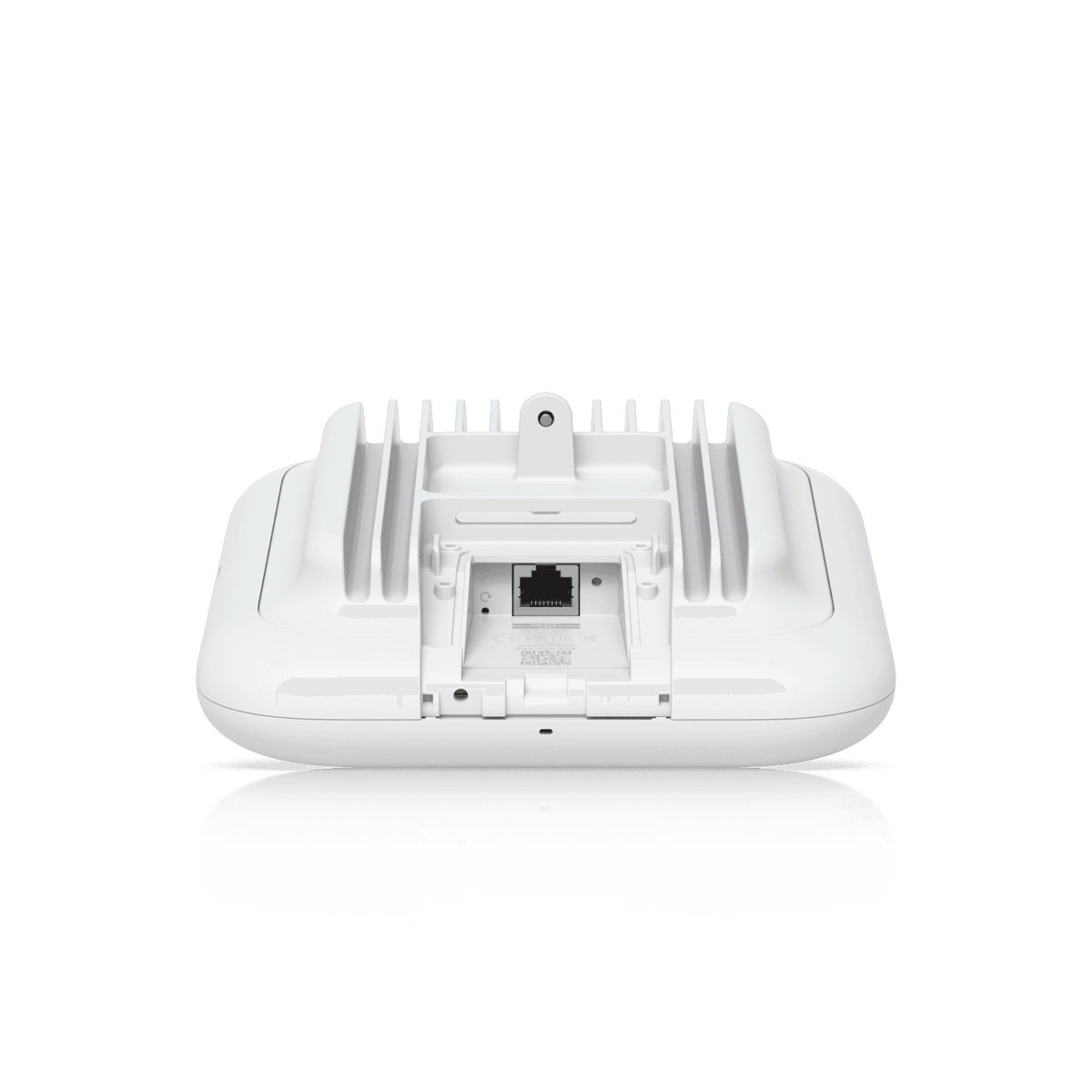

• Networking Interface: 1 × 1/2.5 GbE RJ45 port
• Weight: Device: 1.2 kg (2.6 lb); With mount: 1.33 kg (2.9 lb)
• Wind Loading: 74.6 N at 200 km/h (16.8 lbf at 125 mph)

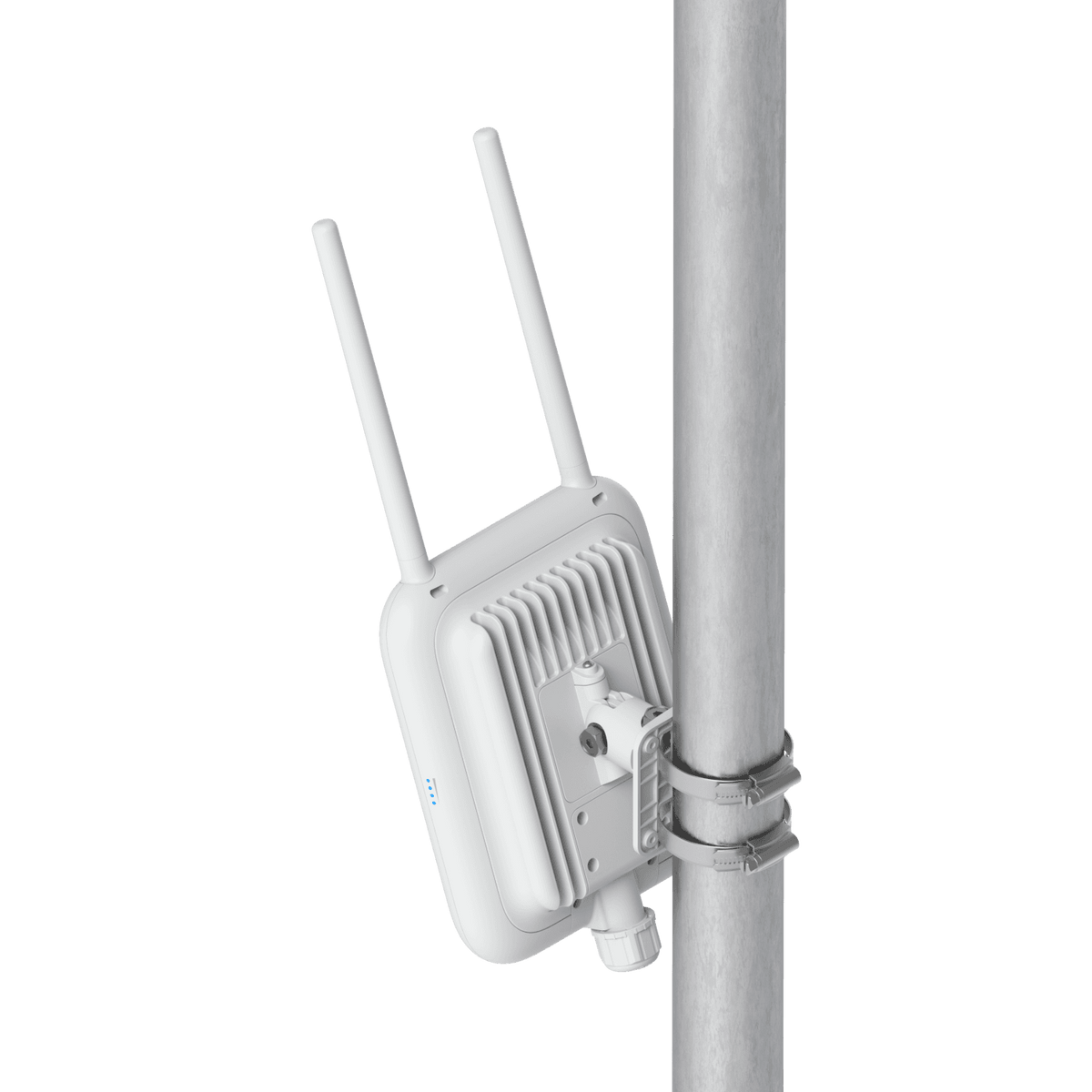

• **Pole Mount

WHAT’S IN THE BOX:

• U7 Pro Outdoor Access Point unit x1

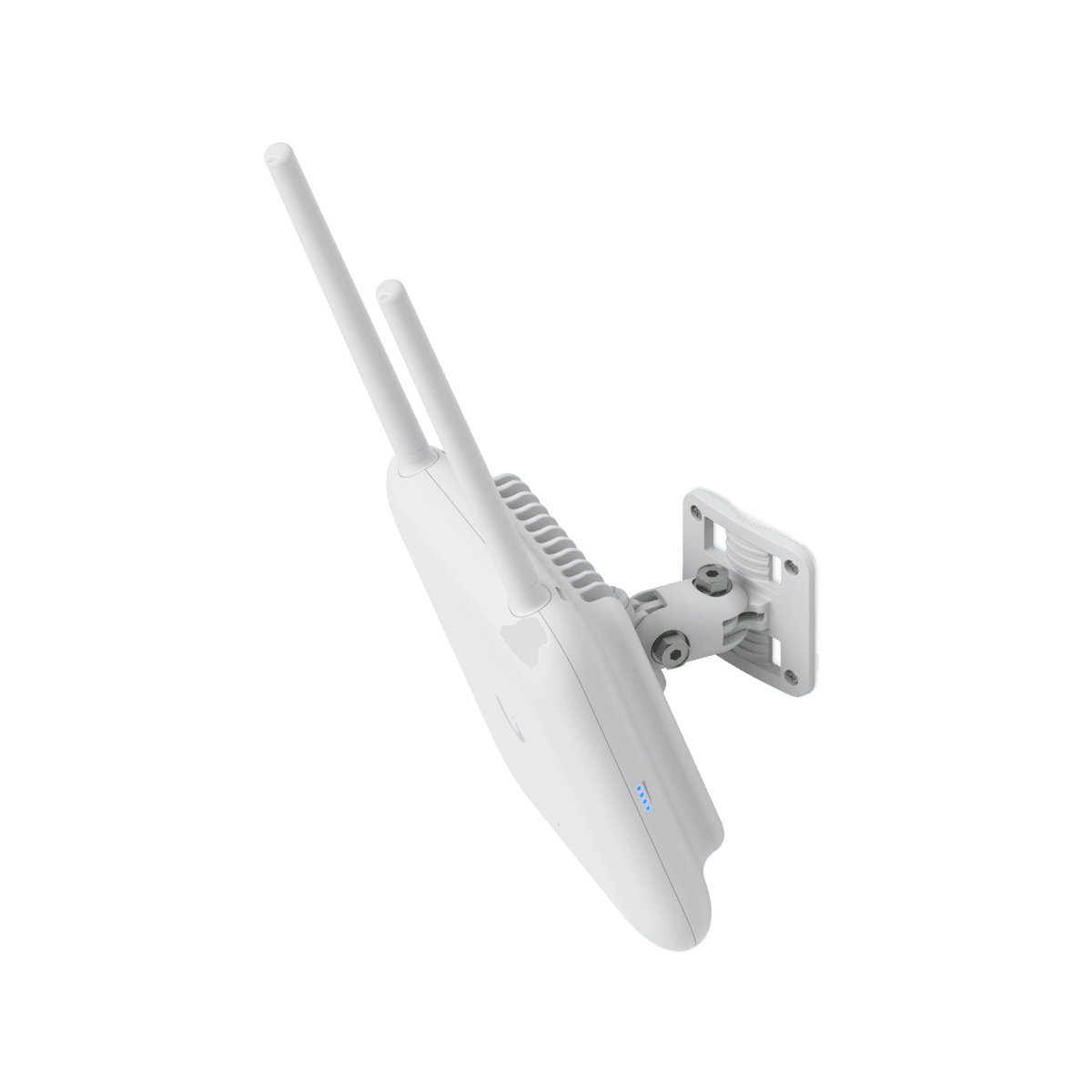

• Wall and pole mounting bracket with articulation for adjustable positioning x1

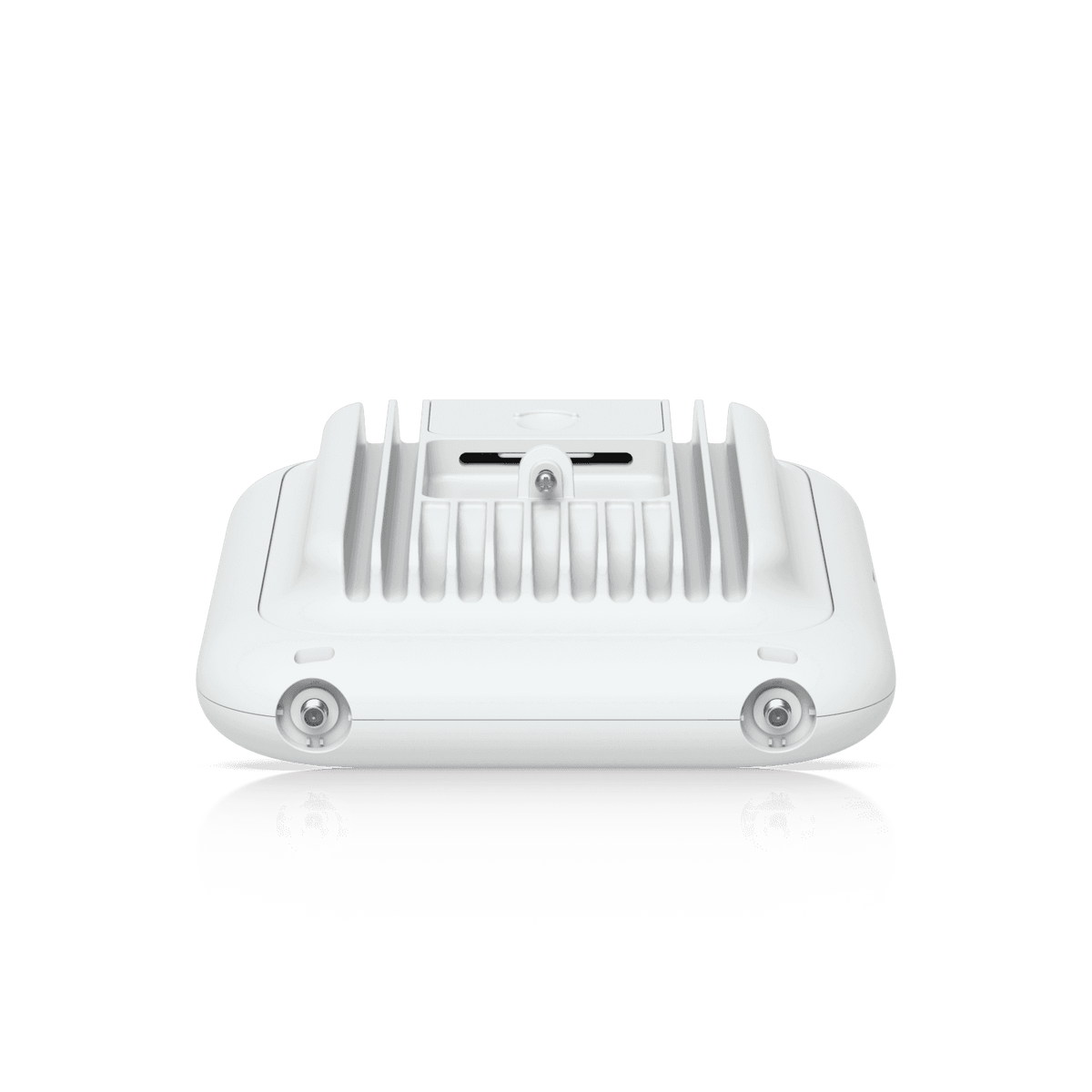

• Pair of external omnidirectional antennas (RP-SMA connectors) x1

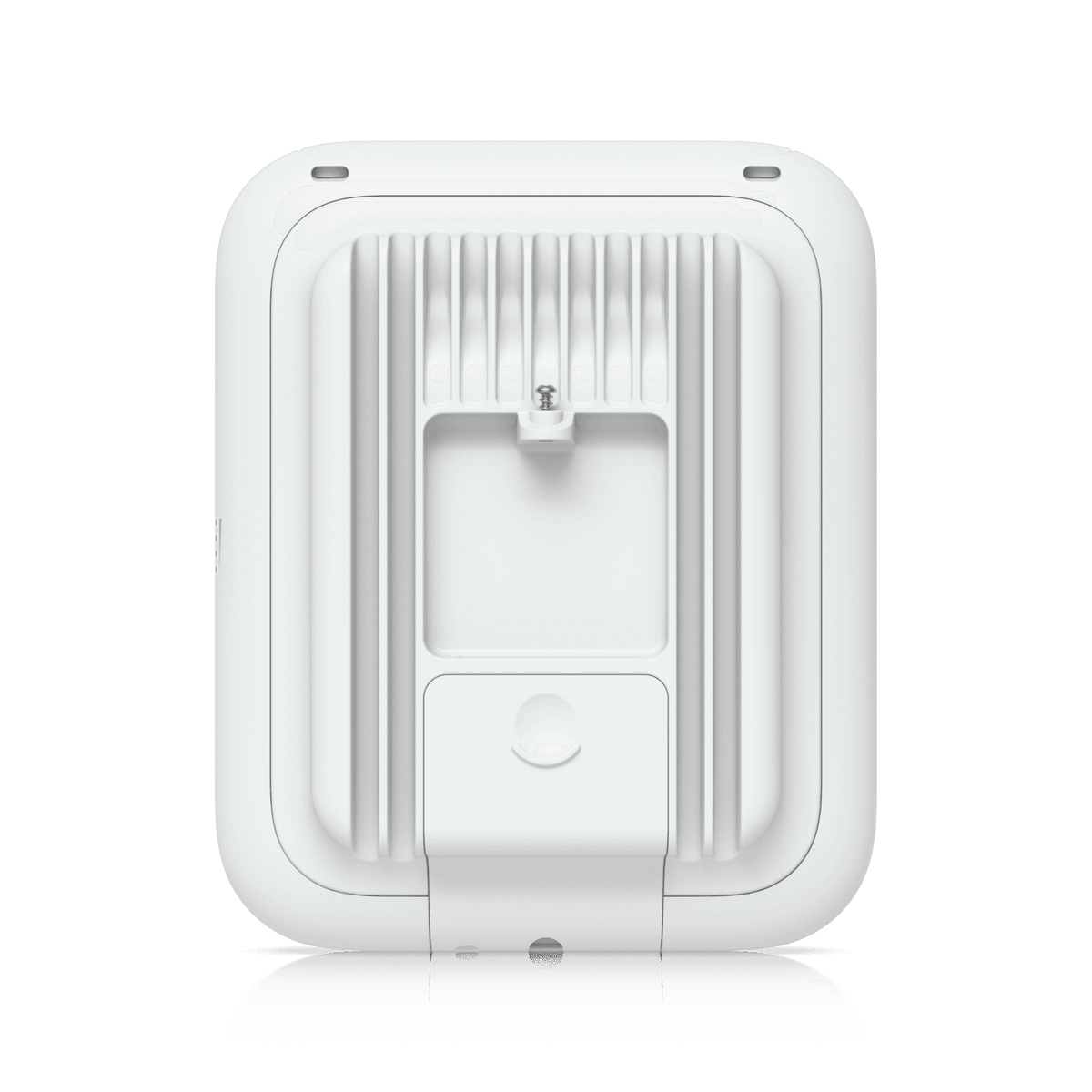

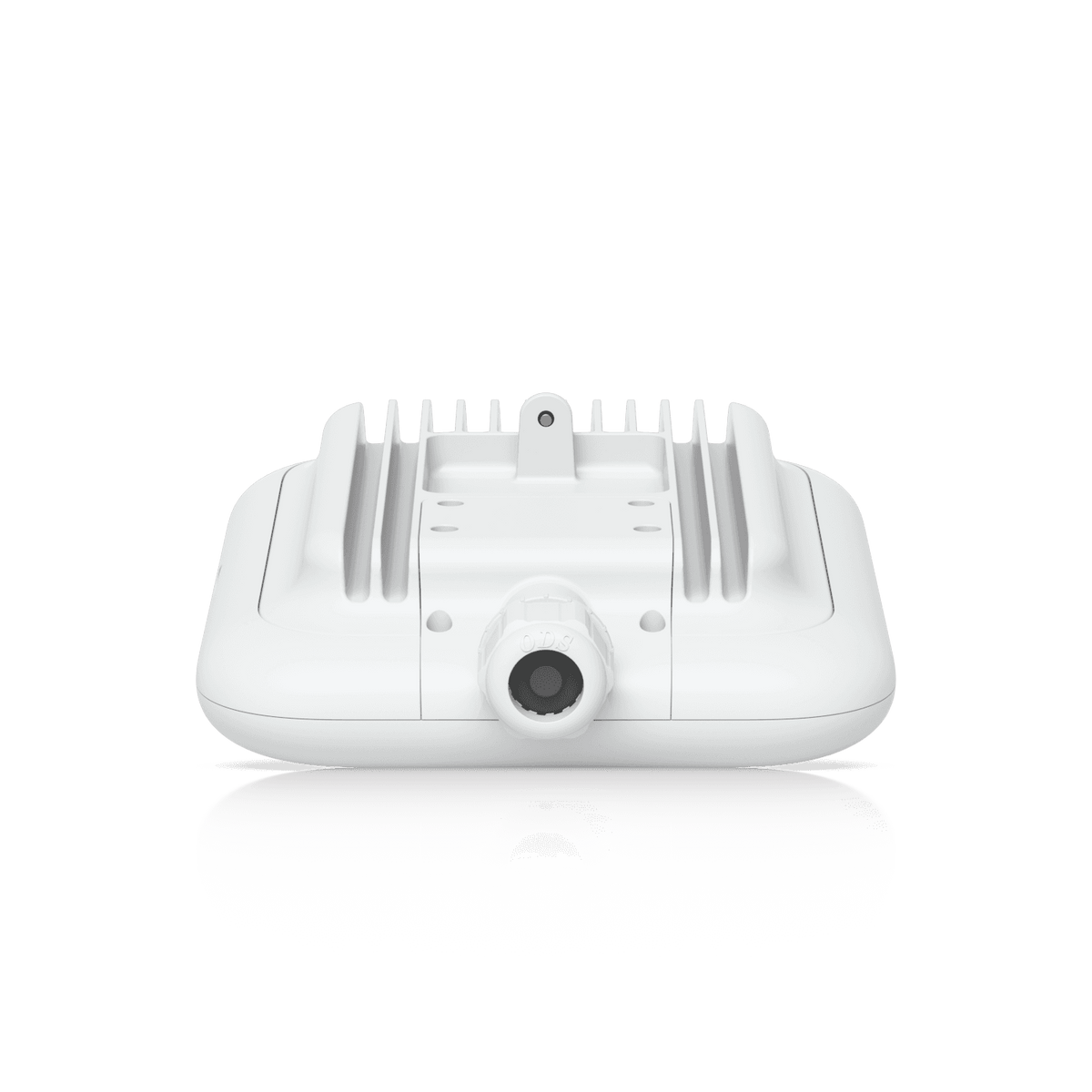

• Cable-gland door kit for upgrading weatherproofing to IP67 x1
• Drilling guide and level x1
• Installation hardware (screws, wall plugs, and cable lugs) x1
• Hex / Allen key x1

WARRANTY:

• 12 Months
