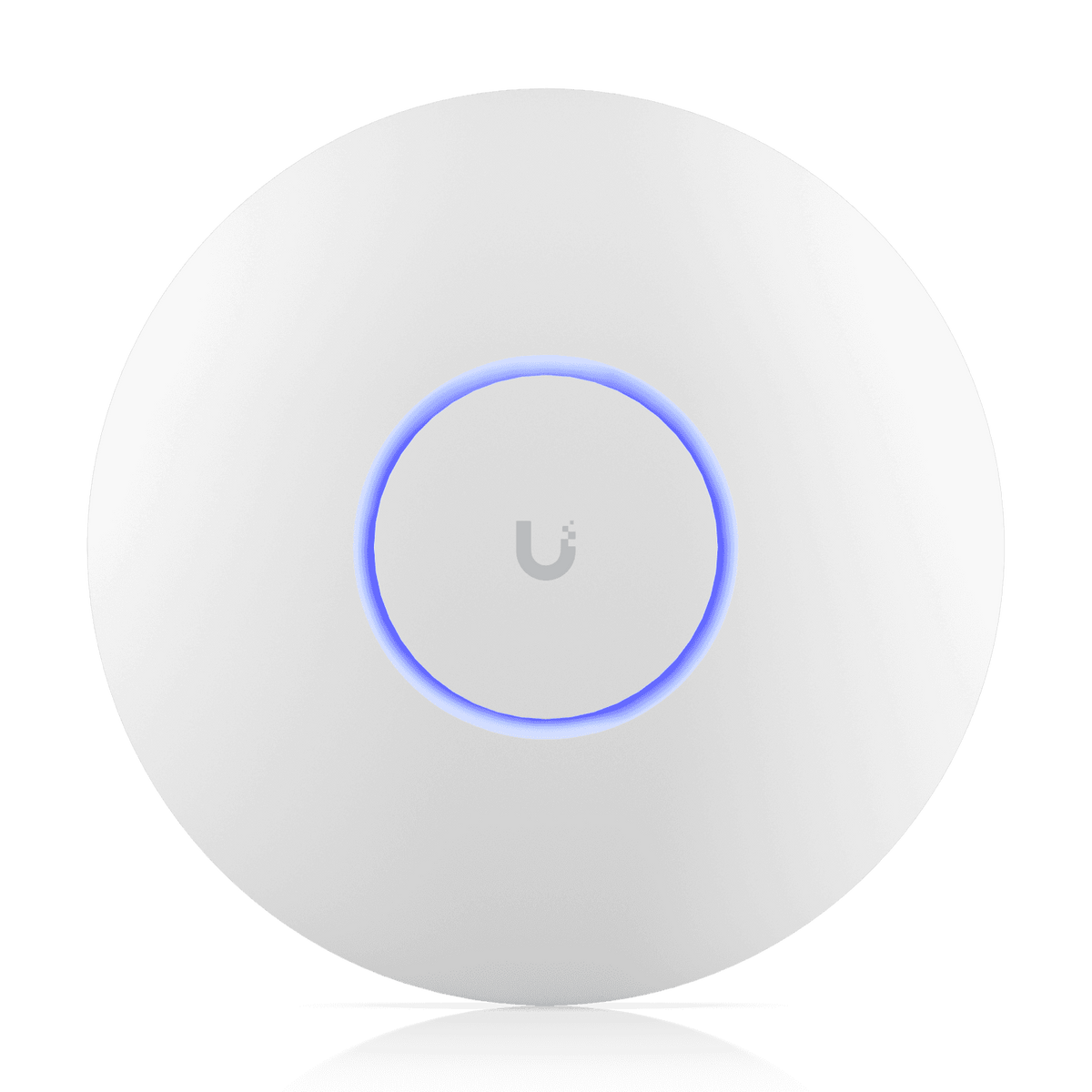

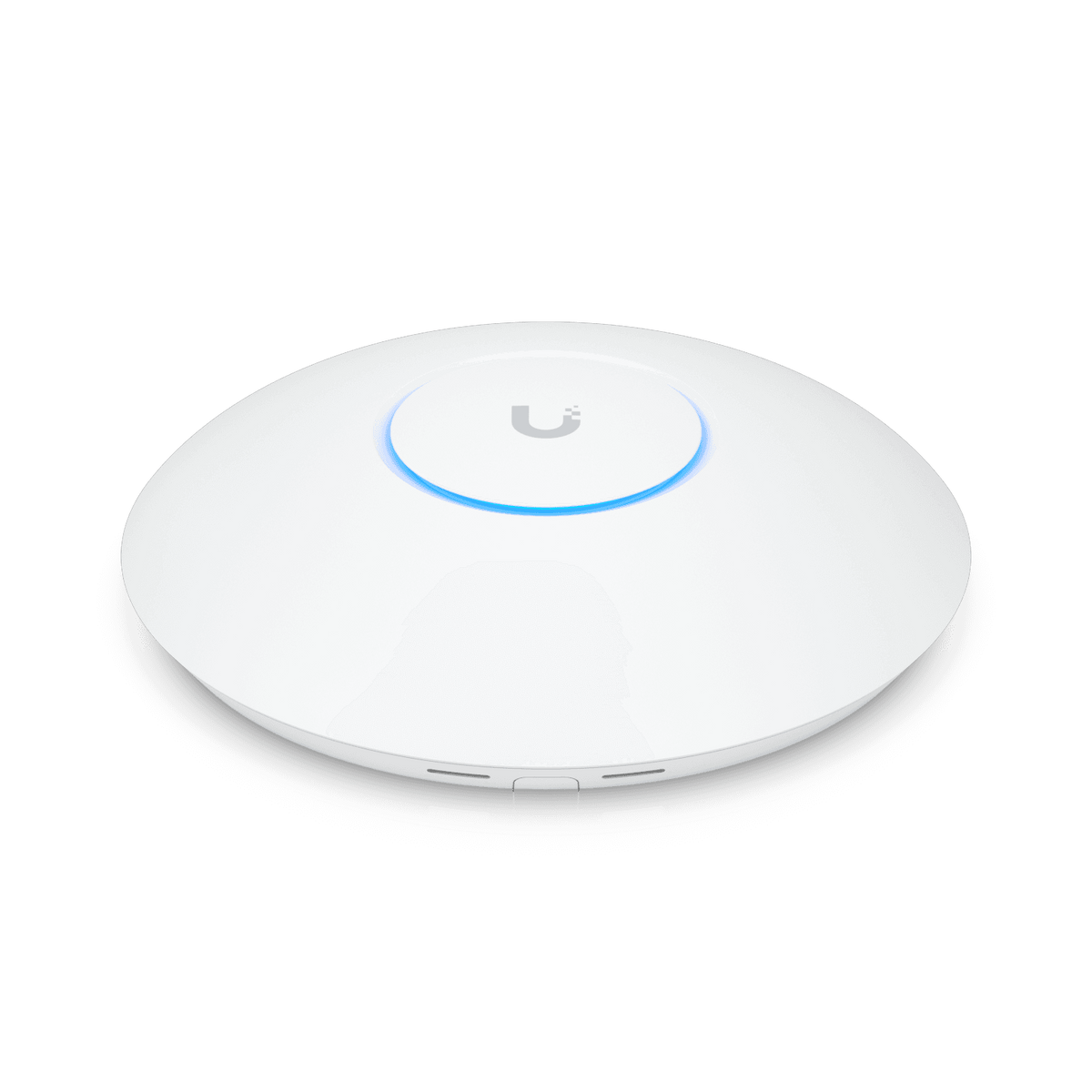

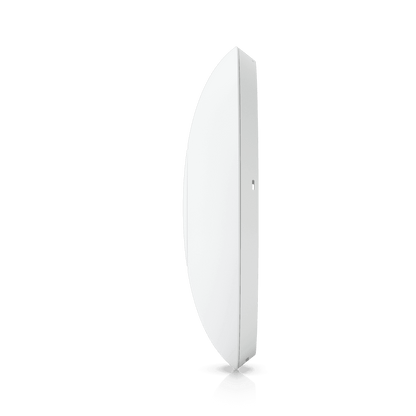

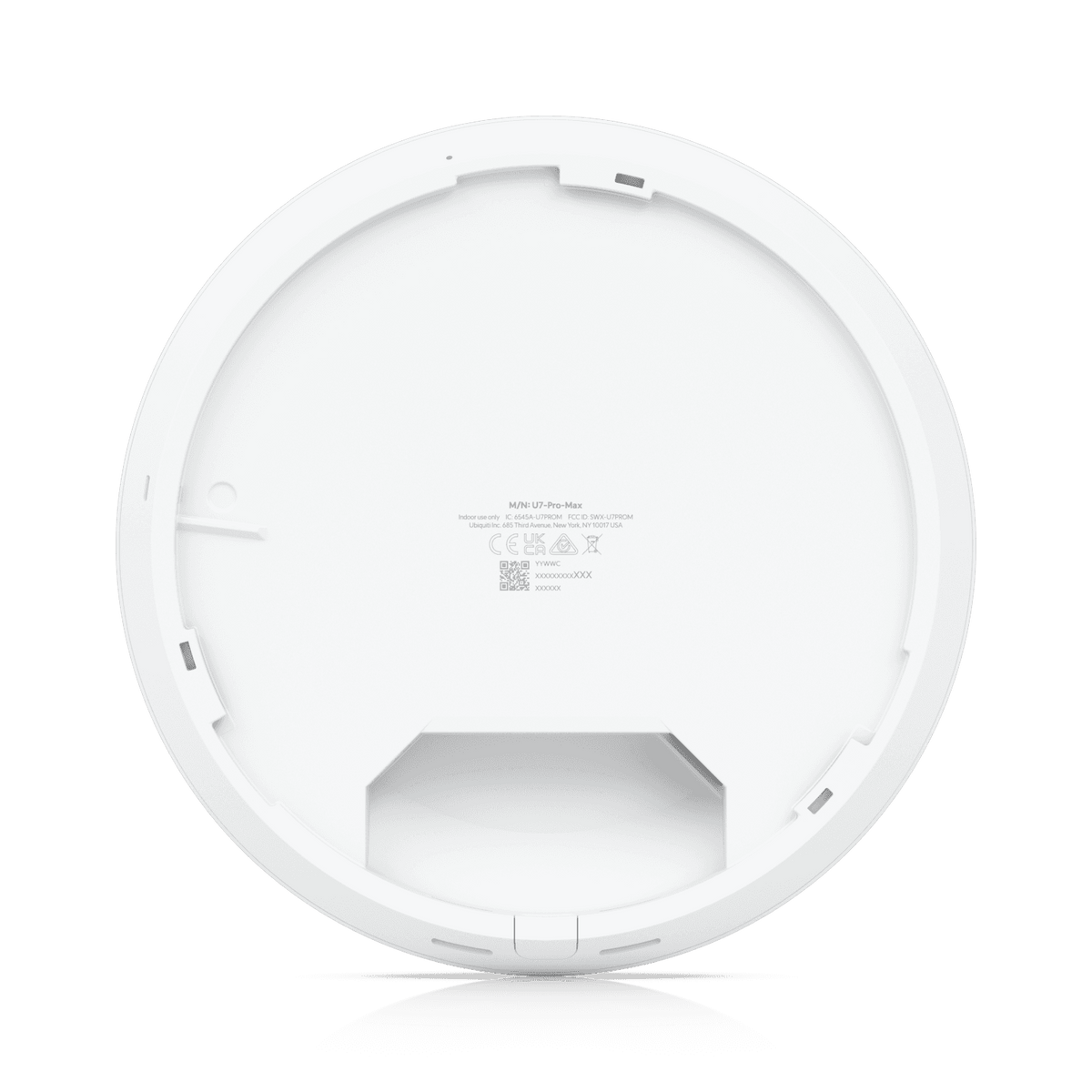

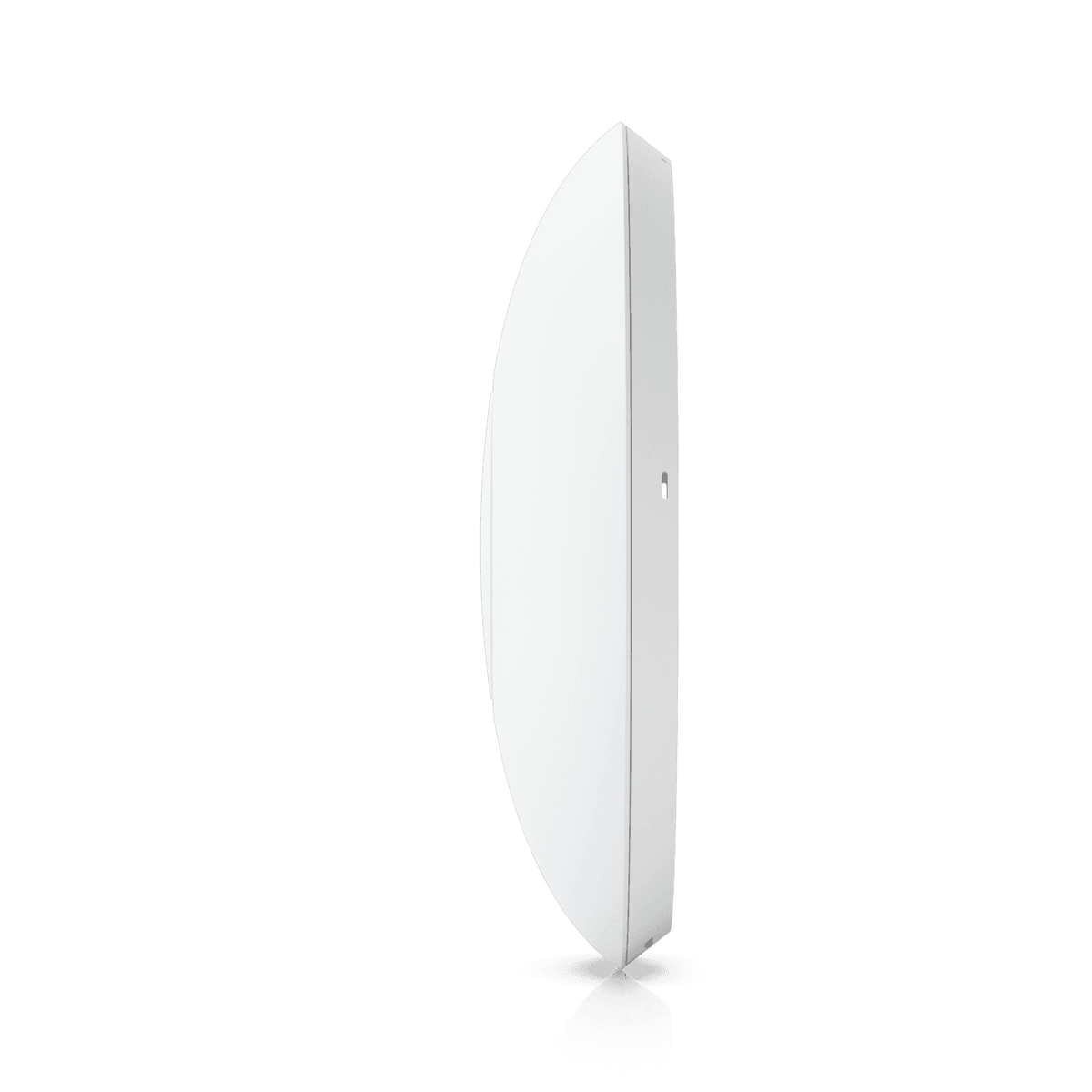

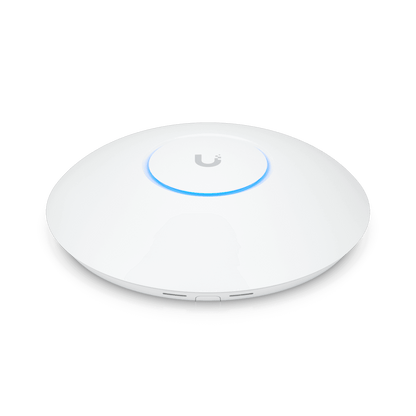

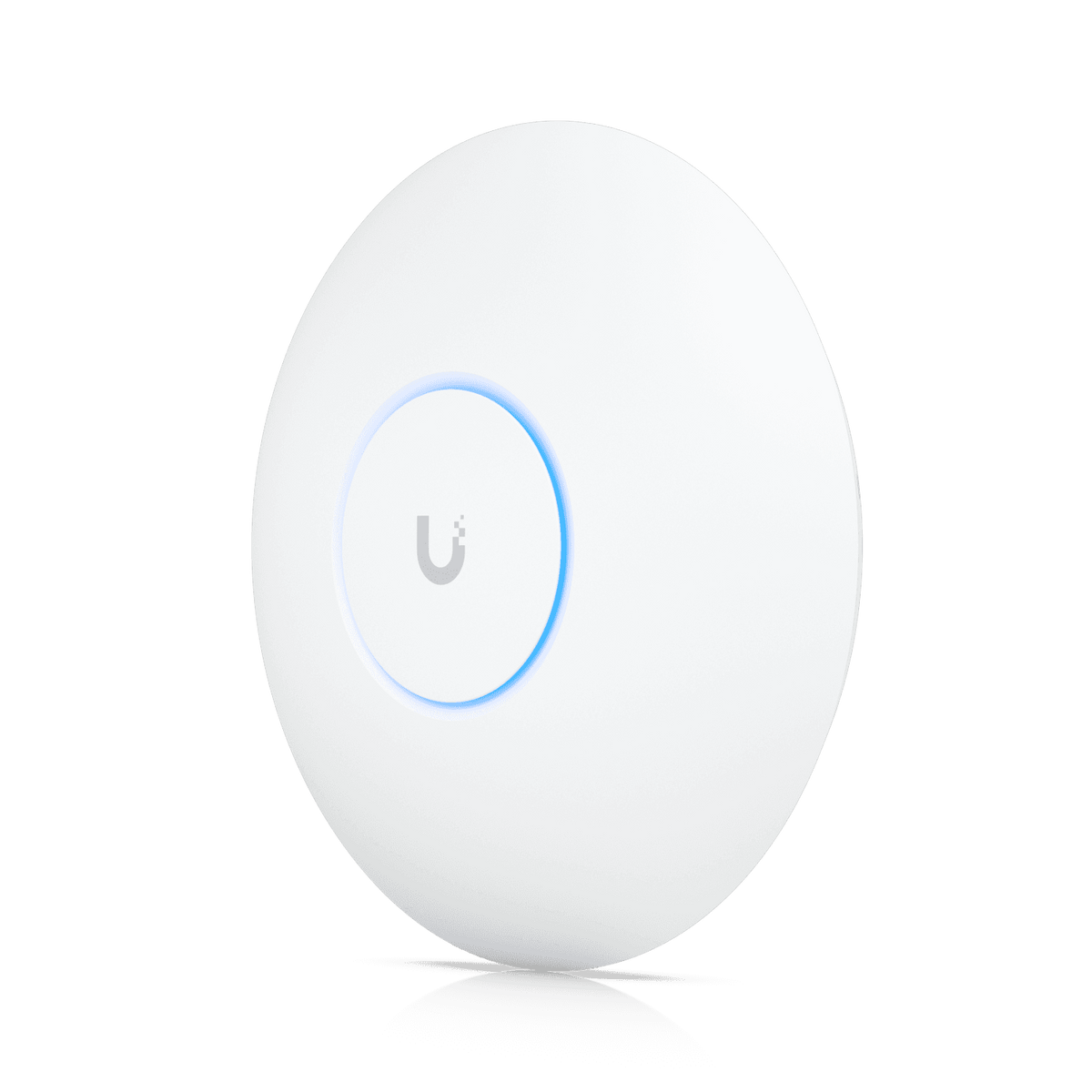

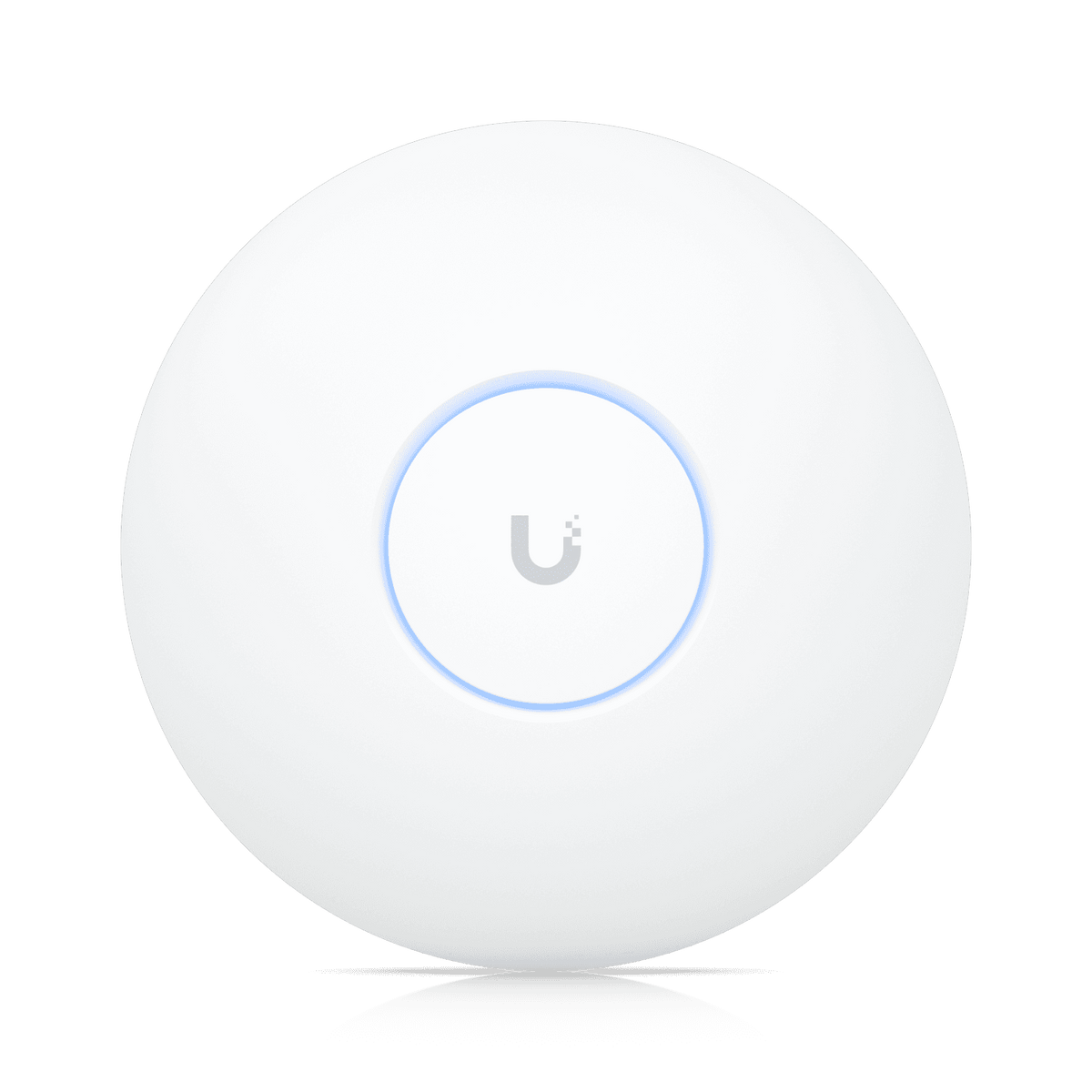

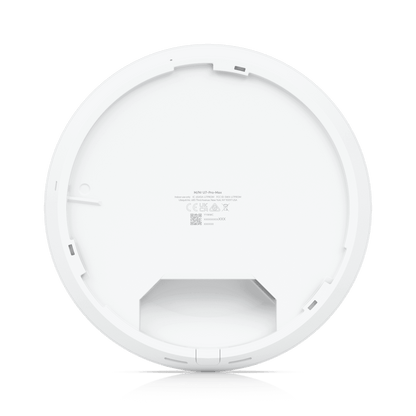

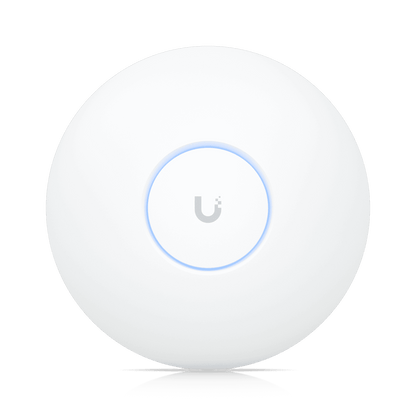

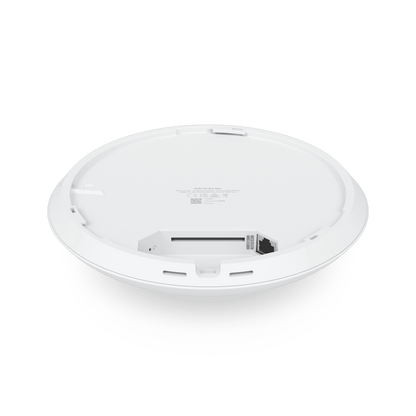

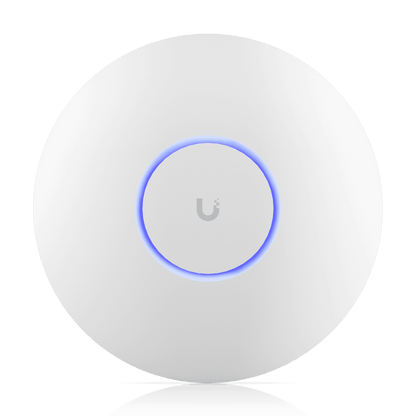

Ubiquiti UniFi WiFi 7 Pro Max Tri-Band AP

Ubiquiti's U7-Pro-Max is a Tri-Band, WiFi 7 access point featuring 1x 2.5Gbps Ethernet port as well as 6 GHz support for interference-free WiFi in demanding, large scale environments. It delivers an aggregate data rate of up to 15Gbps over its 6GHz (2x2 MU-MIMO) 5GHz (4x4 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands.

It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included.

FEATURES:

• Tri-Band Wi-Fi 7: Operates across the 2.4 GHz, 5 GHz, and 6 GHz wireless bands with a massive aggregate speed of 15 Gbps.
• 8 Spatial Streams: Upgrades the 5 GHz band to 4x4 MIMO (alongside 2x2 MIMO on 2.4 and 6 GHz), doubling its capacity compared to the standard U7 Pro.
• Dedicated Spectral Engine: Includes a standalone radio for real-time RF environment scanning, optimizing channels automatically without kicking users off the network.
• Massive Client Capacity: Engineered to easily sustain 500+ concurrent client connections, making it ideal for high-density networks.
• 2.5 GbE Uplink: Equipped with a 2.5 Gbps RJ45 Ethernet port to handle high-speed traffic without a bottleneck.
• Expanded Coverage: Boosts indoor range up to 160 m² (1,750 ft²).
• PoE+ Powered: Plugs into standard 802.3at PoE+ infrastructure with a maximum consumption of 22.5W.

SPECIFICATIONS:

• Dimensions: ⌀206 × 46 mm (⌀8.1 × 1.8")
• WiFi Standard: WiFi 7
• Spatial Streams: 8
• Coverage Area: 160 m² (1,750 ft²)
• Max. Client Count: 500+
• Uplink: 2.5 GbE
• Mounting: Ceiling, wall (Pro Mount included)
• Power Method: PoE+
• MIMO: 6 GHz: 2 × 2 (DL/UL MU-MIMO)
• MIMO: 5 GHz: 4 × 4 (DL/UL MU-MIMO)
• MIMO: 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)
• Maximum Data Rate: 6 GHz: 5.8 Gbps (BW320)
• Maximum Data Rate: 5 GHz: 8.6 Gbps (BW240)
• Maximum Data Rate: 2.4 GHz: 688 Mbps (BW40)
• Antenna Gain: 6 GHz: 5.9 dBi
• Antenna Gain: 5 GHz: 6 dBi
• Antenna Gain: 2.4 GHz: 4 dBi
• Maximum TX Power: 6 GHz: 23 dBm
• Maximum TX Power: 5 GHz: 29 dBm
• Maximum TX Power: 2.4 GHz: 23 dBm
• Maximum BSSIDs: 8 per radio
• 802.11be (WiFi 7) Data Rates: 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0–MCS13, NSS1/2, EHT 20/40/80/160/320)
• 802.11be (WiFi 7) Data Rates: 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0–MCS13, NSS1/2/3/4, EHT 20/40/80/160/240)
• 802.11ax (WiFi 6/6E) Data Rates: 7.3 Mbps to 4.8 Gbps (MCS0–MCS11, NSS1/2/3/4, HE 20/40/80/160)
• 802.11ac (WiFi 5) Data Rates: 6.5 Mbps to 3.4 Gbps (MCS0–MCS9, NSS1/2/3/4, VHT 20/40/80/160)
• 802.11n Data Rates: 6.5 Mbps to 600 Mbps (MCS0–MCS31, HT 20/40)
• Wireless Meshing: ✓
• Band Steering: ✓
• 802.11v BSS Transition Management: ✓
• 802.11r Fast Roaming: ✓
• 802.11k Radio Resource Management (RRM): ✓
• Zero-Wait DFS: ✓
• Advanced Radio Management: ✓
• Real-Time Spectral Analysis: ✓
• Passpoint (Hotspot 2.0): ✓
• Custom Branding Landing Page: ✓
• Voucher Authentication: ✓
• Payment-Based Authentication: ✓
• External Portal Server Support: ✓
• Password Authentication: ✓
• Guest Network Isolation: ✓
• Private Pre-Shared Key (PPSK): ✓
• WiFi Speed Limiting: ✓
• Client Device Isolation: ✓
• WiFi Schedules: ✓
• RADIUS over TLS (RadSec): ✓
• Dynamic RADIUS-assigned VLAN: ✓
• Maximum Power Consumption: 25 W
• Supported Voltage Range: 44–57 V DC
• Networking Interface: 1 × 1/2.5 GbE RJ45 port
• Weight: 680 g (1.5 lb)
• Management: Ethernet
• Enclosure Material: Polycarbonate, aluminum
• Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
• LED: System: White/Blue
• Channel Bandwidth: HT 20/40 MHz
• Channel Bandwidth: VHT 20/40/80/160 MHz
• Channel Bandwidth: HE 20/40/80/160 MHz
• Channel Bandwidth: EHT 20/40/80/160/240/320 MHz
• Operating Frequency (US/Canada): 2400–2472 MHz
• Operating Frequency (US/Canada): U-NII-1: 5150–5250 MHz
• Operating Frequency (US/Canada): U-NII-2A: 5250–5350 MHz
• Operating Frequency (US/Canada): U-NII-2C: 5470–5725 MHz
• Operating Frequency (US/Canada): U-NII-3: 5725–5850 MHz
• Operating Frequency (US/Canada): U-NII-5 to U-NII-8: 5925–7125 MHz
• Operating Frequency (Worldwide): 2400–2483.5 MHz
• Operating Frequency (Worldwide): 5150–5850 MHz
• Operating Frequency (Worldwide): 5925–7125 MHz
• Ambient Operating Temperature: −30 to 50°C (−22 to 122°F)
• Ambient Operating Humidity: 5–95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, Anatel: 08959-24-08356
• Application Requirements: UniFi Network
• Minimum UniFi Network Version: 8.2.93 or later

WHAT’S IN THE BOX:

• U7 Pro Max Access Point unit (featuring a built-in fan and side exhaust vents) x1
• Universal Mounting Plate (Pro Mount) made of steel x1
• Ceiling backing plate for tile/grid ceiling mounting x1
• Drilling template with a built-in leveling bubble x1
• T-bar ceiling clips x1
• Hardware and screw kit (anchors, wall screws, ceiling tile bolts) x1
• Plastic grommet for neat wall cable pass-through x1
• Device release tool x1

WARRANTY:

• 12 Months
