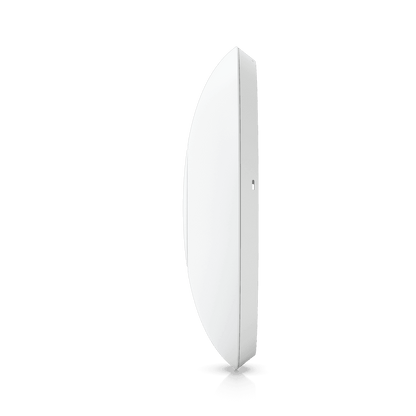

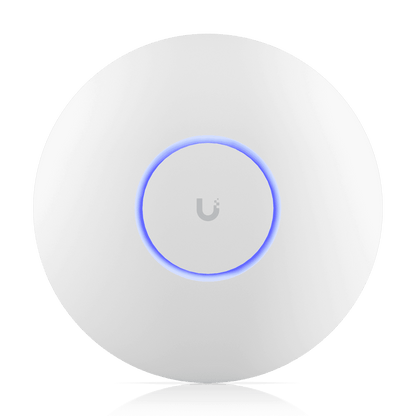

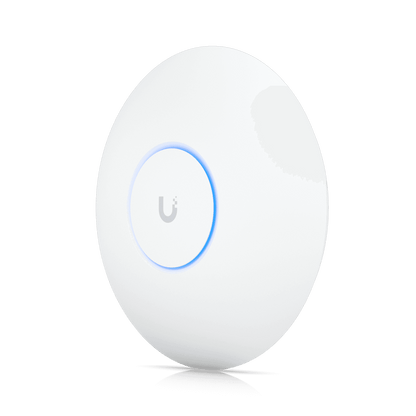

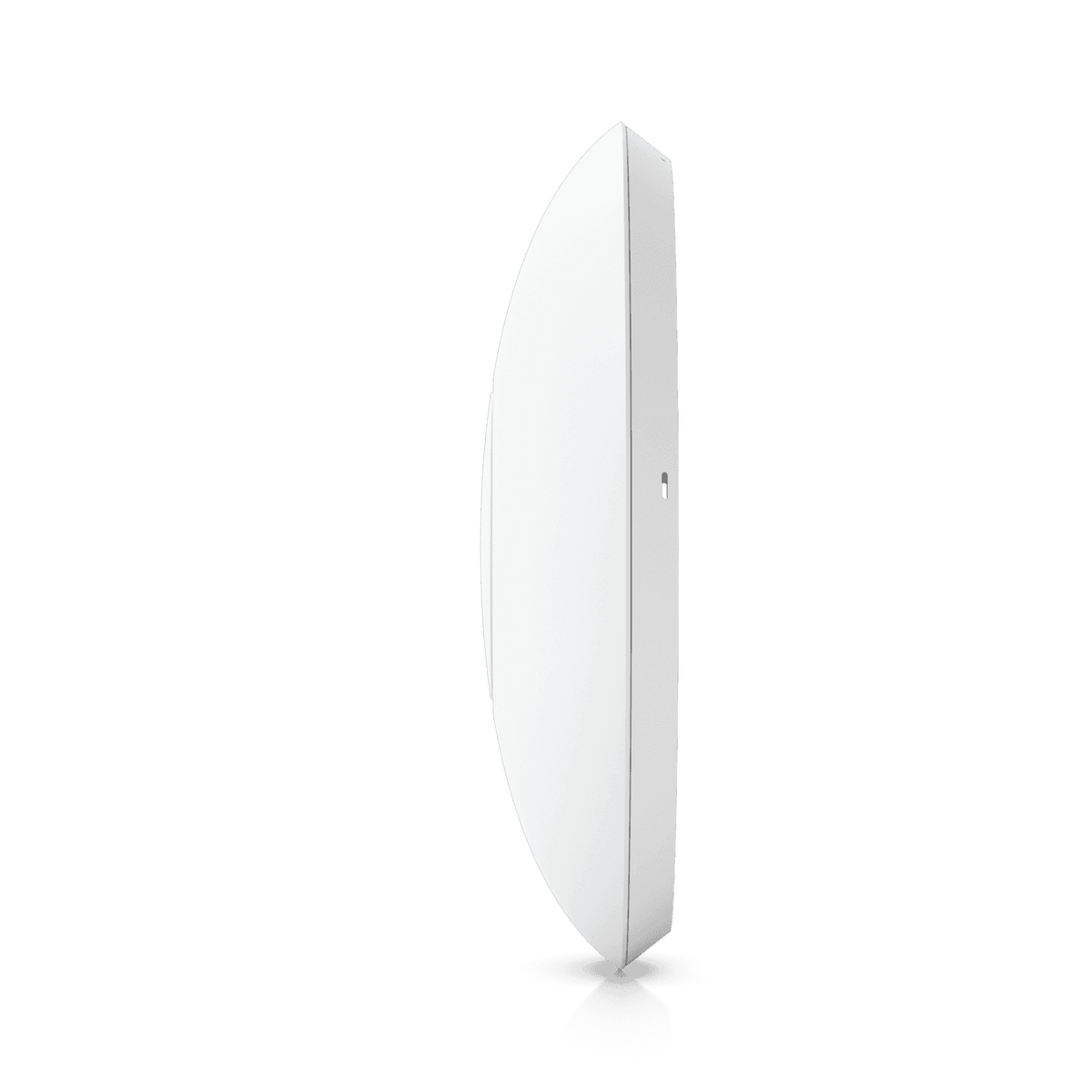

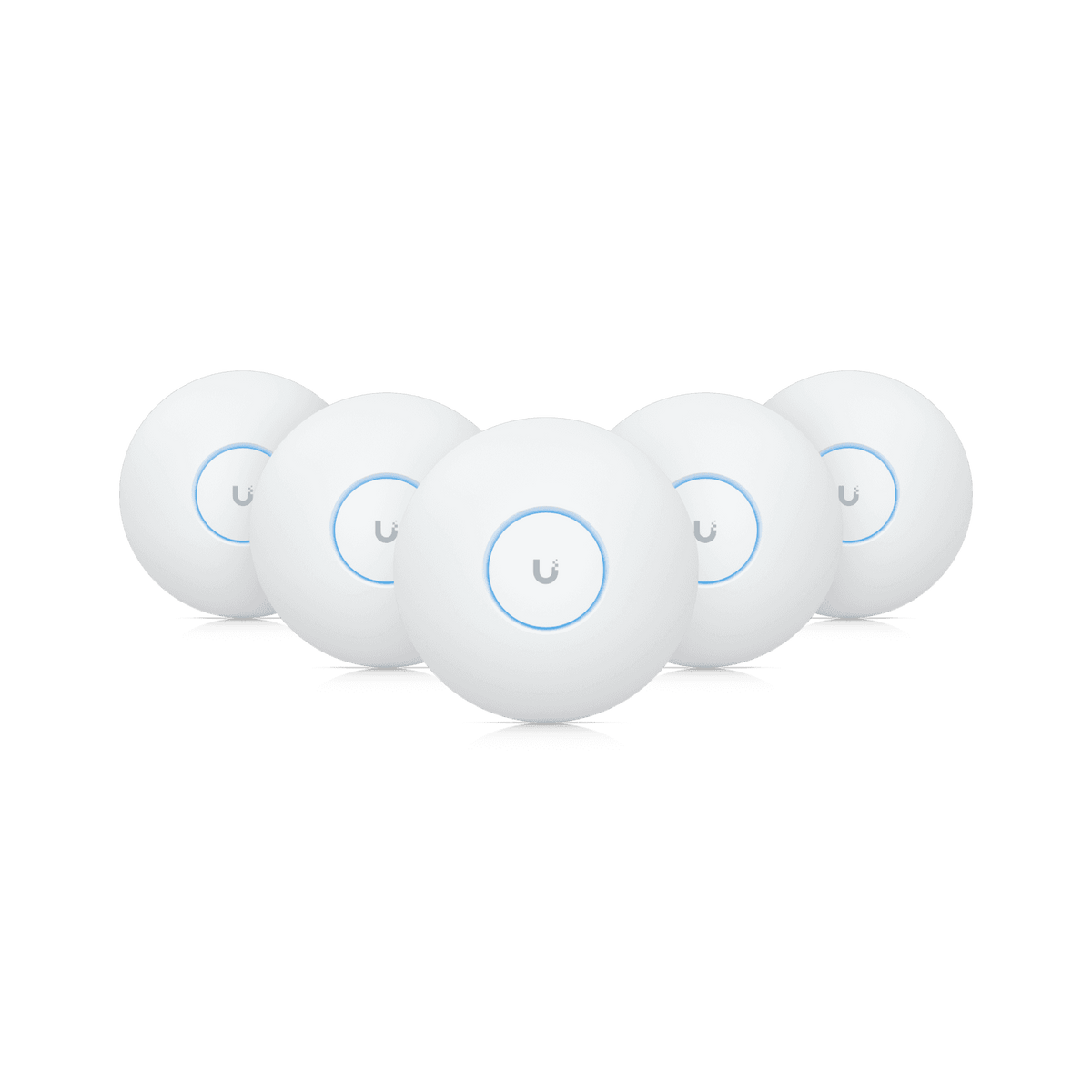

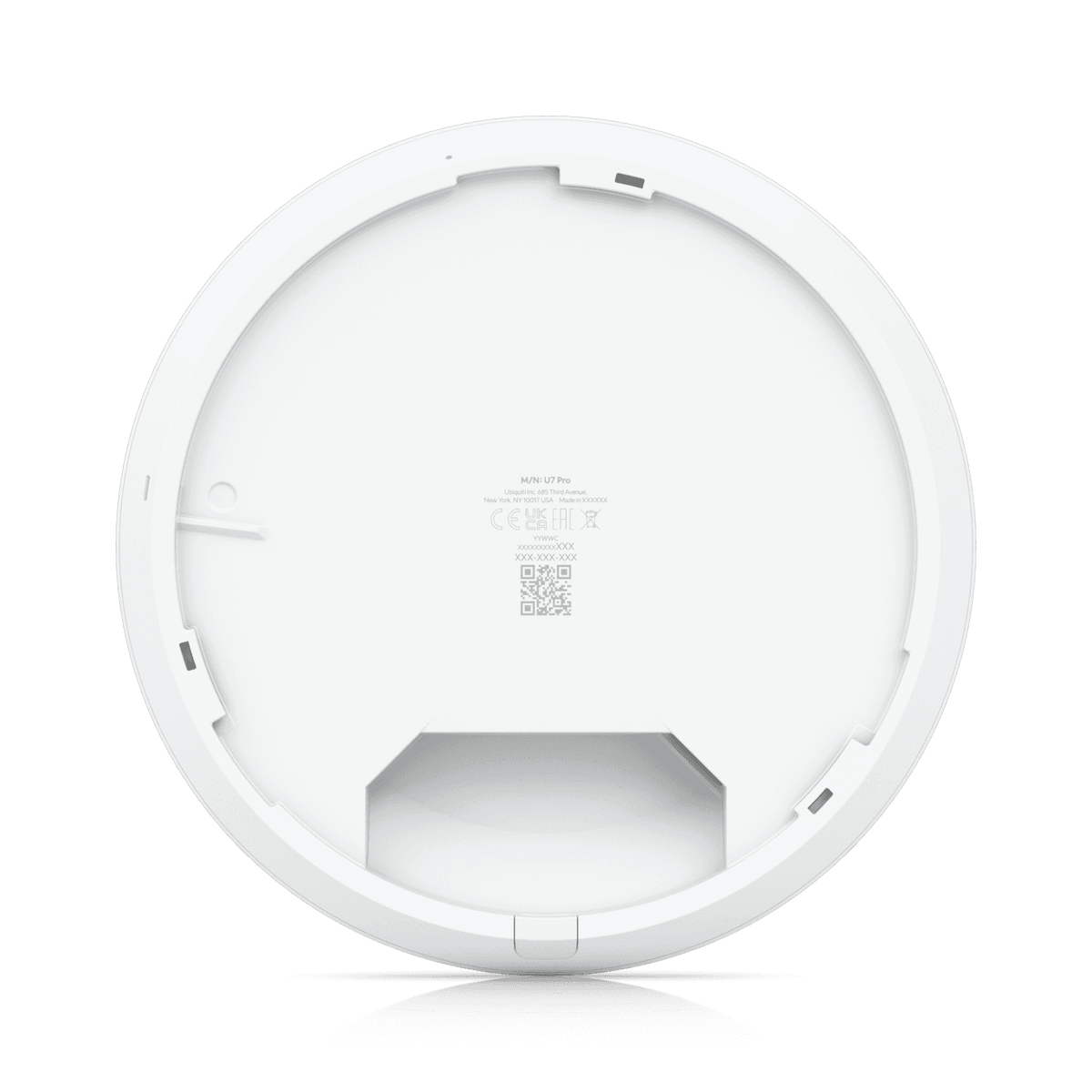

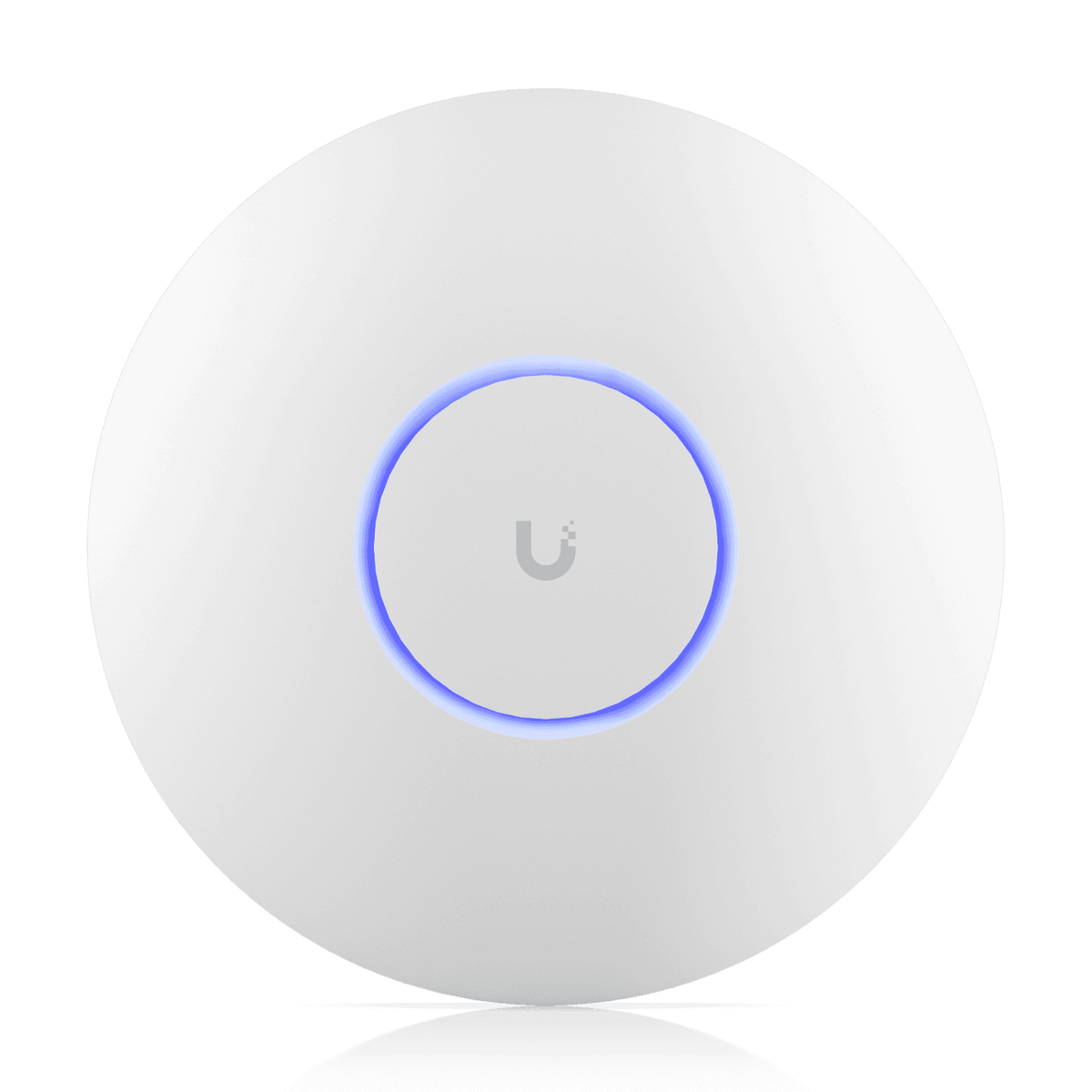

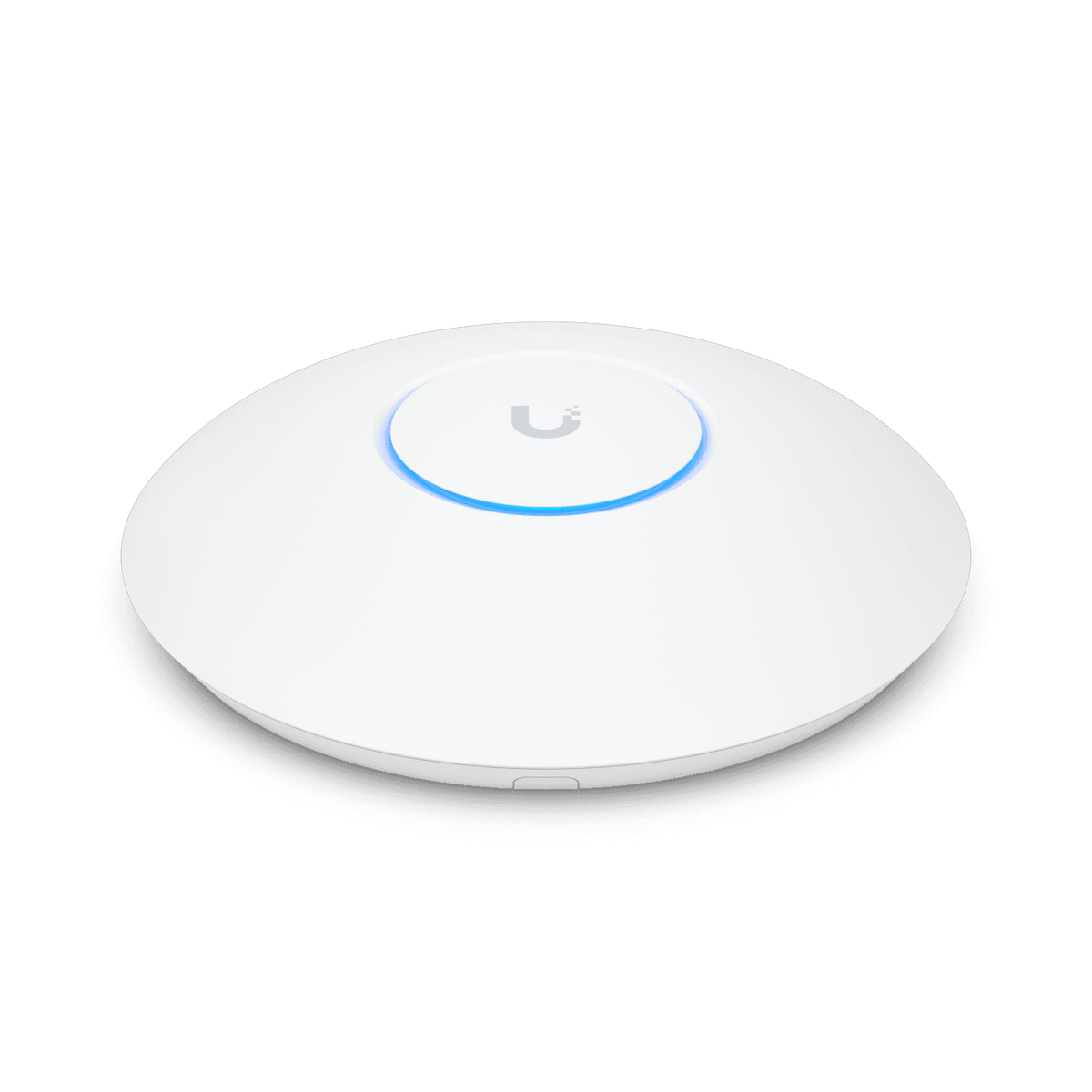

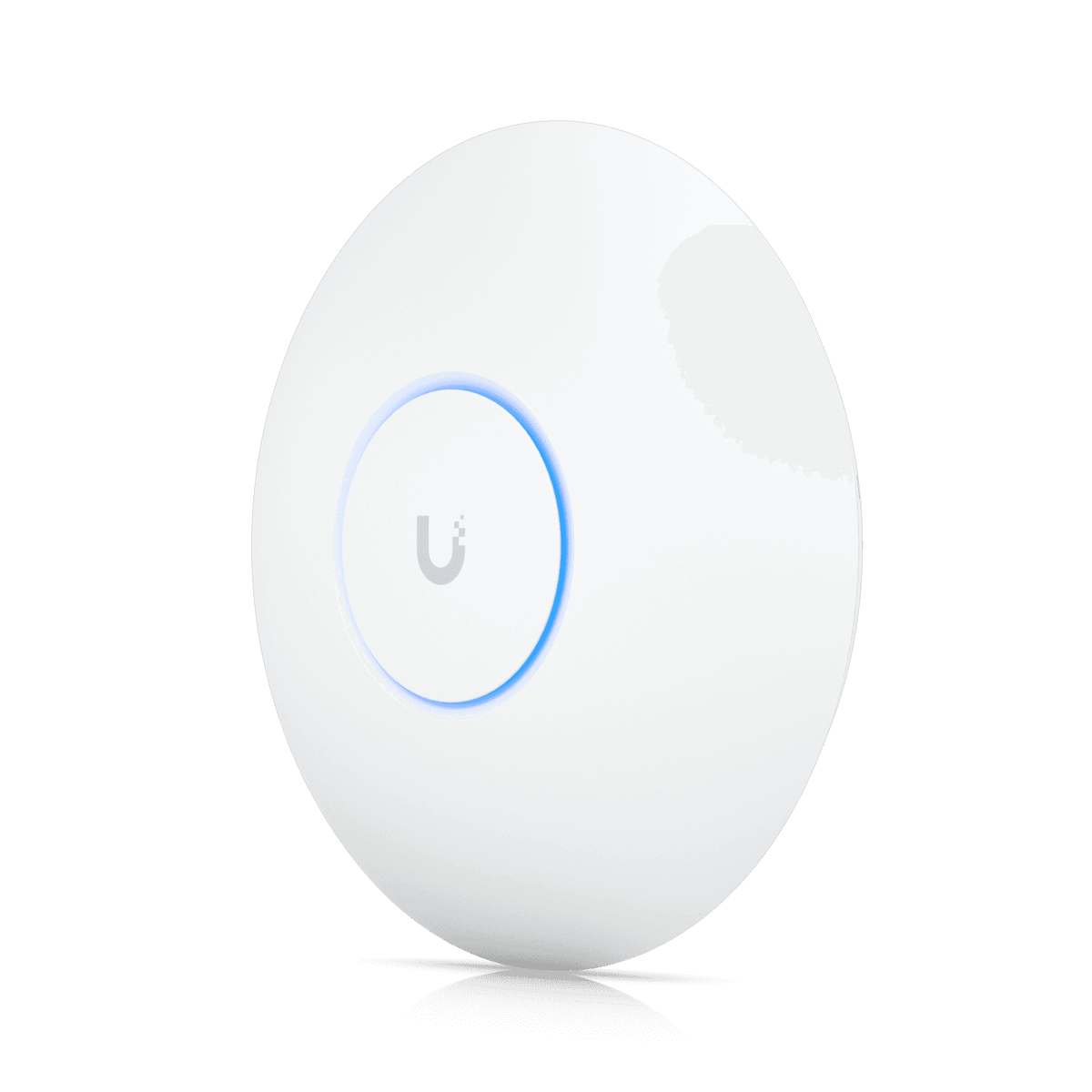

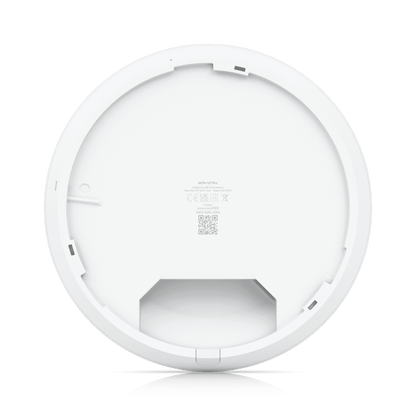

Ubiquiti UniFi WiFi 7 Pro Tri-Band AP

Ubiquiti's U7-Pro is a Tri-Band WiFi 7 access point featuring 1x 2.5Gbps Ethernet port as well as 6 GHz support for interference-free WiFi in demanding environments. It delivers an aggregate data rate of up to 9.3Gbps over its 6GHz (2x2 MU-MIMO) 5GHz (2x2 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands.

It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included.

FEATURES:

• Tri-Band Wi-Fi 7: Operates on the 2.4 GHz, 5 GHz, and high-speed 6 GHz bands for an aggregate wireless throughput of up to 9.3 Gbps.
• 6 Spatial Streams: Uses a 6-stream setup (2x2 MIMO on all three bands) to maximize data capacity.
• 2.5 GbE Uplink: Equipped with a 2.5 Gbps RJ45 port to handle high-bandwidth backhaul.
• Indoor Coverage: Designed for indoor areas, covering up to 140 m² (1,500 ft²).
• High Client Capacity: Supports 300+ concurrent connections, making it ideal for dense environments.
• Drop-in Upgrade: Shared mounting profile with older models like the UAP-AC-Pro for effortless swapping.
• PoE+ Powered: Operates via standard 802.3at PoE+ power.

SPECIFICATIONS:

• Dimensions: ⌀206 × 46 mm (⌀8.1 × 1.8")
• WiFi Standard: WiFi 7
• Spatial Streams: 6
• Coverage Area: 140 m² (1,500 ft²)
• Max. Client Count: 300+
• Uplink: 2.5 GbE
• Mounting: Ceiling, wall (Pro Mount included)
• Power Method: PoE+
• MIMO:
• 6 GHz: 2 × 2 (DL/UL MU-MIMO)
• 5 GHz: 2 × 2 (DL/UL MU-MIMO)
• 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)
• Maximum Data Rate:
• 6 GHz: 5.8 Gbps (BW320)
• 5 GHz: 4.3 Gbps (BW240)
• 2.4 GHz: 688 Mbps (BW40)
• Antenna Gain:
• 6 GHz: 5.8 dBi
• 5 GHz: 6 dBi
• 2.4 GHz: 4 dBi
• Maximum TX Power:
• 6 GHz: 23 dBm
• 5 GHz: 26 dBm
• 2.4 GHz: 23 dBm
• Maximum BSSIDs: 8 per radio
• 802.11be (WiFi 7) Data Rates: 7.3 Mbps to 5.8 Gbps (MCS0–MCS13, NSS1/2, EHT 20/40/80/160/240/320)
• 802.11ax (WiFi 6/6E) Data Rates: 7.3 Mbps to 2.4 Gbps (MCS0–MCS11, NSS1/2, HE 20/40/80/160)
• 802.11ac (WiFi 5) Data Rates: 6.5 Mbps to 1.7 Gbps (MCS0–MCS9, NSS1/2, VHT 20/40/80/160)
• 802.11n Data Rates: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)
• Wireless Meshing: ✓
• Band Steering: ✓
• 802.11v BSS Transition Management: ✓
• 802.11r Fast Roaming: ✓
• 802.11k Radio Resource Management (RRM): ✓
• Advanced Radio Management: ✓
• Passpoint (Hotspot 2.0): ✓
• Custom Branding Landing Page: ✓
• Voucher Authentication: ✓
• Payment-Based Authentication: ✓
• External Portal Server Support: ✓
• Password Authentication: ✓
• Guest Network Isolation: ✓
• Private Pre-Shared Key (PPSK): ✓
• WiFi Speed Limiting: ✓
• Client Device Isolation: ✓
• WiFi Schedules: ✓
• RADIUS over TLS (RadSec): ✓
• Dynamic RADIUS-assigned VLAN: ✓
• Maximum Power Consumption: 21 W
• Supported Voltage Range: 44–57 V DC

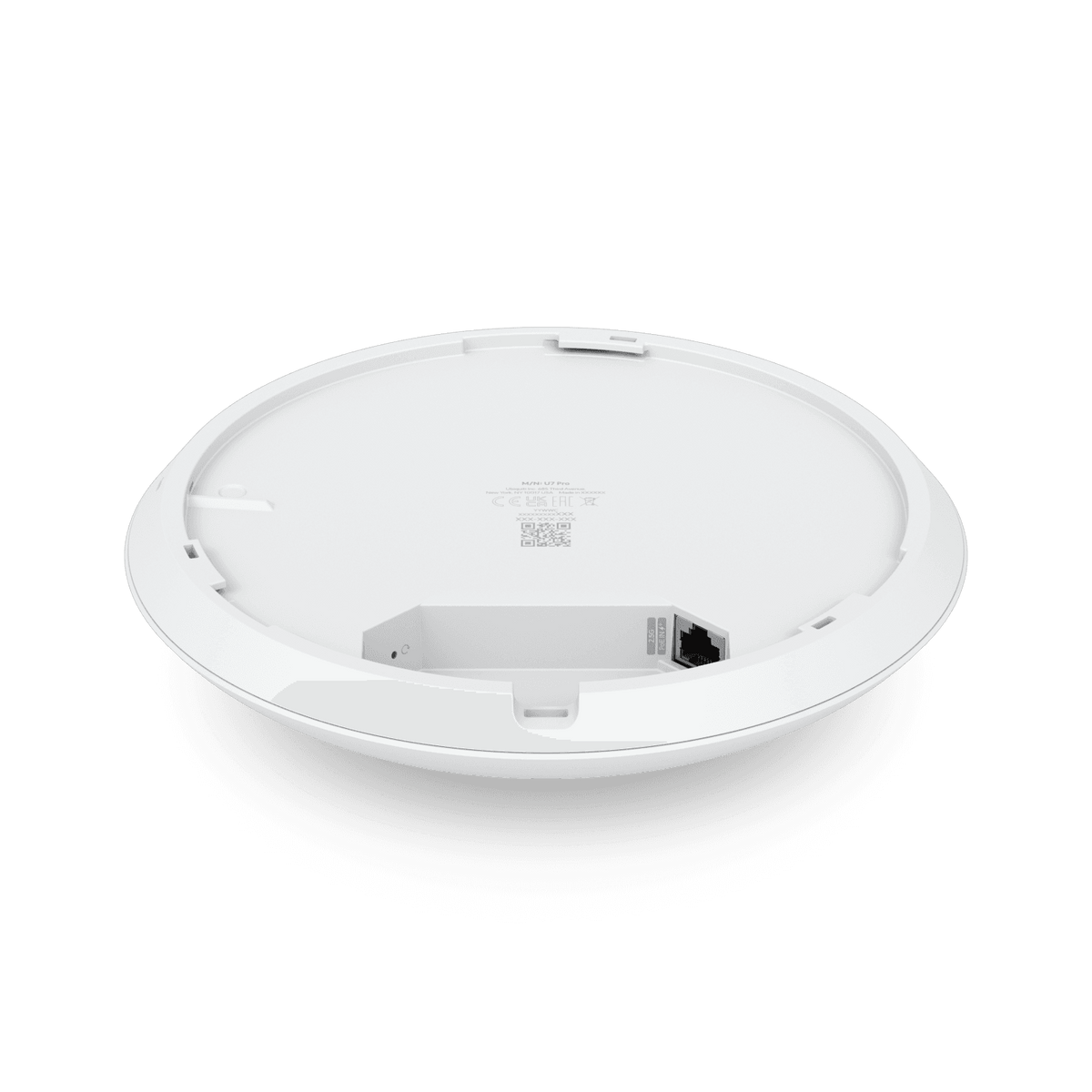

• Networking Interface: 1 × 1/2.5 GbE RJ45 port
• Weight: 680 g (1.5 lb)
• Management: Ethernet
• Enclosure Material: Polycarbonate, metal
• Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
• LED: System: White/Blue
• Channel Bandwidth: HT 20/40 MHz
• Channel Bandwidth: VHT 20/40/80/160 MHz
• Channel Bandwidth: HE 20/40/80/160 MHz
• Channel Bandwidth: EHT 20/40/80/160/240/320 MHz
• Operating Frequency (US/Canada):
• 2400–2472 MHz
• U-NII-1: 5150–5250 MHz
• U-NII-2A: 5250–5350 MHz
• U-NII-2C: 5470–5725 MHz
• U-NII-3: 5725–5850 MHz
• U-NII-5 to U-NII-8: 5925–7125 MHz
• Operating Frequency (Worldwide):
• 2400–2483.5 MHz
• 5150–5850 MHz
• 5925–7125 MHz
• Ambient Operating Temperature: −30 to 40°C (−22 to 104°F)
• Ambient Operating Humidity: 5–95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, Anatel: 06370-24-08356
• Application Requirements: UniFi Network
• Minimum UniFi Network Version: 8.0.28 or later

WHAT’S IN THE BOX:

• U7 Pro Access Point unit x1
• Universal Mounting Plate (Pro Mount) made of steel x1
• Ceiling backing plate for false ceiling installations x1
• Drilling/cutout guide with a built-in bubble level x1
• T-bar ceiling track clips x1
• Mounting hardware kit (screws, wall anchors, and extra-long bolts for ceiling tiles) x1
• Device release/removal tool and Allen key x1
• Quick start guide / documentation x1

WARRANTY:

• 12 Months
